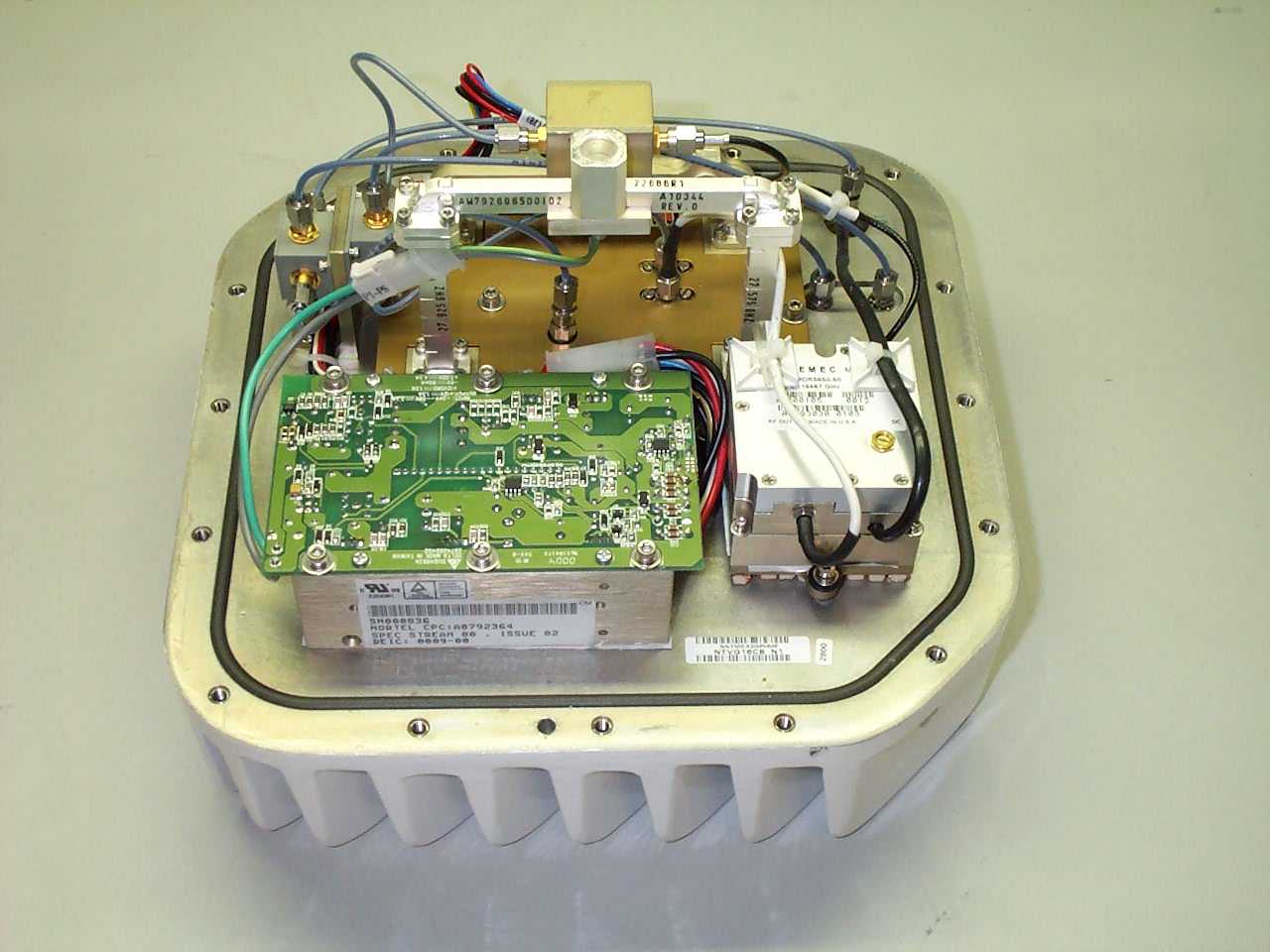

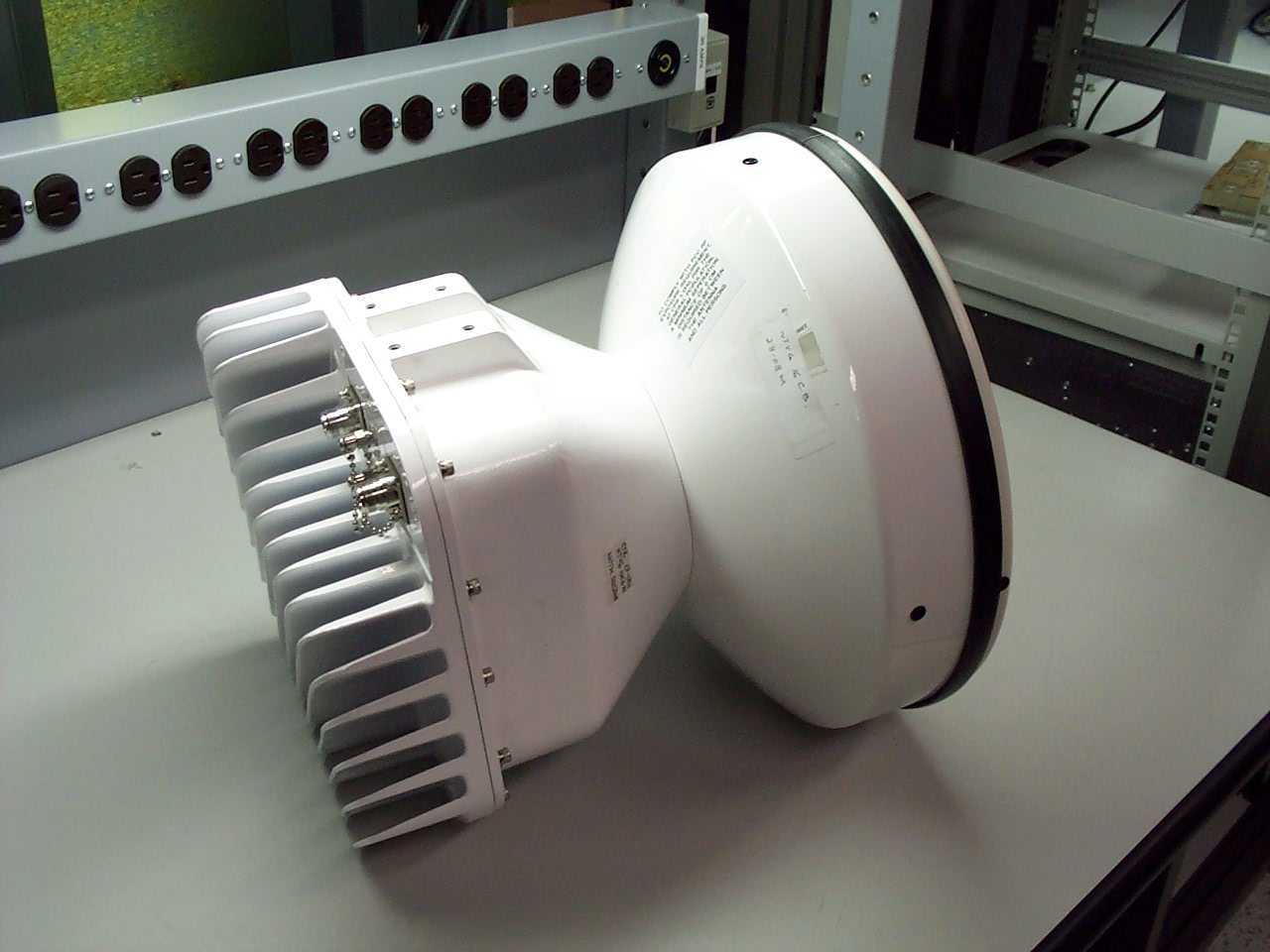

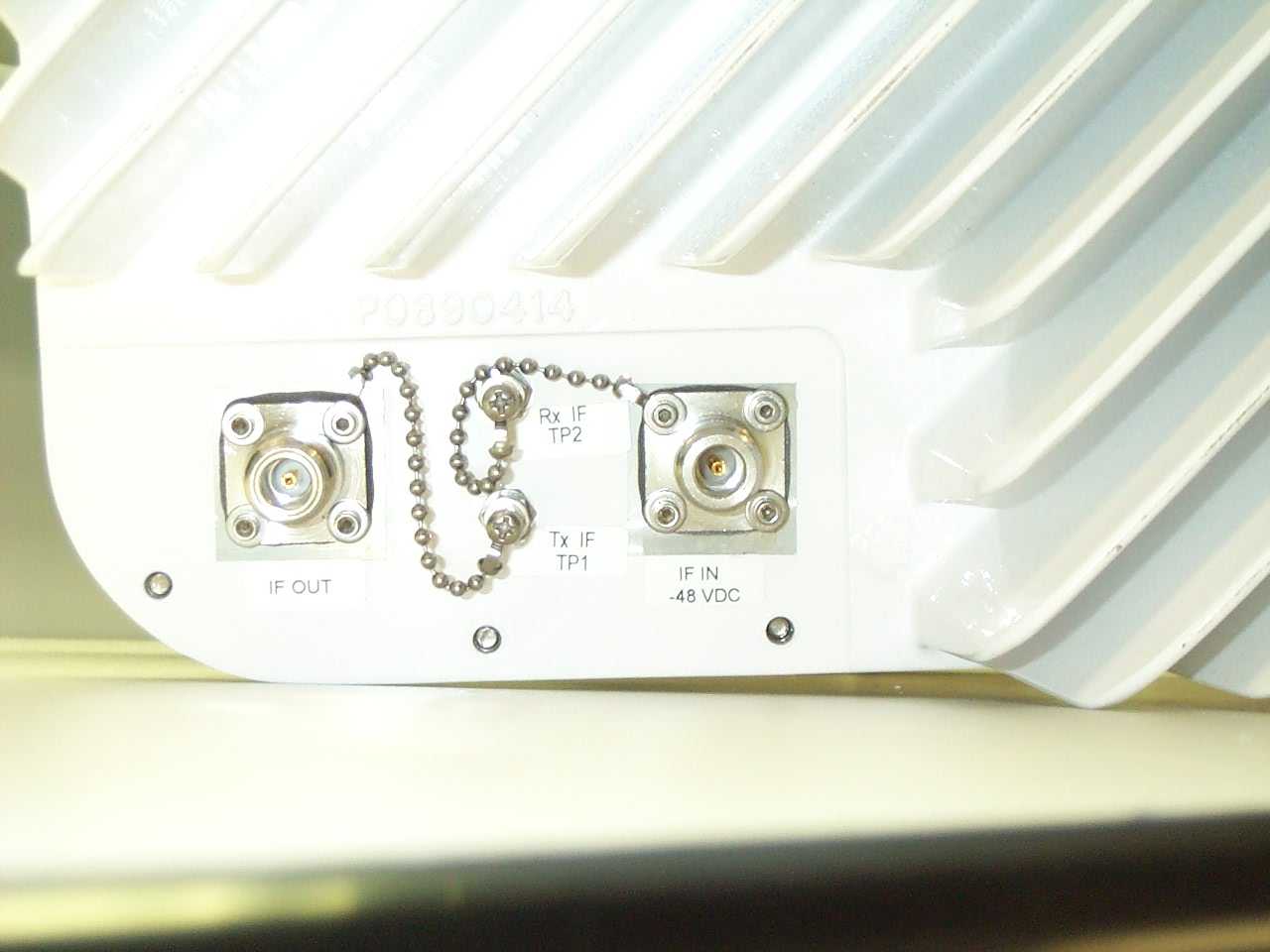

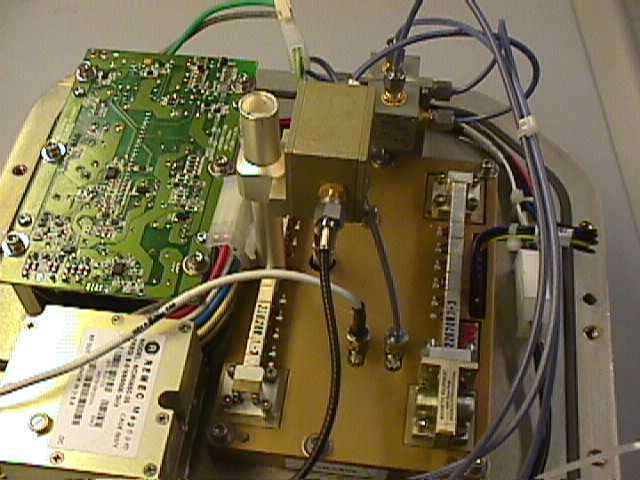

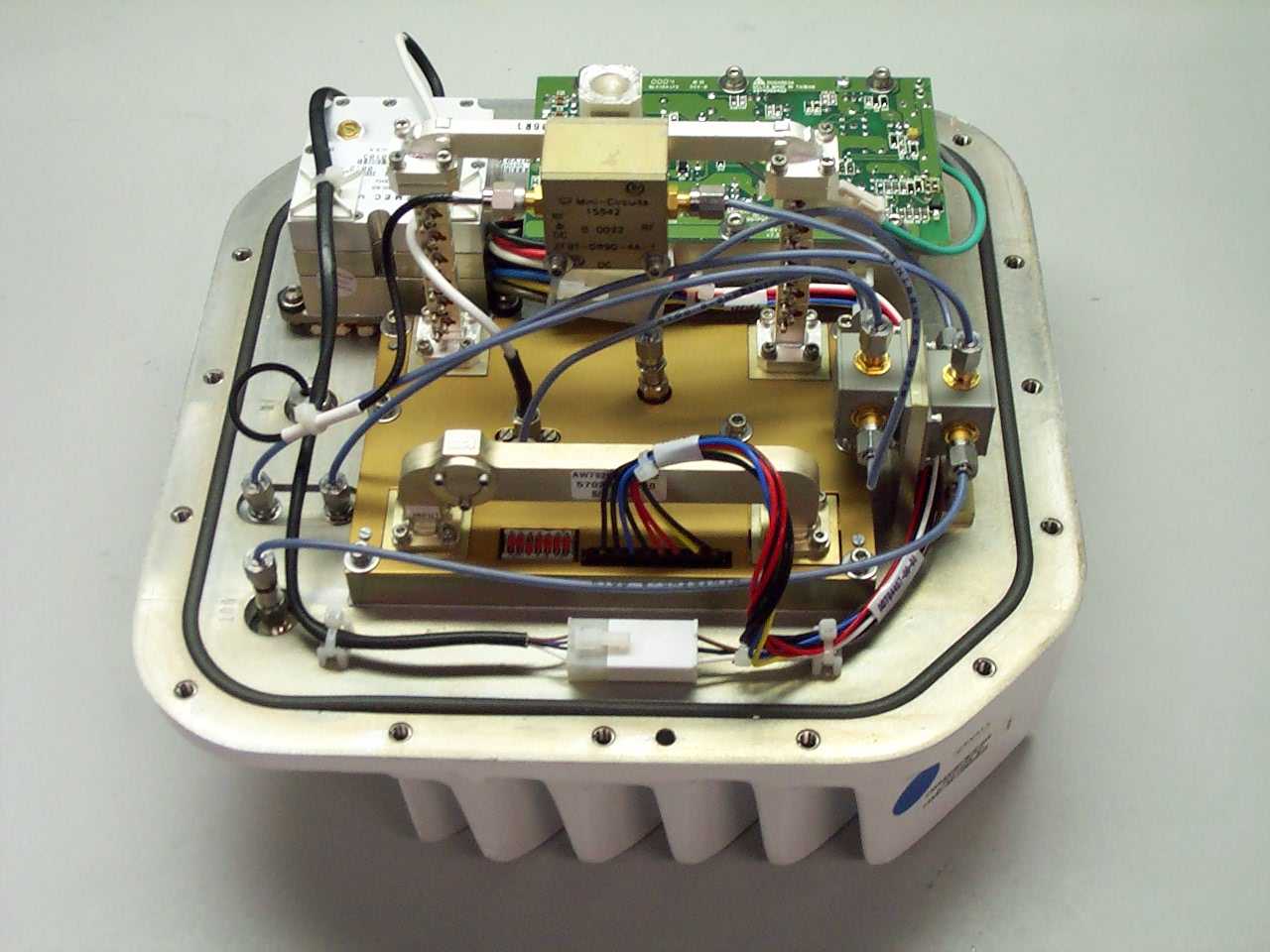

AB6CTR2808MLMDS CPE Transceiver

Avaya Canada Corporation

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 30, 2001
Application Purpose: Original Equipment
Date of Application: Nov 13, 2000
Equipment Note: LMDS CPE Transceiver
Frequency Range: 27857.00000000 - 27993.00000000
Company: Avaya Canada Corporation
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

NTP #:411-1333-923 Draft 01.03 November 2000 CTR 28-08 GHz MMIC Quick Reference Guide Product Overview The CTR 28-08 MMIC (NTVG16BH) outdoor transceiver is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands. It is a Nortel Networks Reunion product that operates in con- junction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: CTR 28M Block Diagram Rx IF Tx IF/DC Input Transceiver Lightning Radio Protector Lightning Protector Rx RF Input Tx RF Output Te s t P o r t Tx IF Input Te s t P o r t Rx IF Output Output CTR 28M Transceiver 411-1333-923 Draft 01.03 November 2000 2 CTR 28-08 MMIC Specification Table 1: CTR 28-08M Technical Specifications TXIF InputRF Output Frequency Range 28-08M 500-650 MHz27.85-28.00 GHz Output Level (P1 dB) ≥23 dBm, -40° to +55° C Output Level (IP3) > +31 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleN/A (integrated antenna) Input/Output VSWR 1:93:1 maximumN/A Gain (not including antenna) 33 dB Gain vs. Temperature ±2.0 dB ( -40° to +55° C) Gain Flatness ±2.0 dB over bandwidth Frequency Stability <±4 ppm, Over all Conditions Noise Figure 24.5 dB Tx IF Test Port Type SMA jack (F) AntennaCTR Frequency 27.5 - 31.3 GHz Frequency band 2731 Bore-sight Gain (Azimuth) 37.4 ±1.4 dB Polarity V/V or H/H determined mechanically on installation Beam Width (azimuth) Beam Width (elevation) 2.6±TBD°, minimum 2.6±TBD°, minimum Flanges WR-42 Port-to-Port Isolation 35 dB, minimum Cross-Polarization Discrimination > 30 dB Diameter 14" (35 cm) CTR 28-08 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 28-08M27.50 - 27.65 GHz 150-300 MHz Input/Output Connector N/A (integrated antenna)N-Type Female Output Impedance 50 Ohms Input/Output VSWR N/A (integrated antenna)1:93:1 maximum Gain (not including antenna) 28.0 ±1.0 dB Gain Flatness ±2.0 dB over bandwidth Gain Stability ±2.0 dB over temperature Frequency Stability <±4 ppm Noise Figure 7.8 dB, -40° to +55° C Rx IF Test Port Type SMA jack (F) Power RequirementsCTR Input Voltage±48 VDC, 3A. max diplexed with TX cable Input Inrush Current 4.5A max Input Power 54 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 10,000 feet Operating Wind Resistance 50m/second on all surfaces Operating Temperature -40° to +55°C Storage Temperature Range -45° to +70°C (packaged) Solar Loading ETS 300 019 class 4.1 1120W/m 2 , 50°C max. MechanicalCTR Size (Length x Height x Width)14" x 14" x 11" (35.6 x 35.6 x 27.9 cm) Weight without brackets 25 lbs. (11.41 KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = ƒ IF IN (GHz) + 27.35 RX: ƒ IF OUT (GHz) = ƒ RF IN (GHz) - 27.35 Note: Electrostatic deposition powder coat, scratch free. Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

Cover Letter(s)

C-MAC Engineering 21 Richardson Side rd Kanata ON K2K 2C1 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.cmac.com November 13, 2000 Denis Lalonde Radio Compliance Specialist Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6CTR2808M Dear Sir or Madam: This is a FCC Part 101 application for Nortel Network’s Reunion 28-08M CPE LMDS transceiver. The FCCID of this equipment is AB6CTR2808M. Two test reports are submitted. The main report demonstrate compliance of the LMDS CPE transceiver while it transmits signal described by the following emission designators: 3M3D7W, 6M6D7W, 5M5D7W, and 11M0D7W. An addendum report is also submitted to demonstrate compliance of the product w hile it transmits a 7M0D7W and 14M0D7W signal Nortel Networks requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. Nortel Networks considers this leading edge technology developed by Nortel and its partners and being new technology, would not want to make this information available to its competitors. Exhibit Type File name of Exhibit 1. Schematics advg16ca-am-04.pdf 2. Parts list SLVG1206.doc 3. Parts list SLVG16CB.doc 4. Block Diagram 28-08M_CTR_Block_Diagram.doc Please call me or write if you have any questions or comments. Regards, Denis Lalonde Product Integrity email:[email protected] C-MAC Engineering

ID Label/Location Info

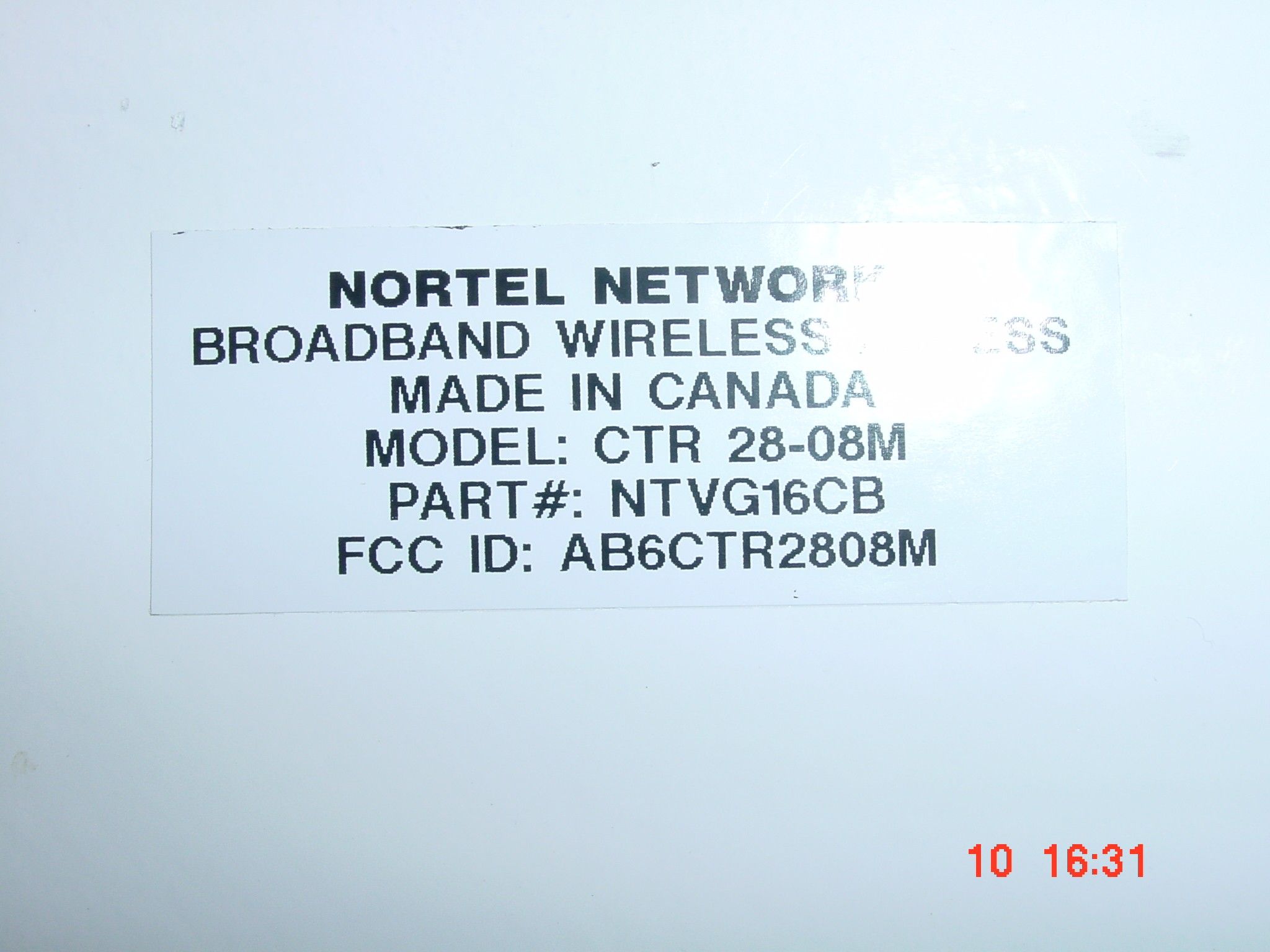

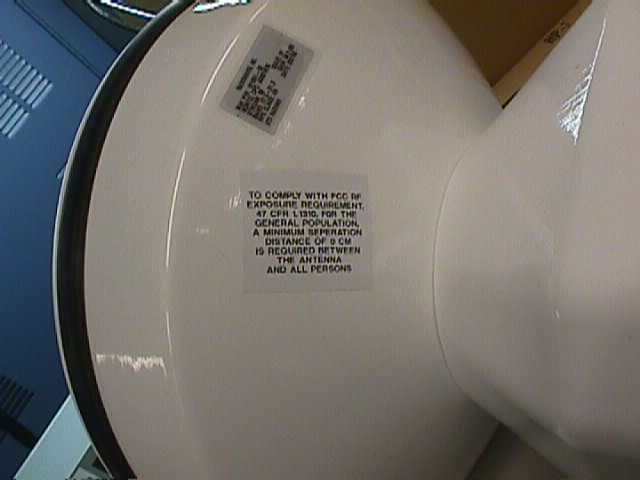

SHEET 2 o f 2 P0917012 STREAM 00 / ISSUE 01 FULL SCALE TO COMPLY WITH FCC RF EXPOSURE REQUIREMENT, 47 CFR 1.1310, FOR THE GENERAL POPULATION, A MINIMUM SEPARATION DISTANCE OF 0 CM IS REQUIRED BETWEEN THE ANTENNA AND ALL PERSONS DRAWN APPD STREAM ISSUE SCALE B (V2 -FRAMEBUILDER 9511) A 2 3 4 5 6 BCD 1 2 3 4 5 6 ABCD DRAWING NUMBER SIZE TITLEINITIAL APPLICATION PROPRIETARY INFORMATION: THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NORTHERN TELECOM LIM- ITED. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY NORTHERN TELECOM LIMITED, THE HOLDER OF THIS DOCUMENT: (1) SHALL KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES 1/1 1 NORTHERN TELECOM SHEET1 of 2 LABEL, RF WARNING P0917012 CTR31-01P EC 102-21030 03/May/2000 IML SL 00 01 NOTES:1. UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE EXPRESSED IN INCHES. TOLERANCES SHALL BE: 2 DECIMAL PLACES = + .01 3 DECIMAL PLACES = + .005 ALL LABEL CORNERS SHALL HAVE A .03 RADIUS. 2. THIS DESIGN FILE WAS CREATED IN ACCORDANCE WITH NT STD 1517.20. LABEL/ARTWORKS MUST BE MANUFACTURED IN ACCORDANCE WITH NPS90942. 3. THE ARTWORK (SEE SHEET 2) SHALL BE PLOTTED AT A MINIMUM OF 1200 DPI. THE TEXT FONT(S) SHALLBE: UNIVERS 67 CONDENSED BOLD PER NPS90942. 4. MATERIAL: .010 CLEAR POLYCARBONATE PER R0115902 FINISH: VELVET/MATTE ADHESIVE: .002 PRESSURE SENSITIVE WITH PEEL OFF LINER PER R0113138 5. COLOURS SHALL CONFORM TO NORTHERN TELECOM OBSERVATIONAL STANDARD 2701.01. BACKGROUND: WHITE PER NORTHERNTELECOM STANDARD S-33294TEXT AND GRAPHICS: BLACK PER NORTHERN TELECOM STANDARD S-33154 6. LABEL TO BE REVERSE SCREEN PRINTED PER NPS90942-2. 2.50 3.50 TO COMPLY WITH FCC RF EXPOSURE REQUIREMENT, 47 CFR 1.1310, FOR THE GENERAL POPULATION, A MINIMUM SEPARATION DISTANCE OF 0 CM IS REQUIRED BETWEEN THE ANTENNA AND ALL PERSONS 4X 0.10 R

Operational Description

RF Exposure Info

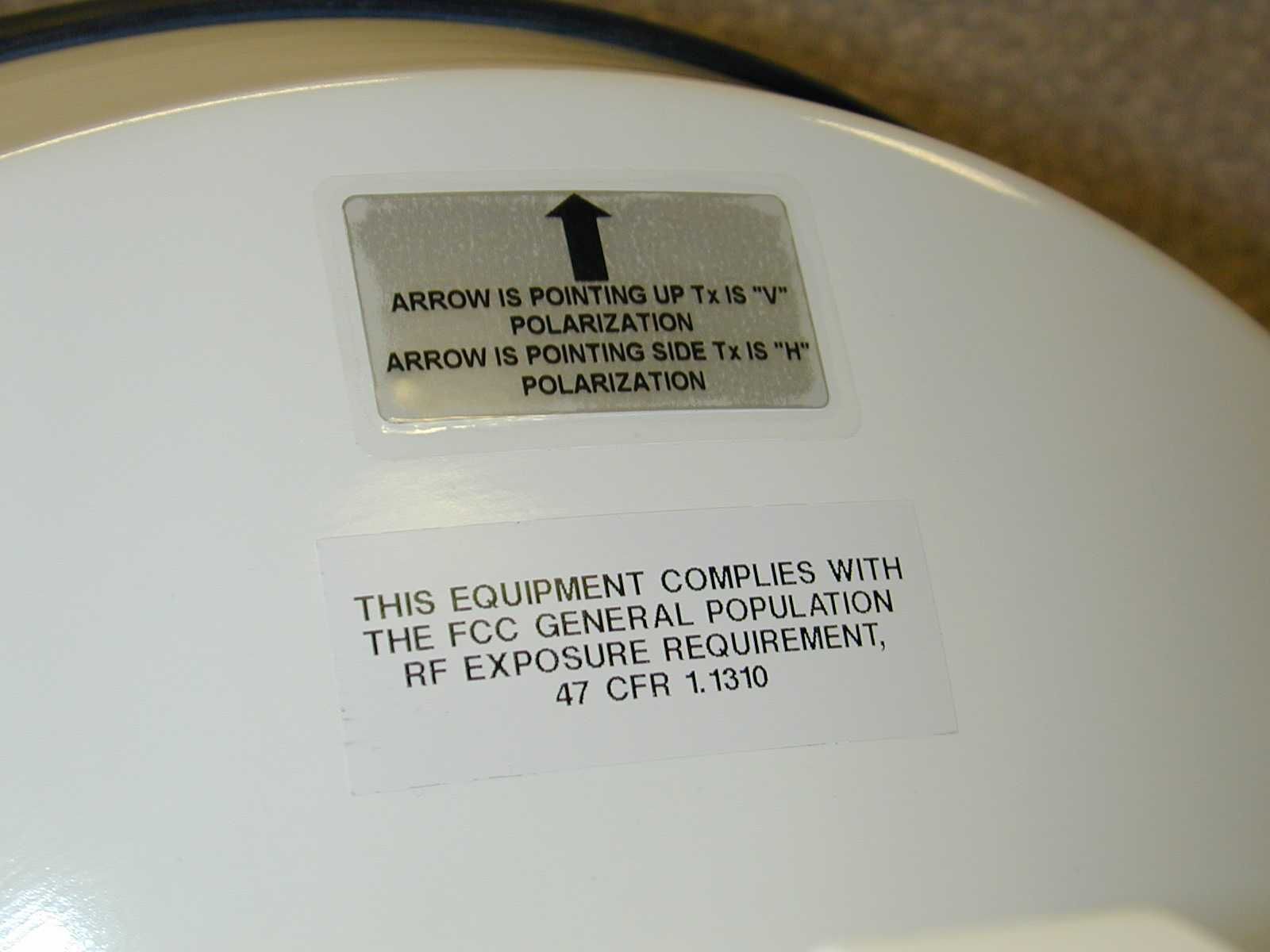

C-MAC Engineering 21 Richardson Side rd Kanata ON K2K 2C1 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.cmac.com June 9, 2000 Denis Lalonde Radio Compatibility Eng. Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6CTR2808M Dear Sir or Madam: This document describes the method used for determining the minimum separation distance between the CTR and the general public in order to prevent RF exposure as per paragraph 1.1310. The minimum separation distance was determined with calculations. They were done using FCC OST/OET Bulletin 65 ("Evaluating Compliance with FCC Specified Guidelines for Human Exposure to Radiofrequency Radiation’’). The aperture antenna equations for predicting RF fields from that document were used. They yielded the following results. The power density of the 28-08M CTR: - at the surface of the antenna is 0.84 mW/cm 2 (OST/OET Bulletin 65 equation 11) - in the near field (R < 2.8 m) is less than 0.62 mW/cm 2 (equation 12, 13, 14) - in the transition region (2.8m < R < 6.7m) is less than 0.62 mW/cm 2 (equation 16, 17) - in the far field (R > 6.7 m) is less than 0.27 mW/cm 2 (equation 18) Power = 23.0 dBm = 1 dB compression point of the CTR Antenna diameter = 13.7 inches Frequency = 27925 MHz Antenna gain = 38.8 dBi The FCC General Population limit is 1 mW/cm 2 , hence the use of 0 cm as the minimum separation limit. A drawing of the radiation warning label and a picture of its location as been submitted. The exhibit type of those files is “ID Label/Location Info”. Their file name are; - CTR_RF_Label.pdf - Exposure_Label_Position.pdf The size of the label is 2.5 inches by 3.5 inches. A label is installed on both sides of the CTR. Regards, Denis Lalonde Product Integrity email:[email protected] C-MAC Engineering Page 2

Test Report

Master: ktlPT101SubC.doc Date: April 12, 2000 KTL Test Report:0R03189 Applicant:Nortel Networks 21 Richardson Side Road Kanata, Ontario K2K 2C1 Equipment Under Test:CTR 28-08M, NTVG16CB (E.U.T.)S/W Ver. 1.2 In Accordance With:FCC Part 101, Subpart C Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date:October 18, 2000 Total Number of Pages:54 Authorized Copy:CD KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 2 of 51 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth............................................................................................7 Section 5. Spurious Emissions at Antenna Terminals........................................................34 Section 6. Field Strength of Spurious Emissions................................................................49 Section 7. Frequency Stability.............................................................................................50 Section 8. Test Equipment List...........................................................................................51 Annex A Test Diagrams....................................................................................................A1 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 3 of 51 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 101, Subpart C. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: DATE: October 18, 2000 Glen Westwell, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 4 of 51 Summary Of Test Data Name Of TestPara. No.Result RF Power Output101.113Complies Occupied Bandwidth101.111Complies Spurious Emissions at Antenna Terminals101.111Complies Field Strength of Spurious Emissions101.111Complies * Frequency Stability101.107Complies Footnotes For N/A’s: Test Conditions: IndoorTemperature:23 °C Humidity:45 % OutdoorTemperature:22 °C Humidity:43 % . KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 5 of 51 Section 2.General Equipment Specification Manufacturer: Nortel Networks Model No.: CTR 28-08M, NTVG16CB S/W Ver. 1.2 Serial No.: NNTM532GPHMF Date Received In Laboratory: October 13, 2000 KTL Identification No.: Item #1 Supply Voltage Input: -48 Vdc Frequency Range: 27.8524-27.9976 GHz Tunable Bands: 1 Necessary Bandwidth: 4.224 MspsOCC. BW = 4.43 MHz 2.048 MspsOCC. BW = 2.18 MHz Types of Modulation: 4, 16 & 64 QAM, FDMA Data Rate(s): 4.224Msps & 2.048 Msps Internal/External Data Source: External Emission Designator: 4M43D9W2M18D9W 8M86D9W4M36D9W Output Impedance: 50Ω RF Power Output (rated): 12 to 18 dBm Channel Spacing(s): 5.5 MHz & 3.3 MHz Operator Selection of Operating Frequency: None Power Output Adjustment Capability: Attenuation Adjust 31 – 0 dB KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 6 of 51 Section 3.RF Power Output Para. No.: 1.1046 Test Performed By: Glen WestwellDate of Test: October 15, 2000 Minimum Standard:101.113 Test Results:Complies. The RF power output is within 1dB of the manufacturer’s rating. Measurement Data: Rated (dBm)Measured (dBm) 18.018.6 16.016.4 15.015.8 14.014.5 12.012.4 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 7 of 51 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen WestwellDate of Test: August 24, 2000 Minimum Standard:101.111 (a)(2)(ii) Test Results:Complies Test Data:See attached graph(s). KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 8 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 9 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 10 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 11 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 12 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 13 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 14 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 Page 15 of 51 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03189 EQUIPMENT: CTR 28-08M, NTVG16CB, S/W Ver. 1.2 P…
