Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

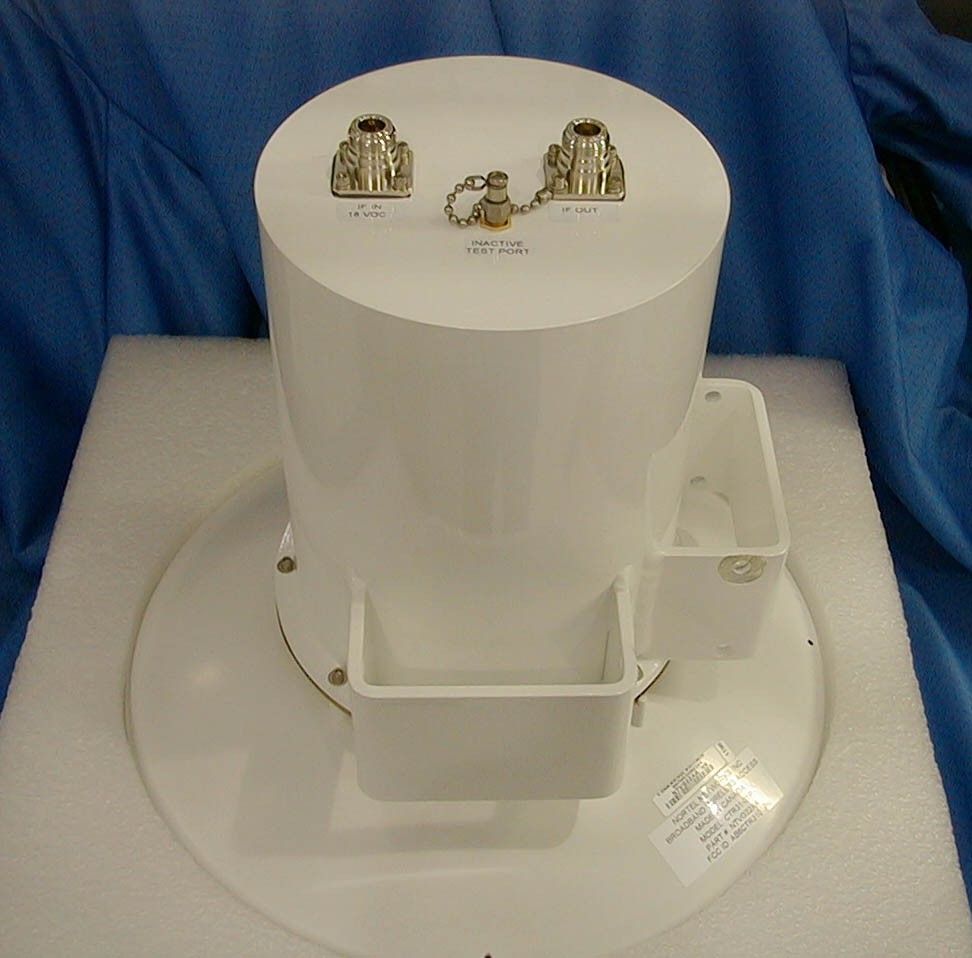

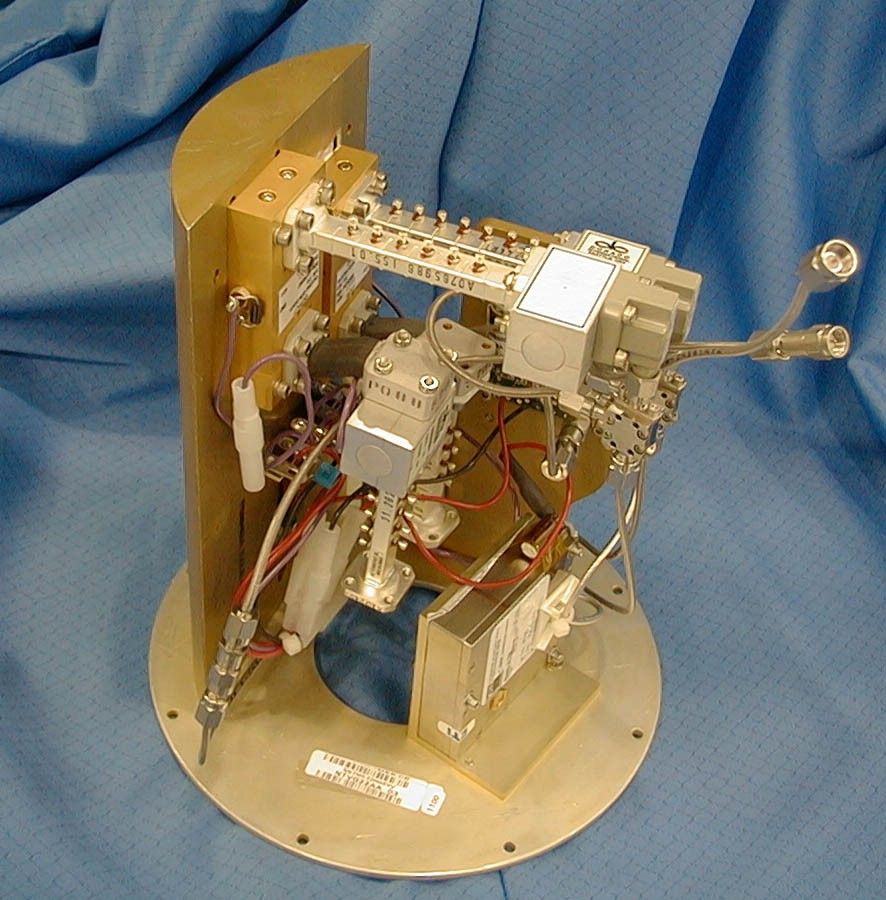

NTP #: 411-1333-907 Preliminary 02.01 December 1999 CTR 31 GHZ PLUMB Product Overview The CTR 31GHz outdoor transceiver (NTVG 22-AA) is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands upstream. It is a Nortel Networks Reunion product that operates in conjunction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: CTR 31GHz Block Diagram P. A m p LNA Down-converter VHF-AMP Power Supply Antenna Diplexer Up-converter BPF BPF BPF BPF OMT LO CTR 31GHz Transceiver 411-1333-907 Preliminary 02.01 December 1999 2 CTR 31GHz Specification Table 1: CTR 31 GHz Technical Specifications TXIF InputRF Output Frequency Range 31-01P1450-525 MHz31.225-31.3 GHz Output Level (P1 dB) ≥21 dBm, -40° to +55° C Output Level (IP3) > +28 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleWR-28 Cover Flange Gain (not including antenna) 30±1 dB Gain Flatness ±1.5 dB over bandwidth Gain vs. Temperature ±3.0 dB (-40° to +55° C) Frequency Stability <±2 ppm, (-40° to +55° C) AntennaCTR Frequency 31.225-31.3 GHz Gain 36.5 dB TX / RX wave polarity linear, single pole (horizontal or vertical) Beam Width (3 dB) 2° Diameter 1’ (30.5 cm) CTR 31 GHz Plumb Quick Reference Guide 3 RXRF Input IF Output Frequency Range 31-01P131.0-31.075 GHz 225-300 MHz Input/Output Connector WR-28 N-Type Female Input IP3 -18 dBm Output Impedance 50 Ohms Gain (not including antenna) 37±1 dB, minimum Gain Flatness ±2.0 dB over bandwidth Gain Stability ±3 dB over temperature Frequency Stability <±2.0 ppm, (-40° to+55° C) Noise Figure <7.5 dB, -40° to +30° C < 8.0 dB, +30° to +55° C Power RequirementsCTR Input Voltage±18 VDC, 3A. max diplexed with TX cable Input Current <3 Amp Input Power 54 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 10,000 feet Operating Temperature -40° to +55°C Storage Temperature Range -60° to +75°C MechanicalCTR Size (Height x Diameter)15.2" x 12.4" (38.5 x 31.5 cm) Weight without brackets 7 lbs. (3.2 KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 1999 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = ƒ RF IN (GHz) + 30.775 GHz RX: ƒ IF OUT (GHz) = ƒ RF IN (GHz) - 30.775 GHz Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

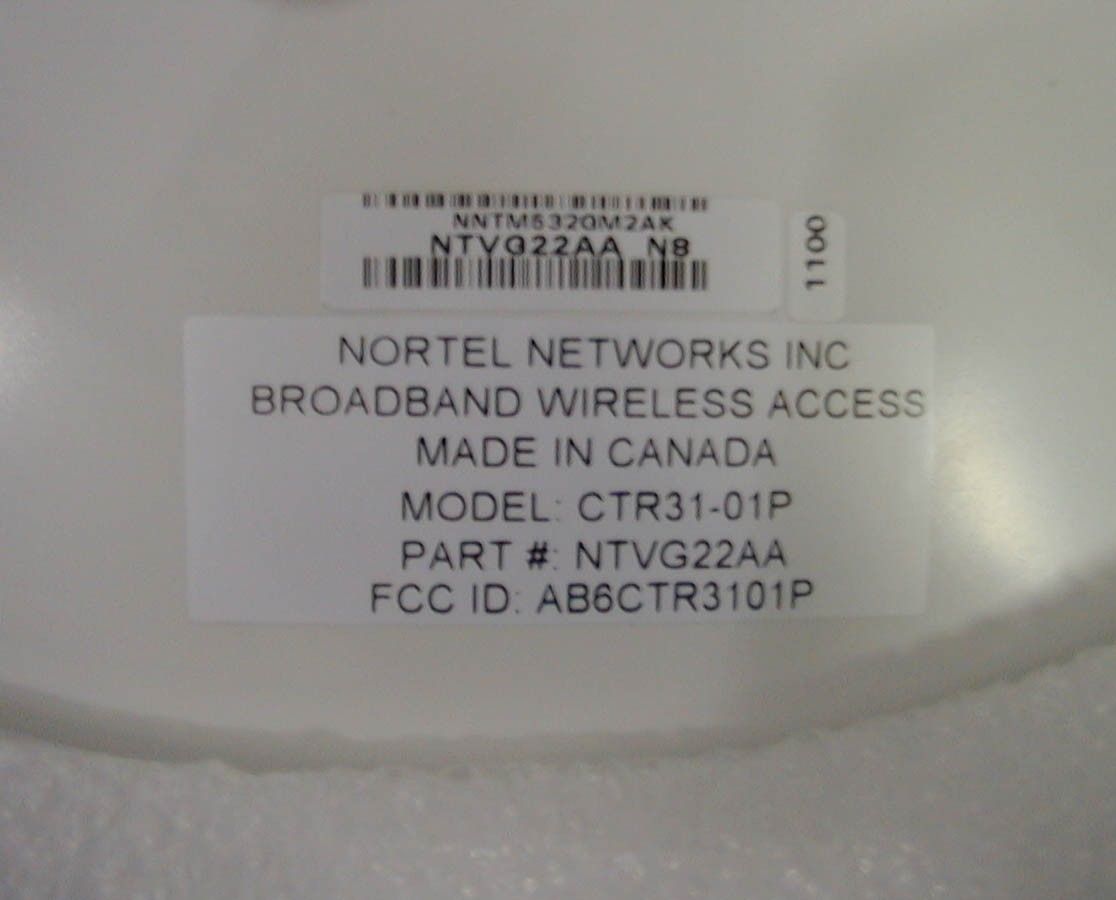

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 March 27, 2000 re: 31-01P CTR (FCC ID: AB6CTR3101P, Confirmation Code: EA97121) Dear Sir or Madam: This Nortel Networks application is for a 31 GHz LMDS Customer Premises Transceiver Model CTR3101P. The CTR Part Number is NTVG22AA and the FCC ID is AB6CTR3101P. A separate application has been filed on the same date for the associated Base Station transceiver, Model BTR3101P, part number NTVG21AA, and FCC ID AB6BTR3101P. These two units were initially the subjects of a combined application made in December 1999, which requested FCC ID OHOBTRCTR3101. This application was dismissed in March 2000 because of the failure by Nortel to respond to the FCC’s original requests for clarification. Information requested included individual FCC ID’s, additional parts lists, and there were some errors in the report wording. This combined application was submitted from the Nortel Broadband Wireless operation in Winnipeg, Manitoba, which has subsequently been closed. Since then, Nortel Networks has consolidated Wireless Development activities in Ottawa, Canada. The failure by Nortel to respond to the FCC’s original requests for clarification were in great part due to the relocation of development activities from Winnipeg to Ottawa and some related staff discontinuities. The additional “time to market” which will result from the need for new applications has placed Nortel in a difficult position with respect to contractual obligations to a major customer. Nortel respectfully requests that this pair of applications be treated as a continuation of the original approval activity. In particular, we would be grateful for any reduction or possible elimination of the current file-processing period, which any new application has to go through to reach the engineering review stage. Sincerely, Denis Lalonde Radio Compatibility Eng. Nortel Networks P.O. Box 3511, Station C Ottawa, Ontario, Canada K1Y 4H7
Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 April 27, 2000 re: 31-01P CTR (FCC ID: AB6CTR3101P, 13EA97121) Dear Sir or Madam: Nortel requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the fol- lowing items be held CONFIDENTIAL due to their proprietary nature. We consider this leading edge technology developed by Nortel and our partners and being new technology, would not want to make this information available to our competitors. Exhibit Type File name of Exhibit 1. Parts listslvg0301_msl-00-11 2. Parts listslvg22aa_msl-00-06 3. Schematicsctr-blkdiag 4. Schematicsctrlayout Sincerely, Denis Lalonde Radio Compatibility Eng. Nortel Networks P.O. Box 3511, Station C Ottawa, Ontario, Canada K1Y 4H7
NTP #: 411-1333-907 Preliminary 02.01 December 1999 CTR 31 GHZ PLUMB Product Overview The CTR 31GHz outdoor transceiver (NTVG 22-AA) is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands upstream. It is a Nortel Networks Reunion product that operates in conjunction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: CTR 31GHz Block Diagram P. A m p LNA Down-converter VHF-AMP Power Supply Antenna Diplexer Up-converter BPF BPF BPF BPF OMT LO CTR 31GHz Transceiver 411-1333-907 Preliminary 02.01 December 1999 2 CTR 31GHz Specification Table 1: CTR 31 GHz Technical Specifications TXIF InputRF Output Frequency Range 31-01P1450-525 MHz31.225-31.3 GHz Output Level (P1 dB) ≥21 dBm, -40° to +55° C Output Level (IP3) > +28 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleWR-28 Cover Flange Gain (not including antenna) 30±1 dB Gain Flatness ±1.5 dB over bandwidth Gain vs. Temperature ±3.0 dB (-40° to +55° C) Frequency Stability <±2 ppm, (-40° to +55° C) AntennaCTR Frequency 31.225-31.3 GHz Gain 36.5 dB TX / RX wave polarity linear, single pole (horizontal or vertical) Beam Width (3 dB) 2° Diameter 1’ (30.5 cm) CTR 31 GHz Plumb Quick Reference Guide 3 RXRF Input IF Output Frequency Range 31-01P131.0-31.075 GHz 225-300 MHz Input/Output Connector WR-28 N-Type Female Input IP3 -18 dBm Output Impedance 50 Ohms Gain (not including antenna) 37±1 dB, minimum Gain Flatness ±2.0 dB over bandwidth Gain Stability ±3 dB over temperature Frequency Stability <±2.0 ppm, (-40° to+55° C) Noise Figure <7.5 dB, -40° to +30° C < 8.0 dB, +30° to +55° C Power RequirementsCTR Input Voltage±18 VDC, 3A. max diplexed with TX cable Input Current <3 Amp Input Power 54 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 10,000 feet Operating Temperature -40° to +55°C Storage Temperature Range -60° to +75°C MechanicalCTR Size (Height x Diameter)15.2" x 12.4" (38.5 x 31.5 cm) Weight without brackets 7 lbs. (3.2 KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 1999 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = ƒ RF IN (GHz) + 30.775 GHz RX: ƒ IF OUT (GHz) = ƒ RF IN (GHz) - 30.775 GHz Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 101 | 31.23 GHz - 31.30 GHz | 500.00 mW | 20M0D7W | 0.0010000000 % |
