AB6NT1900MFRM2CDMA Cellular Base Station

Original Equipment Certification Application - Additional Information March 31, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Original Equipment Certification Application FCC Tx ID : AB6NT1900MFRM2 Dear Sir/Madam This letter is to respond the additional information that requested by ATCB. The responses to your comments are listed below: Question 1) The internal photographs should include the top and bottom of all boards included in the RF path. It appears that some photographs may be missing (i.e. bottom photograph of PA board). Please provide any missing photos. The picture for the bottom side of the PA board wasn’t submitted because there was no circuitry at the bottom side and also the bottom side of the PA board was glued to the heat sink through thermal glue. As requested, a picture was taken to show the bottom side of the PA board with the heat sink attached and included in the “Exhibit 6 – Internal Photos”. The updated document was submitted to the ATCB web site as “Additional Information”. The updated “Exhibit 1 – Certification Application” letter was updated to reflect of adding an extra exhibit and was submitted to ATCB web site as well. Question 2) Please provide a clearer or higher resolution copy of the label. The characters must be easily distinguished. As suggested, a much clearer label drawing has been provided and submitted to the ATCB web site as “Additional Information”. Question 3) Please provide a separate exhibit for the test configuration photographs. As suggested, the test configuration photographs has been submitted as “Exhibit 11 – Test Setup Photos” to the ATCB web site under “Additional Information”. Question 4) Section 6 of the 731 form appears to list RX frequencies. Please update this section to list the TX frequency range. The frequency range stated in Section 6 of Form 731 was 1930 to 1990MHz. The frequency range stated is the Tx frequency range of the CDMA PCS band basestation and should be correct. Question 5) Please provide information regarding DC voltages/currents applied into the several elements of the final radio frequency amplifying device for normal operation over the power range The information requested is provided in the updated “Exhibit 2 – Test Report Summary” and submitted to the ATCB web site as “Additional Information”. Question 6) The test report seems to present radiated spurious test data following typical radiated methods such as ANSI C63.4 and then calculating TX power limits via far field equations. Please note that when the limits are given for ERP/EIRP and in dBc (43 + 10 log P) then the device must be tested following substitution methods specified in EIA/TIA 603. Please reference email interpretation from Frank Coperich that defined this policy provided in a separate attachment. As suggested, CMAC has updated and included the “substitution method” in the test report. The updated test report has been submitted as “Exhibit 2B – Test Report Provided by CMAC” to the ATCB web site under “Additional Information”. Please contact me for further information if necessary. Sincerely, Thomas Wong, Regulatory Prime Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 27, 2003 RE: Nortel Networks FCC ID: AB6NT1900MFRM2 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The internal photographs should include the top and bottom of all boards included in the RF path. It appears that some photographs may be missing (i.e. bottom photograph of PA board). Please provide any missing photos. 2) Please provide a clearer or higher resolution copy of the label. The characters must be easily distinguished. 3) Please provide a separate exhibit for the test configuration photographs. 4) Section 6 of the 731 form appears to list RX frequencies. Please update this section to list the TX frequency range. 5) Please provide information regarding DC voltages/currents applied into the several elements of the final radio frequency amplifying device for normal operation over the power range 6) The test report seems to present radiated spurious test data following typical radiated methods such as ANSI C63.4 and then calculating TX power limits via far field equations. Please note that when the limits are given for ERP/EIRP and in dBc (43 + 10 log P) then the device must be tested following substitution methods specified in EIA/TIA 603. Please reference email interpretation from Frank Coperich that defined this policy provided in a separate attachment. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Request for Confidentiality Feb 11, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Original Equipment Certification Application FCC Tx ID : AB6NT1900MFRM2 Dear Sir/Madam Please accept this request for confidentiality of sensitive information contained in this application. The request for confidentiality applies to the following sections: EXHIBIT 3: Technical Description EXHIBIT 6: Internal Photos EXHIBIT 7: Users Manual EXHIBIT 8A: Schematics (NTGY32BA pg 1-25) EXHIBIT 8B: Schematics (NTGY32BA pg 26-50) EXHIBIT 8C: Schematics (NTGY32BA pg 50-76) EXHIBIT 8D: Schematics (NTGY33BA, NTGY35AA, and NTGY38AA) EXHIBIT 9: Parts Lists (NTGY32BA, 33BA, 35AA, 38AA) The application contains technical information that Nortel Networks deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Thomas Wong, Regulatory Prime Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

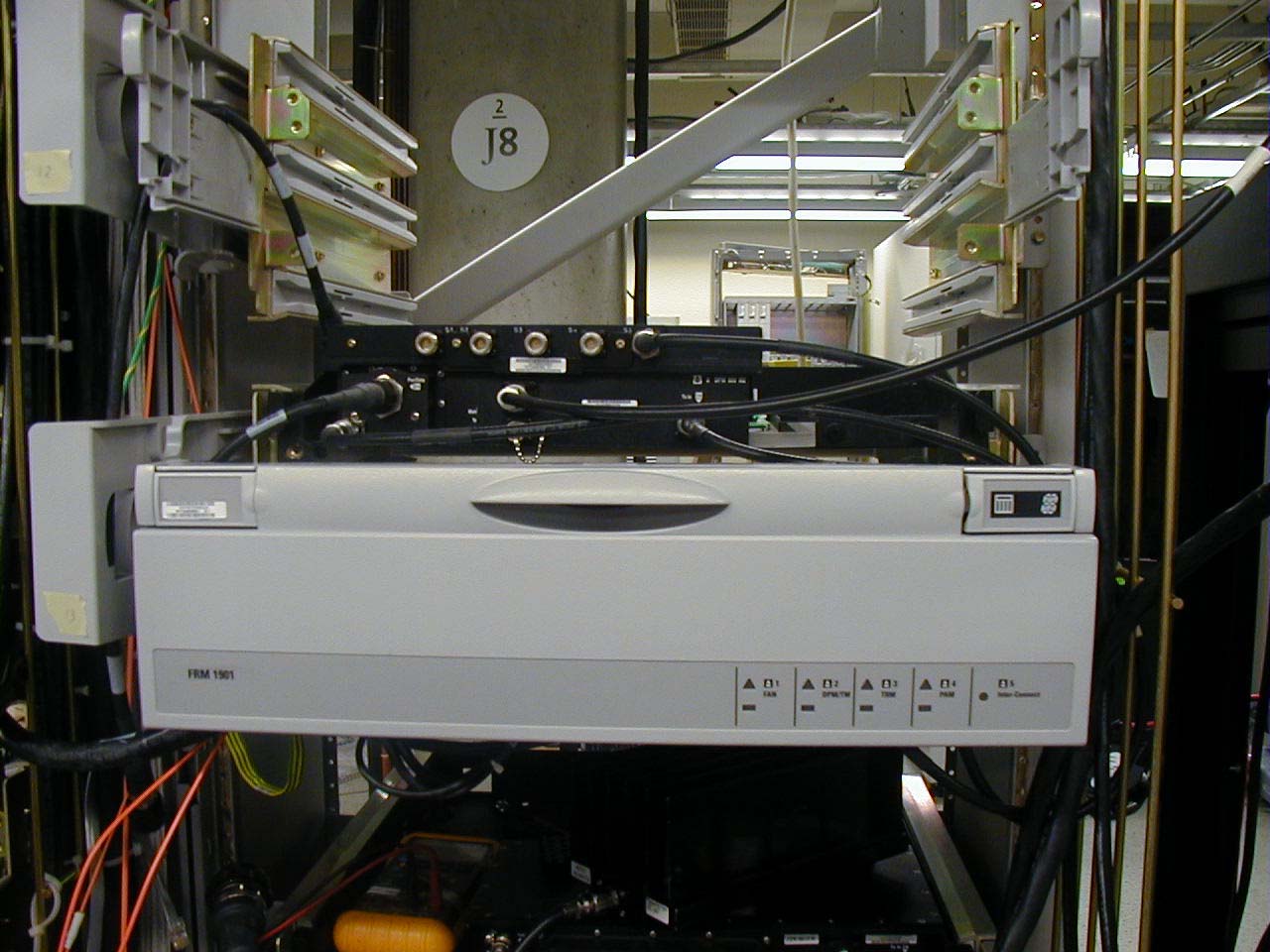

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 5 External Photos Applicant: Nortel Networks For Original Equipment Certification on: AB6NT1900MFRM2 This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks MFRM2 Assembly Front View Fan Assembly Mounted This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks MFRM2 Assembly Front View Fan Assembly Removed

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 4 Transmit Label Information Applicant: Nortel Networks For Original Equipment Certification on: AB6NT1900MFRM2 This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks AB6NT1900MFRM2 FCC Tx ID Label This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Tx ID Label Location Nortel Networks AB6NT1900MFRM2 FCC Tx ID Label Location

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 10 RF Exposure Guidelines for PCS and Cellular Applicant: Nortel Networks Inc. For Original Equipment Certification on: AB6NT1900MFRM2 RF Exposure Guidelines for Cellular, PCS and LMDS Antenna Sites Document no: SI-EMR-R01.5 Authors: Product Integrity BWA – RF Engineering Microwave Radio Design Proprietary Northern Telecom Antenna Siting Guideline 3 The information disclosed herein is proprietary to Nortel Networks or others and is not to be used by or disclosed to unauthorized persons without the written consent of Nortel. The recipient of this document shall respect the security status of the information. 1.0 Executive Summary This document serves as a guideline for the deployment and installation of Nortel Networks’ wireless base station equipment with respect to the control of electromagnetic radiation (EMR) exposure. The objective is to provide guidance on where antennas can be deployed, how to calculate power densities and safe distances and how to protect users from excessive exposure to electromagnetic radiation. This guideline is in response to recent regulatory requirements originating in the US aimed at controlling human exposure to EMR. Safe distance formulae for base stations: Limits Application Uncontrolled r [ meters ] Controlled r [ meters ] Cellular r0. 300 ER P= r0. 135 ER P= PCS r0. 228 ER P= r= 0.102 ERP DCS r0. 228 ER P= r=0.102ERP LMDS r = 1 r = 0.4 P-to-P Microwave Radio r = 1 r = 0.4 Uncontrolled refers to situations where individuals are either unaware or not in control of their exposure to the electromagnetic fields in question. This typically pertains to the general public. Controlled refers to situations where individuals are both aware of and in control of their exposure to the electromagnetic fields in question. This typically pertains to trained staff that is in contact with these fields as a result of their employment and have authority to limit their exposure. Note: This document includes DCS in its examples. If the EU adopts ENV50166, or any other EMR standard, then that document will replace this as the guideline for DCS products. Until that happens, these limits can be used to ensure due diligence on Nortel Networks’ behalf. Northern Telecom Antenna Siting Guideline iv Table of Contents 1.0 Executive Summary ................................................................................. ii 2.0 Introduction ............................................................................................. 1 3.0 Guideline ............................................................................................. 2 3.1 MPE Limits ............................................................................................. 3 3.2 Safe Distance and Power Density Calculations ................................. 5 3.2.1 Minimum Safe Distance ............................................................ 6 3.2.2 Power Density Calculation ........................................................ 8 3.3 Site Planning ............................................................................................ 9 4.0 Other Components ................................................................................. 10 5.0 Assumptions ........................................................................................... 11 6.0 References .............................................................................................. 12 7.0 Acronyms ............................................................................................... 12 Northern Telecom Antenna Siting Guideline 1 2.0 Introduction Regulatory bodies in the US, Federal Communications Commission (FCC), and Canada, Health Canada, are imposing Maximum Permissible Exposure (MPE) limits. FCC’s OET Bulletin #65 (versions in progress) addresses calculation and measurement procedures to determine compliance with the FCC limits which includes the 800 MHz cellular and 1.9 GHz PCS bands. The equipment and its associated deployment must comply with FCC Guidelines, ET Docket No. 93-62, Released August 1, 1996, (FCC 96-326). This standard is largely based on the limits and test methods outlined in IEEE C95.1-1982, NCRP Report No. 86 and C95.3-1982 respectively. The applicable portions of both are summarized in this document to assist in the antenna site planning to ensure compliance. The exposure limits are currently in effect. The requirement for installers to evaluate the exposure at an installation takes effect on Sept. 1/97. The exposure limits should apply now to all known sites since existing facilities are not exempt or grand fathered from the new rules. The FCC has determined that certain sites will require “Environmental Evaluations” in order to show compliance to the standards. Adhering to these guidelines can ensure compliance to the standard, and therefore can be the basis for the Environmental Evaluation. Please note that some installations do not require such routine evaluation: exceptions are noted further in this document. Adherence to these guidelines is recommended to promote safety. An installation of equipment that is identified as exempt may require an Environmental Evaluation if the combined energy of other Radio Systems at the site and the new installation could reasonably exceed the safety limits. Environmental Evaluations are kept on hand, as opposed to file with the FCC, unless requested by the FCC for substantiation. Where Nortel Networks is responsible for installing or engineering base stations, the person in charge should be aware of and have access to documentation for making an Environmental Evaluation. Also, Nortel Networks will need to maintain documentation for assurances to the FCC that Environmental Evaluations have been conducted for each radio station that uses our Experimental Radio License, or STA, where the statio…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2 Test Report Summary Applicant: Nortel Networks For Certification on: AB6NT1900MFRM2 Test Report Summary for FCC Equipment Authorization FCC ID : AB6NT1900MFRM2 CDMA Metro Cell 1900MHz MFRM2 Document: TRS_AB6NT1900MFRM2 Stream: 00 Issue: 02 Issue Date: March 31, 2003 Security Status: Nortel Networks Confidential Author: Thomas Wong  2002 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. Application for Certification FCC ID: AB6NT1900MFRM2 Prepared on March 31, 2003 Nortel Networks Confidential Page 1 1 Introduction This test report is submitted in accordance with the FCC Rules and Regulations, Part 2, Subpart J, Sections 2.1046 through 2.1057 for equipment authorization of Nortel Networks’ CDMA 1900 MHz Multi-carrier Flexible Radio Module 2 (MFRM2). The 1900 MHz MFRM2 is intended for use in the Domestic Public Cellular Radio Telecommunications Service and is designed in accordance with the following standards: • CFR 47, Part 24, Subpart E, Broadband Personal Communications Service [1] • CFR 47, Part 2, Subpart J, Equipment Authorization Procedures - Equipment Authorization[2] 1. Test Result Summary Table 1 summarizes the measurement results for the CDMA 1900 MHz MFRM2. Table 1: Test Results Summary FCC Measurement Specification FCC Limit Specification Description Results Test(s) Conducted by Remarks 2.1033(c)(8) Measurement of DC Power Not Applicable Nortel Networks 2.1046 24.232 RF Output Power Compliant Nortel Networks See Exhibit 2A 2.1047 Modulation Characteristics Not Applicable 2.1049 Occupied Bandwidth OBW = 1.2685 MHz (one carrier) OBW = 2.491 MHz (two carriers) OBW = 3.7355 MHz (three carriers) Nortel Networks See Exhibit 2A 2.1051, 2.1057 24.238 Spurious Emission at Antenna Terminals Compliant Nortel Networks See Exhibit 2A 2.1053, 2.1057 24.238 Field Strength of Spurious Radiation Compliant C-MAC Engineering Inc. See Exhibit 2B 2.1055 24.238 Frequency Stability Compliant Nortel Networks See Exhibit 2A Application for Certification FCC ID: AB6NT1900MFRM2 Prepared on March 31, 2003 Nortel Networks Confidential Page 2 2. Engineering Declaration The CDMA 1900 MHz Multi-carrier Flexible Radio 2 has been tested in accordance with the requirements contained in the Federal Communication Rules and Regulations Part 2 and 24. To the best of my knowledge, these tests were performed in accordance with good engineering practices using measurement procedures consistent with industry or commission standards or previous Commission correspondence or guidance and demonstrate that this equipment complies with the appropriate standards. All tests (including tests performed by C-MAC Engineering Inc.) were conducted on a representative sample of the equipment for which type acceptance/certification is sought. Report Prepared by Thomas Wong Regulatory Prime Nortel Networks Calgary, Alberta March 13, 2003 Application for Certification FCC ID: AB6NT1900MFRM2 Prepared on March 31, 2003 Nortel Networks Confidential Page 3 3. Type Acceptance Application Requirements 3.1 Name of Applicant The applicant is Nortel Networks Inc. 3.2 Identification of Equipment The equipment in this application for type acceptance is the Nortel’s CDMA 1900 MHz Multi- carrier Flexible Radio Module 2 (MFRM2). The 1900MHz MFRM2 is marketed under the model number NT1900MFRM2. The FCC ID number sought is AB6NT1900MFRM2. 3.3 Quantity Production The 1900 MHz MFRM2 will be produced in quantity. 3.4 Technical Description See Exhibit 3. 3.5 Type of Emissions The 1900 MHz MFRM2 Assembly is designed to operate in digital mode. The emission type is F9W for CDMA mode. The emission designators are 1M25F9W (1 Channel), 2M50F9W (2 Channels) and 3M75F9W (3 Channels). Testing was conducted in single channel, two channel, and 3 channel mode to determine compliance. The emission designators were calculated based on requirements of FCC Rule Part 2, Subpart C - Emissions, section 2.201 and Section 2.202. 3.6 Frequency Range The 1900 MHz MFRM2 operates in the 1900 MHz cellular band where the operating frequency ranges are 1850 – 1910 MHz for the receiver and 1930 – 1990 MHz for the transmitter. The following table shows the valid CDMA channels within this band. The MFRM2 meets all FCC requirements within the valid (and conditional valid if A/D, B/E, or C/F are under the same operator) channels. Band CDMA Channel Number Transmitter Frequency Assignment for Base Station (MHz) Valid IS97 CDMA Frequency Assignment A 0-24 1930.00-1931.20 In-Valid Application for Certification FCC ID: AB6NT1900MFRM2 Prepared on March 31, 2003 Nortel Networks Confidential Page 4 25-275 1931.25-1943.75 Valid 276-299 1943.80-1944.95 Cond. Valid 300-324 1945.00-1946.20 In-Valid 325-375 1946.25-1948.75 Valid D 376-399 1948.80-1949.95 Cond. Valid 400-424 1950.00-1951.20 In-Valid 425-675 1951.25-1963.75 Valid B 676-699 1963.80-1964.95 Cond. Valid 700-724 1965.00-1966.20 In-Valid 725-775 1966.25-1968.75 Valid E 776-799 1968.80-1969.95 Cond. Valid 800-824 1970.00-1971.20 In-Valid 825-875 1971.25-1973.75 Valid F 876-899 1973.80-1974.95 Cond. Valid 900-924 1975.00-1976.20 In-Valid 925-1175 1976.25-1988.75 Valid C 1176-1199 1988.80-1989.95 Cond. Valid 3.7 Range of Operating Power The 1900 MHz MFRM2 range of operating RF power is 0 dBm (1W) to 46.0 dBm (40W). The maximum RF power output is …

Text truncated - open the document above for the full version.

Spurious Emissions Test Report for MFRM-2 FCC Part 24 and Industry Canada RSS-133 Document Number: KP000576-TR-RAD-01-02 Release Date: March 31, 2003 Prepared for: Nortel Networks 3500 Carling avenue Ottawa, Ontario Canada K1Y 8H9 Author: Denis Lalonde Radio Compliance Discipline Leader C-MAC Engineering Inc. 21 Richardson Side Road, Kanata, Ontario, K2K 2C1 http://www.engineering.cmac.com/ © Copyright C-MAC Engineering Inc. March 31, 2003 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. C-MAC Engineering Inc. accepts no liability for the content of this document except when it is reproduced in its entirety by a method acceptable to C-MAC Engineering Inc. Spurious Emissions Test Report for MFRM-2 FCC Part 24 and Industry Canada RSS-133 KP000576-TR-RAD-01-02 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc.. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. Page 2 of 38 Release date: March 31, 2003 Release Control Record This document is based on CEI document template KG000347-TR-EMC-03. Release no. Reason for change Date released 01 Original version March 6, 2003 02 Added substitution measurement data March 31, 2003 Approvals Accreditations C-MAC Engineering EMC test facilities are accredited by the Standards Council of Canada (SCC) in accordance with the scope of accreditation outlined in http://www.scc.ca/scopes/reg126-eng-s.pdf . Through a Mutual Recognition Agreement (MRA) between the National Voluntary Laboratory Accreditation Program (NVLAP) and SCC, the accreditation status of this facility is valid for the U.S. The Federal Communications Commission (FCC) in the United States also recognizes these facilities to be compliant with the requirements of Section 2.948 of the FCC Rules, as outlined in a letter dated May 25,1999 [2]. C-MAC Engineering is ISO 9001:2000 and ISO/IEC 17025 certified and its processes are documented in the C-MAC Engineering Quality Manual [3] and Lab Operations Manual [4]. KP000576-TR-RAD-01-02 Spurious Emissions Test Report for MFRM-2 FCC Part 24 and Industry Canada RSS-133 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc.. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. Release date: March 31, 2003 Page 3 of 38 Table of Contents RELEASE CONTROL RECORD...............................................................................................2 APPROVALS.................................................................................................................................2 ACCREDITATIONS.....................................................................................................................2 TABLE OF CONTENTS..............................................................................................................3 LIST OF FIGURES.......................................................................................................................4 LIST OF TABLES.........................................................................................................................4 1. EXECUTIVE SUMMARY......................................................................................................6 2. SCOPE AND PURPOSE.........................................................................................................7 3. COMPLIANCE SUMMARY..................................................................................................8 4. EQUIPMENT UNDER TEST (EUT).....................................................................................9 4.1 PRODUCT FUNCTIONAL DESCRIPTION................................................................................9 4.2 MANUFACTURER INFORMATION........................................................................................9 4.3 POWER REQUIREMENTS...................................................................................................10 4.4 GROUNDING REQUIREMENTS...........................................................................................10 4.5 CLOCKS / OSCILLATORS / SWITCHING POWER SUPPLY FREQUENCIES.............................11 4.6 SYSTEM COMPONENTS.....................................................................................................11 4.7 EUT INTERFACES AND CABLES.......................................................................................12 4.8 SUPPORT EQUIPMENT.......................................................................................................13 4.9 SYSTEM SET-UP AND TEST CONFIGURATIONS..................................................................14 4.10 EUT OPERATIONS AND SOFTWARE..................................................................................16 4.11 SYSTEM MODIFICATIONS.................................................................................................16 4.12 SYSTEM INVENTORY LIST................................................................................................16 5. GENERAL TEST CONDITIONS........................................................................................18 5.1 TEST FACILITY.................................................................................................................18 5.2 MEASUREMENT INSTRUMENTATION................................................................................18 6. E-FIELD RADIATED EMISSIONS.....................................................…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2A Test Report Provided by Nortel Networks Applicant: Nortel Networks For Certification on: AB6NT1900MFRM2 Test Report for FCC Equipment Authorization FCC ID : AB6NT1900MFRM2 CDMA Metro Cell 1900MHz Document: TR_AB6NT1900MFRM2 Stream: 00 Issue: 03 Document Status: Approved Issue Date: February 14, 2003 Security Status: Nortel Networks Confidential Author: Borislav Todorov  2003 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. PAGE INTENTIONALLY LEFT BLANK Test Report for FCC Equipment Authorization FCC ID : AB6NT1900MFRM2 Wireless Access February 14, 2003Nortel Networks Confidential ApprovedStream 00 Issue 03Page 3 Table of Contents Publication History .......................................................................................................................9 List of Consultants ....................................................................................................................9 Decision Maker/Ratifier ...........................................................................................................9 Revision History .....................................................................................................................10 Acronyms and Abbreviations ....................................................................................................11 1 Introduction ..............................................................................................................................13 1.1 Test Result Summary ........................................................................................................13 2 Engineering Declaration ..........................................................................................................14 3 Equipment Authorization Application Requirements .........................................................15 3.1 Standard Test Conditions and Test Equipment .................................................................15 3.2 EUT Identification List .....................................................................................................15 3.3 Test Equipment List ..........................................................................................................15 4 Transmitter Test and Measurement Results .........................................................................17 4.1 RF Power Output ..............................................................................................................17 4.1.1 RF Power Output Requirements ........................................................................17 4.1.1.1 FCC Part 2.1046 .................................................................................17 4.1.1.2 FCC Limit (Part 24.232) .....................................................................17 4.1.2 Test Method .......................................................................................................17 4.1.3 Test Setup ..........................................................................................................17 4.1.4 Test Results ........................................................................................................18 4.2 Occupied Bandwidth .............................…

Text truncated - open the document above for the full version.
