AB6NT3011VBTSCDMA Cellular Base Station

Original Equipment Application May 25, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Original Equipment Application FCC Tx ID : AB6NT3011VBTS IC ID: 332D-3011VBTS Dear Sir/Madam Please accept this application for the original equipment certification of the product filed under Part 2 Subpart J, for equipment operating under Part 24, Subpart E of the regulations of the Federal Communications Commission. The product for which authorization is sought is Nortel Networks’ 1900MHz VBTS3011 CDMA Village BTS. All detailed information is included in the respective exhibits as required by the Rules. Please find the following attached exhibits: EXHIBIT 1: Application EXHIBIT 2: Test Report Summary for vBTS 3011 EXHIBIT 2A: vBTS 3011 Test Report Provided by NTS EXHIBIT 3: Technical Description EXHIBIT 4: Transmit Label Information EXHIBIT 5: External Photos EXHIBIT 6: Internal Photos EXHIBIT 7: Test Setup Photos EXHIBIT 8A: Schematics (NTDV85AA) EXHIBIT 8B: Schematics (NTDV90AA) EXHIBIT 8C: Schematics (NTDV87AA) EXHIBIT 9: Parts Lists EXHIBIT 10: RF Exposure Guidelines for PCS and Cellular EXHIBIT 11: Users Manual EXHIBIT 12: Operational Description EXHIBIT 13: Tune-up Procedure Please contact me for further information if necessary. Thank you for your attention to these matters. Important: Please see attached request for confidentiality. Sincerely, Thomas Wong, Regulatory Prime, Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

Request for Confidentiality May 25, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Original Equipment Certification FCC Tx ID : AB6NT3011VBTS IC ID: 332D-3011VBTS Dear Sir/Madam Please accept this request for confidentiality of sensitive information contained in this application. Please classify the following as confidential under the provision of 47 CFR 0.459: EXHIBIT 3: Technical Description EXHIBIT 6: Internal Photos EXHIBIT 8A: Schematics (NTDV85AA) EXHIBIT 8B: Schematics (NTDV90AA) EXHIBIT 8C: Schematics (NTDV87AA) EXHIBIT 9: Parts Lists EXHIBIT 11: Users Manual EXHIBIT 12: Operational Description The application contains technical information that Nortel Networks deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Thomas Wong, Regulatory Prime Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

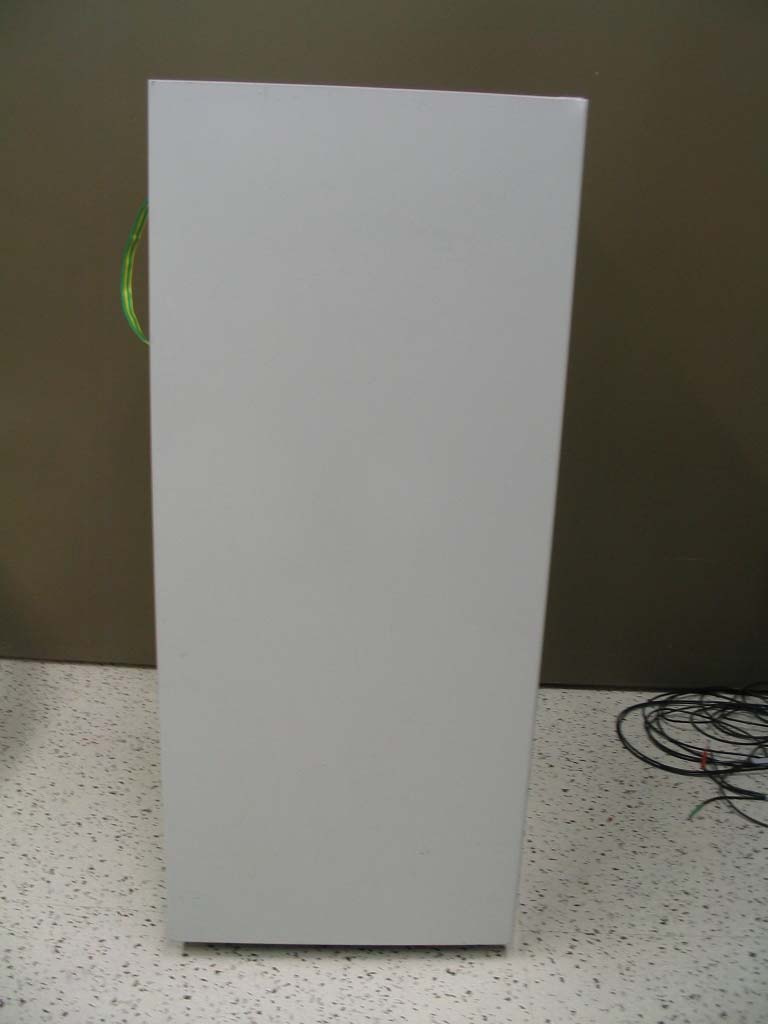

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 5 External Photos Applicant: Nortel Networks For Original Filing: FCC: AB6NT3011VBTS IC: 332D-3011VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks VBTS 3011 With Cover On This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks VBTS 3011 Without Cover

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 4 Transmit Label Information Applicant: Nortel Networks For Original Equipment Application on: FCC: AB6NT3011VBTS IC: 332D-3011VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC Tx ID: AB6NT3011VBTS IC: 332D-3011VBTS Sample Label This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC Tx ID: AB6NT3011VBTS IC: 332D-3011VBTS Label Location

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 4 Transmit Label Information Applicant: Nortel Networks For Original Equipment Application on: FCC: AB6NT3011VBTS IC: 332D-3011VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Sample Label This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Label Location

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 10 RF Exposure Guidelines for PCS and Cellular Applicant: Nortel Networks Inc. For Original Equipment Application on: FCC: AB6NT3011VBTS IC: 332D-3011VBTS RF Exposure Guidelines for Cellular, PCS and LMDS Antenna Sites Document no: SI-EMR-R01.5 Authors: Product Integrity BWA – RF Engineering Microwave Radio Design Proprietary Northern Telecom Antenna Siting Guideline 3 The information disclosed herein is proprietary to Nortel Networks or others and is not to be used by or disclosed to unauthorized persons without the written consent of Nortel. The recipient of this document shall respect the security status of the information. 1.0 Executive Summary This document serves as a guideline for the deployment and installation of Nortel Networks’ wireless base station equipment with respect to the control of electromagnetic radiation (EMR) exposure. The objective is to provide guidance on where antennas can be deployed, how to calculate power densities and safe distances and how to protect users from excessive exposure to electromagnetic radiation. This guideline is in response to recent regulatory requirements originating in the US aimed at controlling human exposure to EMR. Safe distance formulae for base stations: Limits Application Uncontrolled r [ meters ] Controlled r [ meters ] Cellular r0. 300 ER P= r0. 135 ER P= PCS r0. 228 ER P= r= 0.102 ERP DCS r0. 228 ER P= r=0.102ERP LMDS r = 1 r = 0.4 P-to-P Microwave Radio r = 1 r = 0.4 Uncontrolled refers to situations where individuals are either unaware or not in control of their exposure to the electromagnetic fields in question. This typically pertains to the general public. Controlled refers to situations where individuals are both aware of and in control of their exposure to the electromagnetic fields in question. This typically pertains to trained staff that is in contact with these fields as a result of their employment and have authority to limit their exposure. Note: This document includes DCS in its examples. If the EU adopts ENV50166, or any other EMR standard, then that document will replace this as the guideline for DCS products. Until that happens, these limits can be used to ensure due diligence on Nortel Networks’ behalf. Northern Telecom Antenna Siting Guideline iv Table of Contents 1.0 Executive Summary ................................................................................. ii 2.0 Introduction ............................................................................................. 1 3.0 Guideline ............................................................................................. 2 3.1 MPE Limits ............................................................................................. 3 3.2 Safe Distance and Power Density Calculations ................................. 5 3.2.1 Minimum Safe Distance ............................................................ 6 3.2.2 Power Density Calculation ........................................................ 8 3.3 Site Planning ............................................................................................ 9 4.0 Other Components ................................................................................. 10 5.0 Assumptions ........................................................................................... 11 6.0 References .............................................................................................. 12 7.0 Acronyms ............................................................................................... 12 Northern Telecom Antenna Siting Guideline 1 2.0 Introduction Regulatory bodies in the US, Federal Communications Commission (FCC), and Canada, Health Canada, are imposing Maximum Permissible Exposure (MPE) limits. FCC’s OET Bulletin #65 (versions in progress) addresses calculation and measurement procedures to determine compliance with the FCC limits which includes the 800 MHz cellular and 1.9 GHz PCS bands. The equipment and its associated deployment must comply with FCC Guidelines, ET Docket No. 93-62, Released August 1, 1996, (FCC 96-326). This standard is largely based on the limits and test methods outlined in IEEE C95.1-1982, NCRP Report No. 86 and C95.3-1982 respectively. The applicable portions of both are summarized in this document to assist in the antenna site planning to ensure compliance. The exposure limits are currently in effect. The requirement for installers to evaluate the exposure at an installation takes effect on Sept. 1/97. The exposure limits should apply now to all known sites since existing facilities are not exempt or grand fathered from the new rules. The FCC has determined that certain sites will require “Environmental Evaluations” in order to show compliance to the standards. Adhering to these guidelines can ensure compliance to the standard, and therefore can be the basis for the Environmental Evaluation. Please note that some installations do not require such routine evaluation: exceptions are noted further in this document. Adherence to these guidelines is recommended to promote safety. An installation of equipment that is identified as exempt may require an Environmental Evaluation if the combined energy of other Radio Systems at the site and the new installation could reasonably exceed the safety limits. Environmental Evaluations are kept on hand, as opposed to file with the FCC, unless requested by the FCC for substantiation. Where Nortel Networks is responsible for installing or engineering base stations, the person in charge should be aware of and have access to documentation for making an Environmental Evaluation. Also, Nortel Networks will need to maintain documentation for assurances to the FCC that Environmental Evaluations have been conducted for each radio station that uses our Experimental Radio License, or S…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2 Test Report Summary Applicant: Nortel Networks For Original Equipment Certification on: FCC Tx ID: AB6NT3011VBTS IC: 332D-3011VBTS 2 Test Report Summary for Original Equipment Authorization FCC Tx ID : AB6NT3011VBTS VBTS 3011 IC ID:` 332D-3011VBTS Document: TRS_AB6NT3011VBTS Stream: 00 Issue: 01 Issue Date: May 28, 2007 Security Status: Nortel Networks Confidential Author: Thomas Wong © 2007 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. 3 1. Introduction This test report is submitted in accordance with the FCC Rules and Regulations, Part 2, Subpart J, Sections 2.1046 through 2.1057 for equipment authorization of Nortel Networks’ CDMA 1900 MHz Village Basestation 3011. The 1900 MHz vBTS 3011 is intended for use in the Domestic Public Cellular Radio Telecommunications Service and is designed in accordance with the following standards: • CFR 47, Part 24, Subpart E, Broadband Personal Communications Service [1] • CFR 47, Part 2, Subpart J, Equipment Authorization Procedures - Equipment Authorization[2] 2. Test Result Summary Table 1 summarizes the measurement results for the CDMA 1900 MHz vBTS 3011. Table 1: Test Results Summary FCC Measurement Specification FCC Limit Specification Description Results Test(s) Conducted by Remarks 2.1033(c)(8) Measurement of DC Power Provided 2.1046 24.232 RF Output Power Provided NTS See Exhibit 2A 2.1047 Modulation Characteristics Not Applicable 2.1049 Occupied Bandwidth Provided NTS See Exhibit 2A 2.1051, 2.1057 24.238 Spurious Emission at Antenna Terminals Compliant NTS See Exhibit 2A 2.1053, 2.1057 24.238 Field Strength of Spurious Radiation Compliant NTS See Exhibit 2A 2.1055 24.235 Frequency Stability Compliant NTS See Exhibit 2A 4 2. Engineering Declaration The CDMA 1900 MHz vBTS 3011 has been tested in accordance with the requirements contained in the Federal Communication Rules and Regulations Part 2 and 24. To the best of my knowledge, these tests were performed in accordance with good engineering practices using measurement procedures consistent with industry or commission standards or previous Commission correspondence or guidance and demonstrate that this equipment complies with the appropriate standards. All tests performed by NTS Calgary were conducted on a representative sample of the equipment for which type acceptance/certification is sought. Report Prepared by Thomas Wong Regulatory Prime Nortel Networks Calgary, Alberta May 28, 2007 5 3. Type Acceptance Application Requirements 3.1 Name of Applicant The applicant is Nortel Networks Inc. 3.2 Identification of Equipment The equipment in this application for type acceptance is the Nortel’s CDMA 1900 MHz VBTS3011. The 1900MHz VBTS3011 is marketed under the model 1900MHz vBTS3011. The FCC ID number sought is AB6NT3011VBTS The IC ID number sought is 332D-3011VBTS. 3.3 Quantity Production The 1900 MHz vBTS3011 will be produced in quantity. 3.4 Technical Description See Exhibit 3. 3.5 Type of Emissions The 1900MHz vBTS3011 assembly is designed to operate in digital mode to support up to 3 carrier. The emission designator for IS97 carrier is 1M25F9W. The emission designator for IS864 carrier is 1M25D9W. Tests were conducted with 1, 2, or 3 carrier(s). The emission designators were calculated based on requirements of FCC Rule Part 2, Subpart C - Emissions, section 2.201 and Section 2.202. 3.6 Frequency Range The 1900 MHz vBTS 3011 operates in the 1900 MHz cellular band where the operating frequency ranges are 1850 – 1910 MHz for the receiver and 1930 – 1990 MHz for the transmitter. The following table shows the valid CDMA channels within this band. The 1900MHz vBTS 3011 meets all FCC requirements within the valid (and conditional valid if A/D, B/E, or C/F are under the same operator) channels. 6 Band CDMA Channel Number Transmitter Frequency Assignment for Base Station (MHz) Valid IS97 CDMA Frequency Assignment 0-24 1930.00-1931.20 In-Valid 25-275 1931.25-1943.75 Valid A 276-299 1943.80-1944.95 Cond. Valid 300-324 1945.00-1946.20 In-Valid 325-375 1946.25-1948.75 Valid D 376-399 1948.80-1949.95 Cond. Valid 400-424 1950.00-1951.20 In-Valid 425-675 1951.25-1963.75 Valid B 676-699 1963.80-1964.95 Cond. Valid 700-724 1965.00-1966.20 In-Valid 725-775 1966.25-1968.75 Valid E 776-799 1968.80-1969.95 Cond. Valid 800-824 1970.00-1971.20 In-Valid 825-875 1971.25-1973.75 Valid F 876-899 1973.80-1974.95 Cond. Valid 900-924 1975.00-1976.20 In-Valid 925-1175 1976.25-1988.75 Valid C 1176-1199 1988.80-1989.95 Cond. Valid 3.7 Range of Operating Power The 1900 MHz VBTS 3011 range of operating RF power is 0 dBm to 42.6 dBm . The maximum RF power output is 42.6 dBm.. 3.8 Complete Circuit Diagrams The Tx chain of the 1900 MHz vBTS 3011 for certification is made up of the radio, PA and DPM (Duplexer and filter, an OEM equipment). Exhibit 8 contains the schematics of circuit cards inside the 1900MHz vBTS3011 and Exhibit 9 contains the parts lists of the circuit cards inside 1900MHz vBTS3011. 3.9 Tune-up Procedure The tune-up tests will be performed as part of the factory testing on the 1900MHz vBTS3011. This procedure includes power output levels, spurious emissions, and occupied bandwidth. There are no end-user adjustments that will have any effect on these settings. No tune-up testing is required in the field. 7 3.10 Cir…

Text truncated - open the document above for the full version.

The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 1 of 58 May 28, 2007 Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Emissions Test Report Project Code CG-530 (Report CG-530-RA-1-0) FCC Part 24/RSS 133 Report for NORTEL AC 1900MHz VILLAGE BTS 3011 with DOM FCC ID # AB6NT3011VBTS IC# 332D-3011VBTS Revision: 0 May 28, 2007 Prepared for: Nortel Author: Deniz Demirci EMC Specialist Approved by: Nick Kobrosly Director of Operations CG-530-RA-1-0 FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Emissions Test Report NORTEL AC 1900MHz VILLAGE BTS 3011 with DOM The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 58 May 29, 2007 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC 46405-3978 - File # IC3978-2 Accredited by Standards Council of Canada Accredited Laboratory No. 440(Conforms with requirements of CAN−P−4D (ISO/IEC 17025)) CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ISSUED ON: 2005−06−02 VALID TO: 2009−03−20 Nortel Wireless Performed For: 5050-40th Street, N.E. Calgary Alberta T3J 4P8 Customer Representative: Name: Tam Dang Phone #: (403)769-4115 Email Address: [email protected] Responsible Manager: Name: Brad Carlson Phone #: (403) 769-4063 Email Address: [email protected] CG-530-RA-1-0 FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Emissions Test Report NORTEL AC 1900MHz VILLAGE BTS 3011 with DOM The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 58 May 29, 2007 Test Summary Deviations* from: Status Applicable Rule Parts Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure A RF Power Output No No No PASS FCC -24.232 B Occupied Bandwidth No No No PASS FCC -24.238 C TX Conducted Spurious Emissions No No No PASS FCC -24.238 D TX Frequency Stability No No No PASS FCC -24.235 E TX Radiated Spurious Emissions 30 MHz- 20 GHz No No No PASS FCC -24.238 F Conducted Voltage Emissions 150 kHz – 30 MHz FCC CFR 47 Part 24 No No No PASS FCC Part 15, Subpart B G Test Equipment List No No No NA NA Test Result: The product presented for testing complied with test requirements as shown above. CG-530-RA-1-0 FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Emissions Test Report NORTEL AC 1900MHz VILLAGE BTS 3011 with DOM The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 58 May 29, 2007 Test Log APPENDIX Test Case Start End Tester A RF Power Output FCC CFR 47 Part 24 May 20, 2007 May 29, 2007 Deniz Demirci- EMC Specialist Glen Moore – EMC Manager Andrew Gibson – RF Engineer B Occupied BW FCC CFR 47 Part 24 May 20, 2007 May 29, 2007 Deniz Demirci- EMC Specialist Glen Moore – EMC Manager Andrew Gibson – RF Engineer C TX Conducted Spurious Emissions FCC CFR 47 Part 24 May 20, 2007 May 29, 2007 Deniz Demirci- EMC Specialist Glen Moore – EMC Manager Andrew Gibson – RF Engineer D Frequency Stability FCC CFR 47 Part 24 May 1, 2007 May 29, 2007 Deniz Demirci- EMC Specialist Glen Moore – EMC Manager Andrew Gibson – RF Engineer E Radiated Emissions 30 MHz – 20 GHz FCC CFR 47 Part 24 May 09, 2007 May 09, 2007 Deniz Demirci – EMC Specialist F Conducted Voltage Emissions 150 kHz – 30 MHz FCC CFR 47 Part 24 May 15, 2007 May 15, 2007 Glen Moore – EMC Manager The test outlined may not be inclusive of all testing required by the Base Standards or fulfill the applicable regulatory requirements in their entirety. Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: ______________________ Glen Moore, EMC Manager Deniz Demirci, EMC Specialist Reviewed By: ______________________ Glen Moore EMC Manager CG-530-RA-1-0 FCC ID: AB6NT3011VBTS IC: 332D-3011VBTS Emissions Test Report NORTEL AC 1900MHz VILLAGE BTS 3011 with DOM The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 5 of 58 May 29, 2007 Table of Contents REPORT SUMMARY ..................................................................................................................................................2 TEST SUMMARY ...........................................…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 7 Test Setup Photos Applicant: Nortel Networks For Original Filing on : FCC: AB6NT3011VBTS IC: 332D-3011VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Test setup for the Spurious Emission at Antenna Terminals
