AB6NT3030VBTSCDMA Cellular Base Station

Request for Confidentiality May 17, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Class II Permissive Change Application FCC Tx ID : AB6NT3030VBTS IC : 332D-3030VBTS Dear Sir/Madam Please accept this request for confidentiality of sensitive information contained in this application. The request for confidentiality applies to the following sections: EXHIBIT 3: Technical Description EXHIBIT 6: Internal Photos EXHIBIT 8A: Schematics (NTDV26CA p1-80) EXHIBIT 8B: Schematics (NTDV26CA p81-e, NTDV38BA) EXHIBIT 8C: Schematics (NTDV31BA p1-120) EXHIBIT 8D: Schematics (NTDV31BA p121-e, NTDV36BA) EXHIBIT 9: Parts Lists EXHIBIT 11: User Manual The application contains technical information that Nortel Networks deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Thomas Wong, Regulatory Prime Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 16, 2006 RE: FCC ID: AB6NT3030VBTS_ATCB003465 Attention: Thomas Wong I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. FYI - Please note that the FCC has in the last 12 months had objections to listing emissions designators for 2M25F9W, 3M73F9W etc. The positions is basically that these transmissions are only adjacent channels used in conjunction and as such would fall under the 1M25 designation. Please be aware that should the FCC require, these designators may have to be removed from the grant. 2. Please note that the test report does not clearly identify the test methods used for spurious ERP measurements. Please note that TIA603 is the required method. While the results appear to be for this method, no statement to that affect has been made. Please explain if TIA603 was used, or if another method was used to make these measurements. 3. Please note that confidentiality has been requested for the internal photos. Howver, please also note that the manual has not been requested to be confidential and it contains photos and drawings of the internal mechanisms of the base station. If this information is considered confidential, you will also need to put the manual under the confidentiality request. Please advise. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

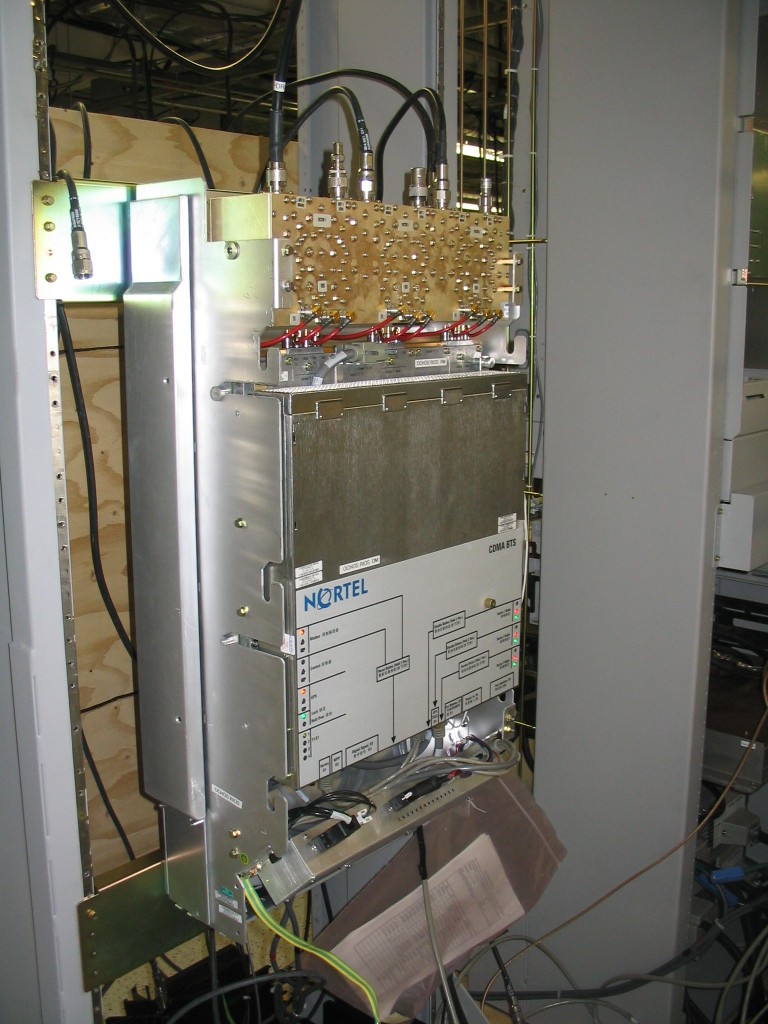

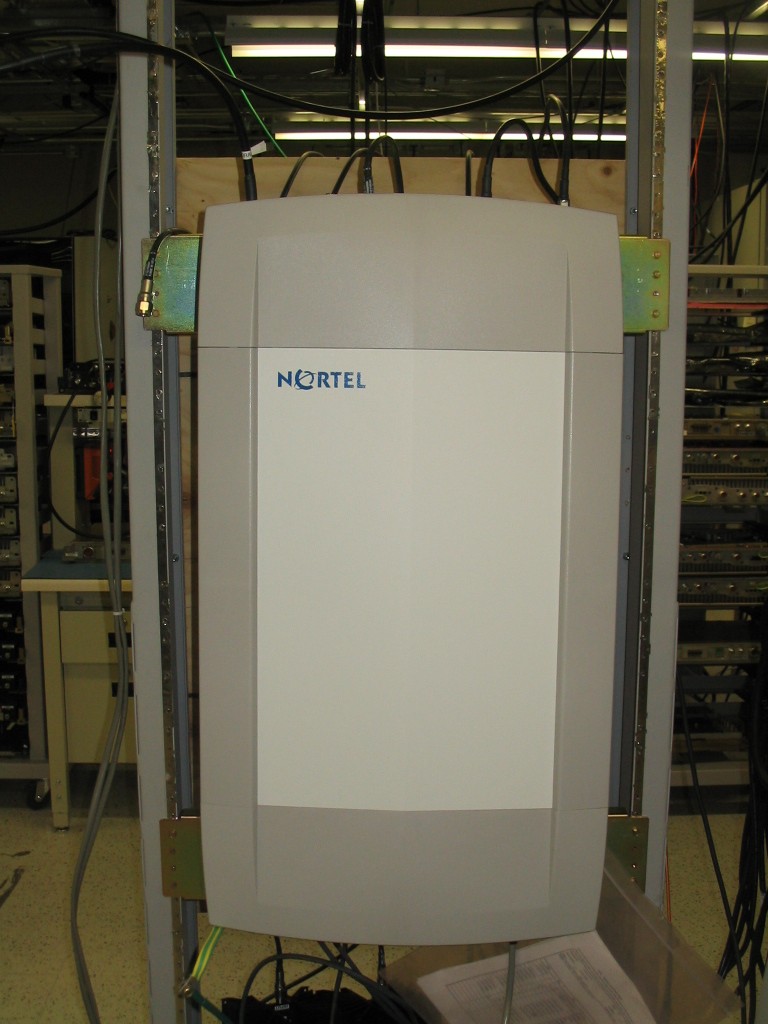

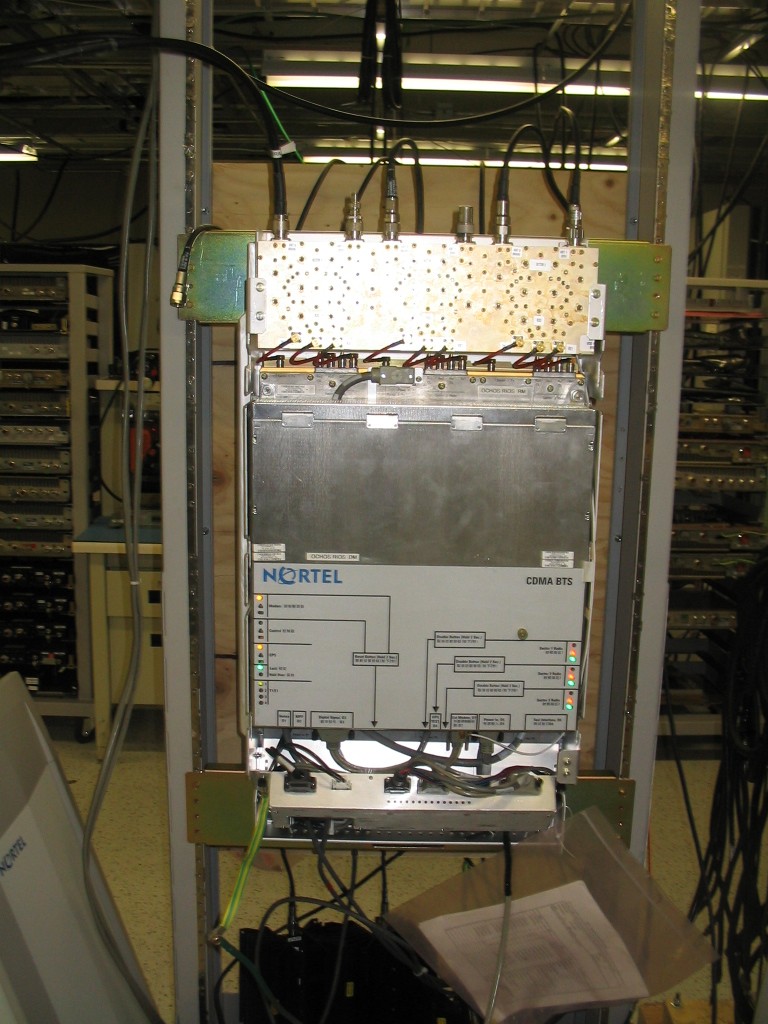

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 5 External Photos Applicant: Nortel Networks For Original Equipment Application on: FCC: AB6NT3030VBTS IC: 332D-3030VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks vBTS 3030 Front View With Cover On This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks vBTS 3030 Front View With Cover OFF This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks vBTS 3030 Left Front Side View With Cover OFF This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks vBTS 3030 Right Front Side View With Cover OFF

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 4 Transmit Label Information Applicant: Nortel Networks For Original Equipment Application on: FCC: AB6NT3030VBTS IC: 332D-3030VBTS This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC Tx ID: AB6NT3030VBTS IC: 332D-3030VBTS Sample Label This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks FCC Tx ID: AB6NT3030VBTS IC: 332D-3030VBTS Label Location

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2 Test Report Summary Applicant: Nortel Networks For Original Equipment Certification on: FCC Tx ID: AB6NT3030VBTS IC: 332D-3030VBTS 2 Test Report Summary for Original Equipment Authorization FCC Tx ID : AB6NT3030VTBS 800MHz Village BTS Document: TRS_AB6NT3030VBTS Stream: 00 Issue: 01 Issue Date: May 2, 2005 Security Status: Nortel Networks Confidential Author: Thomas Wong © 2006 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. 3 1. Introduction This test report is submitted in accordance with the FCC Rules and Regulations, Part 2, Subpart J, Sections 2.1046 through 2.1057 for equipment authorization of Nortel Networks’ CDMA 800 MHz Village Basestation 3030 Radio Module (vBTS 3030 RM). The 800 MHz vBTS 13030 RM is intended for use in the Domestic Public Cellular Radio Telecommunications Service and is designed in accordance with the following standards: • CFR 47, Part 22, Subpart H, Subpart H, Cellular Radiotelephone Service[1] • CFR 47, Part 2, Subpart J, Equipment Authorization Procedures - Equipment Authorization[2] 2. Test Result Summary Table 1 summarizes the measurement results for the CDMA 800 MHz vBTS 3030 RM. Table 1: Test Results Summary FCC Measurement Specification FCC Limit Specification Description Results Test(s) Conducted by Remarks 2.1033(c)(8) Measurement of DC Power Provided 2.1046 RF Output Power Provided Nortel Networks See Exhibit 2A 2.1047 Modulation Characteristics Not Applicable 2.1049 Occupied Bandwidth Provided Nortel Networks See Exhibit 2A 2.1051, 2.1057 22.917 Spurious Emission at Antenna Terminals Compliant Nortel Networks See Exhibit 2A 2.1053, 2.1057 22.917 Field Strength of Spurious Radiation Compliant NTS Calgary See Exhibit 2B 2.1055 22.355 Frequency Stability Compliant Nortel Networks See Exhibit 2A 4 2. Engineering Declaration The CDMA 800 MHz vBTS 3030 RM has been tested in accordance with the requirements contained in the Federal Communication Rules and Regulations Part 2 and 22. To the best of my knowledge, these tests were performed in accordance with good engineering practices using measurement procedures consistent with industry or commission standards or previous Commission correspondence or guidance and demonstrate that this equipment complies with the appropriate standards. All tests (including tests performed by NTS Calgary) were conducted on a representative sample of the equipment for which type acceptance/certification is sought. Report Prepared by Thomas Wong Regulatory Prime Nortel Networks Calgary, Alberta May 02, 2006 5 3. Type Acceptance Application Requirements 3.1 Name of Applicant The applicant is Nortel Networks Inc. 3.2 Identification of Equipment The equipment in this application for type acceptance is the Nortel’s CDMA 800 MHz vBTS 3030 RM. The 800MHz CDMA Village BTS 3030 RM is marketed under the model vBTS 3030 RM. The FCC ID number sought is AB6NT3030VBTS. The IC ID number sought is 332D-3030VBTS. 3.3 Quantity Production The 800 MHz vBTS 3030 RM will be produced in quantity. 3.4 Technical Description See Exhibit 3. 3.5 Type of Emissions The 800MHz vBTS 3030 RM Assembly is designed to operate in digital mode to support up to 3 carrier and 3 sectors. The emission designator for one IS97 carrier is 1M25F9W, for two IS97 carriers is 2M50F9W, and for three IS97 carriers is 3M73F9W. The emission designator for one IS864 carrier is 1M25D9W, for two IS864 carriers is 2M50D9W, and for three IS97 carriers is 3M73D9W. Tests were conducted with 1, 2, or 3 carrier(s) in all sectors. The emission designators were calculated based on requirements of FCC Rule Part 2, Subpart C - Emissions, section 2.201 and Section 2.202. 3.6 Frequency Range The 800 MHz vBTS 3030 RM operates in the 800 MHz cellular band where the operating frequency ranges are 824 – 849 MHz for the receiver and 869 - 894 MHz for the transmitter. The following table shows the CDMA channels within this band meeting FCC requirements. 6 Band CDMA Channel Number Transmitter Center Frequency Assignment for Base Station (MHz) Channel Meeting FCC Requirements 991-1014 869.040-869.730 Non-compliance 1015-308 869.760-879.240 Compliance A’’ + A 309-333 879.270-879.990 Non-compliance 334-357 880.020-880.710 Non-compliance 358-642 880.740-889.260 Compliance B 643-666 889.290-889.980 Non-compliance 667-691 890.010-890.730 Non-compliance 692 890.760 Compliance A’ 693-716 890.790-891.480 Non-compliance 717-741 891.510-892.230 Non-compliance 742-775 892.260-893.250 Compliance B’ 776-799 893.280-893.970 Non-compliance 3.7 Range of Operating Power The 800 MHz vBTS 3030 RM range of operating RF power is 0 dBm to 47.8 dBm . The maximum RF power output is 47.8 dBm.. 3.8 Complete Circuit Diagrams The Tx chain of the 800 MHz vBTS 3030 radio system for certification is made up of the 800MHz vBTS 3030 RM (radio, and PA) and DPM (Duplexer and filter, an OEM equipment). Exhibit 8 contains the schematics of circuit cards inside the 800MHz vBTS 3030 and Exhibit 9 contains the parts lists of the circuit cards inside 800MHz vBTS 3030. 3.9 Tune-up Procedure The tune-up tests will be performed as part of the factory testing on the 800MHz vBTS 3030 RM. This procedure includes power output levels, spurious emissions, and occupied bandwidth. There are no end-user adjustments that will have any effect on these sett…
