AB6NT800EFRM800 MHZ EFRM (Cellular transmitter)

Wireless Development Center, 2 nd Floor, 2924 11 Street NE, Calgary, Alberta, Canada, T2E 7L7 Glen Moore Ph: (403) 781-5002 Fax: (403) 232-4813 Email: [email protected] Dec 20, 1999 Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Part 22 Certification for the Nortel’s CDMA 800 MHz Extended Flexible Radio Module (EFRM) Form 731 Confirmation Number: FCC ID: AB6NT800EFRM Dear Sir or Madam: Enclosed, in accordance with the FCC Part 22 rules, is Nortel Networks’ (Northern Telecom) test report for the 800 MHz CDMA Extended Flexible Radio Module (EFRM), in support of the attached form 731 application for Certification. I would like to request that the following section be held confidential due to its proprietary nature. 1) Technical Information (Exhibit 3) and Schematics (Exhibit 4), (Pages 32 –90). Please note that an installation manual is not available, please refer to the already approved AB6NT800FRM as it will be the same. A completed Fee Form 159 is also included for the amount of $580.00 representing the fee for this Certification ($450.00) and the fee ($130.00) prescribed for the confidentiality listed above. Please note that this system is identical to the previously approved 800FRM (FCC ID AB6NT800FRM) with the exception of the high-powered amplifier (already approved Powerwave PA FCC ID #E675JS0035), which has been upgraded in the system. The schematics are identical that were provided for the AB6NT800FRM, please reference these schematics. If there is any further information that I can provide to expedite this approval, please do not hesitate in contacting me directly. Sincerely, Glen Moore Project Prime

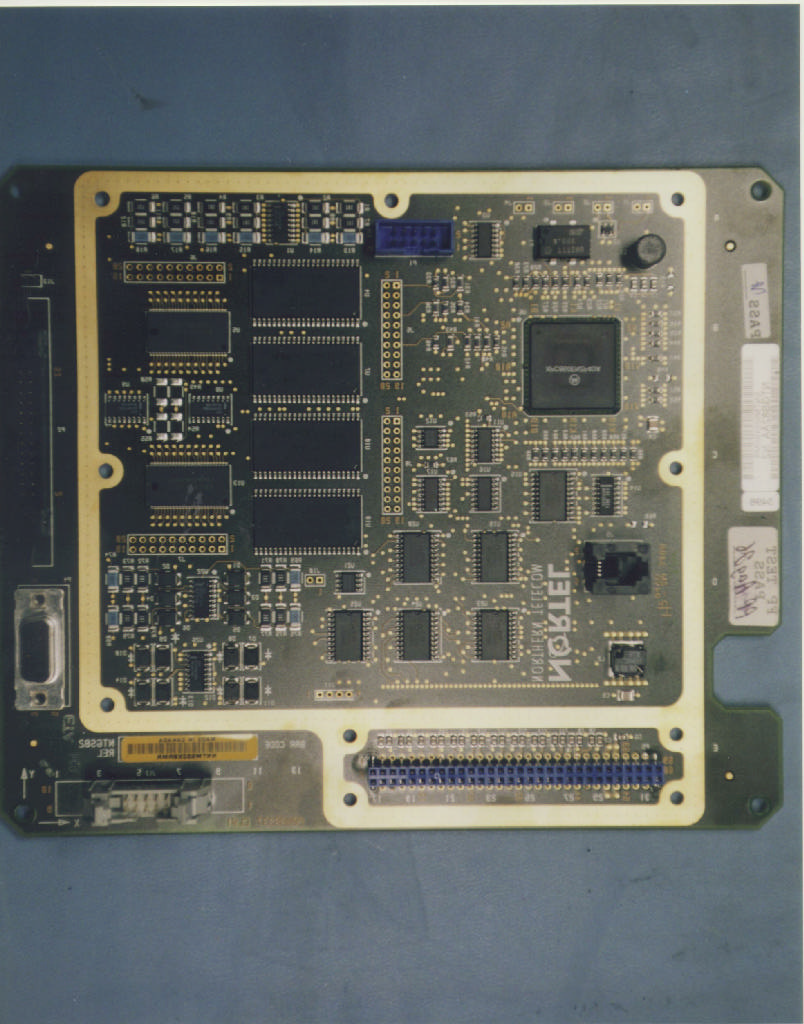

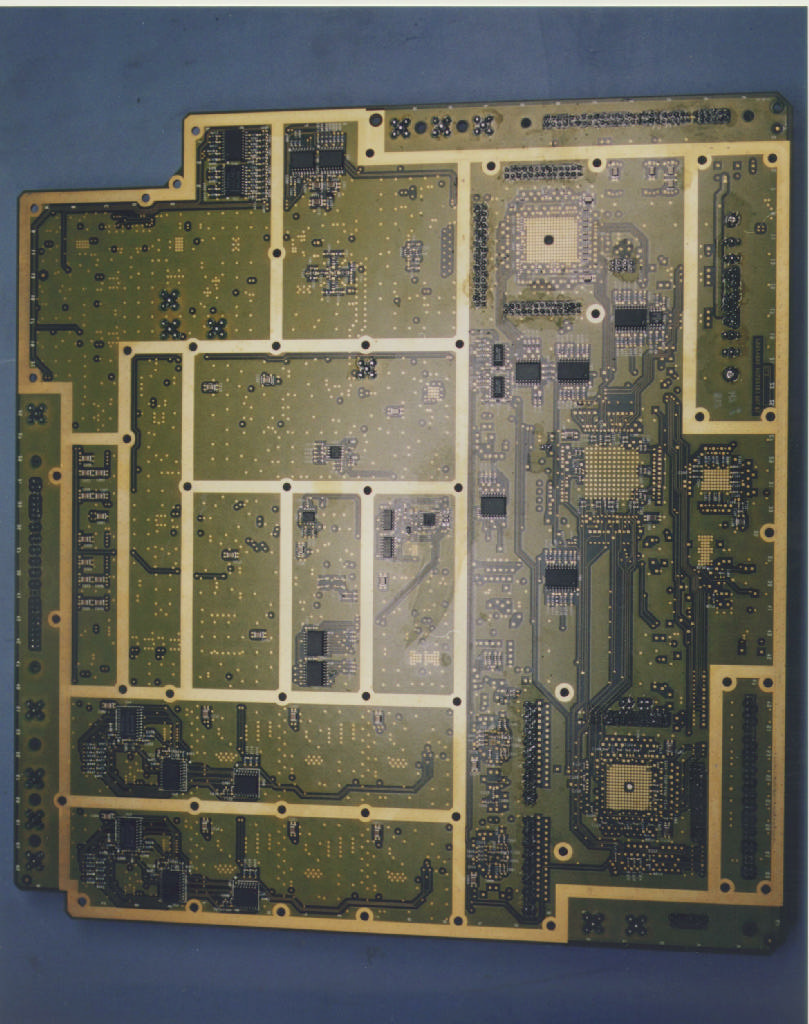

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 5 PHOTOGRAPHS Applicant: Northern Telecom Ltd. For Type Acceptance/Certification on: AB6NT800EFRM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM DPM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM (Lid Removed) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Top View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Bottom View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Electro-Optical Module(EOM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Top) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Bottom) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Supply Module (PSM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Converter Assembly (PCA) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier Shelf (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell system Radiated emissions setup (Front view) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell with EFRMS rear view

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 1 Label Identification Applicant: Northern Telecom Ltd. For Type Acceptance/Certification on: AB6NT800EFRM Application for Type Acceptance FCC ID: AB6NT800EFRM Page 1-1 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Label Identification A drawing of the regulatory label is shown below: The contents of the label may be modified to also include safety regulatory logo such as UL and CSA. The regulatory label will be placed in on the inside of the fan plenum door on the front of the EFRM. 800 MHz EFRM FCC ID: AB6NT800EFRM CANADA: XXX XXX XXX

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 5 PHOTOGRAPHS Applicant: Northern Telecom Ltd. For Type Acceptance/Certification on: AB6NT800EFRM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM DPM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM (Lid Removed) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Top View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Bottom View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Electro-Optical Module(EOM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Top) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Bottom) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Supply Module (PSM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Converter Assembly (PCA) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier Shelf (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell system Radiated emissions setup (Front view) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell with EFRMS rear view

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 5 PHOTOGRAPHS Applicant: Northern Telecom Ltd. For Type Acceptance/Certification on: AB6NT800EFRM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM DPM Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM TRM (Lid Removed) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board Assembly Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Top View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Transceiver Board (Bottom View) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Electro-Optical Module(EOM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Top) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Processor Board (Bottom) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Supply Module (PSM) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Power Converter Assembly (PCA) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM HIPD Module Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Powerwave amplifier Shelf (FCC ID# E675JS0035) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell system Radiated emissions setup (Front view) Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Front view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM EFRM Rear view Nortel 800 MHz Flexible Radio Module AB6NT800EFRM Rural Cell with EFRMS rear view

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. List of Exhibits Exhibit 1 Label Identification Exhibit 2 Test Report Exhibit 3 Technical Description Exhibit 4 Schematics Exhibit 5 Photographs This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 2 Test Report Applicant: Northern Telecom Ltd. For Type Acceptance/Certification on: AB6NT800EFRM Application for Certification under FCC Part 22 Prepared on: October 29 1999 FCC ID: AB6NT800EFRM Page 2-3 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. 1 Introduction This information is submitted in accordance with the FCC rules and regulations, Part 2, Subpart J, §2.1033 through §2.1057 and Industry Canada RSS 129 radio standard for Type Acceptance/Certification of the Northern Telecom’s (Nortel Networks) CDMA 800 MHz Extended Flexible Radio Module (EFRM). This 800 MHz EFRM is intended for use in the Domestic Public Cellular Radio Telecommunications Service and is designed in accordance with the following standards: • CFR 47, Part 22, Subpart H, Domestic Public Cellular Radio Telecommunications Service • TIA/EIA/IS-95-A, Mobile Station - Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System, May 1995 1.1 Test Result Summary Table 1 summarizes the measurement results for the CDMA 800 MHz EFRM. Table 1: Test Results Summary FCC Measurement Specification FCC Limit Specification Description Result 2.1046 22.913 RF Output Power Compliant 2.1047 22.901 Modulation Characteristics Not Applicable 2.1049 22.917 Occupied Bandwidth OBW = 1.267 MHz 2.1051, 2.1057 22.917 Spurious Emissions at Antenna Terminals Compliant 2.1053, 2.1057 22.917 Field Strength of Spurious Emissions Compliant 2.1055 Frequency Stability Compliant Application for Certification under FCC Part 22 Prepared on: October 29 1999 FCC ID: AB6NT800EFRM Page 2-4 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. 2 Engineering Declaration The CDMA 800 MHz Extended Flexible Radio Module has been tested in accordance with the requirements contained in the Federal Communications Commission Rules and Regulations Parts 2 and 22 and Industry Canada Radio Standard Specification 129, issue 1. To the best of my knowledge, these tests were performed in accordance with good engineering practices using measurement procedures consistent with industry or commission standards and demonstrate that this equipment complies with the appropriate standards. All tests were conducted on a representative sample of the equipment for which certification is sought. Signed Official copy kept on file by Nortel Networks October 22, 1999 Rupinder Randhawa Date Technical Manager Wireless Systems Integrity Nortel Networks Calgary, Alberta Application for Certification under FCC Part 22 Prepared on: October 29 1999 FCC ID: AB6NT800EFRM Page 2-5 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. 3 Type Acceptance Application Requirements 3.1 Name of Applicant The applicant is Northern Telecom (Nortel Networks) Limited. 3.2 Identification of Equipment The equipment in this application for type acceptance is the Northern Telecom’s CDMA 800 MHz Extended Flexible Radio Module (EFRM). The 800MHz EFRM will be marketed under the model number NT800EFRM. The FCC ID number sought is AB6NT800EFRM. 3.3 Quantity Production The 800 MHz EFRM will be produced in quantity. 3.4 Technical Description Radio Module Details The EFRM design is based on the already FCC approved 800 FRM (FCC ID AB6NT800FRM) with the main difference being the RF power amplifier. Where the 800 FRM uses a 25W Powerwave PA that is housed in a Nortel designed environmentally hardened chassis, the Extended Cell will use a 100W PA, which was originally designed for use in indoor multicarrier TDMA applications. The 100W MCPA (HPA) is not compatible with the form factor for the FRM style chassis of the base program. This prevents the PA from being used in unprotected outdoor applications. It also requires a significant amount of regulated power to operate (approximately 50A @ 27VDC). Since the SCPA in the PAM is no longer required for RF, but a high current power supply is required to power the Powerwave HPA, it was decided to use the PAM package and cooling system to house the HPA power supply. The TRM does not change. Neither does the DPM, and all 800 MHz DPM options are available, including the IMF. The splitters are included in the DPM tray as well. PLEASE REFER TO AB6NT800FRM FOR ALL DETAILED TECHNICAL DESCRIPTIONS. Powerwave HPA Details The HPA is based on a standard Powerwave G3H-80 amplifier. Powerwave will provide a slide in shelf for this PA to adapt their PA form factor to the available frame aperture. This amplifier has also already been FCC approved to FCC Part 22 (FCC ID E675JS0035) Application for Certification under FCC Part 22 Prepared on: October 29 1999 FCC ID: AB6NT800EFRM Page 2-6 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. 3.5 Types of Emissions The 800 MHz EFRM Assembly is designed to operate in digital mode. The emission type is FXW for CDMA mode. The emission designator is 1M25FXW. 3.6 Frequency Range The 800 MHz FRM operates in the 800 MHz cellular band where the operating frequency ranges are 824 – 849 MHz for the Receiver and 869 – 894 MHz for the Transmitter. The following table shows the valid CDMA channels within this band. Transmitt…

Text truncated - open the document above for the full version.
