AB6NT800SFRMCDMA Cellular Base Station

Request for Confidentiality Nov 26, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE : Original Equipment Certification Application FCC Tx ID : AB6NT800SFRM Dear Sir/Madam Please accept this request for confidentiality of sensitive information contained in this application. The request for confidentiality applies to the following sections: EXHIBIT 3: Technical Description EXHIBIT 6: Internal Photos EXHIBIT 8: Schematics EXHIBIT 9: Parts Lists EXHIBIT 11: User Manual The application contains technical information that Nortel Networks deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Thomas Wong, Regulatory Prime Wireless Division, Nortel Networks Tel: 403-769-2425 Fax: 403-769-7806 Email: [email protected]

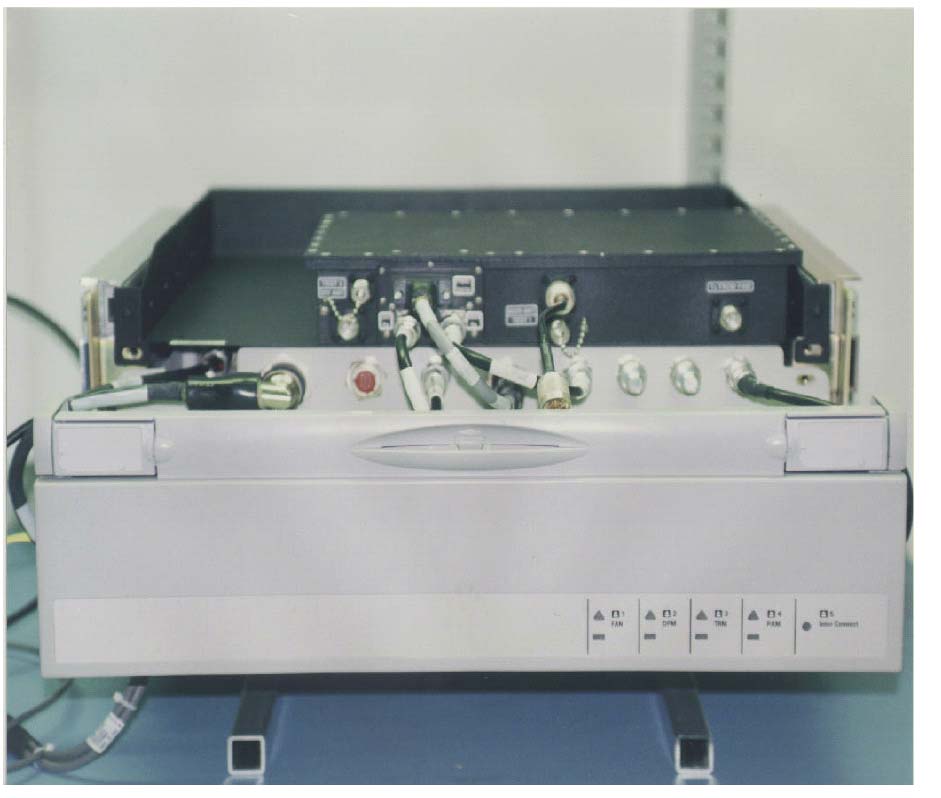

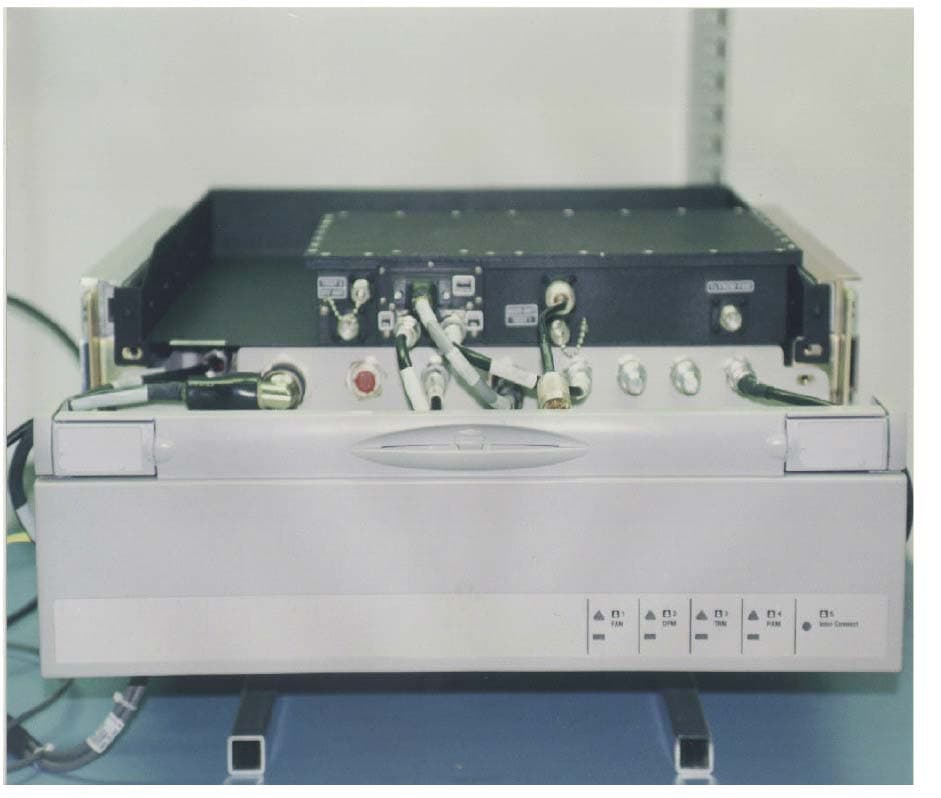

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 5 External Photos Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks SFRM Assembly Front View Fan Assembly Mounted This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks SFRM Assembly Front View Fan Assembly Removed

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 4 Transmit Label Photos Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks AB6NT800SFRM FCC Tx ID Label This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Nortel Networks AB6NT800SFRM FCC Tx ID Label Location

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 10 RF Exposure Guidelines for PCS and Cellular Applicant: Nortel Networks Inc. For Original Equipment Certification on: AB6NT800SFRM RF Exposure Guidelines for Cellular, PCS and LMDS Antenna Sites Document no: SI-EMR-R01.5 Authors: Product Integrity BWA – RF Engineering Microwave Radio Design Proprietary Northern Telecom Antenna Siting Guideline 3 The information disclosed herein is proprietary to Nortel Networks or others and is not to be used by or disclosed to unauthorized persons without the written consent of Nortel. The recipient of this document shall respect the security status of the information. 1.0 Executive Summary This document serves as a guideline for the deployment and installation of Nortel Networks’ wireless base station equipment with respect to the control of electromagnetic radiation (EMR) exposure. The objective is to provide guidance on where antennas can be deployed, how to calculate power densities and safe distances and how to protect users from excessive exposure to electromagnetic radiation. This guideline is in response to recent regulatory requirements originating in the US aimed at controlling human exposure to EMR. Safe distance formulae for base stations: Limits Application Uncontrolled r [ meters ] Controlled r [ meters ] Cellular r0. 300 ER P= r0. 135 ER P= PCS r0. 228 ER P= r= 0.102 ERP DCS r0. 228 ER P= r=0.102ERP LMDS r = 1 r = 0.4 P-to-P Microwave Radio r = 1 r = 0.4 Uncontrolled refers to situations where individuals are either unaware or not in control of their exposure to the electromagnetic fields in question. This typically pertains to the general public. Controlled refers to situations where individuals are both aware of and in control of their exposure to the electromagnetic fields in question. This typically pertains to trained staff that is in contact with these fields as a result of their employment and have authority to limit their exposure. Note: This document includes DCS in its examples. If the EU adopts ENV50166, or any other EMR standard, then that document will replace this as the guideline for DCS products. Until that happens, these limits can be used to ensure due diligence on Nortel Networks’ behalf. Northern Telecom Antenna Siting Guideline iv Table of Contents 1.0 Executive Summary ................................................................................. ii 2.0 Introduction ............................................................................................. 1 3.0 Guideline ............................................................................................. 2 3.1 MPE Limits ............................................................................................. 3 3.2 Safe Distance and Power Density Calculations ................................. 5 3.2.1 Minimum Safe Distance ............................................................ 6 3.2.2 Power Density Calculation ........................................................ 8 3.3 Site Planning ............................................................................................ 9 4.0 Other Components ................................................................................. 10 5.0 Assumptions ........................................................................................... 11 6.0 References .............................................................................................. 12 7.0 Acronyms ............................................................................................... 12 Northern Telecom Antenna Siting Guideline 1 2.0 Introduction Regulatory bodies in the US, Federal Communications Commission (FCC), and Canada, Health Canada, are imposing Maximum Permissible Exposure (MPE) limits. FCC’s OET Bulletin #65 (versions in progress) addresses calculation and measurement procedures to determine compliance with the FCC limits which includes the 800 MHz cellular and 1.9 GHz PCS bands. The equipment and its associated deployment must comply with FCC Guidelines, ET Docket No. 93-62, Released August 1, 1996, (FCC 96-326). This standard is largely based on the limits and test methods outlined in IEEE C95.1-1982, NCRP Report No. 86 and C95.3-1982 respectively. The applicable portions of both are summarized in this document to assist in the antenna site planning to ensure compliance. The exposure limits are currently in effect. The requirement for installers to evaluate the exposure at an installation takes effect on Sept. 1/97. The exposure limits should apply now to all known sites since existing facilities are not exempt or grand fathered from the new rules. The FCC has determined that certain sites will require “Environmental Evaluations” in order to show compliance to the standards. Adhering to these guidelines can ensure compliance to the standard, and therefore can be the basis for the Environmental Evaluation. Please note that some installations do not require such routine evaluation: exceptions are noted further in this document. Adherence to these guidelines is recommended to promote safety. An installation of equipment that is identified as exempt may require an Environmental Evaluation if the combined energy of other Radio Systems at the site and the new installation could reasonably exceed the safety limits. Environmental Evaluations are kept on hand, as opposed to file with the FCC, unless requested by the FCC for substantiation. Where Nortel Networks is responsible for installing or engineering base stations, the person in charge should be aware of and have access to documentation for making an Environmental Evaluation. Also, Nortel Networks will need to maintain documentation for assurances to the FCC that Environmental Evaluations have been conducted for each radio station that uses our Experimental Radio License, or STA, where the station …

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2 Test Report Summary Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM Test Report Summary for FCC Class II Permissive Change Equipment Authorization FCC ID : AB6NT800SFRM Multi-carrier Flexible Radio Module Document: TRS_AB6NT800SFRM Stream: 00 Issue: 01 Issue Date: Nov 27, 2002 Security Status: Nortel Networks Confidential Author: Thomas Wong  2002 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. Application for Original Equipment Certification FCC ID: AB6NT800SFRM Prepared on Nov 27, 2002 Nortel Networks Confidential Page 1 1 Introduction This test report is submitted in accordance with the FCC Rules and Regulations, Part 2, Subpart J, Sections 2.1046 through 2.1057 for equipment authorization of Nortel Networks’ CDMA 800 MHz Single-carrier Flexible Radio Module (SFRM). The 800 MHz SFRM is intended for use in the Domestic Public Cellular Radio Telecommunications Service and is designed in accordance with the following standards: • CFR 47, Part 22, Subpart H, Subpart H, Cellular Radiotelephone Service[1] • CFR 47, Part 2, Subpart J, Equipment Authorization Procedures - Equipment Authorization[2] • CFR 47, Part 24, Subpart E, Broadband Personal Communications Service [3] 1. Test Result Summary Table 1 summarizes the measurement results for the CDMA 800 MHz SFRM. Table 1: Test Results Summary FCC Measurement Specification FCC Limit Specification Description Results Test(s) Conducted by Remarks 2.1046 22.913 RF Output Power Compliant Nortel Networks See Exhibit 2A 2.1047 22.901, 22.915 Modulation Characteristics Not Applicable 2.1049 Occupied Bandwidth OBW = 1.263 MHz Nortel Networks See Exhibit 2A 2.1051, 2.1057 22.901, 24.238 Spurious Emission at Antenna Terminals Compliant Nortel Networks See Exhibit 2A 2.1053, 2.1057 22.901, 24.238 Field Strength of Spurious Radiation Compliant Sanmina Canada ULC See Exhibit 2B 2.1055 22.355 Frequency Stability Compliant Nortel Networks See Exhibit 2A Application for Original Equipment Certification FCC ID: AB6NT800SFRM Prepared on Nov 27, 2002 Nortel Networks Confidential Page 2 2. Engineering Declaration The CDMA 800 MHz Single-carrier Flexible Radio has been tested in accordance with the requirements contained in the Federal Communication Rules and Regulations Part 2, 22 and 24. To the best of my knowledge, these tests were performed in accordance with good engineering practices using measurement procedures consistent with industry or commission standards or previous Commission correspondence or guidance and demonstrate that this equipment complies with the appropriate standards. All tests (including tests performed by Sanmina Canada ULC) were conducted on a representative sample of the equipment for which type acceptance/certification is sought. Report Prepared by Thomas Wong Regulatory Prime Nortel Networks Calgary, Alberta Nov 27, 2002 Application for Original Equipment Certification FCC ID: AB6NT800SFRM Prepared on Nov 27, 2002 Nortel Networks Confidential Page 3 3. Type Acceptance Application Requirements 3.1 Name of Applicant The applicant is Nortel Networks Inc. 3.2 Identification of Equipment The equipment in this application for type acceptance is the Nortel’s CDMA 800 MHz Single- carrier Flexible Radio Module (SFRM). The 800MHz SFRM is marketed under the model name 800MHz SFRM. The FCC ID number sought is AB6NT800SFRM. 3.3 Quantity Production The 800MHz SFRM will be produced in quantity. 3.4 Type of Emissions The 800MHz SFRM Assembly is designed to operate in digital mode. The emission type is F9W for CDMA mode. The emission designator is 1M25F9W for one CDMA channel. The emission designator were calculated based on requirements of FCC Rule Part 2, Subpart C - Emissions, section 2.201 and Section 2.202. 3.5 Frequency Range The 800 MHz SFRM operates in the 800 MHz cellular band where the operating frequency ranges are 824 – 849 MHz for the receiver and 869 - 894 MHz for the transmitter. The following table shows the valid CDMA channels within this band stated in IS97D. Band CDMA Channel Number Transmitter Frequency Assignment for Base Station (MHz) Valid CDMA Frequency Assignment 991-1012 869.040-869.670 In-Valid A’’ 1013-1023 869.700-870.000 Valid 1-311 870.030-879.330 Valid A 312-333 879.360-879.990 In-Valid 334-355 880.020-880.650 In-Valid 356-644 880.680-889.320 Valid B 645-666 889.350-889.980 In-Valid 667-688 890.010-890.640 In-Valid 689-694 890.670-890.820 Valid A’ 695-716 890.850-891.480 In-Valid 717-738 891.510-892.140 In-Valid 739-777 892.170-893.310 Valid B’ 778-799 893.340-893.970 In-Valid Application for Original Equipment Certification FCC ID: AB6NT800SFRM Prepared on Nov 27, 2002 Nortel Networks Confidential Page 4 3.6 Range of Operating Power The 800 MHz SFRM range of operating RF power is 30 dBm to 43.06 dBm . The maximum RF power output is 43.06 dBm.. 3.7 Complete Circuit Diagrams The RF chain of the 800 MHz SFRM is made up mainly of Nortel’s TRM (Transmit/Receive Module), SCPA (Single Channel Power Amplifier) from Powerwave, and DPM (Duplexer Preselector Module). Exhibit 8 contains the schematics of the TRM and Exhibit 9 contains the parts lists of the TRM. The OEM SCPA 800 MHz power amplifier is approved under FCC Tx ID E675JS0061. 3.8 Tune-up Procedure The tune-up tests will be performed as pa…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2A Test Report Provided by Nortel Networks Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM Test Report for FCC Equipment Authorization FCC ID : AB6NT800SFRM 800 FRM CDMA Metro Cell 800MHz SCPA CR Document: TR_AB6NT800SFRM_SCPA_CR Stream: 00 Issue: 02 Document Status: Approved Issue Date: November 25, 2002 Security Status: Nortel Networks Confidential Author: Fabian Wong  2002 Nortel Networks Limited Disclaimer The master of this document is stored on an electronic database and “write protected”. The protection can be altered by authorized persons only. Viewing of the master document electronically ensures access to the current issue. Any hardcopies must be regarded as uncontrolled copies. Security Warning The information disclosed herein is proprietary to Nortel Networks and not to be used by or disclosed by unauthorized persons without the written consent of Nortel Networks. The recipient of this document shall respect the security status of the information. P AGE I NTENTIONALLY L EFT B LANK Test Report for FCC Equip- ment Authorization FCC ID : AB6NT800SFRM Wireless Access November 25, 2002Nortel Networks Confidential ApprovedStream 00 Issue 02 Page 3 Publication History The latest controlled release of this document is located in Livelink at the following location: http://livelink2.ca.nortel.com/livelink/livelink.exe?func=ll&objId=4947065&objAc- tion=browse&sort=name All other soft and hard copies are uncontrolled. It is the responsibility of the reader to ensure that the latest release of this document is being used. List of Consultants The following people have reviewed this document prior to its release and have recommended its approval: Decision Maker/Ratifier The release of this document has been reviewed and approved for distribution and use by the fol- lowing: Printed NameFunctionDepartment Blair WoodCDMA BTS RF Systems2U41 Aurel SerghiCDMA BTS RF Systems2M64 Thomas WongCDMA/TDMA Regulatory Emission Prime2U40 Ratifier’s NameSignatureDate Brad Carlson Nov 26, 2002 Wireless Access Test Report for FCC Equipment Authorization FCC ID : AB6NT800SFRM 800 Nortel Networks ConfidentialNovember 25, 2002 Page 4 Stream 00 Issue 02Nortel Networks Confidential Revision History Change bars are not used in this document. Stream/ issue Revision Date Reason for ChangeAuthor 00/00.0123/10/2002Initial draft of test planAurel Serghi/ Dept. 2M64 00/00.0204/11/2002Following additions and changes were done upon document review feedback: 1) Section 3.2 - EUT Identifcation List: - added Notes in Table 2; 2) Section 3.3 - Test Equipment List: - added Note in Table 3; 3) Section 4.1 - RF Power Output requirements: - changed channel numbers in Table 4; - added Note in Table 4; 4) Section 4.2 - Occupied Bandwidth: - changed channel numbers in Table 5. 5) Section 4.3.1- Spurious Emissions Require- ments: - replaced FCC Part 22.917 with 24.238 Limit; - added FCC Part 22.901 d) requirements; - changed channel numbers in Table 6. 6) Section 4.4.1 - Frequency stability require- ments: - replaced FCC Part 22.913 with Part 22.355; - added Note that results from GPS testing should be included for FCC filing. Aurel Serghi/ Dept. 2M64 00/0112/11/2002Document approved.Aurel Serghi/ Dept. 2M64 00/0218/11/2002Updated document with test results.Fabian Wong/ Dept. 2U41 Test Report for FCC Equip- ment Authorization FCC ID : AB6NT800SFRM Wireless Access November 18, 2002Nortel Networks Confidential ApprovedStream 00 Issue 02 Page 5 Table of Contents Publication History .......................................................................................................................3 List of Consultants ....................................................................................................................3 Decision Maker/Ratifier ...........................................................................................................3 Revision History .......................................................................................................................4 Acronyms and Abbreviations ....................................................................................................11 1 Introduction...............................................................................................................................13 1.1 Required Tests ...................................................................................................................13 2 Engineering Declaration...........................................................................................................14 3 Equipment Authorization Application Requirements ..........................................................15 3.1 Standard Test Conditions and Test Equipment..................................................................15 3.2 EUT Identification List ......................................................................................................15 3.3 Test Equipment List ...........................................................................................................15 4 Transmitter Tests......................................................................................................................17 4.1 RF Power Output ...............................................................................................................17 4.1.1 RF Power Output Requirements .........................................................................17 4.1.2 Test Method ........................................................................................................17 4.1.3 Test Setup ...........................................................................................................17 4.1.4 Test Results .................................................................................…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 2B Test Report Provided by Sanmina-SCI Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 295 5134 Fax : (403) 295 4091 FCC 22 Emissions Test Report Project Code 80222 CDMA MCBTS SCPA CR Revision: 0 Date: October 29, 2002 Prepared for:Nortel Networks. Author:Carlos Celarie EMC Technologist Approved by:Glen Moore EMC Manager Confidentially Statement: The information contained in this document is the property of Sanmina-SCI Corporation. Except as specifically authorized in writing by the Director of Sanmina-SCI Corporation, the holder of this document shall keep all information contained herein confidential and shall protect the same, in whole or in part, from disclosure and dissemination to all third parties. 80222 Emissions Test ReportCDMA MCBTS SCPA CR The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body. Sanmina-SCI Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-295-5134, Fax: 403-295-4091 Confidential Page 2 of 28October 29, 2002 Summary Sanmina-SCI Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC46405-3978File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Performed For:Nortel Networks. 5111 – 47 th Street NE Calgary Alberta, T3J 3R2 Tel: (403) 769 2425 Customer Representative: Thomas Wong EUT Description: CDMA MCBTS SCPA CR. Model:NPGS8660 P8 Serial Number:NNTM532RPUR9, NNTM532RPUUB, NNTM532RPUTA. AppendixStandardsDescription & RangeDeviationsPass / FailCriteria BaseTest Basis From Standard From Test Plan BANSI C63.4-2001FCC Part 22 Radiated Emissions Signal Substitution 30MHz-1GHz NoNoPASSNone CANSI C63.4-2001FCC Part 22 Radiated Emissions Signal Substitution 1GHz-10GHz NoNoPASSNone Note: Test Plan deviations are listed in Appendix A. Test Result:The product presented for testing complied with test requirements as shown above. Tested By: _________________________Checked By:_________________________ Carlos CelarieDuane Friesen C.E.T. EMC Technologist EMC Technical Advisor Digitally signed b y Carlos A. Celarie DN: cn=Carlos A . Celarie, o=Sanmina-SCI , ou=Calgary., c=CA Date: 2002.10.31 13:46:43 -07'00' Signatur e Not Verified Duane Friesen Digitally signed by Duane F riesen DN: cn=Duane Friesen, o=Sanmina-SCI, ou=PI Laboratory, c=CA Date: 2002.10.31 15:36:19 -07'00' Reason: I have reviewed t his document Signature Not Verified 80222 Emissions Test ReportCDMA MCBTS SCPA CR The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body. Sanmina-SCI Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-295-5134, Fax: 403-295-4091 Confidential Page 3 of 28October 29, 2002 Table of Contents SUMMARY................................................................................................................................. 2 REGISTER OF REVISIONS ....................................................................................................... 3 1.0INTRODUCTION....................................................................................................... 4 1.1Purpose..................................................................................................................... 4 1.2Abbreviations and Definitions..................................................................................... 4 1.3References................................................................................................................ 5 2.0TEST LOG................................................................................................................. 5 3.0EUT ........................................................................................................................... 6 3.1Configuration............................................................................................................. 6 3.1.1S ET UP CONFIGURATION............................................................................................... 7 3.1.2T ESTPLANCONFIGURATIONDEVIATIONS....................................................................... 8 3.1.3EUT P OWER............................................................................................................... 8 3.1.4T ESTPLAN POWER DEVIATIONS..................................................................................... 8 3.2Cables....................................................................................................................... 8 3.2.1T ESTPLAN CABLE LIST DEVIATIONS................................................................................ 8 3.3Frequencies............................................................................................................... 9 3.3.1T ESTPLAN FREQUENCY LIST DEVIATIONS...................................................................... 10 3.4EUT Software.......................................................................................................... 10 3.5Mode of Operation................................................................................................... 11 3.5.1BTS S ET UP & CONFIGURATIONSDETAILS................................................................... 11 3.5.2T ESTPLAN MODE OF OPERATION DEVIATION................................................................. 11 3.6Pass / Fail Criteria...............…

Text truncated - open the document above for the full version.

This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. EXHIBIT 7 Test Setup Photos Applicant: Nortel Networks For Original Equipment Certification on: AB6NT800SFRM This document contains Proprietary information of Nortel Networks. This information is considered to be confidential and should be treated appropriately. Test setup for the Spurious Emission at Antenna Terminals
