AB6NTE310AGWireless Access Point AP7215

Page 1 of 15 Version: 0.0 Foxconn Confidential N N N T T T E E E 3 3 3 1 1 1 0 0 0 A A A G G G U U U s s s e e e r r r M M M a a a n n n u u u a a a l l l Wireless Access Point AP7215 Page 2 of 15 Version: 0.0 Foxconn Confidential Table of Content 1. Introduction.................................................................................................................................................... 4 2 Wireless AP7220 Hardware Overview.......................................................................................................... 5 2.1 Operating Frequencies ........................................................................................................................ 6 3 Regulatory Testing Setup and Steps ............................................................................................................. 8 3.1 Instruction to get setup ........................................................................................................................ 9 3.2 Instruction to ART function ............................................................................................................. 10 3.3 Compliance test failure...................................................................................................................... 12 3.4 Regulatory testing priorities ............................................................................................................. 12 4 Appendix –A: PC Static IP Configuration ................................................................................................. 13 5 Appendix-B: ISO Country Codes................................................................................................................ 15 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two Page 3 of 15 Version: 0.0 Foxconn Confidential conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device This device has been designed to operate with an antenna having a maximum gain of 14dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. Because high power radars are allocated as primary users (meaning they have priority) in 5250-5350 MHz, these radars could cause interference and/or damage to license exempt LAN devices. Page 4 of 15 Version: 0.0 Foxconn Confidential 1. Introduction This document provides a description of how to use the software test mode in the context of performing regulatory testing for the Wireless AP 7215. AP7215 delivers a special software test mode providing the necessary commands to setup the internal radio for the required regulatory testing as part of product certification. The present document describe how to setup the Wireless AP 7215 in that special test mode and provides the detailed step-by-step commands relevant in conducting Radio and Electro-magnetic Compatibility (EMC) regulatory testing. The document will be updated as required during the development cycle in order to redefine any major changes in the product offering. Any updates in the document will be agreed by the appropriate responsible engineering authority (REA). Notice: The product is only for professional installation. Page 5 of 15 Version: 0.0 Foxconn Confidential 2 Wireless AP7220 Hardware Overview The product includes two radio sub-systems. One is the access radio (Access Link – AL) operating at 2.4GHz compliant to the IEEE 802.11b/g standard. The second radio is used for traffic back-haul (i,e, Transit Link – TL) operating in the 5.GHz band compliant to IEEE 802.11a standard. Figure 1 shows a simplified functional block diagram of the Wireless AP7215. Page 6 of 15…

Text truncated - open the document above for the full version.

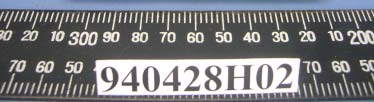

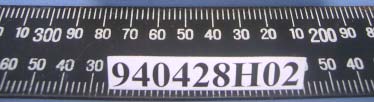

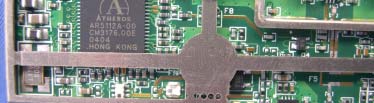

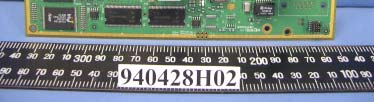

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: AB6NTE310AG FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

94.04.21 1/1 1 OF 1 PTT LABEL C01H047 C01H047 500 V Resa Mylar#50(white) Notes: 1.Size:75*46mm C5-1 2.Packing:Reel C5 E216718 CMII ID: XXXXXXXX IC:332H-NTE310AG 18*12mm 2D serial number 35*8mm MAC 35*8mm S/N FCC ID : AB6NTE310AG Model Number : NTE310AG Model Name : Wireless AP 7215 C01H047.00 This device complies with FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22

FCC ID: AB6NTE310AG Report No. 940428H02 Technical Description This device is a Wireless Access Point AP7215 operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps. The transmitter of the EUT is powered by adapter. The antenna are are Dual-Band Omni-Directional antenna with RA MMCX Plug connector and Hige Gain Panel Directional antenna with rp-SMA and SMA connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: AB6NTE310AG Report No.: SA940428H021Issued: May 31, 2005 RF EXPOSURE REPORT REPORT NO.: SA940428H02 MODEL NO.: NTE310AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Nortel Netowrks Limited ADDRESS:3500 Carling Avenue Nepean, Ontario K2H 8E9 , Canada ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: AB6NTE310AG Report No.: SA940428H022Issued: May 31, 2005 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: AB6NTE310AG Report No.: SA940428H023Issued: May 31, 2005 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: AB6NTE310AG Report No.: SA940428H024Issued: May 31, 2005 6 Test Results 6.1 Antenna Gain For 2.4GHz Antenna 1: The maximum Gain of the antenna is 4.0dBi. For 5GHz 5150-5350MHz Antenna 1: The maximum Gain of the antenna with cable loss is 5.4dBi. Antenna 2: The maximum Gain of the antenna with cable loss is 11.0dBi. 5450-5875MHz Antenna 1: The maximum Gain of the antenna with cable loss is 5.4dBi. Antenna 2: The maximum Gain of the antenna with cable loss is 13.0dBi. Antenna No. Brand Name Model No.Gain (dBi)Cable LossAntenna Type 2400-2500MHz: 4.0dBi0dB 1SmartAnt FXN05-220200 5150-5875MHz: 6.5dBi1.1dB Omni-Directional Antenna 5150-5350MHz: 12dBi1.0dB 2SmartAnt FXN05-093310 5450-5875MHz: 14dBi1.0dB High Gain Panel Directional Antenna FCC ID: AB6NTE310AG Report No.: SA940428H025Issued: May 31, 2005 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412177.8279410.0888646691.0 62437174.18068730.0870420541.0 112462168.26740610.0840870521.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412112.20184540.0560698161.0 62437334.195040.1670048671.0 112462107.64652140.0537934171.0 For 5GHz Normal Mode : Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518043.551187370.030042021.0 4524041.399967480.0285580881.0 55260175.79236140.1212632291.0 8532043.651583220.0301112741.0 95740174.98466890.1207060751.0 125800162.92960330.1123903771.0 145840103.27614060.0712408561.0 Normal Mode : Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518015.310874620.03834681.0 4524013.835663790.0346520661.0 5526075.509222770.1891163731.0 8532026.60725060.0666391011.0 95740171.39573080.6803448931.0 125800160.69412530.6378655231.0 145840102.32929920.4061899081.0

FCC ID: AB6NTE310AG Report No.: RF940428H021Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940428H02 MODEL NO.:NTE310AG RECEIVED:April 28, 2005 TESTED:May 3 to 28, 2005 ISSUED:May 28, 2005 APPLICANT: Nortel Netowrks Limited ADDRESS: 3500 Carling Avenue Nepean, Ontario K2H 8E9 , Canada ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 167 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: AB6NTE310AG Report No.: RF940428H022Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION.....................................................................................................7 2.SUMMARY OF TEST RESULTS.............................................................................8 3.GENERAL INFORMATION ................................................................................... 11 3.1GENERAL DESCRIPTION OF EUT...................................................................... 11 3.2DESCRIPTION OF TEST MODES........................................................................13 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................17 3.4DESCRIPTION OF SUPPORT UNITS..................................................................18 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................19 4.TEST TYPES AND RESULTS (FOR PART 802.11g)............................................20 4.1CONDUCTED EMISSION MEASUREMENT........................................................20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................20 4.1.2 TEST INSTRUMENTS ..........................................................................................20 4.1.3 TEST PROCEDURES ..........................................................................................21 4.1.4 DEVIATION FROM TEST STANDARD .................................................................21 4.1.5 TEST SETUP........................................................................................................22 4.1.6 EUT OPERATING CONDITIONS..........................................................................22 4.1.7 TEST RESULTS ...................................................................................................23 4.2RADIATED EMISSION MEASUREMENT .............................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...........................................25 4.2.2 TEST INSTRUMENTS ..........................................................................................26 4.2.3 TEST PROCEDURES ..........................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD .................................................................27 4.2.5 TEST SETUP........................................................................................................28 4.2.6 EUT OPERATING CONDITIONS..........................................................................28 4.2.7 TEST RESULTS ...................................................................................................29 4.2.8 TEST RESULTS - DSSS.......................................................................................30 4.2.9 TEST RESULTS - OFDM......................................................................................33 4.36DB BANDWIDTH MEASUREMENT....................................................................36 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................36 4.3.2 TEST INSTRUMENTS ..........................................................................................36 4.3.3 TEST PROCEDURE.............................................................................................37 4.3.4 DEVIATION FROM TEST STANDARD .................................................................37 FCC ID: AB6NTE310AG Report No.: RF940428H023Report Format Version 2.0.1 4.3.5 TEST SETUP........................................................................................................37 4.3.6 EUT OPERATING CONDITIONS..........................................................................37 4.3.7 TEST RESULTS -DSSS........................................................................................38 4.3.8 TEST RESULTS -OFDM.......................................................................................41 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................44 4.4.2 INSTRUMENTS....................................................................................................44 4.4.3 TEST PROCEDURES ..........................................................................................45 4.4.4 TEST SETUP........................................................................................................45 4.4.5 EUT OPERATING CONDITIONS..........................................................................45 4.4.6 TEST RESULTS -DSSS........................................................................................46 4.4.7 TEST RESULTS -OFDM.......................................................................................47 4.5POWER SPECTRAL DENSITY MEASUREMENT ................................................48 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............…

Text truncated - open the document above for the full version.

FCC ID: AB6NTE310AG Report No.: RF940428H0296Report Format Version 2.0.1 FOR FREQUENCY 5.15~5.35GHZ 5.3 PEAK TRANSMIT POWER MEASUREMENT 5.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHzThe lesser of 50mW (17dBm) or 4dBm + 10logB 5.25 – 5.35 GHzThe lesser of 250mW (24dBm) or 11dBm + 10logB Note: 1. Where B is the 26dB emission bandwidth in MHz. 2. Limit follows whichever is lower. 3. 5.15-5.25GHz: In addition, the peak power spectral density shall not exceed 4 dBm in any 1- MHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the peak transmit power and the peak power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 4. 5.25-5.35GHz: In addition, the peak power spectral density shall not exceed 11 dBm in any 1-MHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the peak transmit power and the peak power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 5.3.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: AB6NTE310AG Report No.: RF940428H0297Report Format Version 2.0.1 5.3.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set span to encompass the entire emission bandwidth of the signal. 3. Set RBW to 1MHz, VBW to 300kHz. 4. Using the spectrum analyzer’s channel power measurement function to measure the output power. 5.3.4 TEST SETUP 5.3.5 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUTSpectrum Analyzer FCC ID: AB6NTE310AG Report No.: RF940428H0298Report Format Version 2.0.1 5.3.6 TEST RESULTS (WITH ANTENNA 1) EUT Wireless Access Point AP7215 MODEL NTE310AG MODENormal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 68%RH, 965 hPa TESTED BY Rex Huang Antenna gain: 6.5dBi with Cable lose: 1.1dB CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1518016.3917.0027.86PASS 4524016.1717.0027.76PASS 5526022.4524.0033.12PASS 8532016.4024.0028.56PASS FCC ID: AB6NTE310AG Report No.: RF940428H0299Report Format Version 2.0.1 CHANNEL 1 CHANNEL 4 FCC ID: AB6NTE310AG Report No.: RF940428H02100Report Format Version 2.0.1 CHANNEL 5 CHANNEL 8 FCC ID: AB6NTE310AG Report No.: RF940428H02101Report Format Version 2.0.1 CHANNEL 1 CHANNEL 4 FCC ID: AB6NTE310AG Report No.: RF940428H02102Report Format Version 2.0.1 CHANNEL 5 CHANNEL 8 FCC ID: AB6NTE310AG Report No.: RF940428H02103Report Format Version 2.0.1 5.3.7 TEST RESULTS (WITH ANTENNA 2) EUT Wireless Access Point AP7215 MODEL NTE310AG MODENormal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 68%RH, 965 hPa TESTED BY Rex Huang Antenna gain: 12dBi with Cable lose: 1dB CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1518011.8512.0025.48PASS 4524011.4112.0025.76PASS 5526018.7819.0025.36PASS 8532014.2519.0027.00PASS FCC ID: AB6NTE310AG Report No.: RF940428H02104Report Format Version 2.0.1 CHANNEL 1 CHANNEL 4 FCC ID: AB6NTE310AG Report No.: RF940428H02105Report Format Version 2.0.1 CHANNEL 5 CHANNEL 8 FCC ID: AB6NTE310AG Report No.: RF940428H02106Report Format Version 2.0.1 CHANNEL 1 CHANNEL 4 FCC ID: AB6NTE310AG Report No.: RF940428H02107Report Format Version 2.0.1 CHANNEL 5 CHANNEL 8 FCC ID: AB6NTE310AG Report No.: RF940428H02108Report Format Version 2.0.1 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: AB6NTE310AG Report No.: RF940428H02109Report Format Version 2.0.1 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set span to encompass the entire emission bandwidth of the signal. 3. Set spectrum analyzer to following condition: RBWVBWDetector Trace 11MHz3MHzPeak Mode Trace 21MHz300KHzSample Mode 4. Using the spectrum analyzer’s channel power measurement function to measure the output power. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: AB6NTE310AG Report No.: RF940428H02110Report Format Version 2.0.1 5.4.7 TEST RESULTS (WITH ANTENNA 1) EUT Wireless Access Point AP7215 MODEL NTE310AG MODENormal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 68%RH, 965 hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AV E R AG E EXCURSION LIMIT (dB) PASS/FAIL 151807.7213PASS 452407.6113PASS 552607.8213PASS 853207.6713PASS FCC ID: AB6NTE310AG Report No.: RF940428H02111Report Format Version 2.0.1 CHANNEL 1 CHANNEL 4 FCC ID: AB6NTE310AG Report No.: RF940428H02112Report Format Version 2.0.1 CHANNEL 5 CHANNEL 8 FCC ID: AB6NTE310AG Report No.: RF940428H02113Report Format Version 2.0.1 5.4.8 TEST RESULTS (WITH ANTENNA 2) EUT Wireless Access Point AP7215 MODEL NTE310AG MODENormal INPUT POWER (SYSTEM) 120Vac…

Text truncated - open the document above for the full version.

FCC ID: AB6NTE310AG Report No.: RF940428H02128Report Format Version 2.0.1 5.7 BAND EDGES MEASUREMENT 5.7.1 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 5.7.2 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set RBW of spectrum analyzer to 1MHz and VBW of spectrum analyzer to 10Hz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. 5.7.3 EUT OPERATING CONDITION The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. FCC ID: AB6NTE310AG Report No.: RF940428H02129Report Format Version 2.0.1 5.7.4 TEST RESULTS (WITH ANTENNA 1) For signals in the restricted bands above and below the 5.15 to 5.35GHz allocated band a measurement was made of the amplitude of the spurious emissions with respect to the intentional signals. The relative amplitude, in dBc, was applied to the average and peak filed strength of the intentional signal made on the OATS to calculate the field strength of the unintentional signals. The spectrum plots (Peak RBW=VBW=1MHz; Average RBW=1MHz, VBW=10Hz) are attached on the following pages. FCC ID: AB6NTE310AG Report No.: RF940428H02130Report Format Version 2.0.1 NOTE (Peak): The band edge emission plot on the following first page shows 42.68dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 1 is 106.4dBuV/m (Peak), so the maximum field strength in restrict band is 106.4-42.68=63.72dBuV/m which is under 74dBuV/m limit. The band edge emission plot on the following first page shows 45.43dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 8 is 108.2dBuV/m (Peak), so the maximum field strength in restrict band is 108.2-45.43=62.77dBuV/m which is under 74dBuV/m limit. NOTE (Average): The band edge emission plot on the following second page shows 47.39dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 1 is 98.3dBuV/m (Average), so the maximum field strength in restrict band is 98.3- 47.39=50.91dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following second page shows 48.89dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 8 is 98.8dBuV/m (Average), so the maximum field strength in restrict band is 98.8- 48.89=49.91dBuV/m which is under 54dBuV/m limit. FCC ID: AB6NTE310AG Report No.: RF940428H02131Report Format Version 2.0.1 FCC ID: AB6NTE310AG Report No.: RF940428H02132Report Format Version 2.0.1 FCC ID: AB6NTE310AG Report No.: RF940428H02133Report Format Version 2.0.1 5.7.5 TEST RESULTS (WITH ANTENNA 2) For signals in the restricted bands above and below the 5.15 to 5.35GHz allocated band a measurement was made of the amplitude of the spurious emissions with respect to the intentional signals. The relative amplitude, in dBc, was applied to the average and peak filed strength of the intentional signal made on the OATS to calculate the field strength of the unintentional signals. The spectrum plots (Peak RBW=VBW=1MHz; Average RBW=1MHz, VBW=10Hz) are attached on the following pages. FCC ID: AB6NTE310AG Report No.: RF940428H02134Report Format Version 2.0.1 NOTE (Peak): The band edge emission plot on the following first page shows 44.63dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 1 is 106.1dBuV/m (Peak), so the maximum field strength in restrict band is 106.1-44.63=61.47dBuV/m which is under 74dBuV/m limit. The band edge emission plot on the following first page shows 45.47dBc between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength…
