AB6S12000Base Transceiver Station

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 1 Application for Certification and Letters Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 Certification Application February 26, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: AB6S12000 Dear Sir/Madam, As per our recent discussions with ATCB, please accept this application for the certification of the product filed under Part 2 Subpart J, for equipment operating under Part 22, Subpart H and Part 24 Subpart E of the regulations of the Federal Communications Commission. With authority to act as an agent, Sanmina-SCI is filing this application for certification on behalf of Nortel Networks. The product for which certification is sought is Nortel Network’s 850 MHz/1900 MHz GSM indoor and outdoor basestations (S12000). All detailed information for the system is included in the respective exhibits as required by the Rules. The S12000 was previously certified for the following configurations- FCC ID numbers: AB6INDS12000/AB6OUDS12000 1900 Band only - PA ( GMSK 30W / Edge 30W ) 850 Band only - PA ( GMSK 30W / Edge 30W ) 1900/ 850 Dual Band - PA ( GMSK 30W / Edge 30W ) GMSK modulation 8PSK modulation Please reference the above filings for test data and documentation supporting the configurations identified. The Data and documentation presented in this application supports the following additional configurations: 1900 MHz Band only –with HePA ( GMSK 60W / Edge 45W) GMSK modulation code 8PSK with HePA configuration H4D coupler H2D coupler Duplexer The above configurations all use the identical platform and are field configurable systems. Nortel wishes to introduce a 60 Watt High Power amplifier, which as per FCC part 2 of the rules requires a new application for equipment authorization be

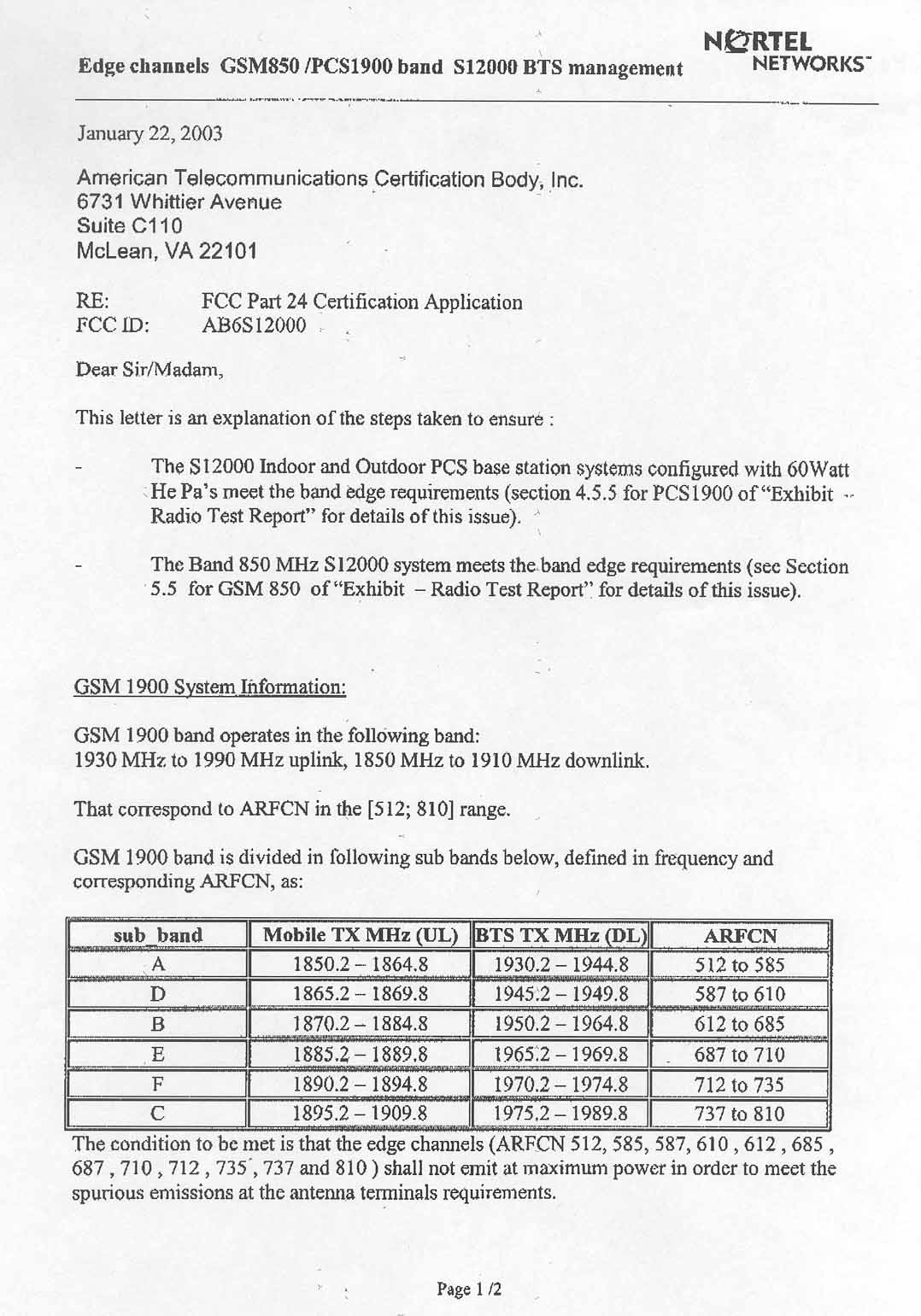

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 6, 2003 RE: FCC ID: AB6S12000 Attention: Glen Moore I have a few comments on this Application. 1. Please note that while the 731 form states the power is 60 watts, the report provided only shows a measured power of 24 watts in the 1900 MHz range and 26.9 watts in the 850MHz. Please also note that it is the measured power that will be on the grant. 2. In your cover page you mention the other FCC ID numbers used with this system. Please note that each application must stand on its own. Consequently it is only the configurations in the report provided that will be on the grant. If the other configurations in the old FCC ID numbers are to be included or referenced, then you must provide the proper documentation to support those configurations for this application. These documents include a 731 showing all power and designators etc, the reports supporting those levels. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 5 External Photographs Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 1 – S12000 Indoor Front View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 2 – S12000 Indoor Front View with Doors Open This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 3 – S12000 Indoor Side View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 4 – S12000 Indoor Rear View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 5 – S12000 Outdoor Front View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 6 – S12000 Outdoor Front View with Doors Open This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 7 – S12000 Outdoor Side View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 8 – S12000 Outdoor Rear View

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 3 Transmit Label Photo Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 DRAWN APPD STREAM ISSUE SCALE B (V2 -FRAMEBUILDER 9511) A 2 3 4 5 6 BCD 1 2 3 4 5 6 ABCD DRAWING NUMBER SIZE TITLEINITIAL APPLICATION PROPRIETARY INFORMATION: THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NORTHERN TELECOM LIMITED. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY NORTHERN TELECOM LIMITED, THE HOLDER OF THIS DOCUMENT: (1) SHALL KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES AND (2) SHALL USE SAME FOR OPERATING AND MAINTENANCE PURPOSES ONLY. 1/1 1 NORTEL NETWORKS SHEET1 of 2 LABEL : FCC Class B CSA EC PHE ADE 01 01 NO TES: 1. UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE EXPRESSED IN MILLIMETERS. TOLERANCESSHALL BE: 2 DECIMAL PLACES = +.25 3 DECIMAL PLACES = +.125 ALL LABEL CORNERS SHALL HAVE A .75 RADIUS. 2. TO CONVERT MILLIMETERS TO INCHES: 25.40 MILLIMETERS = 1 INCH. 3. THIS DESIGN FILE WAS CREATED IN ACCORDANCE WITH NT STD 1517.20. LABEL/ARTWORKS MUST BE MANUFACTURED IN ACCORDANCE WITH NPS90942. 4. THE ARTWORK (SEE SHEET 2) SHALL BE PLOTTED AT A MINIMUM OF 1200 DPI. THE TEXT FONT(S) SHALLBE: UNIVERS 67 CONDENSED BOLD PER NPS90942. TEXTABOVE AND BELOW UL SYMBOLS SHALL BE UNIVERS 57CONDENSED PER NPS90942. 5. MATERIAL: .25 CLEAR POLYCARBONATE PER R0115902 FINISH: VELVET/MATTE ADHESIVE: .05 PRESSURE SENSITIVE WITH PEEL OFF LINER PER R0113138 6. COLOURS SHALL CONFORM TO NORTHERN TELECOM OBSERVATIONAL STANDARD 2701.01. BACKGROUND: BTS LIGHT GREY PER NORTHERNTELECOM STANDARD S-33470TEXT AND GRAPHICS: NORTEL DARK GRAY PER NORTHERN TELECOM STANDARD S-33310BACKGROUND AT TOP OF LABEL: NORTEL LIGHTGRAY PER NORTHERN TELECOM STANDARD S-33310 7. LABEL TO BE REVERSE SCREEN PRINTED PER NPS90942-2. S12000 Indoor BTSThis device complies with Part 15 of theFCC rules.Operation is subject to the condition that thisdevice does not cause harmful interference.This Class B digital apparatus meets allrequirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe B respectetoutes les exigences du Règlement Canadiensur le matériel causant des interferences.US: AB6DENANS12000IC : 332AD8113A -48V DC:65 A 76.0 157.0 INFORMATION TECHNOLOGY EQUIPMENT 13.0 13.0 KISS-CUT Made in the U.S.A./Fabriqué aux E.-U. Remove this section, replacewith appropriate label below. 38.0 KISS-CUT Made in France/Fabriqué en France KISS-CUT IC: 332 ADS12000 TX FCC ID: AB6 S12000 DRAWN APPD STREAM ISSUE SCALE B (V2 -FRAMEBUILDER 9511) A 2 3 4 5 6 BCD 1 2 3 4 5 6 ABCD DRAWING NUMBER SIZE TITLEINITIAL APPLICATION PROPRIETARY INFORMATION: THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NORTHERN TELECOM LIMITED. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY NORTHERN TELECOM LIMITED, THE HOLDER OF THIS DOCUMENT: (1) SHALL KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES AND (2) SHALL USE SAME FOR OPERATING AND MAINTENANCE PURPOSES ONLY. 1/1 1 NORTEL NETWORKS SHEET1 of 2 LABEL : FCC Class B CSA EC PHE ADE 01 01 NO TES: 1. UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE EXPRESSED IN MILLIMETERS. TOLERANCESSHALL BE: 2 DECIMAL PLACES = +.25 3 DECIMAL PLACES = +.125 ALL LABEL CORNERS SHALL HAVE A .75 RADIUS. 2. TO CONVERT MILLIMETERS TO INCHES: 25.40 MILLIMETERS = 1 INCH. 3. THIS DESIGN FILE WAS CREATED IN ACCORDANCE WITH NT STD 1517.20. LABEL/ARTWORKS MUST BE MANUFACTURED IN ACCORDANCE WITH NPS90942. 4. THE ARTWORK (SEE SHEET 2) SHALL BE PLOTTED AT A MINIMUM OF 1200 DPI. THE TEXT FONT(S) SHALLBE: UNIVERS 67 CONDENSED BOLD PER NPS90942. TEXTABOVE AND BELOW UL SYMBOLS SHALL BE UNIVERS 57CONDENSED PER NPS90942. 5. MATERIAL: .25 CLEAR POLYCARBONATE PER R0115902 FINISH: VELVET/MATTE ADHESIVE: .05 PRESSURE SENSITIVE WITH PEEL OFF LINER PER R0113138 6. COLOURS SHALL CONFORM TO NORTHERN TELECOM OBSERVATIONAL STANDARD 2701.01. BACKGROUND: BTS LIGHT GREY PER NORTHERNTELECOM STANDARD S-33470TEXT AND GRAPHICS: NORTEL DARK GRAY PER NORTHERN TELECOM STANDARD S-33310BACKGROUND AT TOP OF LABEL: NORTEL LIGHTGRAY PER NORTHERN TELECOM STANDARD S-33310 7. LABEL TO BE REVERSE SCREEN PRINTED PER NPS90942-2. S12000 Outdoor BTSThis device complies with Part 15 of theFCC rules.Operation is subject to the condition that thisdevice does not cause harmful interference.This Class B digital apparatus meets allrequirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe B respectetoutes les exigences du Règlement Canadiensur le matériel causant des interferences.US: AB6DENANS12000IC : 332AD8113A Enclosure Type:NEMA 3R IEC 60529, IP55 208-240 V: 2W+N+PE50 A60 Hz 76.0 167.0 INFORMATION TECHNOLOGY EQUIPMENT 13.0 13.0 KISS-CUT Made in the U.S.A./Fabriqué aux E.-U. Remove this section, replacewith appropriate label below. 38.0 KISS-CUT Made in France/Fabriqué en France KISS-CUT IC: 332 ADS12000 TX FCC ID: AB6 S12000

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 6 Internal Photographs Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 1 – E-LDRX 850 MHz (Logic Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 2 – E-LDRX 850 MHz (Logic Board) Bottom View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 3 – E-RDRX 850 MHz (Radio Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 4 – E-RDRX 850 MHz (Radio Board) Bottom View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 5 – E-LDRX 1900 MHz (Logic Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 6 – E-LDRX 1900 MHz (Logic Board) Bottom View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 7 – E-RDRX 1900 MHz (Radio Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 8 – E-RDRX 1900 MHz (Radio Board) Bottom View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 9 – LDRX 1900 MHz (Logic Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 10 – LDRX 1900 MHz (Logic Board) Bottom View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 11 – RDRX 1900 MHz (Radio Board) Top View This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. Figure 12 – RDRX 1900 MHz (Radio Board) Bottom View

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 9 RF Exposure Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 Nortel Networks 1, place des Frères Montgolfier, Guyancourt 78928 Yvelines Cedex 9 - France Tel 33 1 39 44 3709 (ESN 579 3709) Date 29/01/03 Prepared by Jean Louis CANDELON NORTEL NETWORKS CONFIDENTIAL Subject Health protection and Radiation hazards evaluation for S12000 and S8000 BTS 1900MHz PCS Configuration/Modes with HePA. Reference JLC/12K8K-01 1. Introduction - References This memo provides inputs with regard to the assessments of Health protection and radiation hazards expected from Nortel Networks BTS S12000 and S8000 equipped with high power amplifier HePA reference NTQA50RA, operating in the 1900 MHz band, compliant to the US FCC requirements in sections 1.1307 and 1.1310 (Radiofrequency radiation exposure limits.) of CFR 47. Calculation as described below is done with predicting method of FCC's OST/OET Bulletin Number 65. Note: HePA may be configured with Diplexer or 2 ways combiner H2D or 4 ways combiner H4D in the same configuration of S12000 and S8000 BTS. Therefore, the same evaluation may be used for these equipments. 2. Radiation hazards a. Maximum Permissible Exposure (MPE) Limits Table 1 of CFR 47 Section 1.1310 : Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm²) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f\2\) 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density The HePA amplifier is used in 1900 MHz band. The MPE limit for evaluation is : 5 mW/cm² for controlled exposure area 1 mW/cm² for uncoltrolled exposure area Page 2 b. Radiation of the system Formulas and explanation for calculation : The power delivered to the antenna (per PA) is given by P(antenna) (in Watts)= (PA(power)– losses) x G(antenna) G (antenna) dimension versus an isotropic radiator As described in FCC OET Bulletin 65, the power density S can be evaluated by the formula S = P.G/4πR² where R is the distance to the source (the antenna). The distance R between antenna and the area on which this level is reached is calculated with S = MPE limit : R = (P (antenna). G (antenna) /π.S) 1/2 The calculation method is a worst case of the main beam of antenna radiation with a total reflection of radiation on metallic surface, composed with direct radiation at the distance R (power is multiplied by 4). Two values of R calculation in direct sight of antenna (rooftop position) System parameters : • Different power amplifier(s) and coupling configuration : o Diplexer : 1 Power Amplifiers (PA) in a sector, PA configured to deliver maximum output power 47.8 dbm (60 W) with GMSK modulation, Diplexer loss is 0dB. Therefore power output is : 47,8 dBm o H2D diplexer : 2 Power Amplifiers (PA) in a sector, PAs configured to deliver maximum output power 47.8 dbm (60 W) with GMSK modulation. H2D power loss is 3dB. Therefore power output is : 47,8 dBm +3dB (2 Pas) – 3dB (loss)= 47,8dBm o H4D diplexer : 4 Power Amplifiers (PA) in a sector, PAs configured to deliver maximum output power 47.8 dbm (60 W) with GMSK modulation. H4D power loss is 7dB. Therefore power output is : 47,8dBm +6dB (4 Pas) –7dB (loss)=46,8dBm • Feeder and jumper losses # 1 dB. • Antenna gain G=18 dBi # 63. Page 3 Calculation table and results : Note: Calculation is done in the worst case of maximum power radiated. Therefore, the calculation is done in Diplexer or H2D configuration (47,8dBm radiated) with GMSK modulation. Worst case (**) prediction assuming 100% BTS PA config. Modulation PA power Ante- nna gain Losses Emitted power (e.i.r.p) S = MPE limit (*) Main beam, 1 antenna Distance reflection of incoming radiation Distance dBm dBi dB dBm W mW/cm² R (m) R (m) UNCONTROLLED EXPOSURE AREA Diplexer or GMSK 47,8 181 65,1 3019,95 1 4,99,8 H2D EDGE 46,5 181 63,5 2238,72 1 4,28,4 CONTROLLED EXPOSURE AREA Diplexer or GMSK 47,8 181 65,1 3019,95 5 2,24,4 H2D EDGE 46,5 181 63,5 2238,72 5 1,93,8 (*) calculation in the main beam of antenna (**) worst case calculation of main beam composed with total reflection 3. Conclusion 1) The distance R is the one at which the limit level will be reached at distance R of antenna and would not be usually achieved by the fact that this antenna is mounted on a pole (higher or equal to 10 m as required in section 1.1307 of FCC rules) for installation on ground, or on rooftop of a building which has enough attenuation of radiation to reduce R. 2) The power limit 3280 W eirp is overloaded with antenna gain greater than 18,3 dBi with HePA and Diplexer configuration. As demonstrated before, it is deemed that Nortel Networks BTS complies to the general requirements (FCC OET bulletin 65) for health protection.

FCC Part 24/Part22 Test Report for S12000 Indoor and Outdoor Base stations FCC ID#AB6S12000 PUBLICATION HISTORY 29/Jan/2003 Issue V01.01 / EN Status: Approved Creation Nuno OLIVEIRA, Alain CAILLE 17/Mar/2003 Issue V01.02 / EN Status: Approved Corrections (§5.5) concerning spurious in 8 PSK for configuration PCS1900 PA30W. Alain CAILLE PCS/BTS/DJD/005653 V01.02/EN Approved 17/03/2003 Page 2/85 FCC Part 24/Part22 Test Report for S12000 Indoor and Outdoor Base stations FCC ID#AB6S12000 CONTENTS 1. INTRODUCTION...........................................................................................................................5 1.1. OBJE C T....................................................................................................................................5 1.2. S COPE .......................................................................................................................................6 1.3. P RODUCT CONFIGURATI 0 NS .......................................................................................................6 2. RELATED DOCUMENTS..............................................................................................................7 2.1. APPLICABLE DOCUMENTS...................................................................................................7 2.2. REFERENCE DOCUMENTS....................................................................................................7 3. ABBREVIATIONS & DEFINITIONS............................................................................................9 3.1. AB B R E VIATIONS....................................................................................................................9 3.2. DEFINITIONS........................................................................................................................10 4. EXHIBIT 1 : TEST REPORT – HEPA PCS1900..........................................................................11 4.1. I NTRODUCTION ........................................................................................................................11 4.2. M EASUREMENT RESULTS ..........................................................................................................11 4.3. NAME OF TEST: RF POWER OUTPUT..................................................................................12 4.3.1. FCC REQUIREMENTS – FCC PART 24.232...........................................................................12 4.3.2. TEST RESULTS.....................................................................................................................12 4.3.3. Test procedure.......................................................................................................................15 4.4. NAME OF TEST : OCCUPIED BANDWIDTH.........................................................................16 4.4.1. FCC REQUIREMENTS..........................................................................................................16 4.4.2. TEST RESULTS.....................................................................................................................16 4.4.3. Test procedure.......................................................................................................................17 4.5. NAME OF TEST: SPURIOUS EMISSIONS AT ANTENNA TERMINALS................................19 4.5.1. FCC requirements LIMITS – FCC Part 24.238........................................................................19 4.5.2. Test results with Duplexer Configuration.................................................................................20 4.5.3. Test results with H2D Duplexer Configuration.........................................................................30 4.5.4. Test results with H4D Duplexer Configuration.........................................................................35 4.5.5. CONCLUSION......................................................................................................................39 4.5.6. Test procedure.......................................................................................................................41 4.6. NAME OF TEST: FREQUENCY STABILITY..........................................................................43 PCS/BTS/DJD/005653 V01.02/EN Approved 17/03/2003 Page 3/85 FCC Part 24/Part22 Test Report for S12000 Indoor and Outdoor Base stations FCC ID#AB6S12000 5. EXHIBIT 2: TEST REPORT FOR PA30W PCS1900/GSM850 ...........45 5.1. INTRODUCTION ........................................................................................................................45 5.2. MEASUREMENT RESULTS ..........................................................................................................45 5.3. TEST NAME : 2.1046 RF OUTPUT POWER .................................................................................46 FCC Requirements.....................................................................................................................46 Test Results gsm 850................................................................................................................46 Test Results pcs 1900................................................................................................................47 5.4. TEST NAME : 2.1049 OCCUPIED BANDWIDTH ............................................................................48 FCC Requirements.......................................................................................................................48 Test Results gsm 850...................................................................................................................48 Test Results pcs 1900................................................................................................................49 Test Procedure.............................................................................................................................50 5.5. T…

Text truncated - open the document above for the full version.

This document contains Proprietary Information of Northern Telecom Limited. This information is considered to be CONFIDENTIAL and should be treated appropriately. EXHIBIT 2B S12000 EMC Report Applicant: Northern Telecom Ltd. For Certification on: AB6S12000 The reproduction of this document is authorised only if integral. Any partial reproduction must be authorised by GYL Technologies. This document results of test applied on one sample. It doesn’t prejudge of conformity of all products to the tested sample. Technical control: O.ROY GYL technologies ANGERS TECHNOPOLE 1, rue Fleming 49066 ANGERS Tel. : 02.41.36.22.33 Fax : 02.41.36.22.23 Quality Control: L.MONTIEL Technologies GY L GY L TEST REPORT CFR 47 Part 15 and CFR 47 Part 24 S12000 outdoor equipped with HePA 1900MHz N°149019DK Technologies GY L G Y L EMC TEST REPORT The 20 pages of this report are not sharable 2/20 Written by : D.RAUD21 November 2002Identification : 149019DK Summary APPLICANT: ....................................................................................................................................................................3 PRODUCT DESCRIPTION.............................................................................................................................................3 Product picture:.......................................................................................................................................................................................................... 3 Product composition: ................................................................................................................................................................................................. 4 Utilisation: ................................................................................................................................................................................................................. 7 GENERAL TEST CONDITIONS....................................................................................................................................7 Auxiliary equipment: ................................................................................................................................................................................................. 7 Working mode for emission test ................................................................................................................................................................................ 7 REFERENCE STANDARDS CHOICE ..........................................................................................................................7 INTERPRETATION AND REMARKS:.........................................................................................................................8 TEST ACCORDING TO CFR 47 PART 15 CLASS B ..................................................................................................9 REFERENCE DOCUMENTATION: ........................................................................................................................................................................ 9 CONDUCTED DISTURBANCE AT INPUT POWER ACCESS : ........................................................................................................................... 9 Interpretation and remarks: ...................................................................................................................................................................................... 12 RADIATED DISTURBANCE :............................................................................................................................................................................... 13 INTERPRETATION AND REMARKS:.................................................................................................................................................................. 15 TEST ACCORDING TO CFR 47 PART 24 .................................................................................................................18 REFERENCE DOCUMENTATION: ...................................................................................................................................................................... 18 RADIATED DISTURBANCE :............................................................................................................................................................................... 18 RADIATED DISTURBANCE :............................................................................................................................................................................... 18 INTERPRETATION AND REMARKS:.................................................................................................................................................................. 20 APPENDIXES C1 TO C13 Technologies GY L G Y L EMC TEST REPORT The 20 pages of this report are not sharable 3/20 Written by : D.RAUD21 November 2002Identification : 149019DK Applicant: SANMINA SCI (Patrick GALOPIN) 46 Rue Pierre Curie PLAISIR 78376 FRANCE Product descri…
