ABZ89FC4819CNon Broadcast Transmitter

Motorola Solutions, Inc.
Non Broadcast Transmitter - FCC ID ABZ89FC4819C - Motorola Solutions, Inc.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Aug 06, 2020
Application Purpose
Original Equipment
Date of Application
Aug 05, 2020
Equipment Note
Non Broadcast Transmitter
Frequency Range
457.52500000 - 457.60000000
Company
Motorola Solutions, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

GTR 8000 Base Radio ASTRO ® 25 INTEGRATED VOICE AND DATA *MN003286A01* MN003286A01-H JULY 2020 © 2020 Motorola Solutions, Inc. All rights reserved Declaration of Conformity Declaration of Conformity Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola Solutions, Inc. Address: 2000 Progress Pkwy, Schaumburg, IL 60196, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that the product: GTR 8000 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a) Class A Digital Device This device complies with Part 15 of the FCC. Note: This equipment has been tested and found to comply with the limits for a Class A digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communi- cations. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Notice to Users (FCC) This device complies with Part 15 of the FCC rules per the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause unde- sired operation. • Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. MN003286A01-H Declaration of Conformity 2 Copyrights The Motorola Solutions products described in this document may include copyrighted Motorola Solutions computer programs. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola Solutions. © 2020 Motorola Solutions, Inc. All Rights Reserved No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of Motorola Solutions, Inc. Furthermore, the purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Disclaimer Please note that certain features, facilities, and capabilities described in this document may not be applicable to or licensed for use on a particular system, or may be dependent upon the characteristics of a particular mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for further information. Trademarks MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive The European Union's WEEE directive requires that products sold into EU countries must have the crossed out trash bin label on the product (or the package in some cases). As defined by the WEEE directive, this cross-out trash bin label means that customers and end-users in EU countries should not dispose of electronic and electrical equipment or accessories in household waste. Customers or end-users in EU countries should contact their local equipment supplier representative or service centre for information about the waste collection system in their country. MN003286A01-H Copyrights 3 Contact Us The Solutions Support Center (SSC) is the primary contact for technical support included in your organization's service agreement with Motorola Solutions. Service agreement customers should be sure to call the SSC in all situations listed under Customer Responsibilities in their agreement, such as: • Before reloading software • To confirm troubleshooting results and analysis before taking action Your organization received support phone numbers and other contact information appropriate for your geographic region and service agreement. Use that contact information for the most efficient response. However, if needed, you can also find general support contact information on the Motorola Solutions website, by following these steps: 1Enter motorolasolutions.com in your browser. 2Ensure that your organization's country or region is displayed on the page. Clicking or tapping the name of the region provides a way to change it. 3Select "Support" on the motorolasolutions.com page. Comments Send questions and comments regarding user documentation to [email protected]. Provide the following information when reporting a documentation error: • The document title and part number • The page number or title of the section with the error • A description of the error Motorola Solutions offers various courses designed to assist in learning about the system. For information, go to https://learning.motorolasolutions.com to view the current course offerings and technology paths. MN003286A01-H Contact Us 4 Document History VersionDescriptionDate MN003286A01-AOriginal release of the GTR 8000 Base Radio manual November 2016 MN003286A01-BUpdated the following sections: • CSS Initial Device Configuration on page 135 • GTR 8000 Base Radio General Troubleshoot- ing on page 213 November …

Text truncated - open the document above for the full version.

Attestation Statements

Certifica Elite Ele 1516 Ce Downers Date: J u Subject: To whom I hereby FCC and FCC ID: IC ID: 1 IC HVI N Please c Regards Robert S Enginee 847-344 Bob.Sar ation Depar ectronic Eng entre Circle s Grove, IL une 19 th , 20 : Applicatio m it may co y authorize A d IC filing: ABZ89FC 09AB-4819 N: T7039-U contact me s, Sarocka ering Manag 4-6075 rocka@mot tment gineering In L 60515 020 on Authoriza oncern, Arine Lee t C4819C 9C UHFR2C if there ar e ger torolasolutio nc. ation for FC to apply, on e any quest ons.com CC and IC F n my behalf tions or issu Filing f, the applic ues. cation for thhe following

Cover Letter(s)

FCC ID: ABZ89FC4819C ___________________________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Penang, Malaysia EXHIBIT 13A Date: July 28, 2020 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communiations Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ89FC4819C Dear Sir/Madam, Motorola Solutions Malaysia Sdn Bhd herein submits application for Certification of the subject transmitter. This transmitter is intended for use at fixed base station sites only with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Product Name Model Numbers Frequency Power FCC Rules Part GTR 8000 T7039A 435 - 524 MHz 2 – 110 W; Max=110W 22, 74, 90 457.525 – 457.600 MHz 2 – 50 W; Max= 50W 80 We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. The subject transmitter complies with Section 90.203 and 80.203(b) in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at +604 224 0258. Sincerely, Arine Lee FCC/IC Certification Manager E-mail: [email protected]

Cover Letter(s)

FCC ID: ABZ89FC4819C ___________________________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Penang, Malaysia EXHIBIT 13B CONFIDENTIALITY REQUEST July 28, 2020 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request of Transmitter with FCC ID: ABZ89FC4819C Dear Sir / Madam, Motorola Solutions Malaysia Sdn Bhd is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola Solutions consider the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d). 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “CONFIDENTIALITY REQUESTED”. Please contact me if you require any information. Sincerely, Arine Lee FCC/IC Certification Manager E-mail: [email protected]

Cover Letter(s)

FCC ID: ABZ89FC4819C ___________________________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Penang, Malaysia EXHIBIT 13B CONFIDENTIALITY REQUEST July 28, 2020 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request of Transmitter with FCC ID: ABZ89FC4819C Dear Sir / Madam, Motorola Solutions Malaysia Sdn Bhd is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola Solutions consider the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d). 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “CONFIDENTIALITY REQUESTED”. Please contact me if you require any information. Sincerely, Arine Lee FCC/IC Certification Manager E-mail: [email protected]

Cover Letter(s)

FCC ID: ABZ89FC4819C _______________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Penang, Malaysia EXHIBIT 13C Date: July 28, 2020 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: ABZ89FC4819C Dear Sir/Madam: This transmitter is designed to operate in the following frequency ranges: Band/Mode Frequency ranges FCC rule parts UHF 435-524 MHz 22, 74, 80, 90 To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola Solutions is requesting that the FCC lists the above applicable frequencies range under FCC Rule Parts 22, 74, 80, and 90 on the FCC Grant. For the FCC’s Rule Parts 22, 74, 80, and 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e) and 80.206(b), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 22 Part 24D Part 74 Part 80 Part 90 Federal Other Regions 435-450 X 450-454 x x 454-456 x 456-460 x x x 460-462.5375 x 462.5375-462.7375* x x 462.7375-467.5375 x x 467.5375-467.7375 x 467.7375-470 x x 470-512 x x x 512-524 x x *Canada Please contact me at +604 224 0258 if you required any additional information. Sincerely, Arine Lee FCC/IC Certification Manager E-mail: [email protected]

External Photos

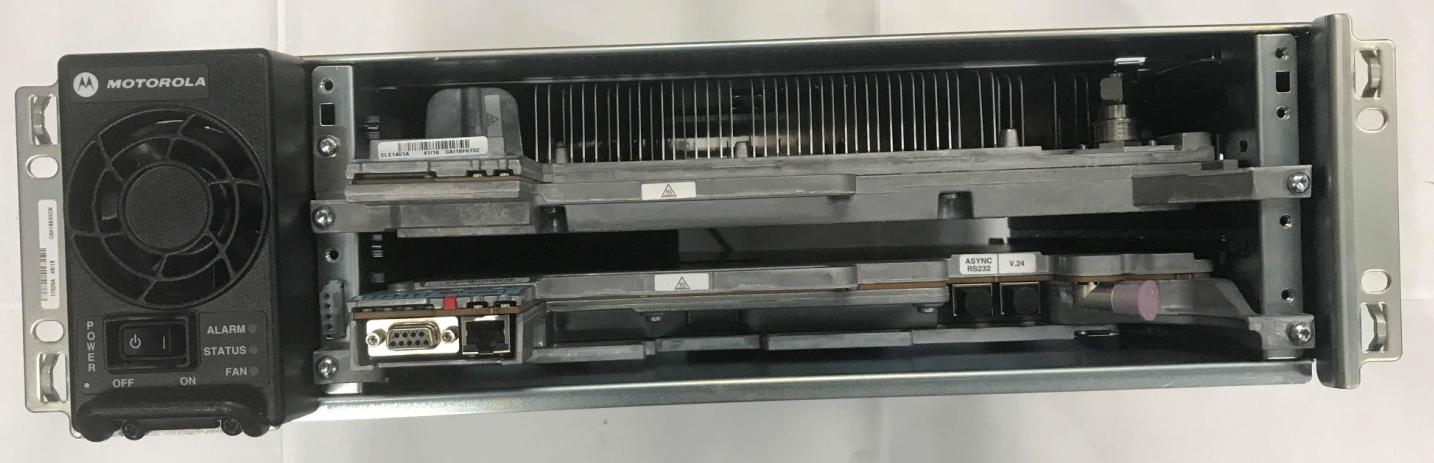

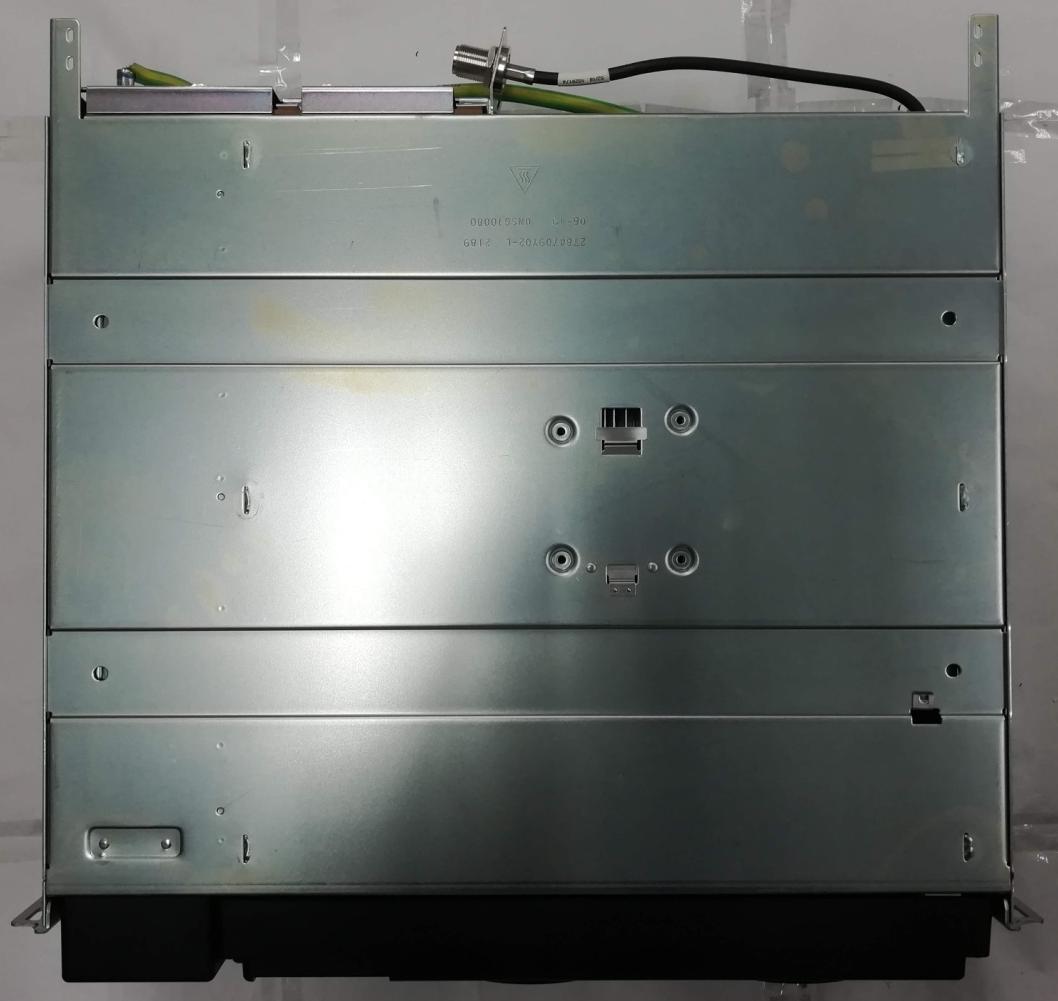

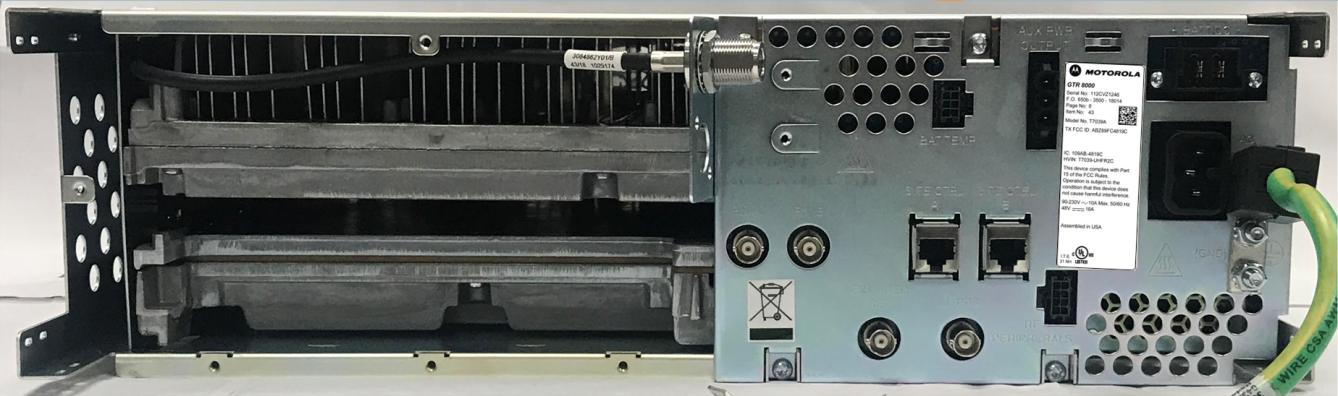

Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 1 OF 6 EXHIBIT 3 EXTERNAL PHOTOGRAPHS (Pursuant to FCC Part 2.1033(b)(7) and 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. External Front View of Base Radio 3A 2. External Front View of Base Radio, Front Panel Removed 3B 3. External Front View, Alternate Racking of Base Radio on ‘GTR 8000 Expandable Site Sub-system’ 3C 4. Back View of Base Radio (FCC/IC Label Location) 3D 5. Side View of Base Radio (Left) 3E 6. Side View of Base Radio (Right) 3F 7. Top View of Base Radio 3G 8. Bottom View of Base Radio 3H Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 2 OF 6 Exhibit 3A – External Front View of Base Radio Exhibit 3B – External Front View of Base Radio, Front Panel Removed Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 3 OF 6 Exhibit 3C – External Front View, Alternate Racking of Base Radio on ‘GTR 8000 Expandable Site Sub- system’ Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 4 OF 6 Exhibit 3D – Back View of Base Radio (FCC/IC Label Location) Exhibit 3E – Side View of Base Radio (Left) Exhibit 3F – Side View of Base Radio (Right) Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 5 OF 6 Exhibit 3G – Top View of Base Radio Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 6 OF 6 Exhibit 3H – Bottom View of Base Radio

ID Label/Location Info

Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 1 SHEET 1 OF 2 EXHIBIT 1 IDENTIFICATION LABEL (Pursuant to FCC Part 2.1033(c)(11), 2.1033(b)(7) and RSP 100 Annex C and Sec 3) LOCATION See the Attached Photograph or Sketch Bottom of Radio Top of Radio X Back of Radio Back of Radio under Belt Clip TYPE X The label must be made of tamper-evident material; i.e. the label must tear, distort, or otherwise show evidence of having been tampered with when an attempt is made to remove the label from the rack. The printable area is 69.85 mm wide and 50.8 mm MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3 for the actual location of the FCC/IC label on the device. X Label Attached Below. See Attached Drawing. Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 1 SHEET 2 OF 2 *** END ***

Internal Photos

Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 1 OF 14 EXHIBIT 9 INTERNAL PHOTOGRAPHS (Pursuant to FCC Part 2.1033(b)(7), 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. Internal Front View – Transceiver Module 3A 2. Internal Front View – Transceiver Module, Circuit Board, Top View 3B 3. Internal Front View – Transceiver Module, Control Section 3C 4. Internal Front View – Transceiver Module, Exciter Section 3D 5. Internal Front View – Transceiver Module, Receiver Section 3E 6. Internal Front View – Power Amplifier Module, Cover Removed 3F 7. Internal Front View – Power Supply Module 3G 8. Internal Front View – Power Supply Module, Circuit Boards, Top View 3H 9. Internal Front View – Backplane 3I 10. Internal Front View – Transceiver Option Card (TOC) 3J 11. Internal Back View – Transceiver Module 3K 12. Internal Back View – Power Amplifier Module 3L 13. Internal Back View – Power Supply Module, Circuit Boards, Back View 3M 14. Internal Back View – Backplane 3N 15. Internal Back View – Transceiver Option Card (TOC) 3O Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 2 OF 14 Exhibit 3A – Internal Front View – Transceiver Module Transceiver Module without the Transceiver Option Card (TOC) Transceiver Module with the Transceiver Option Card (TOC) Installed Front View of Base Radio Showing Transceiver Module with TOC Installed and Identifying Connections Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 3 OF 14 Exhibit 3B – Internal Front View – Transceiver Module, Circuit Board, Top View Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 4 OF 14 Exhibit 3C – Internal Front View – Transceiver Module, Control Section Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 5 OF 14 Exhibit 3D – Internal Front View – Transceiver Module, Exciter Section Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 6 OF 14 Exhibit 3E – Internal Front View – Transceiver Module, Receiver Section Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 7 OF 14 Exhibit 3F – Internal Front View – Power Amplifier Module, Cover Removed Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 8 OF 14 Exhibit 3G – Internal Front View – Power Supply Module Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 9 OF 14 Exhibit 3H – Internal Front View – Power Supply Module, Circuit Boards, Top View Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 10 OF 14 Exhibit 3I – Internal Front View – Backplane Exhibit 3J – Internal Front View – Transceiver Option Card (TOC) Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 11 OF 14 Exhibit 3K – Internal Back View – Transceiver Module Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 12 OF 14 Exhibit 3L – Internal Back View – Power Amplifier Module Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 13 OF 14 Exhibit 3M – Internal Back View – Power Supply Module, Circuit Boards, Back View Applicant: Motorola Solutions Inc FCC ID: ABZ89FC4819C / IC: 109AB-4819C EXHIBIT 3 SHEET 14 OF 14 Exhibit 3N – Internal Back View – Backplane Exhibit 3O – Internal Back View – Transceiver Option Card (TOC)

RF Exposure Info

Motorola Solutions Canada, Inc. UPN Number: 4819C Company Number: 109AB HVIN: T7039-UHFR2C Page 1 RF Exposure Technical Brief This Technical Brief calculates the minimum separation distance from an antenna, connected to the subject base station, such that the power density value listed in RSS-102, Radio Frequency (RF) Exposure Compliance of Radiocommunications Apparatus (All Frequency Bands) Issue 5 Table 6 is not exceeded. The analysis is for a typical installation using a structure mounted antenna. Within the frequency range that the subject equipment operates, 435 MHz – 524 MHz the permitted exposure limit is frequency dependent per the equation 0.6455*sqrt(f). Table 1 lists the maximum permitted exposure limits for the lowest and highest operating frequencies. The smaller maximum permissible exposure limit will be used for the computation because it requires a larger separation distance from the antenna to the exposed person. Table 1 - Maximum Permissible Exposure Limits Controlled Environment Frequency 435 MHz 524 MHz Limit 13.4 W/m 2 14.6 W/m 2 Example Calculations for GTR8000, UHF Transmitter: The example configuration is a single frequency site, with minimal RF network losses, set to zero for this example, between the transmitter output connector and the antenna input connector. The antenna has an omni directional pattern in the horizontal plane. Table 2 lists the key RF system and antenna parameters. Table 2 - Transmitter Configuration Frequency 435-524 MHz Base Station Output Power 110 W RF Network Loss 0 dB Antenna Type DS3X00P36U-D 0 dBd / 2.1 dBi (Omni) Antenna length 0.91 m Controlled Environment: Cylindrical Method 1 Using Equation 1 the spatially averaged plane-wave equivalent power density parallel to the antenna in the vertical plane is estimated by dividing the net input power to the antenna by the surface area of an imaginary cylinder at a distance R from the antenna, with the height of the cylinder equal to the length of the antenna 2 . Rh Pnet S 2  (1) 1 Federal Communications Commission Office of Engineering & Technology, OET Bulletin 65, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields”, Edition 97-01, page 32, Tell’s cylindrical model. 2 Federal Communications Commission Office of Engineering & Technology, OET Bulletin 65, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields”, Edition 97-01, page 32, Tell’s cylindrical model. Motorola Solutions Canada, Inc. UPN Number: 4819C Company Number: 109AB HVIN: T7039-UHFR2C Page 2 Where: S = power density, W/m 2 Pnet = net input power to the antenna, W R = radial distance from the antenna, m h = height of the antenna, m The minimum separation distance can be found by solving Equation 1 for R and setting S to the smaller maximum power density for the environment per Table 1. 44.1 91.04.132 110 2    hS Pnet R m (2) For the example site configuration the minimum separation distance for a controlled environment is 1.44 m.

Test Report

Repor Repor MO Mot Plot Muk Pen Dat Ma n Ma n Re q Pro Mo d Fre q Fir m Max Ap p Ap p IS E FCC The This Pena eval rt Template Do rt Template Re OTOROLA PE torola Solutio t 2A, Medan B kim 12 SWD, nang, MALAY e/s Tested nufacturer/Lo nufacturer Ad questor duct T ype del Number quency Band mware Versio x RF Output P plicant Name plicant Addres ED Registratio C Registration e equipment w (LMR) FCC 47 C F RSS Gen s report shall n ang Adv. Com luated. Prepared B _________ Aaron Go Test Pers o ocument Numb evision Numbe ENANG ADV. ns Malaysia S Bayan Lepas, 11900 Ba yan YSIA ocation ddress n Power ss ns ns was tested acco FR Part 15B not be reproduc mm. Laboratory By: ____________ h Tong Wen onal ber : FCD-0085 er : Rev. L . COMM. LA Sdn Bhd Lepas : 0 4 : M : 2 5 EL : T E : B : T 7 : 4 3 : : R 1 1 : M : 1 3 R : : M 46 ordance to the ced without wri y. The results a ______ 5 BORATORY 4-MAY-2020 - MOTOROLA S 540 GALVIN D LGIN, IL 6012 EH TIAN HON ase Station 7039A (T7039 35-524 MHZ 35.00.09 10 Watts Motorola Solutio 303 E Algonqu oom 1043, Sch MY0001 61337 e requirement itten approval and statements Y - 27-MAY-202 SOLUTIONS IN DR 24 NG 9-UHFR2C) ons Inc uin Road, haumburg, IL, listed below: from an offici a contained in th FCC / ISED T Report Revis 20 NC.(ELGIN) 60196 PAS ally designated his report perta Appr ____ Vinc Dep R TEST REPOR sion S d representative ain only to the rove Signatory ____________ cent Foong Ch uty Technical Report ID: 19 FCC ID: AB IC ID: RT : Rev.C e of the Motoro device(s) y: ___________ huen Kit l Manager 9588-RF-0001 BZ89FC4819C 109AB-4819C 1 ola 6 C C Report Template Document Number : FCD-0085 Report ID: 19588-RF-00016 Report Template Revision Number : Rev. L FCC ID: ABZ89FC4819C IC ID: 109AB-4819C 2 Table of Contents 1.0. General Information ................................................................................................................................. 3 2.0. Summary of Test Results ......................................................................................................................... 3 3.0. Measurement Uncertainty ........................................................................................................................ 3 4.0. Equipment List ......................................................................................................................................... 4 5.0. Test Condition .......................................................................................................................................... 5 5.1 Receiver Test Conditions .................................................................................................................. 5 6.0. Receiver Test Parameters ......................................................................................................................... 6 6.1. Conducted Spurious Output Power ................................................................................................. 6 6.1.1. Test Setup ................................................................................................................................ 6 6.1.2. Test Result ............................................................................................................................... 7 6.1.3. Test Limit ............................................................................................................................... 19 6.2. Radiated Spurious Output Power .................................................................................................. 20 6.2.1. Test Setup .............................................................................................................................. 20 6.2.2. Test Result ............................................................................................................................. 21 6.2.3. Test Limit ............................................................................................................................... 41 6.3. AC Power Line Conducted Spur Emissions ................................................................................. 42 6.3.1. Test Setup .............................................................................................................................. 42 6.3.2. Test Results ............................................................................................................................ 43 6.3.3. Test Limits ............................................................................................................................. 47 Revision History Description Date Originator Rev. A Initial Report 27-MAY-2020 Aaron Goh Rev. B Typo in FCC ID rectified 28-June-2020 Vincent Foong Rev. C Updated applicant address 20-July-2020 Vincent Foong Report Template Document Number : FCD-0085 Report ID: 19588-RF-00016 Report Template Revision Number : Rev. L FCC ID: ABZ89FC4819C IC ID: 109AB-4819C 3 1.0. General Information EUT Description: Technologies LMR Modulation Type Analog,FSK The EUT was tested with following device/accessory: Item Brand Model or P/N LINECORD PLUG & RECP 3.7 MTRS MOTOROLA 3082933N20 General Description of Applied Standards The EUT is a RF Product. According to the specifications of the manufacturer, the EUT is to comply with the requirements of the following standards: ANSI C63.26.2015 ANSI C63.4.2014 2.0. Summary of Test Results FCC General Rules Part (47CFR) IC General Rules Part Test Item Result 15.109, 15.111 RSS‐Gen Conducted Spurious Output Power Pass 15.109, 15.111 RSS‐Gen Radiated Spurious Output Power Pass 15.107 RSS‐Gen 7.2 AC Power Conducted Spurious Emissions Pass NA  Not Applicable 3.0. Measurement Uncertainty Measurement Frequency Expended Uncertainty (k=1.96) (±dB) AC Power Line Conducted Spurious Emission 150KHz ~ 30MHz 3.43 Radiated Emissions up to 1 GHz 30MHz ~ 200MHz 4.25 200MHz ~ 1000MHz 4.25 Radiated Emissions above 1 GHz 1GHz ~ 18GHz 4.94 18GHz ~ 25GHz 4.94 Conducted Spurious Emiss…

Text truncated - open the document above for the full version.

Test Report

Rep Rep MO Mot Plot Muk Pen Dat Re p Ma n Ma n Re q Pro Pro Mo d Fre q Firm Ma x Ap p Ap p IS E FCC The This Com m port Template D port Template R OTOROLA PE torola Solutio t 2A, Medan B kim 12 S.W.D nang, Malaysia e/s Tested port Issue Date nufacturer nufacturer Ad questor duct T ype duct Version del Number ( quency Band mware Versio x RF Output P plicant Name plicant Addres ED Registratio C Registration e equipment w (LMR ) FCC 47 C F ISED RSS report shall n o m. Laboratory. Prepared B _________ Aaron Go Test Pers o Document Num Revision Numb ENANG ADV. ns Malaysia S Bayan Lepas, D, 11900 Bayan a. e ddress (PMN) (HVIN) n (FVIN) Power ss ns ns was tested acco FR Part 22 / 74 - 119 Issue 12 ot be reproduce . The results a By: ____________ h Tong Wen onnel mber: FCD-00 ber: Rev. K . COMM. LA SDN BHD, n Lepas, : 0 4 : 1 1 : M : 2 5 EL : T E : B : G : T 7 : : 4 3 R : 1 1 : M : 1 3 R : : M 46 ordance to the 4 / 80 / 90 ed without writ and statements ______ 84 BORATORY 4-MAY-2020 - 1-JUN-2020 MOTOROLA S 540 GALVIN D LGIN, IL 6012 EH TIAN HON ase Station GTR 8000 7039A (T7039 35-524 MHZ 35.00.09 10 Watts Motorola Solutio 303 E Algonqu oom 1043, Sch MY0001 61337 e requirement tten approval f contained in th Y - 27-MAY-202 SOLUTIONS IN DR 24 NG 9-UHFR2C) ons Inc uin Road, haumburg, IL, listed below: from an officia his report perta FCC / ISED T Report Revis 20 NC.(ELGIN) 60196 PAS ally designated ain only to the d Appr Vin c Dep R TEST REPOR sion S representativ e device(s) evalu roved Signator cent Foong Ch uty Technical Report ID: 19 FCC ID: AB IC: RT : Rev.B e of the Motoro uated. ry: huen Kit l Manager 9588-RF-00016 BZ89FC4819C 109AB-4819C Page 1 o ola Penang Adv 6 C C of 268 v. Report Template Document Number: FCD-0084 Report ID: 19588-RF-00016 Report Template Revision Number: Rev. K FCC ID: ABZ89FC4819C IC: 109AB-4819C Page 2 of 268 Table of Contents Report Revision History ............................................................................................................................................... 3 1.0 General Information .......................................................................................................................................... 4 2.0 Summary of Test Results .................................................................................................................................. 5 3.0 Measurement Uncertainty ...........................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Matthew Nawrocki
[email protected]847-812-5841Fax: 847-576-0903

Technical Contact

Motorola Solutions Malaysia Sdn BhnArine Lee
[email protected]+6042240258

Plot 2A, Medan Bayan Lepas · Bayan Lepas, Penang · Malaysia

Test Firm

Motorola Solutions, Inc., Schaumburg LabMatt Nawrocki
[email protected]847-812-5841

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
148457.525 MHz - 457.6 MHz50 W16K0F3E1.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
