ABZ89FC5798Non-Broadcast Transmitter

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 8 INSTRUCTION MANUALS The instruction and service manual for this base radio are not published at this time. However, draft copy of the manual is available and has been included as part of the filing package in the form of an electronic pdf document. Upon request, published and/or printed manuals will be sent to the commission and/or telecommunication certification body (TCB) as soon as they become available. All of the descriptions and schematics included this filing package are up to date. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receiver operating frequencies and power level. 68P80801H45-1 ECCN 5E992 Global Telecommunications Solutions Sector ENHANCED BASE TRANSCEIVER SYSTEM (EBTS) VOLUME 2 OF 3 BASE RADIOS © 2002 Motorola, Inc. All Rights Reserved Printed in U.S.A. PRELIMINARY FCC INTERFERENCE WARNING The FCC requires that manuals pertaining to Class A computing devices must contain warnings about possible interference with local residential radio and TV reception. This warning reads as follows: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. INDUSTRY OF CANADA NOTICE OF COMPLIANCE This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. COMMERCIAL WARRANTY (STANDARD) Motorola radio communications products (the “Product”) is warranted to be free from defects in material and workmanship for a period of ONE (1) YEAR (except for crystals and channel elements which are warranted for a period of ten (10 years) from the date of shipment. Parts including crystals and channel elements, will be replaced free of charge for the full warranty period but the labor to replace defective parts will only be provided for One Hundred-Twenty (120) days from the date of shipment. Thereafter purchaser must pay for the labor involved in repairing the Product or replacing the parts at the prevailing rates together with any transportation charges to or from the place where warranty service is provided. This express warranty is extended by Motorola, 1301 E. Algonquin Road, Schaumburg, Illinois 60196 to the original end use purchaser only, and only to those purchasing for purpose of leasing or solely for commercial, industrial, or governmental use. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED WHICH ARE SPECIFICALLY EXCLUDED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. In the event of a defect, malfunction or failure to conform to specifications established by Motorola, or if appropriate to specifications accepted by Motorola in writing, during the period shown, Motorola, at its option, will either repair or replace the product or refund the purchase price thereof. Repair at Motorola's option, may include the replacement of parts or boards with functionally equivalent reconditioned or new parts or boards. Replaced parts or boards are warranted for the balance of the original applicable warranty period. All replaced parts or product shall become the property of Motorola. This express commercial warranty is extended by Motorola to the original end user purchaser or lessee only and is not assignable or transferable to any other party. This is the complete warranty for the Product manufactured by Motorola. Motorola assume no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of Motorola. Unless made in a separate agreement between Motorola and the original end user purchaser, Motorola does not warrant the installation, maintenance or service of the Products. Motorola cannot be responsible in any way for any ancillary equipment not furnished by Motorola which is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use Product is unique, Motorola disclaims liability for range, coverage, or operation of the system as a whole under this warranty. This warranty does not cover: a) Defects or damage resulting from use of the Product in other than its normal and customary manner. b) Defects or damage from misuse, accident, water or neglect c) Defects or damage from improper testing, operation, maintenance installation, alteration, modification, or adjusting. d) Breakage or damage to antennas unless caused directly by defects in material workmanship. e) A Product subjected to unauthorized Product modifications, disassemblies or repairs (including without limitation, the addition to the Product of non-Motorola supplied equipment) which adversely affect performance of the Product or interfere with Motorola's normal warranty inspection and testing of the Product to verify any warranty claim. f) Product which has had the serial number remove…

Text truncated - open the document above for the full version.

FCC ID: ABZ89FC5798 January 25, 2002 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Motorola Inc., hereby request confidentiality for the block diagrams, schematics, product descriptions, and circuit descriptions presented in Exhibit B. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Motorola, Inc.

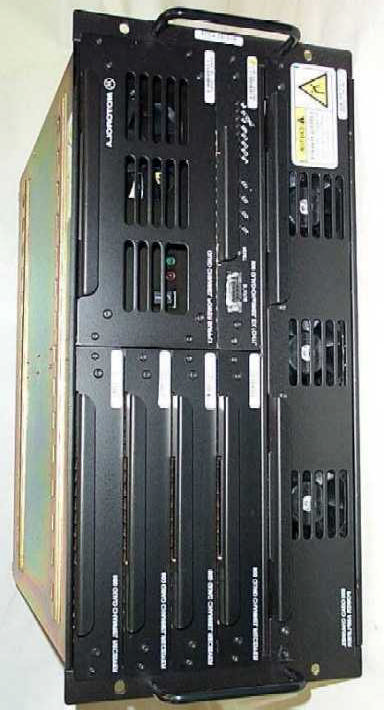

APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12 PHOTOGRAPHS -- INDEX EXHIBIT DESCRIPTION 12A-1Rear of Quad Base Radio Including Location of the FCC ID Label 12A-2FCC Identification Label 12BQuad Base Radio -- Front View 12CExciter / Base Radio Control Module 12D-1Power Amplifier Module, Top View, Shields Removed 12D-2Power Amplifier Module, Back View 12EPower Supply Module, Cover Removed 12F-1Backplane Board, Front Side 12F-2Backplane Board, Back Side APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12A-1 Rear of Quad Base Radio Including Location of the FCC ID Label APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12A-2 FCC Identification Label APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12B Quad Base Radio -- Front View

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 2 IDENTIFICATION LABEL LOCATION X See The Attached Photographs (EXHIBIT 12A-1, EXHIBIT 12A-2) X Back Of Radio Back Of Radio Under Belt Clip APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12A-1 Rear of Quad Base Radio Including Location of the FCC ID Label APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12A-2 FCC Identification Label

APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12E Exciter / Base Radio Control Module, Top Side APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12D-1 Power Amplifier Module, Top View, Shields Removed APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12D-2 Power Amplifier Module, Back View APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12E APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12F-1 Backplane Board, Front Side APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 12F-2 Backplane Board, Back Side

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receiver operating frequencies and power level.

1468P80801H45-1 1/20/2002 Base RadiosEBTS System Manual - Vol 2 General Safety Information Human Exposure Compliance This equipment is designed to generate and radiate radio frequency (RF) energy by means of an external antenna. When terminated into a non-radiating RF load, the base station equipment is certified to comply with Federal Communications Commission (FCC) regulations pertaining to human exposure to RF radiation in accordance with the FCC Rules Part 1 section 1.1310 as published in title 47 code of federal regulations and procedures established in TIA/EIA TSB92, Report on EME Evaluation for RF Cabinet Emissions Under FCC MPE Guidelines, Compliance to FCC regulations of the final installation should be assessed and take into account site specific characteristics such as type and location of antennas, as well as site accessibility of occupational personnel (controlled environment) and the general public (uncontrolled environment). This equipment should only be installed and maintained by trained technicians. Licensees of the FCC using this equipment are responsible for insuring that its installation and operation comply with FCC regulations Part 1 section 1.1310 as published in title 47 code of federal regulations. Whether a given installation meets FCC limits for human exposure to radio frequency radiation may depend not only on this equipment but also on whether the “environments” being assessed are being affected by radio frequency fields from other equipment, the effects of which may add to the level of exposure. Accordingly, the overall exposure may be affected by radio frequency generating facilities that exist at the time of the licensee’s equipment is being installed or even by equipment installed later. Therefore, the effects of any such facilities must be considered in site selection and in determining whether a particular installation meets the FCC requirements. FCC OET Bulletin 65 provides materials to assist in making determinations if a given facility is compliant with the human exposure to RF radiation limits. Determining the compliance of transmitter sites of various complexities may be accomplished by means of computational methods. For more complex sites direct measurement of power density may be more expedient. Additional information on the topic of electromagnetic exposure is contained in the Motorola Standards and Guideline for Communications Sites publication. Persons responsible for installation of this equipment are urged to consult the listed reference material to assist in determining whether a given installation complies with the applicable limits. In general the following guidelines should be observed when working in or around radio transmitter sites: - All personnel should have electromagnetic energy awareness training. - All personnel entering the site must be authorized. - Obey all posted signs - Assume all antennas are active - Before working on antennas, notify owners and disable appropriate transmitters. - Maintain minimum 3 feet clearance from all antennas. - Do not stop in front of antennas. - Use personal RF monitors while working near antennas. - Never operate transmitters without shields during normal operation. - Do not operate base station antennas in equipment rooms

APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: College Degree:BEET, DeVry Institute of Technology, Chicago, Illinois, USA __23___ years of Manufacturing Test and Test Design experience in the field of two-way radio communication. NAME: Scott Sladek SIGNATURE: ___________________________ DATE: January 25 , 2002 POSITION: Project Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Ken Weiss SIGNATURE: ___________________________ DATE: January 25 , 2002 POSITION: Project Manager APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 11 SUBMITTED MEASURED DATA -- INDEX EXHIBIT DESCRIPTION 11ARF Output-Data 11BOccupied Bandwidth 11B-1 Single Carrier 16 QAM – Occupied Bandwidth, Power Output at 52 Watts 11B-2 Dual Carrier 16 QAM – Occupied Bandwidth, Power Output at 52 Watts 11B-3 Triple Carrier 16 QAM – Occupied Bandwidth, Power Output at 48 Watts 11B-4Quad Carrier 16 QAM – Occupied Bandwidth, Power Output at 42 Watts 11B-5Quad Carrier QPSK – Occupied Bandwidth, Power Output at 42 Watts 11B-6Quad Carrier 64 QAM – Occupied Bandwidth, Power Output at 42 Watts 11B-7 Quad Carrier 64-16-16-16 QAM – Occupied Bandwidth, Power Output at 42 Watts 11CConducted Spurious Emissions: Setup, Specifications, and Index 11C-1Quad Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 42 Watts 11C-2Quad Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 5 Watts 11C-3Single Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 52 Watts 11C-4Single Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 5 Watts 11C-5Quad Carrier - Conducted Spurious Emissions, Close-In, Power Output at 42 Watts 11C-6Single Carrier - Conducted Spurious Emissions, Close-In, Power Output at 52 Watts 11DRadiated Spurious Emissions: Setup, Specifications, and Index 11D-1Quad Carrier - Radiated Spurious Emissions, Power Output at 42 Watts 11D-2Quad Carrier - Radiated Spurious Emissions, Power Output at 5 Watts 11D-3Single Carrier - Radiated Spurious Emissions, Power Output at 52 Watts 11D-4Single Carrier - Radiated Spurious Emissions, Power Output at 5 Watts 11EFrequency Stability: Setup, Specifications, and Index 11E-1Frequency Stability Vs Temperature 11E-2Frequency Stability Vs Voltage APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 11A RF POWER OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. The DC current indicated is the total for the final RF amplifier stage, consisting of six parallel modules, or twelve parallel power transistors. Quad Carrier Mode: Measured RF output42Watts, Average DC Voltage28.3Volts DC Current 14.3 Amperes Input power for final RF amplifying device(s) 405 Watts Primary Supply Voltage48Volts DC Minimum Measured RF output5Watts, Average Normal DC Voltage28.3Volts Normal DC Current4.9Amperes Input power for final RF amplifying device(s)139Watts Primary Supply Voltage48Volts DC Single Carrier Mode: Measured RF output52Watts, Average Normal DC Voltage28.3Volts Normal DC Current 14.3 Amperes Input power for final RF amplifying device(s) 405 Watts Primary Supply Voltage48Volts DC Minimum Measured RF output5Watts, Average Normal DC Voltage28.3Volts Normal DC Current4.9Amperes Input power for final RF amplifying device(s)139Watts Primary Supply Voltage48Volts DC APPLICANT: MOTOROLA INC.EQUIPMENT TYPE: ABZ89FC5798 EXHIBIT 11B-1 (Sheet 1 of 2) OCCUPIED BANDWIDTH – SINGLE CARRIER 16-QAM Modulation Type:Quad-QAM – 64 kbps Random Data Per Channel – Single Carrier Emission Designator:17K7D7W Channelization:25 kHz per channel Power Setting:52 Watts Average SPECIFICATION REQUIREMENT: § 90.669 Emission Limits: (a) On any frequency in an MTA licensee’s spectrum block that is adjacent to a non-MTA frequency, the power of any emission shall be attenuated below the transmitter power (P) by at lease 43 plus 10 log 10 (P) dB or 80 dB, whichever is the lesser attenuation. Note:The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. (b) When an emission outside of the authorized bandwidth causes harmful interference, the Commission may, at its discretion, require greater attenuation than specified in this section. Necessary Bandwidth Calculation: The necessary bandwidth of the modulation signal is not calculable per the formulas defined in 47 CFR 2.202 (b). Specifically, although the modulation for this emission is a composite modulation, the equations given in the composite tables in 2.202 are not applicable since none of them adequately approximate the form of digital modulation used. The necessary bandwidth of 17.7 kHz per carrier is based upon a 99% power measurement of the transmitter spectrum, per 2.202 (a). Measurement Procedure and Instrument Settings: Reference Calibration Analyzer Settings: Horizontal:12.5 kHz per DivisionResolution Bandwidth:30 kHz Vertical:10 dB per DivisionVideo Bandwidth:100 kHz Sweep Time:75 Seconds (<2000 Hz / Second)Span:125 kHz Detector Mode:Positive Peak Emission Measurement Analyzer Settings: Horizontal:12.5 kHz per DivisionResolution Bandwidth:300 Hz Vertical:10 dB per DivisionVideo Bandwidth:3 kHz Sweep Time:75 Seconds (<2000 Hz / Second)Span:125 kHz Detector Mode:Positive Peak Test Procedure: 1)Adjust the spectrum analyzer per the values specified in the Reference Calibration Analyzer Settings. 2)Modulate the transmitter with the appropriate signaling pattern, (psuedorandom data) and key the transmitter with a single carrier, at the full single carrier power ratin…
