ABZ89FC5798-PLicensed Base Station for Part 24

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 8 INSTRUCTION MANUALS Excerpts from the instruction and service manuals for this base radio are available and have been included as part of the filing package in the form of an electronic pdf document. Upon request, published and/or printed manuals will be sent to the commission and/or telecommunication certification body (TCB). All of the descriptions and schematics included this filing package are up to date. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receiver operating frequencies and power level. Technical Manual iDEN Enhanced Base Trans- ceiver System (EBTS) Volume 2 of 3 Base Radios 68P80801E35-E 16-June-06 RF SUB-SYSTEM Notice to Users No part of this publication, or any software included with it, may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including but not limited to, photocopying, electronic, mechanical, recording or otherwise, without the express prior written permission of the copyright holder. Motorola, Inc. provides this document “AS IS” without warranty of any kind, either expressed or implied, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola reserves the rights to make changes or improvements in the equipment, software, or specifications described in this document at any time without notice. These changes will be incorporated in new releases of this document. Computer Software Copyrights The Motorola and 3 rd Party supplied Software (“SW”) products described in this instruction manual may include copyrighted Motorola and other 3 rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and other 3 rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form of the copyrighted computer program. Accordingly, any copyrighted Motorola or other 3 rd Party supplied SW computer programs contained in the Motorola products described in this instruction manual may not be copied, reverse engineered, or reproduced in any manner without the express prior written permission of Motorola or the 3 rd Party SW supplier. Furthermore, the purchase of Motorola products shall not be deemed to grant, either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola or other 3 rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Use and Disclosure Restrictions The software described in this document is the property of Motorola, Inc. It is furnished under a duly executed license agreement and may be used and/or disclosed only in accordance with the terms of the said agreement. The software and documentation contained in this publication are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the express prior written permission of Motorola, Inc. Trademarks MOTOROLA, the Stylized M Logo, iDEN, and Message Mail are trademarks or registered trademarks of Motorola, Inc. in the United States and other countries. All other product or services mentioned in this document are identified by the trademarks or service marks of their respective companies or organizations, and Motorola, Inc. disclaims any responsibility for specifying their ownership. Any such marks are used in an editorial manner, to the benefit of the owner, with no intention of infringement. © 2006 - Motorola, Inc. All Rights ReservedREV 12/15/06 Contact Information Motorola, Inc. Networks business 1501 Shure Dr. Arlington Heights, IL 60004 U.S.A SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. While reasonable efforts have been made to assure the accuracy of this document, this document may contain technical or typographical errors or omissions. Motorola, Inc. and its subsidiaries and affiliates disclaim responsibility for any labor, materials, or costs incurred by any person or party as a result of using this document. Motorola, Inc., any of its subsidiaries or affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect, incidental, or special damages or loss of profits or data) even if they were foreseeable and Motorola has been informed of their potential occurrence, arising out of or in connection with this document or its use. Motorola, Inc. reserves the right to make changes without notice to any products or services described herein and reserves the right to make changes from time to time in content of this document and substitute the new document therefor, with no obligation to notify any person or party of such changes or substitutions. Enhanced Base Transceiver System (EBTS) 16-June-06 68P80801E35-E-v About This Volume Volume 2 of the Enhanced Base Transceiver System (EBTS) manual, Base Radios, provides the experienced service technician with an overview of the EBTS operation and functions, and contains information regarding the 800 MHz, 900 MHz, 800/900 MHz QUAD Channel, and 800/900 MHz QUAD+2 Channel base radios. The EBTS has three major components: ■Generation 3 Site Controller (Gen 3 SC) or integrated Site Controller (iSC) ■Base Radios (BRs) ■RF Distribution System (RFDS) Installation and testing is described in Volume 1, System Installation and Testing, a…

Text truncated - open the document above for the full version.

FCC ID: ABZ89FC5798-P CONFIDENTIALITY REQUESTED Date: December 07, 2006 Subject: Request for Confidentiality for Transmitter, FCC ID ABZ89FC5798-P In accordance with 47 C.F.R. Section 0.459, Motorola hereby requests confidentiality for the block diagrams, schematics, product descriptions, and circuit descriptions presented in Exhibit B. We request that these exhibits not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the External Photos and Internal Photos in Exhibit C be marked as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Please mark all of Exhibit B as “Confidential” and Exhibit C as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, Ken Weiss Telephone (847) 576-2789 Email: [email protected]

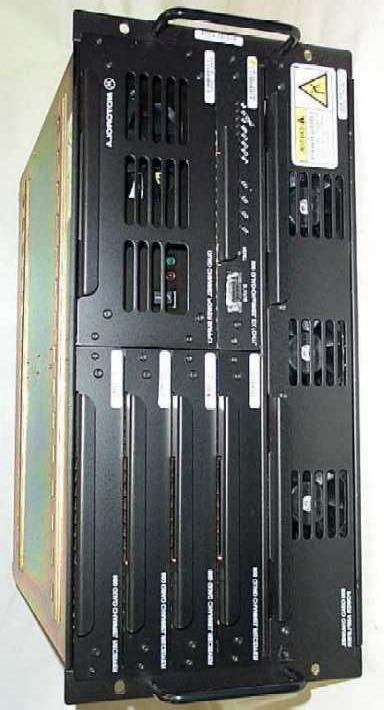

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12A-1 Rear of Quad Base Radio Including Location of the FCC ID Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12A-2 FCC Identification Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12B Quad Base Radio -- Front View

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 2 IDENTIFICATION LABEL LOCATION X See The Attached Photographs (EXHIBIT 12A-1, EXHIBIT 12A-2) X Back Of Radio Back Of Radio Under Belt Clip APPLICANT: MOTOROLA INEQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12A-1 Rear of Quad Base Radio Including Location of the FCC ID Label APPLICANT: MOTOROLA INCEQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12A-2 FCC Identification Label

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12C Exciter / Base Radio Control Module, Top Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12D-1 Power Amplifier Module, Top View, Shields Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12D-2 Power Amplifier Module, Back View APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12E APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12F-1 Backplane Board, Front Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 12F-2 Backplane Board, Back Side

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receiver operating frequencies and power level.

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 1 Report on Test Measurements Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: College Degree: BSEE, Valparaiso University, Valparaiso, Indiana, USA MSEE, Illinois Institute of Technology, Chicago, Illinois, USA __24___ years of Design and Development experience in the field of two-way radio communication. NAME: Ken Weiss SIGNATURE: ___________________________ DATE: December 7, 2006 POSITION: Senior Staff Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Ali Sajanlal SIGNATURE: ___________________________ DATE: December 7, 2006 POSITION: Engineering Section Manager APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 11 Report on Test Measurements Submitted Measured Data – Index EXHIBIT DESCRIPTION 11A RF Output-Data 11B Occupied Bandwidth: Setup, Specifications, and Index (16-QAM) 11B-11 Single Carrier Mixed QAM – Occupied Bandwidth – Power Output at 52 Watts 11B-12 Dual Carrier Mixed QAM – Occupied Bandwidth – Power Output at 52 Watts 11B-13 Triple Carrier Mixed QAM – Occupied Bandwidth – Power Output at 48 Watts 11B-14 Quad Carrier Mixed QAM – Occupied Bandwidth – Power Output at 42 Watts 11C Conducted Spurious Emissions: Setup, Specifications, Index 11C-1 Quad Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 42 Watts 11C-2 Quad Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 5 Watts 11C-3 Single Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 52 Watts 11C-4 Single Carrier - Conducted Spurious Emissions, Harmonics, Power Output at 5 Watts 11D Radiated Spurious Emissions: Setup, Specifications, and Index 11D-1 Quad Carrier - Radiated Spurious Emissions, Power Output at 42 Watts 11D-2 Quad Carrier - Radiated Spurious Emissions, Power Output at 5 Watts 11D-3 Single Carrier - Radiated Spurious Emissions, Power Output at 52 Watts 11D-4 Single Carrier - Radiated Spurious Emissions, Power Output at 5 Watts 11E Frequency Stability: Setup, Specifications, and Index 11E-1 Frequency Stability Vs Temperature 11E-2 Frequency Stability Vs Voltage 11F Human Exposure 11F-1 Human Exposure Compliance Statement 11F-2 Human Exposure Manual Section APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 11A Report on Test Measurements RF Power Output Data The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. The DC current indicated is the total for the final RF amplifier stage, consisting of six parallel modules, or twelve parallel power transistors. Quad Carrier Mode: Measured RF output 42 Watts, Average DC Voltage 28.3 Volts DC Current 14.3 Amperes Input power for final RF amplifying device(s) 303 Watts Primary Supply Voltage 48 Volts DC Minimum Measured RF output 5 Watts, Average Normal DC Voltage 28.3 Volts Normal DC Current 4.9 Amperes Input power for final RF amplifying device(s) 139 Watts Primary Supply Voltage 48 Volts DC Single Carrier Mode: Measured RF output 52 Watts, Average Normal DC Voltage 28.3 Volts Normal DC Current 14.3 Amperes Input power for final RF amplifying device(s) 340 Watts Primary Supply Voltage 48 Volts DC Minimum Measured RF output 5 Watts, Average Normal DC Voltage 28.3 Volts Normal DC Current 4.9 Amperes Input power for final RF amplifying device(s) 139 Watts Primary Supply Voltage 48 Volts DC APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5798-P EXHIBIT 11B Report on Test Measurements Occupied Bandwidth Occupied Bandwidth – Multi-Carrier Base Radio, 25 kHz Channel Spacing – 940 - 941 MHz Operation There are four exhibits shown for 940-941 MHz operation. All can be used in a system configuration based upon channel usage as described in Exhibit B. All of the following charts reference the following setup and specification requirements. Modulation Type: Quad-QAM, 64 kbps Random Data Per Channel Emission Designator: (See Exhibit Table Below) Channelization: 25 kHz per channel Power Setting: (See Exhibit Table Below) § 24.133 Emission Limits: (1) For transmitters authorized for a bandwidth greater than 10 kHz (a) The power of any emission shall be attenuated below the transmitter power (P), as measured in accordance with § 24.132(f), in accordance with the following schedule: (i) On any frequency outside the authorized bandwidth and removed from the edge of the authorized bandwidth by a displacement frequency (fd in kHz) of up to and including 40 kHz: at least 116 Log10 ((fd+10)/6.1) decibels; or 50 plus 10 Log10 (P) decibels; or 70 decibels; (whichever is the lesser attenuation) (ii) On any frequency outside the authorized bandwidth and removed from the edge of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 40 kHz: at least 43 plus 10 Log10 (P) decibels; or 80 decibels; (whichever is the lesser attenuation) (b) The measurements of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. (c) When an emission outside of the authorized bandwidth causes harmful interference, the Commission may, at its discretion, require greater attenuation than specified in this section. (d) The following minimum spectrum analyzer resolution bandwidth settings will be used: 300 Hz when showing compliance with paragraphs (a)(1)(i) and (a)(2)(i) of this section; and 30 kHz when showing compliance with paragraphs (a)(1)(ii) and (a)(2)(ii) of this section. § 24.132(f) All power levels specified in this section are expressed in terms of the maximum power, averaged over a 100 millisecond interval, when measured with instrumentation calibrated in terms of an rms-equivalent voltage with a resol…
