APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via Man Machine Interface (MMI) through the BRC RS232 port within predetermined limits. Examples include transmit / receiver operating frequencies and power level. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 9 Tune Up Procedure This exhibit contains the tune-up procedure as it will appear in the Astro® 25 system release 6.2 Simulcast Configuration Manual. The following adjustments comprise the transmitter setups. 1. Reference oscillator installation 2. Setting transmitter frequency and power level. 3. Measuring channel interference 4. Measuring the transmitter metering points 5. Measuring the transmitter frequency error Test Equipment Description Recommended Model Service Monitor Motorola R-2001 or equivalent PC with CSS Software Procedure CSS Port: 9-pin serial cable with D connector is provided on the station control module front panel to allow service personnel to connect a PC loaded with the Configuration Service Software (CSS) and perform programming and maintenance tasks via the RS232 port. The following pages of this exhibit show the important alignment screens. Exhibit Description 9A Installing reference oscillator 9B Configuring channel frequency and power level 9C Measuring channel interference 9D Measuring the transmitter metering points 9E Measuring the transmitter frequency error 3-468P8100XYXX-OAPRIL 2003 PRELIMINARY Internal Review (First Draft - 50% to 60% Complete) RF SITE EQUIPMENT CONFIGURATIONCHAPTER 3: SIMULCAST REMOTE SITE CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RF SITE EQUIPMENT CONFIGURATION The following sections provide information about programming the devices that provide the RF interface (simulcast base radio) to the subscriber radios in your system and the devices that support the RF interface. TRAK 9100 SIMULCAST SITE REFERENCE See “TRAK 9100 Simulcast Site Reference Configuration” on page 2-20 for a full description of the configuration procedures that cover the general configuration points. This section provides only the specific settings required for the remote site device. At the digital simulcast subsystem remote sites, the TRAK 9100 provides 1 pps + 5 Mpps composite signals to the simulcast base radio. For a total of 30 channels, a TRAK 9100 SSR with two Digital Distribution Modules (DDM) configured for composite signals is required. Each composite signal can drive up to six STR 3000 Base Radios. A 50 ohm impedance must terminate the end of a daisy chain. The 50 ohm load is installed at the STR 3000 Base Radio’s composite input terminal. STR 3000 SIMULCAST BASE RADIO The information provided in this section is for all simulcast base radios installed in the digital simulcast subsystem at remote and co-located remote sites. Using the TTY port, connect to the simulcast base radios, and program the IP address required for this particular station on this channel number at this subsite. IP address information should be obtained from your Motorola Field Representative. Using Configuration/Service Software (CSS), program the proper operating frequency for the station and verify proper RF alignment. Do this for all channels at all subsites. Table 3-1 gives an overview of information that is configured. Using the CSS Station Configuration tab, set Simulcast Operation to Enabled. NOTE Some fields in the CSS dialog boxes are marked with an asterisk (*). This indicates a field that can be overwritten from the User Configuration Manager (UCM). 3-668P8100XYXX-OAPRIL 2003 PRELIMINARY Internal Review (First Draft - 50% to 60% Complete) RF SITE EQUIPMENT CONFIGURATIONCHAPTER 3: SIMULCAST REMOTE SITE CONFIGURATION FIGURE 3-7 BASE RADIO HARDWARE CONFIGURATION SCREEN Station Configuration ScreenProvides for the simulcast base radio’s specific station configuration. See the online documentation provided with the CSS for specific procedures. F IGURE 3-8 BASE RADIO STATION CONFIGURATION SCREEN TABLE 3-1 SIMULCAST BASE RADIO CONFIGURATION SCREENS IN CSS (CONTINUED) ScreenDescription 68P8100XYXX-OAPRIL 20033-9 PRELIMINARY Internal Review (First Draft - 50% to 60% Complete) SIMULCAST CONFIGURATION ILLEGAL CARRIER DETERMINATION AND BASE RADIO MEASUREMENT MEASURING CHANNEL INTERFERENCE The STR 3000 Simulcast Base Radios log interfering carrier levels that surpass the RF threshold value to the station error log. These logs can be used to determine periodic interfering carriers that are not present long enough to trigger the Carrier Malfunction Timer. These logs should also be checked after any changes are made to the site that affect the site noise floor. An example of this type of change would be seen when a new customer in the immediate area is using the same frequency band. SETTING THE STR 3000 SIMULCAST BASE RADIO RF T HRESHOLD VALUE FIELD The RF Threshold Value field appears on the Station Configuration tab of the STR 3000 Simulcast Base Radio window. This field defines the level (in dBm) above which the received signal is considered to be an illegal carrier, if this STR 3000 Simulcast Base Radio is not assigned to a call. Procedure 3-1 describes the steps to set the RF Threshold Value field. P ROCEDURE 3-1 HOW TO SET THE STR 3000 SIMULCAST BASE RADIO RF THRESHOLD V ALUE FIELD 1In the CSS application, select STR 3000 Simulcast Base Radio. Result: The STR 3000 Simulcast Base Radio window appears (Figure 3-10). F IGURE 3-10 STR 3000 SIMULCAST BASE RADIO WINDOW SCREEN 3-2068P8100XYXX-OAPRIL 2003 PRELIMINARY Internal Review (First Draft - 50% to 60% Complete) ILLEGAL CARRIER DETERMINATION AND BASE RADIO MEASUREMENTCHAPTER 3: SIMULCAST REMOTE SITE CONFIGURATION MONITORING THE TRANSMITTER METERING POINTS Perform Procedure 3-4 to monitor the transmitter metering points. P ROCEDURE …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 8 INSTRUCTION MANUALS The Preliminary Installation manual for this base radio is provided. Upon request, final manuals will be sent to the commission and/or telecommunication certification body (TCB) as soon as they become available. All of the descriptions and schematics in this filing are up to date and will be included in the instruction and/or service manuals. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 8 INSTRUCTION MANUALS Draft copy of the of the front matter of the following instruction manual is enclosed with this submission: 68P81003Y71-O ........................................................ 6.2 First Draft for Simulcast Hardware Installation Other system and radio / configuration service software manuals are available to support the product and system in operation. They can be provided to the Commission upon request. 6.2 First Draft for Simulcast Ha rdw a r e I n s t a l l a t i o n © November 2002 Motorola, Inc.68P81003Y71-O All Rights ReservedNovember 2002 Pr inted in U.S.A. Computer Software Copyrights The Motorola products described in this document include a copyrighted Motorola computer program. Laws in the United States and other countries, as well as International Treaties, preserve for Motorola the exclusive rights for Motorola’s copyrighted computer programs, including the exclusive right to copy, repro- duce, distribute, or otherwise transfer said computer program(s). Accordingly, the copyrighted Motorola computer programs contained in this document may not be copied, decompiled, reverse engineered, or reproduced in any manner and on or within any media without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola, except for the normal non-exclusive, royalty-free license to use that arises by operationof law in the sale of a product. Document Copyrights © Motorola, Inc. All rights reserved. No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part ofthis document may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. To order additional copies of this document contact your Motorola sales representative. Disclaimer The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Further- more, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; neither does it cover any license under its patent rights nor the rights of others. Trademark Information The following are registered trademarks of Motorola, Inc.: ASTRO, ASTRO-TAC, ASTRO 25, EMBASSY, FLASHport, FullVision, INTELLIREPEATER, MAXTRAC, Motorola, the Motorola logo, MSF 5000, QUANTAR, QUANTRO, SECURENET, SMARTNET, SMARTZONE, SPECTRA, and STARTSITE. The following are Motorola trademarks: CENTRACOM Series, CENTRACOM Gold Series, CENTRACOM Series II, CENTRACOM Series II Plus, Cisco, CoveragePLUS, DIGITAC, DVP, Max-Fax, MDC-600, Micor, MOSCAD, MSF10000, MTS 2000, OmniLink, Private Conversation, SABER, SMARTNET II, SmartWorks, and Wireless Network Gateway. HP, HP-UX, and Hewlett Packard are registeredtrademarks of Hewlett-Packard Corporation. UNIX is a registered trademark of The Open Group in the United States and other countries. Any other brand or product names are trademarks or registered trademarks of their respective holders. WARRANTY Limited Software Warranty For the first ninety (90) days following its initial shipment, Motorola warrants that when properly used, its software will be free from reproducibledefects that cause a material variance from its published specification. However, Motorola does not warrant that program operation will be uninterrupted or error- free, that each defect will be corrected, or that any program will meet Licensee’s particular requirements. This warranty does not cover an item of Software (i) used in other than its normal and customary manner; (ii) subjected to misuse; or (iii) subjected to modi- fications by Licensee or by any party other than Motorola without the prior written consent of Motorola. Limited Media Warranty For the first ninety (90) days following its initial shipment, Motorola warrants that the media carrying the software will be free from defects that damage the performance of the software. Motorola will replace any damaged media free of charge during the warranty period. Warranted media is limited to that which is used to transport the software (such as floppy disks and authorization key). PROMs that may store the software in equipment are not covered under this warranty. Limitation of Liability Motorola’s total liability and Licensee’s sole remedy for any warranted software shall be limited to, at Motorola’s option, software replacement orthe payment of Licensee’s actual damages, not to exceed the total licensed charge paid by Licensee to Motorola for the item of software that caused the damage. The warranties set forth above extendonly to the first licensee. Subsequent transferees accept these programs "as is" and without warranties of any kind.This warranty is given in lieu of all other warranties, express or implied, including, without limitation, the warranties of merchantability and fitnessfor a particular purpose. In no event shall Motorola be liable for special, incidental, or consequential damages (including, without limitation, loss of use, time or data, inconvenience, commercial loss, and lost profits or sav…

Text truncated - open the document above for the full version.

Simulcast Hardware InstallationSTR 3000 Rack Modules Figure 5-2STR 3000 Base Radio Rack with Four Base Radios STR 3000 Rack Modules Table 5-1 lists the hardware modules that comprise the STR 3000 rack. 68P81003Y71-O November 20025-5 Base Radio ModulesChapter 5: Installing the Digital Simulcast Remote Site (10Base-2) Table 5-1STR 3000 Rack Modules ModuleDescription Breaker panelProvides on/off control and electrical overload protection to each module within the cabinet. Cavity combinerActs as a band-pass filter, combines two to six transmit signals and places them on a single antenna port. The minimum channel spacingof the cavity combiner is 150 kHz. Triple isolatorAllows RF to pass from the power amplifier to the combiner and antenna while redirecting any reflected energy from the antenna system away from the power amp and into a 50 ohm load. Receive multicoupler (RMC)Supplies a port that takes the signal from the RX antenna anddistributes the appropriate information to each base radio in its rack. Base radioHandles the transmit and receive functions for the rack through separate modules. The cavity combiner, triple-through isolator, and receive multicoupler comprise the Radio Frequency Distribution System (RFDS). Base Radio M odules The base radio consists of different modulesthat handle the transmit and receive functions for the rack. Table 5-2 lists these modules. Table 5-2Base Radio Modules ModuleDescription -48 VDC powe r supply Converts th e -48 VDC input to the voltages required by the other base radio modules. ExciterProvides the transmitter and modulation functions for the base radio in conjunction with the power a mplifier. Power amplifier (PA)Provides the transmitter functions for the base radio in conjunction with the exciter. The PA acce pts the low-level modulated RF signal from the exciter and amplifies the signal for transmission via the RF output connector. Base radi o controller Provides signal processing and operational control for other base radio modules. ReceiverProvides the back end receive function. Figure 5-3 shows the layout for the base radio modules. 5-6 68P81003Y71-O November 2002 Simulcast Hardware InstallationInstalling the STR 3000 Base Radio Rack Figure 5-3Layout of the Base Radio Modules Installing the STR 3000 Base Radio Rack The STR 3000 Base Radio Rack is shipped in a cabinet. To install this STR 3000 cabinet, prepare the site and bolt the rack to the floor in the location indicated on the site design drawings. Placement of the Rack Always use two or more persons and appropriate lifting equipment whenever moving an STR 3000 rack. A fully configured rack weighs approximately 360 kg (800 lbs). Death, serious personal injury, or equipment damage can result if the rack tips over. General suggestions for placing the rack are as follows: •Secure the rack on a firm and level floor. Use the correct mounting hardware to eliminate component movement. •Use strain relief when installing and positioning cables and cords to ensure that no interruption of service occurs. •Locate the STR 3000 cabinet where it can be serviced easily. Service people require access to the front and the rear of the system. •Locate the STR 3000 cabinet in an area that is free of dust, smoke, and debris. •Maintain proper grounding and electrostatic discharge (ESD) precautions. 68P81003Y71-O November 20025-7 Installing the RackChapter 5: Installing the Digital Simulcast Remote Site (10Base-2) •Maintain proper climate and heating, ventilation, and air conditioning (HVAC) controls. The base radio and combiner unit weight exceeds 32 kg (70 lbs) and requires two people to lift when removing the unit from the rack. To avoid injury, fully support a unit when it is free from the mounting rails. Installing the Rack Perform Procedure 5-1 to install the STR 3000 rack. Procedure 5-1How to Install the STR 3000 Rack 1 Place the rack carefully in the designated area where it will be installed at the remote site. See the site plan for the correct location. 2 Bolt the rack to the floor using the correct hardware for the type of installation. See theStandards and Guidelines for Communication Sites(68P81089E50) for details on a rack installation. 3 Verify proper grounding of the rack. 4Check to ens ure all of the boards are properly seated in the site controller chassis. Boards may have loosened during shipping. 5 Connect power connections to the STR 3000 rack. See "Connecting Power to the STR 3000 Rack" on page 5-9 for more information. Connecting the STR 3000 Rack to Ground Connect each cabinet frame to the site master ground bar using a single dedicated 2 AWG ground wire. The site ground wire should drop into the top of each cabinet and be connected to the designated grounding stud located at the junction panel at the top rear ofthe cabinet. Single hole lugs (1.27 cm (0.5-in.) diameter) are used for these grounding connections. Never use a bare or damaged wire for the connection of chassis ground or other electrical wiring to prevent damage to equipment or potential injury to personnel. 5-8 68P81003Y71-O November 2002 Simulcast Hardware InstallationConnecting Power to the STR 3000 Rack Do NOT daisy-chain multiple equipment cabinet grounds using a single ground wire. Doing so increases the overall inductance of the ground wire which can distribute surge energy among the cabinets instead of to the master ground bar. SeeStandards and Guidelines for Communications Sites(68P81089E50) for detailed information on grounding the rack. Connecting Power to the STR 3000 Rack The STR 3000 rack requires a -48 VDC, which is provided by the DC power distribution. Figure 5-4 shows the typical connections for power to the STR 3000 rack. Figure 5-4Typical Power Connections for the STR 3000 Rack Determining Power Connection Wire Size Wire size recommendations contained herein reflect Motorola engineering requirements for proper system operation. Local regulations should be adhered to and will supersede any other specificatio…

Text truncated - open the document above for the full version.

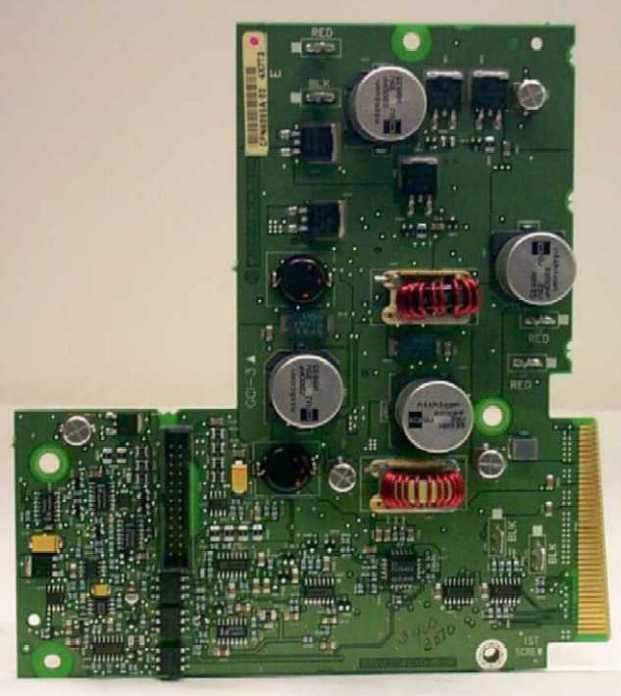

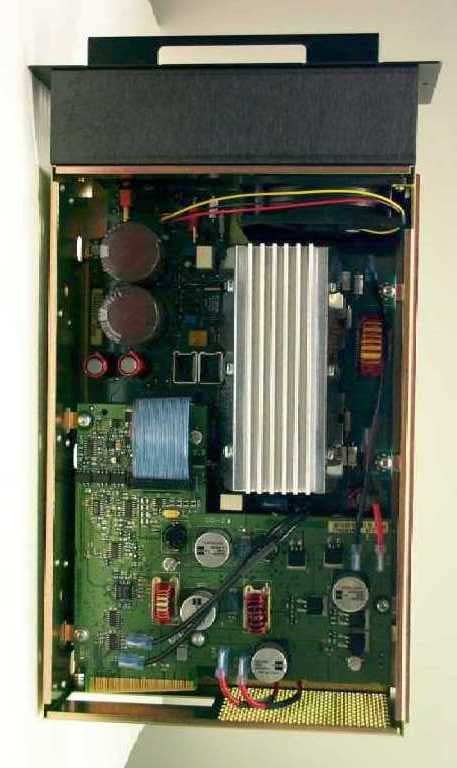

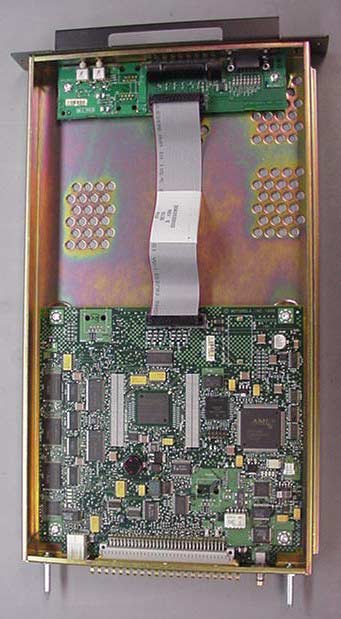

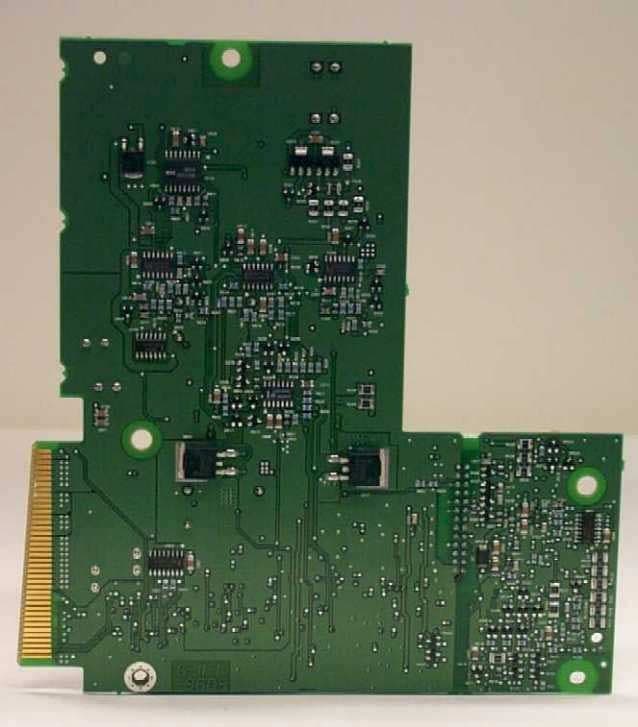

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12 PHOTOGRAPHS -- INDEX EXHIBIT DESCRIPTION 12A-1 Rear of Station Including Location of the FCC ID Label 12A-2 FCC Identification Label 12B Linear Simulcast Station Base Radio -- Front View 12C Exciter Module, Component Side ** 12D-1 Power Amplifier Module, Top View, Shields Removed 12D-2 Power Amplifier Module, Heat Sink View 12E-1 Power Supply Module, Cover Removed 12E-2 Power Supply Module, Sub Board Removed ** 12E-3 Power Supply Module, Sub Board Top Side 12E-4 Power Supply Module, Sub Board Bottom Side 12F Base Radio Control Module, Component Side ** 12G-1 Backplane Board, Front Side 12G-2 Backplane Board, Back Side 12H Transmit Combiner, 2:1 ** Indicates that there are no components and/or there is no significant circuitry on the backside of the board, therefore there is not a photo of the back side of the board included in this package. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-1 Rear of Station Including Location of the FCC ID Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-2 2 3 FCC Identification Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12B Linear Simulcast Station Base Radio -- Front View APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12C Exciter Module, Component Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12D-1 Power Amplifier Module, Top View, Shields Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12D-2 Power Amplifier Module, Heat Sink View APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-1 Power Supply Module, Cover Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-2 Power Supply Module, Component Side, Sub Board Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-3 Power Supply Module, Sub Board Top Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-4 Power Supply Module, Sub Board Bottom Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-1 Base Radio Control Module, Component Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-1 Backplane Board, Front Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-2 Backplane Board, Back Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12H Transmit Combiner: (2:1 Shown)

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 2 IDENTIFICATION LABEL LOCATION X See The Attached Photographs (EXHIBIT 12A-1, EXHIBIT 12A-2) X Back Of Radio APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-1 Rear of Station Including Location of the FCC ID Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-2 2 3 FCC Identification Label

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12 PHOTOGRAPHS -- INDEX EXHIBIT DESCRIPTION 12A-1 Rear of Station Including Location of the FCC ID Label 12A-2 FCC Identification Label 12B Linear Simulcast Station Base Radio -- Front View 12C Exciter Module, Component Side ** 12D-1 Power Amplifier Module, Top View, Shields Removed 12D-2 Power Amplifier Module, Heat Sink View 12E-1 Power Supply Module, Cover Removed 12E-2 Power Supply Module, Sub Board Removed ** 12E-3 Power Supply Module, Sub Board Top Side 12E-4 Power Supply Module, Sub Board Bottom Side 12F Base Radio Control Module, Component Side ** 12G-1 Backplane Board, Front Side 12G-2 Backplane Board, Back Side 12H Transmit Combiner, 2:1 ** Indicates that there are no components and/or there is no significant circuitry on the backside of the board, therefore there is not a photo of the back side of the board included in this package. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-1 Rear of Station Including Location of the FCC ID Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12A-2 2 3 FCC Identification Label APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12B Linear Simulcast Station Base Radio -- Front View APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12C Exciter Module, Component Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12D-1 Power Amplifier Module, Top View, Shields Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12D-2 Power Amplifier Module, Heat Sink View APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-1 Power Supply Module, Cover Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-2 Power Supply Module, Component Side, Sub Board Removed APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-3 Power Supply Module, Sub Board Top Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12E-4 Power Supply Module, Sub Board Bottom Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-1 Base Radio Control Module, Component Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-1 Backplane Board, Front Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12G-2 Backplane Board, Back Side APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 12H Transmit Combiner: (2:1 Shown)

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 9 TUNE-UP PROCEDURE There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via Man Machine Interface (MMI) through the BRC RS232 port within predetermined limits. Examples include transmit / receiver operating frequencies and power level. APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 9 Tune Up Procedure This exhibit contains the tune-up procedure as it will appear in the Astro® 25 system release 6.2 Simulcast Configuration Manual. The following adjustments comprise the transmitter setups. 1. Reference oscillator installation 2. Setting transmitter frequency and power level. 3. Measuring channel interference 4. Measuring the transmitter metering points 5. Measuring the transmitter frequency error Test Equipment Description Recommended Model Service Monitor Motorola R-2001 or equivalent PC with CSS Software Procedure CSS Port: 9-pin serial cable with D connector is provided on the station control module front panel to allow service personnel to connect a PC loaded with the Configuration Service Software (CSS) and perform programming and maintenance tasks via the RS232 port. The following pages of this exhibit show the important alignment screens. Exhibit Description 9A Installing reference oscillator 9B Configuring channel frequency and power level 9C Measuring channel interference 9D Measuring the transmitter metering points 9E Measuring the transmitter frequency error

Simulcast Hardware InstallationOSHA Related Safety Requirements OSHA Related Safety Requirements The United States Department of Labor, through the provisions of the Occupational Safety and Health Act (OSHA) of 1970, has established an electromagnetic energy safety standard that applies to the use of this equipment. Proper use of this equipment will result in exposure below the OSHA limit. Human Exposure Compliance for RF Energy STR 3000 Simulcast Base Radios are designed to generate and radiate RF energy by means of an external antenna. When terminated into a non-radiating RF load, the base radio equipment is certified to comply with Federal Communications Commission (FCC) regulations pertaining to human exposure of RF radiation in accordance with the FCC Rules Part 1 section 1.1310 as published in title 47 code of federal regulations and procedures established inTIA/EIA TSB92, Report on EME Evaluation for RF Cabinet Emissions Under FCC MPE Guidelines. Compliance to FCC regulations of the final installation should be assessed and take into account site specific characteristics, such as type and location of antennas, as well as site accessibility of occupational personnel (controlled environment) and general public (uncontrolled environment). This equipment should only be installed and maintained by trained technicians. Licensees of the FCC using this equipment are responsible for ensuring that its installation and operation comply with FCC regulations Part 1 section 1.1310 as published in title 47 code of federal regulations. Whether a given installation meets FCC limits for human exposure to radio frequency radiation may depend not only on this equipment, but also onwhether the “environments” being assessed are being affected by radio frequency fields from other equipment, the effects of which may add to the level of exposure. Accordingly, the overall exposure may be affected by radio frequency generating facilities that exist at the time the licensee’s equipment is being installed or even by equipment installed later. Therefore, the effect of any such facilities must be considered in site selection and in determining whether a particular installation meets the FCC requirements. FCC OET Bulletin 65 provides materials to assist in making determinations if a given facility is compliant with the human exposure to RF radiation limits. Determining the compliance of transmitter sites of various complexities may be accomplished by means of computational methods. In general, observe the following guidelines when working in or around radio transmitter sites: •Ensure that all personnel have electromagnetic energy awareness training. •Ensure that all personnel entering the site are authorized. •Obey all posted signs. •Assume all antennas are active. •Beforeworkingonantennas,notifyowners and disable appropriate transmitters. •Maintain minimum of 1 m (3 ft.) clearance from all antennas. •Do not stop in front of antennas. •Use personal RF monitors while working near antennas. •Never operate transmitters without shields during normal operation. •Do not operate base station antennas in equipment rooms. 68P81003Y71-O November 20022-15

APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 11 SUBMITTED MEASURED DATA -- INDEX EXHIBIT DESCRIPTION 11A RF Output-Data 11B Adjacent Channel Coupled Power (ACCP) Requirements 11B-1 ACCP Results ≤400 kHz for QPSK and C4FM Modulation at 763 MHz 11B-2 ACCP Results >400 kHz at 762 MHz 11C Conducted Spurious Emissions: Setup, Specifications, Index 11C-1 Conducted Spurious Harmonic Emissions, Power Output at 55 Watts 11C-2 Conducted Spurious Harmonic Emissions, Power Output at 2.5 Watts 11C-3 Conducted Spurious Close-In Emissions, 763 MHz at Power Output of 55 Watts and 2.5 Watts 11D Radiated Spurious Emissions: Setup, Specifications, Index 11D-1 Radiated Spurious Emissions, Power Output at 55 Watts 11D-2 Radiated Spurious Emissions, Power Output at 2.5 Watts 11E Frequency Stability: Setup, Specifications, Index 11E-1 Frequency Stability Vs Temperature 11E-2 Frequency Stability Vs Voltage 11F Protection of the 1559-1610 MHz Band APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 11A RF POWER OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. Measured RF output 55 Watts Normal DC Voltage 28.0 Volts Normal DC Current 13.5 Amperes DC Input power for final RF amplifying device(s) 385 Watts Primary Supply Voltage 48 Volts DC Minimum Measured RF output 2.5 Watts Normal DC Voltage 28.0 Volts Normal DC Current 3.1 Amperes DC Input power for final RF amplifying device(s) 88 Watts Primary Supply Voltage 48 Volts DC APPLICANT: MOTOROLA INC. EQUIPMENT TYPE: ABZ89FC5802 EXHIBIT 11B ACCP Requirements Modulation Type: Widepulse QPSK – 9600 bps Random Data Emission Designator: 8K70D1W Modulation Type: C4FM - 9600 bps Random Data Emission Designator: 8K10F1E Channelization: 12.5 kHz SPECIFICATION REQUIREMENT: § 27.53 Emission limits: For operation in the 762-764 MHz Band For base transmitters designed to operate with a 12.5 kHz channel bandwidth, the ACCP shall be in accordance to the following table. 12.5 KHz Base Transmitter ACCP Require…
