ABZ89FC5812Non-Broadcast Transmitter

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D User / Operational Manual Operational or User’s Manual The manual should include instruction, installation, operator, or technical manuals with required ‘information to the users’. This manual should include a statement that cautions the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The manual shall include RF Hazard warning statements, if applicable. The instruction and service manual for this base radio are not published at this time. However, information from draft copy of manual sections has been assembled and has been included as part of this filing package. Upon request, published and/or printed manuals will be sent to the commission and/or telecommunication certification body (TCB) as soon as they become available. All of the descriptions, block diagrams, and schematics that are included in this filing package are current as of the package submittal date. EXHIBIT DESCRIPTION D1-1 Manual Front Matter (Draft) D1-2 Specifications (Draft) D1-3 Field Replaceable Units and Orderable Parts (Draft) D1-4 Tune-Up Procedure D1-5 Racking Configurations D1-6 Functional Description / Operation of Modules and Interconnect (Draft) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-1 User / Operational Manual Manual Front Matter (Draft) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-1 User / Operational Manual Manual Front Matter (Draft, Continued) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-1 User / Operational Manual Manual Front Matter (Draft, Continued) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-1 User / Operational Manual Manual Front Matter (Draft, Continued) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-2 User / Operational Manual Specifications (Draft) General Performance ModelT7039 H x W x D5.25" x 19" x 18" (133x483x457mm) Weight45 lbs (20 kg) Power Requirements AC:90-264 VAC, 47-63 Hz DC:43-60 VDC Temperature Range-22 to 140F (-30 to 60C) Input / Output Impedance50 ohms Antenna Connectors Transmit:N female Receive:N female Modulation HPD Transmit / Receive:64QAM, 16QAM, QPSK IV&D Transmit / Receive:C4FM, LSM Frequency StabilityExternal Reference Channel Spacing HPD:25 kHz C4FM / LSM:12.5 kHz Transmitter Frequency Range762-776 MHz Power output HPD:2-50 Watts (Average) C4FM:2-100 Watts LSM:2-100 Watts (Average) Electronic BandwidthFull Bandwidth Intermodulation Attenuation40 dB Spurious and Harmonic Emissions Attenuation 85 dB FCC Type Acceptance FCC Designation:Frequency RangeTypePower Output ABZ89FC5812762-776 MHzTransmitter, HPDVariable 2-50 W Transmitter, C4FM/LSMVariable 2-100 W ABZ89FR5811792-824 MHzReceiverN/A APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-3 User / Operational Manual Field Replaceable Units and Orderable Parts (Draft) Field replaceable units, or FRUs, include special packaging to allow shipment to customers. Parts and FRUs available for customer order are listed in this section. All parts and FRUs are sourced through the Radio Products and Service Division (RPSD). APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-3 User / Operational Manual Field Replaceable Units and Orderable Parts (Draft) (Continued) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-4 User / Operational Manual Tune-Up Procedure There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receiver operating frequencies and transmitter power level. APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT D1-5 User / Operational Manual Racking Configurations There are various equipment racking configurations available to customers. The following section includes sketches which depict many of the racking alternatives. GTR 8000 Expandable Site Sub-system Layout PS #1 PS #2PS #3PS #4 PS #5 PS #6 PA #1PA #2 PA #3 PA #4 PA #5PA #6 XCVR #1 XCVR #2 XCVR #3 XCVR #4 XCVR #5XCVR #6 SC #1SC #2 ALARM Bay #1Bay #2 Bay #3 PS #1 PS #2PS #3PS #4 PS #5 PS #6 PA #1PA #2 PA #3 PA #4 PA #5PA #6 XCVR #1 XCVR #2 XCVR #3 XCVR #4 XCVR #5XCVR #6 SC #1SC #2 ALARM Bay #1Bay #2 Bay #3 Fan Module #1 serves PA Bay #1 Fan Module #2 serves PA Bay #2 Fan Module #3 serves PA Bay #3 Fan Module #4 serves XCVR Bay #1 Fan Module #5 serves XCVR Bay #2 Fan Module #6 serves XCVR Bay #3 Fan Module #1 serves PA Bay #1 Fan Module #2 serves PA Bay #2 Fan Module #3 serves PA Bay #3 Fan Module #4 serves XCVR Bay #1 Fan Module #5 serves XCVR Bay #2 Fan Module #6 serves XCVR Bay #3 Configuration Layout PA XCVR PS Base Radio PA XCVR PS XCVR #2 PS XCVR #1 XCVR #2XCVR #2 PS Receive Only Base Radio GTR 8000 Expandable Site Sub-system Layout PS #1 PS #2PS #3PS #4 PS #5 PS #6 PA #1PA #2 PA #3 PA #4 PA #5PA #6 XCVR #1 XCVR #2 XCVR #3 XCVR #4 XCVR #5XCVR #6 SC #1SC #2 ALARM Bay #1Bay #2 Bay #3 PS #1 PS #2PS #3PS #4 PS #5 PS #6 PA #1PA #2 PA #3 PA #4 PA #5PA #6 XCVR #1 XCVR #2 XCVR #3 XCVR #4 XCVR #5XCVR #6 SC #1SC #2 ALARM Bay #1Bay #2 Bay #3 Fan Module #1 serves PA Bay #1 Fan Module #2 serves PA Bay #2 Fan Module #3 serves PA Bay #3 Fan Module #4 serves XCVR Bay #1 Fan Module #5 serves XCVR Bay #2 Fan Module #6 serves XCVR Bay #3 Fan Module #1 serves PA Bay #1 Fan Module #2 serves PA Bay #2 Fan Module #3 serves PA Bay #3 Fan Module #4 serves XCVR Bay #1 Fan Module #5 serves XCVR Bay #2 Fan Module #6 serves XCVR Bay #3 Configuration Layout PA XCVR PS Base Radio PA XCVR PS XCVR #2XCVR #2 PS XCVR #1XCVR #1 XCVR #2XCVR #2 PS Receive Only Base Radio APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 User / Operational Manual Functional Description / Operation of Modules and Interconnect (Draft) EXHIBIT D1-6 Control Module Overview The transceiver control circuitry performs the digital signal processing data fo…

Text truncated - open the document above for the full version.

Part 90R Application Checklist Public Safety Bands: 764-776 MHz and 794-806 MHz CSF-20-04-90R Page 1 of 3 Rev 1.0 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? ..................................................................... YES b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? ................... N/A (applies to mobile / portable devices) c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? ..................................... Channels 1-960 only (764 – 776 MHz Transmit) - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)?................................................................. No, Max Channel Size is 25 kHz 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? ........ N/A (applies to mobile / portable devices) - Does the device support analog voice operation [see 90.535(a)]? ... No, Dig Mod Only 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1. and #2. above: ................................................................. N/A (applies to mobile / portable devices) a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels - Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: ................................................................. N/A (applies to mobile / portable wideband devices) a) Designed for Data ONLY Operation on Nationwide Interoperability channels – Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Part 90R Application Checklist Public Safety Bands: 764-776 MHz and 794-806 MHz CSF-20-04-90R Page 2 of 3 Rev 1.0 5. Application filing requirements for Narrowband mobile, portable or control devices only: ................................................................................................................ N/A - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543........................................................... Exhibit E1-2 b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d)...................................................................... N/A c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547......................................................................................................... N/A - For Voice Only devices, attestation to 90.547(a)(3).................................................. N/A d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1)....................................................................................................... YES e) Frequency stability compliance for all band plans - 90.539(a) & (c)........ Exhibit E1-5 f) Transmitting power compliance for all band plans - 90.541(b) & (c)...................... N/A - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543................................................... Exhibit E1-2 h) Attestation of data rate efficiency compliance for General Use and State channels only - 90.535(b)........................................... Min Data Rate is 9.6 kbps in 12.5 kHz Channel i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547..................................................................... N/A - For Data Only devices, attestation to 90.547(a)(2).................................................... N/A j) Attestation of compliance to Project 25 Data Overview (ANSI 102) standards for operation on data interoperability channels listed in 90.531(b)(1)(i) only - 90.548(a)(2) .......................................................... YES k) Frequency stability compliance for all band plans - 90.539(a) & (c)........ Exhibit E1-5 l) Transmitting power compliance for all band plans - 90.541(b) & (c)...................... N/A - Low Power Operation (mobiles and portables only) on Regional/Itinerant channels: ................................................................................................................ N/A m) Emission…

Text truncated - open the document above for the full version.

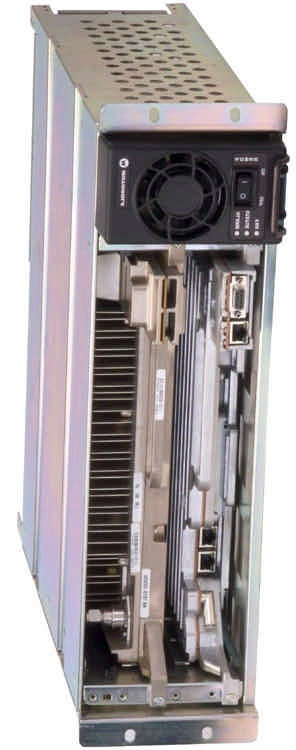

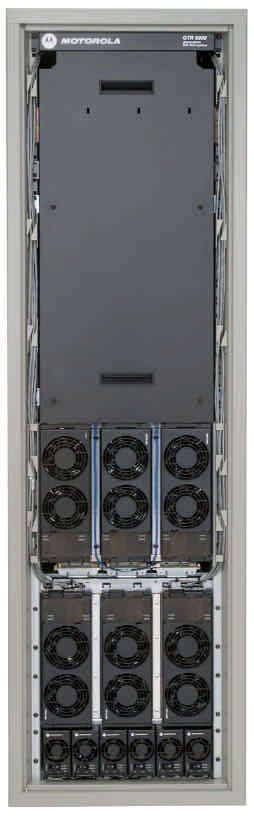

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C Photographs of the Device Photographs – Index EXHIBIT DESCRIPTION C1-1 External Front View of Base Radio C1-2 External Front View of Base Radio, Front Panel Removed C1-3 External Front View, Alternate Racking of Base Radio in ‘GTR 8000 Expandable Site Sub-system’ C2-1 External Back View of Base Radio C2-2 FCC Identification Label C3-1.1 Internal Front View – Transceiver Module C3-1.2 Internal Front View – Transceiver Module, Circuit Board, Top View C3-1.3 Internal Front View – Transceiver Module, Control Section C3-1.4 Internal Front View – Transceiver Module, Exciter Section C3-1.5 Internal Front View – Transceiver Module, Receiver Section C3-2 Internal Front View – Power Amplifier Module, Cover Removed C3-3.1 Internal Front View – Power Supply Module C3-3.2 Internal Front View – Power Supply Module, Circuit Boards, Top View C3-4 Internal Front View – Backplane C3-5 Internal Front View – Transmit Filtering (Duplexer, Transmit Filter, Cavity Combiner) C4-1 Internal Back View – Transceiver Module C4-2 Internal Back View – Power Amplifier Module C4-3 Internal Back View – Power Supply Module, Circuit Boards, Back View C4-4 Internal Back View – Backplane APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C1-1 Photographs of the Device External Front View of Base Radio APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C1-2 Photographs of the Device External Front View of Base Radio, Front Panel Removed APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C1-3 Photographs of the Device External Front View of Base Radio, Alternate Racking of Base Radio in ‘GTR 8000 Expandable Site Sub-system’ Configuration APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C2-1 Photographs of the Device External Back View of Base Radio APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C2-2 Photographs of the Device FCC Identification Label

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT A1 Equipment Label FCC Identification Number The FCC Identifier (FCC ID) is made up of the Grantee Code, supplied by the FCC, and an Equipment Product Code. This equipment product code may be to 14 characters in length, and is assigned by the grantee (applicant). The Grantee Code for this product is ABZ The Equipment Product Code for this product is 89FC5812 The entire FCC ID number is ABZ89FC5812 APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT A2-1 Equipment Label FCC ID Label A representative image of the FCC Identification label is shown below. This label is generated as part of the standard manufacturing process and is printed in the factory. Much of the information that is on the label, such as serial number, model number, etc. is driven by the ordering process and is unique per customer order. FCC Identification Label APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT A2-2 Equipment Label FCC ID Label The location of the FCC ID label is on the back of the radio, as shown in the photograph below. Location of FCC ID Label

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-1.1 Photographs of the Device Internal Front View – Transceiver Module APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-1.2 Photographs of the Device Internal Front View – Transceiver Module Circuit Board Top View APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-1.3 Photographs of the Device Internal Front View – Transceiver Module, Control Section APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-1.4 Photographs of the Device Internal Front View – Transceiver Module, Exciter Section APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-1.5 Photographs of the Device Internal Front View – Transceiver Module, Receiver Section APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-2 Photographs of the Device Internal Front View – Power Amplifier Module, Cover Removed APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-3.1 Photographs of the Device Internal Front View – Power Supply Module APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-3.2 Photographs of the Device Internal Front View – Power Supply Module, Circuit Boards, Top View APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-4 Photographs of the Device Internal Front View – Backplane APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C3-5 Photographs of the Device Internal Front View – Transmit Filter Alternatives (Duplexer, Transmit Filter, Cavity Combiner) APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C4-1 Photographs of the Device Internal Back View – Transceiver Module APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C4-2 Photographs of the Device Internal Back View – Power Amplifier Module APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C4-3 Photographs of the Device Internal Back View – Power Supply Module, Circuit Boards, Back View APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT C4-4 Photographs of the Device Internal Back View – Backplane

APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT E1 Report on Test Measurements Measurements Report The measurement report shows compliance information against the pertinent technical standards. Each section of the report contains either verbiage or graphs which show compliance to applicable standards as required. Each section also explains testing method and indicates what the applicable specification is. A list of test equipment and a certification signoff page are included at the end of the measurement report. SUBMITTED MEASURED DATA -- INDEX EXHIBIT DESCRIPTION E1-1 RF Output-Data E1-2 Adjacent Channel Coupled Power: Setup, Specifications, and Index (HPD, LSM, C4FM) E1-2.1 ACCP Results ≤400 kHz for HPD, LSM, and C4FM Modes E1-2.2 ACCP Results– Offsets >400 kHz for HPD, LSM, C4FM at 764 MHz – Graphical Results (3 pages) E1-2.3 ACCP Results– Offsets >400 kHz for HPD, LSM, C4FM at 770 MHz – Graphical Results (3 pages) E1-2.4 ACCP Results– Offsets >400 kHz for HPD, LSM, C4FM at 776 MHz – Graphical Results (3 pages) E1-3 Conducted Spurious Emissions: Setup, Specifications, and Index (HPD, LSM, C4FM) E1-3.1 High Performance Data - Conducted Spurious Emissions, Harmonics, Power Output at 50 Watts E1-3.2 High Performance Data - Conducted Spurious Emissions, Harmonics, Power Output at 2 Watts E1-3.3 Conducted Spurious Emissions, Harmonics, Power Output 100 Watts, LSM E1-3.4 Conducted Spurious Emissions, Harmonics, Power Output 100 Watts, C4FM E1-4 Radiated Spurious Emissions: Setup, Specifications, and Index E1-4.1 High Performance Data - Radiated Spurious Emissions, Power Output at 50 Watts E1-4.2 High Performance Data - Radiated Spurious Emissions, Power Output at 2 Watts E1-4.3 Linear Simulcast Modulation - Radiated Spurious Emissions, Power Output at 100 Watts E1-4.4 Linear Simulcast Modulation - Radiated Spurious Emissions, Power Output at 2 Watts E1-4.5 Compatible 4-Level Frequency Modulation - Radiated Spurious Emissions, Power Output at 100W E1-4.6 Compatible 4-Level Frequency Modulation - Radiated Spurious Emissions, Power Output at 2 Watts E1-5 Frequency Stability: Setup, Specifications, and Index E1-5.1 Frequency Stability Vs Temperature E1-5.2 Frequency Stability Vs Voltage E1-6 Protection of the 1559 – 1610 MHz Frequency Band Index E1-6.1 Part 90 Operation, Setup, Specification, and Results E1-6.2 Part 27 Operation, Setup, Specification, and Results E1-11 Test Equipment Used E1-12 Statement of Certification APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT E1-1 Report on Test Measurements RF Power Output Data The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. The DC current indicated is the total for the final RF amplifier stage, consisting of four parallel power transistors. High Performance Data Mode: Measured RF output 50 Watts, Average DC Voltage 28.5 Volts DC Current 8.0 Amperes Input power for final RF amplifying device(s) 228 Watts Primary Radio Input Supply Voltage 120 Volts AC Minimum Measured RF output 2 Watts, Average Normal DC Voltage 21.0 Volts Normal DC Current 3.0 Amperes Input power for final RF amplifying device(s) 63 Watts Primary Radio Input Supply Voltage 120 Volts AC Linear Simulcast Modulation Mode: Measured RF output 100 Watts, Average DC Voltage 27.5 Volts DC Current 12.0 Amperes Input power for final RF amplifying device(s) 330 Watts Primary Radio Input Supply Voltage 120 Volts AC Minimum Measured RF output 2 Watts, Average Normal DC Voltage 21.0 Volts Normal DC Current 3.0 Amperes Input power for final RF amplifying device(s) 63 Watts Primary Radio Input Supply Voltage 120 Volts AC Compatible 4-Level Frequency Modulation Mode: Measured RF output 100 Watts DC Voltage 21.0 Volts DC Current 13.0 Amperes Input power for final RF amplifying device(s) 273 Watts Primary Radio Input Supply Voltage 120 Volts AC Minimum Measured RF output 2 Watts Normal DC Voltage 21.0 Volts Normal DC Current 3.0 Amperes Input power for final RF amplifying device(s) 63 Watts Primary Radio Input Supply Voltage 120 Volts AC APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT E1-2 Report on Test Measurements Adjacent Channel Coupled Power (ACCP) Requirements The transmitter can utilize various modulation modes as determined by customer requirements, channel usage, and system configuration as described in Exhibit B. These modulations are High Performance Data (HPD), Linear Simulcast Modulation (LSM), Compatible 4-Level Frequency Modulation (C4FM). All of the following charts reference the following setup and specification requirements for the modes summarized as follows: Modulation Type: HPD LSM C4FM Emission Designator: 17K7D7D 8K70D1W 8K10F1E Channelization: 25 kHz 12.5 kHz 12.5 kHz Power Setting: 50 Watts, Average 100 Watts, Average 100 Watts Specification Requirement § 90.543, § 27.53 Emission Limits: § 90.543 Emission limits: For operation in the 764-776 MHz Band § 27.53 Emission limits: For operation in the 762-764 MHz Band ACCP Tables per 90.543(a), 27.53(d)(1): For base transmitters designed to operate with a 12.5 kHz channel bandwidth, the ACCP shall be in accordance to the following table. Offset from Center Frequency (kHz) Measurement Bandwidth (kHz) Maximum ACCP (dBc) 9.375 6.25 -40 15.625 6.25 -60 21.875 6.25 -60 37.5 25 -60 62.5 25 -65 87.5 25 -65 150 100 -65 250 100 -65 350 100 -65 >= 400 kHz to 12 MHz 30(s) -80 12 MHz to paired receive band 30(s) -80 In the paired receive band 30(s) -100 For base transmitters designed to operate with a 25 kHz channel bandwidth, the ACCP shall be in accordance to the following table. Offset from Center Frequency (kHz) Measurement Bandwidth (kHz) Maximum ACCP (dBc) 15.625 6.25 -40 21.875 6.25 -60 37.5 25 -60 62.5 25 -65 87.5 25 -65 150 100 -65 250 100 -65 350 100 -65 >= 400 kHz to 12 MHz 30 (swept) -80 12 MHz to paired receive band 30 (swept) -80 In the paired receive band 30 (swept) -100 APPLICANT: MOTOROLA EQUIPMENT TYPE: ABZ89FC5812 EXHIBIT E1-2 Repo…
