ABZ89FC5825BNon-Broadcast Transmitter

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT D User / Operational Manual Operational or User’s Manual The manual should include instruction, installation, operator, or technical manuals with required ‘information to the users’. This manual should include a statement that cautions the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The manual shall include RF Hazard warning statements, if applicable. Draft copy of some of the manual information has been assembled and has been included as part of this filing package. Upon request, published and/or printed manuals will be sent to the commission and/or telecommunication certification body (TCB). All of the descriptions, block diagrams, and schematics that are included in this filing package are current as of the package submittal date. EXHIBIT DESCRIPTION D1-1 Manual Front Matter (Draft) D1-2 Specifications (Draft) D1-3 Field Replaceable Units and Orderable Parts (Draft) D1-4 Tune-Up Procedure D1-5 Racking Configurations D1-6 Functional Description / Operation of Modules (Draft) APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT D1-1 User / Operational Manual Manual Front Matter A copy of the multi-lingual lingual document, “General Safety Precautions and Installation Standards and Guidelines”, is included with each base radio shipped. This document gives general safety precautions pertaining to installation and RF exposure. The English and French sections are included, below, as part of this filing package. English: General Safety Precautions and Installation Standards and Guidelines WARNING: For safe installation, operation, service and repair of this equipment, follow the safety precautions and instructions described below, as well as any additional safety information in Motorola’s product service and installation manuals and the Motorola R56 Standards and Guidelines for Communications Sites manual (6881089E50). To obtain copies of these materials, please contact Motorola as directed at the end of this document. After installation, these instructions should be retained and readily available for any person operating or servicing this base station or working near it. Failure to follow these safety precautions and instructions could result in serious injury or property damage. The installation process requires preparation and knowledge of the site before installation begins. Review installation procedures and precautions in the Motorola R56 manual before performing any site or component installation. Personnel must use safe work practices and good judgment, and always follow applicable safety procedures, such as requirements of the Occupational Safety and Health Administration (OSHA), the National Electrical Code (NEC), and local codes. The following are additional general safety precautions that must be observed: • To continue compliance with any applicable regulations and maintain the safety of this equipment, do not install substitute parts or perform any unauthorized modifications. • All equipment must be serviced by Motorola trained personnel. • If troubleshooting the equipment while the power is on, be aware of the live circuits which could contain hazardous voltage. • Do not operate the radio transmitters unless all RF connectors are secure and all connectors are properly terminated. • All equipment must be properly grounded in accordance with the Motorola R56 and specified installation instructions for safe operation. • Slots and openings in the cabinet are provided for ventilation. Do not block or cover openings that protect the devices from overheating. • Some equipment components can become extremely hot during operation. Turn off all power to the equipment and wait until sufficiently cool before touching. • Maintain emergency first aid kits at the site. • Never store combustible materials in or near equipment racks. The combination of combustible material, heat and electrical energy increases the risk of a fire hazard. • Equipment shall be installed in site that meets the requirements of a “restricted access location”, per (UL60950-1 & EN60950-1), which is defined as follows: “Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or other means of security, and is controlled by the authority responsible for the location.” • Burn hazard. The metal housing of the product may become extremely hot. Use caution when working around the equipment. • RF energy burn hazard. Disconnect power in the cabinet to prevent injury while disconnecting and connecting antennas. • Shock hazard. The outer shields of all TX and RX cables must be grounded per Motorola R56 manual. • Shock hazard. DC input voltage shall be no higher than 60VDC. This maximum voltag e shall include consideration of the battery charging “float voltage” associated with the intended supply system, regardless of the marked power rating of the equipment. • All TX and RX RF cables shall be connected to a surge protection device according to Motorola R56 manual. Do not connect TX and RX RF cables directly to an outside antenna. • Compliance with National and International standards and guidelines for human exposure to Electromagnetic Energy (EME) at Transmitter Antenna sites generally requires that persons having access to a site shall be aware of the potential for exposure to EME and can exercise control of exposure by appropriate means, such as adhering to warning sign instructions. See this installation manual and Appendix A of Motorola R56. Refer to product specific manuals for detailed safety and installation instructions. Manuals can be obtained with product orders, downloaded from https://businessonline.motorola.com…

Text truncated - open the document above for the full version.

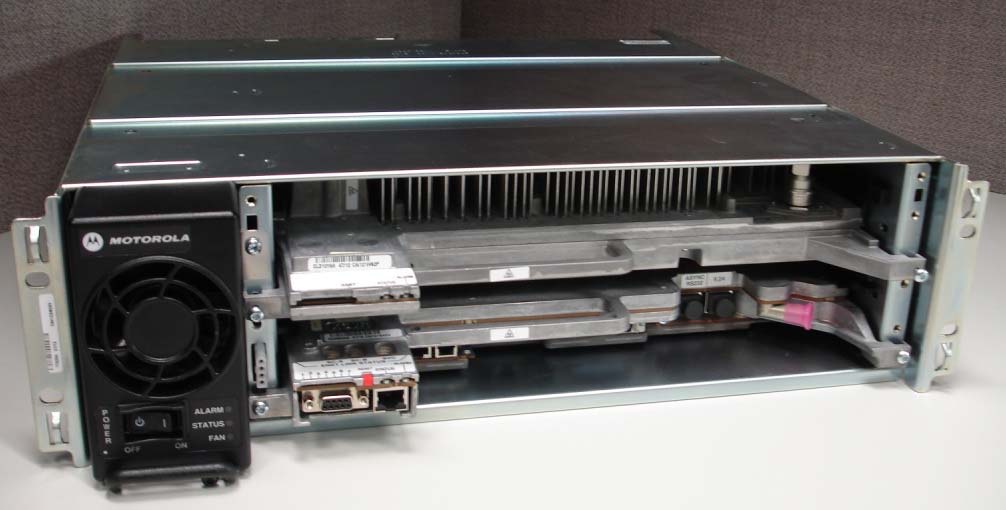

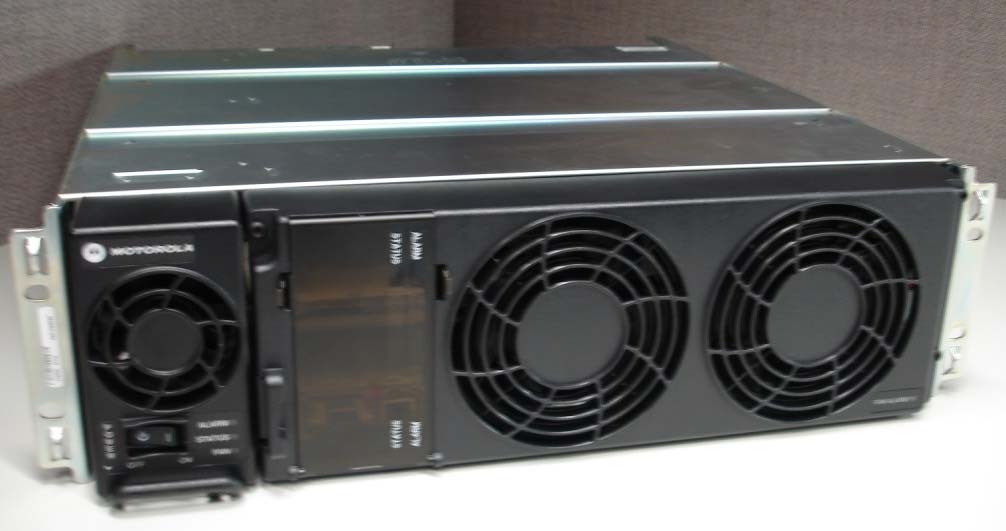

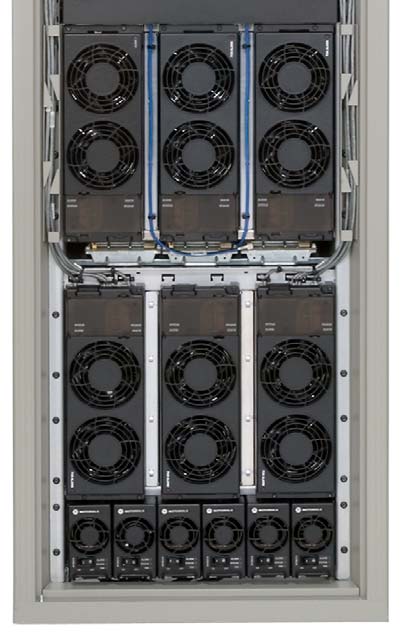

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C1-1 Photographs of the Device External Front View of Base Radio APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C1-2 Photographs of the Device External Front View of Base Radio, Front Panel Removed APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C1-3 Photographs of the Device External Front View of Base Radio, Alternate Racking of Base Radio in ‘GTR 8000 Expandable Site Sub-system’ Configuration APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C2-1 Photographs of the Device External Back View of Base Radio

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT A1 Equipment Label FCC / IC Identification Numbers The FCC Identifier (FCC ID) is made up of the Grantee Code, supplied by the FCC, and an Equipment Product Code. This equipment product code may be to 14 characters in length, and is assigned by the grantee (applicant). The Grantee Code for this product is ABZ The Equipment Product Code for this product is 89FC5825B The entire FCC ID number is ABZ89FC5825B The Industry Canada (IC) identification consists of the certification / registration number as well as the IC model number. The certification / registration number is made up of Company Number (CN) assigned by Industry Canada, and the Unique Product Number (UPN) assigned by Motorola. The IC model number is the unique model number of the radio assigned by Motorola. The Company Number is 109AB The Certification / Registration Number for this product is 109AB-5825B The IC Model Number is T7039-800150B APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT A2-1 Equipment Label FCC / IC Identification Label A representative image of the FCC / IC Identification label is shown below. This label is generated as part of the standard manufacturing process and is printed in the factory. Much of the information that is on the label, such as serial number, model number, etc. is driven by the ordering process and is unique per customer order. Serial No: F.O. Page No: Item No: Model No. T7039A TX FCC ID: ABZ89FC5825B RX FCC ID: ABZ89FR5825B IC: 109AB-5825B IC Model No: T7039-800150B This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. 90-230V 10A Max. 50/60 Hz 48V 18A US: ABZNINANT7039 Assembled in USA I.T.E. 31 NH GT R 8000 FCC / IC Identification Label APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT A2-2 Equipment Label FCC / IC ID Label The location of the identification label is on the back of the radio, as shown in the photograph below. Location of FCC/ IC Identification Label

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-1.1 Photographs of the Device Internal Front View – Transceiver Module Transceiver Module without the Transceiver Option Card (TOC) Transceiver Module with the Transceiver Option Card (TOC) Installed Front View of Base Radio Showing Transceiver Module with TOC Installed and Identifying Connections APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-1.2 Photographs of the Device Internal Front View – Transceiver Module Circuit Board Top View APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-1.3 Photographs of the Device Internal Front View – Transceiver Module, Control Section APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-1.4 Photographs of the Device Internal Front View – Transceiver Module, Exciter Section APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-1.5 Photographs of the Device Internal Front View – Transceiver Module, Receiver Section APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-2 Photographs of the Device Internal Front View – Power Amplifier Module, Cover Removed APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-3.1 Photographs of the Device Internal Front View – Power Supply Module APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-3.2 Photographs of the Device Internal Front View – Power Supply Module, Circuit Boards, Top View APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-4 Photographs of the Device Internal Front View – Backplane APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C3-5 Photographs of the Device Internal Front View – Transceiver Option Card (TOC) APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C4-1 Photographs of the Device Internal Back View – Transceiver Module APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C4-2 Photographs of the Device Internal Back View – Power Amplifier Module APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C4-3 Photographs of the Device Internal Back View – Power Supply Module, Circuit Boards, Back View APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C4-4 Photographs of the Device Internal Back View – Backplane APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT C4-5 Photographs of the Device Internal Back View – Transceiver Option Card (TOC)

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT D1-4 User / Operational Manual Tune-Up Procedure There is no field tune-up procedure. All adjustments are software controlled and are pre-set at the factory. Certain station operating parameters can be changed via man-machine interface (MMI) commands, within predetermined limits. Examples include transmit / receive operating frequencies and transmitter power level.

Motorola Solutions Canada, Inc. UPN Number: 5810B Company Number: 109AB Model Number: T7039-800B Page 1 RF Exposure Technical Brief This Technical Brief calculates the minimum separation distance from an antenna, connected to the subject base station, such that the power density value listed in RSS-102, Radio Frequency (RF) Exposure Compliance of Radiocommunications Apparatus (All Frequency Bands) Table 4.4 is not exceeded. The analysis is for a typical installation using a structure mounted antenna. Within the frequency range that the subject equipment operates, 851 MHz – 870 MHz the permitted exposure limit is frequency dependent. Table 1 lists the maximum permitted exposure limits for the lowest and highest operating frequencies. The smaller maximum permissible exposure limit will be used for the computation because it requires a larger separation distance from the antenna to the exposed person. Table 1 - Maximum Permissible Exposure Limits Controlled Environment Frequency 851 MHz 870 MHz Limit 28.4 W/m 2 29.0 W/m 2 Example Calculations for GTR8000, 800 MHz Transmitter: The example configuration is a single frequency site, with minimal RF network losses, set to zero for this example, between the transmitter output connector and the antenna input connector. The antenna has an omni directional pattern in the horizontal plane and a 13 degree beamwidth in the vertical plane. The largest dimension of the antenna is in the vertical plane. A 6.0 dBd gain antenna was selected as representative of the structure mounted infrastructure antennas used in the 800 MHz band. Table 2 - Transmitter Configuration Frequency 851 - 870 MHz Base Station Output Power 150 W RF Network Loss 0 dB Antenna Type RFS BMR6-O-B1 6.0 dBd / 8.1 dBi (Omni) Antenna length 1.68 m Controlled Environment: Cylindrical Method Using Equation 1 the spatially averaged plane-wave equivalent power density parallel to the antenna in the vertical plane is estimated by dividing the net input power to the antenna by the surface area of an imaginary cylinder at a distance R from the antenna, with the height of the cylinder equal to the length of the antenna 1 . Rh Pnet S 2  (1) 1 Federal Communications Commission Office of Engineering & Technology, OET Bulletin 65, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields”, Edition 97-01, page 32, Tell’s cylindrical model. Motorola Solutions Canada, Inc. UPN Number: 5810B Company Number: 109AB Model Number: T7039-800B Page 2 Where: S = power density, W/m 2 Pnet = net input power to the antenna, W R = radial distance from the antenna, m h = height of the antenna, m The minimum separation distance can be found by solving Equation 1 for R and setting S to the smaller maximum power density for the environment per Table 1. 50.0 4.2868.12 150 2    hS Pnet R m (2) For the example site configuration the minimum separation distance for a controlled environment is 0.50 m.

APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT E (Sheet 1 of 2) Report on Test Measurements Measurements Report The measurement report shows compliance information against the pertinent technical standards. Each parameter is measured generally at the low end, middle, and at the high end of the applicable frequency band. Each section of the report contains either verbiage or graphs which show compliance to applicable standards as required, explains testing method used, and indicates what the applicable specification is. A list of test equipment for all sections, and certification signoff page are included at the end of the measurement report. SUBMITTED MEASURED DATA -- INDEX EXHIBIT DESCRIPTION E1-1 RF Output-Data E1-2 Occupied Bandwidth, Digital Emissions: Setup, Specifications, and Index E1-2.1, 2, 3 Compatible 4-Level Frequency Modulation (C4FM) E1-2.4, 5, 6, Four-Level Frequency Modulation Widepulse Astro E1-2.7, 8, 9 Trunking Control Data 3600 bps FSK Modulation, 25 kHz Channels (Wideband) E1-2.10, 11, 12 Trunking Control Data 3600 bps FSK Modulation, 12.5 kHz Channels (Narrowband) E1-2.13 Compatible 4-Level Frequency Modulation (C4FM), NPSPAC Channels E1-2.14 Each Digital Modulation (above), NPSPAC Channels E1-3 Conducted Spurious Emissions: Setup, Specifications, and Index E1-3.1 C4FM Conducted Spurious Harmonic Emissions, Power 150 Watts E1-3.2 C4FM Conducted Spurious Harmonic Emissions, Power 15 Watts E1-3.3 Analog Conducted Spurious Harmonic Emissions, Power 150 Watts E1-3.4 Analog Conducted Spurious Harmonic Emissions, Power 15 Watts E1-3.5, 6, 7 Conducted Spurious Emission Spectrum, 200 MHz Span, Power Output at 150 Watts, C4FM E1-3.8, 9, 10 Conducted Spurious Emission Spectrum, 200 MHz Span, Power Output at 150 Watts, Analog E1-4 Radiated Spurious Emissions: Setup, Specifications, and Index E1-4.1 Analog Radiated Spurious Harmonic Emissions, Power 150 Watts E1-4.2 Analog Radiated Spurious Harmonic Emissions, Power 15 Watts E1-5 Frequency Stability: Setup, Specifications, and Index E1-5.1 Frequency Stability Vs Temperature E1-5.2 Frequency Stability Vs Voltage APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT E (Sheet 2 of 2) Report on Test Measurements Measurements Report SUBMITTED MEASURED DATA – INDEX (Continued) EXHIBIT DESCRIPTION E1-7 Audio Frequency Response – Modulation Characteristics: Setup, Specifications, Index E1-7.1, 2, 3 Audio Frequency Response – Modulation Characteristics, 25 kHz Channels E1-7.4, 5, 6 Audio Frequency Response – Modulation Characteristics, 12.5 kHz Channels E1-7.7 Audio Frequency Response – Modulation Characteristics, NPSPAC Channels E1-8 Audio Modulation Limiting – Modulation Characteristics: Setup, Specifications, Index E1-8.1, 2, 3 Audio Modulation Limiting – Modulation Characteristics, 25 kHz Channels E1-8.4, 5, 6 Audio Modulation Limiting – Modulation Characteristics, 12.5 kHz Channels E1-8.7 Audio Modulation Limiting – Modulation Characteristics, NPSPAC Channels E1-9 Occupied Bandwidth Description –Analog Modulation E1-9.1, 2, 3 Occupied Bandwidth Plot – Analog, no sub audible signaling, 25 kHz Channels E1-9.4, 5, 6 Occupied Bandwidth Plot – Analog, Private Line signaling, 25 kHz Channels E1-9.7, 8, 9 Occupied Bandwidth Plot – Analog, Digital Private Line signaling, 25 kHz Channels E1-9.10, 11, 12 Carrier with 2500 Hz Audio Tone and 150 bps Low Speed Data Signaling, 25 kHz Channels E1-9.13, 14, 15 Carrier with 2500 Hz Audio Tone and 300 bps Low Speed Data Signaling, 25 kHz Channels E1-9.16, 17, 18 Carrier with 2500 Hz Audio Tone, no sub audible signaling, 12.5 kHz Channels E1-9.19, 20, 21 Carrier with 2500 Hz Audio Tone and Private Line (PL) Signaling, 12.5 kHz Channels E1-9.22, 23, 24 Carrier with 2500 Hz Audio Tone and Digital Private Line (DPL) Signaling, 12.5 kHz Channels E1-9.25, 26, 27 Carrier with 2500 Hz Audio Tone and 150 bps Low Speed Data Signaling, 12.5 kHz Channels E1-9.28, 29, 30 Carrier with 2500 Hz Audio Tone and 300 bps Low Speed Data Signaling, 12.5 kHz Channels E1-9.31 Carrier with 2500 Hz Audio Tone, no sub audible signaling, NPSPAC Channels E1-9.32 Carrier with 2500 Hz Audio Tone and Private Line (PL) Signaling, NPSPAC Channels E1-9.33 Carrier with 2500 Hz Audio Tone and Digital Private Line (DPL) Signaling, NPSPAC Channels E1-9.34 Carrier with 2500 Hz Audio Tone and 150 bps Low Speed Data Signaling, NPSPAC Channels E1-9.35 Carrier with 2500 Hz Audio Tone and 300 bps Low Speed Data Signaling, NPSPAC Channels E1-11 Test Equipment Used E1-12 Statement of Certification APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT E1-1 Report on Test Measurements RF Power Output Data The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. The DC current indicated is the total for the final RF amplifier stages. Frequency Modulation and Compatible 4-Level Frequency Modulation Mode: 851 MHz 860 MHz 869 MHz Measured RF output 150 150 150 Watts DC Voltage, final RF amplifier stage/stages 17.5 17.5 17.5 Volts DC Current, final RF amplifier stage/stages 16.5 17.2 18.0 Amperes Input power for final RF amplifying device(s) 290 300 315 Watts Primary Radio Input Supply Voltage 120 120 120 Volts AC Minimum Measured RF output 15 15 15 Watts, Average Normal DC Voltage 17.5 17.5 17.5 Volts Normal DC Current 4.0 4.0 4.0 Amperes Input power for final RF amplifying device(s) 70 70 70 Watts Primary Radio Input Supply Voltage 120 120 120 Volts AC APPLICANT: MOTOROLA SOLUTIONS EQUIPMENT TYPE: ABZ89FC5825B 109AB-5825B EXHIBIT E1-2 (Sheet 1 of 5) Report on Test Measurements Occupied Bandwidth – Compatible 4-Level Frequency Modulation (C4FM), 12.5 kHz Channel Spacing C4FM can be used in a system configuration based upon channel usage as described in Exhibit B. The ‘F1E’ emission designator provides usage for telephony, the ‘F1D’ provides usage for data / telecommand, and the ‘F1W’ provides for usage as a c…

Text truncated - open the document above for the full version.
