ABZ89FT7602Notebook PC with WLAN and Bluetooth

ML900 Operation Manual Part Number: 7990 0114 3001 R00 (August 2003) TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE Information in this manual is subject to change without notice. Regulations Information Class B Regulations USA Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Please note: The use of a non-shielded interface cable with this equipment is prohibited. Wireless LAN Module Statement FCC CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This device was tested for typical lap held operations with the back side of the notebook computer directly contacted to the human body. To maintain compliance with FCC RF exposure compliance requirements,avoid direct contact to the transmitting antenna during transmitting. The wireless LAN has been tested with Bluetooth transceiver for co-location requirements. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could result in violation of FCC regulations. Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. About the Battery Caution Texts Concerning Lithium Batteries DANISH ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. SWEDISH VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. FINNISH VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions. DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. FRENCH ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. Attention (for USA Users) The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. About the Modem Caution 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. 5. Avoid using the telephone function (other than a cordless-type) during an electrical storm. There may be a remote risk of electric shock from lightning. 6. Do not use the telephone function to report a gas leak in the vicinity of the leak. Caution (for USA Users) To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord. i Table of Contents Preface.........................................…

Text truncated - open the document above for the full version.

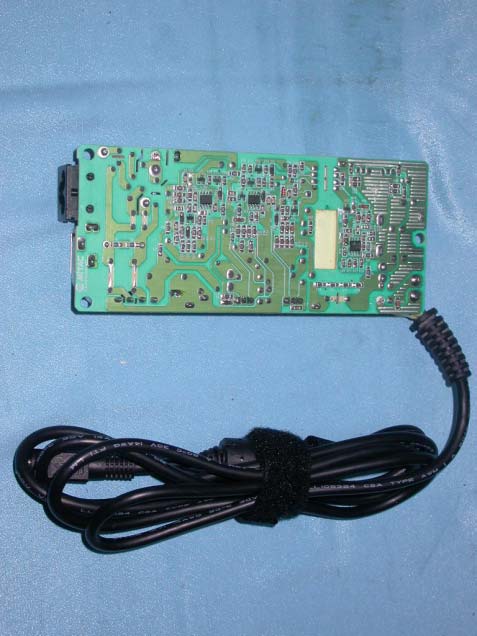

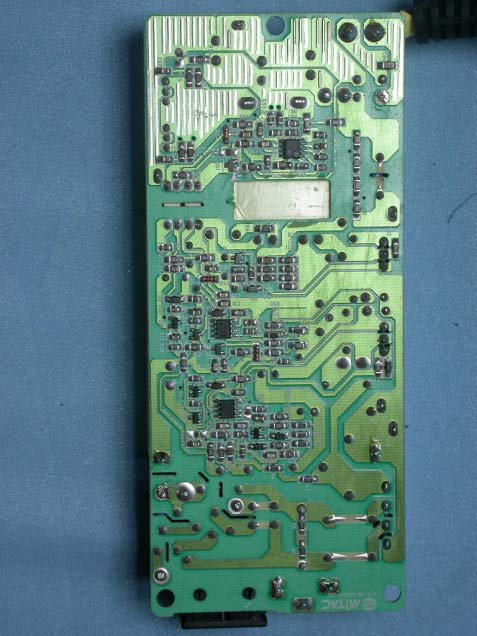

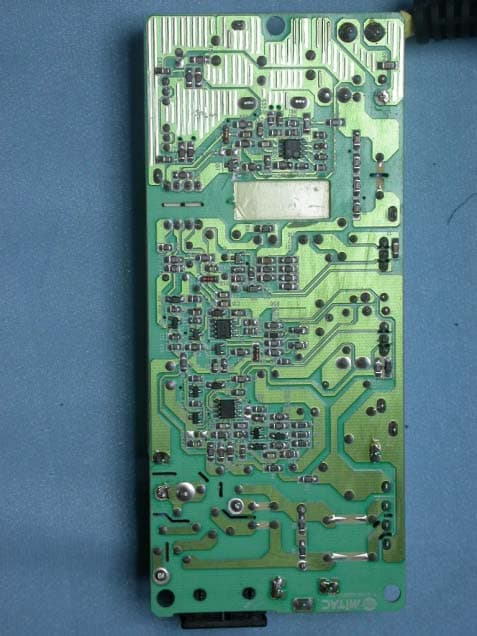

Company : Motorola Inc. Page : 1 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 2 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 3 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 4 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 5 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 6 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 7 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 8 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 9 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 10 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 11 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 12 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 13 of 23 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 14 of 23 Product : Notebook PC Model : ML900 Company : MSL CORP. Page : 15 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 16 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 17 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 18 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 19 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 20 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 21 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 22 of 23 Product : Notebook PC Adapter Model :AD-C019M Company : MSL CORP. Page : 23 of 23 Product : Notebook PC Adapter Model :AD-C019M

Company: Motorola Inc. Model: ML900 Product : Notebook PC Notebook PC Model No: ML900 FCC IDABZ89FT7602 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Motorola Inc. Page : 1 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 2 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 3 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 4 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 5 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 6 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 7 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 8 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 9 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 10 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 11 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 12 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 13 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 14 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 15 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 16 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 17 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 18 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 19 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 20 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 21 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 22 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 23 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 24 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 25 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 26 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 27 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 28 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 29 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 30 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 31 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 32 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 33 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 34 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 35 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 36 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 37 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 38 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 39 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 40 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 41 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 42 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 43 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 44 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 45 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 46 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 47 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 48 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 49 of 63 Product : Notebook PC Model : ML900 Company : Motorola Inc. Page : 50 of 63 Product : Notebook PC Model : ML900

APPENDIX A Specifications NOTE: Specifications are subject to change without any prior notices. Parts Specifications CPU Intel Mobile Pentium 4 Processor-M series microprocessor, μ-FCPGA package, 1.7 GHz; Front Side Bus (FSB) 400 MHz with SpeedStep function Cache Memory L2 512 KB on-die ROM BIOS 512 KB Flash EEPROM, PC2001-compliant System Two 200-pin PC2100 DDR SO-DIMM sockets, maximum 1 GB (standard 256 MB) RAM Video 64 MB (integrated DDR memory) Panel 12.1/13.3-inch TFT XGA LCD, resolution up to 1024×768, Touchscreen (option), Sunlight Readable Transflective display (option) Video controller ATI M9-CSP64, 64 MB integrated into DDR memory, supports DirectX® 8.1 and OpenGL® 1.3, AGP 4X, dual view function, LCD/CRT simultaneous display capability Display Video port DVI-I port (TMDS/RGB), AV input (Conexant 878A PCI; BNC-type) Keyboard Waterproof with membrane cover, standard keys, numeric keypad, 12 function keys, and Windows keys, rubber keyboard and backlight feature (option) Pointing device Four buttons touchpad with Microsoft Windows mouse function Hard disk drive 2.5-inch (9.5 mm height), IDE, Ultra DMA support, damper protection, built-in system heater for low temperature function (option) Storage device CD/DVD drive Slim-type CD drive DVD drive Combo drive Audio controller Realtek ALC202, AC97 codec Rev.2.2 support, two built-in 2-watts stereo speakers, Microsoft Windows Sound compatibility Audio Audio port Two audio ports for Mic-in / Line-out (supports S/P-DIF) A-2 Specifications Parts Specifications On left side IR port, Bluetooth port (option), Mic-in, Line-out On right side IEEE 1394 port, two USB ports, RJ-45 port On rear side DVI-I port, serial port, docking port for Port Replicator / car mount, two USB ports, AV input port, AC-in I/O ports On keyboard panel Fingerprint recognition system LAN 10/100Base-T Wireless LAN Mini PCI (option) Wireless Modem GSM/GPRS, iDEN, DataTAC, CDMA (option) GPS Easily removable M-Loc MPM (Trimble solution) – option AC adapter Input: 100∼240 V AC, 50∼60 Hz auto-switching Output: 19 V DC / 120 W Power Battery Smart Li-ion battery, 11.1 V / 6000 mAH, 9 cells Dimension (W×D×H) 11.8×9.5×2.3 inch (300×241×58 mm) Weight 8.8 lb (4 kg) Temperature Operating: 0 °C (32 °F) to 50 °C (122 °F) Storage: –40 °C (–40 °F) to 70 °C (158 °F) Environment Humidity Operating: 5 % to 95 % RH, non-condensing

Report No. : ER/2003/60015 Page : 1 of 38 TEST REPORT Equipment Under Test : Notebook PC Model No. : ML900 FCC ID : ABZ89FT7602 Applicant Motorola Inc. Address of Applicant : 1301E . Algonquin Road , Schaumburg , IL 60196 Date of Receipt : 2003.07.03 Date of Test(s) : 2003.07.03-2003.07.07 Date of Issue : 2003.07.07 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2003.07.07 Approved by : Robert Chang Date : 2003.07.07 Report No. : ER/2003/60015 Page : 2 of 38 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 3 1.5 Operation Configuration 4 1.6 The SAR Measurement System 4 1.7 SAR System Verification 6 1.8 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 7 1.9 Operation Procedure 8 1.10 Test Standards and Limits 9 2. Instruments List 11 3. Summary of Results 12 4. Measurements 13 Configuration 1 4.1.1 Edge-on position, lowest channel 13 4.1.2 Edge-on position, middle channel 14 4.1.3 Edge-on position, highest channel 15 Configuration 2 4.1.4 End-on position, lowest channel 16 4.1.5 End-on position, middle channel 17 4.1.6 End-on position, highest channel 18 Configuration 3 4.1.7 Edge-on position, lowest channel 19 4.1.8 Edge-on position, middle channel 20 4.1.9 Edge-on position, highest channel 21 Configuration 4 4.1.10 End-on position, lowest channel 22 4.1.11 End-on position, middle channel 23 4.1.12 End-on position, highest channel 24 4.3.1 System Performance Validation 25 APPENDIX 1. Photographs of Test Setup 26 2. Photographs of EUT 30 3. Probe Calibration certificate 32 4. Uncertainty Analysis 36 5. Phantom description 37 6. System Validation from Original equipment supplier 38 Report No. : ER/2003/60015 Page : 3 of 38 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. ( FCC Registration number: 573967 ) 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : Motorola Inc. Address : 1301E . Algonquin Road , Schaumburg , IL 60196 1.3 Description of EUT(s) Equipment Type Notebook PC Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID ABZ89FT7602 Model(s) ML900 802.11b Mode RF Conducted Output Power (Peak) 17.84 dBm(2412MHz) 18.05 dBm(2437MHz) 16.92 dBm(2462MHz) Max. SAR Measured 0.34(mW/g) Antenna Type PIFA Battery Type(s) Internal battery , 19Volt 1.4 Test Environment Ambient temperature : 22.0° C Report No. : ER/2003/60015 Page : 4 of 38 Tissue Simulating Liquid : 21.9° C Relative Humidity : 62 % 1.5 Operation Configuration This combo notebook come with 802.11b and Bluetooth module . For SAR test , use the following procedures: (1) Test SAR with WLAN transmitter ON and Bluetooth OFF . (2) Both WLAN and Bluetooth ON .By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 4 ways. WALN transmitter ON and Bluetooth OFF Configuration 1: “ Edge-on” placement; edge of the PC at 90° and at a distance of 1.5 cm from the base of the phantom (Fig.2 & Fig.3 & Fig.4) Configuration 2: “End-on” placement; Bottom of the Pc is paralleled and at a distance of 0.0 cm from the base of the phantom, but 2.3 cm Spacing between EUT & Planar Phantom. (Fig.5 & Fig.6 & Fig.7) Both WLAN and Bluetooth ON Configuration 3 “ Edge-on” placement; edge of the PC at 90° and at a distance of 1.5 cm from the base of the phantom (Fig.2 & Fig.3 & Fig.4) Configuration 4 “End-on” placement; Bottom of the Pc is paralleled and at a distance of 0.0 cm from the base of the phantom, but 2.3 cm Spacing between EUT & Planar Phantom. (Fig.5 & Fig.6 & Fig.7) 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. a. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model ET3DV6 1759 E-field probe is used to determine the internal electric fields. The SAR can be obtained from the equation SAR= σ (|Ei| 2 )/ ρ where σ and ρ are the conductivity and mass density of the tissue-simulant. The DASY4 system for performing compliance tests consists of the following items: • A standard high precision 6-axis robot (Staubli RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). • A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. • A data acquisition electronics (DAE) which performs the signal amplification, signal Report No. : ER/2003/60015 Page : 5 of 38 multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. Fig. a The microwave circuit arrangement used for SAR system verification • The Electro-optical…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 1 of 77 TEST REPORT Product Name ： Notebook PC Model Number ： ML900 Applicant ： Motorola Inc. Address ： 1301 East Algonquin Rd. Schaumburg, IL 60196 Date Received ： Jun 23, 2003 Date Tested ： Jun 24 to 30, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as separately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 2 of 77 Test Report Certification Product Name : Notebook PC Model Number : ML900 Applicant : Motorola Inc. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247) ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 3 of 77 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION ....................................................................................................................5 1.1 Description of EUT & Power ..........................................................................................................5 1.2 Description of Peripherals ...............................................................................................................6 1.3 EUT & Peripherals Setup Diagram .................................................................................................7 1.4 Description of Test Site ...................................................................................................................8 1.5 Summary of Test Results .................................................................................................................9 2. CONDUCTED POWERLINE TEST .........................................................................................................10 2.1 Test Equipments ..............................................................................................................................10 2.2 Test Setup ........................................................................................................................................10 2.3 Conducted Power Line Emission Limit ...........................................................................................11 2.4 Test Procedure .................................................................................................................................11 2.5 Uncertainty of Conducted Emission ................................................................................................11 2.6 Test Results......................................................................................................................................12 2.6.1 Mode1, WLAN transmitting, Bluetooth Off .........................................................................12 2.6.1 Mode2, WLAN Off, Bluetooth transmitting .........................................................................13 2.6.1 Mode3, WLAN transmitting, Bluetooth transmitting ...........................................................14 2.7 Photos of Conduction Test...............................................................................................................15 3. 20dB BANDWIDTH MEASUREMENT for FHSS ..................................................................................16 3.1 Test Equipments ..............................................................................................................................16 3.2 Test Setup ........................................................................................................................................16 3.3 Limits of 20db Bandwidth Measurement ........................................................................................16 3.4 Test Procedure .................................................................................................................................16 3.5 Uncertainty of Conducted Emission ................................................................................................17 3.6 Test Results......................................................................................................................................17 3.7 Photo of 20db Bandwidth Measurement..........................................................................................18 4. 6dB BANDWIDTH MEASUREMENT for DSSS ....................................................................................19 4.1 Test Equipments ..............................................................................................................................19 4.2 Test Setup ........................................................................................................................................19 4.3 Limits of 6db Bandwidth Measurement ..........................................................................................19 4.4 Test Proc…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 15 of 77 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 75 of 77 11.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：ABZ89FT7602 Report No.：ER03-06-063FRF Page 76 of 77
