ABZ89FT7610Wireless Radio Modem for ML850 Notebook PC

Mobile Laptop 850™ Model L3391B, L3392B. Motorola, Inc. Commercial, Government and Industrial Solutions Sector All rights reserved Owner’s Manual R03 Part No.: DDN7509 TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE Information in this manual is subject to change without notice. Regulations Information Class B Regulations USA Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Please note: The use of a non-shielded interface cable with this equipment is prohibited. Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. Products with the CE Marking comply with both the EMC directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: z EN50081-1: Electromagnetic compatibility-Generic emmision standard z EN55022: conducted Emission, Radiated Emission z EN61000-3-2: Current Harmonic z EN61000-3-3: Voltage Flicker z EN50082-2: Electromagnetic compatibility-Generic immunity standard z IEC1000-4-2: Electrostatic Discharge z IEC1000-4-3: Radiated Susceptibility z IEC1000-4-4: Electrical Fast Transients z IEC1000-4-5: Surge Test z IEC1000-4-6: Conducted Susceptibility z IEC1000-4-11: Voltage Dip and Interruption The Products pass C-UL, UL, TUV approved to comply with EN60950 standard. SAFE USAGE NOTIFIATION: For reasons of personal safety and optimal radio performance, Motorola has designed the ML850 with an intended purpose and position of use either in a secured vehicle docking station or on the to of an office desk. Motorola strongly recommends using this product in a vehicle only when it is physically-secured in a locked or assured-stationary location as failure to do so may cause the product to cause harm in accidents or other conditions. Similarly, Motorola strongly recommends that the unit not be situated for a prolonged period in an position that places the antennas directly against the human body (for example, by ‘tucking’ an operational, radio-equipped unit under one’s arm). NOTE: The radio modems in the ML850 may continue to transmit and receive signals even while the laptop is in a closed position. Failure to follow any part of this notification could cause degraded radio performance or harm to the user. About the Battery Caution Texts Concerning Lithium Batteries DANISH ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. SWEDISH VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. FINNISH VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions. DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. FRENCH ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. Attention (for USA Users) The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offici…

Text truncated - open the document above for the full version.

March 15, 2005 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: MOTOROLA Inc. FCC ID: ABZ89FT7610 Part 90 Certification Gentlemen: Submitted herewith, on behalf of MOTOROLA Inc., is an application for Part 90 Certification of the following Motorola Notebook ML900 w/ Boomer-II OEM Wireless Radio Modem Module FCC ID: PQS-BM28001, also incorporating WLAN FCC ID: ABZ89FT7610. Attached is the letter of authorization, measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: MOTOROLA Inc.

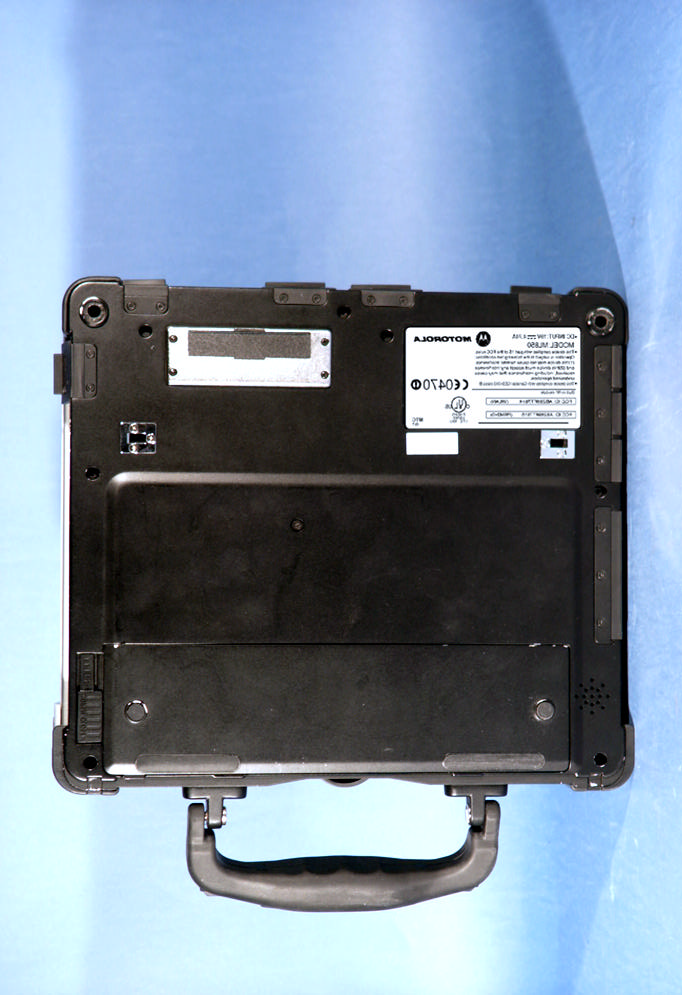

Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850

Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 0501310048 Test Dates: Feb. 28, 2005 EUT Type: 2.4 GHz Wireless LAN Module FCC ID: ABZ89FT7614 Page 24 of 30 © 2005 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 0501310048 Test Dates: Feb. 28, 2005 EUT Type: 2.4 GHz Wireless LAN Module FCC ID: ABZ89FT7614 Page 25 of 30 © 2005 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0501310047 TEST DATES: Feb. 28, 2005 EUT TYPE: Notebook PC w/ OEM Radio Module, WLAN FCC ID: ABZ89FT7610 PAGE 1 OF 2 © 2005 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0501310047 TEST DATES: Feb. 28, 2005 EUT TYPE: Notebook PC w/ OEM Radio Module, WLAN FCC ID: ABZ89FT7610 PAGE 2 OF 2 © 2005 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 806.00 32.27 2412 16.33 20cm .1749 .1746 .3647 .2465 .537 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 821.00 32.28 2437 15.78 20 cm .1781 .1774 .3464 .2488 .543 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 824.0 31.58 2462 14.90 20 cm .1788 .1772 .3469 .2423 .547 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 0501310047 Test Dates: FEB. 28, 2005 EUT Type: Notebook PC W/ DataTac Module, WLAN FCC ID: ABZ89FT7610 Page 1 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 90 Certification Motorola Inc. Dates of Tests: February 28, 2005 1301 East Algonquin, Room 1726 Test Report S/N: 0501310047 Schaumburg, IL 60196 Test Site: PCTEST Lab, MD U.S.A. FCC ID ABZ89FT7610 APPLICANT MOTOROLA INC. Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): § 90 EUT Type: Modem for Motorola Notebook ML850 also incorporating WLAN FCC ID: ABZ89FT7614 Model(s): ML850 Tx/Rx Frequency Range: 806 ~ 821 MHz, 821 ~ 824 MHz Max. RF Output Power: 1.711 W ERP (32.333 dBm), 1.456 W (31.633 dBm) Frequency Tolerance: 2.5 ppm Emission Designator: 20K0F1D, 12K0F1D This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The Boomer-II OEM Radio Modem Module is electrically identical to previously authorized FCC ID: PQS-BM28001. RF conducted data is shown in that test report, included in this application. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 0501310047 Test Dates: FEB. 28, 2005 EUT Type: Motorola Notebook PC w/ DataTAC Module, WLAN FCC ID: ABZ89FT7610 Page 2 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 3 INTRODUCTION 4 INSERTS 5 DESCRIPTION OF TESTS 6-7 RADIATED MEASUREMENTS 8-9 RADIATED SPURIOUS MEASUREMENTS 10-19 FREQUENCY STABILITY 20-21 PLOTS OF EMISSIONS 22 LIST OF TEST EQUIPMENT 23 SAMPLE CALCULATIONS 24 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST & TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: MPE REPORT PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 0501310047 Test Dates: FEB. 28, 2005 EUT Type: Motorola Notebook PC w/ DataTAC Module, WLAN FCC ID: ABZ89FT7610 Page 3 of 22 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: Motorola Inc. Address: 1301 East Algonquin, Room 1726 Schaumburg, IL 60196 • FCC ID: ABZ89FT7610 • Model(s): ML850 • Quantity: Quantity production is planned • Emission Designator: 20K0F1D, 12K0F1D • Tx/Rx Freq. Range: 806 ~ 821 MHz, 821 ~ 824 MHz • Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) • Equipment Type: Modem for Motorola Notebook ML850 also incorporating WLAN FCC ID: ABZ89FT7614 • Modulation: FM • Frequency Tolerance: ± 2.5 ppm • Max. Power: 1.711 W ERP (32.333 dBm), 1.456 W (31.633 dBm) • FCC Rule Part(s): § 90 • Power Supply: 3.8V (3.4 to 4.2V range) • Dates of Tests: February 28, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0501310047 PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 0501310047 Test Dates: FEB. 28, 2005 EUT Type: Motorola Notebook PC w/ DataTAC Module, WLAN FCC ID: ABZ89FT7610 Page 4 of 22 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using…

Text truncated - open the document above for the full version.

Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850 Motorola FCC ID: ABZ89FT7610 EUT Photographs © 2005 PCTEST Lab. Notebook PC w/ DataTAC Module, WLAN Model: ML850
