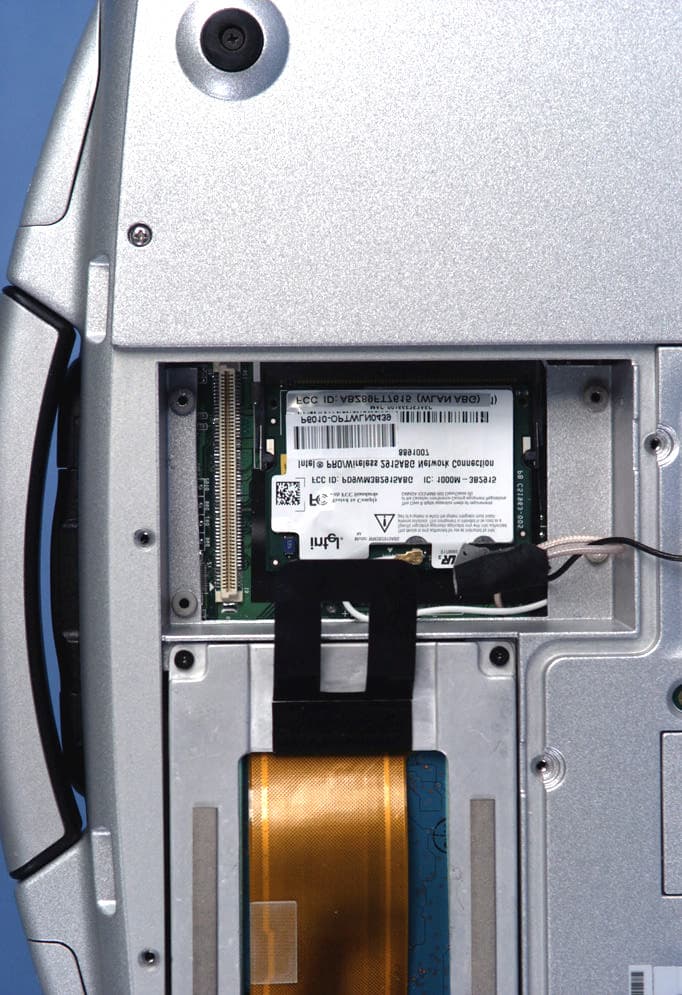

Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900

CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 PCTEST LAB TEST REPORT 15.407 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 0603010127 Test Dates: March 6-10, 2006 EUT Type: Motorola A/B/G Wireless LAN Module for ML900 Series FCC ID: ABZ89FT7615 Page 22 of 28 © 2006 PCTEST Engineering Laboratory, Inc. EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). FCC ID: ABZ89FT7615 Model: ML900 Tested to comply With FCC Standards FOR HOME OR OFFICE USE CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 PCTEST LAB TEST REPORT 15.407 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 0603010127 Test Dates: March 6-10, 2006 EUT Type: Motorola A/B/G Wireless LAN Module for ML900 Series FCC ID: ABZ89FT7615 Page 23 of 28 © 2006 PCTEST Engineering Laboratory, Inc. EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID LABEL

Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0603010128 TEST DATES: March 6, 2006 EUT TYPE: Motorola A/B/G Wireless LAN Module for ML900 Series Notebooks FCC ID: ABZ89FT7615 PAGE 1 OF 2 © 2006 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-200. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) 4. EUT Operating Condition PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0603010128 TEST DATES: March 6, 2006 EUT TYPE: Motorola A/B/G Wireless LAN Module for ML900 Series Notebooks FCC ID: ABZ89FT7615 PAGE 2 OF 2 © 2006 PCTEST Engineering Laboratory, Inc. Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4950 25.54 20cm 0.082 0.073 0.036 0.087 1.0 2412 24.00 20 cm 2402 -1.73 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4960 26.00 20cm 0.079 0.077 0.033 0.086 1.0 2437 23.80 20 cm 2441 -1.43 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4965 26.00 20cm 0.082 0.076 0.031 0.087 1.0 2462 23.90 20 cm 2480 -1.73 20 cm 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) 8. EUT Operating Condition PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0603010128 TEST DATES: March 6, 2006 EUT TYPE: Motorola A/B/G Wireless LAN Module for ML900 Series Notebooks FCC ID: ABZ89FT7615 PAGE 3 OF 2 © 2006 PCTEST Engineering Laboratory, Inc. Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 9. Climate Condition The temperature and relative humidity: 22°C and 78% RH 10. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4950 25.54 20cm 0.083 0.072 0.035 0.079 1.0 2412 22.90 20 cm 2402 -1.73 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4960 26.00 20cm 0.081 0.070 0.035 0.077 1.0 2437 23.10 20 cm 2441 -1.43 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 4965 26.00 20cm 0.082 0.077 0.035 0.081 1.0 2462 23.20 20 cm 2480 -1.73 20 cm 1. Data taken with all transmitters operating simultaneously 11. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Motorola Inc. Date(s) of Tests: March 6-10, 2006 1301 East Algonquin, Room 1726 Test Report S/N: 0603010127 Schaumburg, IL 60196 Test Site: PCTEST Lab, Columbia, MD FCC ID: ABZ89FT7615 Industry Canada Cert. No.: 109AB-ML900 APPLICANT: Motorola Inc. SUMMARY: Model No.: ML900 Equipment EUT Type: Motorola A/B/G Wireless LAN Module for ML900 Series Notebook Max. Output Power: 16.98 dBm (Peak) Conducted (Low Band) 20.30 dBm (Peak) Conducted (High Band) Frequency Range: 5180 – 5240 MHz (Low Band) 5260 – 5320 MHz (High Band) FCC Classification: Unlicensed National Information Infrastructure (NII) IC Classification: Low Power Licence-Exempt Radiocommunication Devices FCC Rule Part(s): Parts 15.407; ANSI C-63.4-2001 IC Rule Part(s): RSS-210 – (Issue 6) - Amendment This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The JBC portion of this EUT is covered in the DOC report. Radiated data was taken with the highest gain antenna. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 Page i © 2006 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15 E MEASUREMENT REPORT COVER PAGE.............................................................................2 1.0 INTRODUCTION...................................................................................................................3 1.1 EVALUATION PROCEDURE.......................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................3 1.3 PCTEST TEST LOCATION..........................................................................................................................................3 2.0 PRODUCT INFORMATION.......................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................4 2.2 ENCLOSURE.........................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS..............................................................................................................4 3.0 DESCRIPTION OF TEST...........................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................5 3.2 RADIATED EMISSIONS..............................................................................................................................................6 4.0 ANTENNA REQUIREMENTS......................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA.......................................................................................8 6.1 CONCLUSION.....................................................................................................................9 EXHIBIT A. SUMMARY OF TEST RESULTS..............................................................................................................................10 EXHIBIT A. 26dB BANDWIDTH MEAUREMENT.......................................................................................................................11 EXHIBIT A. OUTPUT POWER MEASUREMENT......................................................................................................................12 EXHIBIT A. PEAK POWER SPECTRAL DENSITY.....................................................................................................................13 EXHIBIT A. PEAK EXCURSION RATIO DENSITY....................................................................................................................14 EXHIBIT A. BAND EDGE COMPLIANCE.................................................................................................................................15 EXHIBIT A. UNDESIREABLE EMMISSIONS.............................................................................................................................16-19 EXHIBIT A. BAND EDGE/ RESTRICED BAND MEASUREMENTS..............................................................................................20 EXHIBIT A. LINE CONDUCTED.. ..............................................................................................…

Text truncated - open the document above for the full version.

Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900 Motorola FCC ID: ABZ89FT7615 EUT Photographs © 2006 PCTEST Lab. A/B/G Wireless LAN Module For ML900 Series IC No.: 109AB-ML900
