ABZ89FT76323630APC Outdoor Connectorized Access Point

PMP 320 Access Network User Guide Issue 2 November 2009 Notices See important regulatory, legal, and safety notices in section 6 on page 18. Trademarks, Product Names, and Service Names MOTOROLA, the stylized M Logo, and all other trademarks indicated as such herein are registered trademarks of Motorola, Inc. ® Reg. US Pat & Tm. Office. All other product or service names are the property of their respective owners. © 2009 Motorola, Inc. All rights reserved http://motorola.wirelessbroadbandsupport 1 Table of Contents 1.0 Using This User Guide............................................................................................. 4 1.1 FINDING THE INFORMATION YOU NEED............................................................ 4 1.2 Becoming Familiar with This User Guide............................................................ 4 1.3 Searching This User Guide.................................................................................. 5 1.4 Finding Parameter and Field Definitions for Module Web Pages...................... 5 1.5 NEW PRODUCTS AND FEATURES DESCRIBED IN THIS ISSUE.............................. 5 1.6 NEW DESCRIPTIONS AND REVISIONS IN THIS ISSUE........................................... 5 1.7 PORTFOLIO OF WIRELESS BROADBAND SOLUTIONS.......................................... 5 1.8 PRODUCTS COVERED BY THIS USER GUIDE........................................................ 6 1.9 PRODUCTS NOT COVERED BY THIS USER GUIDE................................................ 6 1.10 CONVENTIONS.................................................................................................... 6 1.11 TECHNICAL SUPPORT.......................................................................................... 7 1.12 FEEDBACK ON DOCUMENTATION...................................................................... 8 2 Product Description.................................................................................................... 9 2.1 Access Point (AP)............................................................................................... 11 2.2 Subscriber Module (SM)................................................................................... 14 2.3 INSTALLING THE AP........................................................................................... 15 3 Regulatory, Legal, and Safety Notices...................................................................... 19 3.1 IMPORTANT NOTE ON MODIFICATIONS.......................................................... 19 3.2 NATIONAL AND REGIONAL REGULATORY NOTICES.......................................... 19 3.3 RF EXPOSURE SEPARATION DISTANCES............................................................ 23 3.4 LEGAL NOTICES................................................................................................. 25 3.5 LIMIT OF LIABILITY............................................................................................ 27 4 Checking Software Version....................................................................................... 28 4.1 Log into the AP GUI using the following procedure......................................... 28 4.2 Check the current running version of the AP................................................... 28 4.3 Check the current running version of software on the CPE............................. 28 4.4 Upgrading to the latest Software Revision on the Access Point and the CPE.. 30 5 User Account Overview............................................................................................ 40 5.1 AP User Accounts.............................................................................................. 40 5.2 CPE User Accounts............................................................................................ 41 6 IP Configuration........................................................................................................ 43 6.1 IP Overview....................................................................................................... 43 6.2 Key IP guidelines............................................................................................... 43 6.3 Configuring AP IP Settings................................................................................. 44 6.4 Configure the CPE IP Settings........................................................................... 45 7 RF Parameter Configuration..................................................................................... 48 7.1 AP RF Parameter Configuration (WiMAX Capabilities)..................................... 48 7.2 AP RF Parameter Configuration (Radio)........................................................... 48 7.3 AP RF Parameter Configuration (Mode)........................................................... 49 8 CPE RF Parameter Configuration.............................................................................. 50 2 8.1 CPE Frequency and Channel bandwidth Configuration.................................... 50 9 Authentication Configuration................................................................................... 52 9.1 AP Authentication Parameter Configuration.................................................... 52 9.2 AAA Authentication Configuration................................................................... 52 9.3 Aradial server installation (Refer to Appendix A for initial steps).................... 53 9.4 Add a NAS.......................................................................................................... 54 9.5 Add a GROUP.................................................................................................... 56 9.6 Add a USER........................................................................................................ 58 9.7 Verification of AAA configuration..................................................................... 61 9.8 Setting up CPE for Authentication........................................…

Text truncated - open the document above for the full version.

Motorola Inc. 1475 W SHURE DRIVE, ARLINGTON HEIGHTS, ILLINOIS 60004, UNITED STATES D E C L A R A T I O N L E T T E R Date: 23/11/2009 To whom it may concern: We, Motorola Inc., declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. By 3630APC hardware configuration, the maximum ratio of DL:UL is 26:21. That means it can not support the higher radio then 26:21. The ratio can not be modified to higher ratio the 26:21 by any method. Trademark: Motorola Model Name: 3630APC Product Name: Outdoor Connectorized Access Point FCC ID: ABZ89FT7632 If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Steve Payne / Sr. Staff Engineer Motorola Inc. Tel: 847-632-5929 Fax: 847-576-0801 E-Mail: [email protected]

Professional Installation Attestation Date: 09/12/2009 FCC ID: ABZ89FT7632 To Whom It May Concern: Please be advised that due to the unique function supplied by this product, this device is intended for specific use ( 3630APC Outdoor Connectorized Access Point) only and will be distributed through controlled distribution channel which has trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Sincerely ----------------------------------------------------- Steve Payne / Sr. Staff Engineer Motorola Inc. Tel: 847-632-5929 Fax: 847-576-0801 E-Mail: [email protected] Motorola Inc. 1475 W SHURE DRIVE, ARLINGTON HEIGHTS, ILLINOIS 60004, UNITED STATES

Wireless Broadband ABZ89FT7632 To whom it may concern, Per the guidance published by the FCC for devices operating in the 3650-3700 MHz Band under Part 90Z, the following memo provides information to help determine the contention based protocol capability of the 3630APC. Note, this response makes reference to the FCC WT Docket No. 05-96 with MO&O Adopted May 22, 2007 and Released June 7, 2007. In order to ensure that the device complies with the requirements of "Restricted" Contention Based Protocol (CBP) the following concerns have been addressed: Q1: Describe the method to permit occupancy: A1: The 3630APC is a WiMAX outdoor access point utilizing an 802.16e PHY and MAC interface. WiMAX, with its SCHEDULING PROTOCOL, as referenced in point 34; P.14 of the MO&O Released June 7, 2007 currently stands as the main example of a restricted CBP. In its present format, WiMAX Technology effectively prevents interference among multiple transmitters on a single WiMAX system. Different WiMAX systems can be coordinated (at an operator level) to avoid interfering with each other , thus providing each WiMAX device a "reasonable opportunity to operate". Q2: Describe the action taken if two or more transmitters simultaneously access the same channel by the master and the client devices: A2: WiMAX employs a SCHEDULING PROTOCOL to avoid interference between system elements. Q3: Describe opportunities for other similar systems to operate A3: Other systems implementing the WiMAX protocol can use coordination (at an operator level) to avoid interference. For example, operators can use frequency planning to deploy WiMAX systems in the same band. Note: WiMax is a designation under the WiMax Forum for certified compliance based upon the harmonized IEEE 802.16/ETSI HiperMAN standard. You can contact the undersigned if you have any questions. Regards, Bhadresh Patel Page 1 of 1 Motorola Inc.

EIRP Calculation of FCC ID : ABZ89FT7632 ANT. 0 ANT. 1 ANT. 0 ANT. 1 Low 3651.75 15.29 15.22 33.81 33.27 16.5 34.77 2.999 Middle 3660 15.28 15.35 33.73 34.28 16.5 34.83 3.041 High 3673.25 15.29 15.31 33.81 33.96 16.5 34.81 3.027 ANT. 0 ANT. 1 ANT. 0 ANT. 1 Low 3652.5 16.76 16.84 47.42 48.31 16.5 36.31 4.276 Middle 3660 16.73 16.83 47.10 48.19 16.5 36.29 4.256 High 3672.5 16.71 16.8 46.88 47.86 16.5 36.27 4.236 ANT. 0 ANT. 1 ANT. 0 ANT. 1 Low 3653.5 18.34 18.33 68.23 68.08 16.5 37.85 6.095 Middle 3660 18.28 18.33 67.30 68.08 16.5 37.82 6.053 High 3671.5 18.32 18.34 67.92 68.23 16.5 37.84 6.081 ANT. 0 ANT. 1 ANT. 0 ANT. 1 Low 3655 19.82 19.95 95.94 98.86 16.5 39.40 8.710 Middle 3660 19.89 19.9 97.50 97.72 16.5 39.41 8.730 High 3670 19.91 19.83 97.95 96.16 16.5 39.38 8.670 194.80 ANT 0 + ANT 1 136.15135.37 ANT 0 + ANT 1ANT 0 + ANT 1 EIRP (W) EIRP (W) EIRP (W) EIRP (W) 195.22 22.91 194.11 22.88 EIRP (dBm) ANT 0 + ANT 1 22.90 Conducted power(mW) Conducted power(mW) Conducted pow er (dBm) Ant gain BW 10MHz Chan. Frequency (MHz) Conducted power (dBm) 21.3521.3221.34 Ant gain EIRP (dBm) ANT 0 + ANT 1 94.74 19.77 BW 7MHz Chan. Frequency (MHz) Conducted power (dBm) Conducted power(mW) Conducted power(mW) Conducted pow er (dBm) 136.31 95.73 19.81 95.29 19.79 Ant gain EIRP (dBm) ANT 0 + ANT 1 Conducted power (dBm) Conducted power(mW) Conducted power(mW) Conducted pow er (dBm) BW 3.5MHz BW 5MHz Chan. Frequency (MHz) Conducted power(mW) ANT 0 + ANT 1 67.0768.01 Conducted power (dBm) Conducted power(mW) 67.77 Conducted power (dBm) ANT 0 + ANT 1 18.2718.3318.31 Chan. Frequency (MHz) Ant gain EIRP (dBm)

Motorola Inc. 1475 W SHURE DRIVE, ARLINGTON HEIGHTS, ILLINOIS 60004, UNITED STATES Date: 23.11.2009 FCC ID: ABZ89FT7632 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram BOM Tune up procedure Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Steve Payne / Sr. Staff Engineer Motorola Inc. Tel: 847-632-5929 Fax: 847-576-0801 E-Mail: [email protected]

Date: 05.11.2009 P O W E R O F A T T O R N E Y To whom it may concern: We, the undersigned, Motorola Inc., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products; report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BV CPS Taoyuan within the scope of this authorization shall have the same effects as our own. If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Steve Payne / Sr. Staff Engineer Motorola Inc. Tel: 847-632-5929 Fax: 847-576-0801 E-Mail: [email protected] Motorola Inc. 1475 W SHURE DRIVE, ARLINGTON HEIGHTS, ILLINOIS 60004, UNITED STATES

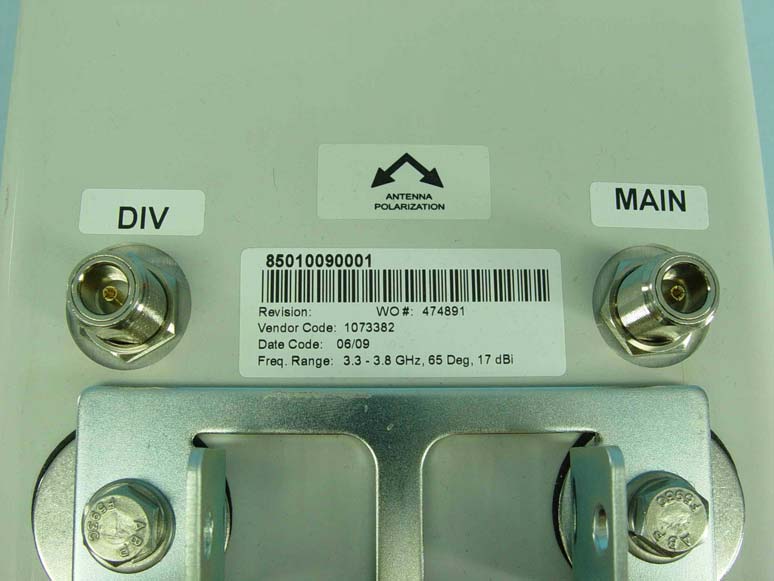

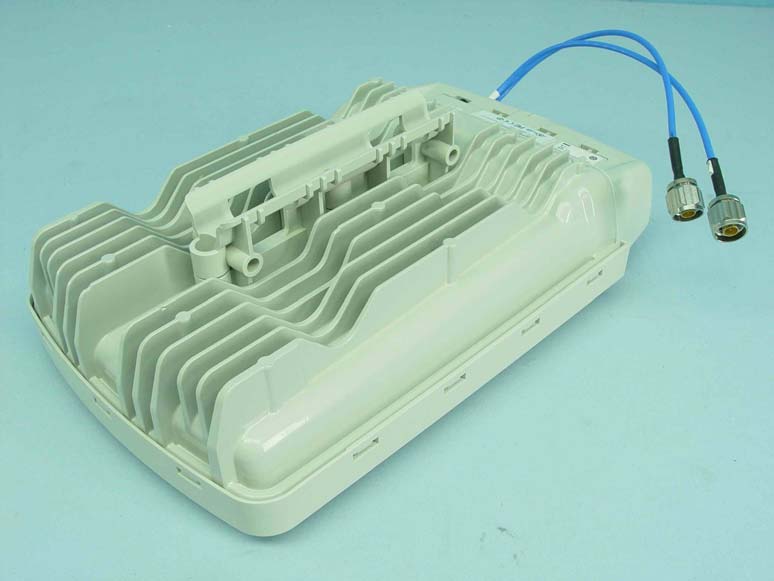

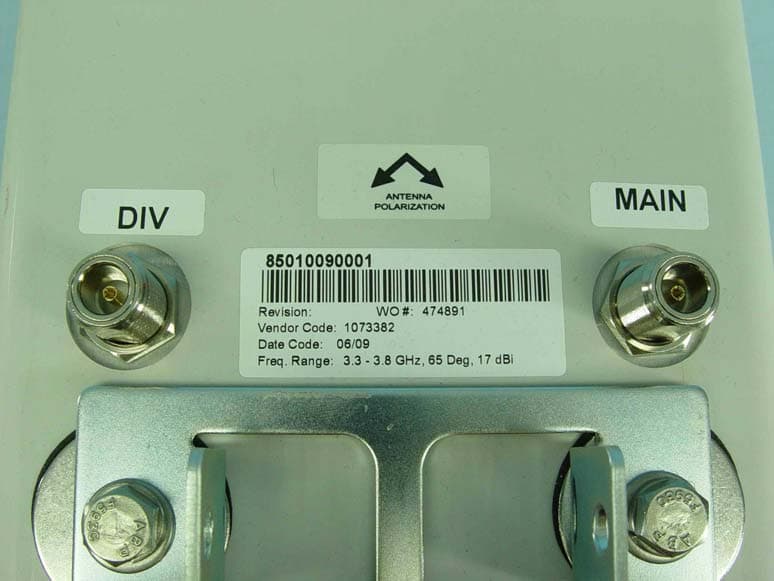

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

Report No.: RF981009L01 1 Report Format Version 3.0.0 FCC TEST REPORT (Part 90 Subpart Z) REPORT NO.: RF981009L01 MODEL NO.: 3630APC RECEIVED: Oct. 09, 2009 TESTED: Oct. 13 ~ Nov. 24, 2009 ISSUED: Nov. 27, 2009 APPLICANT: Motorola Inc. ADDRESS: 1475 W SHURE DRIVE, ARLINGTON HEIGHTS, ILLINOIS 60004, UNITED STATES ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 125 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981009L01 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1 CERTIFICATION...........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4 TEST TYPES AND RESULTS ....................................................................................12 4.1 OUTPUT POWER AND POWER DENSITY MEASUREMENT ..................................12 4.1.1 LIMITS OF OUTPUT POWER AND POWER DENSITY ............................................12 4.1.2 TEST INSTRUMENTS................................................................................................12 4.1.3 TEST PROCEDURES ................................................................................................13 4.1.4 TEST SETUP..............................................................................................................13 4.1.5 EUT OPERATING CONDITIONS ...............................................................................13 4.1.6 TEST RESULTS .........................................................................................................14 4.2 FREQUENCY STABILITY MEASUREMENT..............................................................32 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ..........................................32 4.2.2 TEST INSTRUMENTS................................................................................................32 4.2.3 TEST PROCEDURE...................................................................................................33 4.2.4 TEST SETUP..............................................................................................................33 4.2.5 EUT OPERATING CONDITIONS ...............................................................................33 4.2.6 TEST RESULTS .........................................................................................................34 4.3 EMISSION BANDWIDTH MEASUREMENT ..............................................................38 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT ............................................38 4.3.2 TEST INSTRUMENTS................................................................................................38 4.3.3 TEST PROCEDURE...................................................................................................38 4.3.4 TEST SETUP..............................................................................................................38 4.3.5 EUT OPERATING CONDITIONS ...............................................................................38 4.3.6 TEST RESULTS .........................................................................................................39 4.4 EMISSION MASKS.....................................................................................................51 4.4.1 LIMITS OF EMISSION MASKS ..................................................................................51 4.4.2 TEST INSTRUMENTS................................................................................................51 4.4.3 TEST SETUP..............................................................................................................51 4.4.4 TEST PROCEDURES ................................................................................................52 4.4.5 EUT OPERATING CONDITION..................................................................................52 4.4.6 TEST RESULTS .........................................................................................................53 4.5 CONDUCTED SPURIOUS EMISSIONS ....................................................................65 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT.....................65 4.5.2 TEST INSTRUMENTS................................................................................................65 4.5.3 TEST PROCEDURE...................................................................................................66 4.5.4 TEST SETUP...........................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
