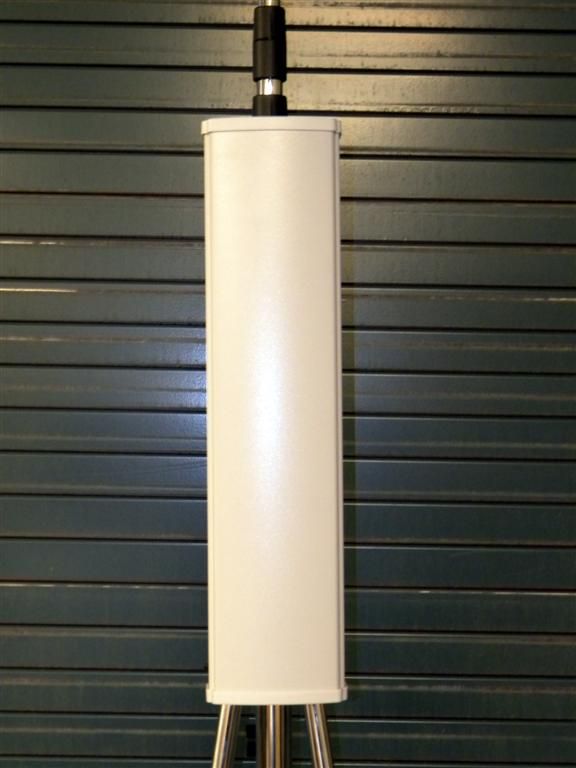

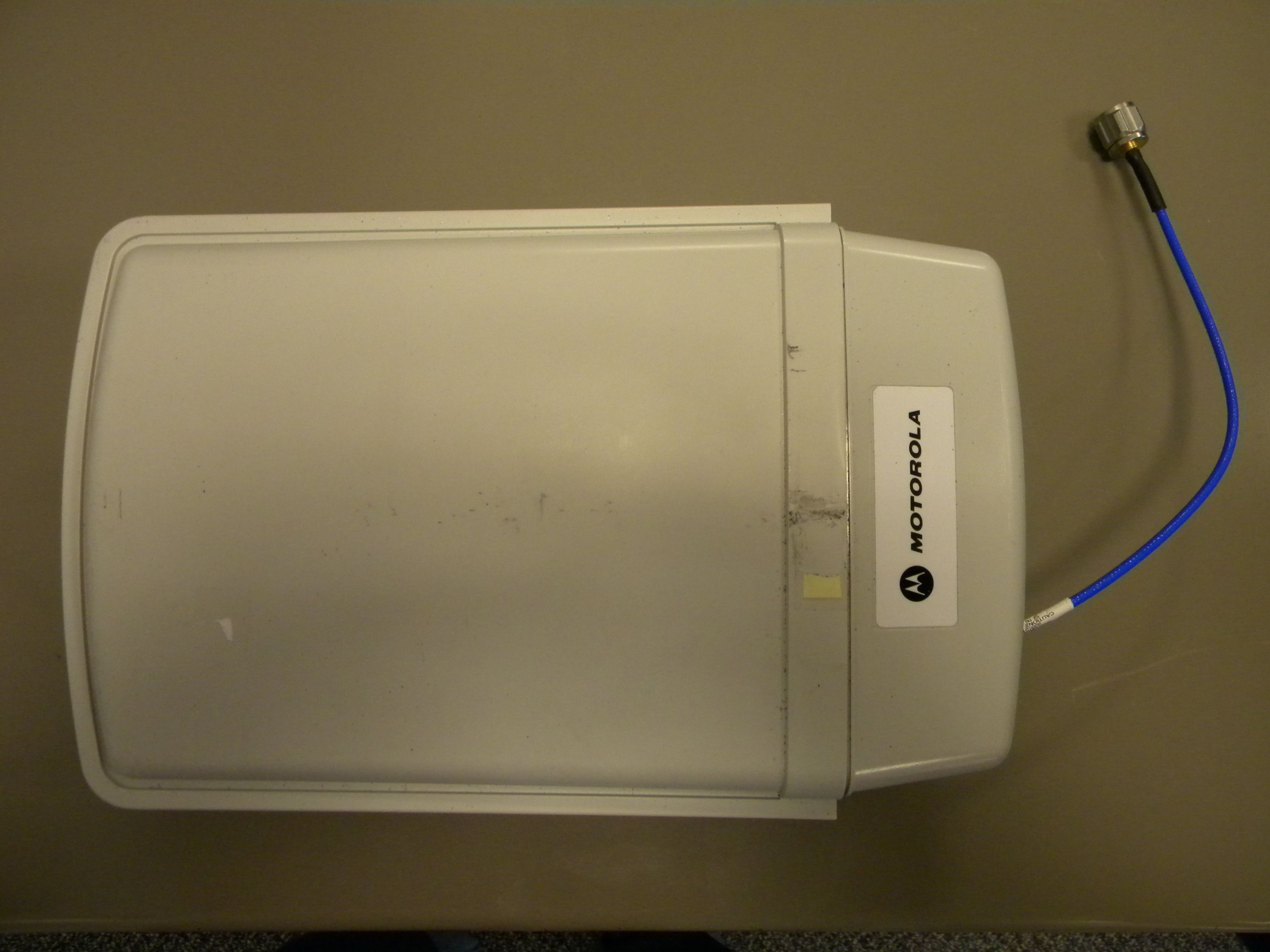

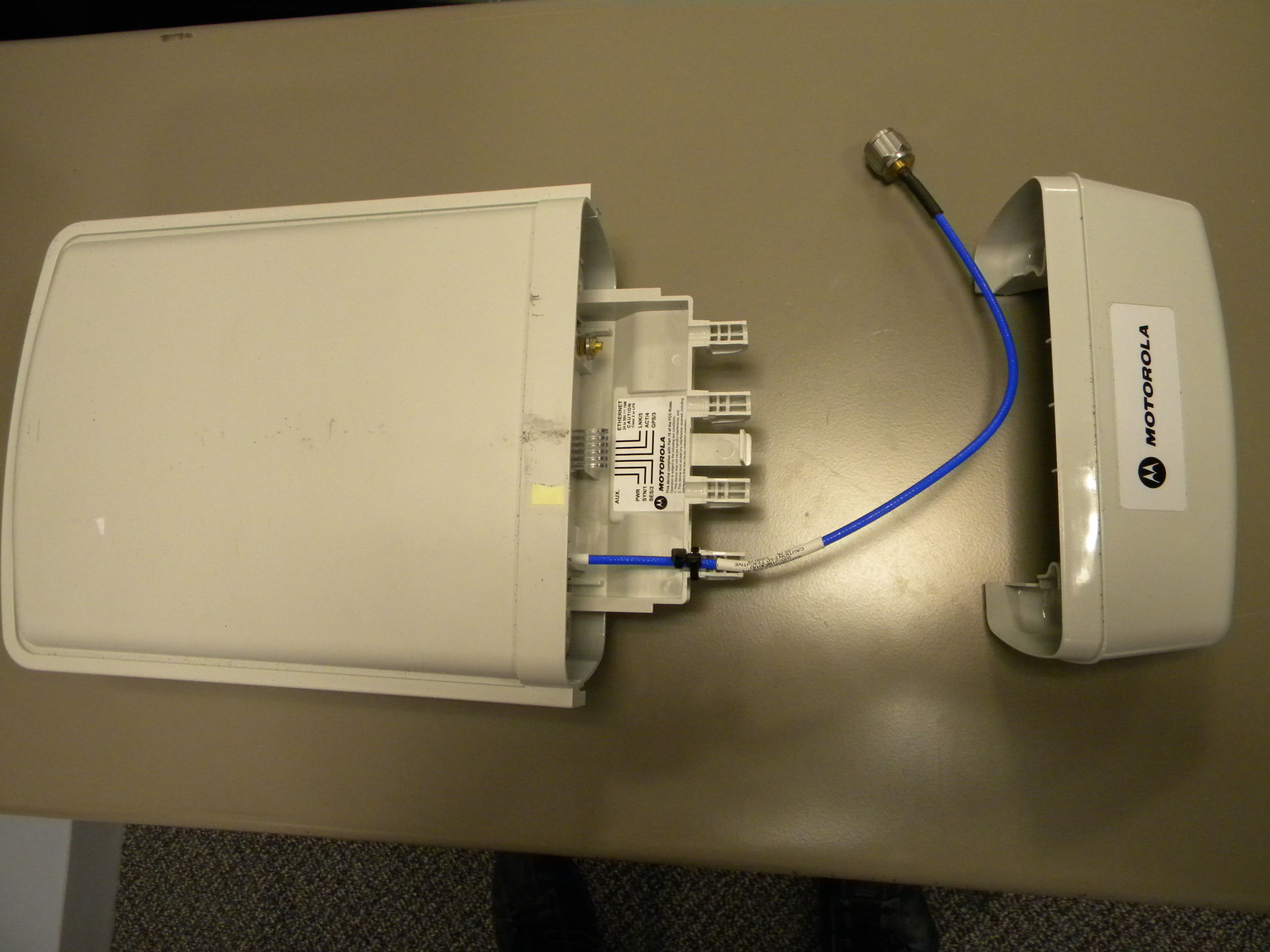

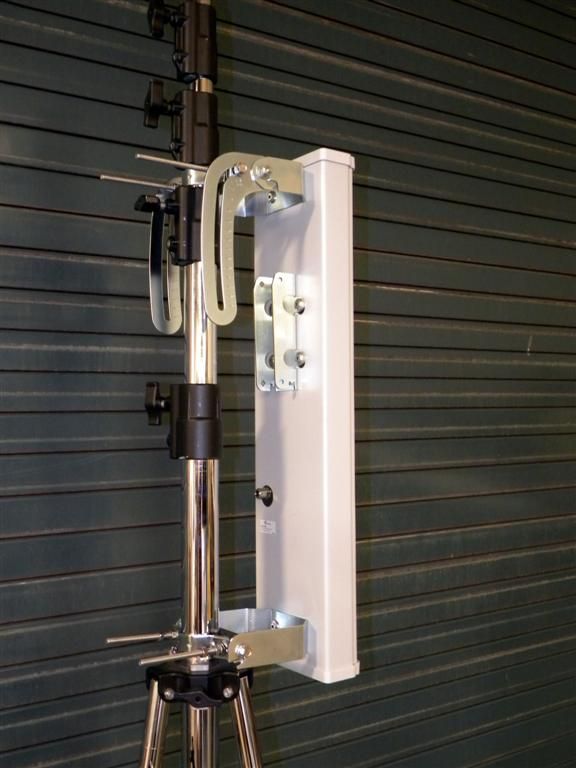

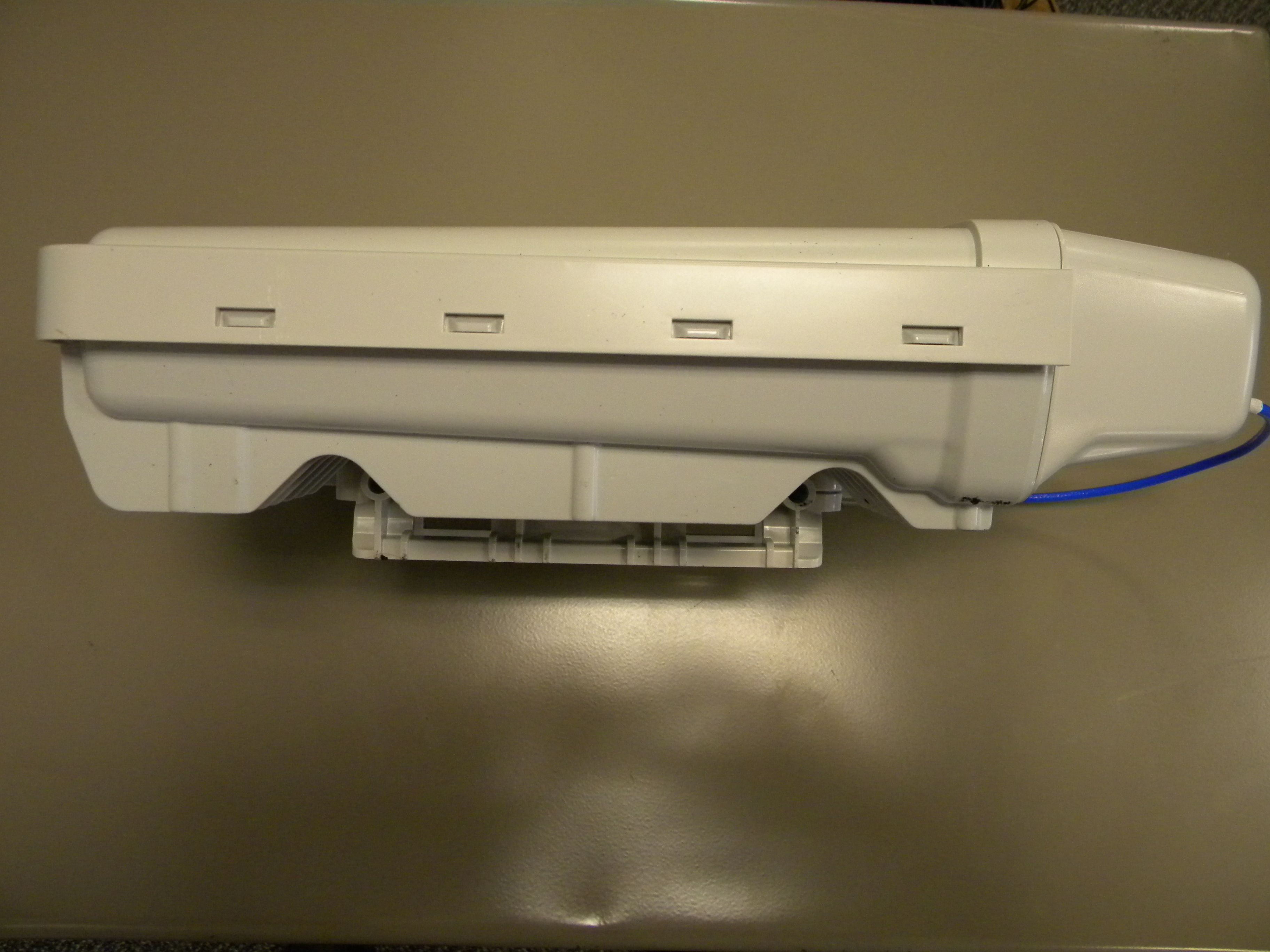

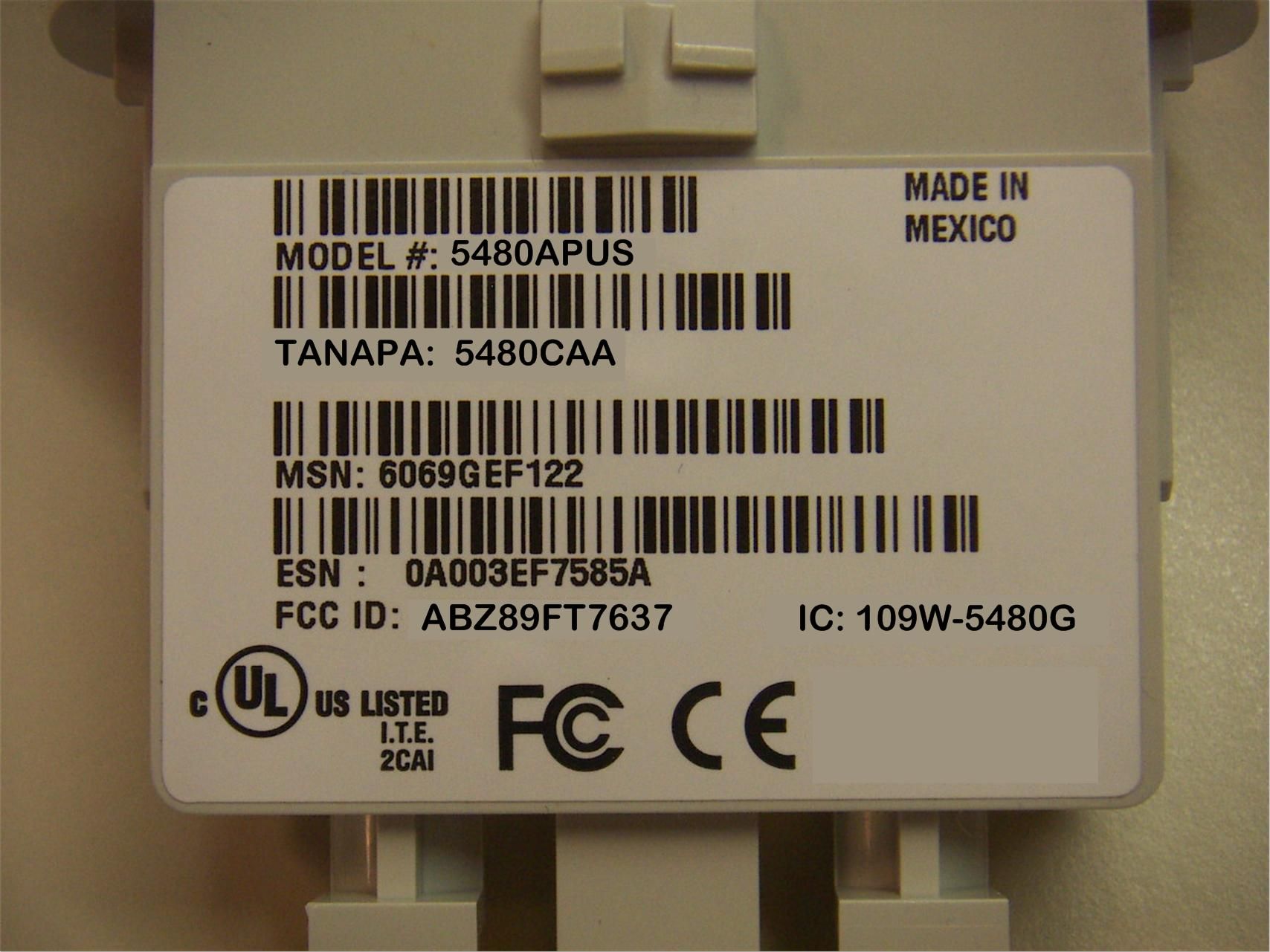

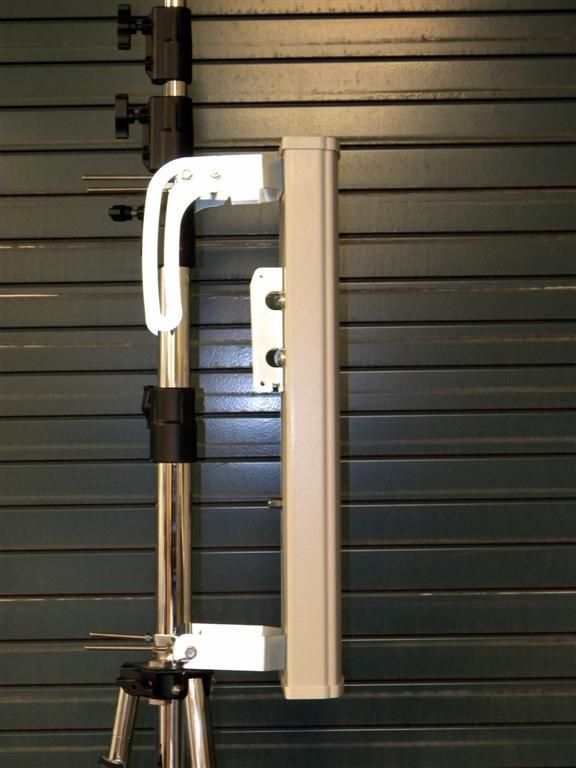

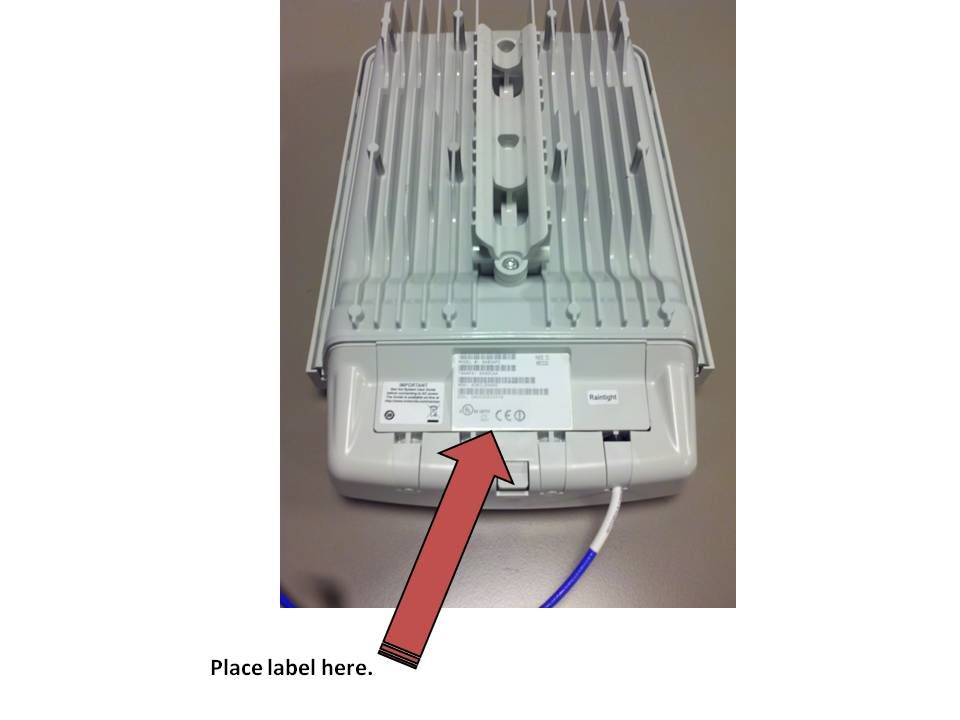

ABZ89FT7637Fixed Outdoor Wireless Transceiver

FCC Draft Software Release 10.5 Release Notes and User Guide Supplement PMP 100 and PTP 100 (FSK) PMP 400 and PTP 200 (OFDM) FCC Draft November 2010 FCC Draft Notices See important regulatory and legal notices in Section 10 on Page 31. Trademarks, Product Names, and Service Names MOTOROLA, the stylized M Logo, Canopy, and all other trademarks indicated as such herein are registered trademarks of Motorola, Inc. ® Reg. US Pat & Tm. Office. All other product or service names are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved http://motorola.wirelessbroadbandsupport.com Release 10.5 Release Notes and User Guide Supplement FCC Draft, November 2010 Page 3 Table of Contents 1 Introduction..........................................................................................................5 1.1 Release 10.5 Overview.................................................................................5 1.2 Document Change History............................................................................5 1.3 Abbreviations................................................................................................5 1.4 Feedback on Documentation........................................................................6 1.5 Technical Support.........................................................................................6 2 Applicability..........................................................................................................8 3 Upgrading to Release 10.5...................................................................................9 3.1 Obtaining CNUT Upgrade Packages.............................................................9 3.2 Network Management...................................................................................9 3.3 PMP 430 – Options for 5, 10, and 20 MHz Channel Size..............................9 4 Features..............................................................................................................11 4.1 US - Operation to avoid Interference with TDWR........................................12 5 Resolved Issues.................................................................................................16 6 Known Open Issues...........................................................................................17 7 Notes and Reference..........................................................................................18 7.1 Notes..........................................................................................................18 7.2 US Region Code Operation.........................................................................21 7.3 PMP 430 Center Channels..........................................................................21 7.4 PMP 100 Series DFS Operation Based on Region Code............................23 7.5 PTP 100 Series DFS Operation Based on Region Code.............................24 7.6 PMP 400/430 and PTP 200 DFS Operation Based on Region Code...........25 8 Canopy MIB.........................................................................................................26 9 Performance Benchmarking Process...............................................................27 9.1 Definitions...................................................................................................27 9.2 System Performance and System Constraints............................................27 9.3 Benchmark Definition..................................................................................29 10 Regulatory and Legal Notices...........................................................................31 10.1 Important Note on Modifications.................................................................31 Release 10.5 Release Notes and User Guide Supplement FCC Draft, November 2010 Page 4 10.2 National and Regional Regulatory Notices..................................................31 10.3 RF Exposure Separation Distances............................................................39 10.4 Legal Notices..............................................................................................42 10.5 Limit of Liability...........................................................................................44 List of Tables Table 1: Release 10.5 Features..................................................................................11 Table 2: TDWR Location Information..........................................................................14 Table 3: Issues resolved in Release 10.5....................................................................16 Table 4: Release 10.5 known open issues..................................................................17 Table 5: Notes first discussed with Release 10.3.1......................................................18 Table 6: Notes first discussed with Release 9.5..........................................................19 Table 7: PMP 430 center channels by channel bandwidth and region code................22 Table 8: PMP 100 (FSK) AP/SM DFS operation based on region code.......................23 Table 9: PTP 100 (FSK) BHM/BHS operation based on region code..........................24 Table 10: PMP 400/430 and PTP 200 (OFDM) DFS operation based on region code.25 Table 11: US FCC IDs and Industry Canada Certification Numbers and covered configurations..............................................................................................32 Table 12: China disclosure table.................................................................................38 Table 13: Exposure separation distances....................................................................39 Table 14: Calculated exposure distances and power compliance margins..................40 List of Figures Figure 1: Applicable products........................................................................................8 Figure 2: PMP AP and PTP BH Region Code S…

Text truncated - open the document above for the full version.

RF EXPOSURE SEPARATION DISTANCES To protect from overexposure to RF energy, install Canopy radios so as to provide and maintain the minimum separation distances from all persons shown Exposure separation distances Module Type Separation Distance from Persons Canopy Module (FSK or OFDM) At least 20 cm (approx 8 in) The following section provides details and discussion of the associated calculations. Details of Exposure Separation Distances Calculations and Power Compliance Margins Limits and guidelines for RF exposure come from: ƒ http://www.fcc.gov, and the policies, guidelines, and requirements in Part 1 of US FCC limits for the general population. See the FCC web site at Title 47 of the Code of Federal Regulations, as well as the guidelines and suggestions for evaluating compliance in FCC OET Bulletin 65. The applicable power density exposure limits from the documents referenced above are ƒ 10 W/m 2 for RF energy in the 5.4-5.7GHz frequency bands. Peak power density in the far field of a radio frequency point source is calculated as follows: S = (P×G)/(4πd 2 ) where S = power density in W/m 2 P = RMS transmit power capability of the radio, in W G = total Tx gain as a factor, converted from dB d = distance from point source, in meters 5.4 GHz OFDM connectorized AP, 17 dBi 0.02 W (13 dBm) 50 (17 dB) 10 W/m 2 9 cm 20 cm (8 in) 5 The Recommended Separation Distance is chosen to give significant compliance margin in all cases. It is also chosen so that a given item (bare module) always has the same distance, regardless of frequency band, to simplify remembering and following exposure distances in the field. These are conservative distances: ƒ They are along the beam direction (the direction of greatest energy). Exposure to the sides and back of the module is significantly less. ƒ They meet sustained exposure limits for the general population (not just short-term occupational exposure limits), with considerable margin.

FCC CFR47 PART 15 SUBPART E INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL NUMBER: 5480AP US FCC ID: ABZ89FT7637 IC: 109W-5480G REPORT NUMBER: 10U13444-1 ISSUE DATE: OCTOBER 25, 2010 Prepared for MOTOROLA- SCHAUMBUR 1299 E. ALGONQUIN Rd SCHAUMBURG, ILLINOISE 60156, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 2 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 10/25/10 Initial Issue F. Ibrahim REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 3 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP................................................................................. 8 5.7. MODIFICATION ............................................................................................................ 8 6. ANTENNA PORT TEST RESULTS .................................................................................... 11 6.1. 10MHz BANDWIDTH QPSK MODE IN THE 5.4 GHz BAND ..................................... 11 6.1.1. 26 dB and 99% BANDWIDTH ............................................................................. 11 6.1.2. OUTPUT POWER ............................................................................................... 15 6.1.3. AVERAGE POWER ............................................................................................ 19 6.1.4. PEAK POWER SPECTRAL DENSITY................................................................ 20 6.1.5. PEAK EXCURSION ............................................................................................ 24 6.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 28 6.1.7. RECEIVER CONDUCTED SPURIOUS EMISSIONS ......................................... 35 6.2. 20MHz BANDWIDTH QPSK MODE IN THE 5.4 GHz BAND ..................................... 37 6.2.1. 26 dB and 99% BANDWIDTH ............................................................................. 37 6.2.2. OUTPUT POWER ............................................................................................... 41 6.2.3. AVERAGE POWER ............................................................................................ 45 6.2.4. PEAK POWER SPECTRAL DENSITY................................................................ 46 6.2.5. PEAK EXCURSION ............................................................................................ 50 6.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 54 6.2.7. RECEIVER CONDUCTED SPURIOUS EMISSIONS ......................................... 61 7. RADIATED TEST RESULTS .............................................................................................. 63 7.1. LIMITS AND PROCEDURE ........................................................................................ 63 7.2. 10MHz BANDWIDTH QPSK MODE ........................................................................... 64 7.2.1. TX ABOVE 1 GHz IN THE 5.4 GHz BAND ......................................................... 64 7.3. 20MHz BANDWIDTH QPSK MODE ........................................................................... 69 REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 4 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 7.3.1. TX ABOVE 1 GHz IN THE 5.4 GHz BAND ......................................................... 69 7.4. WORST-CASE BELOW 1 GHz................................................................................... 76 8. AC POWER LINE CONDUCTED EMISSIONS ....…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART B ICES-003 ISSUE 4 TEST REPORT FOR FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL NUMBER: 5480AP US FCC ID: ABZ89FT7637 IC: 109W-5480G REPORT NUMBER: 10U13444-3 ISSUE DATE: OCTOBER 25, 2010 Prepared for MOTOROLA- SCHAUMBUR 1299 E. ALGONQUIN Rd SCHAUMBURG, ILLINOISE 60156, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 2 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 10/25/10 Initial Issue F. Ibrahim REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 3 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. TEST CONFIGURATIONS............................................................................................ 6 5.3. MODE(S) OF OPERATION........................................................................................... 6 5.4. SOFTWARE AND FIRMWARE..................................................................................... 6 5.5. MODIFICATION ............................................................................................................ 6 5.6. DETAILS OF TESTED SYSTEM .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. TEST RESULTS .................................................................................................................. 10 7.1. RADIATED EMISSIONS ............................................................................................. 10 7.2. AC MAINS LINE CONDUCTED EMISSIONS ............................................................. 16 8. SETUP PHOTOS................................................................................................................. 20 REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 4 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: MOTOROLA- SCHAUMBUR 1299 E. ALGONQUIN Rd SCHAUMBURG, ILLINOISE 60156, U.S.A. EUT DESCRIPTION: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5480AP-US SERIAL NUMBER: 0A-00-3E-30-2E-0D 0A-00-3E-30-2E-00 DATE TESTED: OCTOBER 4-15, 2010 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART B ICES-003 ISSUE 4 Pass Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: FRANK IBRAHIM THANH NGUYEN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 5 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003 and ICES-003 Issue 4. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to colle…

Text truncated - open the document above for the full version.

CONDUCTED SPURIOUS (-20 dBc) LOW CHANNEL SPURIOUS HIGH CHANNEL SPURIOUS CONDUCTED SPURIOUS (-20 dBc) LOW CHANNEL SPURIOUS HIGH CHANNEL SPURIOUS

CONDUCTED SPURIOUS (-20 dBc) LOW CHANNEL SPURIOUS HIGH CHANNEL SPURIOUS CONDUCTED SPURIOUS (-20 dBc) LOW CHANNEL SPURIOUS HIGH CHANNEL SPURIOUS

REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 150 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 151 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 152 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED BACK PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 153 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 154 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. LINE CONDUCTED BACK PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 155 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. DYNAMIC FREQUENCY SELECTION MEASUREMENT SETUP DFS FRONT PHOTO REPORT NO: 10U13444-1 DATE: COTOBER 25, 2010 FCC ID: ABZ89FT7637 IC: 109W-5480G Page 156 of 156 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. END OF REPORT DFS BACK PHOTO

REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 20 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED EMISSION RADIATED EMISSIONS (FRONT) REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 21 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (BACK) REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 22 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. AC MAINS LINE CONDUCTED EMISSION LINE CONDUCTED EMISSION (FRONT) REPORT NO: 10U13444-3 DATE: OCTOBER 25, 2010 EUT: FIXED OUTDOOR WIRELESS FRAME BASED UNII OFDM ACCESS POINT WITH RADAR DETECTION MODEL: 5400AP-US Page 23 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED EMISSION (BACK)
