MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 2 Attestation Statements The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BSEEIllinois Institute of Technology, Chicago, IL MSEE Illinois Institute of Technology, Chicago, IL 2) 31 years experience in developing, testing and certifying Land Mobile Communications Products. NAME: Robert O. Loving, Jr. SIGNATURE: DATE: November 5, 1998 POSITION:Principal Staff Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Frank Grube SIGNATURE: DATE:November 5, 1998 POSITION: Engineering Manager
MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5 SCHEMATIC DIAGRAMS This exhibit contains schematic diagrams of the transmitter in the same general format that will appear in the service manual. These diagrams show the entire transmitter system from the microphone push-to-talk switch to the antenna. EXHIBIT 5AVolume/Microphone Board Circuits (Part of optional front cover) EXHIBIT 5BDisplay Board Circuits (Part of optional front cover) EXHIBIT 5CAudio/Logic Board Circuits (2 sheets) EXHIBIT 5DDTMF Microphone Board Circuits EXHIBIT 5EDesk Microphone Board Circuits EXHIBIT 5FRF Board Circuits (3 sheets) EXHIBIT 5GRF Power Amplifier Board Circuits MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5A VOLUME / MICROPHONE BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5B DISPLAY BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5C SHEET 1 OF 2 AUDIO/LOGIC BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5C SHEET 2 OF 2 AUDIO/LOGIC BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5D DTMF MICROPHONE BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5E DESK MICROPHONE CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 1 OF 3 RF BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 2 OF 3 RF BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 3 OF 3 RF BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5G RF POWER AMPLIFIER BOARD CIRCUITS
FCC ID:ABZ99FT4024 ______________________________________________________________________________ Radio Products Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date: November 5, 1998. Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21046. Att: George Tannahill, Frank Coperich. Subject: Application for Certification of Transmitter with FCC ID# ABZ99FT3024 Gentlemen: Motorola Inc. 5201 Tollview Dr., Rolling Meadows, IL, submits application for certification of the equipment identified by ABZ99FT3024. This transmitter is primarily intended for use in repeater applications with capabilities for clear and encrypted communications with transmitter output power that is variable from 1 Watt (+30 dBm) to 11 Watts (+40.4 dBm). The transmitter complies with section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification application. Please note that some of the data in Exhibit 6 was previously submitted in application with FCC ID ABZ99FT3023. This data is marked with an asterisk (*) and “REF: FCC ID ABZ99FT3023”. Sincerely, Donna Tokarz Tel: (847) 576-7245 Fax: (847) 538-4312

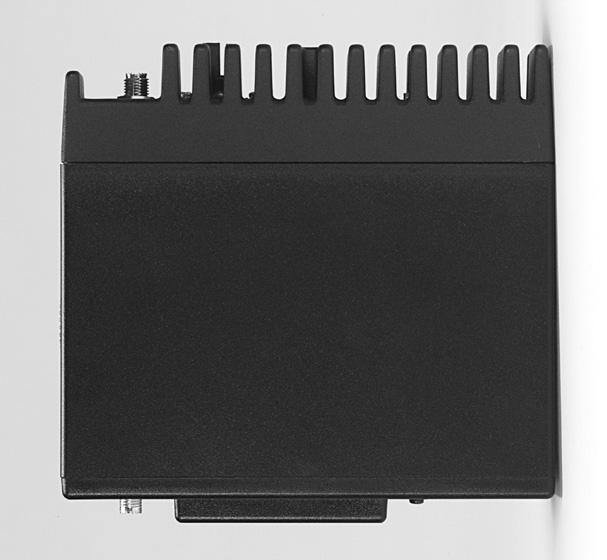

MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 1 OF 6 EXTERNAL PHOTOGRAPHS The following photographs showing the external construction of the transceiver and the optional repeater are in this exhibit: Sheet 2Transceiver front view with front cover. Sheet 3Transceiver top view with top cover. Sheet 4Transceiver bottom view with bottom cover showing FCC label. Sheet 5Transceiver front view without connector cover. Sheet 6Transceiver assembled into optional housing with desk microphone. MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 2 OF 6 TRANSCEIVER FRONT VIEW WITH FRONT COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 3 OF 6 TRANSCEIVER TOP VIEW WITH TOP COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 4 OF 6 TRANSCEIVER BOTTOM VIEW WITH BOTTOM COVER SHOWING FCC LABEL MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 5 OF 6 TRANSCEIVER FRONT VIEW WITHOUT CONNECTOR COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 3 SHEET 6 OF 6 TRANSCEIVER ASSEMBLED INTO OPTIONAL HOUSING WITH DESK MICROPHONE
MOTOROLA INCFCC ID: ABZ99FT3024 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information12.983-(f) General Information1A 1. Production Plans2.981-(a) 2. Application References2.1061 3. Data Submittal Procedure II. Attestation Statements2 III. External Photographs32.983-(g) IV. Block Diagrams4 V. Schematics52.983-(d)-7 VI. Test Report6 1. Data Index 2. RF Output Data6A2.985 3. Modulation Characteristics2.987 A. Audio Response6B (*) B. Low Pass Filter Response6C (*) C. Modulation Limiting6D (*) 4. Occupied Bandwidth6E (*)2.989 5. Conducted Spurious Emissions 6F2.991 6. Radiated Spurious Emissions6G2.993 7. Frequency Stability2.995 A. Temperature6H (*) B. Supply Voltage6J (*) 8. Transient Frequency Behavior6K (*)90.214 9. Line Conducted Spurious6L (*)15.107 (a) VII. Test Setup Procedures72.999 VIII. Users Manual82.983-(d)-8 IX. Internal Photographs9 2.983-(g) X. Parts List/Tune Up Information102.983-(d)-6, 9 XI. RF Exposure Information112.1091 XII. Operational Description12 2.983-(d)1,2,3,4,5 1. Technical Characteristics 2. Application XIII. Cover Letter13 NOTE: Items marked with (*) are from FCC filing ID ABZ99FT3023. MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 1 IDENTIFICATION LABEL LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the outside of the housing at the bottom back of the transmitter. TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 1A GENERAL INFORMATION 1. Production Plans -- Pursuant 2.981 (c) Quantity production is planned. 2. Application References -- Pursuant 2.1061 This transceiver, with the exception of the transmitter RF output power, is identical to the transceiver filed under FCC ID ABZ99FT3023. 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Parts 22, 74, and 90. 4. Applicable References: Reference Type Acceptance FCC ID: ABZ99FT3023 EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.983-2.999 and Part 90, Sec.90.210
MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 1 OF 11 INTERNAL PHOTOGRAPHS The following photographs showing the internal construction of the transceiver and the optional repeater are in this exhibit: Sheet 2Transceiver front view without cover. Sheet 3Transceiver top view without top cover. Sheet 4Transceiver bottom view without bottom cover. Sheet 5Transceiver bottom view without cover and shield. Sheet 6Transceiver top view without cover and shield. Sheet 7RF PA front view with shield. Sheet 8RF PA front view without shield. Sheet 9Front view of disassembled optional housing with desk microphone. Sheet 10Rear view of disassembled optional housing with transceiver. Sheet 11Optional front cover attached to transceiver and desk microphone. MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 2 OF 11 TRANSCEIVER FRONT VIEW WITHOUT COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 3 OF 11 TRANSCEIVER TOP VIEW WITHOUT TOP COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 4 OF 11 TRANSCEIVER BOTTOM VIEW WITHOUT BOTTOM COVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 5 OF 11 TRANSCEIVER BOTTOM VIEW WITHOUT COVER AND SHIELD MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 6 OF 11 TRANSCEIVER TOP VIEW WITHOUT COVER AND SHIELD MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 7 OF 11 RF PA FRONT VIEW WITH SHIELD MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 8 OF 11 RF PA FRONT VIEW WITHOUT SHIELD MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 9 OF 11 FRONT VIEW OF DISASSEMBLED OPTIONAL HOUSING WITH DESK MICROPHONE MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 10 OF 11 REAR VIEW OF DISASSEMBLED OPTIONAL HOUSING WITH TRANSCEIVER MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 9 SHEET 11 OF 11 OPTIONAL FRONT COVER ATTACHED TO TRANSCEIVER AND DESK MICROPHONE
MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 12 SHEET 1 OF 3 OPERATIONAL DESCRIPTION I. Transmitter Technical Characteristics -- Pursuant 2.983 (d) A. Specific Operating Power Levels: RATED: 1 to 11 Watts, variable MEASURED: Refer to Exhibit 6A Maximum Power Rating: 11 Watts Means provided for variation of operating power: Output power is continuously variable over the range of 1 to 11 Watts. The output power is field programmable to any power level within this range. B. Frequency Range: 146 to 174 MHz C. Frequency Stability: RATED: ±0.00025% MEASURED: Refer to Exhibits 6H and 6J D. Types of Emissions: 11K0F3E, or 16K0F3E, programmable per channel. E. Spurious Emissions: RATED: 50 μW (-13dBm) maximum that corresponds to -43 dBC at the 1 Watt setting, and –53.4 dBC at the 11 Watt setting. MEASURED: Refer to Exhibits 6F and 6G. F. DC Operating Voltages and Currents of the Final Stage: Refer to Exhibit 6A. II. Transmitter Application The following features, options, accessories, and installations characterize the transmitter. A. Power Supply: AC-DC Converter B. Antenna: External 50 Ω antenna C. Squelch Types: 1. Carrier Squelch (CSQ) 2. Tone Private Line (TPL) 3. Digital Private Line (DPL) MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 12 SHEET 2 OF 3 Description (continued) D. Microphones Available: 1. DTMF Microphone 2. Desk Microphone E. Maximum Transmit Channel Capability: 16 channels . F. Housing Style: The transmitter is enclosed in a metal, shielded chassis as shown in the accompanying photographs. The transmitter power amplifier circuitry is contained on a single printed circuit board (PCB) that is mounted to a cast metal chassis that also serves as a heatsink. The transmitter frequency generation circuitry is contained on the RF board within metal shields that are soldered to the RF board PCB. The low level power amplification of the transmitter circuitry is also contained on the RF board PCB under metal shields that are soldered to the PCB. The chassis has a removable cover to allow servicing. A plastic housing encloses the top, bottom and front of the chassis . G. Available Accessories HLN3037AGR1225 Repeater Housing HKN9234AGR1225 Add-on Controller Cable Kit HKN9235AGR1225 Internal Duplexer RF Cables HKN9026AGR1225 External Duplexer RF Cable HKN9006AGR1225 SmarTrunk Controller Cable HLN9455AGR1225 Battery Revert Kit HLN9471AGR1225 Portable Carry Case HLN3100AR1225 Retrofit Kit HKN9016AR1225 Retrofit External Duplexer RF Cables HKN9025AR1225 Retrofit Internal Duplexer RF Cables HLN3102AGR400 X-Pand Repeater Housing HLN3103AGR500 X-Pand Repeater Housing HLN9447Ai20R Controller HLN3094ASmarTrunk II Controller HLN9119AZR340 Controller HLN8388B ZR310 Community Tone Panel HLN9120Ai750R Advanced Interconnect Signaling HFD8188AVHF Duplexer, 150-160 MHz HFD8189AVHF Duplexer, 155-162 MHz HFD8190AVHF Duplexer, 162-174 MHz HFD8465AVHF Duplexer, 150-160 MHz HFD8461AVHF Preselector, 144-160 MHz HFD8462AVHF Preselector, 160-174 MHz HLN9242A16 Pin Accessory Kit HMN3175ADTMF TX LED Microphone, 7 foot cord HMN3000BDesk Microphone, Black TDD7559AVHF Antenna, 144-149 MHz, 3 dB Gain TDD7544AVHF Antenna, 150-158 MHz 3 dB Gain TDD7545AVHF Antenna, 158-166 MHz, 3 dB Gain TDD7546AVHF Antenna, 166-174MHz, 3 dB Gain L1473AExtended Local Control Desk Set MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 12 SHEET 3 OF 3 Description (continued) L1474ADC Remote Control Desk Set L1475ATone Remote Control Desk Set L1547ADC Remote Adapter & Service Manual L1548ATone Remote Adapter & Service Manual RRX4025AType "N" connector coax in-line arrestor RRX4032ATower mount hardware / in-line arrestor ST7881/2" jacketed Heliax coax ground clamps ST8537/8" jacketed Heliax coax ground clamps RLN4264A120 Vac 15A Duplex Surge Protector) H. Programmability: Programming is accomplished by the use of an IBM PC computer or equivalent, a Radio Interface Box, and Radio Service Software. Adjustment of the transmitter, including programming of the channel frequencies, output power adjustment, frequency adjustment, and deviation adjustment are performed in this manner. NOTE: The transmitter is NOT programmable by the operator.
MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 10 PARTS LIST / TUNE UP INFORMATION This exhibit contains a list of the semiconductor devices used in the transceiver and the test equipment and tuning procedures for maintaining the transceiver. EXHIBIT 10AFunction of RF Semiconductors and Other Active Devices EXHIBIT 10BList of Recommended Test Equipment for Servicing EXHIBIT 10ATune Up Information MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 10A SHEET 1 OF 4 Function of RF Semiconductors & Other Active Devices REFPARTCIRCUIT OPERATINGINDUSTRY NUMBER NUMBER APPLICATION FREQUENCY EQUIVALENT CR148-80154K03 CLIPPER146-174 MHz MMBD353 CR248-80142L01 RF SWITCH 146-174 MHz MMBV3401 CR348-80142L01 RF PIN SWITCH 146-174 MHz MMBV3401 CR448-80142L01 RF PIN SWITCH 146-174 MHzMMBV3401 CR548-80142L01 RF PIN SWITCH146-174 MHzMMBV3401 CR648-80142L01 RF PIN SWITCH146-174 MHz MMBV3401 CR748-80142L01 RF PIN SWITCH 146-174 MHzMMBV3401 CR848-80939T01 DC SWITCH DC1N15711 CR5148-80154K03 CLIPPER44.85 MHz MMBD353 CR152 48-62824C03 RX VCO FREQ CONTROL190.85-218.85 MHz1SV232 CR153 48-80154K02 RX VCO AGC190.85-218.85 MHzBAS7004TA CR201 48-13833C07 VOLTAGE MULTIPLIER1.05 MHzMMBD7000 CR202 48-13833C07 VOLTAGE MULTIPLIER 1.05 MHz MMBD7000 CR203 48-13833C07 VOLTAGE MULTIPLIER16.8 MHzMMBD7000 CR206 48-80154K02 TX VCO AGC146-174 MHzBAS7004TA CR252 48-62824C03 TX VCO FREQ CONTROL 146-174 MHz 1SV232 CR253 48-62824C01 TX VCO MODULATOR146-174 MHz1SV229 CR401 48-05129M76 SHORT CIRCUIT PROTECTIONDCMMBD914 CR402 48-83654H02 TEMPERATURE COMPENSATION DC CR403 48-05129M76 DC SWITCHDCMMBD914 CR405 48-05129M76 DC SWITCH DCMMBD914 CR451 48-05129M76 DC SWITCH DC MMBD914 CR452 48-05129M76 TEMPERATURE COMPENSATION DC MMBD914 CR651 48-13833C07 ESD PROTECTION AUDIO MMBD7000 CR652 48-13833C07 ESD PROTECTION AUDIO MMBD7000 CR653 48-13833C07 ESD PROTECTION AUDIOMMBD7000 CR801 48-80939T01 SWITCH 5 kHz 1N15711 CR901 48-13833C07 ESD PROTECTION DCMMBD7000 CR902 48-05129M76 DC SWITCH DCMMBD914 CR903 48-13833C07 ESD PROTECTION 5 kHz MMBD7000 CR2480 48-80236E07 TRANSIENT SUPPRESSORDC MR2535L Q148-13827A24 RF AMPLIFIER146-174 MHz MRF5812 Q248-13824A17 RF AMP BIAS CONTROL DC MMBT3906 Q5148-13827A07 I-F AMPLIFIER44.85 MHzMMBR941 Q5248-13827A07 SECOND LOCAL OSCILLATOR44.395 MHzMMBR941 MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 10A SHEET 2 OF 4 REFPARTCIRCUIT OPERATINGINDUSTRY NUMBER NUMBER APPLICATION FREQUENCY EQUIVALENT Q5348-80947V01 DC SWITCH DCDTC144W Q5448-80947V01 DC SWITCH DCDTC144W Q10148-13824A17 CHARGE PUMP6.25 kHz MMBT3906 Q10248-80214G02 CHARGE PUMP6.25 kHzMMBT3904 Q10348-13824A17 LOCK DETECTORDCMMBT3906 Q10448-80947V01 DC SWITCHDCDTC144W Q10548-80214G02 LEVEL SHIFTER6.25 kHz MMBT3904 Q15148-05128M66 RX VCO190.85-218.85 MHzMMBFU310 Q15248-13827A07 RX VCO FIRST BUFFER190.85-218.85 MHzMMBR941 Q15348-13827A07 RX VCO SECOND BUFFER190.85-218.85 MHzMMBR941 Q15448-13827A07 RX VCO FEEDBACK BUFFER190.85-218.85 MHzMMBR941 Q20148-13824A17 VOLTAGE MULTIPLIER16.8 MHzMMBT3906 Q20248-80214G02 VOLTAGE MULTIPLIER16.8 MHzMMBT3904 Q20348-80494U01 LOCK DETECTOR5 kHz DTA144W Q20448-80947V01 DC SWITCHDC DTC144W Q25148-05128M66 TX VCO146-174 MHzMMBFU310 Q25248-13827A07 TX VCO FIRST BUFFER146-174 MHz MMBR941 Q25348-13827A07 TX VCO SECOND BUFFER146-174 MHzMMBR941 Q25448-13827A07 TX VCO FEEDBACK BUFFER146-174 MHz MMBR941 Q27648-80214G02 DC FILTERDCMMBT3904 Q40148-00869619 REGULATOR PASS DEVICEDCMJE371 Q40248-80214G02 DC AMPLIFIER DCMMBT3904 Q40348-80214L03 DC SWITCHDCBCW68G Q40448-80214G02 DC SWITCH DCMMBT3904 Q45148-00869619 POWER CONTROL PASS DEVICE DCMJE371 Q45248-80214G02 POWER CONTROL DRIVERDCMMBT3904 Q45348-80214G02 CURRENT AMPLIFIERDCMMBT3904 Q50148-80947V01 DC SWITCH DCDTC144W Q90148-80947V01 DC SWITCH DCDTC144W Q90248-80214L03 DC SWITCH DCBCW68G Q90348-80947V01 DC SWITCHDCDTC144W Q90448-80947V01 DC SWITCH DC DTC144W Q90548-80947V01 DC SWITCHDC DTC144W Q90648-80947V01 DC SWITCH DCDTC144W Q90748-80947V01 DC SWITCHDCDTC144W Q90848-80947V01 DC SWITCHDCDTC144W Q90948-80947V01 DC SWITCH DCDTC144W Q91048-80947V01 DC SWITCH DCDTC144W Q91148-80947V01 DC SWITCHDCDTC144W Q91248-80947V01 DC SWITCHDCDTC144W Q91348-80494U01 DC SWITCH DCDTA144W MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 10A SHEET 3 OF 4 REFPARTCIRCUIT OPERATINGINDUSTRY NUMBER NUMBER APPLICATION FREQUENCY EQUIVALENT Q91848-80947V01 DC SWITCHDCDTC144W Q91948-80947V01 DC SWITCHDC DTC144W Q2410 48-02245J24 RF BUFFER STAGE146-174 MHz BFG35 Q2420 48-80225C23 GAIN CONTROLLED DRIVER146-174 MHzMRF237 Q2430 48-80225C18 RF PA FINAL AMPLIFIER146-174 MHzMRF2628 U151-80470U01 DOUBLE BALANCED MIXER44.85-474 MHzLRFMS-1A-17 U248-09939C04 DC SWITCH DCUMC3TL U348-09939C04 DC SWITCH DCUMC3TL U448-09939C04 DC SWITCH DC UMC3TL U5151-80605E02 RECEIVER SYSTEM44.85 MHz/455 kHzCUSTOM U5251-05663U35 RF SWITCH455 kHz4066B U5351-05663U35 RF SWITCH455 kHz4066B U10151-80154R02 RX SYNTHESIZER16.8-218.85 MHzMB15A02PF U20151-05457W72 TX SYNTHESIZER1.05-174 MHzCUSTOM U20251-80404C05 REFERENCE OSCILLATOR16.8 MHz CUSTOM U25148-09939C04 DC SWITCHDCUMC3TL U25248-09939C04 DC SWITCH DCUMC3TL U30151-05469E65 5V REGULATORDCLP2951C U30251-13806A35 SHIFT REGISTER5 kHz MC14094B U40151-02198J22 ERROR/DC AMPLIFIER DC 4558 U40251-80942T01 5V REGULATOR W/RESETDCLV387 U45151-02198J22 ERROR/DC AMPLIFIER DC4558 U45205-05226P38 D/A CONVERTER5 kHz CUSTOM U50151-09699X01 AUDIO POWER AMPLIFIERAUDIOTDA1519C U55151-80604E01 RX AUDIO FILTER 2.1 MHz CUSTOM U55251-62852A09 AUDIO LIMITERAUDIO LMC7101 U55351-80932W01 AUDIO AMP/FILTER AUDIOLM2904 U55451-80932W01 AUDIO AMP/INVERTERAUDIOLM2904 U55551-02198J22 AUDIO AMPLIFIER AUDIO4558 U55651-80932W01 AUDIO AMPLIFIER AUDIOLM2904 U55751-05663U35 AUDIO SWITCH AUDIO4066B U558 51-05663U35 AUDIO SWITCH AUDIO4066B U55951-84704M60 AUDIO SWITCHAUDIO4053B U56051-84704M60 AUDIO SWITCHAUDIO4053B U56151-80932W01 AUDIO AMPLIFIERAUDIOLM2904 U56251-13811A35 AUDIO COMPANDER AUDIOMC33111 U60151-80516U01 DATA CENTER SLICERAUDIO TA75S393F REFPARTCIRCUIT OPERATINGINDUSTRY NUMBER NUMBER APPLICATION FREQUENCY EQUIVALENT MOTOROLA INC.FCC ID: ABZ99FT3024 EXH…
Text truncated - open the document above for the full version.
MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 11 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307 (d) of CFR Title 47.
MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5 SCHEMATIC DIAGRAMS This exhibit contains schematic diagrams of the transmitter in the same general format that will appear in the service manual. These diagrams show the entire transmitter system from the microphone push-to-talk switch to the antenna. EXHIBIT 5AVolume/Microphone Board Circuits (Part of optional front cover) EXHIBIT 5BDisplay Board Circuits (Part of optional front cover) EXHIBIT 5CAudio/Logic Board Circuits (2 sheets) EXHIBIT 5DDTMF Microphone Board Circuits EXHIBIT 5EDesk Microphone Board Circuits EXHIBIT 5FRF Board Circuits (3 sheets) EXHIBIT 5GRF Power Amplifier Board Circuits MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5A VOLUME / MICROPHONE BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5B DISPLAY BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5C SHEET 1 OF 2 AUDIO/LOGIC BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5C SHEET 2 OF 2 AUDIO/LOGIC BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5D DTMF MICROPHONE BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5E DESK MICROPHONE CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 1 OF 3 RF BOARD CIRCUITS MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 2 OF 3 RF BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5F SHEET 3 OF 3 RF BOARD CIRCUITS (CON’T) MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 5G RF POWER AMPLIFIER BOARD CIRCUITS
MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 6 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A - RF Power Output (Table) EXHIBIT 6B - Transmit Audio Response (2 Graphs) (*) 6B-1 - 12.5 kHz Channel Spacing 6B-2 - 25 kHz Channel Spacing EXHIBIT 6C - Transmit Audio Post Limiter Lowpass Filter Response (2 Graphs) (*) 6C-1 - 12.5 kHz Channel Spacing 6C-2 - 25 kHz Channel Spacing EXHIBIT 6D - Modulation Limiting Characteristics (6 Graphs) (*) 6D-1 - 12.5 kHz Channel Spacing, Carrier Squelch Mode 6D-2 - 12.5 kHz Channel Spacing, Tone Private Line (TPL) Mode 6D-3 - 12.5 kHz Channel Spacing, Digital Private Line (DPL) Mode 6D-4 - 25 kHz Channel Spacing, Carrier Squelch Mode 6D-5 - 25 kHz Channel Spacing, Digital Private Line (DPL) Mode 6D-6 - 25 kHz Channel Spacing, Tone Private Line (TPL) Mode EXHIBIT 6E - Occupied Bandwidth (24 Spectrum Analyzer Plots) (*) 6E-1 - 12.5 kHz 2500 Hz Audio Modulation Only 6E-2 - 12.5 kHz 2500 Hz Audio and TPL Tone Modulation 6E-3 - 12.5 kHz 2500 Hz Audio and DPL Modulation 6E-4 - 12.5 kHz DTMF Modulation Only 6E-5 - 12.5 kHz DTMF Modulation and TPL Tone Modulation 6E-6 - 12.5 kHz DTMF Modulation and DPL Modulation 6E-7 - 12.5 kHz 2000/3000 Hz FSK Data Modulation Only 6E-8 - 12.5 kHz 2000/3000 Hz FSK Data and TPL Tone Modulation 6E-9 - 12.5 kHz 2000/3000 Hz FSK Data and DPL Modulation 6E-10 - 12.5 kHz CWID Modulation 6E-11 - 12.5 kHz CWID Modulation and TPL Tone Modulation 6E-12 - 12.5 kHz CWID Modulation and DPL Modulation 6E-13 - 25 kHz 2500 Hz Audio Modulation Only 6E-14 - 25 kHz 2500 Hz Audio and TPL Tone Modulation 6E-15 - 25 kHz 2500 Hz Audio and DPL Modulation 6E-16 - 25 kHz DTMF Modulation Only 6E-17 - 25 kHz DTMF Modulation and TPL Tone Modulation 6E-18 - 25 kHz DTMF Modulation and DPL Modulation 6E-19 - 25 kHz 2000/3000 Hz FSK Data Modulation Only 6E-20 - 25 kHz 2000/3000 Hz FSK Data and TPL Tone Modulation 6E-21 - 25 kHz 2000/3000 Hz FSK Data and DPL Modulation 6E-22 - 25 kHz CWID Modulation 6E-23 - 25 kHz CWID Modulation and TPL Tone Modulation 6E-24 - 25 kHz CWID Modulation and DPL Modulation EXHIBIT 6F - Conducted Spurious Emissions (3 Graphs) 6F-1 - 11 Watts, 146.000 MHz 6F-2 - 11 Watts, 160.000 MHz 6F-3 - 11 Watts, 174.000 MHz MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 6 Index To Submitted Measured Data (continued) EXHIBIT 6G - Radiated Spurious Emissions – 11 Watts (Graph) EXHIBIT 6H - Frequency Stability vs. Temperature (Graph) (*) EXHIBIT 6J - Frequency Stability vs. Voltage (Graph) (*) EXHIBIT 6K - Transient Frequency Behavior (4 Graphs) (*) 6K-1 - 12.5 kHz Turn On Characteristic 6K-2 - 12.5 kHz Turn Off Characteristic 6K-3 - 25 kHz Turn On Characteristic 6K-4 - 25 kHz Turn Off Characteristic EXHIBIT 6L - Line Conducted Spurious Emissions (2 Graphs) (*) 6L-1 - Receive / Standby 6L-2 - Transmit / Fan On NOTE: Items marked with (*) are from filing FCC ID ABZ99FT3023. This filing is referenced on each sheet for which it applies. MOTOROLA INCFCC ID: ABZ99FT3024 EXHIBIT 6A RF POWER OUTPUT (TABLE) HIGH-POWER SETTING, FREQUENCY 146.000 MHz Measured RF Output Power:11.0 Watts Measured DC Voltage:12.7 Volts Measured DC Current:1.75 Amperes Measured DC Input Power:22.2 Watts HIGH -POWER SETTING, FREQUENCY 160.000 MHz Measured RF Output Power:11.0 Watts Measured DC Voltage:12.6 Volts Measured DC Current:1.94 Amperes Measured DC Input Power:24.4 Watts HIGH -POWER SETTING, FREQUENCY 174.000 MHz Measured RF Output Power:11.0 Watts Measured DC Voltage:12.7 Volts Measured DC Current:1.83 Amperes Measured DC Input Power:23.2 Watts MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6B-1 Transmit Audio Response - 12.5 kHz Channel Spacing MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6B-2 Transmit Audio Response - 25 kHz Channel Spacing MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6C-1 Transmit Audio Post Limiter Lowpass Filter Response - 12.5 kHz Channel Spacing MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6C-2 Transmit Audio Post Limiter Lowpass Filter Response- 25 kHz Channel Spacing MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-1 Modulation Limiting Characteristics - 12.5 kHz Channel Spacing, Carrier Squelch Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-2 Modulation Limiting Characteristics - 12.5 kHz Channel Spacing, Tone Private Line (TPL) Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-3 Modulation Limiting Characteristics - 12.5 kHz Channel Spacing, Digital Private Line (DPL) Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-4 Modulation Limiting Characteristics - 25 kHz Channel Spacing, Carrier Squelch Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-5 Modulation Limiting Characteristics - 25 kHz Channel Spacing, Digital Private Line (DPL) Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6D-6 Modulation Limiting Characteristics - 25 kHz Channel Spacing, Tone Private Line (TPL) Mode MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-1 Occupied Bandwidth - 12.5 kHz 2500 Hz Audio Modulation Only MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-2 Occupied Bandwidth - 12.5 kHz 2500 Hz Audio and TPL Tone Modulation MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-3 Occupied Bandwidth - 12.5 kHz 2500 Hz Audio and DPL Modulation MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-4 Occupied Bandwidth - 12.5 kHz DTMF Modulation Only MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-5 Occupied Bandwidth - 12.5 kHz DTMF Modulation and TPL Tone Modulation MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-6 Occupied Bandwidth - 12.5 kHz DTMF Modulation and DPL Modulation MOTOROLA INCFCC ID: ABZ99FT3024 REF: FCC ID ABZ99FT3023 EXHIBIT 6E-7 Occupied Bandwidth - 12.5 kHz 2000/3000 Hz FSK Data Modulation Only MOTORO…
Text truncated - open the document above for the full version.
MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 7 SHEET 1 OF 6 MEASUREMENT PROCEDURE AND TEST EQUIPMENT USED Except where otherwise stated, all measurements are made following the Telecommunications Industries Association/Electronic Industries Association (TIA/EIA) “Land Mobile FM or PM Communications Equipment Measurement and Performance Standards” (TIA/EIA-603-1992). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application. 1) Test Equipment List 2) RF Power Output 3) Audio Frequency Response (*) 4) Post Limiter Lowpass Filter Response (*) 5) Modulation Limiting Characteristic (*) 6) Occupied Bandwidth (*) 7) Conducted Spurious Emissions 8) Radiated Spurious Emissions 9) Frequency Stability (*) 10) Transient Frequency Behavior (*) 11) Line Conducted Spurious Emissions (*) NOTE: Items marked with (*) have data from FCC filing ID ABZ99FT3023. MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 7 SHEET 2 OF 6 Test Equipment List Pursuant To FCC Rules 2.999 Transmitter Frequency: HP 5385A Frequency Counter with High-Stability Reference Temperature Measurement: HP 2804A Quartz Thermometer Transmitter RF Power: HP 435A Power Meter with HP 8482A Power Sensor DC Voltages and Currents: Fluke 8010A Digital Voltmeter Audio Responses: HP 8903B Audio Analyzer Deviation: HP 8901B Modulation Analyzer Transmitter Conducted Spurious and Harmonic Emissions: HP 8566B Spectrum Analyzer with HP 85685A Preselector Transmitter Occupied Bandwidth: HP 8566B Spectrum Analyzer with HP 8565A Preselector using an HP 7550A Graphics Plotter The calibration of this equipment is performed at regular intervals. Radiated Spurious and Harmonic Emissions Radiated Spurious and Harmonic Emissions were performed by: Elite Electronic Engineering Company 1516 Centre Circle Downers Grove, Illinois 60515-1082 Measurement Procedures Used for Submitted Data MOTOROLA INC.FCC ID: ABZ99FT3024 EXHIBIT 7 SHEET 3 OF 6 EXHIBIT 6A - RF Power Output vs. DC Power Input (FCC Rules Part 2.993) The transmitter is operated under normal conditions at the specified nominal dc input voltage. The antenna output is terminated in 50 Ω. The dc supply path to the final stage only is interrupted to allow insertion of a dc Ammeter in series with the dc supply. The dc voltage drop of the ammeter is negligible. A dc Voltmeter is used to measure the dc voltage applied to the final stage. The dc-input power to the final stage, in Watts, is computed as the product of the dc current (in Amperes) times the dc voltage (in Volts). This measurement is performed at the lowest, the center and the highest operating frequencies of the frequency range. EXHIBIT 6B - Transmitter Audio Frequency Response (FCC Rules Part 2.987) The transmitter output is monitored with an HP8901B Modulation Analyzer, whose FM demodulator output is fed to an HP8903B Audio Analyzer. De-emphasis or filtering within the test equipment is not used. An audio oscillator signal, derived from the HP8903B Audio Analyzer, is connected to the microphone audio input of the transmitter. At a frequency of 1 kHz, the level is adjusted to obtain 20% of full system deviation, to ensure that limiting does not occur at any frequency in the range of 300 - 3000 Hz. A constant input level is then maintained and the oscillator fre…
Text truncated - open the document above for the full version.
