Repeater XPR™ 8300 Repeater Professional Digital Two-Way Radio System Installation Guide i Foreword This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifically, it contains installation information required for the MOTOTRBO XPR 8300 Repeater. For information related to the service of the XPR 8300 Repeater, refer to the list applicable manuals available separately. This list is provided in the Related Publications section on page ii. Product Safety and RF Exposure Compliance See Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards on page i. Manual Revisions Changes which occur after this manual is printed are described in PMRs (Publication Manual Revisions). These PMRs provide complete replacement pages for all added, changed, and deleted items. To obtain PMRs, go to: http://motorola.com/businessonline Parts Ordering See Appendix A: Replacement Parts Ordering for information on how to obtain replacement parts. For part numbers, refer to the XPR 8300 Repeater Basic Service Manual (Motorola publication part number 6816810H01). Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. Document Copyrights No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. Disclaimer The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights nor the rights of others. Trademarks MOTOROLA, the Stylized M logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2006, 2007 by Motorola, Inc. i Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards ATTENTION! This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. To ensure compliance to RF Energy Safety Standards: •Install only Motorola approved antennas and accessories •Be sure that Product Safety and RF Safety Booklet enclosed with this radio is available to the end user upon completion of the installation of this radio Before using this product, the operator must be familiar with the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with each radio (Motorola Publication part number 6881095C99) to ensure compliance with Radio Frequency (RF) energy exposure limits. For a list of Motorola-approved antennas and other accessories, visit the following web site which lists approved accessories for your radio model: http://www.motorola.com/governmentandenterprise ii Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-888-567-7347 Hereby declares that the product: Model Name: XPR 8300 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relo…

Text truncated - open the document above for the full version.

Chapter 2 Mechanical Installation This section describes the procedures to unpack and mechanically install the MOTOTRBO Repeater. A variety of mounting methods are possible, depending on which type of cabinet or rack (if any) has been selected to house the repeater(s). Installation procedures are provided for each of the cabinet and rack types. 2.1Unpacking Equipment 2.2Transferring Equipment from Shipping Container to Rack or Cabinet The repeater is shipped in a box. Upon delivery, the equipment must be removed from the container and transferred to a rack or cabinet. NOTE:Customer-supplied cabinets and racks must have mounting rail and hole spacing compatible with EIA Universal 48.3 cm (19 inches) specifications. Cabinets must provide adequate ventilation (as detailed on page 3) and must meet the following criteria: - 41.3 cm (16.25 inches) deep - 48.3 cm (19 inches) wide - 13.4 cm (5.25 inches) high Two mounting rails 5 cm (2 inches) from front cabinet with front mounting holes 5.7 cm (2.25 inches) apart (center to center). Contact Motorola Technical Support for specific question(s) regarding mounting equipment in customer-supplied cabinets. Be sure to observe proper electrostatic discharge precautions if modules must be removed from the repeater. Inspect the equipment for damage immediately after unpacking, and make a report of the extent of any damage to the transportation company and to Motorola. ! C a u t i o n ! W A R N I N G ! May 20076816814H01 Notes 2-2Mechanical Installation Chapter 3 Indicators and Connectors 3.1Front Panel 3.1.1LED Indicator Descriptions LEDStatusDescription Power Solid GREENRepeater powered by AC Solid REDRepeater powered by backup battery OffRepeater powered off Repeater Disable Solid REDRepeater function disabled Blinking REDRepeater in self-test mode OffRepeater in normal operational mode Digital Solid BLUERepeater in Digital Mode AnalogSolid YELLOWRepeater in Analog Mode Tx-A Solid GREENRepeater transmitting (Analog) Solid GREENRepeater transmitting on Slot A (Digital) Rx-A Solid YELLOWRepeater receiving a signal for Slot A (Analog) Solid YELLOWRepeater receiving on Slot B (Digital) Tx-BSolid GREEN Repeater transmitting on Slot B (Digital) Rx-BSolid YELLOWRepeater receiving a signal for Slot B (Digital) May 20076816814H01 3-2Indicators and Connectors 3.2Rear Panel 3.2.1Rear Panel Parts NoItemDescription Rx ConnectorType BNC-F Power Supply On/Off Switch Turns on or off the power to the repeater from AC input. Battery Backup Connector (DC Input) Backup battery supplies backup power to the repeater. The battery is an optional accessory. The repeater will trickle charge battery, but an external charger is recommended to equalize battery after a prolonged use. Auto switching from AC to battery with loss of AC power is a function of the standard repeater power supply. Supply will automatically switch back to AC operation upon the return of AC power. The front panel power LED switches from green to red when on battery power. Power Supply FanRuns continuously. Main Power Supply Connector (AC Input) 100 – 240 Volts 26-Pin Accessory Connector Programming cable plugs in here. Ethernet Connector(For Future Use) Main Fan Variable speed. Idles at room temperature. Speeds up with extended use of the repeater. Tx ConnectorType N – F Ground ScrewMust be connected to System Ground. 1 3 2 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 Chapter 4 Electrical Connections After the MOTOTRBO Repeater has been mechanically installed, electrical connections must be made. This involves making the following connections: • to power supply via AC power cord, and to • antenna coax cables Figure 4-1 shows the position of the repeater external connectors and line cord located on the back panel. The AC power cord is also located at the rear of the repeater. Figure 4-1 Locations of External Connectors at Rear of Repeater 4.1Power Supply Connections 4.1.1AC Input Power Connection NOTE:The AC socket-outlet must be installed near the equipment and must be easily accessible. Each repeater ships with a 2.438 m (8 feet) 3-conductor line cord that connects the repeater to a 110/120/220/240Vac source. Figure 4-1 shows the location of the main power supply connector (AC input), where the line cord connects to the repeater. Insert the 3-prong plug into a 110/120/220/ 240Vac grounded outlet. If an alternate line cord is required, obtain a suitable line cord, with fittings approved by the safety testing agency in the end-use country, from a certified electrical parts supplier. Do not apply AC power to the repeater at this time. Make sure that the circuit breaker associated with the AC outlet is turned to OFF. Tx Rx GND POWER SUPPLY FAN BATTERY BACKUP CONNECTOR MAIN POWER SUPPLY CONNECTOR ETHERNET CONNECTOR GROUND SCREW TX CONNECTOR RX CONNECTOR POWER SUPPLY ON/OFF SWITCH 26-PIN ACCESSORY CONNECTOR MAIN FAN ! C a u t i o n May 20076816814H01 4-2Electrical Connections Power Supply Connections 4.1.2Ground Connection The repeater is equipped with a ground screw located on the rear of the repeater. Connect the ground screw to the site ground point. 4.1.3Battery Backup Connection The MOTOTRBO Repeater offers the capability of connecting to battery backup power in the event of an AC power failure. The battery backup system is connected to the repeater through the DC connector mounted at the rear of the repeater. The repeater power supply will trickle charge the backup battery. If the battery is significantly discharged, it is recommended that an external charger be used to charge the battery. Figure 4-2 Making Connections to a Backup Battery Refer to Motorola Quality Standards Fixed Network Equipment Installation Manual R56 (6881089E50), for complete information regarding lightning protection. The repeater is to be connected to a battery supply that is in accordance with the applicable electrical codes for the end use country; for example, the National Electrical Code ANSI/NFPA No. 70 in the U.S. The repeater is to be…

Text truncated - open the document above for the full version.

FCC ID: ABZ99FT3025 REQUEST FOR CONFIDENTIALITY Date: March 21, 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT3025 Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary or Short-Term Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential ” and Exhibit 3 (External Photos) and 9 (Internal Photos) as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, Donna Tokarz NPR Coordinator EXHIBIT 13B SHEET 1 OF 2 Tel: (847) 576-7245 Fax: (847) 538-4312 E-mail: [email protected] EXHIBIT 13B SHEET 2 OF 2

FCC ID: ABZ99FT3025 May 15, 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT3025 Dear Sir or Madam: Motorola Inc., 1313 East Algonquin Road, Schaumburg, Illinois, herein submits application for Certification of the 48 Watt UHF repeater identified by FCC ID number ABZ99FT3025. This transmitter is intended for use in a Repeater application with capabilities for conventional and 2 to 1 TDMA digital communications with a rated conducted transmit power of 48 Watts which is adjustable from 25 Watts to 54 Watts (rated +20%). The subject transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Donna Tokarz NPR Coordinator Tel: (847) 576-7245 Fax: (847) 538-4312 E-mail: [email protected] EXHIBIT 13A SHEET 1 OF 1

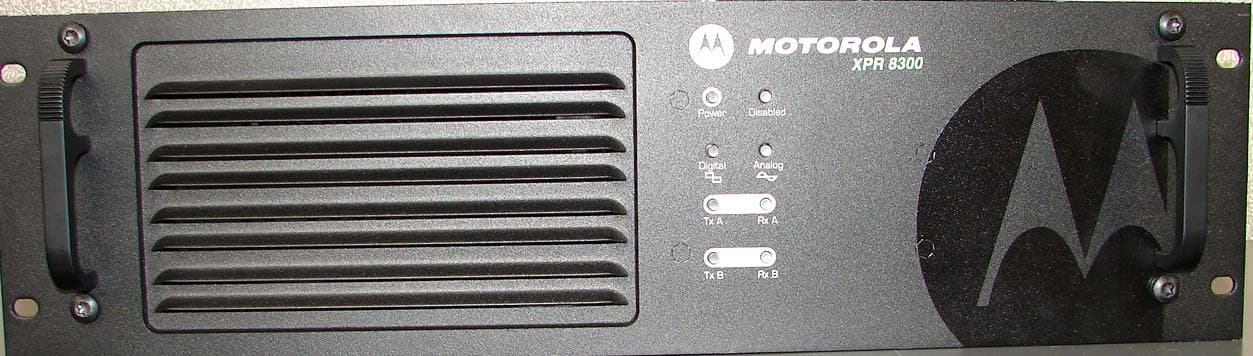

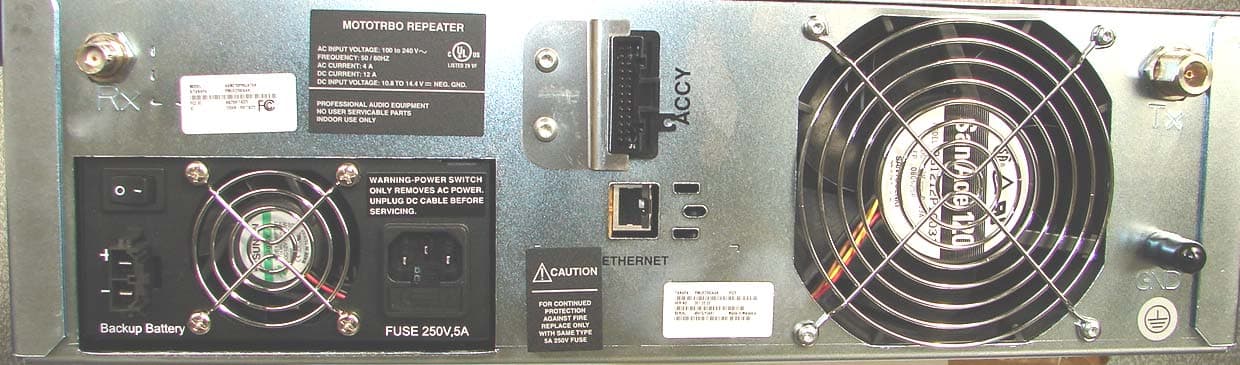

MOTOROLA INC FCC ID: ABZ99FT3025 (SHORT-TERM CONFIDENTIALITY REQUESTED) GENERAL VIEW EXHIBIT 3 SHEET 1 OF 3 MOTOROLA INC FCC ID: ABZ99FT3025 FRONT VIEW REAR VIEW, SHOWING FCC ID LABEL (CLOSE-UP OF FCC ID LABEL ON FOLLOWING PAGE) EXHIBIT 3 SHEET 2 OF 3 MOTOROLA INC FCC ID: ABZ99FT3025 CLOSE-UP VIEW OF FCC ID LABEL EXHIBIT 3 SHEET 3 OF 3

MOTOROLA INC FCC ID: ABZ99FT3025 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information 1 2.1033-(c) 11 & General Information 1A 1. Production Plans 2.1033-(c) 2. Application References 2.1061 3. Data Submittal Procedure II. Certification of Data 2 2.1517-(g) III. External Photographs 3 2.1033-(c) 12 IV. Circuit Descriptions 4 V. Schematic Diagrams 5 2.1033-(c) 10 VI. Elite Test Report etr37919-01 Rev A 6 1. Data Index 2. RF Output Data 6 (4.2.1) 3. Occupied Bandwidth 6 (4.2.2) 4. Conducted Spurious Emissions 6 (4.2.3) 5. Radiated Spurious Emissions 6 (4.2.4) 6. Frequency Stability 6 (4.2.5) 7. Transient Frequency Behavior 6 (4.2.6) VII. Test Data & Test Set-up Procedures 7 2.1041 1. Modulation Characteristics A. Audio Response & Low Pass Filter Response 7A, 7B 2.1047-(a) B. Modulation Limiting 7C 2.1047-(b) VIII. Instruction Manuals 8 2.1033-(c) 3 IX. Internal Photographs 9 2.1033-(c) 11, 12 X. Parts List and Tune-up Procedures 10 2.1033-(c) 9, 10 XI. RF Exposure Information 11 2.1091 XII. Operational Description 12 2.1033-(c) 4, 5 1. Technical Characteristics 2. Application XIII. Cover Letter 13 EXHIBIT 1 SHEET 1 OF 2 MOTOROLA INC FCC ID: ABZ99FT3025 IDENTIFICATION LABEL Pursuant to 47 CFR 2.1033(c) LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the left rear portion of the unit. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. EXHIBIT 1 SHEET 2 OF 2 MOTOROLA INC FCC ID: ABZ99FT3025 EXHIBIT 1A – GENERAL INFORMATION 1. Production Plans – Pursuant 2.1033 (c) Quantity production is planned. 2. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, and Part 90 Sec. 90.210. 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 90. Maximum transmitter power shall not be adjustable by the user. EXHIBIT 1A SHEET 1 OF 1

MOTOROLA INC FCC ID: ABZ99FT3025 (SHORT-TERM CONFIDENTIALITY REQUESTED) TOP VIEW OF WITH TOP COVER REMOVED EXHIBIT 3 SHEET 1 OF 4 MOTOROLA INC FCC ID: ABZ99FT3025 TOP VIEW WITH CIRCUIT BOARD REMOVED FROM CHASSIS (MATING SURFACES OF CIRCUIT BOARD AND CHASSIS ARE SHOWN) EXHIBIT 3 SHEET 2 OF 4 MOTOROLA INC FCC ID: ABZ99FT3025 TOP VIEW OF FRONT PANEL LED BOARD EXHIBIT 3 SHEET 3 OF 4 MOTOROLA INC FCC ID: ABZ99FT3025 TOP VIEW OF BACK PANEL BOARD EXHIBIT 3 SHEET 4 OF 4

MOTOROLA INC. FCC ID: ABZ99FT3025 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307(d) of CFR Title 47. EXHIBIT 11

MO Engineering Test Report No. 37919-01 Rev. A Measurement of RF Interference from a Model AAM27JQR9JA7AN, MOTOTRBO Repeater For : Motorola Inc. Rolling Meadows, IL 60008 P.O. No. : NP3210925 Date Received : March 6, 2007 Date Tested : March 6 through 29, 2007 Test Personnel: Richard E. King Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart B and Part 90, Subpart I RSS-119 - Land Mobile and Fixed Radio Transmitters and Receivers Operating in The Frequency Range 27.41- 960 MHz Test Report By : Richard E. King Witnessed by : Skip Allison Motorola Inc. Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 37919-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 147 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION .................................................................................................................................5 1.1 Description of Test Item....................................................................................................................5 1.2 Purpose ...........................................................................................................................................5 1.3 Deviations, Additions and Exclusions................................................................................................5 1.4 Applicable Documents......................................................................................................................5 1.5 EMC Laboratory Identification...........................................................................................................6 1.6 Laboratory Conditions .....................................................................................................................6 2.0 TEST ITEM SETUP AND OPERATION................................................................................................6 2.1 Power Input......................................................................................................................................6 2.2 Grounding........................................................................................................................................6 2.3 Peripheral Equipment.......................................................................................................................6 2.4 Interconnect Cables.........................................................................................................................6 2.5 Operational Mode.............................................................................................................................6 2.6 Test Item Modifications ...................................................................................................................6 3.0 TEST EQUIPMENT..............................................................................................................................7 3.1 Test Equipment List..........................................................................................................................7 3.2 Calibration Traceability ...................................................................................................................7 3.3 Measurement Uncertainty ...............................................................................................................7 4.0 REQUIREMENTS, PROCEDURES AND RESULTS ............................................................................7 4.1 Receiver .........................................................................................................................................7 4.1.1 Powerline Conducted Emissions.............................................................................................7 4.1.1.1 Requirements ....................................................................................................................7 4.1.1.2 Procedures .......................................................................................................................8 4.1.2 Antenna Conducted Emissions Measurements .......................................................................8 4.1.2.1 Requirements ....................................................................................................................8 4.1.2.2 Procedures ........................................................................................................................8 4.1.2.3 Results ..............................................................................................................................8 4.1.3 Radiated Measurements ..........................................................................................................9 4.1.3.1 Requirements ....................................................................................................................9 4.1.3.2 Procedures ........................................................................................................................9 4.1.3.3 Results ............................................................................................................................10 4.2 Transmitter ....................................................................................................................................10 4.2.1 RF Power Output ...................................................................................................................10 4.2.1.1 Requirements...................................................................................................................10 4.2.1.2 Procedures...................................................................................................................…

Text truncated - open the document above for the full version.

TEST SET-UP PROCEDURES AND TEST EQUIPMENT USED Pursuant to 47 CFR 2.1041 Measurements are made per FCC's CFR 47 Rule Part 2 or Telecommunications Industries Association/Electronic Industries Association (TIA/EIA) “Land Mobile FM or PM Communications Equipment Measurement and Performance Standards” (TIA/EIA-603-C) as noted. This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application: 1) Test Equipment List 2) Transmit Audio Frequency Response 3) Post Limiter Lowpass Filter Response 4) Modulation Limiting Characteristic EXHIBIT 7 SHEET 1 OF 4 Test Equipment List Pursuant to 47 CFR 2.1033(c) The following test equipment was used to perform the measurements of the submitted data. The calibration of this equipment is performed at regular intervals. Transmitter Frequency: HP 5385A Frequency Counter with High-Stability Reference Temperature Measurement: HP 2804A Quartz Thermometer Transmitter RF Power: HP 438A Power Meter with HP 8482A Power Sensor DC Voltages and Currents: Fluke 8010A Digital Voltmeter Transmit Audio Responses: HP 8901A Modulation Analyzer, HP 8903B Audio Analyzer, HP 6621A System DC Power Supply, PC with Labview Transmit Audio Lowpass Splatter Filter Response: HP E4431B Signal Generator, HP 8903B Audio Analyzer, Rohde & Schwarz UPV Audio Analyzer, HP 6621A System DC Power Supply, PC with Labview Modulation Limiting Characteristic: HP 8657A Signal Generator, HP 8903B Audio Analyzer, HP 8901B Modulation Analyzer HP 6542A Power Supply EXHIBIT 7 SHEET 2 OF 4 Measurement Procedures Used for Submitted Data EXHIBIT 7A - Transmitter Audio Frequency Response – Pursuant to 47 CFR 2.1047(a) The transmitter output is monitored with an HP 8901B Modulation Analyzer, whose FM demodulator output is fed to an HP 8903B Audio Analyzer. De-emphasis is disabled and filtering above 15 kHz, internal to the test equipment, is used. An audio oscillator signal, derived from the HP 8903B Audio Analyzer, is connected to the microphone audio input of the transmitter. At a frequency of 1 kHz, the level is adjusted to obtain 20% of full system deviation to ensure that limiting does not occur at any frequency in the range of 300 Hz - 3000 Hz. A constant input level is then maintained and the oscillator frequency is varied between the range of 100 Hz to 5000 Hz. The frequency response is plotted, using a reference of 0 dB at 1 kHz. Note: This measurement was duplicated from FCC ID: ABZ99FT3082 filing because both radios share the identical Transmitter. EXHIBIT 7B - Transmitter Audio Post Limiter Lowpass Filter Response – Pursuant to 47 CFR 2.1047(a) The audio oscillator portion of an HP 8903B Audio Analyzer is connected to the input of the post limiter lowpass filter. The output of the lowpass filter (OMAP TX SSI) is measured with the Rohde & Schwarz UPV Audio Analyzer. The response is swept between the limits of 100 Hz and 30 kHz. Oscillator level is chosen to be the as high as possible that will not cause limiting at any frequency, and is maintained constant vs. frequency. Note: This measurement was duplicated from FCC ID: ABZ99FT3082 filing because both radios share the identical Transmitter. EXHIBIT 7C - Modulation Limiting Characteristic – Pursuant to 47 CFR 2.1047(b) An audio oscillator is connected to the microphone audio input. The transmitter output is monitored with an HP 8901B Modulation Analyzer. The flat frequency response FM demodulator output of the HP 8901B is fed to an HP 8903B Audio Analyzer. The 20 kHz lowpass filter of the modulation analyzer is used to reduce the level of residual high frequency noise. The oscillator level is adjusted at 1 kHz to obtain 60% of full-system deviation. The oscillator level is then varied over a range of ±20 dB in 5 dB increments, and the resulting deviation is plotted. This measurement is repeated at 300 Hz and 3 kHz. The above procedure is performed four times, for conditions with Tone Private Line, Digital Private Line, Trunking (these are continuous subaudible signaling formats), and without subaudible signalling (referred to as “carrier squelch mode”). . Note: This measurement was duplicated from FCC ID: ABZ99FT3082 filing because both radios share the identical Transmitter. EXHIBIT 7 SHEET 3 OF 4 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 7A - Transmit Audio Response (2 Graphs) 7A-1 – 12.5 kHz Channel Spacing 7A-2 – 25 kHz Channel Spacing EXHIBIT 7B - Transmit Audio Post Limiter Lowpass Filter Response (Graph) EXHIBIT 7C - Modulation Limiting Characteristics (6 Graphs) 7C-1 – 12.5 kHz Carrier Squelch Mode 7C-2 – 12.5 kHz Tone Private Line (CTCSS) Mode 7C-3 – 12.5 kHz Digital Private Line (CDCSS) Mode 7C-4 – 25 kHz Carrier Squelch Mode 7C-5 – 25 kHz Tone Private Line (CTCSS) Mode 7C-6 – 25 kHz Digital Private Line (CDCSS) Mode EXHIBIT 7 SHEET 4 OF 4 TRANSMIT AUDIO RESPONSE 12.5 kHz CHANNEL SPACING EXHIBIT 7A-1 TRANSMIT AUDIO RESPONSE 25 kHz CHANNEL SPACING EXHIBIT 7A-2 POST-LIMITER LOWPASS FILTER RESPONSE EXHIBIT 7B MODULATION LIMITING CHARACTERISTIC 12.5 kHz CARRIER SQUELCH MODE 12.5 kHz Channel Spacing TX Modulation Limiting - CSQ Mode 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (kHz ) 300 Hz Audio 1 kHz Audio 3 kHz Audio Limit EXHIBIT 7C-1 MODULATION LIMITING CHARACTERISTIC 12.5 kHz TONE PL MODE 12.5 kHz Channel Spacing TX Modulation Limiting - TPL Mode 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (kHz ) 300 Hz Audio 1 kHz Audio 3 kHz Audio Limit EXHIBIT 7C-2 MODULATION LIMITING CHARACTERISTIC 12.5 kHz DPL MODE 12.5 kHz Channel Spacing TX Modulation Limiting - DPL Mode 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (kHz ) 300 Hz Audio 1 kHz Audio 3 kHz Audio Limit EXHIBIT 7C-3 MODULATION LIMITING CHARACTERISTIC 25 kHz CARRIER SQUELCH MODE 25…

Text truncated - open the document above for the full version.
