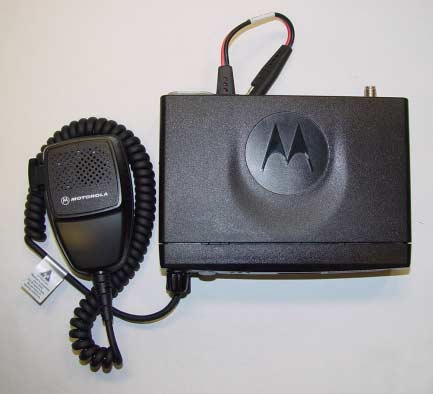

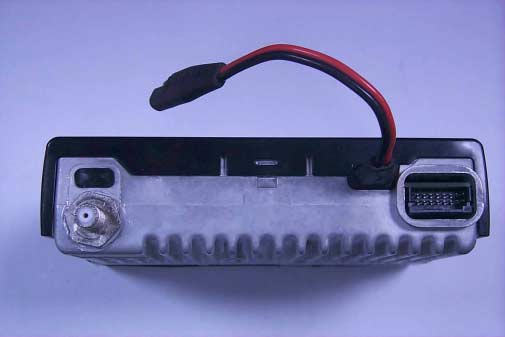

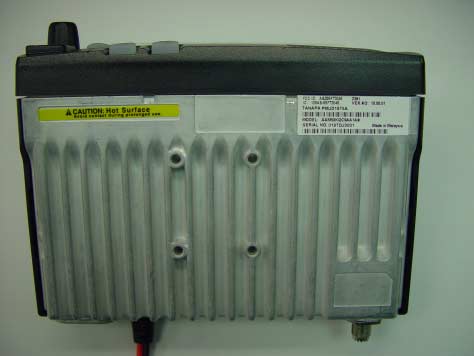

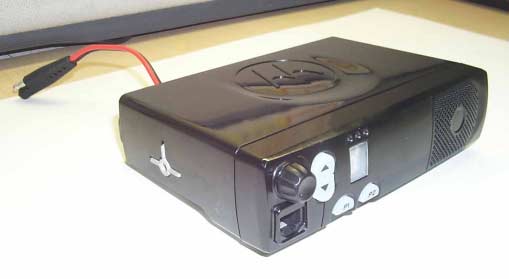

ABZ99FT3046CM200 VHF 45 Watt Mobile Radio

CM200 ™ Commercial SeriesTwo-Way Radio User GuideManuel de l'utilisateurde la radio bidirectionnelle MOTOROLA, the Stylized M Logo, and Radius are registered in the US Patent & Trademark Office.All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. All rights reserved. Printed in U.S.A.MOTOROLA, le logotype au M stylisé et Radius sont enregistrés auprès du Bureau des marques et brevets des États-Unis.Tous les autres noms de produits et de services sont la propriété de leurs titulaires respectifs.© Motorola, Inc. 2002. Tous droits réservés. Imprimé aux États-Unis. *6802966C30*6802966C30-O 66C30-O_cvr.qxd 1/9/2003 11:08 AM Page 1 1 English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . . 2Safety and Warranty . . . . . . . . . . . . . . . . . . 3Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 3 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . 4Radio Overview . . . . . . . . . . . . . . . . . . . . . . 9Parts of the Radio . . . . . . . . . . . . . . . . . . . . . 9 Optional Enhanced Keypad Microphone (RMN5029) . . . . . . . . . . . . . . . . . . . . . 10 On/Off/Volume Knob . . . . . . . . . . . . . . . 11Seven Segment Display. . . . . . . . . . . . . 11Channel Selector Buttons . . . . . . . . . . . 11LED Indicators . . . . . . . . . . . . . . . . . . . . 11Programmable Buttons . . . . . . . . . . . . . 12Push-to-Talk (PTT) Button . . . . . . . . . . . 12Microphone . . . . . . . . . . . . . . . . . . . . . . 12Use with Enhanced Keypad Microphone (RMN5029) . . . . . . . . . . . . . . . . . . . . . 12 Indicator Tones . . . . . . . . . . . . . . . . . . . . . . 14Improved Audio Features . . . . . . . . . . . . . . 14 Companding. . . . . . . . . . . . . . . . . . . . . . 14 Getting Started . . . . . . . . . . . . . . . . . . . . . . 15Turning the Radio On or Off . . . . . . . . . . . . . 15Adjusting the Volume . . . . . . . . . . . . . . . . . . 15Selecting a Radio Channel . . . . . . . . . . . . . . 15Sending a Call . . . . . . . . . . . . . . . . . . . . . . . 16Receiving a Call . . . . . . . . . . . . . . . . . . . . . . 16Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . 16VOX Operation . . . . . . . . . . . . . . . . . . . . . . . 17Radio Calls . . . . . . . . . . . . . . . . . . . . . . . . . 19Selective Radio Inhibit . . . . . . . . . . . . . . . . . 19Repeater or Talkaround Mode . . . . . . . . . . . 19Setting the Power Level . . . . . . . . . . . . . . . . 19Setting Tight or Normal Squelch. . . . . . . . . . 20Receiving a Selective Call . . . . . . . . . . . . . . 20Receiving a Call Alert Page . . . . . . . . . . . . . 20Setting Local or Distance Mode . . . . . . . . . . 20Sending DTMF Tones . . . . . . . . . . . . . . . . . 21Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Starting or Stopping Scan. . . . . . . . . . . . . . . 23Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Deleting a Nuisance Channel . . . . . . . . . . . . 24 Restoring a Channel to the Scan List . . .24 EnglishTOC.fm Page 1 Thursday, December 12, 2002 2:12 PM 2 English CONTENTS Accessories . . . . . . . . . . . . . . . . . . . . . . . .25Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Alarm and Accessories . . . . . . . . . . . . . . . . .25Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . .26Control Station . . . . . . . . . . . . . . . . . . . . . . .26Public Address . . . . . . . . . . . . . . . . . . . . . . .26Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .27Data - CES . . . . . . . . . . . . . . . . . . . . . . . . . .27 COMPUTER SOFTWARE COPYRIGHTSThe Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. EnglishTOC.fm Page 2 Thursday, December 12, 2002 2:12 PM 3 English SAFETY AND WARRANTY SAFETY AND WARRANTY PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number pending) to ensu re compli ance with RF energy exposure limits. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/index.shtml. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 08_SafetyNA.fm Page 3 Tuesday, December 3, 2002 11:25 AM 4 English SAFETY AND WARRANTY LIMITED WARRANTY MOTOROLA COMMUNICATION PRODUCTS I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication Products listed below (“P roduct”) against de…

Text truncated - open the document above for the full version.

English Product Safety and RF Exposure for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n © Motorola, Inc. 2002 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 7/02.

PART NUMBER PENDING 95C99-O.book Page 1 Tuesday, July 16, 2002 12:45 PM 2 English Federal Communication Commission Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from mobile two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before mobile two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by education or training through appropriate means such as information and instructions in user manuals or safety booklets, or other appropriate means. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 95C99-O.book Page 2 Tuesday, July 16, 2002 12:45 PM 3 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” 95C99-O.book Page 3 Tuesday, July 16, 2002 12:45 PM Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed in Vehicles To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: • To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Transmit only when people outside the vehicle are at least the minimum lateral distance away (as shown in the table below) from a properly installed, externally-mounted antenna, and from the vehicle body. The table below lists the minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna at several different ranges of rated radio power for mobile radios installed in a vehicle. Rated Power of Vehicle-Installed Mobile Two-way Radio Minimum Lateral Distance from Transmitting Antenna Less than 7 watts 8 inches (20 centimeters) 7 to 15 watts 1 foot (30 centimeters) 16 to 50 watts 2 feet (60 centimeters) 51 to 110 watts 3 feet (90 centimeters) The table below lists the minimum lateral distance for bystanders in an uncontrolled environment from the vehicle body. Rated Power of Vehicle-Installed Mobile Two-way Radio Minimum Lateral Distance from Vehicle Body Any 8 inches (20 centimeters) • Install mobile antennas at the center of the roof or the center of the trunk deck. These mobile antenna installation guidelines are limited to metal body vehicles. The antenna installation must additionally be in accordance with: - The requirements of the antenna manufacturer/supplier - Instructions in the Radio Installation Manual 4 5 English Use only the Motorola-approved, supplied antenna or a Motorola- approved replacement antenna. Use of non–Motorola-approved antennas, modifications, or attachments could damage the radio and may violate FCC regulations. • For a list of Motorola-approved antennas, visit the following web site: http://www.motorola.com/cgiss/index.shtml . For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed as Fixed Site Control Stations If mobile radio equipment is installed at a fixed location and operated as a control station or as a fixed unit, the antenna installation must comply with the following requirements in order to ensure optimal performance and compliance with the RF energy exposure limits in the standards and guidelines li…

Text truncated - open the document above for the full version.

CM200 ™ Commercial SeriesTwo-Way Radio Installation Guide MOTOROLA, the Stylized M Logo, and Radius are registered in the US Patent & Trademark Office.All other product or service names are the property of their respective owners. © 2002 Motorola, Inc. All rights reserved. Printed in U.S.A. *6802966C25*68P02966C25-O i Table of Contents Product Safety and RF Exposure Compliance........................ iii Information for Vehicles with Electronic Anti-Lock/Anti-Skid Brakes .......................................iv Installation Warnings .............................................................................................iv Installation Precautions ..........................................................................................iv Braking System Tests ............................................................................................iv Chapter 1Introduction 1.1 General Information ............................................................................................... 1 1.2 Plan the Installation ............................................................................................... 1 Chapter 2DC Power Cable Installation 2.1 Planning the Power Cable Installation ................................................................... 2 2.2 Power Cable Installation Procedure ...................................................................... 2 Chapter 3Trunnion Installation 3.1 Planning the Mounting Trunnion Installation .......................................................... 5 3.2 Trunnion Installation Procedure ............................................................................. 5 Chapter 4Antenna Installation 4.1 Mobile Radio Operation and EME Exposure ......................................................... 8 4.2 Selecting an Antenna Site ..................................................................................... 8 4.3 Antenna Installation Procedure .............................................................................. 9 4.4 Completing the Installation .................................................................................... 9 Chapter 5Installation Options 5.1 Mobile Dashboard Mounting ................................................................................ 10 5.1.1 Installing the Mounting Frame into the Dashboard ................................ 10 5.1.2 Inserting the Radio into the Mounting Frame ................... ..................... 10 5.1.3Removing the Radio from the Mounting Frame ..................................... 11 ii 5.2 External Speaker Installation ...............................................................................11 5.3 Visor Microphone Installation ...............................................................................12 5.3.1Connecting to the Mobile Radio ............................................................. 12 Chapter 6Accessory Connections 6.1 Accessory Connector Pin Functions ....................................................................13 6.2 Connection Plan for Accessories .........................................................................15 Chapter 7Noise Sources 7.1 Introduction ..........................................................................................................16 7.2 Radiated Noise .....................................................................................................16 7.3 Conducted Noise ..................................................................................................17 7.4 Induced Noise ......................................................................................................17 Chapter 8Operation of a Conventional Ignition System 8.1 Introduction ..........................................................................................................18 8.2 Sources of Ignition Interference ...........................................................................18 Chapter 9Detection of Noise Sources 9.1 Noise Detection Procedure ..................................................................................20 9.2 Sources of Noise ..................................................................................................21 Chapter 10Noise Reduction Techniques 10.1 General ................................................................................................................22 10.2 Ignition System Interference ................................................................................22 10.2.1 Engine Maintenance and Tune-Up......................................................... 22 10.2.2 Available Noise Reduction Kits .............................................................. 22 10.2.3 Ignition Coil Interference ........................................................................ 23 10.2.4 Distributor Interference ........................................................................... 23 10.2.5 Battery Connections ............................................................................... 23 10.3 Alternator ..............................................................................................................24 10.4 Voltage Regulator Noise ......................................................................................25 10.5 Hood and Trunk Lid Noise ...................................................................................25 10.6 Other Electrical Noises .........................................................................................25 10.7 Ground Bonding ...................................................................................................26 Safety-iii PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publicati…

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. © Motorola, Inc. 2003 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 8/03. *6881095C99* 68P81095C99-A 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola 2-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of 2-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile 2-way radios before they can be marketed in the U.S. When 2-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola 2-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular, and PCS product certification.” RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are not met. Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio 5 English generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). •Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away, as shown in Table 1, from the body of a vehicle with a properly installed antenna. This separation distance will ensure that there is sufficient distance f…

Text truncated - open the document above for the full version.

Radius CM200 ™ /CM300 ™ & PM400 ™ Commercial SeriesTwo-Way Radio Installation Guide MOTOROLA, the Stylized M Logo, and Radius are registered in the US Patent & Trademark Office.All other product or service names are the property of their respective owners. © 2002, 2003 Motorola, Inc. All rights reserved. Printed in U.S.A. *6802966C25*68P02966C25-A i Table of Contents Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards ............ iii Information for Vehicles with Electronic Anti-Lock/Anti-Skid Brakes .......................................iv Installation Warnings .............................................................................................iv Installation Precautions ..........................................................................................iv Braking System Tests ............................................................................................iv Chapter 1Introduction 1.1 General Information ............................................................................................... 1 1.2 Plan the Installation ............................................................................................... 1 Chapter 2DC Power Cable Installation 2.1 Planning the Power Cable Installation ................................................................... 2 2.2 Power Cable Installation Procedure ...................................................................... 2 Chapter 3Trunnion Installation 3.1 Planning the Mounting Trunnion Installation .......................................................... 5 3.2 Trunnion Installation Procedure ............................................................................. 5 Chapter 4Antenna Installation 4.1 Antenna Installation and Compliance with Radio Frequncy (RF) Energy Safety Standards................................................................................ 8 4.2 Selecting an Antenna Site/Location on a Metal Body Vehicle ................................ 8 4.3 Antenna Installation Procedure .............................................................................. 9 4.4 Completing the Installation .................................................................................... 9 Chapter 5Installation Options 5.1 Mobile Dashboard Mounting ................................................................................ 10 5.1.1Installing the Mounting Frame into the Dashboard ................................. 10 ii 5.1.2Inserting the Radio into the Mounting Frame (Figure 5.1)...................... 10 5.1.3Removing the Radio from the Mounting Frame ..................................... 11 5.2 External Speaker Installation ...............................................................................11 5.3 Visor Microphone Installation ...............................................................................12 5.3.1Connecting to the Mobile Radio ............................................................. 12 Chapter 6Accessory Connections 6.1 Accessory Connector Pin Functions ....................................................................13 6.2 Connection Plan for Accessories .........................................................................15 Chapter 7Noise Sources 7.1 Introduction ..........................................................................................................16 7.2 Radiated Noise .....................................................................................................16 7.3 Conducted Noise ..................................................................................................17 7.4 Induced Noise ......................................................................................................17 Chapter 8Operation of a Conventional Ignition System 8.1 Introduction ..........................................................................................................18 8.2 Sources of Ignition Interference ...........................................................................18 Chapter 9Detection of Noise Sources 9.1 Noise Detection Procedure ..................................................................................20 9.2 Sources of Noise ..................................................................................................21 Chapter 10Noise Reduction Techniques 10.1 General ................................................................................................................22 10.2 Ignition System Interference ................................................................................22 10.2.1 Engine Maintenance and Tune-Up......................................................... 22 10.2.2 Available Noise Reduction Kits .............................................................. 22 10.2.3 Ignition Coil Interference ........................................................................ 23 10.2.4 Distributor Interference ........................................................................... 23 10.2.5 Battery Connections ............................................................................... 23 10.3 Alternator ..............................................................................................................24 10.4 Voltage Regulator Noise ......................................................................................25 10.5 Hood and Trunk Lid Noise ...................................................................................25 10.6 Other Electrical Noises .........................................................................................25 10.7 Ground Bonding ...................................................................................................26 Safety-iii INSTALLATION REQUIREMENTS FOR COMPLIANCE WITH RADIO FREQUENCY (RF) ENERGY EXPOSURE SAFETY STANDARDS ATTENTION! This radio is intended for use in occupational/controlled conditions, where users have full knowledge of th…

Text truncated - open the document above for the full version.
