ABZ99FT4025MOTOTRBO UHF 40W Transceiver/Repeater

FCC ID: ABZ99FT4025 REQUEST FOR CONFIDENTIALITY Date: May 11, 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT4025 Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary or Short-Term Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential ” and Exhibit 3 (External Photos) and 9 (Internal Photos) as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, Donna Tokarz NPR Coordinator EXHIBIT 13B SHEET 1 OF 1 Tel: (847) 576-7245 Fax: (847) 538-4312 E-mail: [email protected] EXHIBIT 13B SHEET 2 OF 1

FCC ID: ABZ99FT4025 Date: May 10, 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT4025 Dear Sir or Madam: Motorola Inc., 1313 East Algonquin Road, Schaumburg, Illinois, herein submits application for Certification of the 40 Watt UHF repeater identified by FCC ID number ABZ99FT4025. This transmitter is primarily intended for use in a Repeater application with capabilities for conventional and 2 to 1 TDMA digital communications with a conducted transmit power which is adjustable from 25 Watts (+43.98 dBm) to 48 Watts (+46.81 dBm). The subject transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Donna Tokarz NPR Coordinator Tel: (847) 576-7245 Fax: (847) 538-4312 E-mail: [email protected] EXHIBIT 13A SHEET 1 OF 1

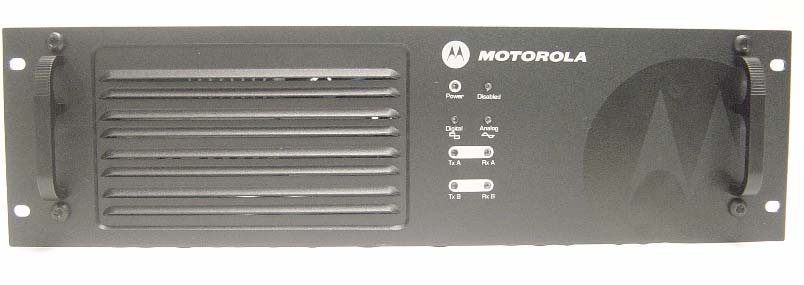

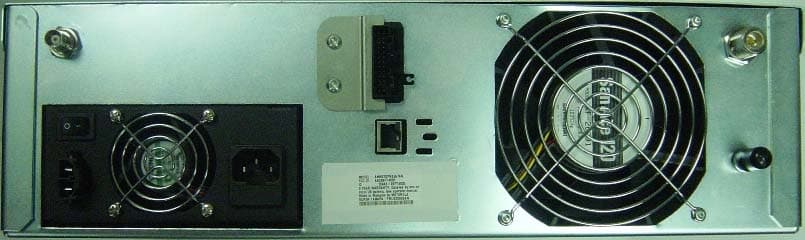

MOTOROLA INC FCC ID: ABZ99FT4025 Exhibit 3 (SHORT TERM CONFIDENTIALITY REQUESTED) GENERAL VIEW EXHIBIT 3 SHEET 1 OF 5 MOTOROLA INC FCC ID: ABZ99FT4025 FRONT VIEW REAR VIEW, SHOWING FCC ID LABEL (CLOSE-UP OF FCC ID LABEL ON FOLLOWING PAGE) EXHIBIT 3 SHEET 2 OF 5 MOTOROLA INC FCC ID: ABZ99FT4025 CLOSE-UP VIEW OF FCC ID LABEL EXHIBIT 3 SHEET 3 OF 5

MOTOROLA INC FCC ID: ABZ99FT4025 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information 1 2.1033-(c) 11 & General Information 1A 1. Production Plans 2.1033-(c) 2. Application References 2.1061 3. Data Submittal Procedure II. Certification of Data 2 2.1517-(g) III. External Photographs 3 2.1033-(c) 12 IV. Circuit Descriptions 4 V. Schematic Diagrams 5 2.1033-(c) 10 VI. Test Report 1. Data Index 6 2. RF Output Data 6A 2.1046 3. Modulation Characteristics A. Audio Response & Low Pass Filter Response 6B(*), 6C(*) 2.1047-(a) B. Modulation Limiting 6D(*) 2.1047-(b) 4. Occupied Bandwidth 6E(*) 2.1049 5. Conducted Spurious Emissions 6F 2.1051 6. Radiated Spurious Emissions 6G 2.1053 7. Frequency Stability A. Frequency Stability vs. Temperature 6H-1 2.1055 B. Frequency Stability vs. Supply Voltage 6H-2 2.1055 8. Transient Frequency Behavior 6I(*) 90.214 VII. Test Set-up Procedures 7 2.1041 VIII. Instruction Manuals 8 2.1033-(c) 3 IX. Internal Photographs 9 2.1033-(c) 11, 12 X. Parts List and Tune-up Procedures 10 2.1033-(c) 9, 10 XI. RF Exposure Information 11 2.1091 XII. Operational Description 12 2.1033-(c) 4, 5 1. Technical Characteristics 2. Application XIII. Cover Letter 13 NOTE: Items marked with (*) are from FCC filing ID ABZ99FT4080 EXHIBIT 1 SHEET 1 OF 2 MOTOROLA INC FCC ID: ABZ99FT4025 IDENTIFICATION LABEL Pursuant to 47 CFR 2.1033(c) LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the left rear portion of the unit. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. EXHIBIT 1 SHEET 2 OF 2 MOTOROLA INC FCC ID: ABZ99FT4025 EXHIBIT 1A – GENERAL INFORMATION 1. Production Plans – Pursuant 2.1033 (c) Quantity production is planned. 2. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, and Part 90 Sec. 90.210. 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 90. Maximum transmitter power shall not be adjustable by the user. EXHIBIT 1A SHEET 1 OF 1

MOTOROLA INC FCC ID: ABZ99FT4025 Exhibit 9 (SHORT TERM CONFIDENTIALITY REQUESTED) TOP VIEW OF WITH TOP COVER REMOVED EXHIBIT 3 SHEET 1 OF 4 MOTOROLA INC FCC ID: ABZ99FT4025 TOP VIEW WITH CIRCUIT BOARD REMOVED FROM CHASSIS (MATING SURFACES OF CIRCUIT BOARD AND CHASSIS ARE SHOWN) EXHIBIT 3 SHEET 2 OF 4 MOTOROLA INC FCC ID: ABZ99FT4025 TOP VIEW OF FRONT PANEL LED BOARD EXHIBIT 3 SHEET 3 OF 4 MOTOROLA INC FCC ID: ABZ99FT4025 TOP VIEW OF BACK PANEL BOARD EXHIBIT 3 SHEET 4 OF 4

MOTOROLA INC. FCC ID: ABZ99FT4025 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307(d) of CFR Title 47. EXHIBIT 11

MOTOROLA INC. FCC ID: ABZ99FT4025 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A - RF Power Output (Table) EXHIBIT 6B - Transmit Audio Response (2 Graphs) 6B-1 – 12.5 kHz Channel Spacing 6B-2 – 25 kHz Channel Spacing EXHIBIT 6C - Transmit Audio Post Limiter Lowpass Filter Response (Graph) EXHIBIT 6D - Modulation Limiting Characteristics (6 Graphs) 6D-1 – 12.5 kHz Carrier Squelch Mode 6D-2 – 12.5 kHz Tone Private Line (CTCSS) Mode 6D-3 – 12.5 kHz Digital Private Line (CDCSS) Mode 6D-4 – 25 kHz Carrier Squelch Mode 6D-5 – 25 kHz Tone Private Line (CTCSS) Mode 6D-6 – 25 kHz Digital Private Line (CDCSS) Mode EXHIBIT 6E - Occupied Bandwidth (20 Spectrum Analyzer Plots) 6E-1 – 12.5 kHz 2500 Hz Audio Modulation Only 6E-2 – 12.5 kHz 2500 Hz Audio and TPL (CTCSS) Modulation 6E-3 – 12.5 kHz 2500 Hz Audio and DPL (CDCSS) Modulation 6E-4 – 12.5 kHz DTMF Modulation Only 6E-5 – 12.5 kHz DTMF Modulation and TPL (CTCSS) Modulation 6E-6 – 12.5 kHz DTMF Modulation and DPL (CDCSS) Modulation 6E-7 – 12.5 kHz 2000/3000 Hz FSK Data Modulation Only 6E-8 – 12.5 kHz 2000/3000 Hz FSK Data and TPL (CTCSS) Modulation 6E-9 – 12.5 kHz 2000/3000 Hz FSK Data and DPL (CDCSS) Modulation 6E-10 – 12.5 kHz 4-Level FSK Digital Data 6E-11 – 12.5 kHz 4-Level FSK Digital Voice and Data 6E-12 – 25 kHz 2500 Hz Audio Modulation Only 6E-13 – 25 kHz 2500 Hz Audio and TPL (CTCSS) Modulation 6E-14 – 25 kHz 2500 Hz Audio and DPL (CDCSS) Modulation 6E-15 – 25 kHz DTMF Modulation Only 6E-16 – 25 kHz DTMF Modulation and TPL (CTCSS) Modulation 6E-17 – 25 kHz DTMF Modulation and DPL (CDCSS) Modulation 6E-18 – 25 kHz 2000/3000 Hz FSK Data Modulation Only 6E-19 – 25 kHz 2000/3000 Hz FSK Data and TPL (CTCSS) Modulation 6E-20 – 25 kHz 2000/3000 Hz FSK Data and DPL (CDCSS) Modulation EXHIBIT 6F - Conducted Spurious Emissions (6 Graphs) 6F-1 – 48 Watts, 403.000 MHz 6F-2 – 48 Watts, 436.500 MHz 6F-3 – 48 Watts, 470.000 MHz 6F-4 – 25 Watts, 403.000 MHz 6F-5 – 25 Watts, 436.500 MHz 6F-6 – 25 Watts, 470.000 MHz EXHIBIT 6A MOTOROLA INC. FCC ID: ABZ99FT4025 INDEX OF SUBMITTED MEASURED DATA (CONTINUED) EXHIBIT 6G – Radiated Spurious Emissions – (24 Graphs) 6G-1 – RX, 403MHz, vertical 30MHz-1GHz span 6G-2 – RX, 403MHz, horizontal 30MHz-1GHz span 6G-3 – RX, 403MHz, horizontal 1GHz-2GHz span 6G-4 – RX, 403MHz, vertical 1GHz-2GHz span 6G-5 – RX, 436MHz, vertical 30MHz-1GHz span 6G-6 – RX, 436MHz, horizontal 30MHz-1GHz span 6G-7 – RX, 436MHz, horizontal 1GHz-2GHz span 6G-8 – RX, 436MHz, vertical 1GHz-2GHz span 6G-9 – RX, 470MHz, vertical 30MHz-1GHz span 6G-10 – RX, 470MHz, horizontal 30MHz-1GHz span 6G-11 – RX, 470MHz, horizontal 1GHz-2GHz span 6G-12 – RX, 470MHz, vertical 1GHz-2GHz span 6G-13 – TX, 403MHz, horizontal 30MHz-1GHz span 6G-14 – TX, 403MHz, vertical 30MHz-1GHz span 6G-15 – TX, 403MHz, horizontal 1GHz-5GHz span 6G-16 – TX, 403MHz, vertical 1GHz-5GHz span 6G-17 – TX, 436MHz, horizontal 30MHz-1GHz span 6G-18 – TX, 436MHz, vertical 30MHz-1GHz span 6G-19 – TX, 436MHz, horizontal 1GHz-5GHz span 6G-20 – TX, 436MHz, vertical 1GHz-5GHz span 6G-21 – TX, 470MHz, horizontal 30MHz-1GHz span 6G-22 – TX, 470MHz, vertical 30MHz-1GHz span 6G-23 – TX, 470MHz, horizontal 1GHz-5GHz span 6G-24 – TX, 470MHz, vertical 1GHz-5GHz span EXHIBIT 6H – Frequency Stability (2 Graphs) 6H-1 – Frequency Stability vs. Temperature 6H-2 – Frequency Stability vs. Voltage EXHIBIT 6I- Transient Frequency Behavior (8 Graphs) 6I-1 – 48 Watts, 12.5 kHz Key-Up Attack Time 6I-2 – 48 Watts, 12.5 kHz De-Key Decay Time 6I-3 – 48 Watts, 25 kHz Key-Up Attack Time 6I-4 – 48 Watts, 25 kHz De-Key Decay Time 6I-5 – 25 Watts, 12.5 kHz Key-Up Attack Time 6I-6 – 25 Watts, 12.5 kHz De-Key Decay Time 6I-7 – 25 Watts, 25 kHz Key-Up Attack Time 6I-8 – 25 Watts, 25 kHz De-Key Decay Time EXHIBIT 6A MOTOROLA INC. FCC ID: ABZ99FT4025 RF OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device, pursuant to 47 CFR 2.1033(c)(8) and 2.1046. HIGH POWER SETTING, FREQUENCY 403.000 MHz Measured RF Output Power: 48.0 Watts Measured DC Voltage: 13.6 Volts Measured DC Input Current: 9.69 Amperes Measured DC Input Power: 131.7 Watts LOW POWER SETTING, FREQUENCY 403.000 MHz Measured RF Output Power: 25.0 Watt Measured DC Voltage: 13.6 Volts Measured DC Input Current: 6.66 Amperes Measured DC Input Power: 90.6 Watts HIGH POWER SETTING, FREQUENCY 436.500 MHz Measured RF Output Power: 48.0 Watts Measured DC Voltage: 13.6 Volts Measured DC Input Current: 8.88 Amperes Measured DC Input Power: 120.77 Watts LOW POWER SETTING, FREQUENCY 436.500 MHz Measured RF Output Power: 25.0 Watt Measured DC Voltage: 13.6 Volts Measured DC Input Current: 6.16 Amperes Measured DC Input Power: 83.78 Watts HIGH POWER SETTING, FREQUENCY 470.000 MHz Measured RF Output Power: 48.0 Watts Measured DC Voltage: 13.6 Volts Measured DC Input Current: 8.86 Amperes Measured DC Input Power: 120.5 Watts LOW POWER SETTING, FREQUENCY 470.000 MHz Measured RF Output Power: 25.0 Watt Measured DC Voltage: 13.6 Volts Measured DC Input Current: 6.28 Amperes Measured DC Input Power: 85.4 Watts EXHIBIT 6A MOTOROLA INC. FCC ID: ABZ99FT4025 TRANSMIT AUDIO RESPONSE 12.5 kHz CHANNEL SPACING EXHIBIT 6B-1 MOTOROLA INC. FCC ID: ABZ99FT4025 TRANSMIT AUDIO RESPONSE 25 kHz CHANNEL SPACING EXHIBIT 6B-2 MOTOROLA INC. FCC ID: ABZ99FT4025 POST-LIMITER LOWPASS FILTER RESPONSE EXHIBIT 6C MOTOROLA INC. FCC ID: ABZ99FT4025 MODULATION LIMITING CHARACTERISTIC 12.5 kHz CARRIER SQUELCH MODE XPR 4550 - 12.5 kHz Channel Spacing TX Modulation Limiting - CSQ Mode 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (kHz ) 300 Hz Audio 1 kHz Audio 3 kHz Audio Limit EXHIBIT 6D-1 MOTOROLA INC. FCC ID: ABZ99FT4025 MODULATION LIMITING CHARACTERISTIC 12.5 kHz TONE PL MODE XPR 4550 - 12.5 kHz Channel Spacing TX Modulation Limiting - TPL Mode 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (k…

Text truncated - open the document above for the full version.

MOTOROLA INC. FCC ID: ABZ99FT4025 TEST SET-UP PROCEDURES AND TEST EQUIPMENT USED Pursuant to 47 CFR 2.1041 Except where otherwise stated, all measurements are made following the Telecommunications Industries Association/Electronic Industries Association (TIA/EIA) “Land Mobile FM or PM Communications Equipment Measurement and Performance Standards” (TIA/EIA-603-A). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application: 1) Test Equipment List 2) RF Power Output 3) Transmit Audio Frequency Response 4) Post Limiter Lowpass Filter Response 5) Modulation Limiting Characteristic 6) Occupied Bandwidth 7) Conducted Spurious Emissions 8) Radiated Spurious Emissions 9) Frequency Stability vs. Temperature and Voltage 10) Transient Frequency Behavior EXHIBIT 7 SHEET 1 OF 7 MOTOROLA INC. FCC ID: ABZ99FT4025 Test Equipment List Pursuant to 47 CFR 2.1033(c) The following test equipment was used to perform the measurements of the submitted data. The calibration of this equipment is performed at regular intervals. Transmitter Frequency: HP 5385A Frequency Counter with High-Stability Reference Temperature Measurement: HP 2804A Quartz Thermometer Transmitter RF Power: HP 438A Power Meter with HP 8482A Power Sensor DC Voltages and Currents: Fluke 8010A Digital Voltmeter Transmit Audio Responses: HP 8901A Modulation Analyzer, HP 8903B Audio Analyzer, HP 6621A System DC Power Supply, PC with Labview Transmit Audio Lowpass Splatter Filter Response: HP E4431B Signal Generator, HP 8903B Audio Analyzer, Rohde & Schwarz UPV Audio Analyzer, HP 6621A System DC Power Supply, PC with Labview Modulation Limiting Characteristic: HP 8657A Signal Generator, HP 8903B Audio Analyzer, HP 8901B Modulation Analyzer HP 6542A Power Supply Transmitter Conducted Spurious and Harmonic Emissions: HP 8566B Spectrum Analyzer with HP 85685A Preselector Transmitter Occupied Bandwidth: Agilent E4405B Spectrum Analyzer, HP 8901A Modulation Analyzer, HP 8903B Audio Analyzer, HP 3325A Function Generator, Agilent 8664A Signal Generator, HP 6652A DC Power Supply Transient Frequency Behavior: HP 53310A Modulation Domain Analyzer Radiated Spurious and Harmonic Emissions: Radiated Spurious and Harmonic Emissions were performed by: Elite Electronic Engineering Inc 1516 Centre Circle Downers Grove IL 60515, Illinois Accredited by the National Institute of Standards and Technology (NIST) under the National Voluntary Laboratory Accreditation Program (NVLAP). NVLAP Lab Code: 100278-0 EXHIBIT 7 SHEET 2 OF 7 MOTOROLA INC. FCC ID: ABZ99FT4025 Measurement Procedures Used for Submitted Data EXHIBIT 6A - RF Power Output vs. DC Power Input – Pursuant to 47 CFR 2.1046 Conducted power is measured in accordance with TIA/EIA-603-A section 2.2.1.2. The transmitter under test is connected to an HP 438A Power Meter using the forward port of a directional coupler and a 20 dB pad. Appropriate calibration offsets, derived from a traceable RF attenuator, which has been precision characterized by an outside testing laboratory, are entered into the wattmeter to calibrate for the use of the coupler. The transmitter is operated under normal conditions at the specified nominal dc input voltage. The DC supply path to the final stage only (or to the RF power amplifier module, if the final stage only is not accessible) is interrupted to allow insertion of a DC ammeter in series with the DC supply. The DC voltage drop of the ammeter is negligible. A DC voltmeter is used to measure the DC voltage applied to the final stage. The DC input power to the final stage (in watts) is computed as the product of the DC current (in amperes) times the DC voltage (in volts). This measurement is performed at the lowest, the middle, and the highest operating frequencies of the operating bandwidth of the equipment. The calibration of the power meter, detector, and attenuator pads is verified on an annual basis. Other power measurement systems that may be used are correlated with this calibrated reference system before measurements are performed, and calibration factors are adjusted as necessary to obtain precise correlation. EXHIBIT 6B - Transmitter Audio Frequency Response – Pursuant to 47 CFR 2.1047(a) The transmitter output is monitored with an HP 8901B Modulation Analyzer, whose FM demodulator output is fed to an HP 8903B Audio Analyzer. De-emphasis is disabled and filtering above 15 kHz, internal to the test equipment, is used. An audio oscillator signal, derived from the HP 8903B Audio Analyzer, is connected to the microphone audio input of the transmitter. At a frequency of 1 kHz, the level is adjusted to obtain 20% of full system deviation to ensure that limiting does not occur at any frequency in the range of 300 Hz - 3000 Hz. A constant input level is then maintained and the oscillator frequency is varied between the range of 100 Hz to 5000 Hz. The frequency response is plotted, using a reference of 0 dB at 1 kHz. EXHIBIT 6C - Transmitter Audio Post Limiter Lowpass Filter Response – Pursuant to 47 CFR 2.1047(a) The audio oscillator portion of an HP 8903B Audio Analyzer is connected to the input of the post limiter lowpass filter. The output of the lowpass filter (OMAP TX SSI) is measured with the Rohde & Schwarz UPV Audio Analyzer. The response is swept between the limits of 100 Hz and 30 kHz. Oscillator level is chosen to be the as high as possible that will not cause limiting at any frequency, and is maintained constant vs. frequency. EXHIBIT 7 SHEET 3 OF 7 MOTOROLA INC. FCC ID: ABZ99FT4025 EXHIBIT 6D - Modulation Limiting Characteristic – Pursuant to 47 CFR 2.1047(b) An audio oscillator is connected to the microphone audio input. The transmitter output is monitored with an HP 8901B Modulation Analyzer. The flat frequency response FM demodulator output of the HP 8901B is fed to an HP 8903B Audio Analyzer. The 20 kHz lowpass filter of the modulation analyze…
