ABZ99FT402740 Watt UHF Repeater

0 i Foreword This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifically, it contains installation information required for the MOTOTRBO XPR 8300 Repeater. For information related to the service of the XPR 8300 Repeater, refer to the list applicable manuals available separately. This list is provided in the Related Publications section on page v. Product Safety and RF Exposure Compliance See Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards on page ii. Manual Revisions Changes which occur after this manual is printed are described in PMRs (Publication Manual Revisions). These PMRs provide complete replacement pages for all added, changed, and deleted items. To obtain PMRs, go to: http://www.motorola.com/businessonline Parts Ordering See Appendix A: Replacement Parts Ordering for information on how to obtain replacement parts. For part numbers, refer to the XPR 8300 Repeater Basic Service Manual (Motorola publication part number 6816810H01). Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. Document Copyrights No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. Disclaimer The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights nor the rights of others. Trademarks MOTOROLA, the Stylized M logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2006 – 2008 by Motorola, Inc. ii Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards ATTENTION! This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. To ensure compliance to RF Energy Safety Standards: •Install only Motorola approved antennas and accessories •Be sure that Product Safety and RF Safety Booklet enclosed with this radio is available to the end user upon completion of the installation of this radio Before using this product, the operator must be familiar with the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with each radio (Motorola Publication part number 6881095C99) to ensure compliance with Radio Frequency (RF) energy exposure limits. For a list of Motorola-approved antennas and other accessories, visit the following web site which lists approved accessories for your radio model: http://www.motorola.com/governmentandenterprise iii Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-888-567-7347 Hereby declares that the product: Model Name: XPR 8300 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and …

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. © Motorola, Inc. 2005 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 *6881095C99* 68P81095C99-E 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola 2-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of 2-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile 2-way radios before they can be marketed in the U.S. When 2-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola 2-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular, and PCS product certification.” RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are not met. Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is 5 English transmitting. To receive calls, release the PTT button, or, for radios equipped with VOX, stop talking. The red LED will extinguish when the radio stops transmitting. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). •Transmit only when people outside the vehicle are at l…

Text truncated - open the document above for the full version.

FCC ID: ABZ99FT4027 REQUEST FOR CONFIDENTIALITY Date: April 7, 2008 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT4027 Dear Sir or Madam: Motorola is requesting that Circuit Descriptions, Schematic Diagrams, Parts List and Tune Up Procedures, and Operational Description not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9 (Internal Photos), as Temporary or Short-Term Confidential as soutline in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please contact me if you require any additional information. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen Engr. Sec. Mgr Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

FCC ID: ABZ99FT4027 Date: April 15, 2008 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Extended Frequencies for Transmitter with FCC ID: ABZ99FT4027 Dear Sir or Madam: Motorola Inc., 1313 East Algonquin Road, Schaumburg, Illinois, herein requests grant for extended frequencies within the range of FCC Rule Part 90 for the 48 Watt UHF repeater identified by FCC ID:ABZ99FT4027. The repeater is designed to operate in the 450 to 512 MHz band and we request the grant for contigious range of 450-512 MHz. This repeater will also be marketed to elements of the US Federal government (NTIA), exported to Canada and other international markets. For the United States market, the radios will be programed on authorized frequencies that are licensed by the FCC. This repeaterter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. The transmitter programming is the responsibility of authorized dealers and service agents. Please contact me if I can be of assistance. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen Engr. Section Mgr. Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

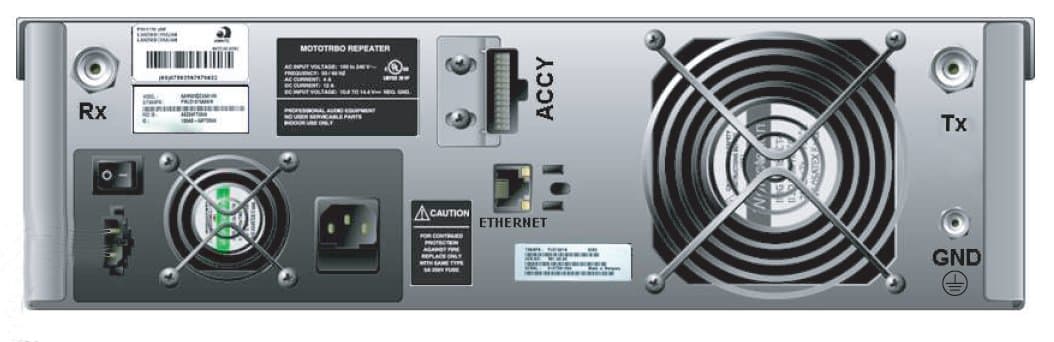

MOTOROLA INC FCC ID: ABZ99FT4027 (SHORT-TERM CONFIDENTIALITY REQUESTED) GENERAL VIEW EXHIBIT 3 SHEET 1 OF 3 MOTOROLA INC FCC ID: ABZ99FT4027 FRONT VIEW REAR VIEW, SHOWING FCC ID LABEL (CLOSE-UP OF FCC ID LABEL ON FOLLOWING PAGE) EXHIBIT 3 SHEET 2 OF 3 MOTOROLA INC FCC ID: ABZ99FT4027 CLOSE-UP VIEW OF FCC ID LABEL EXHIBIT 3 SHEET 3 OF 3

MOTOROLA INC FCC ID: ABZ99FT4027 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information 1 2.1033-(c) 11 & General Information 1A 1. Production Plans 2.1033-(c) 2. Application References 2.1061 3. Data Submittal Procedure II. Certification of Data 2 2.1517-(g) III. External Photographs 3 2.1033-(c) 12 IV. Circuit Descriptions 4 V. Schematic Diagrams 5 2.1033-(c) 10 VI. Test Reports 6 1. Data Index 6 2. Modulation Characteristics A. Audio Response & Low Pass Filter Response 6B, 6C 2.1047-(a) B. Modulation Limiting 6D 2.1047-(b) 3. Elite Report ETR0800682-01 6A,6D-I VII. Test Set-up Procedures 7 2.1041 VIII. Instruction Manuals 8 2.1033-(c) 3 IX. Internal Photographs 9 2.1033-(c) 11, 12 X. Parts List and Tune-up Procedures 10 2.1033-(c) 9, 10 XI. RF Exposure Information 11 2.1091 XII. Operational Description 12 2.1033-(c) 4, 5 1. Technical Characteristics 2. Application XIII. Cover Letter 13 EXHIBIT 1 SHEET 1 OF 2 MOTOROLA INC FCC ID: ABZ99FT4027 IDENTIFICATION LABEL Pursuant to 47 CFR 2.1033(c) LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. EXHIBIT 1 SHEET 2 OF 2 MOTOROLA INC FCC ID: ABZ99FT4027 EXHIBIT 1A – GENERAL INFORMATION 1. Production Plans – Pursuant 2.1033 (c) Quantity production is planned. 2. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, and Part 90 Sec. 90.210. 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 90. Maximum transmitter power shall not be adjustable by the user. EXHIBIT 1A SHEET 1 OF 1

MOTOROLA INC FCC ID: ABZ99FT4027 (SHORT-TERM CONFIDENTIALITY REQUESTED) TOP VIEW OF WITH TOP COVER REMOVED EXHIBIT 9 SHEET 1 OF 4 MOTOROLA INC FCC ID: ABZ99FT4027 TOP VIEW WITH CIRCUIT BOARD REMOVED FROM CHASSIS (MATING SURFACES OF CIRCUIT BOARD AND CHASSIS ARE SHOWN) EXHIBIT 9 SHEET 2 OF 4 MOTOROLA INC FCC ID: ABZ99FT4027 TOP VIEW OF FRONT PANEL LED BOARD EXHIBIT 9 SHEET 3 OF 4 MOTOROLA INC FCC ID: ABZ99FT4027 TOP VIEW OF BACK PANEL BOARD EXHIBIT 9 SHEET 4 OF 4

MOTOROLA INC. FCC ID: ABZ99FT4027 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307(d) of CFR Title 47. EXHIBIT 11

Engineering Test Report No. 0800682-01 Measurement of RF Interference from a Model AAM27TRR9JA7AN, Cypher Repeater For : Motorola Inc. Schaumburg, IL 60196 P.O. No. : NP3892518 Date Received : March 3, 2008 Date Tested : March 3 through March 14, 2008 Test Personnel: Richard E. King Specification : FCC Part 15, Subpart B and Part 90, Subpart I IC RSS-119 Test Report By : Richard E. King Witnessed By : Jose George Motorola Inc. Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 0800682-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 179 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION .................................................................................................................................5 1.1 Description of Test Item....................................................................................................................5 1.2 Purpose ...........................................................................................................................................5 1.3 Deviations, Additions and Exclusions................................................................................................5 1.4 Applicable Documents......................................................................................................................5 1.5 EMC Laboratory Identification...........................................................................................................6 1.6 Laboratory Conditions .....................................................................................................................6 2.0 TEST ITEM SET-UP AND OPERATION ..............................................................................................6 2.1 Power Input......................................................................................................................................6 2.2 Grounding........................................................................................................................................6 2.3 Peripheral Equipment.......................................................................................................................6 2.4 Interconnect Cables.........................................................................................................................6 2.5 Operational Mode.............................................................................................................................6 2.6 Test Item Modifications ...................................................................................................................6 3.0 TEST EQUIPMENT..............................................................................................................................6 3.1 Test Equipment List..........................................................................................................................7 3.2 Calibration Traceability ...................................................................................................................7 3.3 Measurement Uncertainty ...............................................................................................................7 4.0 REQUIREMENTS, PROCEDURES AND RESULTS ............................................................................7 4.1 Receiver.........................................................................................................................................7 4.1.1 Powerline Conducted Emissions.............................................................................................7 4.1.1.1 Requirements ....................................................................................................................7 4.1.1.2 Procedures .......................................................................................................................8 4.1.2 Antenna Conducted Emissions Measurements .......................................................................8 4.1.2.1 Requirements ....................................................................................................................8 4.1.2.2 Procedures ........................................................................................................................8 4.1.2.3 Results ..............................................................................................................................8 4.1.3 Radiated Measurements ..........................................................................................................9 4.1.3.1 Requirements ....................................................................................................................9 4.1.3.2 Procedures ........................................................................................................................9 4.1.3.3 Results ............................................................................................................................10 4.2 Transmitter....................................................................................................................................10 4.2.1 RF Power Output ...................................................................................................................10 4.2.1.1 Requirements...................................................................................................................10 4.2.1.2 Procedures.......................................................................................................................10 4.2.1.3 Results .............................................................................................................................10 …

Text truncated - open the document above for the full version.

Engineering Test Report No. 0800682-01 Page 46 of 179 DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 SPECIFICATION : FCC 90.205 Power Output DATE : March 3, 2008 Frequency MHz Measured Output Power dBm Measured Output Power Watts Manufacturer’s Rated Power Watts Manufacturer’s Rated Power + 20% Watts 450.0 29.4 .865 1.0 1.2 450.0 46.5 44.7 40.0 48.0 481.0 30.4 1.1 1.0 1.2 481.0 46.6 45.7 40.0 48.0 512.0 29.6 .912 1.0 1.2 512.0 46.4 43.6 40.0 48.0 Checked BY : ________________________________ Richard E. King Engineering Test Report No. 0800682-01 Page 47 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:27:25 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : 2500Hz Tone, 16dB above 50% Deviation Engineering Test Report No. 0800682-01 Page 48 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:28:44 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : 2500Hz Tone, 16dB above 50% Deviation + DPL Engineering Test Report No. 0800682-01 Page 49 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:30:05 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : 2500Hz Tone, 16dB above 50% Deviation + TPL Engineering Test Report No. 0800682-01 Page 50 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:22:08 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : DTMF Engineering Test Report No. 0800682-01 Page 51 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:23:51 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : DTMF + DPL Engineering Test Report No. 0800682-01 Page 52 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.6 dBm Ref Lvl 29.6 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.4 29.6 1 Marker 1 [T2] 27.59 dBm 459.97494990 MHz Date: 13.MAR. 2008 19:25:13 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : DTMF + TPL Engineering Test Report No. 0800682-01 Page 53 of 179 60.2 dB Offset A Unit dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 30 dB * -60 -50 -40 -30 -20 -10 0 10 20 -70 30 1 Marker 1 [T2] 29.05 dBm 459.98496994 MHz Date: 12.MAR. 2008 18:28:43 MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : FSK Engineering Test Report No. 0800682-01 Page 54 of 179 60.2 dB Offset A Unit dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 30 dB 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70 30 1 Marker 1 [T2] 29.05 dBm 459.98496994 MHz Date: 12.MAR. 2008 19:13:55 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : FSK + DPL Engineering Test Report No. 0800682-01 Page 55 of 179 60.2 dB Offset A Unit dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 30 dB 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70 30 1 Marker 1 [T2] 29.05 dBm 459.98496994 MHz Date: 12.MAR. 2008 19:17:12 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHANNEL SPACING : 12.5kHz NOTES : Mask D : FSK + TPL Engineering Test Report No. 0800682-01 Page 56 of 179 A 60.2 dB Offset Unit dBm RF Att 30 dB Ref Lvl 29.7 dBm Ref Lvl 29.7 dBm P20 2MA Center 460 MHzSpan 100 kHz10 kHz/ RBW 300 Hz VBW 3 kHz SWT 5.6 s IN1 2VIEW 3MAX3MA * -60 -50 -40 -30 -20 -10 0 10 20 -70.3 29.7 1 Marker 1 [T2] 26.86 dBm 459.97094188 MHz Date: 13.MAR. 2008 19:34:53 FCC 90 Occupied Bandwidth MANUFACTURER : Motorola Inc. MODEL : AAM27TRR9JA7AN SERIAL NO. : 484TJA0A53 TEST MODE : Transmit FREQUENCY : 460MHz POWER LEVEL : 1W CHAN…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0800682-01 Page 91 of 179 3MAX 60 dB Offset A SGL 3MA Unit dBm P20 Start 30 MHzStop 1 GHz97 MHz/ Ref Lvl 35 dBm Ref Lvl 35 dBm RF Att 10 dBRBW 100 kHz VBW 1 MHz SWT 300 ms IN1 -60 -50 -40 -30 -20 -10 0 10 20 30 -65 35 1 Marker 1 …

Text truncated - open the document above for the full version.
