ABZ99FT5014Portable 2-Way Radio

PROFESSIONA L DIGITA L TWO-WA Y RADIO MOTOTRBO™ XPR™ 755 0/XPR™ 7580 COLOR DISPLAY PORTABLE USER GUIDE Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: XPR 7550 / XPR 7580 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this dev ice complies with Part 15 of the FCC Ru les. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the fo llowing two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provi de reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wi ll not occur in a particular installation. If this equipment does cause harmful interference to radi o or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit differ ent from that to which the receiver is connected. • Consult the dealer or an experienc ed radio/TV technician for help. Contents English iii ContentsThis User Guide contains all the information you need to use the MOTOTRBO XPR Series Digital Portable Radios.Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . iImportant Safety Information . . . . . . . . . . . . . . . . . ix Product Safety and RF Exposure Compliance . . .ix Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . xComputer Software Copyrights . . . . . . . . . . . . . . . . x Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . xiNotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiiGetting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1What Your Dealer/System Administrator Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Preparing Your Radio for Use . . . . . . . . . . . . . . . . . . 2 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 2 Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 3Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 3Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . 4Attaching the Universal Con nector Cover (Dust Cover) 4 Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 5 Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 6 Radio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . 7 Assignable Radio Functions . . . . . . . . . . . . . . . . . 7Assignable Settings or Utility Functions . . . . . . . . . 9 Using the 4-Way Navigation Button . . . . . . . . . . . . 10Accessing the Programmed Functions . . . . . . . . . . 10Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . 11Push-To-Talk (PTT) Bu tton . . . . . . . . . . . . . . . . . . . 12 Switching Between Conventional Analog and Digital Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Linked Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . 14 Identifying Status Indicators . . . . . . . . . . . . . . . . . . 16 Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Advanced Menu Icons . . . . . . . . . . . . . . . . . . . . . . 18Mini Notice Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Bluetooth Device Icons . . . . . . . . . . . . . . . . . . . . . . 20LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Contents English iv Making and Receiving Calls . . . . . . . . . . . . . . . . . . 22 Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . 22Selecting a Channel . . . . . . . . . . . . . . . . . . . . . . . . 23Receiving and Responding to a Radio Call . . . . . . 24 Receiving and Responding to a Group Call . . . . 24 Receiving and Responding to a Private Call . . . 25Receiving an All Call . . . . . . . . . . . . . . . . . . . . . . 26Receiving and Responding to a Selective Call . . 26Receiving and Responding to a Phone Call . . . . 27 Phone Call as a Priv ate Call . . . . . . . . . . . . . . 27 Phone Call as a Group Call . . . . . . . . . . . . . . . 27Phone Call as an All Call . . . . . . . . . . .…

Text truncated - open the document above for the full version.

English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *6881095C98* 6881095C98-G *NNTN7223C* NNTN7223C MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2007 – 2011 Motorola Solutions, Inc. All rights reserved. ATTENTION! 6881095C98-G.book Page 1 Tuesday, December 6, 2011 1:42 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-G.book Page 2 Tuesday, December 6, 2011 1:42 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-G.book Page 3 Tuesday, December 6, 2011 1:42 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 6881095C98-G.book Page 4 Tuesday, December 6, 2011 1:42 PM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • Private Talk Position (XTS 4000 Only). When placing or receiving a personal message, hold your radio as you would a wireline/wireless telephone. Speak directly into the microphone. Use the PTT as in a normal two-…

Text truncated - open the document above for the full version.

FCC ID: ABZ99FT5014 EXHIBIT 13A ________________________________________________________________________________________ Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: April 17, 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT5014, MotoTRBO 8/900MHz, 2.5W Rated Power; 3.0W Max Power. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating in the 800 and 900 MHz bands. We are requesting Certification under Part 24 and 90 of the Commission’s Rules to allow operation of this equipment in 806-824/851-869 MHz, 896-901/935-940 MHz, 901-902/940-941 MHz. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Additionally, the radio is equipped with a Bluetooth transmitter capable of clear communication with fixed power operating within the following frequency ranges: 2.402-2.480 GHz: 5-10 mW The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: ABZ99FT5014 EXHIBIT 13B ________________________________________________________________________________________ Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 REQUEST FOR CONFIDENTIALITY Date: April 17, 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for Transmitter with FCC ID:ABZ99FT5014 Dear Sir / Madam, Motorola Solutions Inc is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola Solutions considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential ”. Please contact me if you require any additional information. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

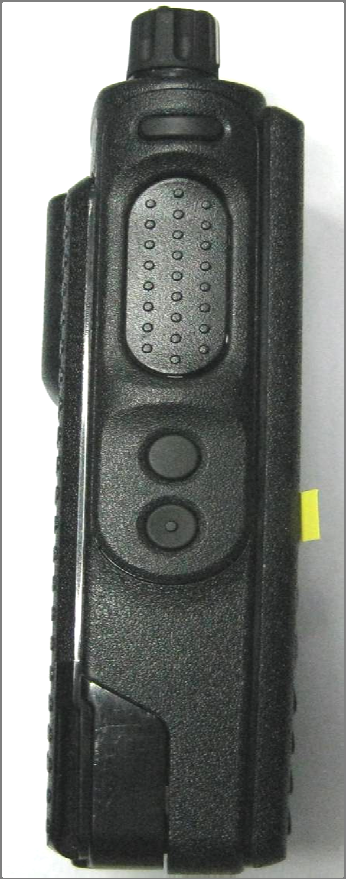

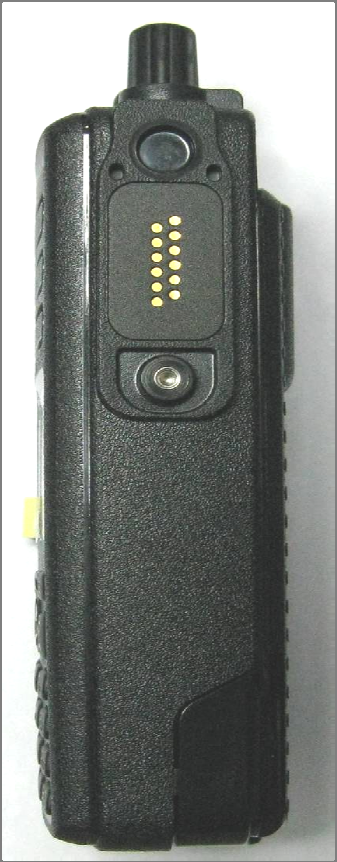

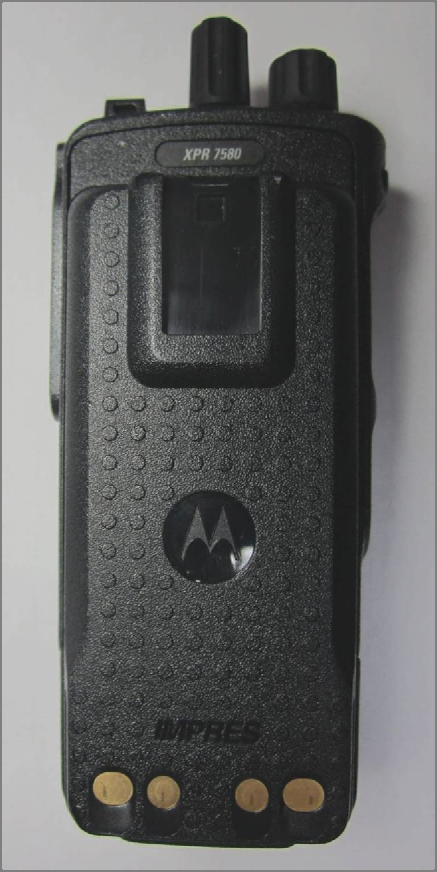

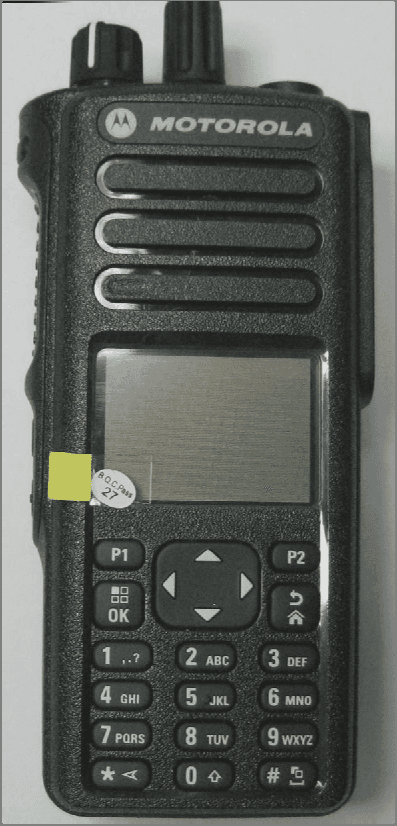

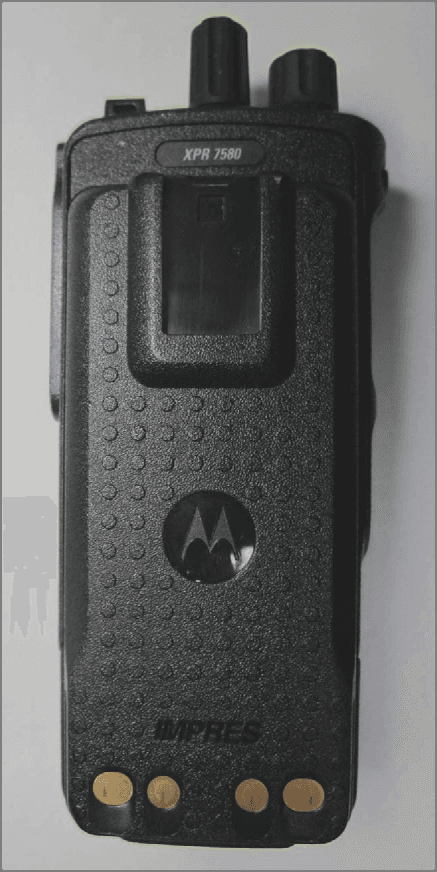

Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View with Display and Keypad. 3B 3. Back View (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F 7. Antennas 3G Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3A SHEET 2 OF 8 BACK VIEW WITH BATTERY Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3B SHEET 3 OF 8 FRONT VIEW WITH DISPLAY AND KEYPAD Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3C SHEET 4 OF 8 BACK VIEW (FCC LABELS) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3D SHEET 5 OF 8 SIDE VIEW (RIGHT) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3E SHEET 6 OF 8 SIDE VIEW (LEFT) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3F SHEET 7 OF 8 TOP VIEW Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 3G SHEET 8 OF 8 No Antenna Type Color Length 1 Whip Antenna (896-941MHz) Blue 14.0cm 2 Whip Antenna (806-870MHz) Red 16.0cm 1 2

Applicant: Motorola Solutions Inc FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 1 SHEET 1 OF 1 Identification Label LOCATION See the Attached Photograph or Sketch Top of Radio X Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. FIGURE 1-1: FCC IC LABEL for Full Key Pad model (AAH56UCN9KB1AN) FIGURE 1-2: FCC IC LABEL for Non Key Pad model (AAH56UCC9KB1AN)

Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 1 OF 7 Internal Photographs The following photographs are attached. Exhibit 1. RF board without & with Shields (Top) 9A 2. RF board without & with Shields (Bottom) 9B 3. Chassis and housing (front side) 9C 4. Chassis and housing (back side) 9D 5. Keypad board (Top and Bottom) 9E 6. GOB board 9F Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 2 OF 7 Exhibits 9A RF board with and without Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 3 OF 7 Exhibit 9B RF board with and without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 4 OF 7 Exhibit 9C PCB board with chassis and housing (Top) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 5 OF 7 Exhibit 9D PCB board with chassis and housing (Bottom) RF Port (For conducted Measurement) Bluetooth Antenna Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 6 OF 7 Exhibit 9E Keypad board (Top) Keypad board (Bottom) Applicant: Motorola Solutions Inc. FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014 EXHIBIT 9 SHEET 7 OF 7 Exhibit 9F GOB board (Top) GOB board with shield (Bottom) GOB board without shield (Bottom)

FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 134 TESTING CERT # 2518.05 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory Motorola Solutions Malaysia Sdn Bhd (455657-H) Customer Solution Center Plot 2, Bayan Lepas Technoplex Industrial Park, Mukim 12 SWD 11900 Bayan Lepas Penang, Malaysia. Date of Report: 03/29/13 Report Revision: O Report ID:SAR rpt_PMUF1615A_Rev.O 130329_SR11131 Responsible Engineer: Tan KaiYan (EME Engineer) Report Author: Tan KaiYan (EME Engineer) Date/s Tested: 12/26/2012-03/29/2013 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: PCR Date submitted for test:12/11/12 DUT Description:8/900 2.5W NKP GPS BT GOB/NKP BT; 8/900 2.5W FKP GPS BT GOB/FKP BT Test TX mode(s): CW (PTT) Max. Power output: 3 W (8/900 band), 10 dBm (Bluetooth) Nominal Power: 2.5 W (8/900 band), 2.5 dBm (Bluetooth) Tx Frequency Bands: 806-825MHz, 851-870MHz, 896-902MHz, 935-941MHz, 2.402-2.480 GHz (Bluetooth) Signaling type: FM Model(s) Tested:PMUF1615A Model(s) Certified:PMUF1615A and PMUF1614A Serial Number(s): 126TNX0235 Classification:Occupational/Controlled FCC ID:ABZ99FT5014; Rule Part 90 (806-824 MHz, 851-869 MHz, 896-901 MHz, 935-940 MHz & ); Rule Part 15 (2402-2480 MHz) IC: 109AB-99FT5014; (806-824 MHz, 851-869 MHz, 896-901 MHz, 935-940 MHz & 2402-2480 MHz) * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date:4/3/2013 Certification Date: 4/3/2013 Certification No.: L1130309 & L1130306 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 134 Part 1 of 2 1.0Introduction example ......................................................................................................5 2.0 Abbreviations / Definitions.............................................................................................5 3.0 Referenced Standards and Guidelines.............................................................................5 4.0 SAR Limits .....................................................................................................................6 5.0 SAR Result Scaling Methodology:.................................................................................7 6.0 Description of Device Under Test (DUT): .....................................................................7 7.0 Optional Accessories and Test Criteria:..........................................................................8 7.1 Antennas:..............................................................................................................8 7.2 Battery: .................................................................................................................8 7.3 Body worn Accessories: .......................................................................................8 7.4 Audio Accessories:...............................................................................................9 8.0 Description of Test System:..........................................................................................12 8.1 Descriptions of Robotics/Probes/Readout Electronics:......................................12 8.2 Description of Phantom(s)..................................................................................13 8.3 Description of Simulated Tissue: .......................................................................13 9.0 Additional Test Equipment:..........................................................................................14 10.0 SAR Measurement System Verification:......................................................................15 10.1 Equivalent Tissue Test Results: .........................................................................15 10.2 System Check Test Results: ...............................................................................17 11.0 Environmental Test Conditions: ...................................................................................17 12.0 DUT Test Methodology................................................................................................18 12.1 Measurements.....................................................................................................18 12.2 DUT Configuration(s) ........................................................................................18 12.3 DUT Positioning Procedures..............................................................................18 12.3.1 Body......................................................................................................18 12.3.2 Head..................…

Text truncated - open the document above for the full version.

FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 97 TESTING CERT # 2518.05 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Enterprise Mobility Solutions EME Test Laboratory Motorola Solutions Malaysia Sdn Bhd (455657-H) Customer Solution Center Plot 2, Bayan Lepas Technoplex Industrial Park, Mukim 12 SWD 11900 Bayan Lepas Penang, Malaysia. Date of Report: 03/29/13 Report Revision: O Report ID:SAR rpt_PMUF1615A_Rev.O 130329_SR11131 Responsible Engineer: Tan KaiYan (EME Engineer) Report Author: Tan KaiYan (EME Engineer) Date/s Tested: 12/26/2012-03/29/2013 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: PCR Date submitted for test:12/11/12 DUT Description:8/900 2.5W NKP GPS BT GOB/NKP BT; 8/900 2.5W FKP GPS BT GOB/FKP BT Test TX mode(s): CW (PTT) Max. Power output: 3 W (8/900 band), 10 dBm (Bluetooth) Nominal Power: 2.5 W (8/900 band), 2.5 dBm (Bluetooth) Tx Frequency Bands: 806-825MHz, 851-870MHz, 896-902MHz, 935-941MHz, 2.402-2.480 GHz (Bluetooth) Signaling type:FM Model(s) Tested:PMUF1615A Model(s) Certified:PMUF1615A and PMUF1614A Serial Number(s):126TNX0235 Classification:Occupational/Controlled FCC ID: ABZ99FT5014; Rule Part 90 (806-824 MHz, 851-869 MHz, 896-901 MHz & 935-940 MHz); Rule Part 15 (2402-2480 MHz) IC: 109AB-99FT5014; (806-824 MHz, 851-869 MHz, 896-901 MHz, 935-940 MHz &2402-2480 MHz ) * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date:4/3/2013 Certification Date: 4/3/2013 Certification No.:L1130309 & L1130306 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 97 Appendix D Test System Check Scans FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 3 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 4 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 5 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 6 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 7 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 8 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 9 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 10 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 11 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 12 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 13 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 14 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 15 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 16 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 17 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 18 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 19 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 20 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 21 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 22 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 23 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 24 of 97 FCC ID: ABZ99FT5014 / IC: 109AB-99FT5014SR11131, SR11095 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 25 of 97 FCC ID: ABZ99FT5014 / …

Text truncated - open the document above for the full version.
