ABZ99FT600135 Watt UHF Repeater

0 Forewordi Foreword This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifically, it contains installation information required for the MOTOTRBO XPR 8300/XPR 8380 Repeater. For information related to the service of the XPR 8300/XPR 8380 Repeater, refer to the list applicable manuals available separately. This list is provided in the Related Publications section on page vii. Product Safety and RF Exposure Compliance See Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards on page ii. Manual Revisions Changes which occur after this manual is printed are described in PMRs (Publication Manual Revisions). These PMRs provide complete replacement pages for all added, changed, and deleted items. To obtain PMRs, go to: http://www.motorola.com/businessonline Parts Ordering See Appendix A: Replacement Parts Ordering for information on how to obtain replacement parts. For part numbers, refer to the XPR 8300 Repeater Basic Service Manual (Motorola publication part number 6816810H01) and XPR 8380 Repeater Basic Service Manual (Motorola publication part number 68009404001). Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. Document Copyrights No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. Disclaimer The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights nor the rights of others. Trademarks MOTOROLA, the Stylized M logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2006 – 2010 by Motorola, Inc. ii RF Safety Installation Requirenments Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards ATTENTION! This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. To ensure compliance to RF Energy Safety Standards: •Install only Motorola approved antennas and accessories •Be sure that Product Safety and RF Safety Booklet enclosed with this radio is available to the end user upon completion of the installation of this radio Before using this product, the operator must be familiar with the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with each radio (Motorola Publication part number 6881095C99) to ensure compliance with Radio Frequency (RF) energy exposure limits. For a list of Motorola-approved antennas and other accessories, visit the following web site which lists approved accessories for your radio model: http://www.motorola.com/governmentandenterprise RF Safety Installation Requirenments iii Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-888-567-7347 Hereby declares that the product: Model Name: XPR 8300/XPR 8380 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and o…

Text truncated - open the document above for the full version.

MOTOROLA INC FCC ID: ABZ99FT6001 CERTIFICATION OF DATA Pursuant to 47 CFR 2.1517 (g) The technical data supplied with this application, having been taken under my supervision, is hereby duly certified. The following is a statement of my qualifications: 1) I have received a BSEE degree in Electrical Engineering from the University of Illinois in Chicago, Illinois and a MSEE degree in Electrical Engineering from University of Missouri at Rolla, Missouri. 2) I have 6 years experience in developing, testing, and certifying Land Mobile Communications Products. NAME: Jose George SIGNATURE: /s/ Jose George (signed) Jose George DATE: Apr 9, 2010 POSITION: Senior Staff Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Larry D. Larsen SIGNATURE: /s/ Larry D. Larsen (signed) Larry D. Larsen DATE: Apr 9, 2010 POSITION: Engineering Section Manager EXHIBIT 2 SHEET 1 OF 1

FCC ID: ABZ99FT6001 Date: April 18, 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT6001 Dear Sir or Madam: Motorola Inc., 1301 East Algonquin Road, Schaumburg, Illinois, herein submits application for Certification of the 35 Watt UHF repeater identified by FCC ID number ABZ99FT6001. This transmitter is primarily intended for use in a Repeater application with capabilities for conventional and 2 to 1 TDMA digital communications with a conducted transmit power which is adjustable from 10 Watt to 35 Watts. The subject transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen FCC Coordinator. Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

FCC ID: ABZ99FT6001 REQUEST FOR CONFIDENTIALITY Date: April 18, 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT6011 Dear Sir or Madam: Motorola is requesting that Circuit Descriptions, Schematic Diagrams, Parts List and Tune Up Procedures, and Operational Description not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please contact me if you require any additional information. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen FCC Coordinator Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

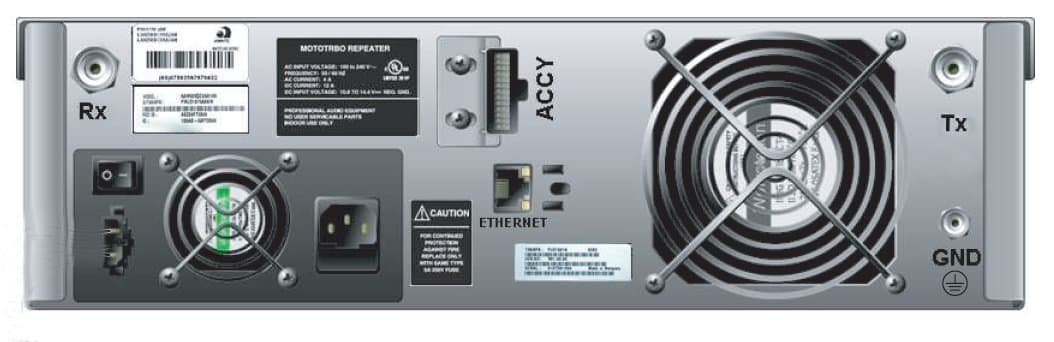

MOTOROLA INC FCC ID: ABZ99FT6001 GENERAL VIEW EXHIBIT 3 SHEET 1 OF 3 MOTOROLA INC FCC ID: ABZ99FT6001 FRONT VIEW REAR VIEW, SHOWING FCC ID LABEL (CLOSE-UP OF FCC ID LABEL ON FOLLOWING PAGE) EXHIBIT 3 SHEET 2 OF 3 MOTOROLA INC FCC ID: ABZ99FT6001 CLOSE-UP VIEW OF FCC ID LABEL EXHIBIT 3 SHEET 3 OF 3

MOTOROLA INC FCC ID: ABZ99FT6001 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information 1 2.1033-(c) 11 & General Information 1A 1. Production Plans 2.1033-(c) 2. Application References 2.1061 3. Data Submittal Procedure II. Certification of Data 2 2.1517-(g) III. External Photographs 3 2.1033-(c) 12 IV. Circuit Descriptions 4 V. Schematic Diagrams 5 2.1033-(c) 10 VI. Test Report 1. Data Index 6 2. RF Output Data 6A 2.1046 3. Modulation Characteristics A. Audio Response & Low Pass Filter Response 6B, 6C 2.1047-(a) B. Modulation Limiting 6D 2.1047-(b) 4. Occupied Bandwidth 6E 2.1049 5. Conducted Spurious Emissions 6F 2.1051 6. Radiated Spurious Emissions 6G 2.1053 7. Frequency Stability A. Frequency Stability vs. Temperature 6H-1 2.1055 B. Frequency Stability vs. Supply Voltage 6H-2 2.1055 VII. Test Set-up Procedures 7 2.1041 VIII. Instruction Manuals 8 2.1033-(c) 3 IX. Internal Photographs 9 2.1033-(c) 11, 12 X. Parts List and Tune-up Procedures 10 2.1033-(c) 9, 10 XI. RF Exposure Information 11 2.1091 XII. Operational Description 12 2.1033-(c) 4, 5 1. Technical Characteristics 2. Application XIII. Cover Letter 13 EXHIBIT 1 SHEET 1 OF 2 MOTOROLA INC FCC ID: ABZ99FT6001 IDENTIFICATION LABEL Pursuant to 47 CFR 2.1033(c) LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. EXHIBIT 1 SHEET 2 OF 2 MOTOROLA INC FCC ID: ABZ99FT6001 EXHIBIT 1A – GENERAL INFORMATION 1. Production Plans – Pursuant 2.1033 (c) Quantity production is planned. 2. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, and Part 90 Sec. 90.210. 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 90. Maximum transmitter power shall not be adjustable by the user. EXHIBIT 1A SHEET 1 OF 1

MOTOROLA INC FCC ID: ABZ99FT6001 TOP VIEW OF WITH TOP COVER REMOVED EXHIBIT 9 SHEET 1 OF 4 MOTOROLA INC FCC ID: ABZ99FT6001 TOP VIEW WITH CIRCUIT BOARD REMOVED FROM CHASSIS (MATING SURFACES OF CIRCUIT BOARD AND CHASSIS ARE SHOWN) EXHIBIT 9 SHEET 2 OF 4 MOTOROLA INC FCC ID: ABZ99FT6001 TOP VIEW OF FRONT PANEL LED BOARD EXHIBIT 9 SHEET 3 OF 4 MOTOROLA INC FCC ID: ABZ99FT6001 TOP VIEW OF BACK PANEL BOARD EXHIBIT 9 SHEET 4 OF 4

MOTOROLA INC. FCC ID: ABZ99FT6001 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307(d) of CFR Title 47. EXHIBIT 11

Engineering Test Report No. 1000677-01 Rev. A Measurement of RF Interference from a Model AAM27UMR9JA7AN, Cypher Repeater Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com For : Motorola Inc. Schaumburg, IL 60196 P.O. No. : NP5090508 Date Tested : March 22 through April 6, 2010 Test Personnel : Richard E. King Specification : FCC Part 15, Subpart B and Part 90, Subpart I : Industry Canada RSS-119 : Industry Canada RSS-GEN Test Report By : Richard E. King Witnessed By : Tim Dittmer Motorola Inc. Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Engineering Test Report No. 1000677-01 Rev. A THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 79 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION.................................................................................................................................4 1.1 Description of Test Item....................................................................................................................4 1.2 Purpose...........................................................................................................................................4 1.3 Deviations, Additions and Exclusions...............................................................................................4 1.4 Applicable Documents.....................................................................................................................4 1.5 EMC Laboratory Identification..........................................................................................................5 1.6 Laboratory Conditions.....................................................................................................................5 2.0 TEST ITEM SET-UP AND OPERATION..............................................................................................5 2.1 Power Input......................................................................................................................................5 2.2 Grounding........................................................................................................................................5 2.3 Peripheral Equipment.......................................................................................................................5 2.4 Interconnect Cables.........................................................................................................................5 2.5 Operational Mode............................................................................................................................5 2.6 Test Item Modifications...................................................................................................................5 3.0 TEST EQUIPMENT.............................................................................................................................5 3.1 Test Equipment List.........................................................................................................................5 3.2 Calibration Traceability...................................................................................................................5 3.3 Measurement Uncertainty...............................................................................................................6 4.0 REQUIREMENTS, PROCEDURES AND RESULTS............................................................................6 4.1 Receiver.........................................................................................................................................6 4.1.2 Antenna Conducted Emissions Measurements.......................................................................6 4.1.2.1 Requirements....................................................................................................................6 4.1.2.2 Procedures........................................................................................................................6 4.1.2.3 Results..............................................................................................................................6 4.1.3 Radiated Measurements..........................................................................................................6 4.1.3.1 Requirements....................................................................................................................7 4.1.3.2 Procedures........................................................................................................................7 4.1.3.3 Results..............................................................................................................................8 4.2 Transmitter......................................................................................................................................8 4.2.1 RF Power Output.....................................................................................................................8 4.2.1.1 Requirements.....................................................................................................................8 4.2.1.2 Procedures.........................................................................................................................8 4.2.1.3 Results...............................................................................................................................8 4.2.2 Field Strength Of Spurious Emissions........................................................................................8 4.2.2.1 Requirements....................................................................................................................8 4.2.2.2 Procedures..................................................................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1000677-01 Rev. A Page 53 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 54 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 55 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 56 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 57 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 58 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 59 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 60 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 61 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 62 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 63 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 64 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 65 of 79

Engineering Test Report No. 1000677-01 Rev. A Page 66 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 67 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 68 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 69 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 70 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 71 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 72 of 79 Engineering Test Report No. 1000677-01 Rev. A Page 73 of 79 Engineering Test Report No. 1000677-01 Rev. A DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27UMR9JA7AN SERIAL NO. : 484TLE0050 SPECIFICATION : FCC-90 Spurious Radiated Emissions DATE : March 24, 2010 NOTES : Transmit at 860.5 MHz : Low Power (10 Watts), 12.5 kHz channel spacing Freq. MHz Ant Pol Mtr Rdg (dBuV) Matched Sig Gen (dBm) equil ant gain CBL Loss (dB) Total (dBm) Attn min attn 1721.8 H 42.4 -74.5 5.1 2.7 -72.1 112.1 53 1721.8 V 43.4 -77.9 5.1 2.7 -75.5 115.5 53 2582.7 H 46.9 -63.8 5.8 3.1 -61.1 101.1 53 2582.7 V 47.7 -65.5 5.8 3.1 -62.8 102.8 53 3443.6 H 43.6 -57.3 6.6 3.6 -54.3 94.3 53 3443.6 V 47.1 -61.1 6.6 3.6 -58.1 98.1 53 4304.5 H 42.0 -63.9 7.8 4.2 -60.4 100.4 53 4304.5 V 43.0 -65.0 7.8 4.2 -61.4 101.4 53 5165.4 H 41.5 -65.1 7.6 4.8 -62.3 102.3 53 5165.4 V 41.3 -65.2 7.6 4.8 -62.4 102.4 53 6026.3 H 43.0 -63.1 7.9 5.3 -60.5 100.5 53 6026.3 V 43.3 -62.4 7.9 5.3 -59.8 99.8 53 6887.2 H 41.8 -60.1 8.2 6.0 -57.8 97.8 53 6887.2 V 42.3 -60.6 8.2 6.0 -58.3 98.3 53 7748.1 H 41.6 -52.7 8.2 6.2 -50.7 90.7 53 7748.1 V 42.8 -52.7 8.2 6.2 -50.8 90.8 53 8609.0 H 41.9 -53.3 8.8 6.7 -51.2 91.2 53 8609.0 V 42.6 -56.0 8.8 6.7 -54.0 94.0 53 Checked BY : ________________________________ Richard E. King Page 74 of 79 Engineering Test Report No. 1000677-01 Rev. A DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27UMR9JA7AN SERIAL NO. : 484TLE0050 SPECIFICATION : FCC-90 Spurious Radiated Emissions DATE : March 24, 2010 NOTES : Transmit at 860.5 MHz : Low Power (10 Watts), 25 kHz channel spacing Freq. MHz Ant Pol Mtr Rdg (dBuV) Matched Sig Gen (dBm) equil ant gain CBL Loss (dB) Total (dBm) Attn min attn 1721.0 H 43.4 -75.6 5.1 2.7 -73.1 113.1 53 1721.0 V 43.0 -77.5 5.1 2.7 -75.1 115.1 53 2581.5 H 46.0 -62.9 5.8 3.1 -60.2 100.2 53 2581.5 V 48.1 -65.9 5.8 3.1 -63.2 103.2 53 3442.0 H 44.9 -58.6 6.6 3.6 -55.6 95.6 53 3442.0 V 45.8 -59.7 6.6 3.6 -56.8 96.8 53 4302.5 H 44.7 -66.7 7.8 4.2 -63.1 103.1 53 4302.5 V 42.3 -64.2 7.8 4.2 -60.7 100.7 53 5163.0 H 41.6 -65.2 7.6 4.8 -62.4 102.4 53 5163.0 V 40.6 -64.6 7.6 4.8 -61.8 101.8 53 6023.5 H 41.6 -61.7 7.9 5.3 -59.1 99.1 53 6023.5 V 41.8 -60.9 7.9 5.3 -58.3 98.3 53 6884.0 H 43.0 -61.3 8.2 6.0 -59.1 99.1 53 6884.0 V 43.3 -61.6 8.2 6.0 -59.4 99.4 53 7744.5 H 42.1 -53.2 8.2 6.2 -51.2 91.2 53 7744.5 V 41.4 -51.4 8.2 6.2 -49.4 89.4 53 8605.0 H 42.3 -53.7 8.8 6.7 -51.6 91.6 53 8605.0 V 42.0 -55.4 8.8 6.7 -53.4 93.4 53 Checked BY : ________________________________ Richard E. King Page 75 of 79 Engineering Test Report No. 1000677-01 Rev. A DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27UMR9JA7AN SERIAL NO. : 484TLE0050 SPECIFICATION : FCC-90 Spurious Radiated Emissions DATE : March 24, 2010 NOTES : Transmit at 860.5 MHz : High Power (35 Watts), 12.5 kHz channel spacing Freq. MHz Ant Pol Mtr Rdg (dBuV) Matched Sig Gen (dBm) equil ant gain CBL Loss (dB) Total (dBm) Attn min attn 1721.0 H 42.3 -78.8 5.1 2.7 -76.4 121.8 58.4 1721.0 V 42.5 -80.8 5.1 2.7 -78.4 123.8 58.4 2581.5 H 52.9 -58.2 5.8 3.1 -55.5 100.9 58.4 2581.5 V 51.2 -63.9 5.8 3.1 -61.2 106.6 58.4 3442.0 H 53.1 -55.3 6.6 3.6 -52.3 97.7 58.4 3442.0 V 52.9 -54.0 6.6 3.6 -51.0 96.4 58.4 4302.5 H 42.1 -67.1 7.8 4.2 -63.5 108.9 58.4 4302.5 V 42.6 -67.3 7.8 4.2 -63.8 109.2 58.4 5163.0 H 40.6 -69.3 7.6 4.8 -66.5 111.9 58.4 5163.0 V 42.0 -65.0 7.6 4.8 -62.1 107.5 58.4 6023.5 H 44.0 -60.7 7.9 5.3 -58.1 103.5 58.4 6023.5 V 42.3 -61.3 7.9 5.3 -58.7 104.1 58.4 6884.0 H 44.9 -59.8 8.2 6.0 -57.5 102.9 58.4 6884.0 V 44.0 -58.5 8.2 6.0 -56.3 101.7 58.4 7744.5 H 41.6 -61.0 8.2 6.2 -59.0 104.4 58.4 7744.5 V 41.3 -58.4 8.2 6.2 -56.4 101.8 58.4 8605.0 H 41.8 -59.3 8.8 6.7 -57.2 102.6 58.4 8605.0 V 42.8 -58.4 8.8 6.7 -56.4 101.8 58.4 Checked BY : ________________________________ Richard E. King Page 76 of 79 Engineering Test Report No. 1000677-01 Rev. A DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27UMR9JA7AN SERIAL NO. : 484TLE0050 SPECIFICATION : FCC-90 Spurious Radiated Emissions DATE : March 24, 2010 NOTES : Transmit at 860.5 MHz : High Power (35 Watts), 25 kHz channel spacing Freq. MHz Ant Pol Mtr Rdg (dBuV) Matched Sig Gen (dBm) equil ant gain CBL Loss (dB) Total (dBm) Attn min attn 1721.0 H 42.3 -78.7 5.1 2.7 -76.3 121.7 58.4 1721.0 V 44.9 -78.5 5.1 2.7 -76.0 121.4 58.4 2581.5 H 52.3 -58.7 5.8 3.1 -56.0 101.4 58.4 2581.5 V 51.8 -63.3 5.8 3.1 -60.6 106.0 58.4 3442.0 H 51.3 -57.1 6.6 3.6 -54.1 99.5 58.4 3442.0 V 54.0 -52.8 6.6 3.6 -49.8 95.2 58.4 4302.5 H 42.5 -66.7 7.8 4.2 -63.1 108.5 58.4 4302.5 V 44.7 -65.2 7.8 4.2 -61.7 107.1 58.4 5163.0 H 40.7 -69.2 7.6 4.8 -66.4 111.8 58.4 5163.0 V 40.6 -66.3 7.6 4.8 -63.5 108.9 58.4 6023.5 H 44.2 -60.4 7.9 5.3 -57.8 103.2 58.4 6023.5 V 43.2 -60.5 7.9 5.3 -57.9 103.3 58.4 6884.0 H 44.2 -60.4 8.2 6.0 -58.2 103.6 58.4 6884.0 V 44.5 -58.0 8.2 6.0 -55.8 101.2 58.4 7744.5 H 42.0 -60.6 8.2 6.2 -58.6 104.0 58.4 7744.5 V 42.3 -57.4 8.2 6.2 -55.4 100.8 58.4 8605.0 H 41.8 -59.3 8.8 6.7 -57.2 102.6 58.4 8605.0 V 43.4 -57.8 8.8 6.7 -55.7 101.1 58.4 Checked BY : ________________________________ Richard E. King Page 77 of 79 Engineering Test Report No. 1000677-01 Rev. A DATA PAGE MANUFACTURER : Motorola Inc. MODEL : AAM27UMR9JA7AN SERIAL NO. : 484TLE0050 SPECIFICATION : FCC-90 Spurious Radiated Emissions DATE : March 24, 2010 NOTES : Transmit at 937.5 MHz : Low Power (10 Watts), 12.5 kHz channel spacing Freq. MHz Ant Pol Mtr Rdg (dBuV) Matched Sig Gen (dBm) equil ant gain CBL Loss (dB) Total (dBm) Attn min attn 1875.0 H 52.2 -68.9 5.2 2.8 -66.5 106.5 53 1875.0 V 48.6 -74.7 5.2 2.8 -72.3 112.3 53 2812.5 H 44.3 -66…

Text truncated - open the document above for the full version.

MOTOROLA INC. FCC ID: ABZ99FT6001 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A - RF Power Output (1 Table) 6A-1 – Power Output EXHIBIT 6B - Transmit Audio Response (2 Graphs) 6B-1 – 12.5 kHz Channel Spacing 6B-2 – 25.0 kHz Channel Spacing EXHIBIT 6C - Transmit Audio Post Limiter Low Pass Filter Response (2 Graphs) 6C-1 – 12.5 kHz Channel Spacing 6C-2 – 25.0 kHz Channel Spacing EXHIBIT 6D - Modulation Limiting Characteristics (2 Graphs) 6D-1 – 12.5 kHz Channel Spacing 6D-2 – 25.0 kHz Channel Spacing EXHIBIT 6E - Occupied Bandwidth (128 Spectrum Analyzer Plots) 6E-1 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, CARRIER SQUELCH, EMISSION MASK: B 6E-2 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, TPL 250.3 Hz, EMISSION MASK: B 6E-3 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, DPL 131, EMISSION MASK: B 6E-4 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, CARRIER SQUELCH, EMISSION MASK: B 6E-5 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, TPL 250.3 Hz, EMISSION MASK: B 6E-6 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, DPL 131, EMISSION MASK: B 6E-7 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, CARRIER SQUELCH, EMISSION MASK: B 6E-8 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, TPL 250.3 Hz, EMISSION MASK: B 6E-9 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, DPL 131, EMISSION MASK: B 6E-10 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, CARRIER SQUELCH, EMISSION MASK: EA 6E-11 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, TPL 250.3 Hz, EMISSION MASK: EA 6E-12 852.5125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, DPL 131, EMISSION MASK: EA 6E-13 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, CARRIER SQUELCH, EMISSION MASK: EA 6E-14 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, TPL 250.3 Hz, EMISSION MASK: EA 6E-15 852.5125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, DPL 131, EMISSION MASK: EA 6E-16 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, CARRIER SQUELCH, EMISSION MASK: EA 6E-17 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, TPL 250.3 Hz, EMISSION MASK: EA 6E-18 852.5125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, DPL 131, EMISSION MASK: EA 6E-19 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, CARRIER SQUELCH, EMISSION MASK: B 6E-20 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, TPL 250.3 Hz, EMISSION MASK: B 6E-21 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, DPL 131, EMISSION MASK: B 6E-22 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, CARRIER SQUELCH, EMISSION MASK: B 6E-23 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, TPL 250.3 Hz, EMISSION MASK: B 6E-24 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, DPL 131, EMISSION MASK: B 6E-25 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, CARRIER SQUELCH, EMISSION MASK: B 6E-26 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, TPL 250.3 Hz, EMISSION MASK: B 6E-27 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, DPL 131, EMISSION MASK: B 6E-28 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, CARRIER SQUELCH, EMISSION MASK: EA 6E-29 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, TPL 250.3 Hz, EMISSION MASK: EA 6E-30 854.0125M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, DPL 131, EMISSION MASK: EA 6E-31 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, CARRIER SQUELCH, EMISSION MASK: EA 6E-32 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, TPL 250.3 Hz, EMISSION MASK: EA 6E-33 854.0125M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, DPL 131, EMISSION MASK: EA 6E-34 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, CARRIER SQUELCH, EMISSION MASK: EA 6E-35 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, TPL 250.3 Hz, EMISSION MASK: EA 6E-36 854.0125M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, DPL 131, EMISSION MASK: EA 6E-37 869.9875M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, CARRIER SQUELCH, EMISSION MASK: B 6E-38 869.9875M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, TPL 250.3 Hz, EMISSION MASK: B 6E-39 869.9875M 25 kHz CHANNEL SPACING, 42W, 2500 Hz TONE, DPL 131, EMISSION MASK: B 6E-40 869.9875M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, CARRIER SQUELCH, EMISSION MASK: B 6E-41 869.9875M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, TPL 250.3 Hz, EMISSION MASK: B 6E-42 869.9875M 25 kHz CHANNEL SPACING, 42W, 2000/3000 Hz FSK, DPL 131, EMISSION MASK: B 6E-43 869.9875M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, CARRIER SQUELCH, EMISSION MASK: B 6E-44 869.9875M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, TPL 250.3 Hz, EMISSION MASK: B 6E-45 869.9875M 25 kHz CHANNEL SPACING, 42W, DTMF MODULATION, DPL 131, EMISSION MA…
