ABZ99FT7009Part 15 Transmitter

MISSION CRITICAL WIRELESS ADAPTER PMLN5792 Blank.fm Page 1 Wednesday, October 13, 2010 9:34 PM i English FOREWORD Product Safety and RF Exposure Compliance ATTENTION! The radio is restricted to occupational use only to satisfy ICNIRP/ FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98 - This is US Safety. EMEA version is 6864117B25.) to ensure compliance with RF energy exposure limits. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . Any changes or modifications not expressly approved by Motorola may void the user's authority to operate this device. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n Bluetooth ® is a registered trademark of the Bluetooth Special Interest Group. 1 English OPERATION Attaching the Mission Critical Wireless Adapter to the Radio's Universal Connector Below are the steps to attach the Mission Critical Wireless Adapter PMLN5792 to the radio’s universal connector: 1. Ensure that the radio is turned off before attaching the adapter to the radio. 2. Remove the universal connector cover from the side of the radio. 3. Insert the bottom hooked end of the adapter into the radio's bottom slot. Pivot the top of the adapter towards the radio, then engage the adapter's spring loaded latch in the radio's top slot. Refer to Figure 1 Mission Critical Wireless Adapter. 4. Secure the adapter to the radio using the tethered screw. 2 English Figure 1 Mission Critical Wireless Adapter Top Slot Bottom Slot Bottom Hooked End Tethered Screw Spring Latch LED Blue Dot Audio Routing Toggle Switch 3 English Supported Bluetooth Devices • NTN2570A, HKXXXX Wireless Accessory Kit, NFP, 12" CABLE • NTN2573A, HKXXXX Wireless Accessory Kit, NFP, 9.5" CABLE • NTN2571A, HKXXXX Wireless Accessory Kit, NFP LED Status Indication State LED Indication Successful Power Up Blue LED Blinks 3 times Not Paired with any Bluetooth Device Blue LED Blinking Not Connected with Bluetooth Headset Blue LED Illuminated Bluetooth Headset Connected Blue LED Heartbeat Blinking (On for every 4 seconds) Table 1: LED Status Indication 4 English Mission Critical Wireless Adapter Pairing Procedure 1. Place the Bluetooth device in pairing mode. Refer to respective Bluetooth device’s user manual. 2. Refer to “Attaching the Mission Critical Wireless Adapter to the Radio's Universal Connector” on page 1 to attach the adapter to the radio. 3. Place the blue dot (secure pairing spot) on the Bluetooth device within one inch of the blue dot (secure pairing spot) on the adapter. a.The adapter allows a maximum of 1 audio and 1 non-audio device to pair with it. b.If the maximum number of device is reached, the user needs to unpair the device. Refer to step 7 for unpairing procedure. 4. The adapter provides LED indication when successfully connected with the Bluetooth Headset Device .Refer to “LED Status Indication” on page 3. 5. Perform link check to verify the Bluetooth connection between the adapter and the Bluetooth device. Refer to respective Bluetooth device’s user manual. 6. Bluetooth devices which are connected successfully with the adapter are reconnected automatically on the next power up. 5 English 7. To replace with new Bluetooth device: a.Power OFF the Radio b.Press and hold the PTT button on the adapter while powering up the radio until the adapter provides LED indication. This indicates that the dongle has unpaired with the previously paired device and is ready to pair with the new device. Refer to “LED Status Indication” on page 3. c.Repeat steps 1 to 5 to pair a new Bluetooth device. Note: When step 7 is performed, it will erase all the previously paired device information. However, the user can repeat the “Mission Critical Wireless Adapter Pairing Procedure” on page 4 for pairing with intended device. Bluetooth Link Lost In the event of interference, or if the Bluetooth Device is out of range, the link between the Mission Critical Wireless Adapter and Bluetooth Device may be lost. If the link between the adapter and Headset (Bluetooth Device) is lost, the received audio is automatically routed back to the radio's speaker and the adapter will not allow the Bluetooth device to key-up the radio. Bluetooth Link Restored Once the Bluetooth Device is in range or after interference has subsided, the link between the Mission Critical Wireless Adapter and the Bluetooth Device is restored. 6 English When the link between the adapter and the Headset (Bluetooth Device) is restored, the adapter will allow the Bluetooth device to key-up the radio. Audio Routing Toggle Switch The toggle switch on top of the adapter allows the user to switch audio between the Mission Critical Wireless Adapter and the radio. • With the toggle switch positioned away from the radio, audio will be routed to the radio speaker, and the radio microphone is active during transmit. • With the toggle switch positioned towards the radio, audio will be routed to the Bluetooth headset earpiece, and the headset microphone will be active. The adapter and headset must be paired first. To pair the adapter and headset, refer to “Mission Critical Wireless Adapter Pairing Procedure” on page 4. Other Notes • The Mission Critical Wireless Adapter PMLN5792 is non-serviceable. • The Mission Critical Wireless Adapter PMLN5792 is for portable usage only. • The Mission Critical Wireless Adapter PMLN5792 only supports one Headset and one Bluetooth PTT POD. m MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registe…

Text truncated - open the document above for the full version.

FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009 CONFIDENTIAL Block Diagram

FCC ID: ABZ99FT7009 Date: March 20, 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT7009 Dear Sir or Madam: Motorola Inc., 1313 East Algonquin Road, Schaumburg, Illinois, herein submits application for Certification of a Part 15 T ransmitter identified by FCC ID number ABZ99FT7009. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen Regulatory Coordinator Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

FCC ID: ABZ99FT7009 REQUEST FOR CONFIDENTIALITY Date: March 20, 2011 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: ABZ99FT7009 Dear Sir or Madam: Motorola is requesting that Circuit Descriptions and Schematic Diagrams not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please contact me if you require any additional information. Sincerely, /s/Larry D. Larsen(signed) Larry D. Larsen Regulatory Coordinator Tel: (847)-538-2239 Fax: (847)-538-4312 E-mail: [email protected]

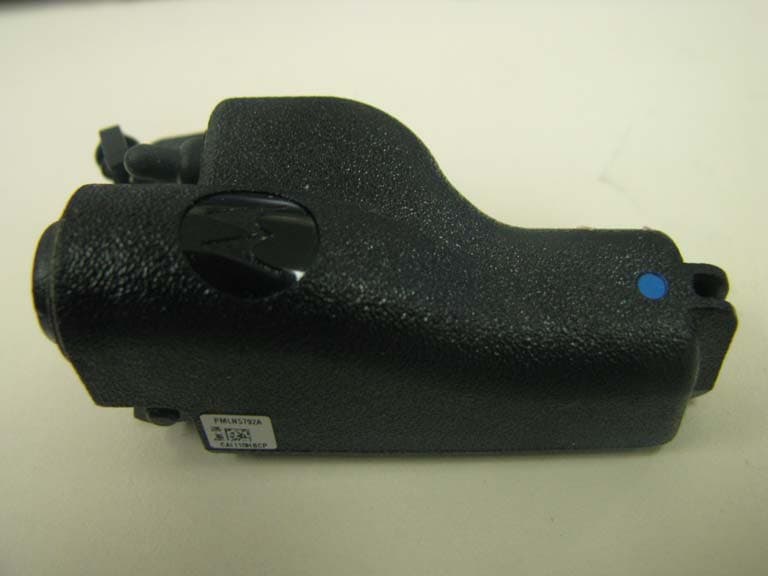

FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009 EXTERNAL PHOTOS FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009

FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009 FCC ID Label Samples

FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009 INTERNAL PHOTOS

FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009CONFIDENTIAL TITLE: Wireless R2.1 Main Board BOM DESIGN: main PROJECT PATH: L:\ecad_proj\GPS_ZMY12\New_Wireless_21v1\Main\0084012301001_2\84012301001.cp m DATE: 01/19/2011 VERSION: 16.2‐s004 (v16‐2‐57AC) TEMPLATE: L:\ecad_proj\GPS_ZMY12\New_Wireless_21v1\Main\0084012301001_2\worklib\main\bom\MainBoard_BOMTemplate_with_DNI.bom Qty Part NameRef DesDESCRIPTIONBOM_IGNORE 28 TPSM1_00GND,BT_CS,1V5_BT,UP_RST,VDD_1V8,VOTHER,TEST POINT 1.00 MM DIA 62170282H0 6C1,C13,C17,C106,C107,C301CAP,CER CHIP,2.2UF,+20%,‐20%,6.3V‐DC,0402,X5R,SMD,W18 COMP 12113944E10C10CAP,CHIP,6.8PF,.5PF+/‐,25V‐DC,0201,C0G,‐55DEG CMIN,125DEG CMAX 30613952Q77C101,C102,R314RES,MF,1.5KOHM,5%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 22113944E05C103,C104CAP,CHIP,2.2PF,.25PF+/‐,25V‐DC,0201,C0G,‐55DEG CMIN,125DEG CMA 11 2113946U01 C45,C50,C108,C110,C112,C114,C123,C12CAP,FXD,.1UF,+10%,‐10%,6.3V‐DC,0201,X5R,‐55DEG CMIN,85DEG CMAX 92113946U11 C109,C111,C113,C115,C117,C119,C122,CCAP,FXD,.033UF,+10%,‐10%,6.3V‐DC,0201,X5R,‐55DEG CMIN,85DEG CMA 12113944E15C11CAP,FXD,18PF,+5%,‐5%,25V‐DC,0201,C0G,‐55DEG CMIN,125DEG CMAX,PB 42113945F04C116,C118,C121,C124CAP,FXD,3300PF,+10%,‐10%,6.3V‐DC,0201,X7R,‐55DEG CMIN,125DEG CM 62113945F07C12,C15,C16,C41,C46,C300CAP,FXD,.01UF,+10%,‐10%,6.3V‐DC,0201,X7R,‐55DEG CMIN,125DEG CMA 22113956B45 C130,C313CAP,FXD,4.7UF,+10%,‐10%,10V‐DC,0603,X5R,‐55DEG CMIN,85DEG CMAX 62113944A40C8,C14,C20,C304,C305,C306CAP,CHIP,100PF,+5%,‐5%,50V‐DC,0402,C0G,‐55DEG CMIN,125DEG CMAX 22113944E14C9,C18CAP,CHIP,15PF,+5%,‐5%,25V‐DC,0201,C0G,‐55DEG CMIN,125DEG CMAX,P 12113946U13 C19CAP,FXD,.047UF,+10%,‐10%,6.3V‐DC,0201,X5R,‐55DEG CMIN,85DEG CMA 22113956A51C2,C4CAP,FXD,1UF,+10%,‐10%,6.3V‐DC,0402,X5R,‐55DEG CMIN,85DEG CMAX,P 32113945B02 C21,C22,C307CAP,CHIP,.01UF,+10%,‐10%,25V‐DC,0402,X7R,‐55DEG CMIN,125DEG CMA 12113945B02 C23CAP,CHIP,.01UF,+10%,‐10%,25V‐DC,0402,X7R,‐55DEG CMIN,125DEG CMADNI 10 0613952R66L7,R8,R9,C25,R14,R91,R92,R122,R191,R3RES,MF,0OHM,5%,.0625W,SM,0402,PB‐FREE 32113945Y02C3,C7,C322CAP,FXD,.1UF,+10%,‐10%,16V‐DC,0402,X7R,‐55DEG CMIN,125DEG CMAX 12113945E04C302CAP,FXD,330PF,+10%,‐10%,16V‐DC,0201,X7R,‐55DEG CMIN,125DEG CMAXDNI 32113945A0 9C308,C309,C314CAP,CHIP,1000PF,+10%,‐10%,50V‐DC,0402,X7R,‐55DEG CMIN,125DEG CM 12171051Y01C311CAP,CER CHIP,220PF,+1%,‐1%,50V‐DC,0402,COG,‐55DEG CMIN,125DEG C 12113944A25 C312CAP,CHIP,10PF,.5PF+/‐,50V‐DC,0402,C0G,‐55DEG CMIN,125DEG CMAX 12113945F07C321CAP,FXD,.01UF,+10%,‐10%,6.3V‐DC,0201,X7R,‐55DEG CMIN,125DEG CMADNI 12113944A01C5CAP,CHIP,1.1PF,.25PF+/‐,50V‐DC,0402,C0G,‐55DEG CMIN,125DEG CMADNI 12489711L1 1C6FIXED INDUCTOR,WW,CER,SM,16 NH +/‐2% 12113944E17C681CAP,CHIP,33PF,+5%,‐5%,25V‐DC,0201,C0G,‐55DEG CMIN,125DEG CMAX,P 12113945E04C682CAP,FXD,330PF,+10%,‐10%,16V‐DC,0201,X7R,‐55DEG CMIN,125DEG CMAX 14805656W85D310DIODE,SWG,RB520CS‐30,SM,100MA,30V,SCHOTTKY BARRIER,DIODE, SHTK 19100290200 1FL1FLTR,PASSIVE,BANDPASS,2.441GHZ NOM,BALUN,BLUETOOTH BND 109012059001JP200CONN,30CONT,CONN, BTB, PLG, 30 CONT 12470327G31L2IDCTR,CHIP,15NH,5%,CER,3.3GHZ SRF,0201,SMD 124009278001L300IDCTR,INDUCTOR, ANTENNA, NEAR‐FIELD COMM 12590031N0 8L6IDCTR,PWR,22UH,20%,SM,3 X 2.8 X 1.2 185009293001M1ANT,HLCL,2.4GHZ MIN,2.4835GHZ MAX,2.4GHZ HLCL WIFI SMD ANT 14809579E77Q1XSTR,FET GP SS,MOSFET,N‐CH,SM,30V,1.2X1.2MM PKG W18 COMP 30613952X09R1,R13,R17RES,MF,2.2OHM,5%,.05W,SM,0201,200PPM/CEL,PB‐FREE 12489711L02R100FIXED INDUCTOR,WW,CER,SM,4.3 NH +/‐0.1NH 10613952Y6 6R123RES,MF,0OHM,5%,.05W,SM,0201,,PB‐FREE 70613952V0 1R95,R138,R143,R144,R145,R146,R147RES,MF,10KOHM,1%,.05W,SM,0201,200PPM/CEL,PB‐FREE 10613952R66R15RES,MF,0OHM,5%,.0625W,SM,0402,PB‐FREEDNI 10613952Q7 3R251RES,MF,1KOHM,5%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 10613952K51R300RES,MF,33.2OHM,1%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 10613952R35 R301RES,MF,270000,5,.0625,SM,0402,200,PB‐FREE 10613952L18R310RES,MF,150OHM,1%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 30613952R17R5,R6,R311RES,MF,47000,5,.0625,SM,0402,200,PB‐FREE 10613952R25 R312RES,MF,100KOHM,5%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 10613952Q53R313RES,MF,150OHM,5%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 10613952R25 R315RES,MF,100KOHM,5%,.0625W,SM,0402,200PPM/CEL,PB‐FREEDNI 20613952Q7 9R7,R317RES,MF,1800,5,.0625,SM,0402,200,PB‐FREE 10613952P01R320RES,MF,100KOHM,1%,.0625W,SM,0402,200PPM/CEL,PB‐FREE 10613952U01 R321RES,MF,1KOHM,1%,.05W,SM,0201,200PPM/CEL,PB‐FREE 10613952T01R4RES,MF,100OHM,1%,.05W,SM,0201,200PPM/CEL,PB‐FREE 20613952W01R47,R603RES,MF,100KOHM,1%,.05W,SM,0201,200PPM/CEL,PB‐FREE 20613952Y66R51,R89RES,MF,0OHM,5%,.05W,SM,0201,,PB‐FREEDNI 15100943000 1U1IC,BLUETOOTH RADIO& BB CNTLR,BGA,CSR BLUETOOTH IC 151012009003U100IC,UCNTLR,AT32UC3B0512,SM,AVR32 UC RISC,16MHZ,32BITS,512000B 151009371001U300IC,RCVR,RFID WAKEUP RCVR 15101221500 1U311IC,COMPTR,SM,CMOS COMPARATORS W/ RAIL‐TO‐RAIL 15116349H0 1U320IC,INVTR,2PER PKG,SC70,DL 15114007M4 5U330IC,NOR,1PER PKG,SOT‐353,PB‐FREE 15100964300 1U50IC,FLSH,16MBIT,2 M X 8‐BIT,70,SM,16MBIT FLSH BY SPANSION 15178250A0 2U601IC,MUX/DEMUX,TS3USB221A,QFN,3000PER PKG,4CHANNELS,BIDIRECTIONA 14805656W4 6VR600DIODE,ZEN,SNGL 16V 19371072K0 3Y1RESON,QRTZ,26MHZ,10PPM TOL,11PPM STAB,SM,FUNDAMENTAL,8PF LOAD FCC ID:ABZ99FT7009 / IC:109AB‐99FT7009CONFIDENTIAL 193009286001Y100RESON,QRTZ,16MHZ XTAL TITLE: Wireless R2.1 UC Board BOM DESIGN: uc PROJECT PATH: L:\ecad_proj\GPS_ZMY12\New_Wireless_21v1\UC\0084012337001_2\84012337001_2.cpm DATE: 12/17/2010 VERSION: 16.2‐s004 (v16‐2‐57AC) TEMPLATE: L:\ecad_proj\GPS_ZMY12\New_Wireless_21v1\UC\0084012337001_2\worklib\uc\bom\UC_BOMList_Template_with_DNI.bom Qty Part NameRef DesDESCRIPTIONBOM_IGNORE 32113945Y0 2C101,C706,C707CAP,FXD,.1UF,+10%,‐10%,16V‐DC,0402,X7R,‐55DEG CMIN,125DEG CMAX 32113944A31C102,C803,C804CAP,CHIP,33PF,+5%,‐5%,50V‐DC,0402,C0G,‐55DEG CMIN,125DEG CMAX,P 92113944A40C303,C304,C305,C307,C310,C311,C312,CCAP,CHIP,100PF,+5%,‐5%,50V‐DC,0402,C0G,‐55DEG CMIN,125DEG CMAX 32113956A51C321,C801,C802CAP,FXD,1UF,+10%,‐10%,6.3V‐DC,0402,X5R,‐55DEG CMIN,85DEG CMAX,P 12113946B04C322CAP,CHIP,.1UF,+10%,‐10%,10V‐DC,0402,X5R,‐55DEG CMIN,85DEG CM…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1100355-01 Measurement of RF Emissions from a Model PMLN5792A Wireless Dongle Transceiver For Motorola, Inc. 1301 E. Algonquin Road Schaumburg, IL 60196 P.O. Number NP5308463 Date Tested March 7 through 17, 2011 Test Personnel Richard King Test Specification FCC "Code of Federal Regulations" Title 47, Part 15, Subpart C, Sections 15.247 for Frequency Hopping Spread Spectrum Intentional Radiators Operating within the band 2400-2483.5MHz Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Richard King EMC Engineer Requested By: Larry Larsen Motorola, Inc. Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1100355-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 75 1 Introduction ................................................................................................................................................... 5 1.1 Scope of Tests ..................................................................................................................................... 5 1.2 Purpose ............................................................................................................................................... 5 1.3 Deviations, Additions and Exclusions .................................................................................................. 5 1.4 EMC Laboratory Identification ............................................................................................................. 5 1.5 Laboratory Conditions.......................................................................................................................... 5 2 Applicable Documents .................................................................................................................................. 5 3 EUT Setup and Operation ............................................................................................................................ 6 3.1 General Description ............................................................................................................................. 6 3.1.1 Power Input ..................................................................................................................................... 6 3.1.2 Peripheral Equipment ...................................................................................................................... 6 3.1.3 Signal Input/Output Leads ............................................................................................................... 6 3.1.4 Grounding ........................................................................................................................................ 6 3.2 Operational Mode ................................................................................................................................ 6 3.3 EUT Modifications ................................................................................................................................ 6 4 Test Facility and Test Instrumentation ......................................................................................................... 6 4.1 Shielded Enclosure .............................................................................................................................. 6 4.2 Test Instrumentation ............................................................................................................................ 6 4.3 Calibration Traceability ........................................................................................................................ 7 4.4 Measurement Uncertainty ................................................................................................................... 7 5 Test Procedures ........................................................................................................................................... 7 5.1 Receiver ............................................................................................................................................... 7 5.1.1 Radiated Measurements ................................................................................................................. 7 5.1.1.1 Requirements ......................................................................................................................... 7 5.1.1.2 Procedures ............................................................................................................................. 8 5.1.1.3 Results .................................................................................................................................... 8 5.2 Transmitter ........................................................................................................................................... 9 5.2.1 20dB Bandwidth .............................................................................................................................. 9 5.2.1.1 Requirement ........................................................................................................................... 9 5.2.1.2 Procedures ............................................................................................................................. 9 5.2.1.3 Results .................................................................................................................................... 9 5.2.2 Carrier Frequency Separation ......................................................................................................... 9 5.2.2.1 Requirements ................................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1100355-01 Page 20 of 75 Figure 2 Test Setup for Radiated Emissions, above 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, above 1GHz – Vertical Polarization
