USER GUIDE 6880906Z37-O TR3000 ™ Portable Radio and Motorola are registered trademarks of Motorola, Inc. TELARIO, TC3000, TR3000, and TS3000 are trademarks of Motorola, Inc. Copyright © 1999 Motorola, Inc. All rights reserved. This manual may not be reproduced, in whole or in part, in any form whatsoever, without the express written permission of Motorola, Inc. Note:The Motorola products described in this manual contain one or more computer programs. These computer programs are protected by copyright laws and international treaties. Unauthorized reproduction or distribution of these programs, or any part thereof, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. U.S. and international patents pending. This product is covered by one or more issued U.S. Patents. Other Patent applications pending. 1 Introduction UTAM Registration ........................................................................................... 3 TR3000 Radio Features ................................................................................... 4 Inspection ......................................................................................................... 6 Battery Installation Instructions ........................................................................ 7 To Insert Battery .......................................................................................... 7 To Remove Battery ...................................................................................... 7 Charging Instructions ....................................................................................... 8 Rapid Charge Method ................................................................................. 8 Slow Charge Method ................................................................................... 9 Attaching and Removing the Belt Clip ............................................................ 10 Basic Functions Turning the TR3000 Radio On........................................................................ 11 Tuning the TR3000 Radio Off ......................................................................... 11 Setting the Volume ......................................................................................... 11 Battery Life Indicator ...................................................................................... 12 Time-Out Timer .............................................................................................. 12 Idle Timer ....................................................................................................... 12 Group Talk Selecting a Group........................................................................................... 13 LED Indicators ........................................................................................... 13 Initiating a Group Talk..................................................................................... 14 Group Busy Signal..................................................................................... 14 User Out of Range..................................................................................... 14 System Busy Signal................................................................................... 14 System Busy Auto Retry............................................................................ 15 Receiving a Group Talk .................................................................................. 15 Person Link Initiating a Person Link ................................................................................... 16 Target User Busy Signal ............................................................................ 16 User Out of Range..................................................................................... 16 System Busy Signal................................................................................... 17 System Busy Auto Retry............................................................................ 17 Receiving a Person Link................................................................................. 17 Responding to a Person Link ......................................................................... 17 Responding to a Person Link While in a Group Talk ...................................... 18 Disconnecting a Person Link .......................................................................... 18 Table of Contents 2 Table of Contents Accessories....................................................................................................... 19 LED Indications and Alert Tones..................................................................... 20 Troubleshooting................................................................................................ 21 Important Safety Information Scope ............................................................................................................. 24 Exposure to Radio Frequency Energy............................................................ 24 Portable Radio Operation and EME Exposure .......................................... 26 Electromagnetic Interference / Compatibility .................................................. 26 Medical Devices......................................................................................... 27 Pacemakers .......................................................................................... 27 Hearing Aids ......................................................................................... 27 Other Medical Devices.......................................................................... 27 Operational Warnings..................................................................................... 28 Potentially Explosive Atmospheres............................................................ 28 Batteries ..........................................................................…

Text truncated - open the document above for the full version.

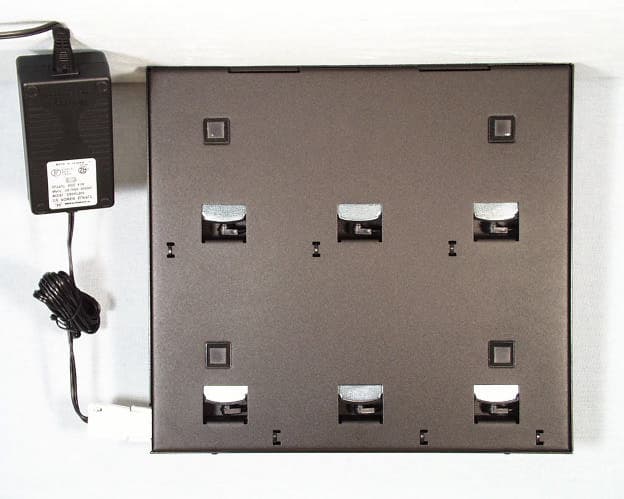

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 4 of 105 Exhibit 3 Exhibit 3: Photographs of Overall Appearance Front View of the AAS19ZAL9022AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 5 of 105 Exhibit 3 Back View of the AAS19ZAL9022AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 6 of 105 Exhibit 3 Front View of the Single Charger COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 7 of 105 Exhibit 3 Bottom View of the Single Charger COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 8 of 105 Exhibit 3 Front View of the Multiple Charger COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 9 of 105 Exhibit 3 Back View of the Multiple Charger

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 1 of 105 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a)(3), 15.311, 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the Motorola, Inc. Model AAS19ZAL9022AA. Shown below is the label and photograph showing where the label will be placed on the TR3000. TR3000 Label COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 2 of 105 Exhibit 1 Photograph Showing Label Placement

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 73 of 105 Exhibit 9 Exhibit 9: Internal Photographs Inside View of the AAS19ZAL9022AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 74 of 105 Exhibit 9 Component side of the interface board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 75 of 105 Exhibit 9 Solder side of the interface board

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 77 of 105 Exhibit 11 Exhibit 11: RF Exposure/Environmental Evaluation Section 15.319 (i) Requirement: Unlicensed PCS devices are subject to the radiofrequency radiation exposure requirements specified in '' 1.1307(b), 2.1091 and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Demonstration of Compliance: The AAS19ZAL9022AA is classified as a portable device. Therefore, the AAS19ZAL9022AA is subject to routine environmental evaluation for RF exposure as per ' 2.1093(c). Testing to demonstrate compliance to this section was performed by Motorola, Inc. and the results of this test is enclosed below. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 78 of 105 Exhibit 11 COMMERCIAL, GOVERNMENT, AND INDUSTRIAL SOLUTION SECTOR (CGISS) ELECTROMAGNETIC EXPOSURE (EME) TESTING LABORATORY SAR TEST REPORT October 6, 1999 Prepared by Jim Fortier, Lead Engineer COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 79 of 105 Exhibit 11 1.0 Environmental Evaluation for Occupational RF Exposure -- Pursuant 47 CR2.1093(d)(2) 1.1 General Information FCC ID: ABZ99FT7011 Device category: Portable radio RF exposure environment: Uncontrolled Test method: Measurement Note: The test software operation utilized 2 time slots (2/8 or 25% duty cycle), therefore the measured SAR results must be divided by 2 to simulate the proper user mode (1/8 slots or 12.5% duty cycle). Special Note: This is a very low RF power radio typically operating in the 33 mW range (conducted). The resulting measured SAR was below the 10 micro-Watt/g sensitivity limit of the test system. Therefore, the resulting SAR scan plots are very erratic due to being in the system noise level and therefore it can be concluded that these results demonstrate that the SAR levels are well within the FCC limit of 1.6 W/kg, per the requirements of 47 CFR 2.1093(d)(2). 1.2 Antenna Description Antenna type: monople ( ) dipole ( ) Helix ( x ) Patch ( ) Other ( ) 1/4 wave Antenna Location on Device: Left ( ) Right ( x ) Top ( x ) Bottom ( ) Front ( ) Back ( ) Antenna Dimensions: Length 1.8 cm Diameter (at tip of antenna) 1.05 cm Diameter (at middle of antenna) 1.15 cm Diameter (at base of antenna) 1.25 cm Antenna configuration: Fixed (x) Retractable ( ) External ( ) Other ( ) Antenna Gain: -1 (dBi) 1.3 Test Signal Test signal source: Test mode ( x ) Base Station ( ) Simulator ( ) Other ( ) Signal Modulation: C.W. ( ) TDMA ( x ) Other ( ) 1.4 Output Power Output power measurement conditions: Free Space radiated ( ) SAR test configuration ( ) Conducted ( x ) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 80 of 105 Exhibit 11 Output power measured with: Power meter (x ) Base Station Simulator ( ) Spectrum Analyzer ( ) Measured Output Power before and after SAR runs Measurements made with the radio operating with 2/8 multiplexing (25% duty cycle) Output Power Measured at Frequency (MHz) Output Power Measured Before SAR with Fully Charged Battery (mWatts) Output Power Measured After SAR (mWatts) 1930.2532 30 after 20 min No battery changes made during SAR runs 1.5 Test Position The following describes the two test positions used to perform SAR measurements on the portable radio: 1. Face - The portable radio is positioned in the right hand of a full body phantom and the radio’s normal speaking area is aligned with the center of the phantom’s mouth. 2. Abdomen - The portable radio is positioned with a belt clip beneath the abdomen of the full body phantom with the back of the radio facing the abdomen and the front of the radio facing the floor with the antenna made to be as parallel as possible to the phantom. Reference figures: 1, and 2 for portable radio antenna orientation and distances relative to phantoms. 1.6 Measurement Uncertainty The table below list an estimate of the possible errors that are associated with the measurement system. Error (%)DistributionDivisor Standard Uncertainty Measurement of the conductivity of tissue simulated +/- 3 Normal 21.5 Temperature rise calibration of probe+/- 5Rectangular1.7322.89 Measurement of thermal capacity of tissue simulated +/- 5Normal22.5 Accuracy of a repeatable radio position+/- 1Normal20.5 Probe isotropic response +/- 12Normal26 With a coverage factor of k=2, providing a level of confidence of approximately 95%, the Uncertainty for SAR testing is ± 14.6%. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 81 of 105 Exhibit 11 1.7 Measurement System and Phantom Description Description of Measurement System and Performance: The measurement system used to evaluate the portable radio SAR consist of a small diameter isotropic electric field probe, multiple axis probe positioning system, differential amplifiers, high impedance cables connecting the probes to the differential amplifiers and the amplifier output to a computer, IDX FLEXWARE software version 3.58, robotics arm with its extension, a custom probe holder, and supporting equipment to calibrate the probe and characterize the simulated tissue material. The measurement system has sensitivity of 10 micro-Watt/g. Linear response up to 20 mW/g. The system is calibrated using thermal measurements of SAR in muscle and brain simulated tissue at the frequency band of interest. Description of Positioning System and Performance: The Intelledex Microsmooth Model 660 six-axis robotics arm is used to position a small diameter isotropic electric field probe inside a hum…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 12 of 105 Exhibit 6 Exhibit 6: Test Report TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: AAS19ZAL9022AA AAS19ZAL9022AANC FCC ID: ABZ99FT7011 To Part 15 Subpart D of the FCC Rules and Regulations Test Report Serial No: 73-7044 Applicant: Motorola, Inc. 5201 Tollview Drive Rolling Meadows, IL 60008 Date(s) of Test: August 26 – November 11, 1999 Issue Date: December 3, 1999 Equipment Receipt Date: August 25, 1999 COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 13 of 105 Exhibit 6 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to evaluate the device described below with the requirements of FCC Part 15, Subpart D. Specific identifying information for the device tested is given below. -ApplicantMotorola, Inc. 5201 Tollview Drive Rolling Meadows, IL 60008 -Manufacturer:Motorola, Inc. 1411 East Washington Mt. Pleasant, IA 52641 -Trade Name:TELARIO TM TR3000 -Model Number:AAS19ZAL9022AA and AAS19ZAL9022AANC -FCC ID Number:ABZ99FT7011 On this 3 rd day of December 1999, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 14 of 105 Exhibit 6 SECTION 1 GENERAL INFORMATION 1.1 Product Description The AAS19ZAL9022AA is the handset (TR3000) portion of a wireless system (see Theory of Operation in Exhibit 12). The TR3000 is sold under two different model numbers, both units are electrically identical the only difference is one is sold with a battery charger and one is sold without the battery charger. The model for the unit with the charger is AAS19ZAL9022AA and the model for the unit without the charger is AAS19ZAL9022AANC. This application is for the handset (TR3000), which is identified by FCC ID: ABZ99FT7011. There is a second handset (TC3000), which is identified by FCC ID: ABZ99FT7010 and a base station (TS3000), which is identified by FCC ID: ABZ99FT7012. Both these applications are being submitted concurrently with this application. 1.2 Test Specification The AAS19ZAL9022AA is an Isochronous device that operates in the 1920-1930 MHz sub-band; therefore the AAS19ZAL9022AA is subject to the provisions of FCC Part 15, Subpart D. Unlicensed Personal Communications Service Devices. 1.3 Test Methods & Procedures The AAS19ZAL9022AA was tested in accordance with ANSI C63.17-1998. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 15 of 105 Exhibit 6 SECTION 2. SUMMARY OF TEST RESULTS: 2.1 Summary of Tests: FCC Section Description Report Section ANSI C63.17 Section Result 15.307 Affidavit from UTAM, Inc. certifying participation in UTAM, Inc. 3.2.1N/AComplies 15.309Cross Reference to Subpart B 3.2.26.1.6.3Complies 15.311Labelling Requirements 3.2.3N/AComplies 15.315AC power line conducted limits 3.2.4N/AComplies 15.317Antenna requirement3.2.5N/AComplies 15.319 (a)Frequency of operation 3.2.6N/AComplies 15.319 (b)Modulation technique 3.2.76.1.4Complies 15.319 (c)Peak transmit power and emission bandwidth 3.2.86.1.2Complies 15.319 (d)Power spectral density 3.2.96.1.5Complies 15.319 (e)Directional gain of antenna 3.2.10N/AComplies 15.319 (f)Automatic discontinuance of transmission 3.2.11N/AComplies 15.319 (i)IEEE C95.1-1991 and IEEE C95.3-1991 3.2.12N/AComplies 15.323 (a)Channel allocation3.2.13N/AComplies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 16 of 105 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (b)Channel packing3.2.148.1.2Complies 15.232 (c)Time and Spectrum monitoring 3.2.15Sections 7 and 8 Complies 15.323 (c)(1) Transmit window monitoring 3.2.167.3.2.2 and 7.5 Complies 15.323 (c)(2) Monitoring threshold 3.2.177.3.2.1Complies 15.323 (c)(3) Transmission duration 3.2.18N/AComplies 15.323 (c)(4) Acknowledgments3.2.198.2.1Complies 15.323 (c)(5) Least interfered channel 3.2.207.3.2.1, 7.3.2.2 and 8.2.1 Complies 15.323 (c)(6) Random waiting interval 3.2.218.1.3Complies 15.323 (c)(7) Threshold monitoring bandwidth, Threshold monitoring reaction time 3.2.227.4 and 7.5 Complies 15.323 (c)(8) Threshold monitoring antenna 3.2.23N/AComplies 15.323 (c)(9) Monitoring threshold relaxation 3.2.24N/AComplies 15.323 (c)(10) Duplex connections3.2.258.2.3Complies 15.323 (c)(11) Alternative monitoring interval 3.2.268.2.4Complies 15.323 (c)(12) Limitation on use of Section (c)(10) or (c)(11) 3.2.27N/AComplies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 17 of 105 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (d)Spurious emissions3.2.286.1.6Complies 15.323 (e)Frame repetition stability / frame period and jitter 3.2.296.2.3 and 6.2.4 Complies 15.323 (f)Frequency stability3.2.306.2.2Complies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 18 of 105 Exhibit 6 SECTION 3. MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS: 3.1 General Comments This section contains the test results only. Details of the test methods used, etc., can be found in Appendix A of this report. 3.2 Test Results 3.2.1 Coordination with fixed microwave service § 15.307 Measurement Data: The affidavit from UTAM, Inc. is enclosed in Exhibit 12. 3.2.2 Cross Reference to Subpart B § 15.309 The requirements of Subpart D apply only to the radio transmitter contained in the PCS device. Other aspects of the operation of a PCS device may be subject to requirements contained elsewhere…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 70 of 105 Exhibit 7 Exhibit 7: Test Set-Up Photographs Front View of Worst Case Radiated and Line Conducted Emissions Test Set-up COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7044 FCC ID: ABZ99FT7011 Page 71 of 105 Exhibit 7 Back View of Worst Case Radiated and Line Conducted Emissions Test Set-up
