COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 92 of 93 Exhibit 13 Exhibit 13: Cover Letters December 3, 1999 FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Enclosed is a FCC Part 15, Subpart D, Certification application for the Motorola, Inc. Model AAS19GBG9423AA, FCC ID: ABZ99FT7012. Please let me know if I can be of further assistance. Sincerely yours, COMMUNICATION CERTIFICATION LABORATORY Joseph W. Jackson V.P. Marketing COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 93 of 93 Exhibit 13 Request for Confidentiality

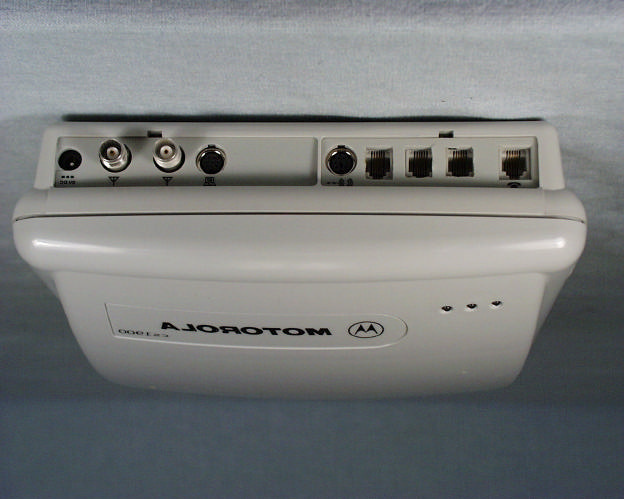

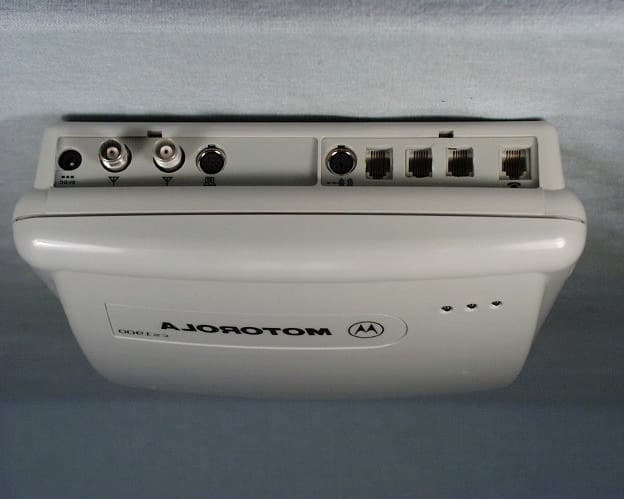

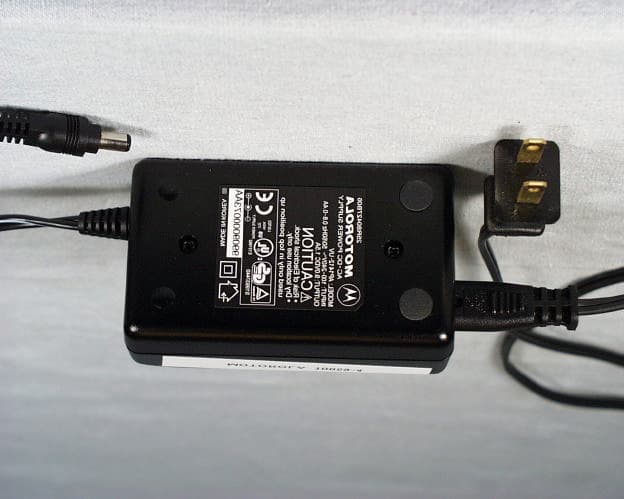

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 4 of 93 Exhibit 3 Exhibit 3: Photographs of Overall Appearance Front View of the AAS19GBG9423AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 5 of 93 Exhibit 3 Back View of the AAS19GBG9423AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 6 of 93 Exhibit 3 End View of the AAS19GBG9423AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 7 of 93 Exhibit 3 Front of External Antenna Unit COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 8 of 93 Exhibit 3 Back of External Antenna Unit COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 9 of 93 Exhibit 3 Base Station Power Supply

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 1 of 93 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a)(3), 15.311, 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the Motorola, Inc. Model AAS19GBG9423AA. Shown below is the label and label placement sketch showing where the label will be placed on the TS3000. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 2 of 93 Exhibit 1 TS3000 Label

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 79 of 93 Exhibit 9 Exhibit 9: Internal Photographs Inside View of the AAS19GBG9423AA COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 80 of 93 Exhibit 9 Internal Antenna board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 81 of 93 Exhibit 9 Inside of External Antenna Unit COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 82 of 93 Exhibit 9 Component side of Option Board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 83 of 93 Exhibit 9 Solder side of Option Board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 84 of 93 Exhibit 9 Component side of RF Board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 85 of 93 Exhibit 9 Solder side of RF Board

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 87 of 93 Exhibit 11 Exhibit 11: RF Exposure/Environmental Evaluation Section 15.319 (i) Requirement: Unlicensed PCS devices are subject to the radiofrequency radiation exposure requirements specified in '' 1.1307(b), 2.1091 and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Demonstration of Compliance: The AAS19GBG9423AA is classified as a mobile device, which is installed so that a minimum separation distance of 20 centimeters is maintained between the transmitter’s radiating structure and the body of the user or nearby persons, and the ERP of the AAS19GBG9423AA is less than 3 watts. Therefore, the AAS19GBG9423AA is categorically excluded from routine environmental evaluation for RF exposure as per ' 2.1091(c). The installation manual contains the following statement to instruct the installer that the 20 centimeter separation distance must be maintained in order to comply with the RF exposure requirement.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 12 of 93 Exhibit 6 Exhibit 6: Test Report TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: AAS19GBG9423AA AAS19GBG9123AA FCC ID: ABZ99FT7012 To Part 15 Subpart D of the FCC Rules and Regulations Test Report Serial No: 73-7046 Applicant: Motorola, Inc. 5201 Tollview Drive Rolling Meadows, IL 60008 Date(s) of Test: August 26 – November 11, 1999 Issue Date: December 3, 1999 Equipment Receipt Date: August 25, 1999 COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 13 of 93 Exhibit 6 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to evaluate the device described below with the requirements of FCC Part 15, Subpart D. Specific identifying information for the device tested is given below. -ApplicantMotorola, Inc. 5201 Tollview Drive Rolling Meadows, IL 60008 -Manufacturer:Motorola, Inc. 1411 East Washington Mt. Pleasant, IA 52641 -Trade Name:TELARIO TM TS3000 -Model Number:AAS19GBG9423AA and AAS19GBG9123AA -FCC ID Number:ABZ99FT7012 On this 3 rd day of December 1999, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 14 of 93 Exhibit 6 SECTION 1 GENERAL INFORMATION 1.1 Product Description The AAS19GBG9423AA is the base station (TS3000) portion of a wireless system (see Theory of Operation in Exhibit 12). The TS3000 is sold under two different model numbers, the AAS19GBG9123AA model incorporates only one phone line and the other model AAS19GBG9423AA includes an option board for four phone lines. The model AAS19GBG9423AA (four phone line option) was used for testing as representative of both units. This application is for the base station (TS3000), which is identified by FCC ID: ABZ99FT7012. There are two handsets (TC3000), which is identified by FCC ID: ABZ99FT7010 and (TR3000), which is identified by FCC ID: ABZ99FT7011. Both these applications are being submitted concurrently with this application. 1.2 Test Specification The AAS19GBG9423AA is an Isochronous device that operates in the 1920-1930 MHz sub-band; therefore the AAS19GBG9423AA is subject to the provisions of FCC Part 15, Subpart D. Unlicensed Personal Communications Service Devices. 1.3 Test Methods & Procedures The AAS19GBG9423AA was tested in accordance with ANSI C63.17-1998. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 15 of 93 Exhibit 6 SECTION 2. SUMMARY OF TEST RESULTS: 2.1 Summary of Tests: FCC Section Description Report Section ANSI C63.17 Section Result 15.307 Affidavit from UTAM, Inc. certifying participation in UTAM, Inc. 3.2.1N/AComplies 15.309Cross Reference to Subpart B 3.2.26.1.6.3Complies 15.311Labelling Requirements 3.2.3N/AComplies 15.315AC power line conducted limits 3.2.4N/AComplies 15.317Antenna requirement3.2.5N/AComplies 15.319 (a)Frequency of operation 3.2.6N/AComplies 15.319 (b)Modulation technique 3.2.76.1.4Complies 15.319 (c)Peak transmit power and emission bandwidth 3.2.86.1.2Complies 15.319 (d)Power spectral density 3.2.96.1.5Complies 15.319 (e)Directional gain of antenna 3.2.10N/AComplies 15.319 (f)Automatic discontinuance of transmission 3.2.11N/AComplies 15.319 (i)IEEE C95.1-1991 and IEEE C95.3-1991 3.2.12N/AComplies 15.323 (a)Channel allocation3.2.13N/AComplies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 16 of 93 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (b)Channel packing3.2.148.1.2Complies 15.232 (c)Time and Spectrum monitoring 3.2.15Sections 7 and 8 Complies 15.323 (c)(1) Transmit window monitoring 3.2.167.3.2.2 and 7.5 Complies 15.323 (c)(2) Monitoring threshold 3.2.177.3.2.1Complies 15.323 (c)(3) Transmission duration 3.2.18N/AComplies 15.323 (c)(4) Acknowledgments3.2.198.2.1Complies 15.323 (c)(5) Least interfered channel 3.2.207.3.2.1, 7.3.2.2 and 8.2.1 Complies 15.323 (c)(6) Random waiting interval 3.2.218.1.3Complies 15.323 (c)(7) Threshold monitoring bandwidth, Threshold monitoring reaction time 3.2.227.4 and 7.5 Complies 15.323 (c)(8) Threshold monitoring antenna 3.2.23N/AComplies 15.323 (c)(9) Monitoring threshold relaxation 3.2.24N/AComplies 15.323 (c)(10) Duplex connections3.2.258.2.3Complies 15.323 (c)(11) Alternative monitoring interval 3.2.268.2.4Complies 15.323 (c)(12) Limitation on use of Section (c)(10) or (c)(11) 3.2.27N/AComplies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 17 of 93 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (d)Spurious emissions3.2.286.1.6Complies 15.323 (e)Frame repetition stability / frame period and jitter 3.2.296.2.3 and 6.2.4 Complies 15.323 (f)Frequency stability3.2.306.2.2Complies COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-7046 FCC ID: ABZ99FT7012 Page 18 of 93 Exhibit 6 SECTION 3. MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS: 3.1 General Comments This section contains the test results only. Details of the test methods used, etc., can be found in Appendix A of this report. 3.2 Test Results 3.2.1 Coordination with fixed microwave service § 15.307 Measurement Data: The affidavit from UTAM, Inc. is enclosed in Exhibit 12. 3.2.2 Cross Reference to Subpart B § 15.309 The requirements of Subpart D apply only to the radio transmitter contained in the PCS device. Other aspects of the operation of a PCS device may be subject to requirements contained elsewhere in this Chapter. In particular, a PCS dev…
