ABZMCAD200Card Acceptance Device

Integrated Information Systems Group 8201 E. McDowell Road Scotts da le, AZ 85252-1417 Exhibit 8 Page 1 of 113 FCC ID: ABZMCAD200 10/10 /00 Exhibit 8 – Users Manual Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 8.0 Card Acceptance Device (CAD+) Users Manual CARD ACCEPTANCE DEVICE (CAD+) T6479A (Parallel) T6480A (Serial) T6481A (Serial) T6499A (Serial) T6500A (Serial) T6501A (Serial) T6548A (Serial) Models MCAD 200 Instruction Manual 68P81131E43-O *6881131e43* MOTOROLA READER WARRANTY Warranty: Motorola, Inc. (Motorola") warrants its Motorola manufactured smartcard reader or terminal (Prod uct") to the original purchaser (Buyer") as stated herein, except to the extent the terms herein may be modified by a written SmartCard Systems Agreement between Motorola and Buyer. Smartcards are not covered by this warranty. Motorola warrants the Product against material defects in material and workmanship under normal use and service for a period of One (1) Year from the date of Product shipment. Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it with the same or equivalent product (using new or recondi tioned parts), or refund the purchase price of the Product during the warranty period provided Buyer notifies Moto rola within the warranty period in accordance with the terms of this warranty. Repaired or replaced product is war ranted for the balance of the original applicable warranty period. All replaced parts of the Product shall become the property of Motorola. Warranty Exclusions: This warranty does NOT cover: 1. Defects, damage or malfunctions of the Product resulting from: (a) Use of the Product in other than its normal and customary manner. (b) Misuse, accident, neglect, environmental or site conditions not conforming to the Product specifications. (c) Alteration, modification, adjustment, repair or testing of the Product not approved by Motorola. (d) Equipment not approved by Motorola for use with the Product. (e) Excessive power conducted or radiated from equipment not approved by Motorola for use with the Prod uct. 2. Product which has had the serial number removed or made illegible. 3. Normal and customary wear and tear. 4. Fraud, theft or loss resulting from unauthorized use of the Product. 5. Loss of value or data stored in the Product or in other equipment used with the Product. 6. Disclosure of personal or confidential information or data stored in or accessed by the Product. 7. Loss or damage from Product or system downtime. 8. Scratches or other cosmetic damage to Product surfaces that does not affect the operation of the Product. 9. That the software in the Product will meet the purchaser's requirements or that the operation of the software will be uninterrupted or error-free. General Provisions: This express warranty is extended by Motorola to the original Buyer purchasing the Product, and is not assignable or transferable to any other party. This is the complete warranty for the Product. Motorola assumes no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of Motorola. Unless made in a separate written agreement(s) between Motorola and Buyer, Motorola does not warrant the maintenance or service of the Products other than stated herein. Motorola cannot be responsible in any way for any ancillary equipment not furnished by Motorola which is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, Motorola disclaims liability for read range, transaction time, or operation of the system as a whole under this warran ty other than stated above. This warranty sets forth the full extent of Motorola's responsibilities regarding the Product. Replacement or refund of the purchase price, at Motorola's option, is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. MOTOROLA DISCLAIMS ALL OTHER WARRANTIES OR CONDITIONS, EX PRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EX CESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVE NIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. Patent and Software Provisions: Motorola will defend, at its own expense, any suit brought against the Buyer to the extent that it is based on a claim that the Product or its parts infringe a United States patent, and Motorola will pay those costs and damages finally awarded against the Buyer in any such suit which are attributable to any such claim, but such defense and payments are conditioned on the following: (a) that Motorola will be notified promptly in writing by Buyer of any notice of such claim; (b) that Motorola will have sole control of the defense of such suit and all negotiations for its settlement or compro mise; and (c) should the Product or its parts become, or in Motorola's opinion be likely to become, the subject of a claim of infringement of a United States patent, that Buyer will permit Motorola, at its option and expense, either to procure for Buyer the right to continue using the Product or its parts or to replace or modify the same so that it becomes non-infringing or to grant Buyer a credit for the Product or its parts as depreciated and accept its return. The depreciation will be an equal amount per year over the lifetime of the Product or its parts as estab lished by Motorola. Motorola will have no liability with respect to any claim of patent infringemen…

Text truncated - open the document above for the full version.

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Exhibit 2 Page 1 of 1FCC ID: ABZMCAD200 09/13/00 Exhibit 2 – Attestation Statement Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 2.0Attestation Statement The technical data supplied with this application, having been taken under my supervision, is hereby duly certified. This is a statement of my qualifications: BSEE 1982, Northern Arizona University, Flagstaff, Arizona NARTE Certified EMC Engineer, 10 years 16 years experience in EMC Engineering design and test Signature: Name:Gil Estrella Date:9/15/00 Position:Sr. Staff Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. Signature: Name:Dwayne Awerkamp Date:9/15/00 Position:EMC Department Manager

Mail Drop H2550, 8201 E. McDowell Rd., Scottsdale, AZ 85252 CONFIDENTIALITY REQUEST CONTAINED WITHIN 18 September, 2000 Communications Certification Lab 1940 West Alexander Street Salt Lake City, Utah 84119 Attention: Mr. William S. Hurst Re: Application for Modular Transmitter Approval of an Unlicensed Low Power Transceiver Subassembly - FCC ID: ABZMCAD200 Motorola, Inc., Integrated Information Systems Group, 8201 E. McDowell Rd, Scottsdale, Arizona 85252 herein submits this application for modular transmitter approval under FCC Rule Part 15, Subpart C, for this Unlicensed Low Power Transceiver subassemby, FCC ID: ABZMCAD200. The Card Acceptance Device (CAD+) is manufactured by Motorola WSSD located at 1301 East Algonquin Road, Schaumburg, IL 60196. This application is being submitted to CCL under the FCC Public Notice, DA 00-1223, allowing Telecommunication Certification Bodies (TCB) to certify specific equipment including Unlicensed Radio Frequency Devices under Scope A1. This application is submitted in accordance with FCC Public Notice, DA 00-1407, for Part 15 Unlicensed Modular Transmitter Approval. This Low Power transceiver module complies with the requirements specified in DA 00-1407 as described below: 1) Inherent RF Shielding - The CAD+ has board mount RF shields to minimize emissions for compliance to FCC Part 15, Subpart C requirements. 2) Buffered modulation/data inputs - Both Serial and Parallel data interfaces include RC filtering as illustrated on pages 4 and 6 of the schematics contained in Exhibit 5. 3) Power Supply Regulation - The CAD+ module contains on board regulators and filtering circuitry to generate the various voltages required by the CAD+ circuitry. A +12VDC from the terminal (via connector P8) is used as the source to generate the +5V, +5V_A, and PA_PWR voltages. 4) Antenna Requirements per Section 15.203 - The module uses a unique 6 wire, 100 mm, interconnect cable/connector for each of the four (4) antenna configurations. Additionally, the final integration of the module will make this antenna interface inaccessible to the final user. 5) Tested in Stand-Alone Configuration - The CAD+ module was tested as a stand- alone device and was compliant with FCC Part 15, Subpart C, requirements as detailed in the Test Report contained in this application as Exhibit 6. The module is intended to be powered from a +12 VDC source provided by the host terminal. The users manual describes the necessary conditions for final integration when AC power is utilized by the host terminal. 6) FCC ID Label - Exhibit 1 contains the labelling requirements of the module and the users manual, Exhibit 8, contains instructions for carrying the FCC ID to the exterior of the final product. Mail Drop H2550, 8201 E. McDowell Rd., Scottsdale, AZ 85252 7) Comply with Specific Rules and Operation Requirements - The module was co mpl iant with FCC Part 15, Subpart C, specifically Section 15.225 for operation in the band of 13.553-13.567 MHz. T he test results are detailed in the Test Report of Exhibit 6. 8) RF Exposure Requirement Compl iance - The CAD+ compl ies with the Maximum Permissible Exposure (MPE) levels of ANSI/IEEE C95.1-1992 and 47 CFR 1.1310, Table 1 for an uncontrolled env ironments. Test Res ults contained in Exhibit 11. The CAD+ module consists of seven (7) variations, the foremost being the use of four (4) different antenna board confi gurations. The other less signifi cant vari ati ons include three (3) interface connector types. The variants are listed below and are also detai led in the Test Report, Exhibit 6, and the Users Manual, Exhibit 8. Model # Antenna Type Connector Type Interface Protocol T6480 A 104 x 67 mm w/ferrite Straight Serial; RS-485 T6481A 104 x 67 mm w/ferrite Right Angle Serial; RS-485 T6479A 104 x 67 mm w/ferrite Straight Parallel; CMOS T6499 A 50 x 25 mm w/ferrite Straight Serial; RS-485 T6500A 50 x 25 mm w/ferrite Right Angle Serial; RS-485 T6548 A 100 x 110 mm Straight Serial; RS-485 T6501 A 65 x 40 mm Right Angle Serial; CMOS In addition to confidentiality for the entire application prior to grant (per 47CFR0.457(d) (1)(ii)), Motorola requests, pursuant to 47CFR0.459, post- gra nt con fidentiality for identified sec ti ons of the filing material contained in this application with this mater ial being withheld from public inspection fol lowing the grant of this authorization. This material includes Exhibit 4, Block Di agram, Exhibit 5, Schemat ic Diagram, and Exhibit 12, Theory of Operation, including any Antenna PCB photos or layout drawings. Specifically, these exhibits contain information relat ing to circuit function and comple xit y that could be of benefit to competitors. This materi al contains Motorola’s trade secrets and confi dential information which is not customarily released to the public and which, other wis e, is not general ly available to the public. Sincerely, Gil Estrella EMC Engineer Motorola IISG

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Exhibit 3 Page 1 of 2FCC ID: ABZMCAD200 09/28/00 Exhibit 3 – External Photographs Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 3.0External Photographs Figure 3.0-1 Control PCB top view Exhibit 3 Page 2 of 2FCC ID: ABZMCAD200 09/28/00 Figure 3.0-2 Control PCB back view

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Exhibit 1 Page 1 of 2FCC ID: ABZMCAD200 10/04/00 Exhibit 1 – ID Label Information Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 1.0 Identification (Nameplate) Information Figure 1.0-1 FCC Certification Identification Note: The users manual will include a statement to the user to display a label referring to the enclosed transceiver module such as "Contains FCC ID: ABZMCAD200". FCC ID to be inscribed directly on PCB - - - - z - I I I x

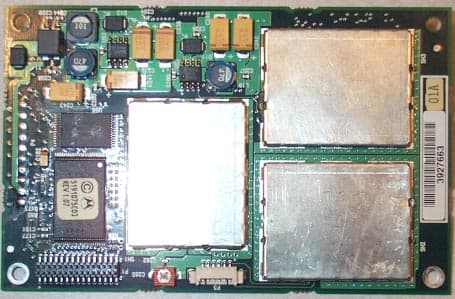

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Exhibit 9 Page 1 of 5FCC ID: ABZMCAD200 09/14/00 Exhibit 9 – Internal Photographs Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 9.0Internal Photographs Figure 9.0-1 Control PCB top view Exhibit 9 Page 2 of 5FCC ID: ABZMCAD200 09/14/00 Figure 9.0-2 Control PCB top view with RF shields removed Figure 9.0-3 Control PCB back view Exhibit 9 Page 3 of 5FCC ID: ABZMCAD200 09/14/00 Figure 9.0-4 104 x 67 mm Antenna Board w/Ferrite Figure 9.0-5 104 x 67 mm Antenna Board w/Ferrite Backplate Exhibit 9 Page 4 of 5FCC ID: ABZMCAD200 09/14/00 Figure 9.0-6 100 x 110 mm Antenna Board Figure 9.0-7 65 x 40 mm Antenna Board Exhibit 9 Page 5 of 5FCC ID: ABZMCAD200 09/14/00 Figure 9.0-8 50 x 25 mm Antenna Board w/Ferrite

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Exhibit 11 Page 1 of 5FCC ID: ABZMCAD200 09/28/00 Exhibit 11 – RF Exposure Information Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) 11.0 RF Exposure Information The Card Acceptance Device (CAD+) complies with human radiation emission requirements. These requirements are based on the Maximum Permissible Exposure (MPE) levels of ANSI/IEEE C95.1-1992 and 47 CFR 1.1310, Table 1 for an uncontrolled environment. This low power modular transmitter is intended to be integrated into subsystem that would normally be used in a fixed location. This module, dependent on its integration, could arguably fit the definition of a portable device as defined in 47 CFR 2.1093(b) (i.e. "designed to be used so that the radiating structure of the device is within 20 cm of the body of the user", specifically the hand). However, it does not fit any of the equipment classification criteria for portable devices requiring SAR testing as defined in 47 CFR 2.1093(c). All other portable transmitting devices, including this low power modular transmitter, "are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use" per 2.1093(c). RF Energy Exposure Assessment Record Product or Equipment Name: Card Acceptance Device (CAD+) Modular TransmitterDate: 31 Aug 2000 Figure 11-1RF Energy Exposure Assessment Record (1 of 4) Exhibit 11 Page 2 of 5FCC ID: ABZMCAD200 09/28/00 Program/Project Contact Person: Gilbert Roque Phone: (408) 383-4074 M/D: CA48 Location of Product/Equipment: Fixed locations 1.RF Emitting Product or Equipment Description Manufacturer:Motorola Indala Model:CAD +Serial Number:CLN7488A Describe the product or equipment, the environment(s) where it is used, and information about operators and others who might be exposed to its emitted RF energy. The transceiver module is a low power device intended to be integrated into subsystem terminals typically in fixed or permanent locations. This module can arguably fit the definition of a portable device as defined in 47 CFR 2.1093(b) (i.e. "designed to be used so that the radiating structure of the device is within 20 cm of the body of the user", specifically the hand). However, it does not fit any of the equipment classification criteria for portable devices requiring SAR testing as defined in 47 CFR 2.1093(c). All other portable transmitting devices "are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use" per 2.1093(c) including this low power transceiver module. Frequencies of Operation (MHz):13.56 MHz Maximum Output Power Level (Watts): <7.2 mW EIRP Modulation Characteristics:10% ASK If pulsed; Pulse duration:N/APulse repetition frequency (PRF):N/A Duty cycle:100% Antenna description: 4 Loop antenna configurations, multiple-turns Antenna gain:N/A Failure Modes Are there credible failure modes in the product or equipment (hardware, software) or operations (controls, procedures, human error) that could cause the average output power to increase above the normal operating level? YesNo X If Yes, describe the failure mode, probability of occurrence of the failure, and the expected level of output power. Figure 11-1RF Energy Exposure Assessment Record (2 of 4) Exhibit 11 Page 3 of 5FCC ID: ABZMCAD200 09/28/00 2.Maximum Permissible Exposure (MPE) Levels MPE Levels based on ANSI/IEEE C95.1-1992 and 47 CFR 1.1310, Table 1 requirements, unless otherwise specified. Frequency (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Plane Wave Equiv. Power Density (S) (mW/cm 2 ) Specific Absorption Rate (SAR) (mW/g) Uncontrolled Environment 13.5660.770.1615N/AN/A Induced Current (mA)Both Feet 90 Each Foot N/AFrequency 13.56 MHz Contact Current (mA) 45Frequency 13.56 MHz 3.Measurement Results Applicable Document: Radio Frequency (RF) Energy Exposure Test Procedure, Rev E. Ferrite-Shield 104x67 mm Loop Antenna Frequency (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Plane Wave Equiv. Power Density (S) (mW/cm 2 ) Specific Absorption Rate (SAR) (mW/g) Uncontrolled Environment 13.56< 10.00.027N/AN/A Induced Current (mA)Both Feet 0.38 Each Foot 0.25Frequency 13.56 MHz Contact Current (mA) 4.2Frequency 13.56 MHz 65 x 40 mm Loop Antenna Frequency (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Plane Wave Equiv. Power Density (S) (mW/cm 2 ) Specific Absorption Rate (SAR) (mW/g) Uncontrolled Environment 13.56< 10.0< 0.027N/AN/A Induced Current (mA)Both Feet 2.27 Each Foot 0.82Frequency 13.56 MHz Contact Current (mA) 1.7Frequency 13.56 MHz Figure 11-1RF Energy Exposure Assessment Record (3 of 4) Exhibit 11 Page 4 of 5FCC ID: ABZMCAD200 09/28/00 50 x 25 mm w/ferrite Loop Antenna Frequency (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Plane Wave Equiv. Power Density (S) (mW/cm 2 ) Specific Absorption Rate (SAR) (mW/g) Uncontrolled Environment 13.56< 10.0< 0.027N/AN/A Induced Current (mA)Both Feet 0.76 Each Foot 0.35Frequency 13.56 MHz Contact Current (mA) 1.4Frequency 13.56 MHz 100 x 110mm Loop Antenna Frequency (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Plane Wave Equiv. Power Density (S) (mW/cm 2 ) Specific Absorption Rate (SAR) (mW/g) Uncontrolled Environment 13.56< 10.00.037N/AN/A Induced Current (mA)Both Feet 1.75 Each Foot 0.77Frequency 13.56 MHz Contact Current (mA) 5.6Frequency 13.56 MHz Is the Maximum Permissible Exposure Level for an uncontrolled environment exceeded? YesNo X If Yes, provide drawings to show the boundaries of the Restricted Access Area. Is the Maximum Permissible Exposure Level for a controlled environment exceeded? YesNo X If Yes, define and implement necessary controls. 4.RF Energy Measurement Equipment ManufacturerDescriptionModel Asset No. Date of Last Cal. Cal…

Text truncated - open the document above for the full version.

Integrated Information Systems Group 8201 E. McDowell Road Scottsdale, AZ 85252-1417 Report No. WSSD070900 Exhibit 6 Page 1 of 30 FCC ID: ABZMCAD200 Revision Basic 9/13/00 Exhibit 6 – Test Report Card Acceptance Device (CAD + ) Low Power Transceiver Module FCC ID: ABZMCAD200 Model Nos. T6480A (and variants) Equipment Manufacturer: Motorola, Inc. 1301 East Algonquin Rd. Room 1726 Schaumburg, Illinois 60196 Tests Conducted By: Motorola IISG EMC Test Facility 8201 E. McDowell Rd. Scottsdale, Arizona 85252 Tests Period: August 3 rd to August 10 th , 2000 Test Summary:Complies with FCC Part 15, Subpart C, Unlicensed Low Power Transmitters The Motorola IISG EMC/TEMPEST Laboratory is accredited through the NVLAP Lab Code 100405-0 This document shall not be reproduced, except in full, without the written approval of the laboratory. This document shall not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Exhibit 6 Page 2 of 30 FCC ID: ABZMCAD200 Revision Basic 9/13/ 00 6.0 Introduction 6.0.1 Product Description The Motorola CAD+ module is a low power radio frequency transceiver designed for applications such as identification systems, security systems, Access Control, and data collection. The subassembl y consists of two printed circuit boards and referred to as the Card Acceptance Device (CAD+). The control board contains the microprocessor, non-volatile memor y, and radio frequenc y transmitting and receiving circuitry. The board communicates with the smart cards via an RF link. The antenna board is a pcb with copper traces for ming the transmit and receive antennas. There are four different ant enna configurations. The 104 x 67 mm antenna board is attached to a ferrite plate and a metal back plate which serves as a ground plane. The 50 x 25 mm antenna board also utilizes a ferrite but has no back plate. The other two antenna boards are different sizes with no ferrite or back plate and include a 65 x 45mm PCB and a 100 x 110mm PCB. When the tr ans ceiver module is powered, a low-power rad io frequency (RF) field is continuously transmitted by the CAD+ at 13.56 MHz. When a Smartcard is presented within the CAD+ RF field, the microchip embedded in the card, is activated and trans mits a unique Identification (ID) number back to the reader at a frequency of 847.5 kHz. The reade r validates the identification nu mbe r, and, if it is valid, converts it to a predefined da ta format and sends it to the control panel through a data cable. The control panel determines the acti on to be tak en (e.g. open a door, update database, etc.). Product Specifications: Operating Frequency - 13.56 MHz + 0.01% Modulation Type - 8-14% ASK Effective Radiated Power- < 7.2 mW (+8.57 dBm) The reader outputs data in RS-485, RS-232, CMOS, and Byte -Wid e Parallel Transfer data formats making it easy to upgrade an existing site to proximity using the wiring already in place. There are a total of seven (7) variations of the CAD+ module and are listed below. The variations include the antenna configuration and Interface protocol/connector type. The only significant variation which could impact the FCC transmitter RF characteristics is the antenna configuration and, thus, the module was tested using all four (4) of t hese antenna types. Model # Antenna Type Connector Type Interface Protocol T6480 A 104 x 67 mm w/ferrite Straight Serial; RS-485 T6481A 104 x 67 mm w/ferrite Right Angle Serial; RS-485 T6479A 104 x 67 mm w/ferrite Straight Parallel; CMOS T6499 A 50 x 25 mm w/ferrite Straight Serial; RS-485 T6500A 50 x 25 mm w/ferrite Right Angle Serial; RS-485 T6548 A 100 x 110 mm Straight Serial; RS-485 T6501 A 65 x 40 mm Right Angle Serial; CMOS Exhibit 6 Page 3 of 30 FCC ID: ABZMCAD200 Revision Basic 9/13/00 6.0.2 Facility Description EMI testing of the CAD+ was performed at the Motorola Integrated Information Systems Group’s (IISG) EMI/TEMPEST Test Laboratory. This test laboratory is located in the southeast wing of the Hayden building at 8201 E. McDowell Road, Scottsdale, AZ. Motorola IISG Test Facility Address: Motorola, Inc. Integrated Information Systems Group Hayden EMC Facility 8201 E. McDowell Rd. M/D H2550 Scottsdale, AZ 85252 The facility has been found to be in compliance with the requirements of Section 2.948 of the FCC rules, per FCC letter 31040/SIT, 1300F2, dated October 6, 1998. The facility has also been issued a Certificate of Accreditation through the National Voluntary Laboratory Accreditation Program (NVLAP) by NIST. This is under NVLAP Code: 100405-0 and is effective through September 30, 2001. 6.0.3 Quality System The EMI/TEMPEST Test Laboratory maintains a Quality Manual that describes the quality assurance program of the EMC/TEMPEST Facility to set forth procedures covering all quality assurance functions. This manual has been constructed to reflect a quality program in compliance with the requirements of the following: • National Institute of Standards & Technology (NIST) National Voluntary Laboratory Accreditation Program (NVLAP) • NIST/NVLAP EMC MIL-STD 462 Program Handbook (Apr. 1994) • NVLAP EMC and Telecommunications FCC Methods Handbook 150-11 (Apr. 1995) • MIL-Q-9858A, MIL-STD 461, 462, 463, 461D, 462D • National Security Agency Technical and Security Requirements Document for the Endorsed TEMPEST Test Services Program, NSA TSRD No. 88-8B, 5 Oct. 1993 • System Solution Group of Motorola Quality Six Sigma Program. 6.0.4 Standard References 47 CFR 2Code of Federal Regulations, Title 47, Part 2, “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations” 47 CFR 15Code of Federal Regulations, Title 47, Part 15, “Radio Frequency Devices” Subpart C, "Intentional Radiators" C63.4-1992American National Standards Institute (ANSI), “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz” Exhibit 6 Page 4 of 30 FCC ID: ABZMCAD200 Revision Basic 9/13/00 6.1 Test …

Text truncated - open the document above for the full version.

Exhibit 6 Page 27 of 30 FCC ID: ABZMCAD200 Revision Basic 9/13/00 Appendix E Test Setup Photos Exhibit 6 Page 28 of 30 FCC ID: ABZMCAD200 Revision Basic9/13/00 Figure E – 1 Radiated Spurious Emissions Prescan Test Setup, Chamber Figure E – 2 Radiated Emissions, Magnetic Loop, Test Setup - Chamber Exhibit 6 Page 29 of 30 FCC ID: ABZMCAD200 Revision Basic9/13/00 Figure E – 3 Radiated Spurious Emissions Test Setup, OATS Exhibit 6 Page 30 of 30 FCC ID: ABZMCAD200 Revision Basic9/13/00 Figure E – 4 Radiated Spurious Emissions Test Setup, OATS
