ACEPAL101GSM Senior Mobile Phone

Step 4 – Make /Receive Calls Menu Navigation Quick Setup Guide Smart for Seniors TM Make a call Three methods for making a call. 1) Phonebook – Find the number you want to dial, and press Dial Key. 2) Call Register – Enter the list of missed calls, received calls or dialed calls, and then choose the number, and press Dial Key. 3) Manual – In idle mode, input the number by pressing the numeric keys, then press the Dial Key. Receive a call On incoming calls, the ring will be a sound, or the phone will vibrate. Press the Dial Key to answer, or press Reject (M3 key) to refuse the call. You can also receive the call by selecting “Option” (M1 key), or by pressing the “Dial” key. ClarityProducts.com Clarity, a Division of Plantronics, Inc. 6131 Preservation Drive, Chattanooga, TN 37416 CONTACT Te l : 800-426-3738 Fax: 800-325-8871 E-mail: [email protected] Website : ClarityProducts.com ©2011 Clarity, a Division of Plantronics, Inc. All Rights Reserved. Clarity, Clarity Pal, and Smart for Seniors are trademarks or registered trademarks of Plantronics, Inc. Printed in China Clarity Pal Amplified Mobile Phone TM Press the Dial Key to dial or connect a call. Press /Hold Power Key to turn ON phone. Press /Hold the Power Key again to turn OFF the phone. Step 3 – Install and charge battery Select menu options (OK, Back, etc.) by pressing the M1 or M3 Memory Keys. Scroll through the menu listings by pressing the UP/DOWN Arrow Key. Access the bat tery compartment by sliding the battery compartment cover from the phone back as shown above. Install the bat tery by ensuring that the contacts on the battery and battery compartment are engaged. Replace the battery compartment cover as shown above. Make sure that it snaps securely into place. Start the battery charging process by inserting the “plug-tip” of the AC Power cord into the charging port (11) of the phone. Plug the AC Power Adapter into a 110V electrical outlet. Charging time is approximately 2-3 hours. The battery indication on the phone LCD will begin to “blink.” If the phone is powered off, the LCD will display “charging.” When charging is complete the battery indicator will stop “blinking.” Contents Step 1– Review Basic Phone Features Thanks for choosing the Clarity Pal TM mobile phone Clarity Pal TM Mobile Phone Quick Setup Guide Safety Instructions Warranty Information More than just a mobile phone, this is mobile peace of mind. The Clarity Pal ™ mobile phone gives you the freedom to stay connected with the ones you love, and know that help is available wherev er you go. * • Designed especially for seniors on-the-go. Only 5 inches in length and one-half inch in thickness. Easily fits in your pocket or purse. • Clarity Power TM technology amplifies sound up to 40 decibels and is Hearing Aid compatible. • Full-keypad features large buttons for viewing and easy dialing. • Prominently located Emergency Button for quick access. • See User’s Manual at ClarityProducts.com/Pal for more features. Charging Base 1 2 68 4 3 75 14 9 10 11 Signal Strength Ring Tone BluetoothBattery 13 See User’s Manual for a complete description of phone status icons. 12 * Requires cell phone service. Warning : Use the supplied AC Adapter. Other adapters may damage the phone and void the warranty. Important: Before using phone, please read Safety Instructions. Additional information is available online at: ClarityProducts.com/Pal 3.7V Rechargeable Battery Step 2 – Install SIM card Install SIM card and connect to a net wor k A network provider (of your choice) will provide you with a SIM card that is key for entering the GSM network and their particular network. First install the SIM card, then battery. (See STEP 3 for battery installation instructions.) Once SIM card and battery are installed, power-on the phone. The phone will begin searching for a regis- tered network, or other available networks. Once connected, the name of network supplier will show on the LCD. If the LCD prompts “Emergency Call Only”, it means you are out of the network service area. However, you may still make emergency calls according to signal strength. 1 Volume Adjust Button 2 Headset Port 3 M1* Memory Key – Long-press/Memory (Short - press key to access and select menu options.) 4 M2 Memory Key 5 M3* Memory Key – Long-press/Memory (Short - press key to access and select menu options.) 6 Dial Key (Press to connect call) 7 ON/OFF Key (Long-press to Power ON/OFF) 8 Arrow Key (Menu Scroll) 9 TONE Button 10 BOOST Button (Amplify) 11 AC Power (Charging Port) 12 Emergency Button (Located on back of phone) 13 Phone Status Icons 14 AC Power Adapter Install SIM card • Power OFF phone • Insert card, metal face down. Warning: Do not remove SIM card while phone is charging, or connected to AC power. AC Power Adapter * * ClarityProducts.com Clarity Pal Amplified Mobile Phone TM CAUTION : Changes or modifi- cations to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Privacy of communications may not be ensured when using this phone. CAUTION: To maintain the compliance with the FCC’s (RF) exposure guideline, place the base unit at least 20cm from nearby persons. For body worn operation, this handset has been tested and meets the FCC (RF) exposure guidelines when used with the (Clarity) accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC (RF) exposure guidelines. Industry Canada Technical Specifications This product meets the applicable Industry Canada technical specifications. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line indi- vidual service may be extended by means of a certified connector assembly (telep…

Text truncated - open the document above for the full version.

0$,10,& ($53+21( %7$17 /28'63. 5(& 63((&+ 32:(5212))&75/ 07 92,&( 287 03)0 $8',2287 $3$B(1 ($53+21( $8',2$03 63((&+/28'B63.6:,7&+ ($53+21(0,& 0,&,1 0,&,1 63.B6:B(1 GE*$,16:,7&+ 721( 83 '2:1 626 6*60B%7B$XGLRDPSOLILHUXQLWEORFNGLDJUDP &203$1< '5$:1 3=-  02'(/ NH\ *60$17 *605)02'8/( 8$57 0$1$*(0(17 32:(5 &,5&8,75< 6,0 6,0 8$57 8$57 3$5$//(/,17(5)$&( 0(025< 65$0)/$6+ /&' 7&9&;2 %36, $8;$'& 6833/<92/7$*(6 %6, %3, 5;,4 7;,4 $3& 6<6&/. 0+=&5<67$/ 3&08$57 32:(56833/< 0+= &5<67$/ .+= 824MHz-849MHz(TX); 869MHz-894MHZ(RX) 2.402-2.480GHz 1850MHz-1910MHz(Tx); 1930MHz-1990MHz(Rx) MT 6223 BT MT6601 (TX/RX) PAL101

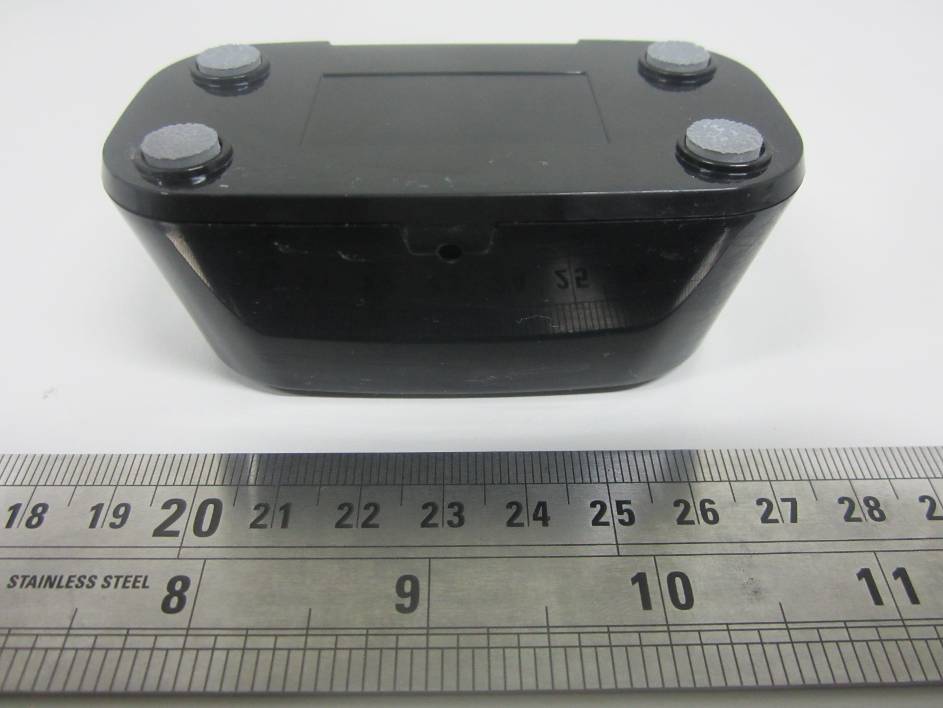

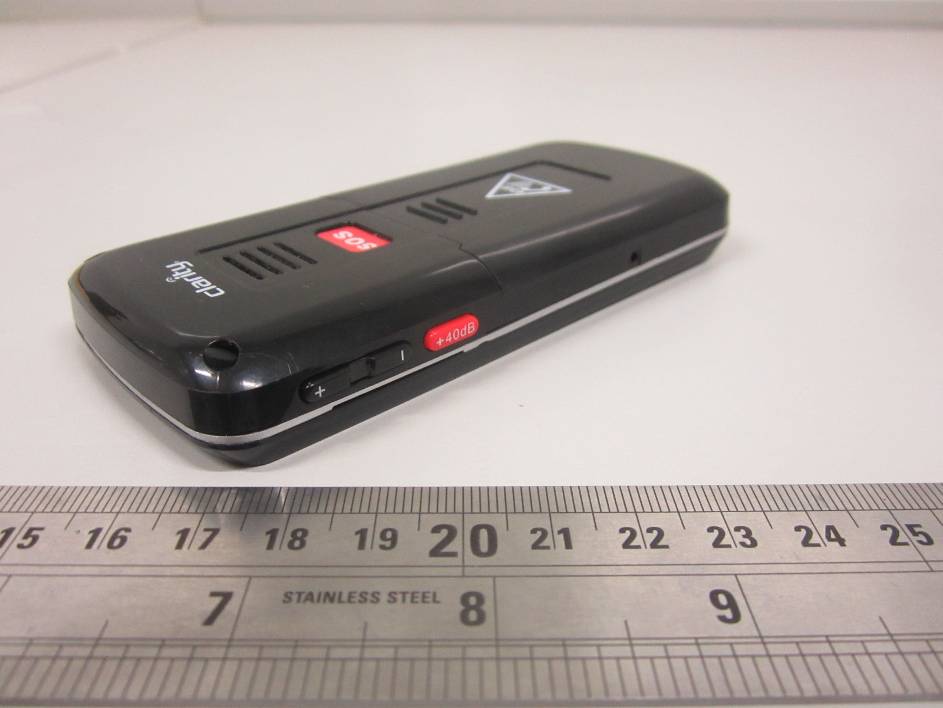

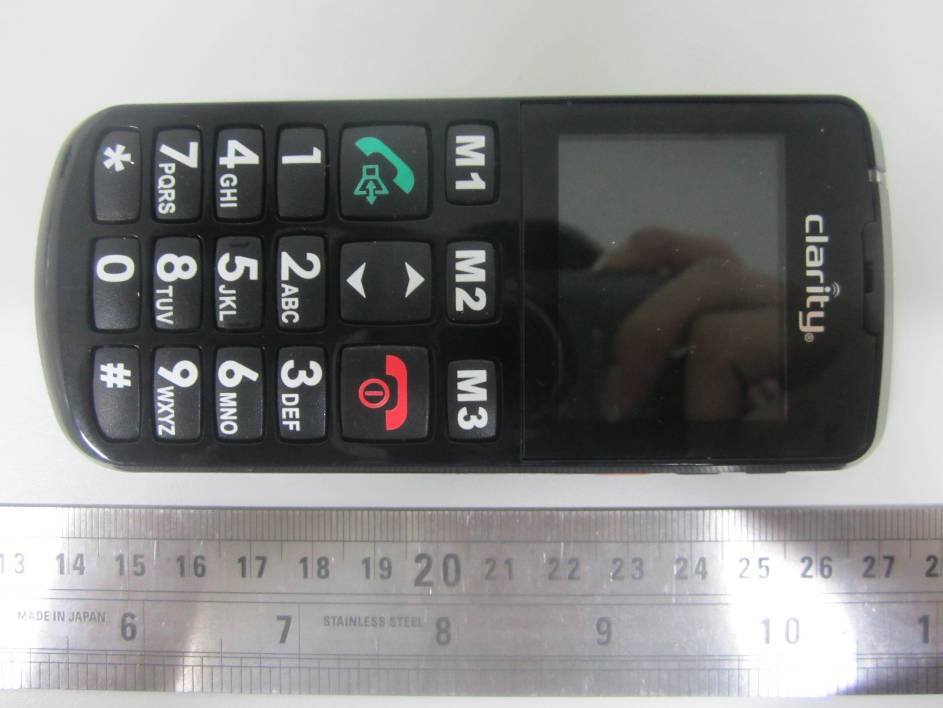

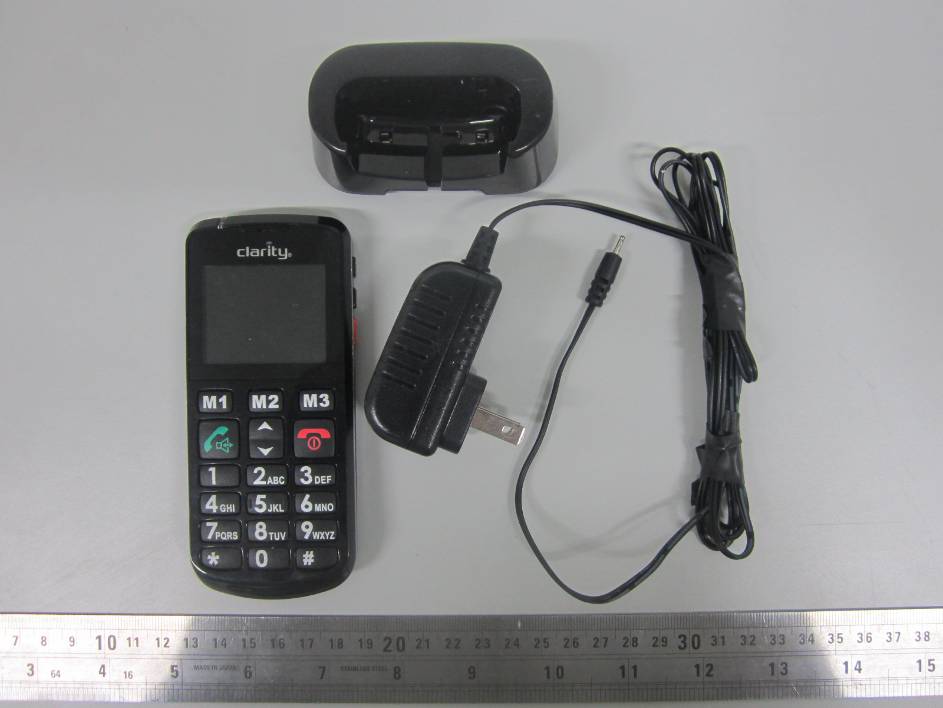

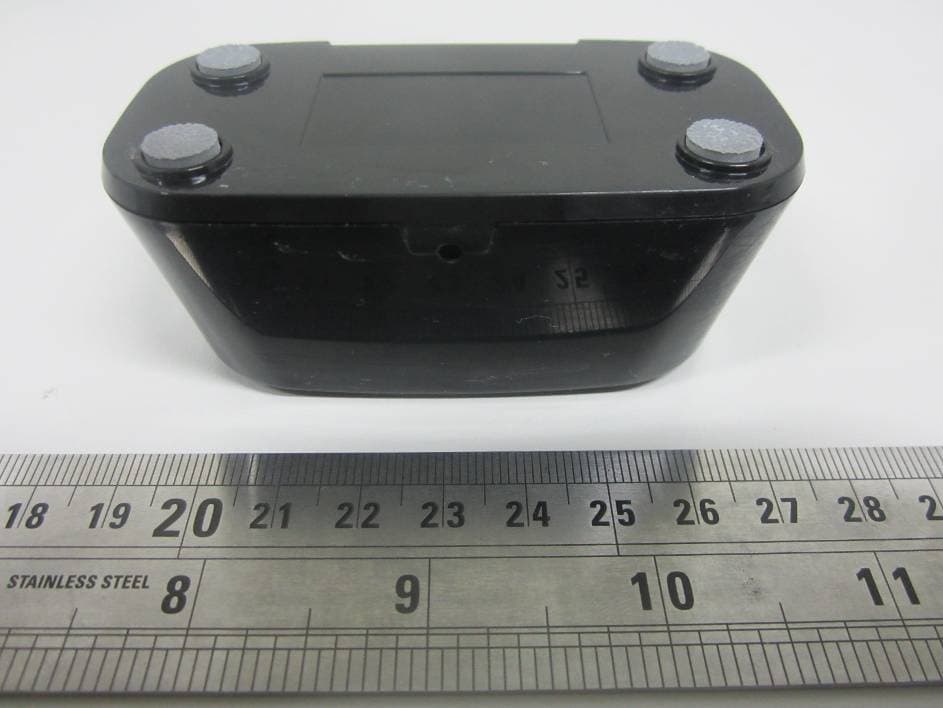

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT – Side View 1 EUT – Side View 2 EUT – Charger Top View EUT – Charger Bottom View

Stick label 12PAL101 11000001 Generated by digits eg:1211000001 Year Month Sequence number Serial no. Label F C C I D : A C E P A L 1 0 1 F C C I D : A C E P A L 1 0 1 4LGA24YY white Background print black 5 5 . 5 36.6 1 8 . 3 20.6 M O D E L : P A L 1 0 1 M O D E L : P A L 1 0 1

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top with LCD Cover off View EUT – Main Board Bottom View EUT – Main Board Bottom View without GSM Antenna GSM Antenna EUT – Main Board Bottom Shielding off View EUT – GSM Antenna View BT Antenna EUT – Battery View EUT – Adapter Label View

PAL101 Circuit Description Brand Model Number Version PAL PAL101 V00 PAL adopts GSM communication system as main design; its circuit mainly consists of the following six parts, 1: BASEBAND (baseband, power supply, logic control) 2: GSM_RF TRANSCEIVER 3: AUDIAO_USB_INTERFACE 4: KEYPAD_LCD_BACKLIGHT 5: SIM_MEMORY 6: BLUE TOOCH The description for each part is as follows, 1. BASEBAND (baseband, power supply, logic control) Baseband mainly contains main control chip MT6223 and charging chip SI4833. MT6223 is an extensively high-degree integrated chip provided by MTK，which integrates system control, power management, GSM system controller, A-D signal processing, audio signal input/output control, mic signal input/output control, LCD display driver, memory interface, USB, UART interface, Bluetooth control interface, system clock(32.768khz) and logic control. 2. GSM_RF TRANSCEIVER GSM_RF TRANSCEIVER is a quad-band transceiver (GSM850\900\DCS1800\PCS1900MHZ). It contains transceiver chip AD6548, RF PA moduleRF3166/AD6212, antenna switch B085TK, SAW (GSM850\900\DCS1800\PCS1900MHZ), 26MHz crystal and antenna. The power is supplied to VDD\VRF by VBAT and MT6223. The transceiver is mainly controlled by MT6223, which supply GSM operating time base, signal processing and logic control. While receiving the signal, GSM antenna receives signal from base station, and then transmit it to SAW filter by B085TK. After amplifying by AD6548, the signal detected will be sent to MT6223 for processing and then to D\A converter, finally it will be amplified to drive earphone or speaker. While transmitting the signal, MT6223 send command to AD6548 by I\Q interface, and then the data will be processed according to GSM regulations. RF signal will be amplified to 0~2dBM and then to 30~33DBM. Finally it will send signal to base station by GSM antenna, then the whole process is completed. 3. AUDIAO_USB_INTERFACE Audio amplifier contains LM4890 and analog switch SGM4684. Audio signal is output from MT6223 and transmitted to LM4890 for amplifying. And then it will be sent to speaker or headphone. USB function is reserved in this board. UART interface is used for downloading and calibration. This model does not provide UART cable. And all functions will be accomplished internally in MT6223. 4. KEYPAD_LCD_BACKLIGHT KEYPAD function is supplied by MT6223. It contains kcol0~kcol4 and krow0~krow4. LCD contains AR2043 and MT6223. MT6223 provides 8bit data flow control (lcd0~lcd7), which could supply 176*220 pixel with LCD. The power is supplied by VDD 2.8v. BACKLIGHT is the circuit for LCD backlight, which includes LCD module and keypad backlight. It consists of LCD module AR2043, 3V LDO RT9193-30PB and LED array. At working mode, LDO—3V is turned on, and LCD backlight will light. Meanwhile keypad led (8pc) will light. It will be turned off automatically after 15-30s, while the time can be customized. 5. SIM_MEMORY SIM circuit consists of SIM socket and MT6223. Insert SIM card, the card type and network selection will be auto recognized. Memory circuit consists of memory chip K5L2833ATA and MT6223. The power is supplied by MT6223 VMEM interface and the voltage is 1.8v. (1.8v/2.8v to be selected, which depends on the operating voltage of memory chip) 6. BLUE TOOTH Bluetooth circuit consists of MT6601, 2.8V_LDO RT9193-28PB, MT6223, 32MHZ crystal, Bluetooth filter LFB182G45SG9A293 and Bluetooth antenna. At working mode, MT6223 will send work command, and LDO begin supplying power to create Bluetooth working mode. The audio signal or data will be sent to Bluetooth filter, and then be transmitted by Bluetooth antenna. The launching power of Bluetooth is 0~4dbm. Since Bluetooth uses high-speed frequency-hopping mode, which is 1600 times per second, 32 MHz crystal will provide high-speed steady frequency to phase-locked loop circuit, to ensure that it work well.

1 Hopping Range Hereby we declare that the maximum range frequency of this device is: 2400-2483.5MHz. This is according the Bluetooth core Specification BT 2.0 for device which will be operated in the USA 2 Hopping Sequence Example of a 79 hopping sequence in data mode: 35,14,21,44,23,42,53,46,55,48,40,59,72,29,76,31,08,73, 07,65,09,45,60,39,58,13,47,11,77,52,35,50,65,54,67,56, 69,62,71,64, 37,25,27,66,57,70,24,61,78,63,10,41,05,43, 19,43,64,68,02,71,06,01,51,03,55,05,03,66,53,49,26,46 3 Receiver input bandwidth The input bandwidth of the receiver is 1MHz. It employs 1600 hoppings per second ,In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packer has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence.





          !"#$!%&'(&)* *&#+ ,-.,- !"#$!%&'%!/*0 *1#2 !"#$!%&'*1#2 !%!0#3#%4 5 67 86 8 ,-
 678 86 ,-
 6
  5 6969 66 ,:-  -  -

 6 ; '  ;' 56
  -  ..5
 7 5 -  :..5 7  -..5
7 5 - 5   '
6  '
  '
  '
  '
  '
  '
. 6  '
:. . 6  '
-. . .   '
7. .
'
.
'
6
'
' : .
'               6               6  6     .. .   .. . 5 .6. 6 5  5  :      :   :  - : 7  6   :        :   :  -  7 : 6     :     .    .
  .
 : .
  .
6  .  .  5: .  .  6 :  :      :  :   :  - : 7  6   :      :    . 7
.'6  '
  '   '6
6.'
6
.'
 - ;.  -  ;.. 7 7  ;.. - 7 ;.. : 7
.
.  6
.
.  6 ;.  :  ;. 6  ..  :  ..  : . :
. -
.
. 7 :
. ' :   .
.'
6.'  '  ' 6 ' 6 ' 6 ': 6 '-     6..   '  - .


 669  6 6 6 : 6 6      '  '   '   '   '   ' 6'  ' 6'  '
'  '
'  '  '  '  ' 5 ' 6' 5 ' 6'  ' '  ' '            ;6  ;  ; 669  6 6  6 7 6  6 6 6  '  '  '  ' 6  '

' 7   '    '    ' 7

'     7

'   '

'   '   '    :

'
 ; 5  '
 ;

'    '   ;'

'   7  5:

 :

 -

 -

 5

 7  6  6

' 6

'     ' 5-   '  5

'  669  6- 6 66 :6 66, 6  6  6 6 6: 6 6 ( -6 6-6 66 ( 66 ( ,:( ,:( ( :( 6 ,:( ,:(



  ; :    :   - '

 -






      : '          6 ' 7 ' - ' -
 669  6: ,7     :  -
      6
- 6
6 ( 67 6 ,( 6 ( 66 6 6  6 5 6 5 6 5
6 5 6 5  6 5
 6-  ; 6: ; 6 6 67 6   <=  <>= .


 <=   <= 6 <=  '

<=  '' <=   <=   <=   <=   <=  6 <=   <=   <=   <=   <=  6 <>= ; <>=  ; '
 '
 <= ' ; <= '; ;' 7;'  <= : <=  <=  <=  <=  <=  <=  <= 6 <=
 <=   <=  ' 6 <= 6 <= 6 '
'  <= ''  <= ' '  <= '' : <= '
' - <= '
' 7 <= . <=  <= <= .
 <= .
6 <= . <= .  <= . <= . <= <=<6= <=
 <=
 <=  <=  '' <=  6''.
 <=
'
<=   <=
' ; <= '; <= '; <=  ' ' <= 5 <=  -.5
<=  :.5 <= 5 <>=  .5
. <= 5       6 7 - :       6     6 7 - :       6 7 - :           <=  <= '  <=
6 <=  <=  <=  <=
6 <=  <=  <= '  <= 6 '  ' <= ' <= 6 <=   ' <=  <= '.        '             ' ; <>= .


  <=  <= '. <>=  9  <=
'. <=
 <= ' <= ' <= ' <=

 <=
 ' <>=   <>= ' <=  -.5
<= 5 <=  :.5 <>=  .5
. <= 5  <= 5 <>=  ; <>= ; <=
 <=
 <=  <= ''
'




           5 6969
'
  6         '

 :
 -  7   6 ; '  ; '  ';            : '  -   7   6     '       '  ;766  ;766 : ;-66 - ;-66 7 ;766 6 ;766  ;-6  ;-6   6 -           6: 766           6 -66    6 6:  66% :7  :  % 6? 6, 6,  - 6- 6? -7 6 6? 67  7 66% 66%  66% 66%    %  - , ,  7 -  - 66% ,% % : 6 66 66? '
   ;6           6- -6 -           6 766 ,% -  - :,: %  ,% …

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 TEST REPORT For Clarity, A Division of Plantronics, Inc. 4289 Bonny Oaks Drive Suite 106, Chattanooga TN37406, United States FCC ID: ACEPAL101 Report Type: Original Report Product Type: GSM Senior Mobile Phone Test Engineer: Leon Chen Report Number: RSZ111121001-00-15.247 Report Date: 2011-12-26 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111121001-00-15.247 FCC Part 15.247 Page 2 of 39 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (I) AND §2.1093 – RF EXPOSURE ......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST RESULTS SUMMARY..........................................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................16 APPLICABLE STANDARD............................................................................................................................................16 MEASUREMENT UNCERTAINTY.........................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Rear View Radiated Emissions View
