ACLAP5R01Microwave Oven

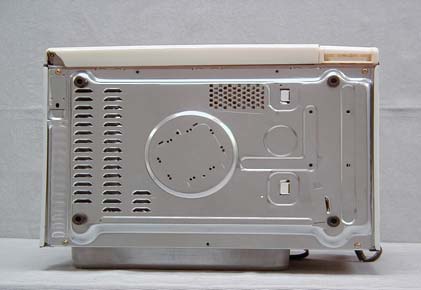

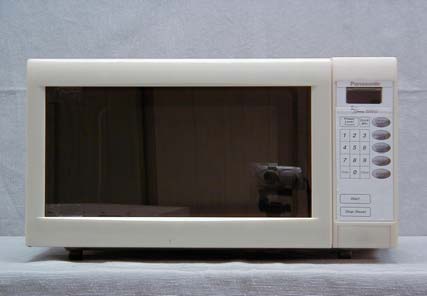

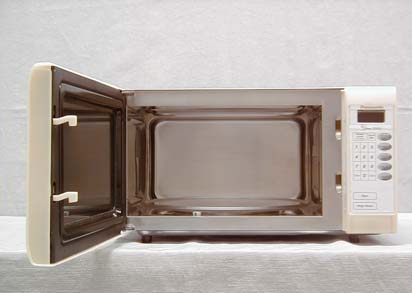

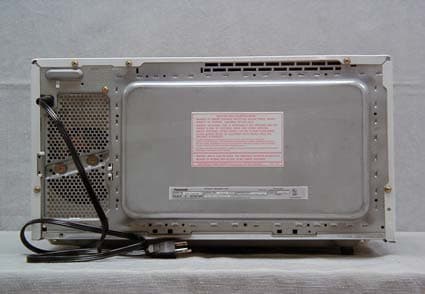

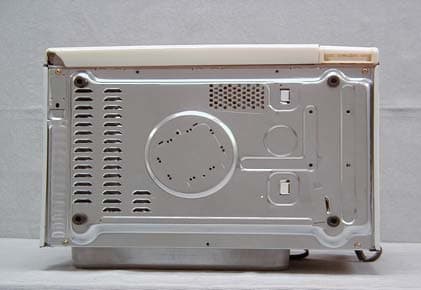

Exhibit 2-A Front view NN-S443WFExhibit 2-B Front view, Door open NN-S443WF Exhibit 2-C1 Left side view NN-S443WFExhibit 2-D1 Right side view N Exhibit 2-E1 Rear view NN-S443WFExhibit 2-F1 Top view NN-S44 Exhibit 2-G Bottom view NN-S443WF NN-S443WF 43WF

Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S443WFNo enclosure NN-S443WF Exhibit 2-F2 Top view,Exhibit 2-H Magnetron 2M26 1 No enclosure NN-S443WF Exhibit 2-I View of Door Choke ConstructionExhibit 2-J View of Control C Exhibit 2-K View of Inverter Circuitry , 1-M32 Circuitry

ACLAP5R01 APPLICATION FOR CERTIFICATION MODEL NO. FCC ID NN-S443BF ACLAP5R01 NN-S443WF ACLAP5R01 NN-S443BFT ACLAP5R01 NN-S443WFT ACLAP5R01 NN-S443BFW ACLAP5R01 NN-S443WFW ACLAP5R01 NN-S423BF ACLAP5R01 NN-S423WF ACLAP5R01 LIST OF EXHIBITS EXHIBIT 1: TECHNICAL REPORT EXHIBIT 2: PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3: SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4: SCHEMATIC DIAGRAM EXHIBIT 5: REPORT OF MEASUREMENTS EXHIBIT 6: LIST OF MEASURING EQUIPMENT AND CALIBRATION EXHIBIT 7: OPERATING INSTRUCTIONS EXHIBIT 8: INSTALLATION INSTRUCTIONS ACLAP5R01 EXHIBIT 1 TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is on file with the FCC laboratory. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA TECHNOLOGY CORPORATION of AMERICA, Microwave Technical Laboratory 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: SHANGHAI MATSUSHITA MICROWAVE OVEN COMPANY LTD. 898 Long Dong Road Pu dong Shanghai, 201203 China 6. MEASUREMENT SITE: Panasonic Magnetron Lab. Panasonic Industrial Co. 1707 N. Randall Road Elgin, IL 60123-7847 7. EQUIPMENT IDENTIFICATION: Model No.:NN-S443BF, NN-S443WF,NN-S443BFT, NN-S443WFT,NN-S443BFW, NN-S443WFW, NN-S423BF, NN-S423WF. Brand Name : Panasonic Output Power: 1200W FCC ID : ACLAP5R01 ACLAP5R01 EXHIBIT 1A 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120Vac, 60Hz, 10.3A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1200 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the right side of the oven. Stirrer: Turntable Cabinet Dimensions: (W)510 x (H)305 x (D) 373 (mm) Oven Cavity Dimensions: (W) 359x (H) 217 x (D) 354 (mm) Door Viewing Area Dimensions: (W) 280 x (H) 152 (mm) Door Seal Type: Slit Choke seal and capacitive seal method ACLAP5R01 EXHIBIT 2 PHOTOGRAPHS OF EQUIPMENT EXHIBIT 2-A: FRONT VIEW OF MODEL NN-S443WF EXHIBIT 2-B: FRONT VIEW OF MODEL NN-S443WF WITH THE DOOR OPENED EXHIBIT 2-C1: LEFT SIDE VIEW OF MODEL NN-S443WF EXHIBIT 2-C2: LEFT SIDE VIEW OF MODEL NN-S443WF WITH ENCLOSURE REMOVED EXHIBIT 2-D1: RIGHT SIDE VIEW OF MODEL NN-S443WF EXHIBIT 2-D2: RIGHT SIDE VIEW OF MODEL NN-S443WF WITH ENCLOSURE REMOVED EXHIBIT 2-E1: REAR VIEW OF MODEL NN-S443WF EXHIBIT 2-F1: TOP VIEW OF MODEL NN-S443WF EXHIBIT 2-F2: TOP VIEW OF MODEL NN-S443WF WITH ENCLOSURE REMOVED EXHIBIT 2-G: BOTTOM VIEW OF MODEL NN-S443WF EXHIBIT 2-H: VIEW OF MAGNETRON TYPE 2M261-M32 EXHIBIT 2-J: VIEW OF CONTROL CIRCUITRY EXHIBIT 2-K: VIEW OF INVERTER CIRCUITRY ACLAP5R01 EXHIBIT 5A REPORT OF MEASUREMENTS 1. MODEL NO.: NN-S443WF SERIAL NO. FE-002 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 11/19/02 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO EXHIBIT 6 4. INVESTIGATED FREQUENCY RANGE: 100Mhz to 10th Harmonic 5. DATA SUMMARY: Safety Check : <0.02 MW/cm² Radiated Field Strength: ( uV/m @ 300m ) Limit Fundamental 2464 MHz 391.19uv/m ------ 2nd. Harmonic 4926 MHz 2.07uv/m 33.80 3rd. Harmonic 7321 MHz 0.97uv/m " 4 th . Harmonic 10153 MHz 1.35uv/m " Spurious 2528 MHz 1.10uv/m “ Emission Sideband 2400 MHz 2.35uv/m " Emission Sideband 2500 MHz 1.29uv/m " Harmonics greater than 4th. Harmonic not measurable-readings below floor of noise level. Maximum Frequency Variation: 2460 to 2468 MHz (98V ~ 150V/ 1500 ml water load) Maximum Frequency Variation: 2458 to 2467 MHz (1500 ml - 300ml water load) Total Power Input to Oven: 1776 watts Power Developed in Dummy Load: 914 watts Supply Voltage: 120 Volts, 60Hz, 14.8A
