ACLAP5X01Microwave Oven

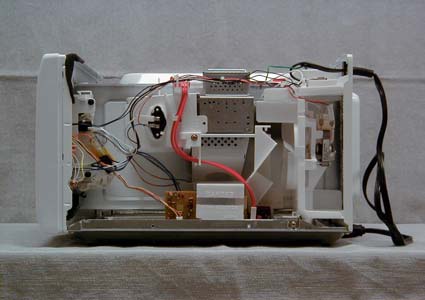

Exhibit 2-A Front view NN-S763WFExhibit 2-B Front view, Door open NN-S763WF Exhibit 2-C1 Left Side view NN-S763WFExhibit 2-D1 Right Side view NN-S763WF Exhibit 2-E Rear view NN-S763WFExhibit 2-F1 Top view NN-S763WF Exhibit 2-G Bottom view NN-S763WF Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S763WFNo enclosure NN-S763WF Exhibit 2-F2 Top view, No enclosure NN-S763WF Exhibit 2-H Magnetron 2M261Exhibit 2-I View of Door Choke Construction Exhibit 2-J View of Control CircuitryExhibit 2-K View of Inverter Circuitry

Exhibit 2-A Front view NN-S763WFExhibit 2-B Front view, Door open NN-S763WF Exhibit 2-C1 Left Side view NN-S763WFExhibit 2-D1 Right Side view NN-S763WF Exhibit 2-E Rear view NN-S763WFExhibit 2-F1 Top view NN-S763WF Exhibit 2-G Bottom view NN-S763WF Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S763WFNo enclosure NN-S763WF Exhibit 2-F2 Top view, No enclosure NN-S763WF Exhibit 2-H Magnetron 2M261Exhibit 2-I View of Door Choke Construction Exhibit 2-J View of Control CircuitryExhibit 2-K View of Inverter Circuitry

ACLAP5X01 APPLICATION FOR CERTIFICATION MODEL NO. FCC ID NN-T793BF ACLAP5X01 NN-T793SF ACLAP5X01 NN-T793WF ACLAP5X01 NN-T783BF ACLAP5X01 NN-T783SF ACLAP5X01 NN-T783WF ACLAP5X01 NN-T783SAF ACLAP5X01 NN-T783BAF ACLAP5X01 NN-T763BF ACLAP5X01 NN-T763SF ACLAP5X01 NN-T763WF ACLAP5X01 NN-S763BF ACLAP5X01 NN-S763SF ACLAP5X01 NN-S763WF ACLAP5X01 NN-S753BF ACLAP5X01 NN-S753SF ACLAP5X01 NN-S753WF ACLAP5X01 NN-S743BF ACLAP5X01 NN-S743SF ACLAP5X01 NN-S743WF ACLAP5X01 LIST OF EXHIBITS EXHIBIT 1: TECHNICAL REPORT EXHIBIT 2: PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3: SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4: SCHEMATIC DIAGRAM EXHIBIT 5: REPORT OF MEASUREMENTS EXHIBIT 6: LIST OF MEASURING EQUIPMENT AND CALIBRATION EXHIBIT 7: OPERATING INSTRUCTIONS EXHIBIT 8: INSTALLATION INSTRUCTIONS ACLAP5X01 EXHIBIT 1-1 TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31010/EQU 4-3-0A. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA TECHNOLOGY CORPORATION of AMERICA MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: SHANGHAI MATSUSHITA MICROWAVE OVEN CO. LTD. 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE: PANASONIC MAGNETRON LAB. PANASONIC INDUSTRIAL COMPANY 1707 N. Randall Road Elgin, Il 60123-7847 ACLAP5X01 EXHIBIT 1-2 7. EQUIPMENT IDENTIFICATION: Model No. : NN-T793BF, NN-T793SF, NN-T793WF Brand Name : Panasonic FCC ID : ACLAP5X01 Model No. : NN-T783BF, NN-T783SF, NN-T783WF, NN-T783SAF, NN-T783SBF Brand Name : Panasonic FCC ID : ACLAP5X01 Model No. : NN-T763BF, NN-T763SF, NN-T763WF Brand Name : Panasonic FCC ID : ACLAP5X01 Model No. : NN-S763BF, NN-S763SF, NN-S763WF Brand Name : Panasonic FCC ID : ACLAP5X01 Model No. : NN-S753BF, NN-S753SF, NN-S753WF Brand Name : Panasonic FCC ID : ACLAP5X01 Model No. : NN-S743BF, NN-S743SF, NN-S743WF Brand Name : Panasonic FCC ID : ACLAP5X01 ACLAP5X01 EXHIBIT 1A 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120V, 60Hz, 12.7A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1350 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the right sidewall of the oven. Stirrer: Turntable Type Cabinet Dimensions: (W) 555 x (H) 304 x (D) 493 (mm) Oven Cavity Dimensions: (W) 418x (H) 228 x (D) 470 (mm) Door Viewing Area Dimensions: (W) 323 x (H) 140 (mm) Door Seal Type: Slit Choke seal and capacitive seal method 8. DESCRIPTION OF DIFFERENCES Model No. NN-T793 BF/SF/WF NN-T783 BF/SF/WF/SAF/SBF NN-T763 BF/SF/WF NN-S763 BF/SF/WF NN-S753 BF/SF/WF NN-S743 BF/SF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1350W 1350W 1300W 1350W 1350W 1300W Magnetron 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic ACLAP5X01 EXHIBIT 2 PHOTOGRAPHS OF EQUIPMENT EXHIBIT 2-A: FRONT VIEW OF MODEL NN-S763WF EXHIBIT 2-B: FRONT VIEW DOOR OPEN, MODEL NN-S763WF EXHIBIT 2-C1: LEFT SIDE VIEW OF MODEL NN-S763WF EXHIBIT 2-C2: LEFT SIDE VIEW OF MODEL NN-S763WF WITH ENCLOSURE REMOVED EXHIBIT 2-D1: RIGHT SIDE VIEW OF MODEL NN-S763WF EXHIBIT 2-D2: RIGHT SIDE VIEW OF MODEL NN-S763WF WITH ENCLOSURE REMOVED EXHIBIT 2-E:REAR VIEW OF MODEL NN-S763WF EXHIBIT 2-F1: TOP VIEW OF MODEL NN-S763WF EXHIBIT 2-F2: TOP VIEW OF MODEL NN-S763WF, WITH ENCLOSURE REMOVED EXHIBIT 2-G: BOTTOM VIEW OF MODEL NN-S763WF EXHIBIT 2-H: VIEW OF MAGNETRON TYPE 2M261-M32 EXHIBIT 2-I: VIEW OF DOOR CHOKE CONSTRUCTION ILLUSTRATING INTEGRAL CHOKE TYPE. EXHIBIT 2-J: VIEW OF CONTROL CIRCUITRY EXHIBIT 2-K: VIEW OF INVERTER POWER SUPPLY ACLAP5X01 EXHIBIT 5A REPORT OF MEASUREMENTS 1. MODEL NO.: NN-S763WF SERIAL NO. PP-00001 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 9/30/02 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO ATTACHED EXHIBIT 6 4. INVESTIGATED FREQUENCY RANGE: 100Mhz to 4th Harmonic 5. DATA SUMMARY: Safety Check : <0.5 MW/cm2 Radiated Field Strength: ( uV/m @ 300m ) Limit Fundamental: 2454 MHz 276.94uv/m N/A 2nd. Harmonic: 4905 MHz 5.19uv/m 36.76 3rd. Harmonic: 7001 MHz 1.22uv/m " 4th. Harmonic: 9788 MHz 1.20uv/m " Spurious: 2337 Mhz 0.62uv/m " Emission Sideband: 2400 MHz 0.59uv/m " Emission Sideband: 2500 MHz 0.41uv/m " Greater than 4th. Harmonic not measurable Maximum Frequency Variation: 2455 to 2460 MHz (98V ~ 150V/ 1500 ml water load) Maximum Frequency Variation: 2453 to 2461 MHz (1500 ml - 300ml water load) Total Power Input to Oven: 2040 watts Power Developed in Dummy Load: 1082 watts Supply Voltage: 120 Volts, 60Hz, 17.0A
