ACLAP5Y01Microwave Oven

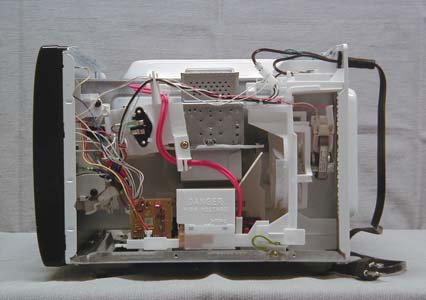

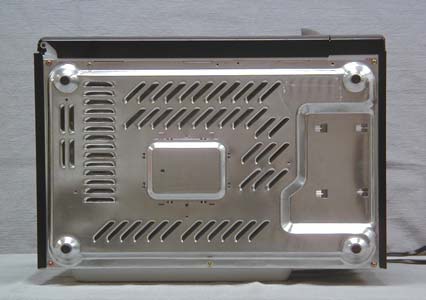

Exhibit 2-A Front view NN-S563BFExhibit 2-B Front view, Door Open NN-S563BF Exhibit 2-C1 Left Side view NN-S563BFExhibit 2-D1 Right Side view NN-S563BF Exhibit 2-E Rear view NN-S563BFExhibit 2-F1 Top view NN-S563BF Exhibit 2-G Bottom view NN-S563BF Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S563BFNo enclosure NN-S563BF Exhibit 2-F2 Top view, No enclosure NN-S563BF Exhibit 2-H Magnetron 2M261Exhibit 2-I View of Door Choke Constructio Exhibit 2-J View of Control CircuitryExhibit 2-K View of Inverter Circuitry n

Exhibit 2-A Front view NN-S563BFExhibit 2-B Front view, Door Open NN-S563BF Exhibit 2-C1 Left Side view NN-S563BFExhibit 2-D1 Right Side view NN-S563BF Exhibit 2-E Rear view NN-S563BFExhibit 2-F1 Top view NN-S563BF Exhibit 2-G Bottom view NN-S563BF Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S563BFNo enclosure NN-S563BF Exhibit 2-F2 Top view, No enclosure NN-S563BF Exhibit 2-H Magnetron 2M261Exhibit 2-I View of Door Choke Constructio Exhibit 2-J View of Control CircuitryExhibit 2-K View of Inverter Circuitry n

ACLAP5Y01 APPLICATION FOR CERTIFICATION MODEL NO. FCC ID NN-T583SF ACLAP5Y01 NN-T563SF ACLAP5Y01 NN-S563BF ACLAP5Y01 NN-S563MF ACLAP5Y01 NN-S563WF ACLAP5Y01 NN-S553BF ACLAP5Y01 NN-S553MF ACLAP5Y01 NN-S553WF ACLAP5Y01 NN-S543BF ACLAP5Y01 NN-S543MF ACLAP5Y01 NN-S543WF ACLAP5Y01 NN-S533BF ACLAP5Y01 NN-S533MF ACLAP5Y01 NN-S533WF ACLAP5Y01 NN-S503BF ACLAP5Y01 NN-S503MF ACLAP5Y01 NN-S503WF ACLAP5Y01 LIST OF EXHIBITS EXHIBIT 1: TECHNICAL REPORT EXHIBIT 2: PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3: SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4: SCHEMATIC DIAGRAM EXHIBIT 5: REPORT OF MEASUREMENTS EXHIBIT 6: LIST OF MEASURING EQUIPMENT AND CALIBRATION EXHIBIT 7: OPERATING INSTRUCTIONS EXHIBIT 8: INSTALLATION INSTRUCTIONS ACLAP5Y01 EXHIBIT 1-1 TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31010/EQU 4-3-0A. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA TECHNOLOGY CORPORATION of AMERICA MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: SHANGHAI MATSUSHITA MICROWAVE OVEN CO. LTD. 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE: PANASONIC MAGNETRON LAB. PANASONIC INDUSTRIAL COMPANY 1707 N. Randall Road Elgin, Il 60123-7847 ACLAP5Y01 EXHIBIT 1-2 7. EQUIPMENT IDENTIFICATION: Model No. : NN-T583SF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-T563SF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-S563BF, NN-S563MF,NN-S563WF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-S553BF, NN-S553MF, NN-S553WF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-S543BF, NN-S543MF, NN-S543WF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-S533BF, NN-S533MF, NN-S533WF Brand Name : Panasonic FCC ID : ACLAP5Y01 Model No. : NN-S503BF, NN-S503MF, NN-S503WF Brand Name : Panasonic FCC ID : ACLAP5Y01 ACLAP5Y01 EXHIBIT 1A 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120V, 60Hz, 12.7A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1350 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the right sidewall of the oven. Stirrer: Turntable Type Cabinet Dimensions: (W) 518 x (H) 301 x (D) 404 (mm) Oven Cavity Dimensions: (W) 375 x (H) 225 x (D) 386 (mm) Door Viewing Area Dimensions: (W) 296 x (H) 153 (mm) ?????? Door Seal Type: Slit Choke seal and capacitive seal method 8. DESCRIPTION OF DIFFERENCES Model No. NN-T583SF NN-T563SF NN-S563 BF/MF/WF NN-S553 BF/MF/WF NN-S543 BF/MF/WF NN-S533 BF/MF/WF NN-S503 BF/MF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1350W 1300W 1350W 1350W 1300W 1300W 1300W Magnetron 2M261- M32 2M261- M32 2M261- M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic ACLAP5Y01 EXHIBIT 2 PHOTOGRAPHS OF EQUIPMENT EXHIBIT 2-A: FRONT VIEW OF MODEL NN-S563BF EXHIBIT 2-B: FRONT VIEW DOOR OPEN, MODEL NN-S563BF EXHIBIT 2-C1: LEFT SIDE VIEW OF MODEL NN-S563BF EXHIBIT 2-C2: LEFT SIDE VIEW OF MODEL NN-S563BF WITH ENCLOSURE REMOVED EXHIBIT 2-D1: RIGHT SIDE VIEW OF MODEL NN-S563BF EXHIBIT 2-D2: RIGHT SIDE VIEW OF MODEL NN-S563BF WITH ENCLOSURE REMOVED EXHIBIT 2-E:REAR VIEW OF MODEL NN-S563BF EXHIBIT 2-F: TOP VIEW OF MODEL NN-S563BF EXHIBIT 2-G: BOTTOM VIEW OF MODEL NN-S563BF EXHIBIT 2-H: VIEW OF MAGNETRON TYPE 2M261-M32 EXHIBIT 2-I: VIEW OF DOOR CHOKE CONSTRUCTION ILLUSTRATING INTEGRAL CHOKE TYPE. EXHIBIT 2-J: VIEW OF CONTROL CIRCUITRY EXHIBIT 2-K: VIEW OF INVERTER POWER SUPPLY ACLAP5Y01 EXHIBIT 5A REPORT OF MEASUREMENTS 1. MODEL NO.: NN-S563BF SERIAL NO. PP-00001 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 9/12/02 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO ATTACHED EXHIBIT 6 4. INVESTIGATED FREQUENCY RANGE: 100Mhz to 4th Harmonic 5. DATA SUMMARY: Safety Check : <0.5 MW/cm2 Radiated Field Strength: ( uV/m @ 300m ) Limit Fundamental: 2459 MHz 310.74uv/m N/A 2nd. Harmonic: 4910 MHz 8.22uv/m 35.77 3rd. Harmonic: 7359 MHz 2.43uv/m " 4th. Harmonic: 9868 MHz 3.02uv/m " Spurious: 2338 Mhz 0.78uv/m " Emission Sideband: 2400 MHz 0.47uv/m " Emission Sideband: 2500 MHz 1.15uv/m " Greater than 4th. Harmonic not measurable Maximum Frequency Variation: 2456 to 2461 MHz (98V ~ 150V/ 1500 ml water load) Maximum Frequency Variation: 2455 to 2459 MHz (1500 ml - 300ml water load) Total Power Input to Oven: 2040 watts Power Developed in Dummy Load: 1024 watts Supply Voltage: 120 Volts, 60Hz, 17.0A
