ACLAP6K51Microwave Oven

MATSUSHITA HOME APPLIANCE COMPANY, 1711 N . RANDALL ROAD, E-Zip:E-2J-16 MICROWAVE TECHNICAL LABORATORY ELGIN, IL 60123-7847 Direct Dial Line: (847)468-5946 Fax.: (847)468-5963 MAC October 23, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD. 21046 SUBJECT: FILING FOR CERTIFICATION GRANTEE CODE ACL. We are sending application for models under FCC Identifier ACLAP6K51. The application is filed with data for two magnetron types: 2M261-M32 manufactured by Matsushita, and OM75P1 (21), manufactured by Samsung. The data for each of the magnetrons was taken by separate approved testing laboratories. In the submission you will find the Application Index and Summary which includes reference to both magnetrons and also includes radiated data taken for each of the magnetrons. Photos of both magnetrons appear in the exhibit for Internal Photos In the exhibits for Test Report, Set-up and Configuration, Equipment List and Calib., and Product Test Data you will find separate submissions for each of the Matsushita and Samsung magnetrons. Please use this letter as a reference when viewing exhibits for this application. If there are any questions, please contact me. Sincerely, Jim Kingsley Senior Engineer, Product Safety Regulations Dept. Cc: S. Yamashita

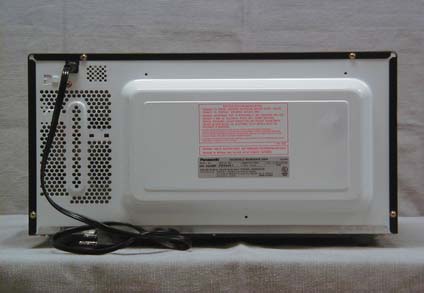

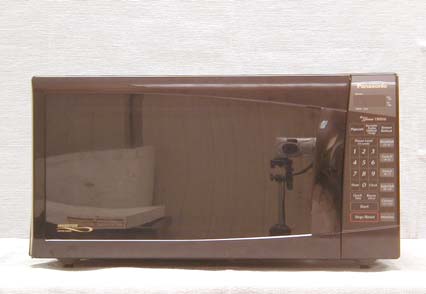

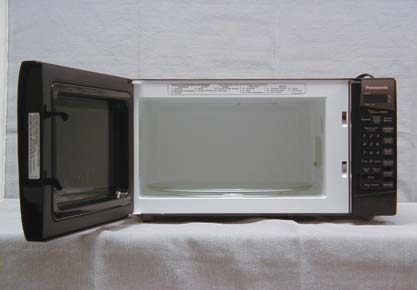

Exhibit 2-A Front view NN-S654BFExhibit 2-B Front view, Door Op NN-S654BF Exhibit 2-C1 Left Side view NN-S654BFExhibit 2-D1 Right Side view N N Exhibit 2-E Rear view NN-S654BFExhibit 2-F1 Top view NN-S654B Exhibit 2-G Bottom view NN-S654BF en N-S654BF BF

Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-S654BFNo enclosure NN-S654BF Exhibit 2-F2 Top view, No enclosure NN-S654BF Exhibit 2-H Magnetron 2M261-M32Exhibit 2-I View of Door Choke C Exhibit 2-J View of Control CircuitryExhibit 2-K View of Inverter Circ Exhibit 2-L Magnetron OM75PI(21) Construction-Pull Type cuitry

































             !  !  !          !     "   #
 #

  $   "     "   "   %

      "


  !
 &
















 !"#" "#" " "  "     "#"
"
"#" "
     "   "


APPLICATION FOR CERTIFICATION MODEL FAMILY ACLAP6K51 MODEL NO. FCC ID NN-T694SF ACLAP6K51 NN-T684SF ACLAP6K51 NN-T664SF ACLAP6K51 NN-T654SF ACLAP6K51 NN-T644SF ACLAP6K51 NN-T624SF ACLAP6K51 NN-H664BF/MF/WF ACLAP6K51 NN-S664BF/MF/WF ACLAP6K51 NN-H654BF/MF/WF ACLAP6K51 NN-S654BF/MF/WF ACLAP6K51 NN-H644BF/MF/WF ACLAP6K51 NN-S644BF/MF/WF ACLAP6K51 NN-H634BF/MF/WF ACLAP6K51 NN-S634BF/MF/WF ACLAP6K51 NN-H624BF/MF/WF ACLAP6K51 NN-S624BF/MF/WF ACLAP6K51 NN-H614BF/MF/.WF ACLAP6K51 NN-S614BF/MF/WF ACLAP6K51 NN-H604BF/MF/WF ACLAP6K51 NN-S604BF/MF/WF ACLAP6K51 NN-H504BF/MF/WF ACLAP6K51 NN-S504BF/MF/WF ACLAP6K51 LIST OF EXHIBITS EXHIBIT 1: TECHNICAL REPORT EXHIBIT 2: PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3: SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4: SCHEMATIC DIAGRAM EXHIBIT 5: REPORT OF MEASUREMENTS EXHIBIT 6: LIST OF MEASURING EQUIPMENT AND CALIBRATION EXHIBIT 7: OPERATING INSTRUCTIONS EXHIBIT 8: INSTALLATION INSTRUCTIONS ACLAP6K51 EXHIBIT 1-1A TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31010/EQU 4-3-0A. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA HOME APPLIANCE COMPANY, MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: SHANGHAI MATSUSHITA MICROWAVE OVEN CO. LTD. 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE: PANASONIC MAGNETRON LAB. PANASONIC INDUSTRIAL COMPANY 1707 N. Randall Road Elgin, Il 60123-7847 ACLAP6K51 EXHIBIT 1-2A TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31040/SIT 1300F2. NVLAP Lab Code 200191-0 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA HOME APPLIANCE COMPANY, MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: SHANGHAI MATSUSHITA MICROWAVE OVEN CO. LTD. 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE: JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome Minoh-shi, Osaka 562-0027 Japan ACLAP6K51 EXHIBIT 1-2 7. EQUIPMENT IDENTIFICATION: Model No. : NN-T694SF Model No. : NN-T684SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-T664SF Model No. : NN-T654SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-T644SF Model No. : NN-T624SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H664BF, NN-H664MF, NN-H664WF Model No. : NN-S664BF, NN-S664MF,NN-S664WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H654BF, NN-H654MF,NN-H654WF Model No. : NN-S654BF, NN-S654MF,NN-S654WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H644BF, NN-H644MF,NN-H644WF Model No. : NN-S644BF, NN-S644MF,NN-S644WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H634BF, NN-H634MF,NN-H634WF Model No. : NN-S634BF, NN-S634MF,NN-S634WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H624BF, NN-H624MF,NN-H624WF Model No. : NN-S624BF, NN-S624MF,NN-S624WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H614BF, NN-H614MF,NN-H614WF Model No. : NN-S614BF, NN-S614WF,NN-S614WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H604BF, NN-H604MF,NN-H604WF Model No. : NN-S604BF, NN-S604WF,NN-S604WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 Model No. : NN-H504BF, NN-H504MF,NN-H504WF Model No. : NN-S504BF, NN-S504WF,NN-S504WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP6K51 FCC ID : ACLAP6K51 ACLAP6K51 EXHIBIT 1A 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120V, 60Hz, 12.7A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1300 W (IEC 705) Magnetron Type: 2M261-M32 , or 0M75PI(21) Feed Type and Location: Through the wave guide on the right sidewall of the oven. Stirrer: Turntable Type Cabinet Dimensions: (W) 518 x (H) 301 x (D) 404 (mm) Oven Cavity Dimensions: (W) 375 x (H) 225 x (D) 386 (mm) Door Viewing Area Dimensions: (W) 296 x (H) 153 (mm) Door Seal Type: Slit Choke seal and capacitive seal method 8. DESCRIPTION OF DIFFERENCES Model No. NN-T694SF NN-T684SF NN-T664SF NN-T654SF NN-T644SF NN-T624SF NN-H664 BF/MF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1300W 1300W 1300W 1300W 1300W 1200W 1300W Magnetron 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Model No. NN-S664 BF/MF/WF NN-H654 BF/MF/WF NN-S654 BF/MF/WF NN-H644 BF/MF/WF NN-S644 BF/MF/WF NN-H634 BF/MF/WF NN-S634 BF/MF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1300W 1300W 1300W 1300W 1300W 1300W 1250W Magnetron 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) 2M261-M32 or OM-75PI(21) Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Model No. NN-H624 BF/MF/WF NN-S624 BF/MF/WF NN-H614 BF/MF/WF NN-S614 BF/MF/WF NN-H604 BF/MF/WF NN-S604 BF/MF/WF NN-H504 BF/MF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A …
