ACLAP6Z01Microwave Oven

PANASONIC HOME APPLIANCE COMPANY of AMERICA, 1707 N . RANDALL ROAD, E-Zip:E-2J-16 MICROWAVE TECHNICAL LABORATORY ELGIN, IL 60123-7847 Direct Dial Line: (847)468-5946 Fax.: (847)468-5963 PHAA March 8, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD. 21046 SUBJECT: FILING FOR CERTIFICATION GRANTEE CODE ACL. We are sending application for models with FCC Identifier ACLAP6Z01. These Microwave Ovens are to be approved under the regulations in effect for devices to be manufactured after July 11, 2005. In the submission you will find exhibits for measurements taken in both Radiated and Line Conducted modes. As permitted by FCC rules, these measurements were taken by separate labs. Each of these labs are registered and have submitted documents which are on file with the FCC. Efforts are currently under way to have all measurements taken by the same lab, in the future. For a quick reference to all of the exhibits submitted, please reference the Application Index and Summary. If there are any questions pertaining to this application, please contact me. Sincerely, Jim Kingsley Senior Engineer, Product Safety Regulations Dept. Cc: S. Yamashita

Exhibit 2-A Front view NN-P295SFExhibit 2-B Front view, Door Open NN-P295SF Exhibit 2-C1 Left Side view NN-P295SFExhibit 2-D1 Right Side view NN-P295SF Exhibit 2-E Rear view NN-H965WFExhibit 2-F1 Top view NN-H965WF Exhibit 2-G Bottom view NN-H965WF

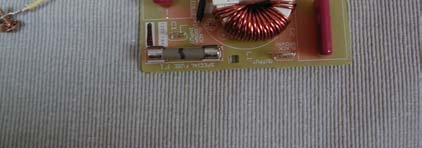

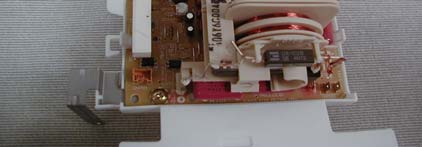

Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-P295SFNo enclosure NN-P295SF Exhibit 2-F2 Top view, Exhibit 2-G2 Bottom view, No enclosure NN-P295SFNo enclosure NN-P295SF Exhibit 2-H View of Control CircuitryExhibit 2-I View of Power Line Filter Circuitry Exhibit 2-J View of Inverter Circuitry Exhibit 2-K View of Magnetron 2M261-M32

































             !  !  !          !     "   #
 #

  $   "     "   "   %

      "


  !
 &
















 !"#" "#" " "  "     "#"
"
"#" "
     "   "


ACLAP6Z01 APPLICATION FOR CERTIFICATION MODEL NO. FCC ID NN-P295BF ACLAP6Z01 NN-P295SF ACLAP6Z01 NN-P295WF ACLAP6Z01 NN-H275BF ACLAP6Z01 NN-H275QF ACLAP6Z01 NN-H275SF ACLAP6Z01 NN-H275WF ACLAP6Z01 NN-S255BF ACLAP6Z01 NN-S255WF ACLAP6Z01 NN-H264BFR ACLAP6Z01 NN-H264SFR ACLAP6Z01 NN-H264WFR ACLAP6Z01 NN-H254BFR ACLAP6Z01 NN-H254SFR ACLAP6Z01 NN-H254WFR ACLAP6Z01 LIST OF EXHIBITS EXHIBIT 1: TECHNICAL REPORT EXHIBIT 2: PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3: SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4: SCHEMATIC DIAGRAM EXHIBIT 5: REPORT OF MEASUREMENTS EXHIBIT 6: LIST OF MEASURING EQUIPMENT AND CALIBRATION EXHIBIT 7: OPERATING INSTRUCTIONS EXHIBIT 8: INSTALLATION INSTRUCTIONS ACLAP6Z01 EXHIBIT 1-1 TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31010/EQU 4-3-0A. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA HOME APPLIANCE COMPANY, MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: PANASONIC HOME APPLIANCES MICROWAVE OVEN SHANGHAI COMPANY LTD. (PHAMOS) 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE:(Radiated Emissions) FCC Registration Number 96247 PANASONIC MAGNETRON LAB. PANASONIC INDUSTRIAL COMPANY 1707 N. Randall Road Elgin, Il 60123-7847 MEASUREMENT SITE: (Line Conducted Emissions). FCC Registration Number 767285 Jiangsu TUV Product Service Ltd. 10 Huaxia M. Rd. Wuxi, Jiangsu, 214100 China ACLAP6Z01 EXHIBIT 1A 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120Vac, 60Hz, 12.2A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1200 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the top of the oven. Stirrer: Turntable and Mode Stirrer Cabinet Dimensions: (W) 759 x (H) 418 x (D) 381 (mm) Oven Cavity Dimensions: (W) 591 x (H) 241.5 x (D) 238 (mm) Door Viewing Area Dimensions: (W) 462 x (H) 166 (mm) Door Seal Type: Slit Choke seal and capacitive seal method 9. DESCRIPTION OF DIFFERENCES Model No. NN-P295 BF/SF/WF NN-H275 BF/QF/SF/WF NN-S255BF/WF NN-H264 BFR/SFR/WFR NN-S254 BFR/SFR/WFR Input Power 120Vac, 12.2A 120Vac, 12.2A 120Vac, 12.2A 120Vac, 12.2A 120Vac, 12.2A Output Power 1200W 1200W 1200W 1200W 1200W Magnetron 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic Panasonic Panasonic ACLAP6Z01 EXHIBIT 2 PHOTOGRAPHS OF EQUIPMENT EXHIBIT 2-A: FRONT VIEW OF MODEL NN-P295SF EXHIBIT 2-B: FRONT VIEW OF MODEL NN-P295SF WITH THE DOOR OPENED EXHIBIT 2-C1: LEFT SIDE VIEW OF MODEL NN-P295SF EXHIBIT 2-C2: LEFT SIDE VIEW OF MODEL NN-P295SF WITH ENCLOSURE REMOVED EXHIBIT 2-D1: RIGHT SIDE VIEW OF MODEL NN-P295SF EXHIBIT 2-D2: RIGHT SIDE VIEW OF MODEL NN-P295SF WITH ENCLOSURE REMOVED EXHIBIT 2-E1: REAR VIEW OF MODEL NN-P295SF EXHIBIT 2-F1: TOP VIEW OF MODEL NN-P295SF EXHIBIT 2-F2: TOP VIEW OF MODEL NN-S262WF WITH ENCLOSURE REMOVED EXHIBIT 2-G: BOTTOM VIEW OF MODEL NN-P295SF EXHIBIT 2-H: VIEW OF MAGNETRON TYPE 2M261-M32 ACLAP6Z01 EXHIBIT 5A REPORT OF MEASUREMENTS 1. MODEL NO.: NN-P295SF SERIAL NO. PP-003 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 2/15/05 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO EXHIBIT 6 4. INVESTIGATED FREQUENCY RANGE: 100Mhz to 4th Harmonic 5. DATA SUMMARY: Safety Check : <0.20 MW/cm2 Radiated Field Strength: ( uV/m @ 300m ) Limit Fundamental: 2472 MHz 620.00uv/m N/A 2nd. Harmonic: 4921 MHz 2.60uv/m 35.26 3rd. Harmonic: 7676 MHz 1.93uv/m " 4th. Harmonic: 9830 MHz 1.51uv/m " Spurious: 2580 Mhz 0.49uv/m " Emission Sideband: 2400 MHz 1.86uv/m " Emission Sideband: 2500 MHz 0.64uv/m " Greater than 4th. Harmonic not measurable Maximum Frequency Variation: 2469 to 2473 MHz (96V ~ 150V/ 1500 ml water load) Maximum Frequency Variation: 2470 to 2473 MHz (1500 ml - 300ml water load) Total Power Input to Oven: 1260 watts Power Developed in Dummy Load: 995 watts Supply Voltage: 120 Volts, 60Hz, 10.8A ACLAP6Z01 EXHIBIT 5B REPORT OF MEASUREMENTS 1. MODEL NO.: NN-H275BF SAMPLE NO. J50222041 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 3/04/05 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO ATTACHED EXHIBIT 6B 4. INVESTIGATED FREQUENCY RANGE: 0.15MHz to 30MHz 5. DATA SUMMARY: Selected Peak Readings (Refer to Spectrum Analyzer plot for complete readings). Power Line High Side Frequency QP Level QP Limit QP Delta MHz dBuV dBuV dB 11.34 49.58 60.00 10.42 Frequency AV Level AV Limit AV Delta MHz dBuV dBuV dB 11.41 41.06 50.00 8.94 Power Line Neutral Side Frequency QP Level QP Limit QP Delta MHz dBuV dBuV dB 11.33 51.75 60.00 8.25 12.6 42.35 60.00 17.65 16.35 36.12 60.00 23.88 Frequency AV Level AV Limit AV Delta MHz dBuV dBuV dB 11.01 41.04 50.00 8.96 12.6 34.40 50.00 15.60 16.35 24.09 50.00 25.91
