ACLAP7D01Microwave Oven

MATSUSHITA HOME APPLIANCE COMPANY, 1711 N . RANDALL ROAD, E-Zip:E-2J-16 MICROWAVE TECHNICAL LABORATORY ELGIN, IL 60123-7847 Direct Dial Line: (847)468-5946 Fax.: (847)468-5963 MAC November 17, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD. 21046 SUBJECT: FILING FOR CERTIFICATION GRANTEE CODE ACL. We are sending application for models under FCC Identifier ACLAP7D01. These Microwave Ovens are to be approved under the regulations in effect for devices to be manufactured after July 11, 2005. In the submission you will find exhibits for measurements taken in both Radiated and Line Conducted modes. As permitted by FCC rules, these measurements were taken by separate labs. Each of these labs are registered and have submitted documents which are on file with the FCC. Efforts are currently under way to have all measurements taken by the same lab, in the future. For a quick reference to all of the exhibits submitted, please reference the Application Index and Summary. If there are any questions pertaining to this application, please contact me. Sincerely, Jim Kingsley Senior Engineer, Product Safety Regulations Dept. Cc: S. Yamashita

Exhibit 2-A Front view NN-H665WFExhibit 2-B Front view, Door Open NN-H665WF Exhibit 2-C1 Left Side view NN-H665WFExhibit 2-D1Right Side view NN-H665WF Exhibit 2-E Rear view NN-H665WFExhibit 2-F1 Top view NN-H665WF Exhibit 2-G Bottom view NN-H665WF

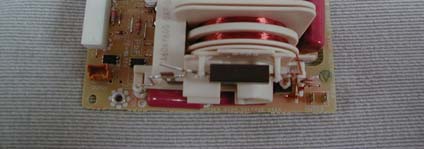

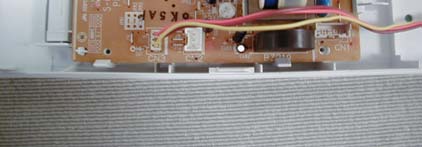

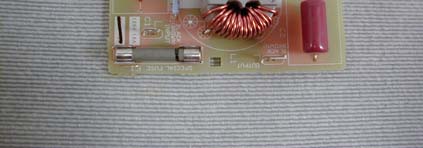

Exhibit 2-C2 Left side view, Exhibit 2-D2 Right side view, No enclosure NN-H665WFNo enclosure NN-H665WF Exhibit 2-F2 Top view, Exhibit 2-H View of Control Circuitry No enclosure NN-H665WF Exhibit 2-I View of Power Line Exhibit 2-J View of Inverter Circuitry Filter Circuitry Exhibit 2-K View of Magnetron Exhibit 2-L View of Door Choke 2M261-M32Construction

APPLICATION FOR CERTIFICATION MODEL FAMILY ACLAP7D01 MODEL NO. FCC ID NN-T695SF ACLAP7D01 NN-T685SF ACLAP7D01 NN-T675SF ACLAP7D01 NN-T665SF ACLAP7D01 NN-T664SFR ACLAP7D01 NN-H665BF/WF ACLAP7D01 NN-S655BF/WF ACLAP7D01 NN-T655SF ACLAP7D01 NN-H645BF/WF ACLAP7D01 NN-S645BF/MF/WF ACLAP7D01 NN-H635BF/WF ACLAP7D01 NN-S635BF/WF ACLAP7D01 NN-H624BFR/WFR ACLAP7D01 NN-S505BF/WF ACLAP7D01 NN-H504BFR/WFR ACLAP7D01 LIST OF EXHIBITS EXHIBIT 1A : TECHNICAL REPORT (Radiated Emissions) EXHIBIT 1B : TECHNICAL REPORT (Line Conducted Emissions) EXHIBIT 2 : PHOTOGRAPHS OF MAGNETRON AND COMPONENTS EXHIBIT 3 : SAMPLE AND LOCATION OF FCC ID LABEL EXHIBIT 4 : SCHEMATIC DIAGRAMS EXHIBIT 5A : REPORT OF MEASUREMENTS (Radiated Emissions) EXHIBIT 5B : REPORT OF MEASUREMENTS (Line Conducted Emissions) EXHIBIT 6A : LIST OF MEASURING EQUIPMENT AND CALIBRATION (Radiated Emissions) EXHIBIT 6B : LIST OF MEASURING EQUIPMENT AND CALIBRATION (Line Conducted Emissions) EXHIBIT 7 : OPERATING INSTRUCTIONS EXHIBIT 8 : INSTALLATION INSTRUCTIONS ACLAP7D01 EXHIBIT 1-1 TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY, (Radiated Emissions): The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's reference 31010/EQU 4-3-0A. 2. INSTALLATION INSTRUCTIONS: See EXHIBIT 7. 3. OPERATING INSTRUCTIONS: See EXHIBIT 8. 4. APPLICANT: MATSUSHITA HOME APPLIANCE COMPANY, MICROWAVE TECHNICAL LAB.,E-Zip E2J-16 1711 N. Randall Road Elgin, Illinois 60123-7847 5. MANUFACTURER: PANASONIC HOME APPLIANCES, MICROWAVE OVEN CO. LTD. (PHAMOS) 868 Long Dong Road Pu Dong, Shanghai 201203 CHINA 6. MEASUREMENT SITE:(Radiated Emissions) FCC Registration Number 96247 PANASONIC MAGNETRON LAB. PANASONIC INDUSTRIAL COMPANY 1707 N. Randall Road Elgin, Il 60123-7847 MEASUREMENT SITE: (Line Conducted Emissions). FCC Registration Number 767285 Jiangsu TUV Product Service Ltd. 10 Huaxia M. Rd. Wuxi, Jiangsu, 214100 China ACLAP7D01 EXHIBIT 1-2 7. EQUIPMENT IDENTIFICATION: Model No. : NN-T695SF Model No. : NN-T685SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-T675SF Model No. : NN-T665SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-T664SF R Model No. :NN-H665BF/NN-H665WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-S655BF/NN-S655WF Model No. :NN-T655SF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-H645BF, NN-H645WF Model No. : NN-S645BF, NN-S645MF,NN-S645WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-H635BF,NN-H635WF Model No. : NN-S635BF, NN-S635WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-H624BFR, NN-H624WFR Model No. : NN-S505BF,NN-S505WF Brand Name : Panasonic Brand Name : Panasonic FCC ID : ACLAP7D01 FCC ID : ACLAP7D01 Model No. : NN-H504BFR,NN-H504WFR Brand Name : Panasonic FCC ID : ACLAP7D01 ACLAP7D01 EXHIBIT 1-3 7. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120V, 60Hz, 12.7A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1300 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the right sidewall of the oven. Stirrer: Turntable Type Cabinet Dimensions: (W) 518 x (H) 301 x (D) 404 (mm) Oven Cavity Dimensions: (W) 375 x (H) 225 x (D) 386 (mm) Door Viewing Area Dimensions: (W) 296 x (H) 153 (mm) Door Seal Type: Slit Choke seal and capacitive seal method 8. DESCRIPTION OF DIFFERENCES Model No. NN-T695SF NN-T685SF NN-T675SF NN-T665SF NN-T664SFR NN-H665 BF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1300W 1300W 1300W 1300W 1300W 1200W Magnetron 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Model No. NN-S655 BF/WF NN-T655SF NN-H645 BF/WF NN-S645 BF/MF/WF NN-H635 BF/WF NN-S635 BF/WF Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A 120Vac,12.7 A 120Vac, 12.7A 120Vac, 12.7A Output Power 1300W 1300W 1300W 1300W 1300W 1300W Magnetron 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic Model No. NN-H624 BFR/WFR NN-S505 BF/WF NN-H504 BFR/WFR Input Power 120Vac, 12.7A 120Vac, 12.7A 120Vac, 12.7A Output Power 1250W 1200W 1200W Magnetron 2M261-M32 2M261-M32 2M261-M32 Brand Panasonic Panasonic Panasonic ACLAP7D01 EXHIBIT 2 PHOTOGRAPHS OF EQUIPMENT EXHIBIT 2-A: FRONT VIEW OF MODEL NN-H665WF EXHIBIT 2-B: FRONT VIEW DOOR OPEN, MODEL NN-H665WF EXHIBIT 2-C1: LEFT SIDE VIEW OF MODEL NN-H665WF EXHIBIT 2-C2: LEFT SIDE VIEW OF MODEL NN-H665WF WITH ENCLOSURE REMOVED EXHIBIT 2-D1: RIGHT SIDE VIEW OF MODEL NN-H665WF EXHIBIT 2-D2: RIGHT SIDE VIEW OF MODEL NN-H665WF WITH ENCLOSURE REMOVED EXHIBIT 2-E:REAR VIEW OF MODEL NN-H665WF EXHIBIT 2-F1: TOP VIEW OF MODEL NN-H665WF EXHIBIT 2-F1: TOP VIEW OF MODEL NN-H665WF WITH ENCLOSURE REMOVED EXHIBIT 2-G: BOTTOM VIEW OF MODEL NN-H665WF EXHIBIT 2-H: VIEW OF CONTROL CIRCUITRY EXHIBIT 2-I: VIEW OF POWER LINE FILTER CIRCUITRY EXHIBIT 2-J: VIEW OF INVERTER POWER SUPPLY EXHIBIT 2-K: VIEW OF MAGNETRON TYPE 2M261-M32 EXHIBIT 2-L: VIEW OF DOOR CHOKE CONSTRUCTION ILLUSTRATING INTEGRAL CHOKE TYPE ACLAP7D01 EXHIBIT 5A REPORT OF MEASUREMENTS (RADIATED EMISSIONS) 1. MODEL NO.: NN-H665WF SERIAL NO. PP-5001 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: 10/22/04 3. LIST OF MEASURING EQUIPMENT AND CALIBRATION DATA: REFER TO ATTACHED EXHIBIT 6A 4. INVESTIGATED FREQUENCY RANGE: 100Mhz to 4th Harmonic 5. DATA SUMMARY: Safety Check : <0.24 mW/cm2 Radiated Field Strength: ( uV/m @ 300m ) Limit Fundamental: 2472 MHz 492.48uv/m N/A 2nd. Harmonic: 4903 MHz 14.62uv/m 36.72 3rd. Harmonic: 7352 MHz 3.05uv/m " 4th. Harmonic: 9865 MHz 3.02uv/m " Spurious: 2381 Mhz 0.49uv/m " Emission Sideband: 2400 MHz 0…
