ACLAP8S71MICROWAVE OVEN

Operating Instructions Steam Convection Microwave Oven Model: NN-CS597S READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. Para instrucciones en español, voltee el libro. For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [email protected] or visit us at www.panasonic.com (U.S.A) For assistance, please call: 787-750-4300 or visit us at www.panasonicpr.com (Puerto Rico) F00038S70AP iPress0707-0 Printed in China IP1156_38S70AP_Eng_12_070705.indd 1IP1156_38S70AP_Eng_12_070705.indd 12007-7-5 10:54:262007-7-5 10:54:26 Safety Information Precaution .............................................................................................................................................1 Important Safety Instructions ..............................................................................................................2-4 Installation and Grounding Instructions ..............................................................................................5-6 Safety Precautions .......................................................................................................................... 7-10 Cookware and Container Guide .....................................................................................................11-12 Cookware and Container Chart ...........................................................................................................13 Specifications ......................................................................................................................................14 Table of Contents IP1156_38S70AP_Eng_12_070705.indd 2IP1156_38S70AP_Eng_12_070705.indd 22007-7-5 10:54:262007-7-5 10:54:26 1 Microwave Oven Safety Your safety and the safety of others are very important. We have provided important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others. The safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These words mean: You can be killed or seriously injured if you don’t immediately follow instructions. You can be killed or seriously injured if you don’t follow instructions. You can be exposed to a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. The safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. © Copyrighted by Matsushita Electric Industrial Co., Ltd. 2007. DANGER WARNING CAUTION IP1156_38S70AP_Eng_12_070705.indd Sec2:1IP1156_38S70AP_Eng_12_070705.indd Sec2:12007-7-5 10:54:262007-7-5 10:54:26 2 Thank you for purchasing a Panasonic Microwave Oven. Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electrical appliance, basic safety precautions should be followed, including the following: WARNING — To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using this appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” found on page 1. 3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 5 and 6. 4. As with any cooking appliance, DO NOT leave oven unattended while in use. 5. Install or locate this appliance only in accordance with the installation instructions found on page 5. 6. DO NOT cover or block any openings on this appliance. 7. DO NOT store this appliance outdoors. DO NOT use this product near water— for example, near a kitchen sink, in a wet basement, or near a swimming pool or similar locations. 8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors, or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks. 9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth. 10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has mastered one cooking skill he/she can cook everything. 11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 12. DO NOT immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. DO NOT let cord hang over edge of a table or counter. 15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination, repair or adjustment. 16. Some products such as whole eggs with or without shell, narrow neck bottles and sealed containers — for e…

Text truncated - open the document above for the full version.

PANASONIC HOME APPLIANCE COMPANY of AMERICA, MICROWAVE TECHNICAL LABORATORY 1707 N. RANDALL ROAD, E- Zip E2J-16 ELGIN, IL 60123-7847 Direct Dial Line: (847) 468-4145 Fax: (847) 468-5963 PHAA July 12, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Confidentiality Request regarding application for certification of FCC ID: ACLAP8S71 Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below. Exhibit Description Exhibit Name Schematics Schematics.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials might be harmful to the applicant and provide unjustified benefits to its competitors. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Description Exhibit Names Test Setup Photo(s) Test Setup Photos.pdf DUT External Photos External Photos.pdf DUT Internal Photos Internal Photos.pdf Users Manual User Manual.pdf Sincerely, George Vazquez Engineer, Codes & Safety Cc: S. Yamashita

PANASONIC HOME APPLIANCE COMPANY of AMERICA, MICROWAVE TECHNICAL LABORATORY 1707 N. RANDALL ROAD, E- Zip E2J-16 ELGIN, IL 60123-7847 Direct Dial Line: (847) 468-4145 Fax: (847) 468-5963 PHAA July 12, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FILING FOR CERTIFICATION GRANTEE CODE ACL. We are sending application for models with FCC Identifier ACLAP8S71. These Microwave Ovens are to be approved under the regulations for part 18. In the submission you will find exhibits for measurements taken in both Radiated and Line Conducted modes. As permitted by FCC rules, these measurements were taken by a registered lab. The lab has submitted documents which are on file with the FCC. For a quick reference to all of the exhibits submitted, please reference the Application Index and Summary after this cover letter page. If there are any questions pertaining to this application, please contact me. Sincerely, George Vazquez Engineer, Codes & Safety Cc: S. Yamashita FCC ID: ACLAP8S71 APPLICATION INDEX AND SUMMARY APPLICATION FOR CERTIFICATION Model No. Brand Name FCC ID. NN-CS597S Panasonic ACLAP8S71 LIST OF EXHIBITS EXHIBIT A: PHOTOGRAPHS OF EQUIPTMENT External Photos: Reference EXHIBIT A Internal Photos: Reference EXHIBIT A EXHIBIT B: TEST SETUP PHOTOS EXHIBIT C: TECHNICAL REPORT EXHIBIT D: SCHEMATIC DIAGRAM EXHIBIT E: USERS MANUAL EXHIBIT F: SAMPLE/LOCATION of FCC ID. LABEL EXHIBIT G: TEST REPORT SUMMARY Radiated Emissions Line Conductance EXHIBIT H: TEST REPORT FCC ID: ACLAP8S71 EXHIBIT A PHOTOGRAPHS OF EQUIPMENT External Photos: Reference EXHIBIT A Internal Photos: Reference EXHIBIT A EXHIBIT C TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility is already on file with the FCC laboratory. Please refer to the commission's registration number 382179. 2. USERS MANUAL Reference: EXHIBIT E 3. APPLICANT: PANASONIC HOME APPLIANCE COMPANY of AMERICA, MICROWAVE TECHNICAL LAB., E-Zip E2J-16 1707 N. Randall Road Elgin, Illinois 60123-7847 4. MANUFACTURER: Panasonic Home Appliances Microwave Oven Shanghai Co. LTD., (PHAMOS) 898 Long Dong Road Pu Dong, Snanghai 201203 China 5. MEASUREMENT SITE: FCC Registration Number 382179 Bay Area Compliance Laboratory Corp. 6/F, the 3 rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China 518038 6. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement: 120Vac, 60Hz, 12.0A Nominal Operating Frequency: 2450 MHz Maximum RF Energy Generated: 1000 W (IEC 705) Magnetron Type: 2M261-M32 Feed Type and Location: Through the wave guide on the right sidewall of the oven. Stirrer: Bottom Feed Stirrer Cabinet Dimensions: (W) 523 x (H) 320 x (D) 497(mm) Oven Cavity Dimensions: (W) 354 x (H) 205 x (D) 343 (mm) Door Viewing Area Dimensions: (W) 298 x (H) 147 (mm) Door Seal Type: Slit Choke seal and capacitive seal method FCC ID: ACLAP8S71 EXHIBIT G TEST REPORT SUMMARY: Radiated Emissions 1. MODEL NUMBER: NN-CS597S SERIAL NUMBER: 0704119 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: From: 5/09/2007 to end of testing: 5/16/2007 3. TEST REPORT: Reference EXHIBIT H 4. TEST SETUP PHOTOS: Reference EXHIBIT B 4. INVESTIGATED FREQUENCY RANGE: 30 MHz to 24.5 GHz 5. TEST DATA SUMMARY: Selected Peak Readings Safety Check (Radiation Hazard Measurement) :< 0.71 mW/cm² @ 5cm. Radiated Field Strength Corrected Amplitude dBμV/m Limit (dBμV/m) Margin (dB) Fundamental 2450 MHz 126.01 N/A N/A Emission Sideband 2400 MHz 68.59 70.7 2.11 Emission Sideband 2500 MHz 67.86 “ “ 2.84 2 nd Harmonic 4900 MHz 47.48 “ “ 23.22 3 rd Harmonic 7350 MHz 49.50 “ “ 21.20 4 th Harmonic 9800 MHz 49.72 “ “ 20.98 5 th Harmonic 12250 MHz 52.77 “ “ 17.93 Spurious 1215 MHz 29.75 “ “ 40.95 Spurious 4188 MHz 37.46 “ “ 33.24 Spurious 4353 MHz 37.05 “ “ 33.65 Note: The emission level of 6 th harmonic to 10 th harmonic 20db lower than limit. Maximum Frequency Variation: 2433.4 to 2441.6 MHz (96V ~ 150V/ 1000 ml water load) Maximum Frequency Variation: 2440.4 to 2485.6 MHz (1000 ml – 200 ml water load) Total Power Input to Oven: 1624.8 watts Power Developed in Dummy Load: 934.5 watts Supply Voltage: 120 Volts, 60Hz, 13.54A FCC ID: ACLAP8S71 EXHIBIT G TEST REPORT Summary: Line Conductance 1. MODEL NUMBER: NN-CS597S SERIAL NUMBER: 0704119 MAGNETRON TYPE NO.: 2M261-M32 2. MEASUREMENT DATE: From: 5/09/2007 to end of testing: 5/16/2007 3. TEST REPORT: Reference EXHIBIT H 4. TEST SETUP PHOTOS: Reference EXHIBIT B 4. INVESTIGATED FREQUENCY RANGE: 150 kHz to 30 MHz 5. TEST DATA SUMMARY: Selected Peak Readings Power Line Live Side Frequency MHz QP Amplitude dBμV QP Limit dBμV QP Margin dB 0.170 57.00 64.96 7.96 0.230 55.80 62.45 6.65 0.820 49.30 56.00 6.70 0.960 49.20 56.00 6.80 11.840 40.00 60.00 20.00 17.390 39.30 60.00 20.70 Frequency MHz AV Amplitude dBμV AV Limit dBμV AV Margin dB 0.170 43.60 54.96 11.36 0.230 44.30 52.45 8.15 0.820 36.70 46.00 9.30 0.960 39.40 46.00 6.60 11.840 30.10 50.00 19.90 17.390 32.40 50.00 17.60 FCC ID: ACLAP8S71 EXHIBIT G Power Line Neutral Side Frequency MHz QP Amplitude dBμV QP Limit dBμV QP Margin dB 0.220 57.50 62.80 5.32 0.300 53.60 60.24 6.64 0.620 49.80 56.00 6.20 0.930 50.10 56.00 5.90 1.000 48.40 56.00 7.60 17.660 43.70 60.00 16.30 Frequency MHz AV Amplitude dBμV AV Limit dBμV AV Margin dB 0.220 45.50 52.82 7.32 0.300 41.20 50.24 9.04 0.620 38.20 46.00 7.80 0.930 38.50 46.00 7.50 1.000 37.30 46.00 8.70 17.660 33.40 50.00 16.60

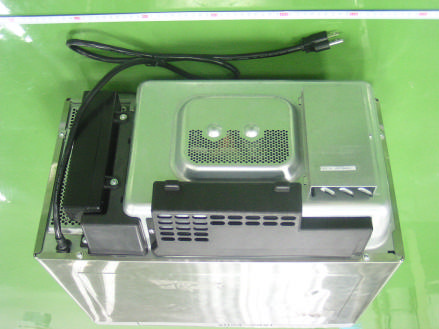

Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 24 of 33 FCC Part 18 Report EXHIBIT A - EUT PHOTOGRAPHS EUT – Front View EUT – Back View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 25 of 33 FCC Part 18 Report EUT – Front Open View EUT – Open View

ACLAP8S71 EXHIBIT F SAMPLE AND LOCATION OF FCC ID LABEL PHAMOS: Code identifies location of manufacturer PHAMOS denotes: Panasonic Home Appliances Microwave Oven Shanghai Company, Ltd. 898 Long Dong Road, Pu Dong Shanghai, China 201203 Adhere Label Location FCC Identification

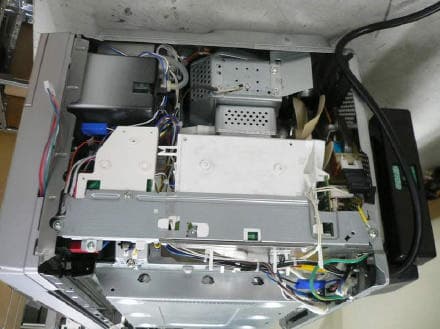

Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 25 of 33 FCC Part 18 Report EUT – Front Open View EUT – Open View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 26 of 33 FCC Part 18 Report EUT – Control PCB 1 View (1) EUT – Control PCB 1 View (2) Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 27 of 33 FCC Part 18 Report EUT – Control PCB 2 View (1) EUT – Control PCB 2 View (2) Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 28 of 33 FCC Part 18 Report EUT – Power PCB 1 View (1) EUT – Power PCB 1 View (2) Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 29 of 33 FCC Part 18 Report EUT – Power PCB 2 View (1) EUT – Power PCB 2 View (2) Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd FCC ID: ACLAP8S71 Report #RSH07042951.doc Page 30 of 33 FCC Part 18 Report EUT – Transformer PCB View (1) EUT – Transformer PCB View (2)
