FCC ID:ACLAP9Q31 APPLICATION INDEX AND SUMMARY APPLICATION FOR CERTIFICATION Model No.Brand NameFCC ID. NN-SF550WPanasonicACLAP9Q31 NN-SF550BPanasonicACLAP9Q31 NN-SF550MPanasonicACLAP9Q31 LIST OF EXHIBITS EXHIBIT A: TECHNICAL REPORT EXHIBITB:PHOTOGRAPHS OF EQUIPTMENT EXHIBITC:TEST SETUP PHOTOS EXHIBITD: SCHEMATIC DIAGRAM EXHIBITE:USERS MANUAL EXHIBITF:SAMPLE/LOCATION of FCC ID. LABEL EXHIBITG:TEST REPORTSUMMARY RadiatedEmissions Line Conductance EXHIBIT H: TEST REPORT FCC ID: ACLAP9Q31 EXHIBITA TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility isalreadyon file with FCC. Please refer to the commission's registration number 382179. 2.USERSMANUAL Reference: EXHIBIT E 3. APPLICANT: PANASONIC HOME APPLIANCE COMPANY of AMERICA, MICROWAVE TECHNICAL LAB., E-Zip E2J-16 5201Tollview Drive Rolling Meadows, Illinois 60008 4.MANUFACTURER: Panasonic Home Appliances Microwave Oven Shanghai Co. LTD., (PHAMOS) 898 Long Dong Road Pu Dong, Snanghai201203 China 5. MEASUREMENT SITE: FCC Registration Number 382179 Bay Area Compliance Laboratory Corp.(Shenzhen) 6/F, the 3 rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China 518038 6. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement:120Vac, 60Hz,9.8A Nominal Operating Frequency:2450 MHz Maximum RF Energy Generated:1000 W (IEC 705) Magnetron Type:2M236-M42 Feed Type and Location:Through the wave guide on thebottomof the oven. Stirrer:Bottom Feed Stirrer Cabinet Dimensions:(W)529x (H)326x (D)430(mm) Oven Cavity Dimensions:(W)354x (H)230x (D)3338(mm) Door Viewing Area Dimensions:(W)298x (H)147(mm) Door Seal Type:Slit Choke seal and capacitive seal method EXHIBITB PHOTOGRAPHS OF EQUIPMENT External Photos: Reference EXHIBIT B Internal Photos: Reference EXHIBIT B FCC ID: ACLAP8S71 EXHIBITG TESTREPORTSUMMARY:Radiated Emissions 1. MODEL NUMBER:NN-SF550W SERIAL NUMBER:PP5005 MAGNETRON TYPE NO.:2M236-M42 2. MEASUREMENT DATE: From:01/29/2010toend of testing:02/08/2010 3.TEST REPORT: Reference EXHIBITH 4. TEST SETUP PHOTOS: Reference EXHIBITC 4. INVESTIGATED FREQUENCY RANGE:30MHzto25 GHz 5.TESTDATA SUMMARY:Selected Peak Readings Safety Check(Radiation Hazard Measurement):<0.71mW/cm² @5cm. Radiated Field Strength Polar (H/V) Corrected Amplitude dBμV/m Limit (dBμV/m) Margin (dB) Emission Sideband 2395.0 MHzH51.5570.6019.05 Emission Sideband 2366.5 MHzV48.60“ “22.00 Emission Sideband 2565.5 MHzV42.90“ “27.70 Emission Sideband 2579.5 MHzH40.47“ “30.13 2 nd Harmonic4900 MHzH52.70“ “17.90 2 nd Harmonic4900 MHzV50.50“ “20.10 3 rd Harmonic7350 MHzH51.30“ “19.30 3 rd Harmonic7350 MHzV47.10“ “23.50 4 th Harmonic9800 MHzH48.50“ “22.10 4 th Harmonic9800 MHzV47.00“ “23.60 Note: The emission level of5 th harmonic to 10 th harmonic 20db lower than limit. Minimum/Maximum Frequency Variation:2464.4to2459.8MHz (96V ~150V/ 1000 ml water load) Minimum/Maximum Frequency Variation:2464.2to2460.6MHz (1000 ml–200 ml water load) Total Power Input to Oven:1140watts Power Developed in Dummy Load:911.4watts Supply Voltage:120 Volts, 60Hz,9.5A FCC ID: ACLAP9Q31 EXHIBITG TESTREPORTSummary:Line Conductance 1. MODEL NUMBER:NN-SF550W SERIAL NUMBER:PP5005 MAGNETRON TYPE NO.:2M236-M42 2. MEASUREMENT DATE: From: 01/29/2010 to end of testing: 02/08/2010 3. TEST REPORT: Reference EXHIBITH 4. TEST SETUP PHOTOS: Reference EXHIBITC 4. INVESTIGATED FREQUENCY RANGE: 150 kHz to 30 MHz 5. TEST DATA SUMMARY:Selected Peak Readings Power LineLiveSide Frequency MHz QPAmplitude dBμV QP Limit dBμV QPMargin dB 0.15056.7566.009.25 0.24047.7962.1514.36 0.61042.3456.0013.66 1.06041.1656.0014.84 13.08049.7960.0010.21 21.81039.0060.0021.00 Frequency MHz AVAmplitude dBμV AV Limit dBμV AVMargin dB 0.15045.2856.0010.72 0.24041.8052.1510.35 0.61032.6446.0013.36 1.06028.7346.0017.27 13.08042.8350.007.17 21.55030.4450.0019.56 FCC ID: ACLAP9Q31 EXHIBITG Power Line Neutral Side Frequency MHz QP Amplitude dBμV QP Limit dBμV QP Margin dB 0.16057.6465.567.92 0.19057.1564.136.98 0.28051.1460.839.69 0.54048.2856.007.72 12.75053.4260.006.58 21.65039.1560.0020.85 Frequency MHz AVAmplitude dBμV AV Limit dBμV AV Margin dB 0.16040.6355.5614.93 0.19042.1054.1312.03 0.28036.6850.8314.15 0.54032.3746.0013.63 12.75043.9850.006.02 21.56031.5450.0018.46

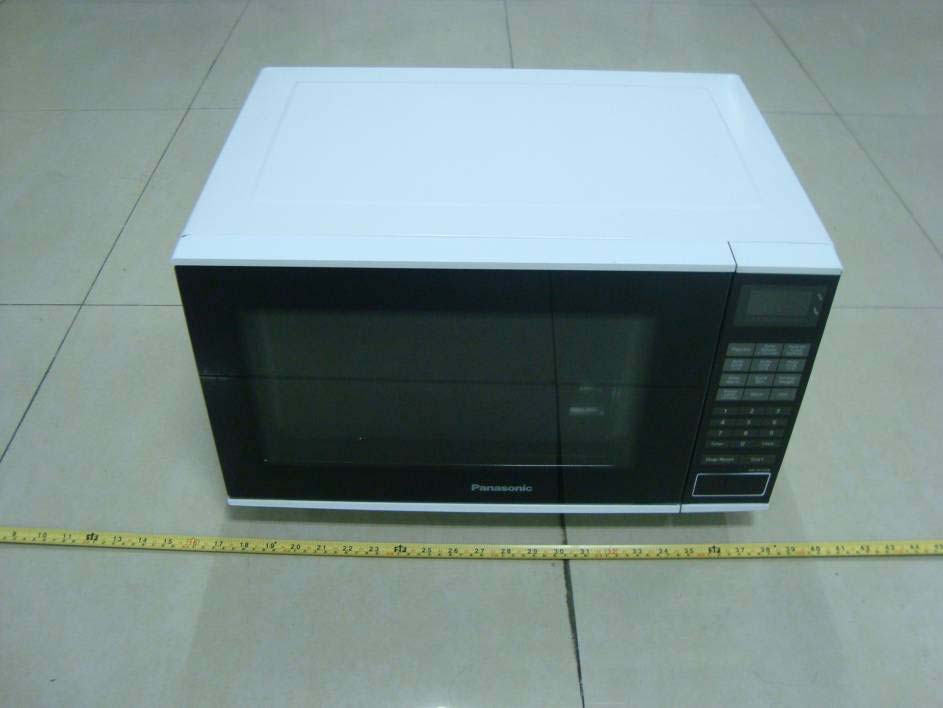

Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 23 of 32 FCC Part 18 Report EXHIBIT B - EUT PHOTOGRAPHS EUT - Front View EUT - Rear View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 24 of 32 FCC Part 18 Report EUT - Open View EUT - Cover off View

ACLAP9Q31 EXHIBIT F SAMPLE AND LOCATION OF FCC ID LABEL GranteeCode: ACL Product Code:AP9Q31 PHAMOS: Code identifies location of manufacturer PHAMOS denotes: Panasonic Home AppliancesMicrowave Oven ShanghaiCo., Ltd. Pu Dong Shanghai,China201203 Adhere Label Location FCC Identification

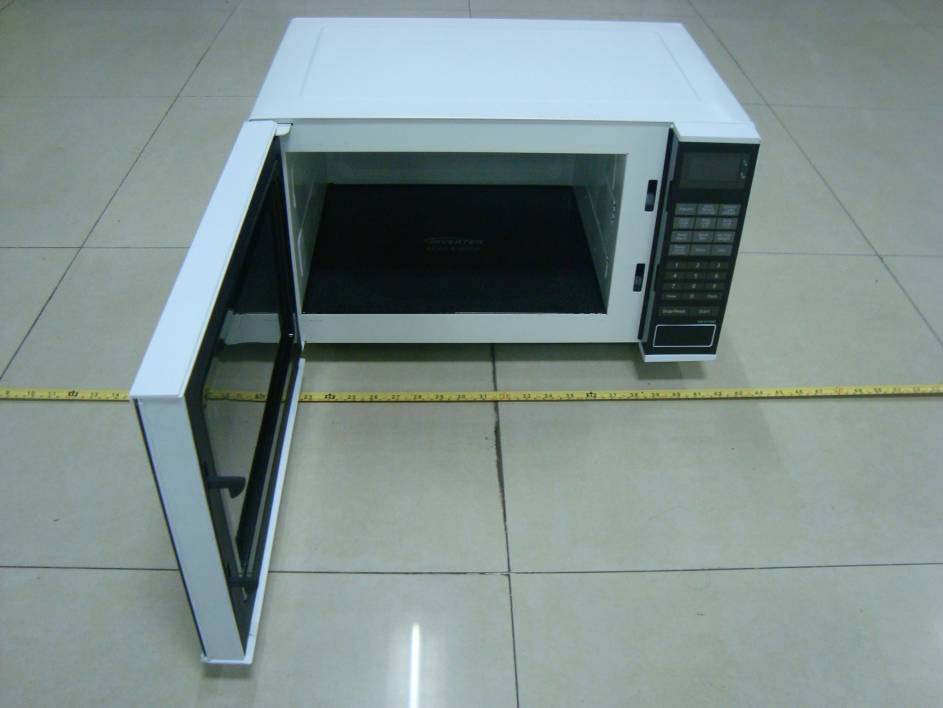

Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 24 of 32 FCC Part 18 Report EUT - Open View EUT - Cover off View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 25 of 32 FCC Part 18 Report EUT - Magnetron View EUT – Main Board Top View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 26 of 32 FCC Part 18 Report EUT – Main Board Bottom View EUT - Transformer Top View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 27 of 32 FCC Part 18 Report EUT - Transformer Bottom View EUT - EMI Filter Board Top View Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 28 of 32 FCC Part 18 Report EUT - EMI Filter Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. 898 Long Dong Road, Pudong Shanghai, China FCC ID: ACLAP9Q31 Report Type: Original Report Product Type: Microwave Oven Test Engineer: Thomas Zhang Report No.: RSH10012051 Report Date: 2010-02-08 Reviewed By: William Chen EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Q31 Report # RSH10012051 Page 2 of 32 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 CONDUCTED EMISSIONS ........................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 RADIATION HAZARD MEASUREMENT........................................................................................................................11 INPUT POWER.............................................................................................................................................................12 LOAD FOR MICROWAVE OVENS.................................................................................................................................12 RF OUTPUT POWER MEASUREMENT..........................................................................................................................13 OPERATING FREQUENCY MEASUREMENT..................................................................................................................14 RADIATED EMISSIONS...........................................................................................................................................18 MEASUREMENT UNCERTAINTY..................................................................................................................................18 EUT SETUP.................................…
