ACLAP9Y21MICROWAVE OVEN

operating instructions Microwave oven household use only Models no. nn-sa631b nn-sa631W nn-sa651s nn-sa661s safety information Precautions.........................Inside cover important safety instructions.........1-3 installation and grounding instructions.......................................4-5 safety Precautions...........................6-7 operation Timer Feature (Kitchen Timer/Stand Time/Delay Start).................................18 Microwave Shortcuts......................19-20 Food Characteristics............................21 Cooking Techniques.......................21-22 Quick Guide to Operation....................26 operation Control Panel.......................................10 Starting to Use Your Oven...................11 Setting the Clock..................................11 Child Safety Lock.................................11 Selecting Power & Cook Time.............12 Quick Min Feature...............................12 Popcorn Feature..................................13 More/Less Feature..............................13 Inverter Turbo Defrost Feature............14 Defrosting Tips & Techniques.........14-15 Auto Reheat Feature...........................16 Auto Cook Feature..............................16 Auto Cook Chart..................................17 Maintenance Care and Cleaning of Your Microwave Oven....................................................23 Accessory Purchases..........................23 Before Requesting Service..................24 Limited Warranty & Customer Service Directory..............................................25 general information Cookware Guide....................................8 Specifications.......................................27 User’s Record......................................28 read all instructions carefully before using the oven. Para instrucciones en español, voltee el libro. F00039Y10AP IP0711-0 Printed in China For assistance, please call: 1-800-211-PANA(7262) contact us via the web at: http://www.panasonic.com(U.S.A and Puerto Rico) For microwave oven safety reference, please visit FDA's webpage at: http://www.fda.gov/Radiation-EmittingProducts/ResourcesforYouRadiationEmittingProducts/Consumers/ucm142616.htm © Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. 2011. your safety and the safety of others are very important. We have provided important safety messages in this manual and on your appliance. Always read and obey all safety messages. Precautions to avoid Possible eXPosure to eXcessive MicroWave energy (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These words mean: You can be killed or seriously injured if you don’t immediately follow instructions. You can be killed or seriously injured if you don’t follow instructions. Microwave oven Safety danGeR WaRninG CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. caution 1 iMPortant safety instructions to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1.Read all instructions before using this appliance. 2.Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPO- SURE TO EXCESSIVE MICROWAVE ENERGY,” found on the inside front cover. 3.This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 4. 4.As with any cooking appliance, do notleave oven unattended while in use. 5.Install or locate this appliance only in accordance with the installation instruc- tions found on page 4. 6.do notcover or block any openings on this appliance. 7.do notstore this appliance outdoors. do notuse this product near water— for example, near a kitchen sink, in a wet basement, or near a swimming pool or similar locations. 8.Use this appliance only for its intended use as described in this manual. do notuse corrosive chemicals, vapors, or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks. 9.When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth. 10.do notallow children to use this appliance, unless closely supervised by an adult. do notassume that because a child has mastered one cooking skill he/she can cook everything. 11.do notoperate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 12.do notimmerse cord or plug in water. 13.Keep cord away from heated surfaces. 14. do notlet cord hang over edge of a table or counter. 15.This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination, repair or adjustmen…

Text truncated - open the document above for the full version.

FCC ID:ACLAP9Y21 APPLICATION INDEX AND SUMMARY APPLICATION FOR CERTIFICATION Model No.Brand NameFCC ID. NN-SA631BPanasonicACLAP9Y21 NN-SA631WPanasonicACLAP9Y21 NN-SA651SPanasonicACLAP9Y21 NN-SA661SPanasonicACLAP9Y21 NN-SD681SPanasonicACLAP9Y21 NN-SN651BPanasonicACLAP9Y21 NN-SN651WPanasonicACLAP9Y21 NN-SN661SPanasonicACLAP9Y21 NN-SN671SPanasonicACLAP9Y21 LIST OF EXHIBITS EXHIBIT A: TECHNICAL REPORT EXHIBITB:PHOTOGRAPHS OF EQUIPTMENTUNDER TEST (EUT) EXHIBITC:TEST SETUP PHOTOS EXHIBITD: SCHEMATIC DIAGRAM EXHIBITE:USERS MANUAL EXHIBITF:SAMPLE/LOCATION of FCC ID. LABEL EXHIBITG: TEST REPORT EXHIBIT H:APPENDIX A-DECLARATION LETTER(SEEPAGE NUMBER4OF COVER LETTER) FCC ID: ACLAP9Y21 EXHIBITA TECHNICAL REPORT 1. DESCRIPTION OF MEASUREMENT FACILITY: The description of the measurement facility isalreadyon file with FCC. Please refer to the commission's registration number560332. 2.USERSMANUAL Reference: EXHIBIT E 3. APPLICANT: PANASONIC HOME APPLIANCE COMPANY of AMERICA, MICROWAVE TECHNICAL LABoratory, E-Zip E2J-16 5201Tollview Drive Rolling Meadows, Illinois 60008 4.MANUFACTURER: Panasonic Home Appliances Microwave Oven Shanghai Co. LTD., (PHAMOS) 898 Long Dong Road PuDong, Snanghai 201203 China 5. MEASUREMENT SITE: FCC Registration Number560332 Bay Area Compliance Laboratory Corp.(Chengdu) 5040 Huilongwan Plaza, No. 1, Shawan Road, Jinniu District Chengdu,Sichuan, China610081 6. EQUIPMENT SPECIFICATIONS: Electrical Power Requirement:120Vac, 60Hz,12.4A Nominal Operating Frequency:2450 MHz Maximum RF Energy Generated:1200 W (IEC 705) Magnetron Type:2M261-M39 Feed Type and Location:Through the wave guide on therightsidewallof the oven. Stirrer:Turntable Type Cabinet Dimensions:(W)525x (H)310x (D)401(mm) Oven Cavity Dimensions:(W)347x (H)251x (D)365(mm) Door Viewing Area Dimensions:(W)274x (H)150(mm) Door Seal Type:Slit Choke seal and capacitive seal method APPENDIX A – DECLARATION LETTER

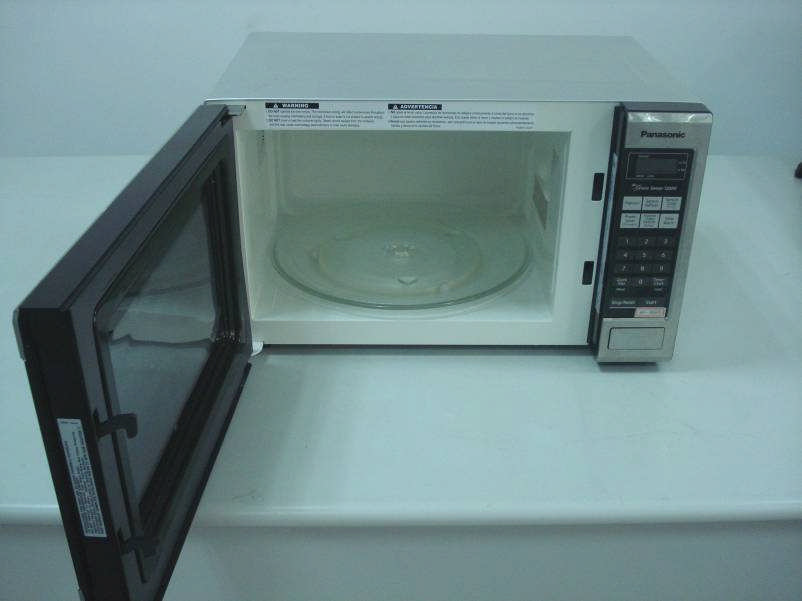

EXHIBITB–EUTEXTERNALPHOTOGRAPHS EUT–FrontView EUT–BackView EUT–SideView EUT–OpenedView

ACLAP9Y21 EXHIBIT F SAMPLE AND LOCATION OF FCC ID LABEL GranteeCode: ACL Product Code:AP9Y21 PHAMOS: Code identifies location of manufacturer PHAMOS denotes: Panasonic Home AppliancesMicrowave Oven ShanghaiCo., Ltd. Pu Dong Shanghai, China201203 FCC Identification Identification Label Location FCC ID. ACLAP9Y21

EXHIBITB–EUTINTERNALPHOTOGRAPHS EUT–Uncovered 1View EUT–Uncovered 2View EUT–ControlBoardFrontView EUT–ControlBoardRearView EUT–High Voltage BoardFrontView EUT–High Voltage BoardRearView EUT–Filter BoardFrontView EUT–Filter BoardRearView EUT–MagnetronFrontView EUT–MagnetronRearView EUT–MagnetronSideView

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated orused in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. 898 Long Dong Road, Pu Dong Shanghai, China FCC ID: ACLAP9Y21 This Report Concerns: Original Report Equipment Type: Microwave Oven Test Engineer: Fisher He Report Number: RSH110420001 Test Date: 2011-04-16 to 2011-04-22 Report Date: 2011-04-26 Reviewed By: David Li-BACL Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Chengdu) 5040, Huilongwan Plaza, No. 1, Shawan Road, Jinniu District, Chengdu, Sichuan, China www.baclcorp.com Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. FCC ID: ACLAP9Y21 Report # RSH110420001 Page 2 of 22 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST ENVIRONMENT CONDITIONS...............................................................................................................................7 TEST RESULTS.............................................................................................................................................................7 CONDUCTED EMISSIONS TEST DATA & PLOTS.............................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................11 TEST ENVIRONMENT CONDITIONS.............................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 RADIATION HAZARD MEASUREMENT........................................................................................................................11 INPUT POWER.............................................................................................................................................................12 LOAD FOR MICROWAVE OVENS.................................................................................................................................12 THE RF OUTPUT POWER IS RATED AT 1200 WATTS.....................................................................................................12 RF OUTPUT POWER MEASUREMENT..........................................................................................................................13 OPERATING FREQUENCY MEASUREMENT..................................................................................................................14 RADIATED EMISSIONS................................................................…

Text truncated - open the document above for the full version.

EXHIBIT C– TEST SETUP PHOTOGRAPHS Conduction Emissions- Front View Conduction Emissions- SideView Radiated Emissions-Front View (Below1GHz) Radiated Emissions-RearView (Below1GHz) Radiated Emissions-Front View (Above1GHz) Radiated Emissions-RearView (Above1GHz)
