ACLAPCD61Microwave Oven

Owner’s Manual Convection/Broil/Microwave Oven Household Use Only Model No. PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT, AND SAVE THIS MANUAL FOR FUTURE USE. F0003CD60AP PA0220-0 Printed in China © Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2020 Scan this code for special instructions and features. To register your product and for all other assistance, please contact us via the web at: http://shop.panasonic.com/support (U.S.A Only) For microwave oven safety reference, please visit the FDA’s web page at: http://www.fda.gov/radiation-emittingproducts/resourcesforyouradiationemittingproducts/ucm252762.htm Para obtener instrucciones en español, por favor visite la página web en: http://shop.panasonic.com/support 2 CONTENTS Safety Information IMPORTANT SAFETY INSTRUCTIONS ......................... 3-5 Installation and Grounding Instructions ...................... 6 Food Preparation .............................................................. 7-8 Cookware and Utensil Chart ............................................. 9 Operation Location of Controls ......................................................... 10 Oven Accessories ............................................................... 11 Control Panel ....................................................................... 12 Display Window ................................................................. 13 Dial Feature .......................................................................... 13 Cooking Modes .................................................................. 14 Operation ....................................................................... 15-42 Using the Microwave for the First Time ............... 15 Function Features ........................................................ 15 Demo Mode ................................................................... 16 Operation Guide ON/OFF ......................................... 16 Setting the Clock .......................................................... 17 Setting the Child Safety Lock ................................... 17 Airfry ................................................................................. 18 Airfry Chart ..................................................................... 19 Broil ................................................................................... 20 Combo ............................................................................. 21 Casserole Recipes......................................................... 22 Convection Bake .................................................... 23-24 Microwave ...................................................................... 25 Keep Warm ..................................................................... 26 Quick 30 ........................................................................... 26 Setting the Kitchen Timer ......................................... 27 Setting a Standing Time ............................................ 28 Setting a Delayed Start .............................................. 29 Add Time ......................................................................... 30 3-Stage Setting ............................................................. 31 Sensor Reheat (One Push Reheating) ................... 32 Auto Defrost .................................................................. 33 Auto Cook (Sensor) ............................................... 34-36 Popcorn ..................................................................... 34 Auto Cook ................................................................. 37-41 Melt & Soften ........................................................... 37 Convection Bake ............................................... 38-39 Beverage .................................................................... 40 Re-Bake Bread .......................................................... 41 Auto Steam Clean ........................................................ 42 Defrosting Tips & Techniques ....................................... 43 Microwave shortcuts .................................................. 44-45 Defrosting Chart ............................................................... 46 Reheating Chart ................................................................ 47 Cooking Chart ............................................................... 48-50 Food Characteristics ......................................................... 51 Cooking Techniques ......................................................... 52 Maintenance Care and Cleaning of Your Microwave Oven ........... 53 Shop Accessories ............................................................... 53 Before Requesting Service ............................................. 54 Limited Warranty (Only for U.S.A.) ............................... 55 General Information Specifications ...................................................................... 56 Trim Kit Information ......................................................... 56 User’s Record ....................................................................... 56 3 IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These words mean: You can be killed or seriously injured if you don’t immediately follow instructions. You can be killed or seriously injured if you don’t follow instructions. You can be exposed to a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of inj…

Text truncated - open the document above for the full version.

FCC ID: ACLAPCD61 Input: 120Vac 60Hz Note Components outlined with a dotted line are optinal and may not be provided in this model family. Block Diagram Control Panel Fan Motor Convection Motor Turntable Motor H.V Inverter Grill Heater Oven Cavity Convection Heater Magnetron (Frequency 2.45GHz)

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America January 30, 2020 PAPMOSH-20-F001 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Certification for Microwave Oven Model NN-CD87KS under FCC ID ACLAPCD61 Please be advised Panasonic Corporation of North America hereby submits application for Original Equipment Certification for Microwave Model NN-CD87KS under FCC ID ACLAPCD61. This microwave oven has a grill function. Equipment Name: Microwave Oven, Model NN-CD87KS FCC ID: ACLAPCD61 FCC Rule Parts: FCC Part 18 Applicant & Grantee: Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 USA FRN Number: 0027086172 Test Site: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China. FCC designation No. CN1185 We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Further, this application for equipment authorization has not been submitted to another TCB for Certification. Please advise the undersigned should you have any questions or comments. Authorized by, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

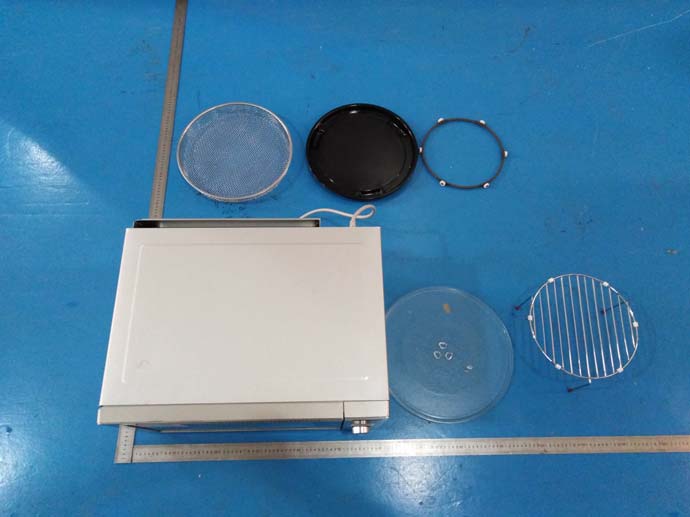

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT –Bottom View EUT –Front View EUT –Rear View EUT –Left View EUT –Right View

Identification Label Location FCC ID. ACLAPCD61 ACLAPCD61 SAMPLE AND LOCATION OF FCC ID LABEL Grantee Code: ACL Product Code: APCD61 PAPMOSH: Code identifies location of manufacturer PAPMOSH denotes: Panasonic Appliances Microwave Oven Shanghai Co., Ltd. Pu Dong Shanghai, China 201203 FCC Identification

EXHIBIT B -EUT INTERNAL PHOTOGRAPHS EUT – Cover off View -1 EUT – Cover off View -2 EUT –Cover off View -3 EUT – PCB-1 Top View EUT – PCB-1 Bottom View EUT – Cover off View -4 EUT – Cover off View -5 EUT – Cover off View -6 EUT – Cover off View -7 EUT – Cover off View -8 EUT – Cover off View -9 EUT – Cover off View -10 EUT– Cover off View -11 EUT– Cover off View -12 EUT– Cover off View -13 EUT–PCB-2 Top View EUT–PCB-2 Bottom View EUT–PCB-2 Chip View EUT– Cover off View -14 EUT– Cover off View -15 EUT– Cover off View -16 EUT– PCB-3 Top View EUT– PCB-3 Bottom View EUT– Cover off View -17 EUT– Cover off View -18 EUT– Cover off View -19 EUT– PCB-4 Top View EUT– PCB-4 Bottom View EUT– Cover off View -20 EUT– Cover off View -21 EUT– PCB-5 Top View EUT– PCB-5 Bottom View

OPERATIONAL DESCRIPTION The EUT is a Microwave Oven with the following specs: Description of Appliance a. Name of Appliance: Microwave Oven b. Equipment authorization: Certification c. FCC ID.: ACLAPCD61 d. Model No.: NN-CD87KS e. Serial No.: PP5001 f. Date of Manufacture: September 2019 g. Oscillating Frequency: Microcomputer AU: 20 MHz SMPS (for 12V): 132 kHz Inverter: 20 kHz to 50 kHz h. Operating Frequency: 2450 MHz i. Highest Frequency: 2450 MHz j. Power Supply: 120V AC 60Hz In addition, it employs the following features: Type of Magnetron: 2M261-M36 Door Seal Type: Choke Stirrer Employed: Turntable

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 18 MEASUREMENT AND TEST REPORT For Panasonic Corporation of North America Two Riverfront Plaza, Newark New Jersey USA Report Type: Original Report Product Type: Microwave Oven Test Engineer: Dean Zhou Report Number: RSHD191029001-00A Report Date: 2019-11-22 Reviewed By: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan,Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn FCC ID: ACLAPCD61 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD191029001-00A FCC Part 18 Page 2 of 23 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 EXTERNAL I/O CABLE .................................................................................................................................................. 4 CONFIGURATION OF TEST SETUP ................................................................................................................................. 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 CONDUCTED EMISSIONS ........................................................................................................................................ 6 APPLICABLE STANDARD .............................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 EUT SETUP .................................................................................................................................................................. 6 EMI TEST RECEIVER SETUP ......................................................................................................................................... 7 TEST PROCEDURE ........................................................................................................................................................ 7 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 7 FACTOR & OVER LIMIT CALCULATION ........................................................................................................................ 7 TEST RESULTS SUMMARY ............................................................................................................................................ 7 TEST DATA .................................................................................................................................................................. 8 RADIATION HAZARD MEASUREMENT ............................................................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 ENVIRONMENTAL CONDITIONS .................................................................................................................................. 12 RADIATION HAZARD MEASUREMENT FOR MICROWAVE ............................................................................................ 12 INPUT POWER ............................................................................................................................................................. 13 LOAD FOR…

Text truncated - open the document above for the full version.

EXHIBIT C- TEST SETUP PHOTOGRAPHS Test mode 1 & Test mode 2 Conducted Emissions –Front View Conducted Emissions –Rear View Radiated Disturbances Front Side (Below 1GHz) Radiated Disturbances Rear Side (Below 1GHz) Radiated Disturbances Front Side (Above 1GHz ) Radiated Disturbances Rear Side (Above 1GHz )
