ADV0705Scanning Receiver

0705 Owner’s Manual Triple Trunking Mobile/Base Radio Scanner 0705 Thank you for purchasing your Triple Trunking Handheld Radio Scanner. Your scanner scans conventional frequencies and trunked systems. Please read this user’s guide before installing, setting up and using your new scanner. What’s Included Scanner Antenna AC Adaptor DC Cable with Fuse DIN-E Sleeve & Remove keys (2) Mounting Bracket Knob (2) Rubber washer (2) Lock washer (2) Screw (2) Rubber Foot (3) Preprogrammed Frequency Addendum User’s Guide Contents will add Your Scanner VOLUME / OFF Squelch Headphones Page 1 0705 Owner’s Manual PC/IF (Spectrum Sweeper Symbol) – Spectrum Sweeper. SCAN – Starts a scan. FUNC – Function MAN – Manually selecting a channel. TRUNK – Accesses trunking functions. WX/(Skywarn Symbol) – Weather search and Skywarn. PRI – Priority TEXT – Activates text buttons. PAUSE – Pause the search, tune, scan, etc. MODE – Changes receive mode. DIM – Dimmer. TUNE – Enters Tune mode. ATT – Attenuator. /¥, ¥/ – Navigates functions. SRCH – Search. 1-9 / A-Z – Numbers and letters. Zero enters special characters. ./DELAY – Decimal point, space, delay functions. CLEAR – Clears an incorrect entry. L/OUT – Locks out channels, frequencies, or Talk Group IDs. PROG – Program. ENT – Enter. INSTALL YOUR SCANNER You can mount your trunking scanner in your vehicle, install it for mobility, or install it as a base station. Mounting Your Scanner in Your Dashboard If you are unsure about how to install your scanner in your vehicle, consult your automobile manufacturer, dealer, or a qualified installer. Before installing, confirm your scanner fits in the desired mounting area and you have all the necessary materials. Your scanner requires a 2 x 7 1/8 x 5 5/16 inch (50 x 180 x 135 mm) mounting area. 1. Remove the four rear screws and pull off the black case before installing your scanner. Page 2 0705 Owner’s Manual 2. Install the DIN sleeve into the opening in your dashboard, lip facing out. 3. Push out the top and bottom tabs to hold the sleeve firmly in place. 4. Slide the scanner into the sleeve until it locks in place. To remove your scanner from the DIN sleeve, insert the two keys straight into the scanner’s front panel. Then remove the scanner by pulling front panel. When mounting in your dashboard, you will need to connect an external antenna and an external speaker. Mobile Mounting in Your Vehicle You can mount your scanner under the dashboard, or on top of it, using the mounting bracket. 1. Attach the three protective rubber feet to the mounting bracket when you use the scanner on a flat surface. Do not use them when you mount the bracket with screws. 2. Use the supplied mounting bracket as a template to mark positions for the two mounting screws. 3. At the marked positions, drill holes slightly smaller than the screws. 4. Remove the paper backing from each washer and stick one inside of each bracket’s ear, aligning the washer’s hole with the bracket’s hole. 5. Attach the mounting bracket to your vehicle’s surface using the supplied screws and lockwashers. 6. Slide the scanner into the bracket, aligning the scanner’s holes with the holes in the bracket, and then screw the mounting knobs into the scanner. When drilling holes, be sure to avoid obstructions behind the mounting surface. Consult a qualified installer if in doubt. Using Your Scanner as a Base Station You can place your scanner on a desk, shelf, or table to use it as a base station. Since the speaker is on the bottom of the scanner, you may want to use the mounting bracket to elevate your scanner off the surface for better sound. Follow the mobile vehicle mounting instructions above to affix your scanner to a desk, shelf, table or other flat surface (except that the bracket will be below the scanner). Page 3 0705 Owner’s Manual POWER YOUR SCANNER You can power your scanner from a wall outlet, through your vehicle’s ignition, or from your vehicle’s cigarette lighter. From a Wall Outlet 1. Connect the tip of the supplied AC adaptor to the DC 13.8V jack at the rear of your scanner. 2. Plug the AC adaptor into your wall outlet. You must use a Class 2 power source that supplies 13.8V DC and delivers at least 600mA. Its center tip must be set to positive and its plug must fit the scanner’s DC 13.8V jack. Using an adaptor that does not meet these specifications could damage the scanner or the adaptor. WARNING: To prevent electric shock, do not use the AC adaptor’s polarized plug with an extension cord, receptacle, or other outlet unless you can fully insert the blades to prevent blade exposure. Through Your Vehicle’s Ignition 1. Disconnect the cable from the negative (-) terminal of your vehicle’s battery. 2. Ground the black wire of the supplied DC power cord to your vehicle’s chassis. Be sure the grounding screw makes complete contact with the metal frame of your vehicle. 3. Connect the red wire of the supplied DC power cord to a voltage source that turns on and off with the ignition switch, such as a spare accessory terminal in your vehicle’s fuse box. 4. Insert the power cord’s barrel plug into the scanner’s DC 13.8V jack. 5. Reconnect the cable to the negative (-) terminal of your vehicle’s battery. From Your Vehicle’s Cigarette Lighter To power your scanner from a 12V power source in your vehicle, such as a cigarette-lighter socket, you need a 12V, 600mA DC cigarette-lighter adaptor (not supplied). Page 4 0705 Owner’s Manual 1. Insert the adapter’s barrel plug into the scanner’s DC 13.8V jack. 2. Plug the adaptor’s other end into your vehicle’s cigarette lighter or power socket. When you use a cigarette-lighter adaptor, you might hear electrical noise from your engine while scanning. This is normal. You must use a power source that supplies 12V DC and delivers at least 600 mA. Its center tip must be set to positive and its plug must fit the scanner’s DC 13.8V jack. Using an adaptor that does not meet these specifications could damage the scanner or the adaptor. …

Text truncated - open the document above for the full version.

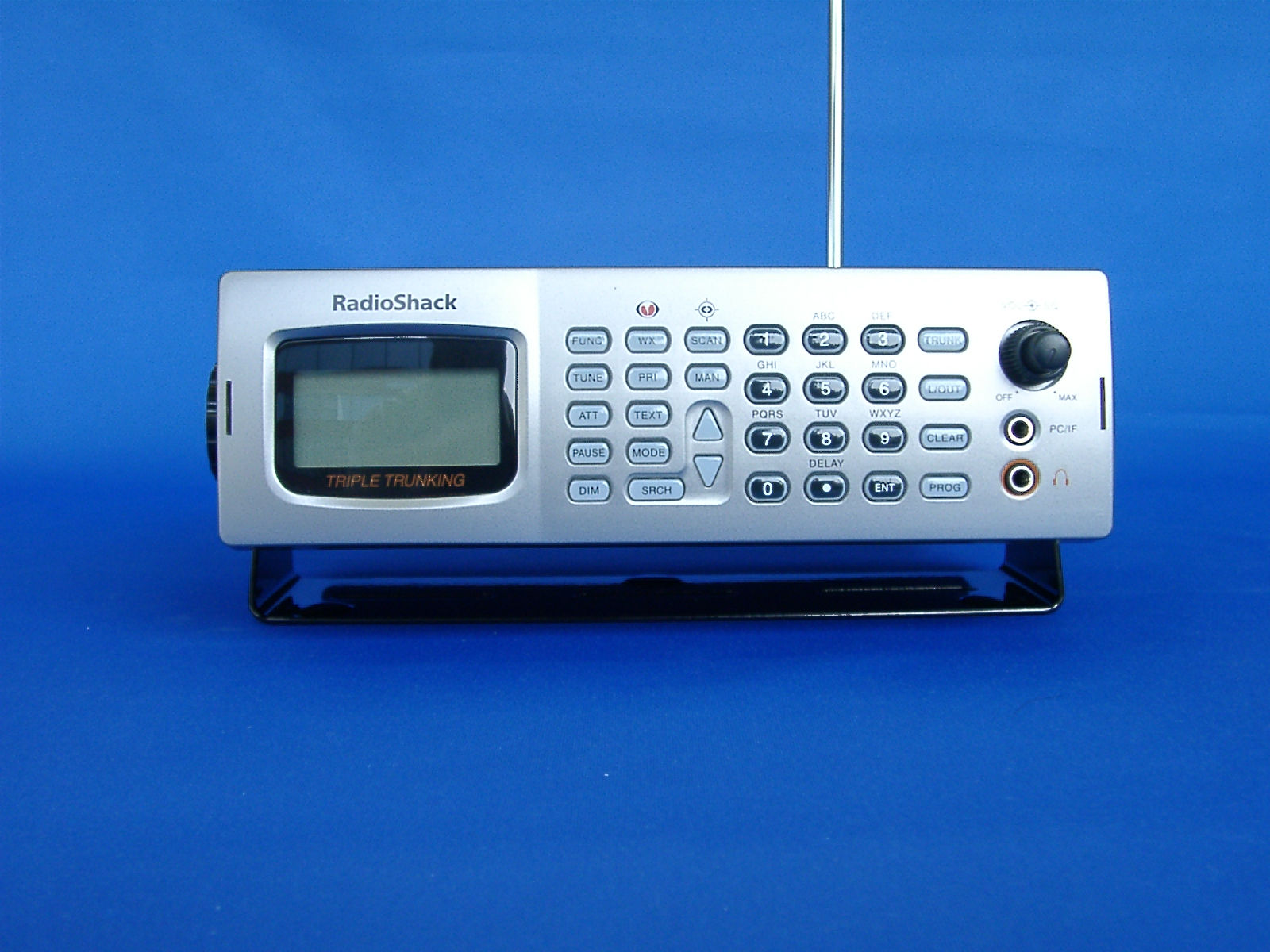

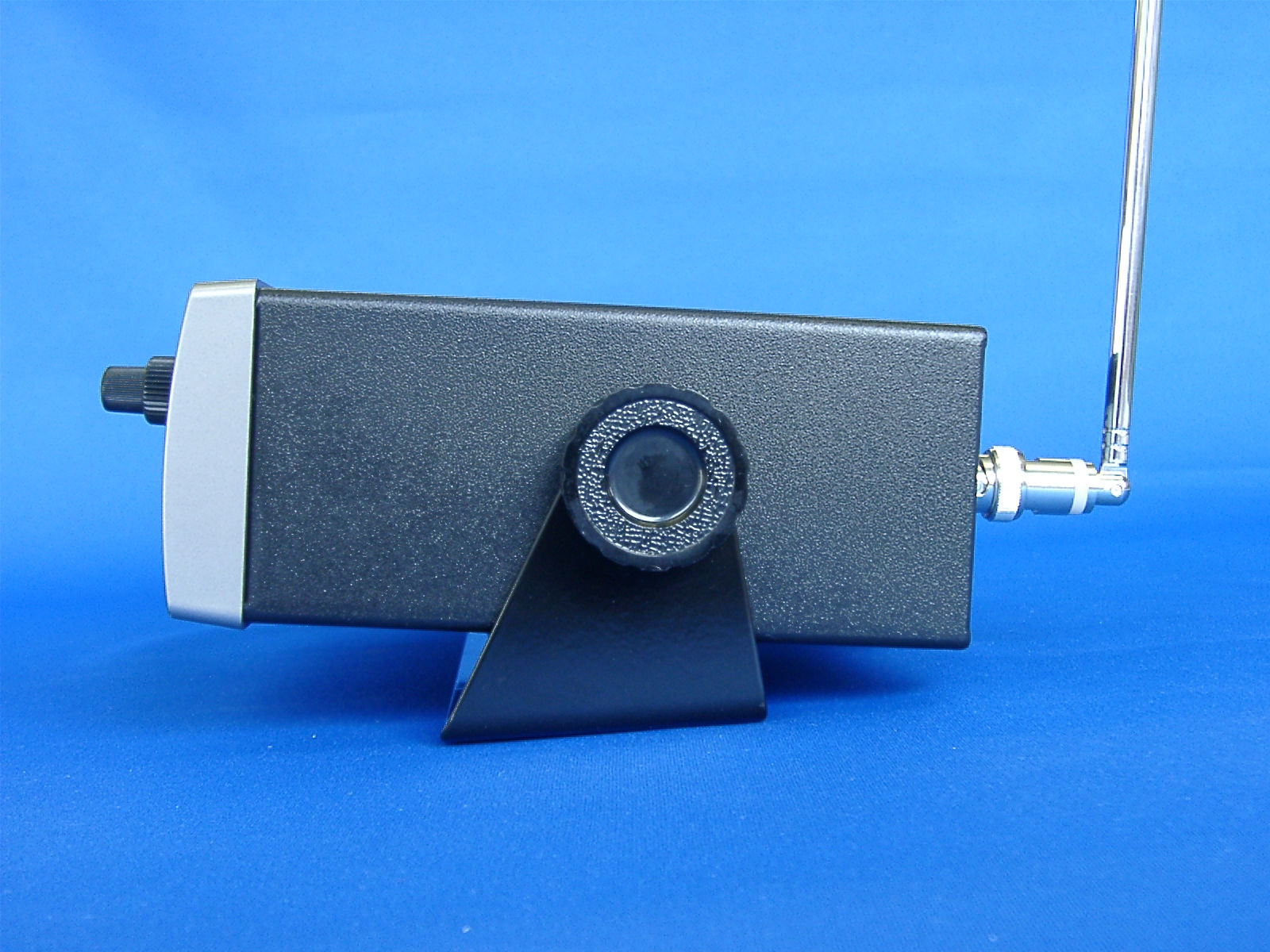

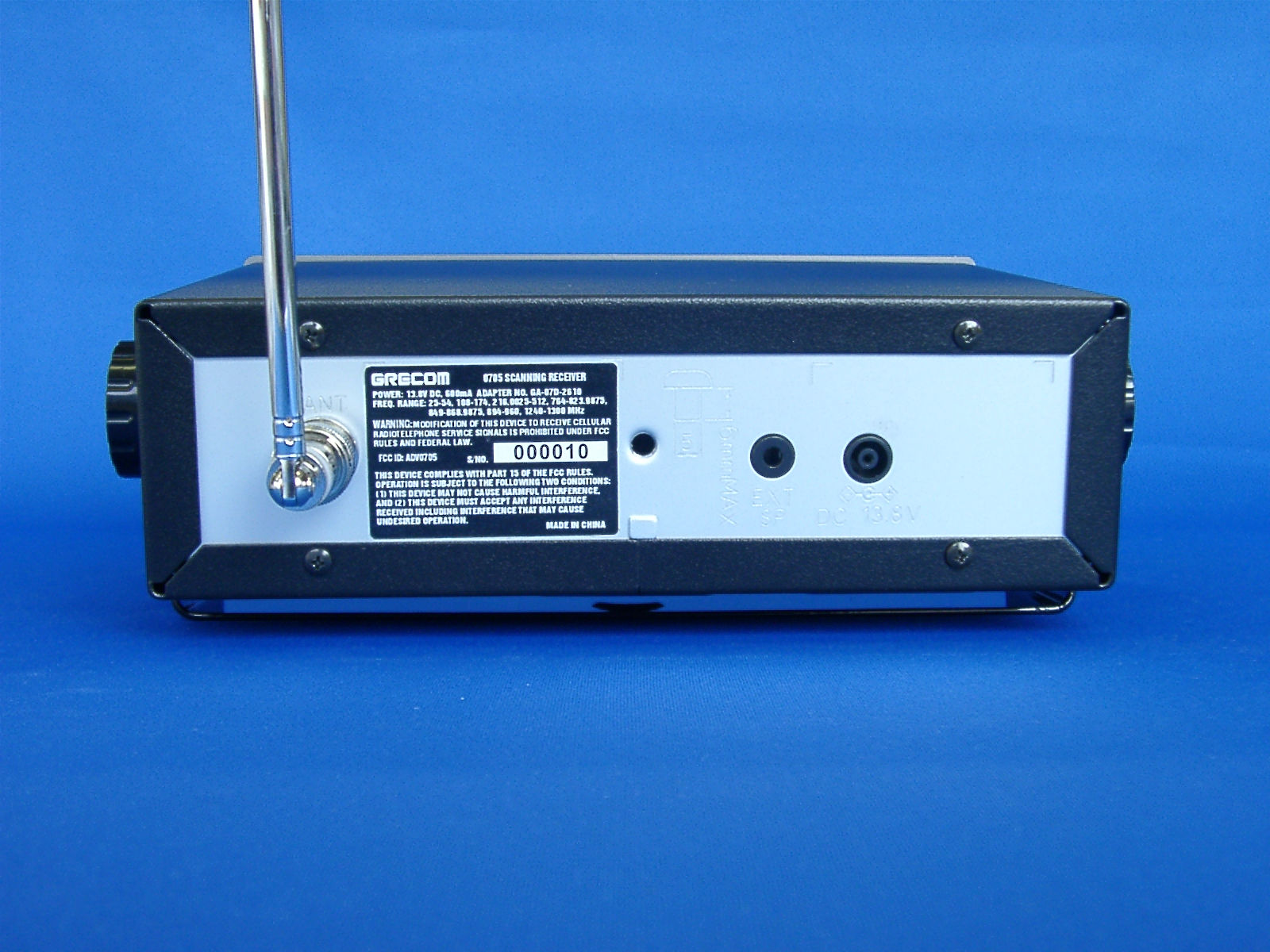

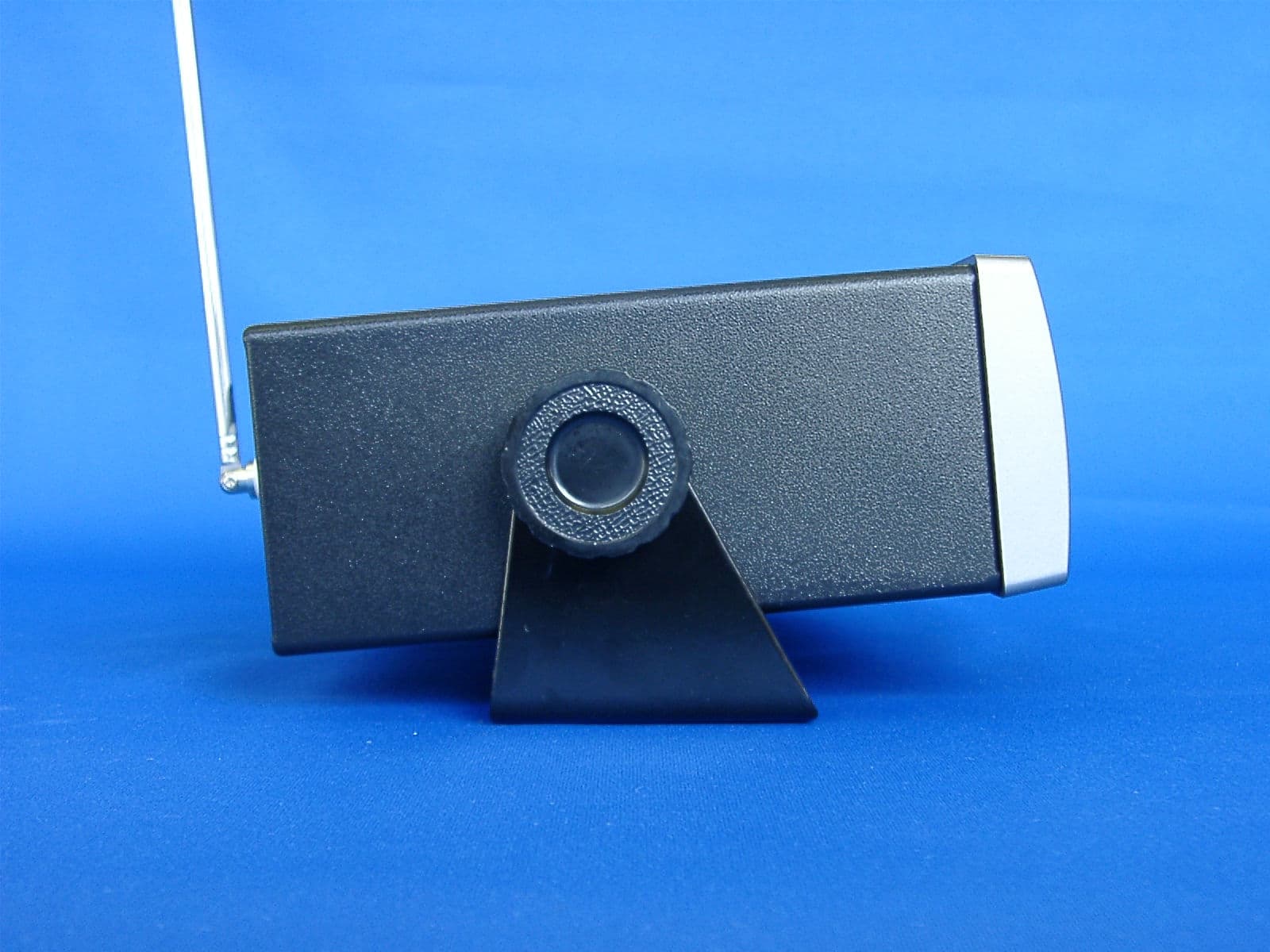

External Photographs FCC ID: ADV0705

EMC Report for General Research of Electronics, Inc. on the model 0705 3131485MPK-001 Page 1 of 21 TEST REPORT Report Number: 3131485MPK-001 Project Number: 3131485 August 25, 2007 Testing performed on the Advanced Digital Hand Held Scanner Model Number: 0705 FCC ID: ADV0705 to FCC Part 15, Subpart B Class: B for GRE America A2LA Certificate Number: 1755-01 Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 GRE America 425 Harbor Blvd. Suit B Belmont, CA 94002 Prepared by: Date: August 25, 2007 Krishna K Vemuri Reviewed by: Date: August 25, 2007 Suresh Kondapalli This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for General Research of Electronics, Inc. on the model 0705 3131485MPK-001 Page 2 of 21 VERIFICATION OF COMPLIANCE Report No. 3131485MPK-001 Verification is hereby issued to the named APPLICANT and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below. Equipment Under Test: Advanced Digital Hand Held Scanner Trade Name: GRECOM Model No.: 0705 Serial No. 000010 Applicant: GRE America Contact: Mr. Teru Takahashi Address: 425 Harbor Blvd. Suite B Belmont, CA 94002 Country USA Tel. number: 650-591-1400 Fax number: 650-591-2001 Applicable Regulation: FCC Part 15, Subpart B Equipment Class: Class B Date of Test: August 22 to 24, 2007 We attest to the accuracy of this report: Krishna K Vemuri Senior EMC Project Engineer Suresh Kondapalli EMC Team Leader EMC Report for General Research of Electronics, Inc.on the model 0705 3131485MPK-001 Page 3 of 21 TABLE OF CONTENTS 1.0 General Description ........................................................................................................ 4 1.1....... Product Description ........................................................................................................ 4 1.2....... Related Submittal(s) Grants ............................................................................................ 4 1.3....... Test Methodology ........................................................................................................... 4 1.4....... Test Facility .................................................................................................................... 4 1.5....... Summary of Test Results ................................................................................................ 5 2.0 System Test Configuration............................................................................................. 6 2.1....... Justification ..................................................................................................................... 6 2.2....... EUT Exercising Software ............................................................................................... 6 2.3....... Mode of Operation.......................................................................................................... 6 2.4....... Support Equipment List and Description........................................................................ 7 2.5....... Equipment Setup Block Diagram ................................................................................... 7 2.6....... Equipment Modification ................................................................................................. 8 3.0 Emission Test Results ..................................................................................................... 9 3.1....... Field Strength Calculation ............................................................................................ 10 3.2....... Radiated Emission Data................................................................................................ 11 3.3....... AC Line Conducted Emission Data .............................................................................. 15 3.4....... Antenna Conducted Emission Data .............................................................................. 17 4.0 List of Test Equipment ................................................................................................. 19 Appendix A – Local Oscillator Frequency calculation.......................................................... 20 Appendix B – ADV0705 Specification..................................................................................... 21 EMC Report for General Research of Electronics, Inc.on the model 0705 3131485MPK-001 Page 4 of 21 1.0 General Description 1.1 Product Description The Equipment under Test (EUT) is Advanced Digital Hand Held Scanning Receiver, model 0705. Please refer to the attached specifications sheets in Appendix A for more details. A pre-production version of the sample was received on August 21, 2007 in good condition. As declared by the Applicant, it is identical to production units. 1.2 Related Submittal(s) Grants This is a single application for certification of a scanning receiver. 1.3 Test Methodology Both conducted (if applicable) and radiated emission measurements were performed according to …
