0712 Owner’s Manual 0712 200 Channel VHF/Air/UHF Desktop Scanner Owner’s Manual GRE CONTENTS Preparation Power Sources Using AC Power Using Vehicle Battery Power Connecting an Antenna Connecting an Outdoor Antenna Connecting an Earphone/Headphones Listening Safely Traffic Safety Connecting an Extension Speaker About Your Scanner A Look at the Keypad A Look at the Display Understanding Banks Channel Storage Banks One Touch Banks Operation Turning On the Scanner/Setting Volume and Squelch Storing Known Frequencies into Channels Finding and Storing Active Frequencies Searching the One Touch Banks Using Tune Scanning the Stored Channels Turning Channel-Storage Banks Off and On Monitoring a Stored Channel Clearing a Stored Channel Listening to the Marine Bank Listening to the Weather Band WX Alert Page 1 0712 Owner’s Manual Wired Programming Special Features Special Function Delay Locking Out Channels or Frequencies Locking Out Channels Locking Out Frequencies Reviewing Locked-Out Frequencies Removing Lockouts From All Frequencies in a One Touch Search Bank Removing Lockouts From All Frequencies Using Priority Turning the Key Tone On and Off Avoiding Image Frequencies Initializing the Scanner Initializing the Scanner A General Guide to Scanning Birdie Frequencies Frequency Conversion FAQs Care and Maintenance Specifications FEATURES Your new 0712 200 Channel VHF/Air/UHF Desktop Scanner lets you scan conventional transmissions, and is preprogrammed with search banks for convenience. By pressing a one touch search key, you can quickly search those frequencies most commonly used by public service and other agencies without tedious and complicated programming. This scanner gives you direct access to over 22,000 exciting frequencies, including those used by police and fire departments, ambulance services, aircraft, and amateur radio services, and you can change your selection at any time. Your scanner also has these special features: Spectrum Sweeper – a powerful new tool for you to rapidly detect, monitor and store frequencies for Page 2 0712 Owner’s Manual nearby radio transmissions. One Touch Search Banks — let you search preset frequencies in separate marine, fire/police, aircraft, ham, and weather banks, to make it easy to locate specific types of calls. Display Backlight — makes the scanner easy to read in low-light situations. Lockout Function — lets you set your scanner to skip over specified channels or frequencies when scanning or searching. Ten Channel-Storage Banks — you can store 20 channels in each bank (200 total channels), letting you group channels so you can more easily identify calls. Tune — lets you tune for new and unlisted frequencies starting from a specified frequency. SAME/FIPS Weather Alert — displays the weather event for the specific cities or counties you choose so you can hear the alert tone. Memory Backup — keeps the frequencies stored in memory for an extended time during a power loss. Scan Delay — delays scanning for about 2 seconds before moving to another channel, so you can hear more replies that are transmitted on the same channel. Priority Channel — lets you program a channel as the priority channel. As the scanner scans, it checks the priority channel every 2 seconds so you do not miss transmissions on that channel. Data Cloning — lets you transfer the programmed data to another 0712 scanner. Liquid-Crystal Display — makes it easy to view and change programming information. Supplied Telescoping Antenna — provides good reception of strong local signals. External Antenna Connector — lets you connect an external antenna (not supplied) with a BNC connector to the scanner for improved reception of distant/weaker signals. Your 0712 scanner can receive these bands: Frequency Range (MHz) Types of Transmissions Page 3 0712 Owner’s Manual 29–54 10-Meter Ham Band, VHF Lo, 6-Meter Ham Band 108–136.9875 Aircraft 137–174 Military Land Mobile, 2-Meter Ham Band, VHF Hi 380–512 UHF Aircraft, Federal Government, 70-cm Ham Band, UHF Standard Band, UHF “T” Band Note: See “Specifications” on Page XX for more information about the scanner’s frequency steps. © 2007 General Research of Electronics, Inc. All Rights Reserved. THE FCC WANTS YOU TO KNOW This equipment has been tested and found to comply with the limits for a scanning receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. SCANNING LEGALLY Your scanner covers frequencies used by many different groups including police and fire departments, ambulance services, government agencies, private companies, amateur radio services, military operations, pager services, and wireline (telephone and telegraph) service providers. It is legal to listen to almost every transmission your scanner can receive. However, there are some transmissions you should never intentionally listen to. These include: • Telephone conversations (cellular, cordless, or other private means of telephone signal transmission) • Pager transmissions Page 4 0712 Owner’s Manual • Any scrambled or encrypted transmissions According to the Electronic Communications Privacy Act (ECPA), you are subject to fines and possible imp…
Text truncated - open the document above for the full version.

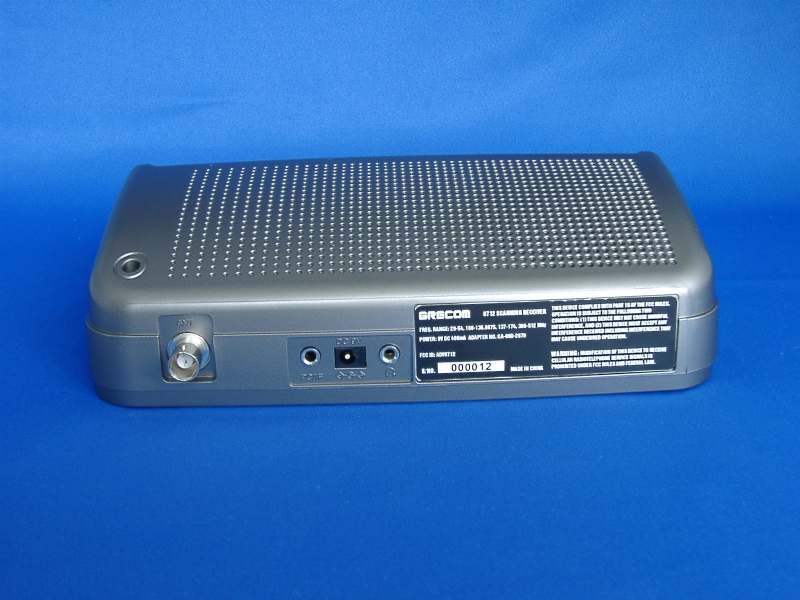

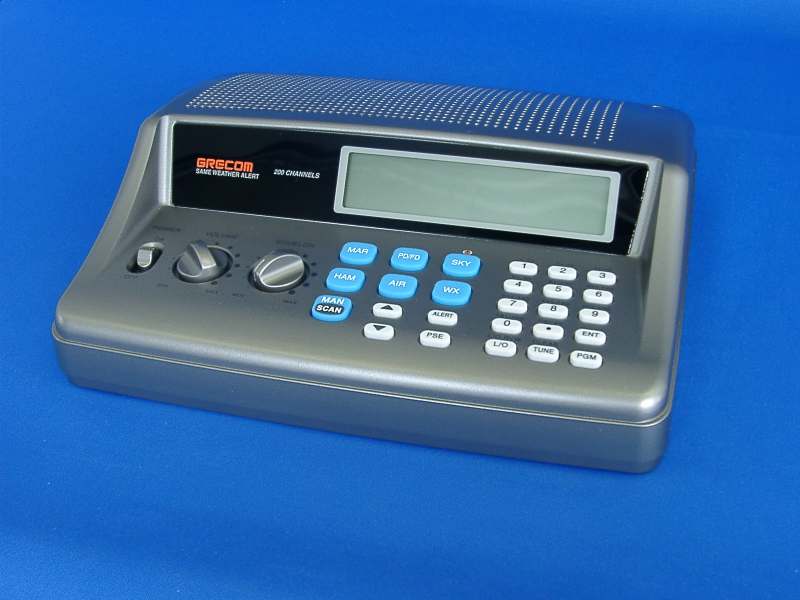

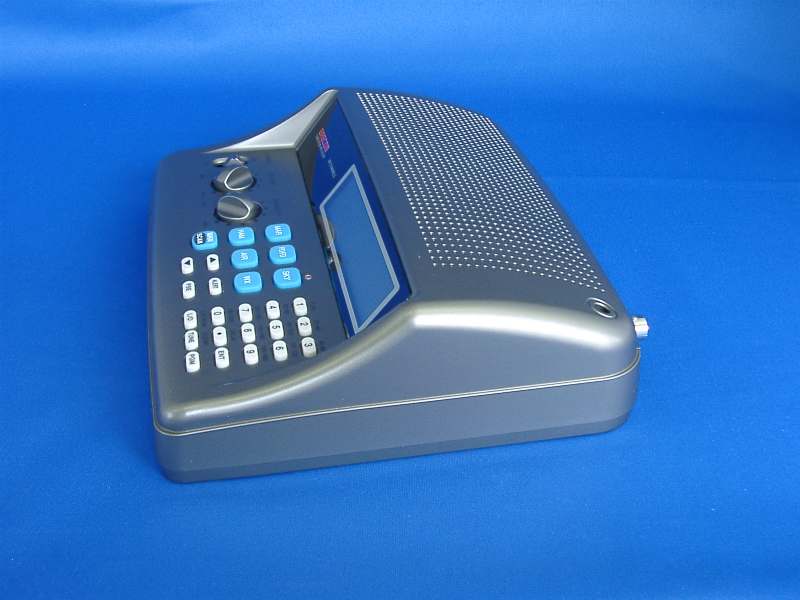

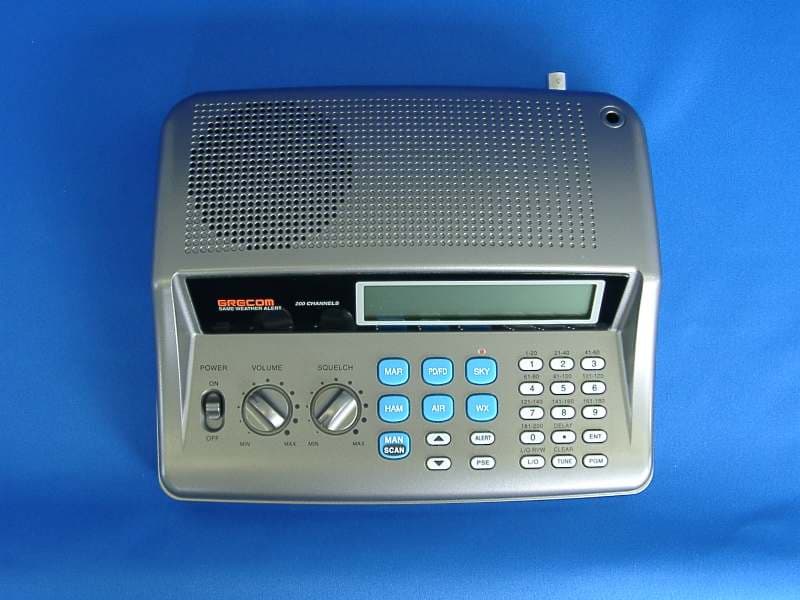

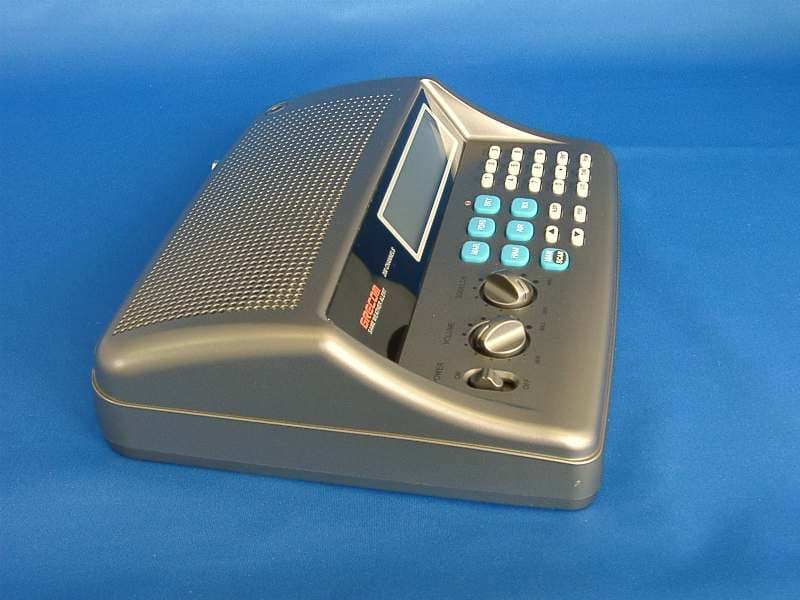

External Photographs FCC ID: ADV0712
EMC Report for General Research of Electronics, Inc. on the model 0712 3128873MPK-001 Page 1 of 20 TEST REPORT Report Number: 3128873MPK-001 Project Number: 3128873 July 31, 2007 Testing performed on the VHF/UHF Desktop Scanner Model Number: 0712 FCC ID: ADV0712 to FCC Part 15, Subpart B Class: B for GRE America A2LA Certificate Number: 1755-01 Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 GRE America 425 Harbor Blvd. Suit B Belmont, CA 94002 Prepared by: Date: July 31, 2007 David Chernomordik Reviewed by: Date: July 31, 2007 Ollie Moyrong This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for General Research of Electronics, Inc. on the model 0712 3128873MPK-001 Page 2 of 20 VERIFICATION OF COMPLIANCE Report No. 3128873MPK-001 Verification is hereby issued to the named APPLICANT and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below. Equipment Under Test: VHF/UHF Desktop Scanner Trade Name: GRECOM Model No.: 0712 Serial No. 000012 Applicant: GRE America Contact: Mr. Teru Takahashi Address: 425 Harbor Blvd. Suite B Belmont, CA 94002 Country USA Tel. number: 650-591-1400 Fax number: 650-591-2001 Applicable Regulation: FCC Part 15, Subpart B Equipment Class: Class B Date of Test: July 19-30, 2007 We attest to the accuracy of this report: David Chernomordik EMC Technical Manager Ollie Moyrong EMC Department Manager EMC Report for General Research of Electronics, Inc.on the model 0712 3128873MPK-001 Page 3 of 20 TABLE OF CONTENTS 1.0 General Description ........................................................................................................ 4 1.1....... Product Description ........................................................................................................ 4 1.2....... Related Submittal(s) Grants ............................................................................................ 4 1.3....... Test Methodology ........................................................................................................... 4 1.4....... Test Facility .................................................................................................................... 4 1.5....... Summary of Test Results ................................................................................................ 5 2.0 System Test Configuration............................................................................................. 6 2.1....... Justification ..................................................................................................................... 6 2.2....... EUT Exercising Software ............................................................................................... 6 2.3....... Mode of Operation.......................................................................................................... 6 2.4....... Support Equipment List and Description........................................................................ 7 2.5....... Equipment Setup Block Diagram ................................................................................... 7 2.6....... Equipment Modification ................................................................................................. 8 3.0 Emission Test Results ..................................................................................................... 9 3.1....... Field Strength Calculation ............................................................................................ 10 3.2....... Radiated Emission Data ................................................................................................ 11 3.3....... AC Line Conducted Emission Data .............................................................................. 14 3.4....... Antenna Conducted Emission Data .............................................................................. 16 4.0 List of Test Equipment ................................................................................................. 18 Appendix A – Local Oscillator Frequency calculation.......................................................... 19 Appendix B – ADV0712 Specification..................................................................................... 20 EMC Report for General Research of Electronics, Inc.on the model 0712 3128873MPK-001 Page 4 of 20 1.0 General Description 1.1 Product Description The Equipment under Test (EUT) is 200 Channels VHF/UHF Desktop Scanning Receiver, model 0712. Please refer to the attached specifications sheets in Appendix A for more details. A pre-production version of the sample was received on July 10, 2007 in good condition. As declared by the Applicant, it is identical to production units. 1.2 Related Submittal(s) Grants This is a single application for certification of a scanning receiver. 1.3 Test Methodology Both conducted (if applicable) and radiated emission measurements were performed according to the procedures in ANSI C63.4 (2003)…
