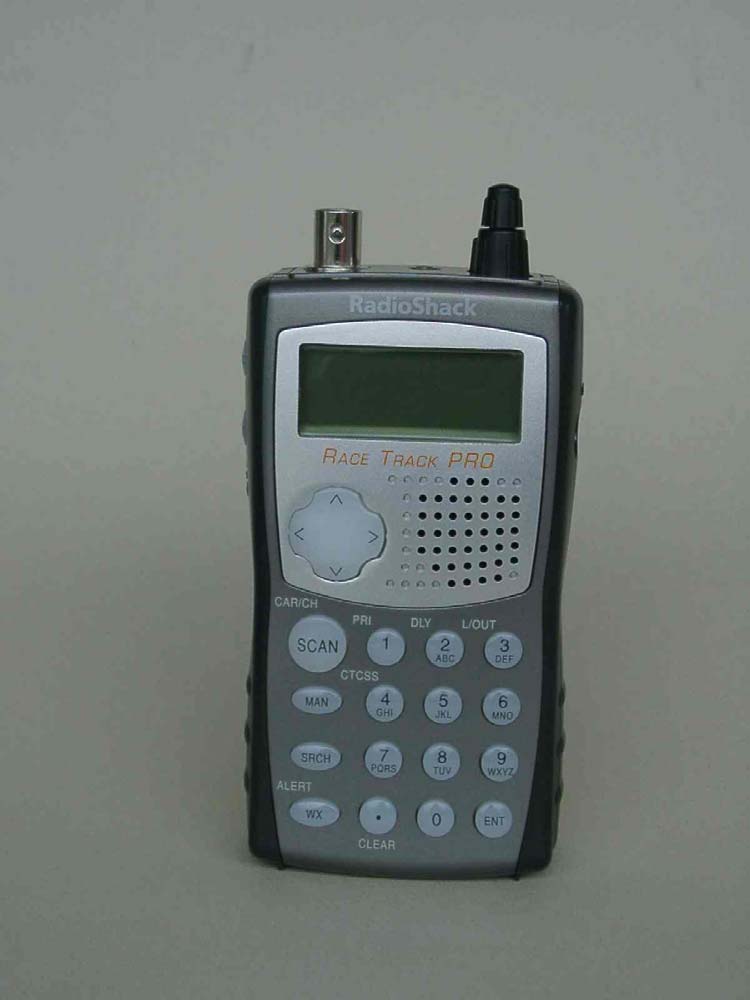

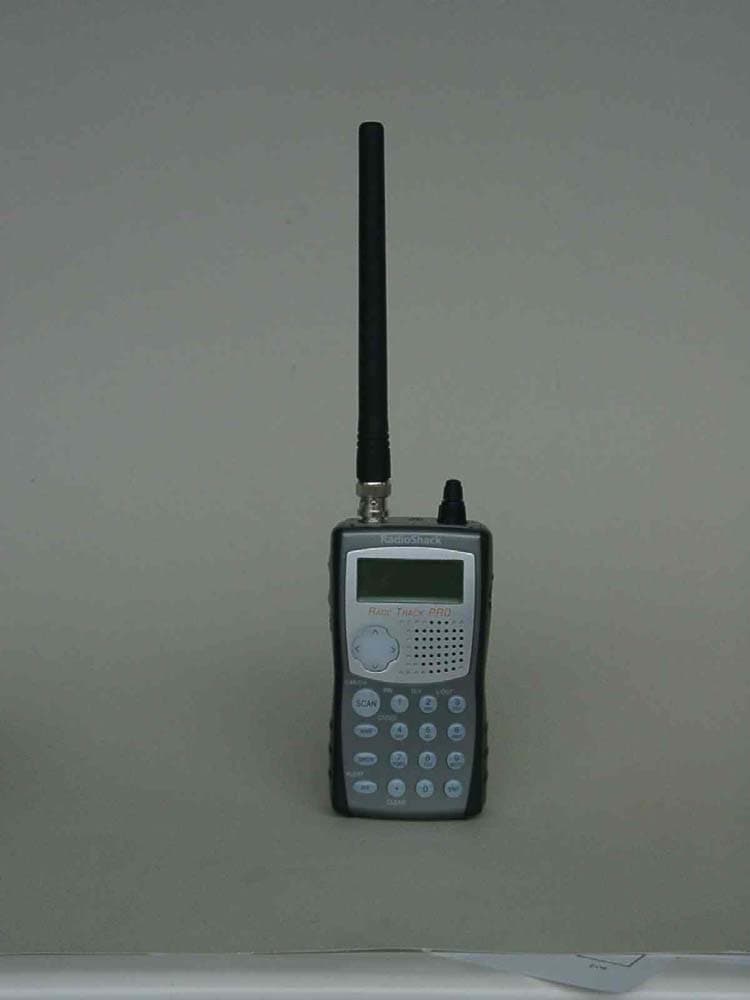

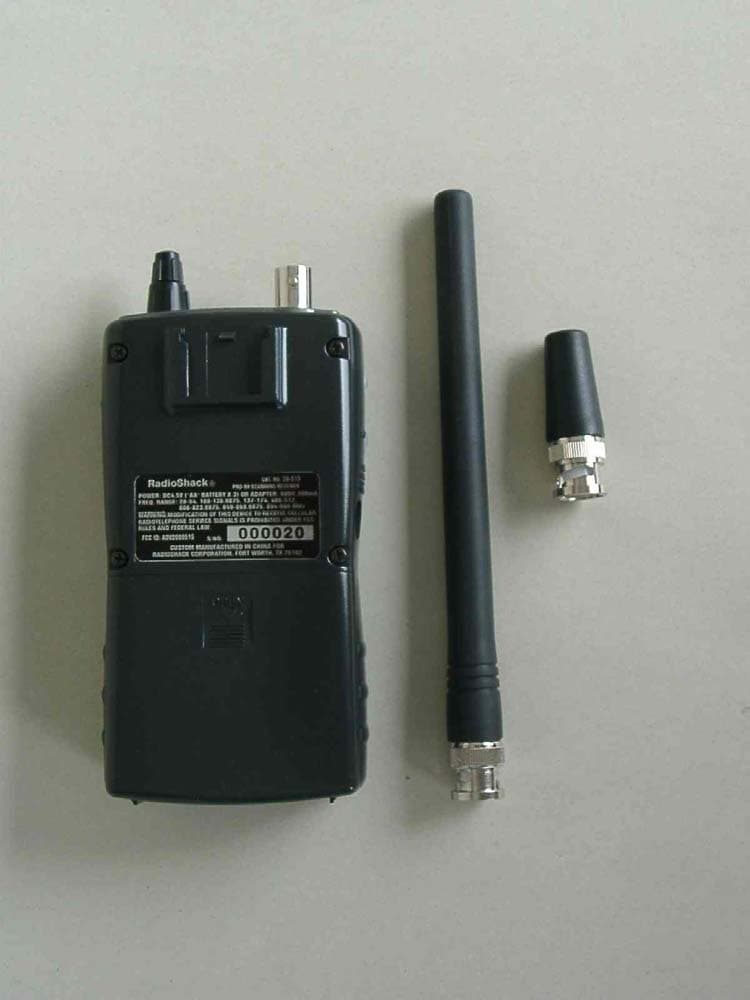

RadioShack LOGO PRO-99 500 Channel VHF/Air/UHF/800MHz Handheld Race Scanner OWNER’S MANUAL – Please read before using this equipment. 20-515 Two-Second Scan/Search Delay – Delays scanning for 2 seconds before moving to another channel, so you can hear more replies. Ten Channel-Storage Banks – Store up to 20 channels in each of 10 different banks, to group channels so you can more easily identify calls. 20 Monitor Memories – Temporarily save up to 20 frequencies located during a search, so you can move selected frequencies to channel storage later. Preprogrammed Frequency Ranges – Lets you search for transmissions within preset frequency ranges or within ranges you set, to reduce search time and select interesting frequencies. Memory Backup – Keeps the channel frequencies stored in memory for about 1 hour during a power loss. Triple Conversion Superheterodyne Receiver – Eliminates interference from intermediate frequency (IF) images, so you hear only the frequency you select. HyperSearchTM and HyperScanTM – Set the scanner to search at up to 50 steps per second and scan at up to 25 channels per second, to quickly find interesting transmissions. Duplicate Frequency Check – Automatically notifies you if you are about to store a frequency you have already stored, to help avoid waiting storage space. Tune – Tunes for new and unlisted frequencies starting from a specified frequency. Priority Channel – Designate a channel to scan every two seconds so you do not miss important calls. Weather Band Key – Scans seven preprogrammed weather frequencies to keep you informed about current weather conditions. Weather Alert – Automatically sounds the alarm tone to advise of hazardous weather conditions when it detects the alert signal on the local NOAA weather channel. Lock-Out Function – Set the scanner to skip over specified channels or frequencies when scanning or searching. Key Lock – Lock the scanner’s keys to prevent accidentally changing the scanner’s programming. Two Supplied Antennal with BNC Connector – Select the antenna that best meets your needs. The supplied stub antenna helps your scanner receive strong local signals and makes the scanner easy to carry and use at events. The supplied flexible antenna provides excellent reception of weaker signals and is designed to help prevent antenna breakage. Liquid Crystal Display – Makes it easy to view and change programming information. Display Backlight – Makes the scanner easy to read in low light situations. Three Power Options – Power the scanner from internal batteries (non-rechargeable batteries, rechargeable Ni-MH (nickel-metal hydride) or regular or high capacity Ni-Cd (nickel-cadmium) batteries), external AC power (using optional adapters), or vehicle battery power (using optional adapters). ! IMPORTANT ! If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. ! – Warning ! – Important thundervolt – Caution light – hint notebook – Note © 2003 RadioShack Corporation. All Rights Reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. CONTENTS Will add Thank you for purchasing the RadioShack 500-Channel VHF/Air/UHF/800 MHz handheld Race Scanner. It lets you in on all the action in the pits or on the track at the big race. This scanner gives you direct access to over 33,500 frequencies, including those used by participants and staff at auto races, police and fire departments, ambulance services, and amateur radio services. You can select up to 500 channels to scan, and you can change your selection at any time. Your scanner can receive all of these frequencies: . 29-54 MHz . 108-136.9875 MHz . 137-174 MHz . 406-512 MHz . 806-823.9875 MHz . 849-868.9875 MHz . 894-960 MHz This Owner’s Manual also includes the section :A General Guide to Scanning” on Page XX to help you target frequency ranges in your service area so you can search for a wide variety of transmissions. FCC NOTICE Your scanner might cause TV or radio interference even when it is operating properly. To determine whether your scanner is causing the interference, turn off your scanner. If the interference goes away, your scanner is causing it. Try to eliminate the interference by: . moving your scanner away from the receiver . connecting your scanner to an outlet that is on different electrical circuit from the receiver . contacting your local RadioShack store for help If you cannot eliminate the interference, the FCC requires that you stop using your scanner. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Mobile use of this scanner is unlawful or requires a permit in some areas. Check the laws in your area. SCANNING LEGALLY Your scanner covers frequencies used by many different groups including police and fire departments, ambulance services, government agencies, private companies, amateur radio services, military operations, pager services, and wireline (telephone and telegraph) services. It is legal to listen to almost every transmission your scanner can receive. However, there are some transmissions you should never intentionally listen to. These include: . telephone conversations (cellular, cordless, or other private means of telephone signal transmission) . pager transmissions . any scrambled or encrypted transmissions According to the Electronic Communications Privacy Act (ECPA), you are subject to fines and possible imprisonment for intentionally listening to, using, or divulging the contents of such a transmission unless you have the consent of a party to the communication (unless such activity is otherwise illegal). This scanner has been designed to prevent reception of illegal transmissions. This is done to comply with the legal requirement that …

Text truncated - open the document above for the full version.

FCC ID: ADV2000515 FCC ID: ADV2000515 FCC ID: ADV2000515 FCC ID: ADV2000515 FCC ID: ADV2000515

1365 Adams Court, Menlo Park, CA 94025 TEST REPORT Report Number: 30481231 Project Number: 3048123 Report Date: September 10, 2003 Date of testing: September 8 to 25, 2003 Testing performed on the Scanning Receiver Model: 20-515 FCC ID: ADV2000515 to FCC Part 15 Class B for General Research of Electronics, Inc. A2LA Certificate Number: 1755-01 Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 General Research of Electronics, Inc. Shiba NO.3 Amerex Bldg. No. 12-17 Mita 3-Chome, Minato-Ku Tokyo 108-0073, Japan Prepared by: Date: 09/15/03 Bruce Gordon Reviewed by: Date: 09/15/03 David Chernomordik All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-515 Date of Test: September 8 to 25, 2003 FCC ID: ADV2000515 Report #30481231 2 of 34 FCC Part 15 Scanning Rx Cert TABLE OF CONTENTS TEST REPORT........................................................................................................................... 1 1.0 General Description ........................................................................................................ 3 1.1 Product Description ........................................................................................................ 3 1.2 Related Submittal(s) Grants ............................................................................................ 3 1.3 Test Methodology ........................................................................................................... 3 1.4 Test Facility .................................................................................................................... 3 1.5 Summary of Test Results ................................................................................................ 4 2.0 System Test Configuration............................................................................................. 5 2.1 Justification ..................................................................................................................... 5 2.2 EUT Exercising Software ............................................................................................... 5 2.3 Mode of Operation.......................................................................................................... 5 2.4 Support Equipment List and Description........................................................................ 6 2.5 Equipment Setup Block Diagram ................................................................................... 6 2.6 Equipment Modification ................................................................................................. 6 3.0 Emission Test Results ..................................................................................................... 7 3.1 Field Strength Calculation .............................................................................................. 8 3.2 Radiated Emission Data .................................................................................................. 9 3.3 AC Line Conducted Emission Data .............................................................................. 17 3.4 Antenna Conducted Emission Data .............................................................................. 20 4.0 List of Test Equipment ................................................................................................. 24 Appendix A ................................................................................................................................ 25 Appendix B ................................................................................................................................ 34 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-515 Date of Test: September 8 to 25, 2003 FCC ID: ADV2000515 Report #30481231 3 of 34 FCC Part 15 Scanning Rx Cert 1.0 General Description 1.1 Product Description The Equipment under Test (EUT) is VHF/UHF Programmable AM/FM-Digital Trunking Handheld Scanning Receiver PRO-96 CAT. NO. 20-515. Please refer to the attached specifications sheets in Appendix A for more details. A pre-production version of the sample was received on September 8, 2003 in good condition. As declared by the Applicant, it is identical to production units. 1.2 Related Submittal(s) Grants This is a single Application for Certification of a scanning receiver. 1.3 Test Methodology Both AC mains line-conducted (if applicable) and radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All radiated measurements were performed in a semi- anechoic chamber. Radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the “Data Section” of this Application. 1.4 Test Facility The test site and conducted measurement facility used to collect the radiated data is Site 1 (10-m semi- anechoic chamber). This test facility and site measurement data have been fully placed on file with the FCC and A2LA accredited. 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-515 Date of Test: September 8 to 25, 2003 FCC ID: ADV2000515 Report #30481231 4 of 34 FCC Part 15 Scanning Rx Cert 1.5 Summary of Test Results Model: 20-515 FCC ID: ADV2000515 TEST REFERENCE RESULTS Radiated Emission 15.109 Complies AC Line Conducted Emission 15.107 Complies Antenna Conducted Emission 15.111 Complies FCC Part 15. 121 Requirement 15.121 Complies * * See File “Report for FCC Rule Part 15.121” 1365 Adams Court, Menl…
