ADV2000526Scanning Receiver

Digital Trunking Handheld Scanner RadioShack © 2003 RadioShack Corporation All Rights Reserved. RadioShack, RadioShack.com, Hypersearch, Hyperscan, V-Scanner, and Adaptaplug are trademarks used by RadioShack Corporation. Motorola, Smartnet, ASTRO and Privacy Plus are registered trademarks of Motorola Inc. EDACS is a registered trademark of MA-COM Inc. The IMBE™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human readable form. U.S. Pat. Nos. 5,870,405 and 5,517,511. This device made under license under one or more of the following U.S. Patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229. ! ! IMPORTANT ! If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. Warning Caution Important Hint Note Welcome to Digital Trunking PRO-96 20-526 OWNER’S MANUAL – Please read before using this equipment 1 2 RadioShack PRO-96 Digital Trunking Handheld Scanner – 20-526 TABLE OF CONTENTS TABLE OF CONTENTS...............................................................................................2 FEATURES..................................................................................................................8 THE FCC WANTS YOU TO KNOW...........................................................................13 SCANNING LEGALLY...............................................................................................14 GETTING FAMILIAR WITH YOUR SCANNER.........................................................15 About the Keypad...................................................................................................15 Understanding Your Scanner’s Memory Organization............................................17 V-Scanners.........................................................................................................17 Channel Storage Banks......................................................................................17 Channels.........................................................................................................18 Search Banks..................................................................................................18 Understanding Your Scanner’s Channel Receive Modes.......................................18 AM Mode (AM)....................................................................................................19 FM/Digital Mode (FM).........................................................................................19 CTCSS Mode (CT)..............................................................................................19 DCS Mode (DC)..................................................................................................20 Motorola/APCO-25 Trunking Mode (MO)............................................................20 EDACS Trunking Mode (ED)...............................................................................22 PREPARATION.........................................................................................................23 Listening Safely......................................................................................................23 Traffic Safety..........................................................................................................23 Power Sources.......................................................................................................23 Using Batteries....................................................................................................24 Charging Rechargeable Batteries...................................................................26 Using AC Power..................................................................................................27 Using Vehicle Battery Power...............................................................................27 Antenna..................................................................................................................28 Connecting the Supplied Antenna.......................................................................28 Connecting an Optional External Antenna..........................................................28 Connecting an Earphone/Headphones...................................................................29 Connecting an External Speaker............................................................................29 Using the Belt Clip..................................................................................................30 PROGRAMMING YOUR SCANNER.........................................................................30 3 Programming Conventional Channels....................................................................30 Storing Conventional Frequencies......................................................................30 Programming Trunked Systems.............................................................................32 Programming Motorola analog, digital, and APCO-25 trunking systems.............33 Programming EDACS Trunking Systems............................................................34 Programming Motorola VHF and UHF Trunking Systems...................................35 Programming Motorola 800 MHz Splinter Systems.............................................36 Programming Fleet Maps....................................................................................36 Talkgroup IDs......................................................................................................38 Storing Talkgroup IDs...............................…

Text truncated - open the document above for the full version.

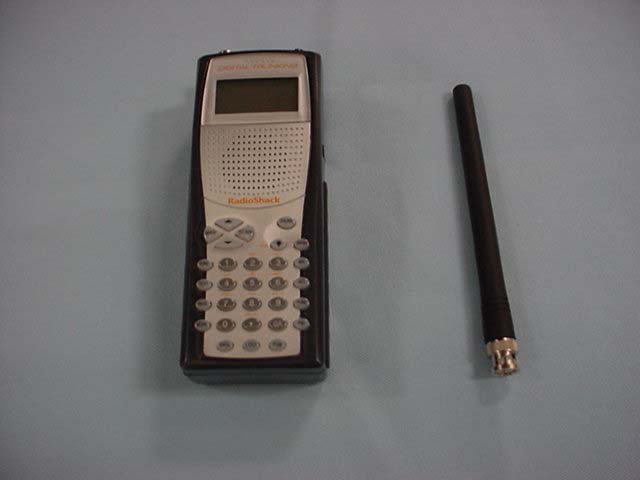

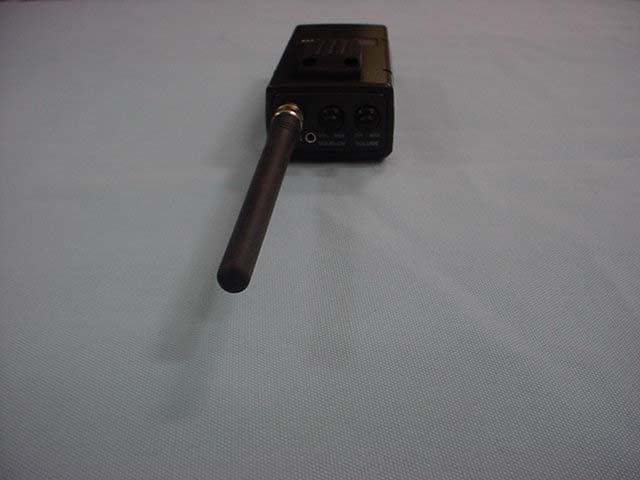

FCC ID: ADV2000526 External Photographs FCC ID: ADV2000526 External Photographs FCC ID: ADV2000526 External Photographs FCC ID: ADV2000526 External Photographs FCC ID: ADV2000526 External Photographs FCC ID: ADV2000526 External Photographs

1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Report #30430841 2 of 30 FCC Part 15 Scanning Rx Cert TABLE OF CONTENTS 1.0 General Description ........................................................................................................ 3 1.1 Product Description ........................................................................................................ 3 1.2 Related Submittal(s) Grants ............................................................................................ 3 1.3 Test Methodology ........................................................................................................... 3 1.4 Test Facility .................................................................................................................... 3 1.5 Summary of Test Results ................................................................................................ 4 2.0 System Test Configuration............................................................................................. 5 2.1 Justification ..................................................................................................................... 5 2.2 EUT Exercising Software ............................................................................................... 5 2.3 Mode of Operation.......................................................................................................... 5 2.4 Support Equipment List and Description........................................................................ 6 2.5 Equipment Setup Block Diagram ................................................................................... 6 2.6 Equipment Modification ................................................................................................. 6 3.0 Emission Test Results ..................................................................................................... 7 3.1 Field Strength Calculation .............................................................................................. 8 3.2 Radiated Emission Data .................................................................................................. 9 3.3 AC Line Conducted Emission Data .............................................................................. 11 3.4 Antenna Conducted Emission Data .............................................................................. 14 4.0 List of Test Equipment ................................................................................................. 17 Appendix A ................................................................................................................................ 18 Appendix B ................................................................................................................................ 28 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Report #30430841 3 of 30 FCC Part 15 Scanning Rx Cert 1.0 General Description 1.1 Product Description The Equipment under Test (EUT) is VHF/UHF Programmable AM/FM-Digital Trunking Handheld Scanning Receiver PRO-96 CAT. NO. 20-526. Please refer to the attached specifications sheets in Appendix A for more details. A pre-production version of the sample was received on May 18, 2003 in good condition. As declared by the Applicant, it is identical to production units. 1.2 Related Submittal(s) Grants This is a single Application for Certification of a scanning receiver. 1.3 Test Methodology Both AC mains line-conducted (if applicable) and radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All radiated measurements were performed in a semi- anechoic chamber. Radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the “Data Section” of this Application. 1.4 Test Facility The test site and conducted measurement facility used to collect the radiated data is Site 1 (10-m semi- anechoic chamber). This test facility and site measurement data have been fully placed on file with the FCC and A2LA accredited. 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Report #30430841 4 of 30 FCC Part 15 Scanning Rx Cert 1.5 Summary of Test Results Model: 20-526 FCC ID: ADV2000526 TEST REFERENCE RESULTS Radiated Emission 15.109 Complies AC Line Conducted Emission 15.107 Complies Antenna Conducted Emission 15.111 Complies FCC Part 15. 121 Requirement 15.121 Complies * * See File “Report for FCC Rule Part 15.121” 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Report #30430841 5 of 30 FCC Part 15 Scanning Rx Cert 2.0 System Test Configuration 2.1 Justification The tests were performed according to the test procedure as outlined in CFR47 Part 15.31 and in ANSI C63.4. For emission testing, the equipment under test (EUT) was configured for testing in a typical fashion (as a customer would normally use it). During testing, all cables were manipulated to produce worst-case emissions. For the measurements, the EUT is placed on top of a non-conductive table. If the EUT attaches to peripherals, they are connected and operational (as typical as possible). For radiated emission measurements, the signal is maximized through rotation and placement in the three orthogonal axes. The antenna height and polarization are varied during the search for maximum signal level. The antenna height is varied from 1 to 4 meters. Radiated emissions are taken at three meters unless the signal level is too low for measurement at that distance. If necessary, a pre-amplifier is used and/or the test is conducted at a closer distance. All readings are extrapolated back to the equivalent three- meter reading using inverse scaling with distance if measured at a closer distance. 2.2 EUT Exercising Software The unit was s…

Text truncated - open the document above for the full version.

1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Setup Photographs Radiated emission test 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Setup Photographs Radiated emission test 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Setup Photographs Radiated emission test 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Setup Photographs AC line conducted emission test 1365 Adams Court, Menlo Park, CA 94025 GRE, Model No: 20-526 FCC ID: ADV2000526 Date of Test: May 19, 2003 Setup Photographs AC line conducted emission test
