AEK980227R/C Toy Transmitter

HEAT CANNED CANNED TM RADIO CONTROL HEAT I IIIII IV V ABC Please read thoroughly and retain for future reference. 36806-0920 © 1998 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A.PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trade- marks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., Meridian West, Leices- ter LE3 2WT. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. In Britain 49 MHz is not available. 27 MHz can be raced against 40 MHz vehicles. I.GET READY 1. Remove lid ¶. (Keep lid for storage.) 2. Twist transmitter ·to remove from tube. 3. Slide display stand ̧out of tube. 4. Turn display stand over. Use screwdriver to remove the 2 screws ¹ and remove vehicle from stand. DISCARD SCREWS IMMEDIATELY. 5. Carefully slide antenna º out of stand and screw antenna onto transmitter. II.BATTERY INSTALLATION (Transmitter & Vehicle) 1. Push battery doors open in direction of arrow. 2. Vehicle & transmitter require 2 AA (LR6) alkaline batteries each. Install with polarity (+/-) as shown inside battery compart- ment. 3. Close battery doors. III.BATTERY INFORMATION • Bent or dirty contacts may result in loss of power. • If battery does not fit cor- rectly, gently bend back metal contact as shown in diagram. • Insure that battery polarity is correct. • Use only batteries of the type recommended (or equivalent). • Do not mix old and new batteries. • Do not mix alkaline, stan- dard (carbon-zinc), or rechargeable (nickel- cadmium) batteries. • Remove used-up batteries immediately. • Remove batteries if vehicle will not be used for a long period. • For best performance use alkaline batteries. Battery life may vary depending on battery brand. • Do not recharge non- rechargeable batteries. • Do not short-circuit terminals. • Remove rechargeable batteries before recharg- ing. Recharge batteries only under adult supervi- sion. IV.OPERATION 1. Your transmitter has an automatic ON feature. Just turn vehicle ON. Then press any transmitter button to run and control vehicle. 2. Your vehicle will go for- ward & reverse. To turn, press button ½or ¾. 3. Adjust steering adjuster (if necessary) to run straight. 4. Turn vehicle OFF after use. »FORWARD ¼REVERSE ½LEFT TURN ¾RIGHT TURN V.CONSUMER INFORMATION TIPS & HINTS A.R/C vehicles can be affected by interference caused by high tension wires, CB radios, or other R/C vehicles running nearby on the same frequency as yours. You may have to choose a different place to play. B.DO NOT operate your vehicle over wet surfaces. Avoid sand, water & snow. C.Hold antenna up, not pointed down toward vehicle. Maximum range for the vehicle should be 40'/12m. SAFETY PRECAUTIONS Adults, this toy is recom- mended for children 5 years of age and older. To ensure that the child’s play is both safe and fun, please review the operating instructions and these general safety rules with the child. • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended during operation of this vehicle. • To avoid accidental operation, remove batteries when not in use. • DO NOT operate your vehicle on streets! They are for real cars.

STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION RADI-CAN R/C TRANSMITTER FCC ID: AEK980227 This application is for a certification under Part 15 of the FCC Rules for a Radio Control Transmitter, Part 15, paragraph 15.227. I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Rules and Regulations. DATED: October 16, 1998 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, VA 22153 (703) 569-7704 [email protected]

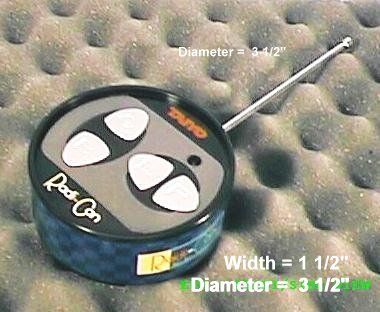

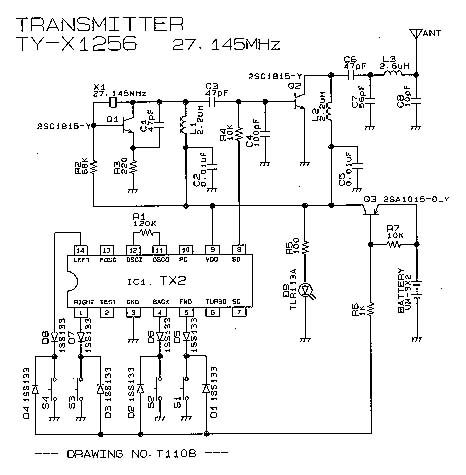

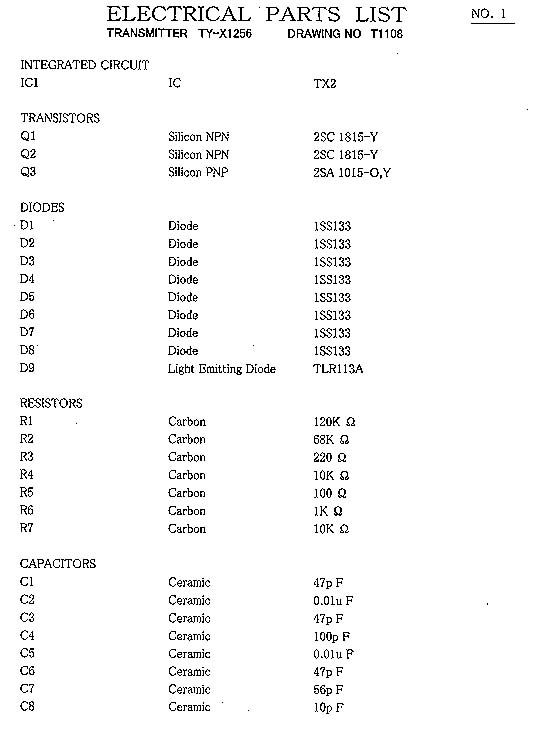

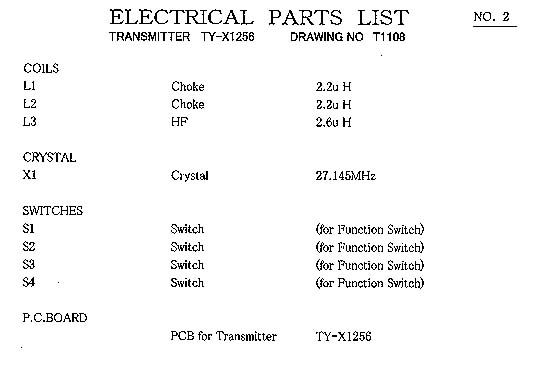

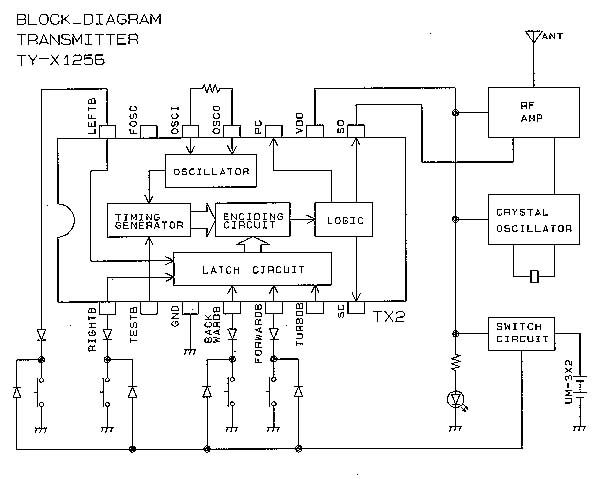

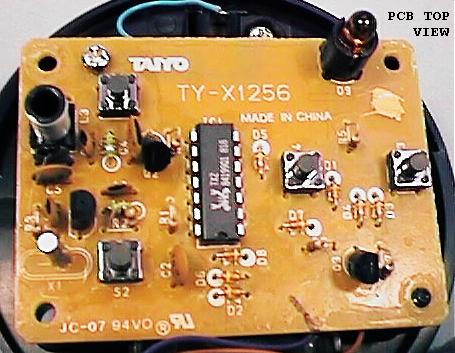

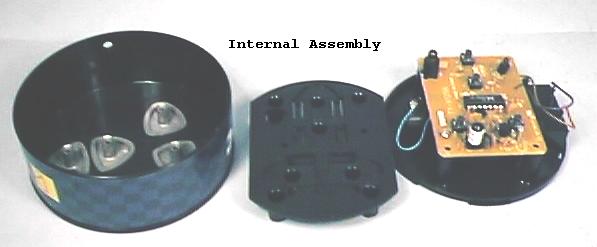

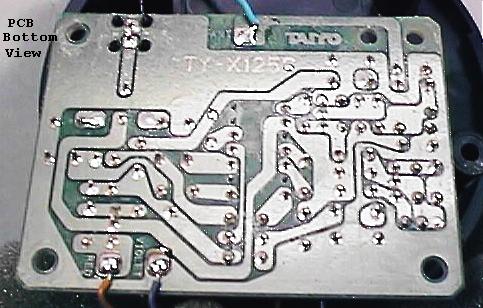

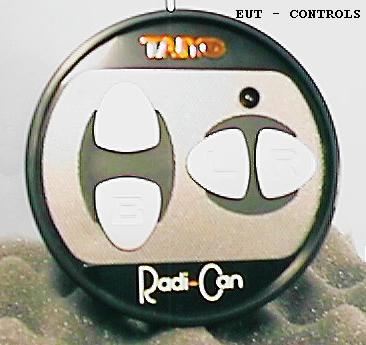

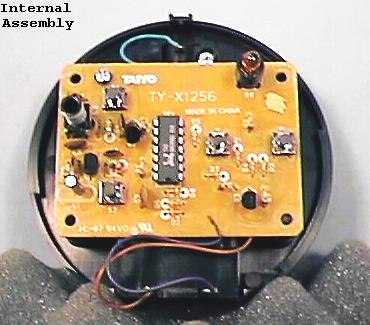

Expository Statement/Description The Radi-Can Transmitter (FCC ID:AEK980227) is a 27.145 MHz R/C transmitter. The transmitter uses a telescopic antenna approximately 10 ½ inches in length. The RF section contains the RF carrier oscillator section and an amplifier section. The RF carrier frequency is generated using Q1 (N-P-N transistor) in conjunction with a crystal (X1=27.145 MHz) configured in an oscillator circuit. The RF amplifier circuit consists of one transistor (Q2) matched to the antenna via a pi circuit comprised of C6, C7, L3 and C8. The modulation, baseband control signals, are generated within the LSI (Large Scale Integration) IC, IC1. Except for the control switches (commands for vehicle movement), IC1 conditions all commands and modulates the carrier (RF) by injecting the baseband signal into the input of the RF amplifier. The transmitter operates using two 1.5 VDC AA batteries. The transmitter does not need or use external grounding for operation.

Category not applicable for this application .

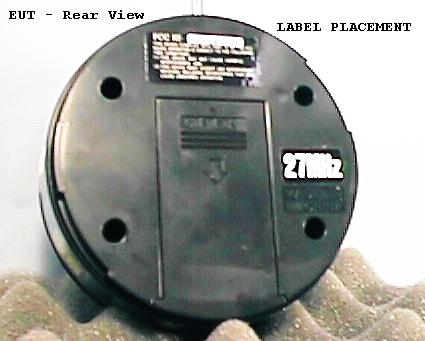

FCC ID:AEK980227 1 MEASUREMENT REPORT I. INTRODUCTION This measurement report is submitted in support of an Application for Certification in accordance with Part 2, Subpart J and Part 15, Subpart C (effective 6/23/89) of the Federal Communications Commission's Rules and Regulations. The equipment under test (EUT) is a low power pulsed RF transmitter. This transmitter operates at a fixed frequency within the band from 26.99 MHz to 27.28 MHz and is powered by one 9 Volt battery. It is identified as the 3.0V Radi-Can Transmitter (FCC ID: AEK980227). Operation under the transition provisions of Paragraph 15.37 is not requested for this device. The measurements contained in this report demonstrate compliance with the limitations in effect since 6/23/89. II. INFORMATION REQUIRED FOR CERTIFICATION Paragraph(s) 2.1033(a) This Application for Certification is filed on FCC Form 731 with all questions answered. An application fee of $940 was submitted. 2.1033(b)(1) The full name and mailing address of the manufacturer of the device and applicant for certification is: Taiyo Kogyo Co., Ltd. No. 1-23-17, Higashiyotsugi Katsushika-ku, Tokyo 124 Japan (2) The FCC Identifier of the device is AEK980227. (3) A copy of the installation and operating instructions to be furnished to the user is included in the exhibits section of this application. (4) The transmitter is a hand-held unit and is powered by two 1.5 Volt AA batteries. It is designed to operate on one of the following fixed frequencies: 26.995 MHz, 27.045 MHz, 27.095 MHz, 27.145 MHz, and 27.195 MHz. Complete circuit schematics are provided in the exhibits section. (5) A block diagram of the device is included in Exhibits. (6) A report of measurements is included in this report. (7) Photographs of this device showing the FCC label placement (actual label sample included), chassis assembly, and circuit FCC ID:AEK980227 2 layout are included as Exhibits in this application. (8) This equipment is a stand-alone unit. No peripherals or accessories are involved. (9) Certification under the transition provisions of Paragraph 15.37 is not being requested for this device. (10) N/A. III. GENERAL TEST CONDITIONS AND PROCEDURES Measurement procedures were used as outlined in MP-1 as specified in Part 15.31, except as noted herein . The open-field tests were performed on a three- meter range maintained by Carl T. Jones Corporation at the Springfield facility. Complete description and measurement data for the site have been placed on file with the Commission. Carl T. Jones Corporation is listed by the FCC as a facility available to do measurement work for others on a contract basis. Prior to open-field testing, the equipment was placed in a shielded enclosure and scanned at a close distance to determine its emission characteristics. IV. RADIATED EMISSION MEASUREMENTS The transmitter was assembled on a rotatable wooden test stand 0.8 meters in height. The transmitter's antenna was fully extended. The emission spectrum was examined up to 1000 MHz using a Hewlett-Packard 8568B spectrum analyzer and Compliance Design "Roberts" tuned dipole antennas. At each emission frequency, the EUT was rotated 360 degrees, and the antenna was raised and lowered from one to four meters to determine the maximum emission levels. Measurements were taken using both horizontal and vertical antenna polarizations. The spectrum analyzer's 6 dB bandwidth was set to 100 kHz. The analyzer was operated using its peak detection mode for measurements of emissions less than 1000 MHz. No post-detector video filters were used. The EUT was investigated in three orthogonal planes. The highest emission amplitudes relative to the appropriate limit were measured and have been recorded in Table 1. The actual field intensity in decibels above one microvolt per meter (dBuV/m) is determined by algebraically adding the measured level in dBuV, the FCC ID:AEK980227 3 antenna factor (dB), and the cable loss (dB) at the appropriate frequency. FI a (dBuV/m) = FI m (dBuV) + AF (dB) + CL (dB) FI a = Actual Field Intensity FI m = Measured Field Intensity AF = Antenna Factor CL = Cable Loss As a sample calculation, assume a particular device emits a signal with a frequency of 27.145 MHz. The received signal level is measured as 62.9 dBuV. The total attenuation factor (antenna factor plus cable loss) for 27.145 MHz is 0 dB. The actual radiated field is calculated as follows: 62.9 dB μ V + (0 dB) = 62.9 dB μ V/m @ 3 meters, or 1396.4 μ V/m @ 3 meters The field strength of the fundamental did not exceed 10,000 μ V/m (80 dB μ V/m) at 3 meters, as specified in Paragraph 15.227. As per the requirements defined in 15.209, the radiated emission limit at the band edges is 49.5 dB μ V/m at 3 meters. As per the occupied bandwidth spectral plot, the highest emission level below the lower band edge is 43 dB below the modulated carrier. At the upper band edge the highest emission recorded is 44 dB below the modulated carrier. Note: because the EUT complies using peak detection (worst case) quasi-peak detection was not used. Based on the maximized peak radiation measurements of the carrier, these emission levels are: Lower Band Edge 62.9 dB μ V/m - 43 dB = 26.2 dB μ μμ μ V/m (peak) at 3 meters ( Limit = 49.5 dB μ V/m, quasi-peak ) Upper Band Edge 62.9 dB μ V/m - 44 dB = 25.2 dB μ μμ μ V/m (peak) at 3 meters (Limit = 49.5 dB μ V/m, quasi-peak) Radiated measurements to the EUT's 10th harmonic are included in this report as Table 1. All other emissions were found to be in compliance with the restrictions of Paragraph 15.209(a) of the Commission's Rules. Because the FCC ID:AEK980227 4 emissions were below the limits using peak detection, average to peak ratio's were not calculated. V. OCCUPIED BANDWIDTH MEASUREMENTS In order to demonstrate that the EUT's fundamental frequency is within the 26.96 to 27.28 MHz frequency band an occupied bandwidth spectral plot of the EUT's fundamental frequency is included. Paragraph 15.227(b) specifies…

Text truncated - open the document above for the full version.

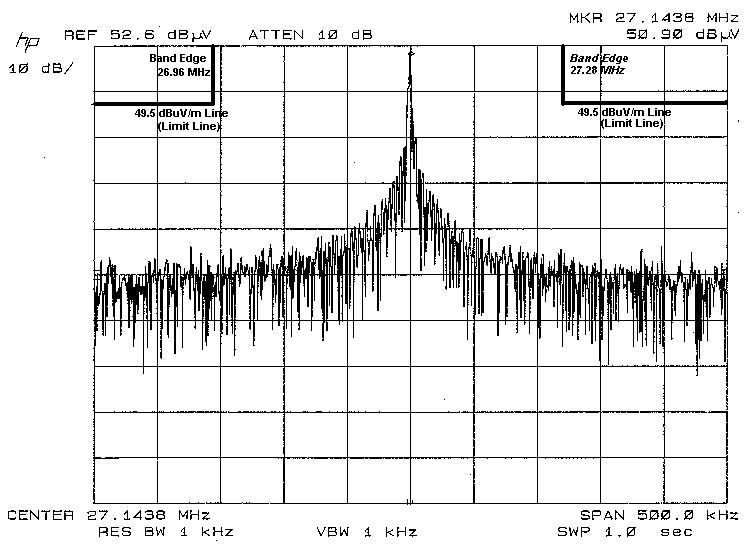

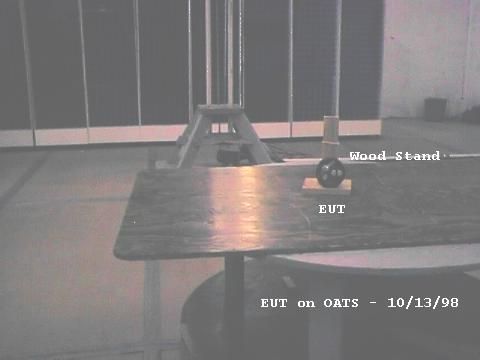

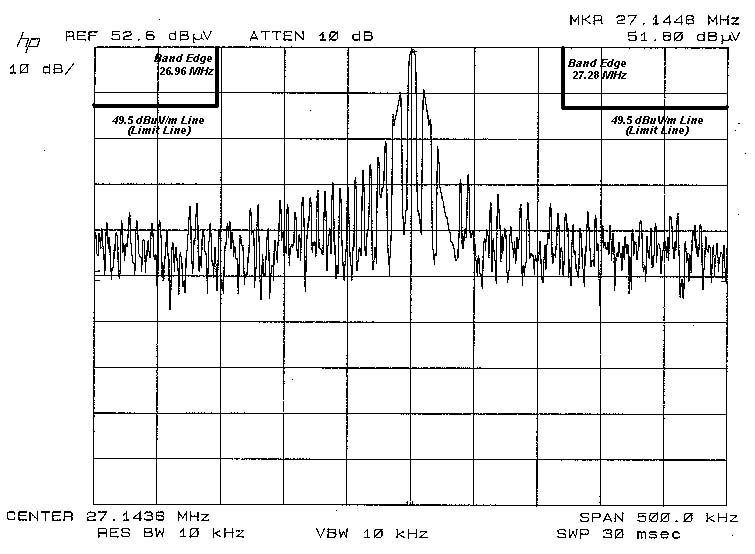

TABLE 1 FIELD STRENGTH RADIATED EMISSIONS DATA SHEET ANTENNA FACTORFCC EMISSIONANTENNAEMISSIONANDEMISSIONLIMIT FREQUENCY POLARITYLEVELCABLE LOSSLEVEL(3 METERS) (MHZ)(H,V)(dBuV)(dB)(dBuV/m)(dBuV/m) 27.145V69.20.069.280 27.145H60.40.060.480 54.292V&H<21.55.4<26.940 81.438V&H<22.59.2<31.540 108.584V&H<14.013.2<27.240 135.730V&H<14.015.5<29.540 162.871V&H<15.017.1<32.140 190.022V&H<14.019.0<33.040 217.168V&H<13.019.9<32.946 244.314V&H<15.020.9<35.946 271.460V&H<16.022.0<39.046 All limits are specified in Quasi-Peak, all data reported in Peak. CLIENT:TAIYO KOGYO FCC ID:AEK980227 MODEL:RADI-CAN TEST DATE:10/13/98 TEST ENGINEER:Michael A. Nicolay
