STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION MICRO BANDIT R/C TRANSMITTER FCC ID: AEK983249 I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Part 15 Rules and Regulations. DATED: October 27, 1998 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, VA 22153 (703) 569-7704 [email protected]

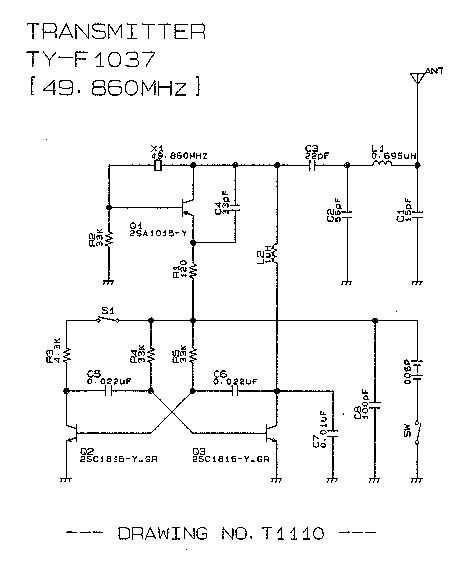

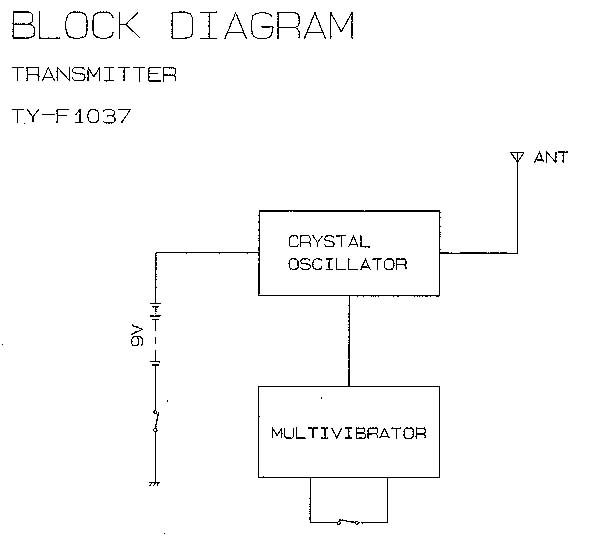

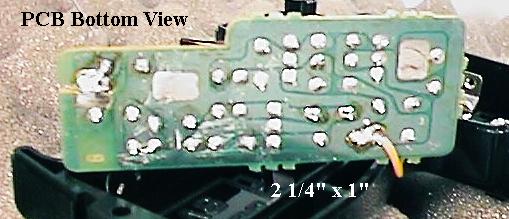

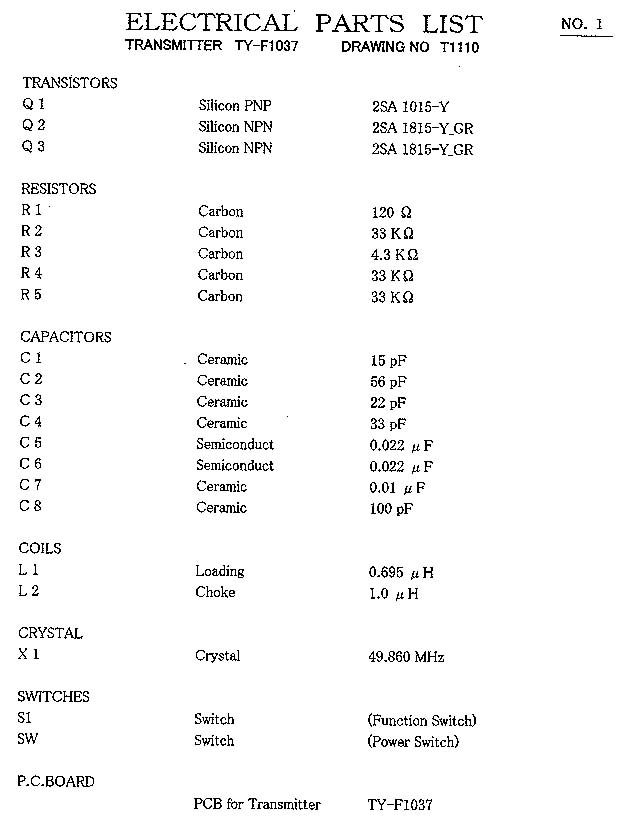

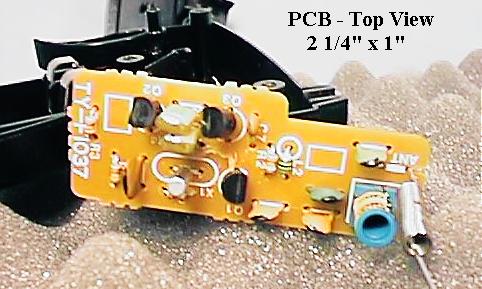

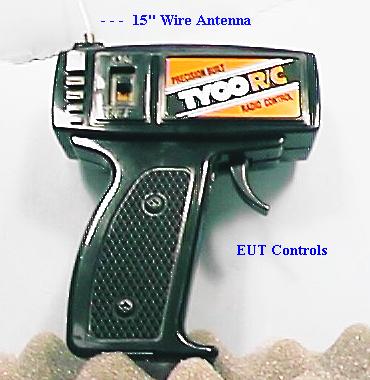

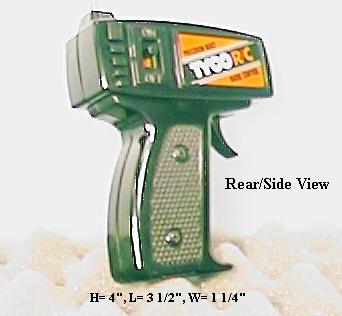

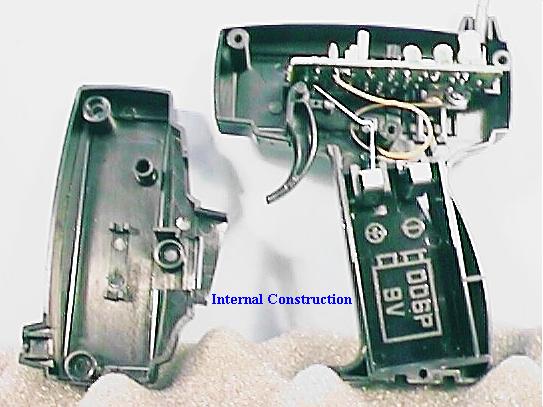

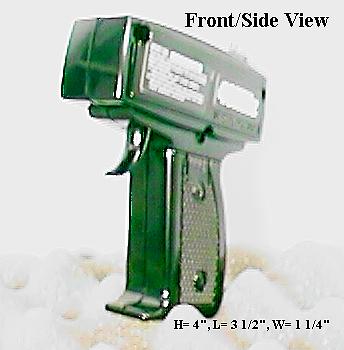

EXPOSITORY STATEMENT/DESCRIPTION The Micro Bandit R/C Transmitter is a crystal controlled low-powered digital transmitter. It consists of one multi-vibrator circuit and one crystal, and passive switch controls. See attached block diagram, TY-F1037. The multi-vibrator circuit produces the digital baseband modulation that will be modulated onto the carrier. The carrier is produced in combination with the crystal and the N-P-N transistor, Q1. The crystal oscillator circuit/RF amplifier circuit is comprised of X1 (49.86 MHz) and Q1. The RF signal from the oscillator circuit is modulated by the digital baseband signals at the collector of the RF amplifier stage (Q1). The output of the modulated RF amplifier is coupled to the antenna via C3. The matching circuit consisting of a “pi” circuit comprised of C2, L1, and C1. See attached schematic TY-F1037. All tuning and verifications are performed by the manufacturer and no external ground is required or used with this transmitter.

FCC ID: AEK983249 1 I. INTRODUCTION This measurement report is submitted in support of an Application for Certification in accordance with Part 2, Subpart J and Part 15, Subpart C (effective 6/23/89) of the Federal Communications Commission's Rules and Regulations. The equipment under test (EUT) is a low power pulsed RF transmitter. This transmitter operates at a fixed frequency within the band from 49.82 MHz to 49.90 MHz and is powered by two AA 1.5 Volt batteries. It is identified as the Micro Bandit Transmitter (FCC ID: AEK983249). Operation under the transition provisions of Paragraph 15.37 is not requested for this device. The measurements contained in this report demonstrate compliance with the limitations in effect since 6/23/89. II. INFORMATION REQUIRED FOR CERTIFICATION Paragraph(s) 2.1033(a)This application for certification is filed on FCC Form 731 with all questions answered. An application fee of $940.00 was payed. 2.1033(b)(1)The full name and mailing address of the manufacturer of the device and applicant for certification is: Taiyo Kogyo Co., Ltd. No. 1-23-17, Higashiyotsugi, Katsushika-ku, Tokyo 124 Japan (2)The FCC Identifier of the device is AEK983249. (3)A copy of the installation and operating instructions to be furnished to the user is included in the exhibits section of this application. (4)The transmitter is a hand-held unit and is powered by two AA 1.5 Volt transistor batteries. FCC ID: AEK983249 2 It is designed to operate in the frequency band of 49.82 MHz - 49.90 MHz. Complete circuit schematics are provided in the exhibits section of this application. (5)A block diagram of the device is included in the exhibits section of this application. (6)A report of measurements is included in this report. (7)Photographs of this device showing the label placement, chassis assembly, and circuit layout are included in the exhibits section of this application. An Actual label photograph is included. (8)This equipment is a stand-alone unit. No peripherals or accessories are involved. (9)Certification under the transition provisions of Paragraph 15.37 is not being requested for this device. (10)N/A. III. GENERAL TEST CONDITIONS AND PROCEDURES Measurement procedures were used as outlined in ANSI C63.4-92, as specified in Part 15.31, except as noted herein. The open field tests were performed on a three-meter range maintained by Carl T. Jones Corporation at the Springfield facility. Complete description and measurement data for the site have been placed on file with the Commission. Carl T. Jones Corporation is listed by the FCC as a facility available to do measurement work for others on a contract basis. Prior to open-field testing, the equipment was placed in a shielded enclosure and scanned at a close distance to determine its emission characteristics. IV. RADIATED EMISSION MEASUREMENTS The transmitter was assembled on a rotatable wooden test stand approximately 0.8 meters in height. The transmitter's antenna was fully extended. The emission spectrum was examined up to 1000 MHz using FCC ID: AEK983249 3 a Hewlett-Packard 8568B spectrum analyzer and Compliance Design "Roberts" tuned dipole antennas. At each emission frequency, the EUT was rotated 360 degrees, and the antenna was raised and lowered from one to four meters to determine the maximum emission levels. Measurements were taken using both horizontal and vertical antenna polarizations. The spectrum analyzer's 6 dB bandwidth was set to 100 kHz. The analyzer was operated in the peak detection mode for measurements of emissions less than 1000 MHz. No post-detector video filters were used. The highest emission amplitudes relative to the appropriate limit were measured and have been recorded in Table 1. All emissions not reported were more than 20 dB below the specified limit. The actual field intensity in decibels above one microvolt per meter (dBuV/m) is determined by algebraically adding the measured level in dBuV, the antenna factor (dB), and the cable loss (dB) at the appropriate frequency. FI a (dBuV/m) = FI m (dBuV) + AF (dB) + CL (dB) FI a = Actual Field Intensity FI m = Measured Field Intensity AF = Antenna Factor CL = Cable Loss As a sample calculation, assume a particular device emits a signal with a frequency of 49.86 MHz. The maximized received signal level measured as 69.4 dB μ V. The total attenuation factor (antenna factor plus cable loss) for 49.86 MHz is 4.8 dB. The actual radiated field is calculated as follows: 69.4 dB μ V + 4.8 dB = 74.2 dBuV/m or 5,128.6 μ V/m (peak) The field strength of the fundamental did not exceed 10,000 uV/m (average) at 3 meters, as specified in Paragraph 15.235. FCC ID: AEK983249 4 As per the requirements defined in 15.209(a), the radiated emission limit at the band edges is 40.0 dB μ V/m (100 μ V/m) at 3 meters. As per the attached spectral plot (Figure 1) the highest emission level at the lower band edge approximately 40 dB below the modulated carrier peak level. At the upper band edge the highest emission level is approximately 40 dB below the modulated carrier peak level. Note: Because the the EUT complies using peak detection (worst case), quasi-peak detection was not used. Based on the maximized peak radiation measurements of the carrier, these emission levels are: Lower Band Edge 74.2 dB μ V/m - 37.0 dB = 37.2 dB μ V/m (at 3 meters), or 72.4 μ V/m Upper Band Edge 74.2 dB μ V/m - 35.0 dB = 39.2 dB μ V/m (at 3 meters), or 91.2 μ V/m All other emissions were found to be in compliance with the restrictions of Paragraph 15.209(a) of the Commission's Rules. Because the emissions were below the limits using peak detection, duty cycle correction factors were not calculated. V. OCCUPIED BANDWIDTH MEASUREMENTS In order to demonstrate compliance with the band edge restrictions of Paragraph 15.235(b), the occupied bandwidth of the EUT was measured. Paragraph 15.235(b) specifies that the field strength of any emissions appearing between the band edges and up to 10 kHz above and below…

Text truncated - open the document above for the full version.

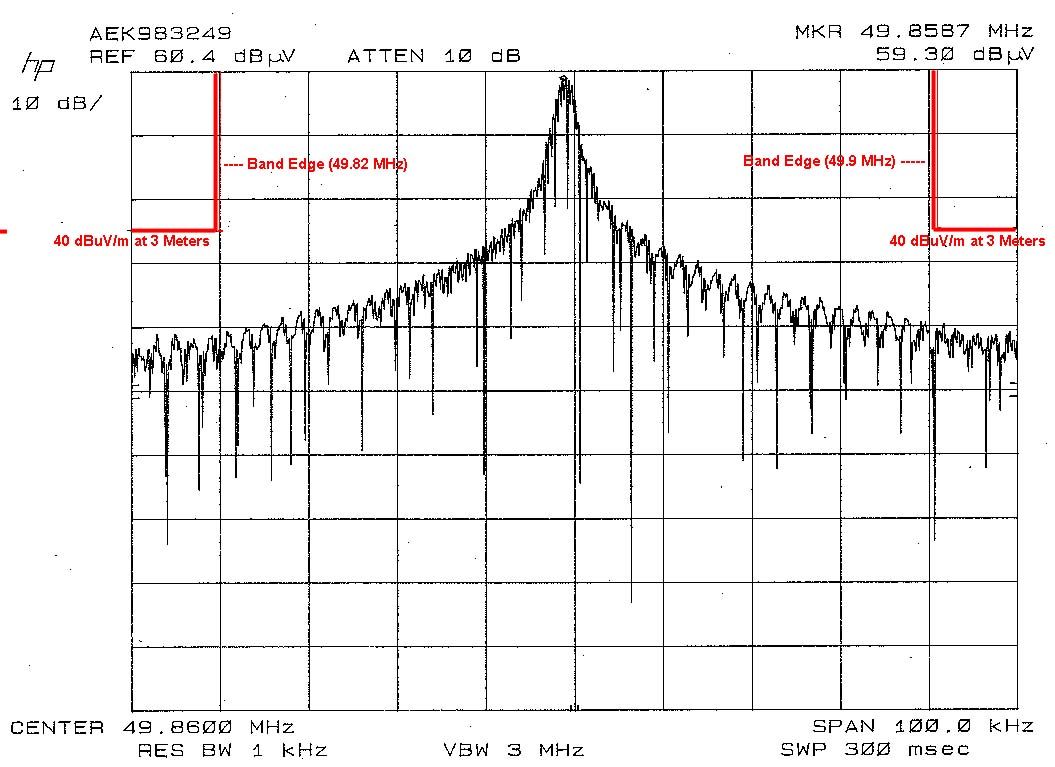

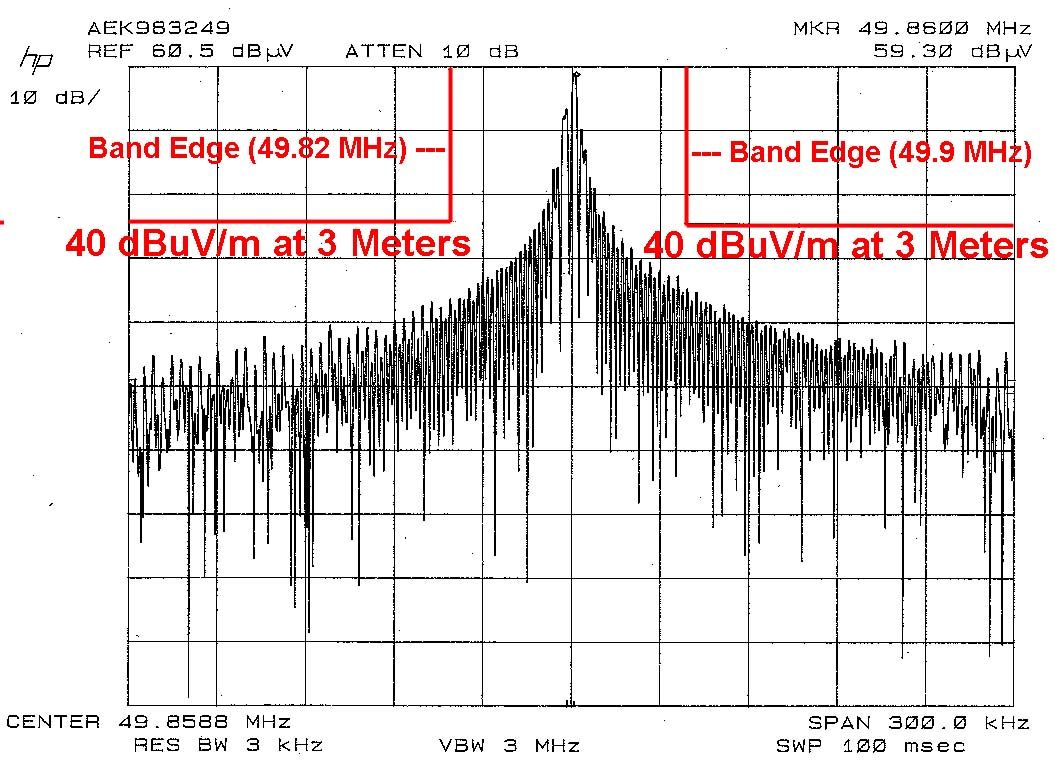

TABLE 1 FIELD STRENGTH RADIATED EMISSIONS DATA SHEET ANTENNA FACTORFCC EMISSION ANTENNA EMISSIONANDEMISSIONLIMIT FREQUENCY POLARITYLEVELCABLE LOSSLEVEL(3 METERS) (MHz) (H,V)(dBuV)(dB)(dBuV/m)(dBuV/m) 49.860V69.4+4.8=74.280.0 49.860H64.0+4.8=68.880.0 99.720V24.2+12.7=36.943.5 99.720H<16.0+12.7=<28.743.5 149.580V<5.0+16.3=<11.343.5 149.580H<9.0+16.3=<25.343.5 199.440V&V<3.5+19.2=<22.743.5 248.300H&V<7.0+21.0=<28.046.0 299.160H&V<1.5+23.0=<24.546.0 349.820H&V<1.5+24.6=<26.146.0 399.880H&V<1.5+26.0=<27.546.0 448.740H&V<1.5+27.3=<28.846.0 498.600H&V<1.5+28.5=<30.046.0 *Fundamental frequency limit is specified in Average Spurious limits are specified in Quasi-Peak All data reported in Peak CLIENT:TAIYO KOGYO FCC ID:AEK983249 MODEL:Micro Bandit TEST DATE:10/26/98 TEST ENGINEER:Michael A. Nicolay
