STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION NEW BEETLE TRANSMITTER FCC ID: AEK992249 I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Part 15 Rules and Regulations. DATED: December 10, 1999 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, VA 22153 (703) 569-7704 [email protected]

Category not applicable for this application .

STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION NEW BEETLE TRANSMITTER FCC ID: AEK992249 I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Part 15 Rules and Regulations. DATED: December 10, 1999 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, VA 22153 (703) 569-7704 [email protected]

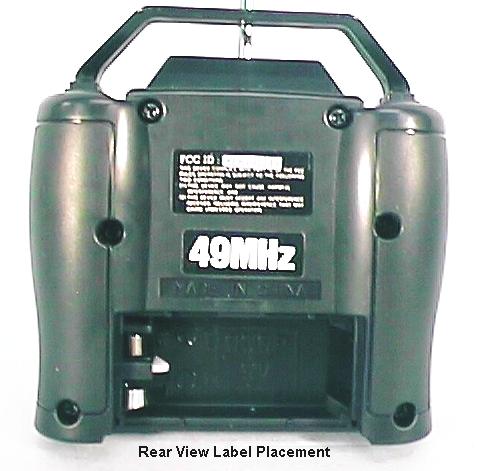

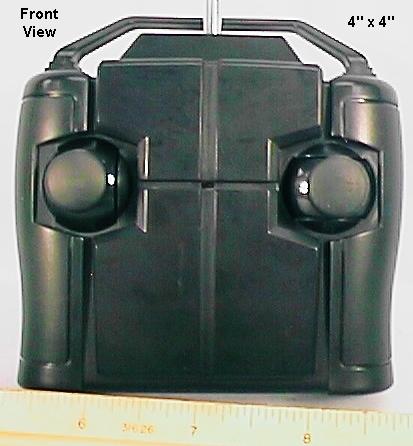

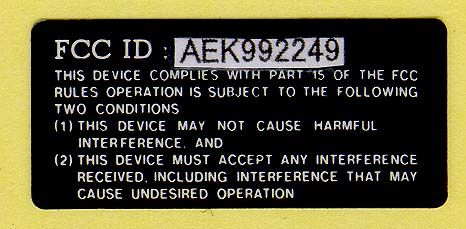

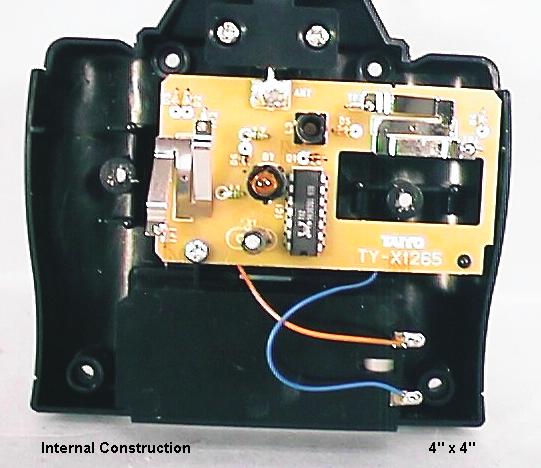

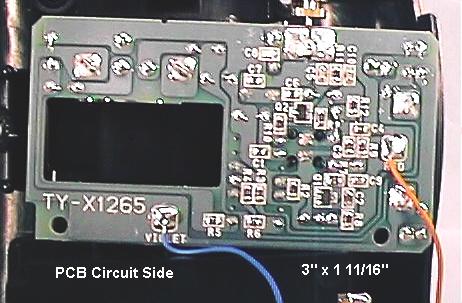

PCB (TOP & BOTTOM) VIEWS [ TOP VIEW ] [ BOTTOM VIEW ]

EXPOSITORY STATEMENT/DESCRIPTION The Beetle R/C Transmitter (FCC ID:992249) is a crystal controlled low- powered digital transmitter. It consists of one large-scale-integrated (LSI) circuit, one crystal, RF amplifier stage, and passive switch controls. See attached block diagram. The LSI chip produces the digital baseband modulation that will be modulated onto the carrier. The carrier is produced via the crystal and RF amplifier stages. The crystal oscillator circuit is comprised of X1 (49.86 MHz) and Q1, its associated passive components. The RF signal from the oscillator circuit is modulated by the digital baseband signals at the base of the RF amplifier stage (Q2). The output of the RF amplifier is attached to the antenna via a matching circuit consisting of C6, L3, and C8 - a “pi” circuit. See attached schematic. The device operates using a single 9.0 VDC Battery. All tuning and verifications are performed by the manufacturer and no external ground is required or used with this transmitter.

NumberParts NameInsertParts NoQ'ty Parts List Date:15/Nov/1999 Page: 1 TY-X126549.860MHzNORMALNORMAL [PCB Name][Frequency][Type] [Buyer] No.3712650-22 Temporary XX-42 Function :Spec : DRAWING No. T1201 R 1RD 1/10WJ 330 TPCC4111-113311 R 2RD 1/10WJ 120K TPCC4111-141211 R 3,R 4,R 5,R 6RD 1/10WJ 1K TPCC4111-121014 R 7RD 1/10WJ 68K TPCC4111-136811 R 8RD 1/10WJ 220 TPCC4111-112211 R 9RD 1/10WJ 560 TPCC4111-115611 R10RD 1/10WJ 10K TPCC4111-131011 R11RD 1/10WJ 100 TPCC4111-111011 R12RD 1/10WJ 470 TPCC4111-114711 TP1,TP2,TP3,TP4TEST PIN 16TS TPAA4121-401614 C 1CC 50VZ 473 TPCC4112-134721 C 2CC 50VJ 15pF TPCC4112-101511 C 3CC 50VD 8pF TPCC4112-1R8011 C 4CC 50VJ 47pF TPCC4112-104711 C 5,C 9,C10CC 25VZ 103 TPCC4112-131023 C 6CC 50VJ 33pF TPCC4112-103311 C 7CC 50VJ 56pF TPCC4112-105611 C 8CC 50VD 6pF TPCC4112-1R6011 L 1,L 2CHOKE COIL K 1uH TPAA4126-1R1012 L 3HF COIL 1.02uH (3pin) YS-134GH4156-210261 X 1CRYSTAL 49.860MHz CSA-309 (STRAIGHT) H4159-349021 X 1CRYSTAL HOLDER4644-980511 D 1ZENER GZS3.3 TPAA4125-233131 D 2,D 3,D 4,D 5DIODE 1SS133 TPAA4125-100034 D 6ZENER GZS5.1 TPAA4125-251131 D 7L.E.D EL333IDH4155-320061 D 7L.E.D. HOLDER D (8910)H2008910-011 Q 1,Q 2TR 2SC 2412K-Q TPCC4113-200512 IC1IC TX2H4157-950041 CN1,CN2N.P. CONTACT M3H4624-C01412 ANTANTENNA TERMINAL (C-13)H212C013-011 PCBP.C.B TY-X12654162-126511 Not on PCB Items TAIYO KOGYO CO.,LTD. Parts : RD--Carbon Resistor , RS--Fixed Carbon Resistor CC--Ceramic Capacitor , EC--Electrolytic Capacitor MC--Myler Capacitor , XC--Semiconduct Capacitor or Myler Capacitor Insert Type : C--Chip , A--Axial , R--Radial , H--Hand PCB (TOP & BOTTOM) VIEWS [ TOP VIEW ] [ BOTTOM VIEW ]

TEST EQUIPMENT USED FOR FCC COMPLIANCE TESTING BY CARL T. JONES CORPORATION MANUFACTURERDEVICE MODEL NUMBER QUANTITY Hewlett PackardSpectrum Analyzer8568B1 Hewlett PackardQuasi-Peak Adapter8565OA1 Hewlett PackardSpectrum Analyzer141 T1 Hewlett PackardRF Section8555A1 Hewlett PackardRF Section8553B1 Hewlett PackardIF Section8552A1 TektronixSpectrum Analyzer7L131 Electro-MetricsSpectrum AnalyzerESA-10002 Hewlett PackardFrequency Counter5245L1 Hewlett PackardFrequency Converter5253B1 Hewlett PackardPre-Amplifier8447E2 Hewlett PackardSignal Generator8656B2 Hewlett PackardSignal Generator606B1 Boonton ElectronicsSignal Generator102B1 Boonton ElectronicsPower Meter42B1 TektronixOscilloscope4751 Marconi InstrumentsAM/FM Modulation MeterTF23001 Compliance Design20 MHz-1000 MHz AntennasRoberts tm 1 Set Solar Electronics50 Microhenry LISN8028-50-TS-24-BNC1 Solar Electronics50 Microhenry LISN8012-50-R-24-BNC2

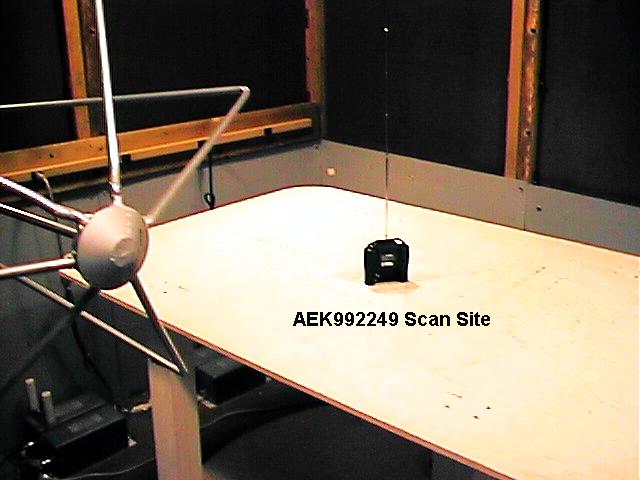

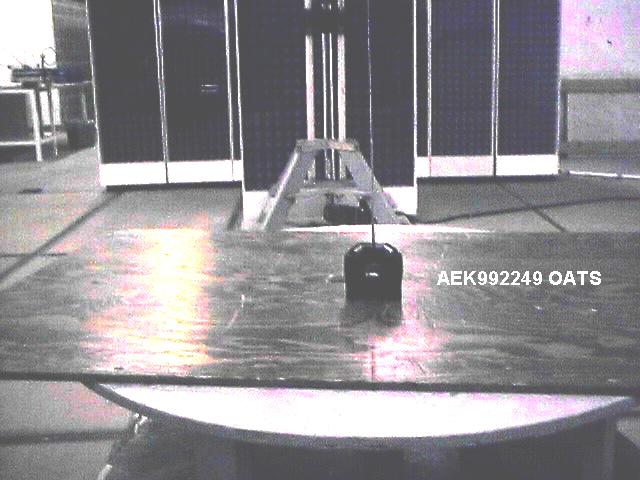

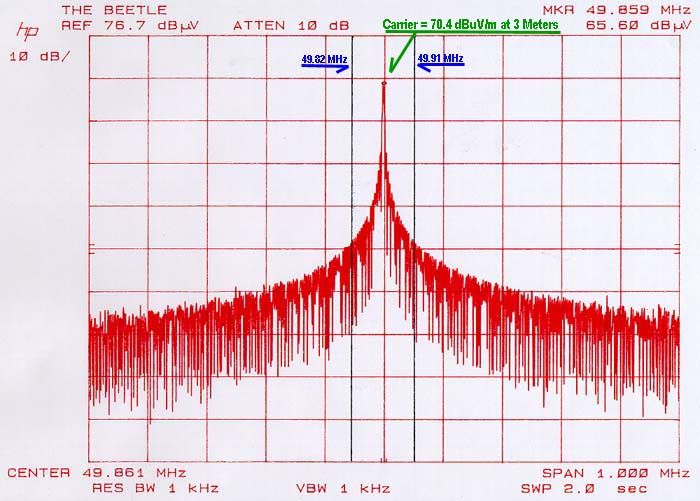

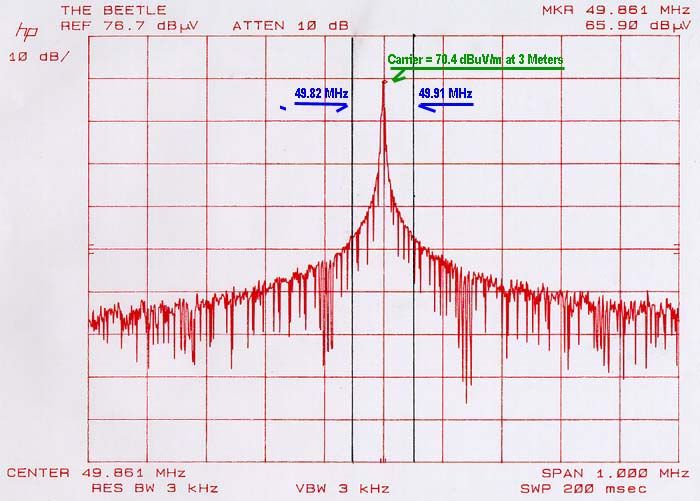

TABLE 1 FIELD STRENGTH RADIATED EMISSIONS DATA SHEE T ANTENNA FACTORFCC EMISSION ANTENNA EMISSIONANDEMISSIONLIMIT FREQUENCY POLARITYLEVELCABLE LOSSLEVEL(3 METERS) (MHz) (H,V)(dBuV)(dB)(dBuV/m)(dBuV/m) 49.860V71.4+4.8=76.280.0 49.860H69.7+4.8=74.580.0 99.720V26.2+12.7=38.443.5 99.720H<19.0+12.7=<31.643.5 149.580V<5.0+16.3=<11.343.5 149.580H<9.0+16.3=<25.343.5 199.440V&V<3.5+19.2=<22.743.5 248.300H&V<7.0+21.0=<28.046.0 299.160H&V<1.5+23.0=<24.546.0 349.820H&V<1.5+24.6=<26.146.0 399.880H&V<1.5+26.0=<27.546.0 448.740H&V<1.5+27.3=<28.846.0 498.600H&V<1.5+28.5=<30.046.0 *Fundamental frequency limit is specified in Averag e Spurious limits are specified in Quasi-Peak All data reported in Pea k CLIENT:TAIYO KOGYO FCC ID:AEK992249 MODEL:BEETLE TEST DATE:12/28/99 TEST ENGINEER:Michael A. Nicolay

FCC ID: AEK992249 1 CERTIFICATION MEASUREMENT REPORT I. INTRODUCTION This measurement report is submitted in support of an Application for Certification in accordance with Part 2, Subpart J and Part 15, Subpart C (effective 6/23/89) of the Federal Communications Commission's Rules and Regulations. The equipment under test (EUT) is a low power pulsed RF transmitter. This transmitter operates at a fixed frequency within the band from 49.82 MHz to 49.90 MHz and is powered by one 9.0 Volt battery. It is identified as the Beetle Transmitter (FCC ID: AEK992249). Operation under the transition provisions of Paragraph 15.37 is not requested for this device. The measurements contained in this report demonstrate compliance with the limitations in effect since 6/23/89. II. INFORMATION REQUIRED FOR CERTIFICATION Paragraph(s) 2.1033(a)This application for certification is filed on FCC Form 731 with all questions answered. An application fee of $940.00 was payed. 2.1033(b)(1)The full name and mailing address of the manufacturer of the device and applicant for certification is: Taiyo Kogyo Co., Ltd. No. 1-23-17, Higashiyotsugi, Katsushika-ku, Tokyo 124 Japan (2)The FCC Identifier of the device is AEK992249. (3)A copy of the installation and operating instructions to be furnished to the user is included in the exhibits section of this application. (4)The transmitter is a hand-held unit and is powered by one 9.0 Volt transistor battery. FCC ID: AEK992249 2 It is designed to operate in the frequency band of 49.82 MHz - 49.90 MHz. Complete circuit schematics are provided in the exhibits section of this application. (5)A block diagram of the device is included in the exhibits section of this application. (6)A report of measurements is included in this report. (7)Photographs of this device showing the label placement, chassis assembly, and circuit layout are included in the exhibits section of this application. An Actual label photograph is included. (8)This equipment is a stand-alone unit. No peripherals or accessories are involved. (9)Certification under the transition provisions of Paragraph 15.37 is not being requested for this device. (10)N/A. III. GENERAL TEST CONDITIONS AND PROCEDURES Measurement procedures were used as outlined in ANSI C63.4-92, as specified in Part 15.31, except as noted herein. The open field tests were performed on a three-meter range maintained by Carl T. Jones Corporation at the Springfield facility. Complete description and measurement data for the site have been placed on file with the Commission. Carl T. Jones Corporation is listed by the FCC as a facility available to do measurement work for others on a contract basis. Prior to open-field testing, the equipment was placed in a shielded enclosure and scanned at a close distance to determine its emission characteristics. IV. RADIATED EMISSION MEASUREMENTS The transmitter was assembled on a rotatable wooden test stand approximately 0.8 meters in height. The transmitter's antenna was fully extended. The emission spectrum was examined up to 1000 MHz using FCC ID: AEK992249 3 a Hewlett-Packard 8568B spectrum analyzer and Compliance Design "Roberts" tuned dipole antennas. At each emission frequency, the EUT was rotated 360 degrees, and the antenna was raised and lowered from one to four meters to determine the maximum emission levels. Measurements were taken using both horizontal and vertical antenna polarizations. The spectrum analyzer's 6 dB bandwidth was set to 100 kHz. The analyzer was operated in the peak detection mode for measurements of emissions less than 1000 MHz. No post-detector video filters were used. The highest emission amplitudes relative to the appropriate limit were measured and have been recorded in Table 1. All emissions not reported were more than 20 dB below the specified limit. The actual field intensity in decibels above one microvolt per meter (dBuV/m) is determined by algebraically adding the measured level in dBuV, the antenna factor (dB), and the cable loss (dB) at the appropriate frequency. FI a (dBuV/m) = FI m (dBuV) + AF (dB) + CL (dB) FI a = Actual Field Intensity FI m = Measured Field Intensity AF = Antenna Factor CL = Cable Loss As a sample calculation, assume a particular device emits a signal with a frequency of 49.86 MHz. The maximized received signal level measured as 71.4 dB μ V. The total attenuation factor (antenna factor plus cable loss) for 49.86 MHz is 4.8 dB. The actual radiated field is calculated as follows: 71.4 dB μ V + 4.8 dB = 76.2 dBuV/m or 6,456.5 μ V/m (peak) The field strength of the fundamental did not exceed 10,000 uV/m (average) at 3 meters, as specified in Paragraph 15.235. FCC ID: AEK992249 4 As per the requirements defined in 15.209(a), the radiated emission limit at the band edges is 40.0 dB μ V/m (100 μ V/m) at 3 meters. As per the attached spectral plot (Figure 1) the highest emission level at the lower band edge approximately 40 dB below the modulated carrier peak level. At the upper band edge the highest emission level is approximately 40 dB below the modulated carrier peak level. Note: Because the the EUT complies using peak detection (worst case), quasi-peak detection was not used. Based on the maximized peak radiation measurements of the carrier, these emission levels are: Lower Band Edge 76.2 dB μ V/m - 38.0 dB = 38.2 dB μ V/m (at 3 meters), or 81.3 μ V/m Upper Band Edge 76.2 dB μ V/m - 37.0 dB = 39.2 dB μ V/m (at 3 meters), or 91.2 μ V/m All other emissions were found to be in compliance with the restrictions of Paragraph 15.209(a) of the Commission's Rules. Because the emissions were below the limits using peak detection, duty cycle correction factors were not calculated. V. OCCUPIED BANDWIDTH MEASUREMENTS In order to demonstrate compliance with the band edge restrictions of Paragraph 15.235(b), the occupied bandwidth of the EUT was measured. Paragraph 15.235(b) specifies that the field strength of any emissions appearing between the band edges and up to 10 kH…
