STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION NEW BEETLE RECEIVER FCC ID: AEK992249R I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Rules and Regulations. DATED: January 3, 2000 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, Virginia, 22304 (703) 569-7704 [email protected]

STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION NEW BEETLE RECEIVER FCC ID: AEK992249R I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Rules and Regulations. DATED: January 3, 2000 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, Virginia, 22304 (703) 569-7704 [email protected]

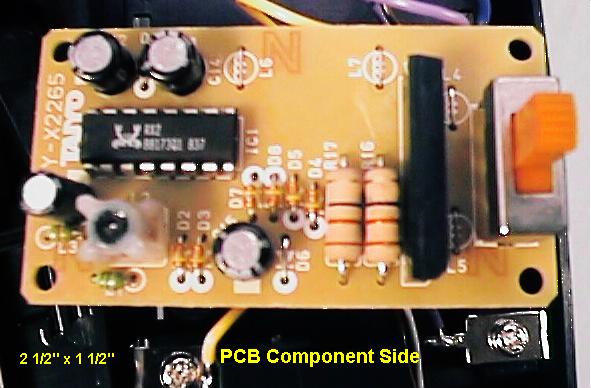

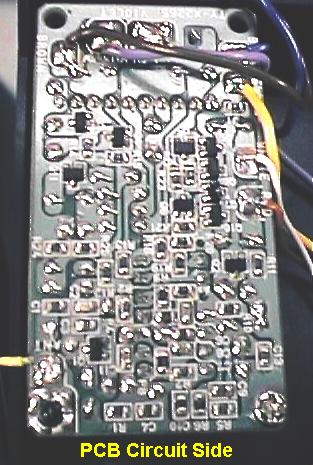

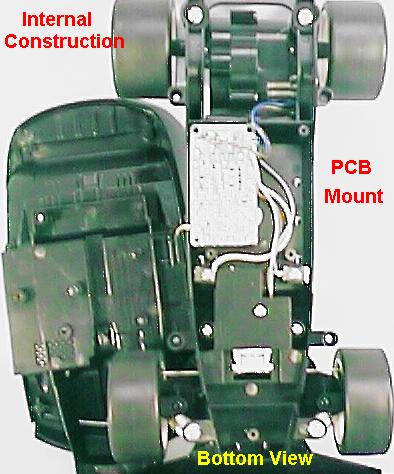

PCB (TOP & BOTTOM) VIEWS [ TOP VIEW ] [ BOTTOM VIEW ]

EXPOSITORY STATEMENT/DESCRIPTION The AEK992249R "The Beetle" is a superheterodyne receiver. The RF input signal enters the LSI (Large Scale Integration) via a permanently attached wire antenna. The antenna length is approximately 15". The superheterodyne receiver operates with an IF frequency of 1 MHz, 49.86 MHz carrier minus 48.86 MHz LO. The LO oscillator frequency is generated by the following external circuit components: - X1 Xtal - 48.86 MHz - X2 - 2.2 uH Coil - X5 - 56k resistor - X3 - 0.68 uH Coil - X4 - 100 pF Capacitor The LSI IC then extracts, internally, the digital modulation control codes from the signal and supplies these control signals to the receivers motor drives for forward/reverse and left/right vehicle functions. The digital control codes are then delivered to the motor controls via the two digital comparitors, IC2 and IC3. These comparitors then control the two electric motors, M1 and M2, to allow the vehicle (toy car receiver) to advance forward (left/right) and reverse (left/right). The receiver system operates on 9 VDC, supplied via one 9 VDC battery. No external ground system is needed or used with this device.

EXPOSITORY STATEMENT/DESCRIPTION FCC ID:AEK992249R The BEETLE The relaxation oscillator receives the RF signal from the transmitter then amplifies and detects the control signals and subsequently supplies the digital control signals to the comparitors and motor drive circuits for controlling the movements of the receiver. The superregenerative receiver is comprised of the superregenerator relaxation oscillator circuit, which consists Q1, and its associated passive components, and the detection circuitry located within IC1. The digital control signals are then supplied to the comparitor circuit and motor drive circuits, via IC1's control signal output ports labeled FWD (forward), BACK, RIGHT, and LEFT. The receiver is powered by a 6 VDC battery pack. No external grounding is used or required. The only tuning required is to tune the relaxation oscillator, L2, to receive the RF from its associated transmitter, and is performed at the manufacturing facility by qualified technicians.

NumberParts NameInsertParts NoQ'ty Parts List Date:15/Nov/1999 Page: 1 TY-X226549MHzNORMALNORMAL [PCB Name][Frequency][Type] [Buyer] No.3722650-21 Temporary Xwith SWITCH Function :Spec : DRAWING No. R1324 R 1RD 1/10WJ 560 TPCC4111-115611 R 2RD 1/10WJ 180K TPCC4111-141811 R 3,R11,R14,R15,R20,R21RD 1/10WJ 4.3K TPCC4111-124316 R 4,R 6,R 8RD 1/10WJ 2.2K TPCC4111-122213 R 5,R 7RD 1/10WJ 2.2M TPCC4111-152212 R 9,R24RD 1/10WJ 120K TPCC4111-141212 R10RD 1/10WJ 330 TPCC4111-113311 R12,R13,R18,R19RD 1/10WJ 1K TPCC4111-121014 R16,R17RS 2W J 22H4151-202222 R22,R23RD 1/10WJ 270 TPCC4111-112712 R25RD 1/10WJ 150K TPCC4111-141511 J 1RD 1/10WJ 0 OHM (JUMPER) TPCC4111-100011 C 1CC 50VC 4pF TPCC4112-1R4011 C 2CC 50VD 6pF TPCC4112-1R6011 C 3CC 50VJ 15pF TPCC4112-101511 C 4CC 50VK 272 TPCC4112-122711 C 5EC 16VM 4.7uF (D5x11)H4152-354721 C 6,C 7CC 25VK 103 TPCC4112-131012 C 8,C10CC 16VK 104 TPCC4112-141012 C 9CC 50VJ 120pF TPCC4112-111211 C11CC 50VK 102 TPCC4112-121011 C12,C14,C15EC 16VM 100uF (D6.3)H4152-371023 C13CC 50VZ 473 TPCC4112-134721 L 1CHOKE COIL K 2.2uH TPAA4126-1R2211 L 2OSC COIL 7 1/2TH4156-307571 L 3CHOKE COIL K 3.3uH TPAA4126-1R3311 L 4,L 5,L 6,L 7,D 6JUMPER WIRE D0.5x5A4121-600015 D 1ZENER GZS3.3 TPAA4125-233131 D 2,D 3,D 4,D 5,D 7,D 8DIODE 1SS133 TPAA4125-100036 Q 1TR 2SC 2712-Y TPCC4113-201011 Q 2TR 2SA 1037AK-Q or KTA 1504-YC4113-A00511 Q 3,Q 4,Q 9,Q10TR 2SD 1781K-Q,R or KTC 3265-YC4113-D00514 Q 5,Q 6,Q11TR 2SC 2412K-Q or KTC 3875-YC4113-C00513 Q 7,Q 8TR 2SB 1197K-Q,R or KTA 1298-YC4113-B00512 IC1IC RX2H4157-950051 IC2IC TAIYO 98-DH4157-410071 SW1SWITCH BBM-224010-14PH4201-020151 PCBP.C.B TY-X22654161-226511 TAIYO KOGYO CO.,LTD. Parts : RD--Carbon Resistor , RS--Fixed Carbon Resistor CC--Ceramic Capacitor , EC--Electrolytic Capacitor MC--Myler Capacitor , XC--Semiconduct Capacitor or Myler Capacitor Insert Type : C--Chip , A--Axial , R--Radial , H--Hand NumberParts NameInsertParts NoQ'ty Parts List Date:15/Nov/1999 Page: 2 TY-X226549MHzNORMALNORMAL [PCB Name][Frequency][Type] [Buyer] No.3722650-21 Temporary Xwith SWITCH Function :Spec : DRAWING No. R1324 Not on PCB Items M 1DRIVE MOTOR3770000-021 M 2STEERING MOTOR3770000-011 C16,C17CC 50VZ 104 (D7)4152-141012 TAIYO KOGYO CO.,LTD. Parts : RD--Carbon Resistor , RS--Fixed Carbon Resistor CC--Ceramic Capacitor , EC--Electrolytic Capacitor MC--Myler Capacitor , XC--Semiconduct Capacitor or Myler Capacitor Insert Type : C--Chip , A--Axial , R--Radial , H--Hand

FCC ID:AEK992249R 1 APPLICATION FOR CERTIFICATION ON BEHALF OF TAIYO KOGYO Co. LTD. The BEETLE R/C RECEIVER FCC ID:AEK992249R January 3, 2000 I. INTRODUCTION This measurement report is submitted in support of an Application for Certification in accordance with Part 2, Subpart J and Part 15, Subpart B (effective 6/23/89) of the Federal Communications Commission's Rules and Regulations. The equipment under test (EUT) is a superhetrodyne receiver which decodes commands from a separate handheld transmitter. This receiver operates at a fixed frequency within the band from 49.82 to 49.90 MHz and is powered by one 9.0 volt battery. The EUT is identified as the Beetle Receiver (FCC ID:AEK992249R). Operation under the transition provisions of Paragraph 15.37 is not requested for this device. The measurements contained in this report demonstrate compliance with the limitations in effect since 6/23/89. II. INFORMATION REQUIRED FOR CERTIFICATION Paragraph(s) (1) 2.1033(a)This application for certification is filed on FCC Form 731 with all questions answered. An application fee of $365 is attached. 2.1033(b)(1)The full name and mailing address of the manufacturer of the device and applicant for certification is: Taiyo Kogyo Co., Ltd. No. 1-23-17, Higashiyotsugi Katsushika-ku, Tokyo Japan FCC ID:AEK992249R 2 (2)The FCC Identifier of the device is AEK992249R. (3)A copy of the installation and operating instructions to be furnished to the user, or a draft copy of such instructions, is included in this exhibits section of this application. (4)This device is a superregenerative receiver powered by one 9.0 volt battery. It is designed to operate on a fixed frequency in the band 49.82 to 49.90 MHz. (5)A block diagram of the device is included in the exhibits section of this application. Schematics are also provided in the exhibits section of this application. No IFs are involved. (6)A report of measurements is included with this report. (7)Photographs of this device showing its general appearance, the FCC Label and its placement are included in the exhibits section of this application. (8)This equipment is a stand-alone unit. No peripherals or accessories are involved. (9)Certification under the transition provisions of Paragraph 15.37 is not being requested for this device. (10) N/A. III. GENERAL TEST CONDITIONS AND PROCEDURES Measurement procedures were used as outlined in MP-1, as specified in Part 15.31, except as noted herein. The open field tests were performed on a three-meter range maintained by Carl T. Jones Corporation at the Springfield facility. Complete description and measurement data for the site have been placed on file with the Commission. Carl T. Jones Corporation is listed by the FCC as a facility available to do measurement work for others on a contract basis. Prior to open-field testing, the equipment was placed in a shielded enclosure and scanned at a distance of 1 meter to determine its emission characteristics. IV. RADIATED EMISSION MEASUREMENTS The receiver was assembled on a rotatable wooden test stand approximately one meter in height. The receiver's antenna was fully extended. Because of the superregenerative nature of the receiver, an FCC ID:AEK992249R 3 unmodulated RF signal was transmitted to it during testing in order to insure proper functionality. The emission spectrum was examined from 30 MHz to 1000 MHz using a Hewlett-Packard 8568B spectrum analyzer and Compliance Design "Roberts" tuned dipole antennas. At each emission frequency, the EUT was rotated 360 degrees, and the antenna was raised and lowered from one to four meters to determine the maximum emission levels. Measurements were taken using both horizontal and vertical antenna polarizations. The spectrum analyzer's 6 dB bandwidth was set to 100 kHz. The analyzer was operated in the CISPR quasi-peak detection mode for measurements of all emissions less than 1000 MHz. No post-detector video filters were used. The EUT was investigated in three orthogonal planes. There were no detectable emissions observed during the EUT's initial scan. Test Results: Because there were no detectable emissions observed during the 1-meter initial scan, the EUT was not taken to the open-area-test-site. See attached spectral plots. The EUT complied with the FCC Limits. Note: SEE ENCLOSED INITIAL FREQUENCY SCAN SPECTRAL PLOTS. The actual field intensity in decibels above one microvolt per meter (dB μ V/m) is determine by algebraically adding the measured level in dB μ V, the antenna factor (dB), and the cable loss (dB) at the appropriate frequency. FI a (dB μ V/m) = FI m (dB μ V) + AF (dB) + CL (dB) FI a = Actual Field Intensity FI m = Measured Field Intensity AF = Antenna Factor CL = Cable Loss FCC ID:AEK992249R 4 As a sample calculation, assume a particular device emits a signal with a frequency of 49.96 MHz. The received signal level is measured as 42.0 dB μ V. The total attenuation factor (antenna factor plus cable loss) for 49.96 MHz is 4.7 dB. The actual radiated field is calculated as follows: 42 dB μ V + 4.7 = 46.7 dB μ V/m In no case did the radiated emissions exceed the limits specified in Paragraph 15.109(a) of the Commission's Rules. V. POWER LINE CONDUCTED EMISSIONS MEASUREMENTS Measurements of the power line conducted emissions were not performed since the EUT has no means for connection to the public utility power grid.

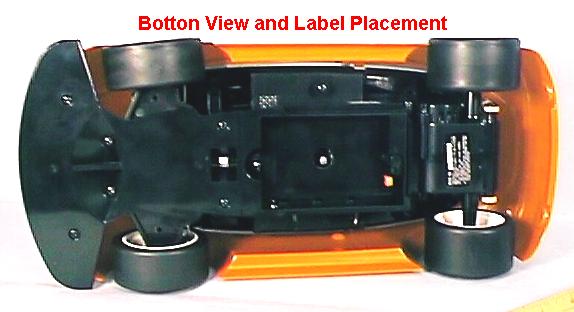

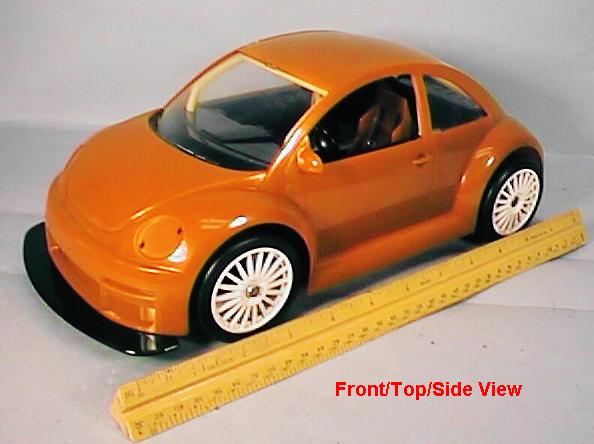

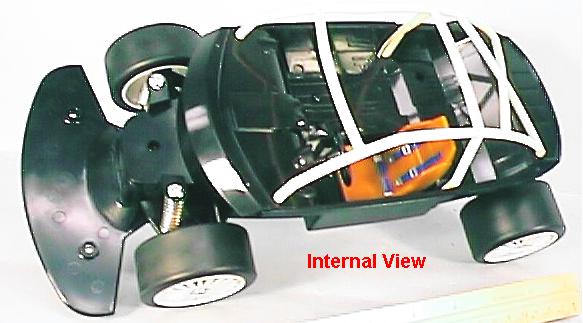

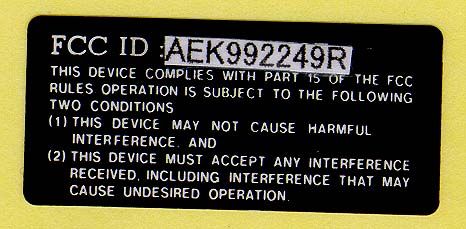

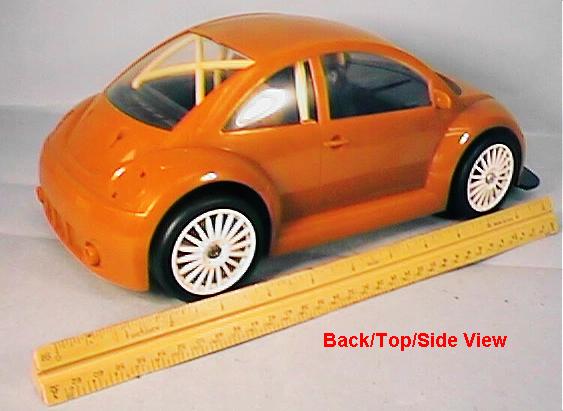

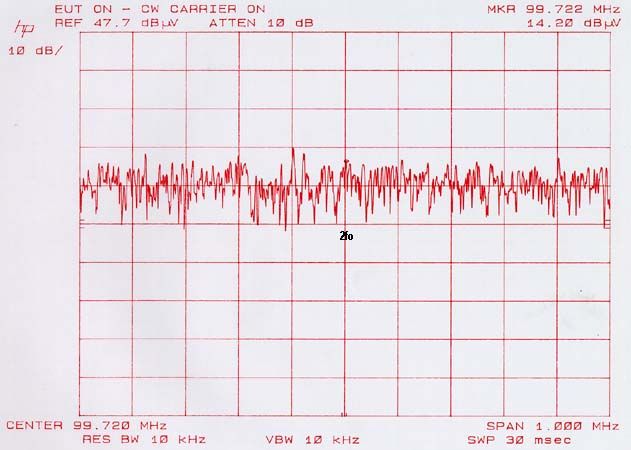

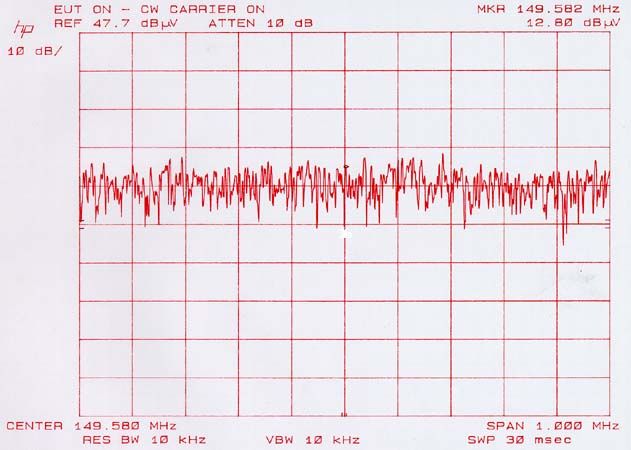

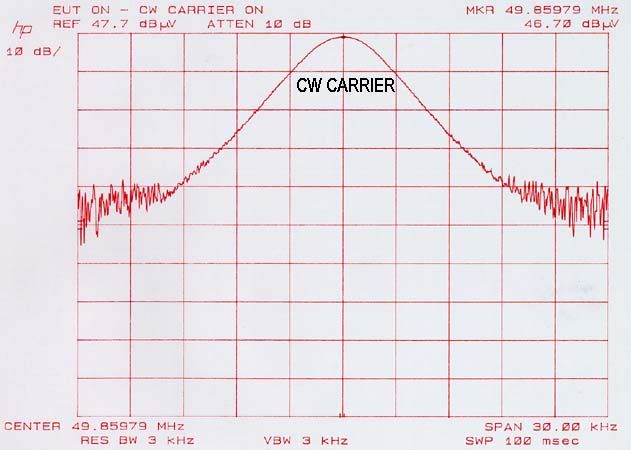

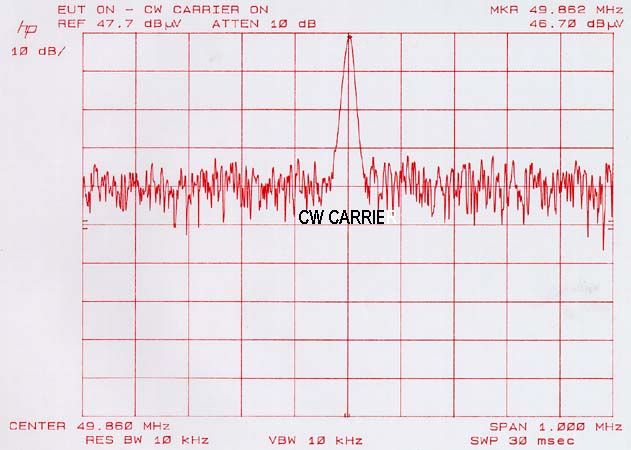

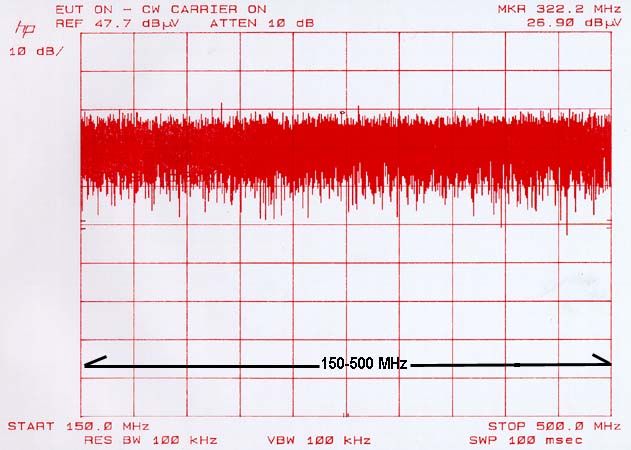

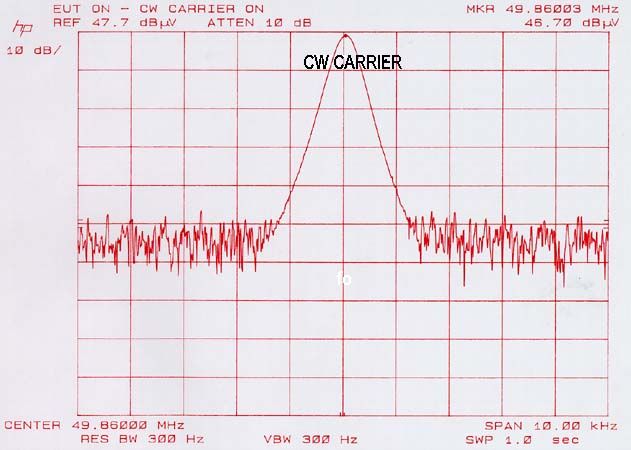

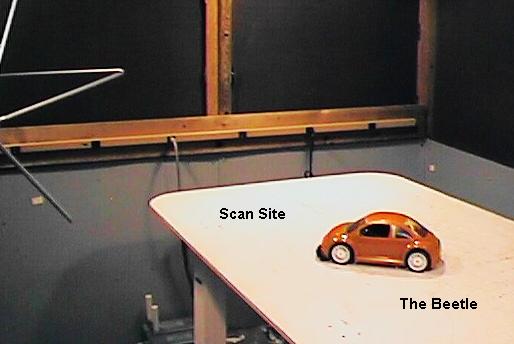

TABLE 1 FIELD STRENGTH RADIATED EMISSIONS DATA SHEET ANTENNA FACTORFCC EMISSIONANTENNAEMISSIONANDEMISSIONLIMIT FREQUENCY POLARITYLEVELCABLE LOSSLEVEL(3 METERS) (MHZ)(H,V)(dBuV)(dB)(dBuV/m)(dBuV/m) Note: No detectable emissions were observed during the 1 meter scan, therefore the EUT was not taken to the open-area-test-site. See attached spectral plots. CLIENT:TAIYO KOGYO FCC ID:AEK992249R MODEL:The Beetle TEST DATE:12/21/99 TEST ENGINEER:Michael A. Nicolay

TEST EQUIPMENT USED FOR FCC COMPLIANCE TESTING BY CARL T. JONES CORPORATION MANUFACTURERDEVICE MODEL NUMBER QUANTITY Hewlett PackardSpectrum Analyzer8568B1 Hewlett PackardQuasi-Peak Adapter8565OA1 Hewlett PackardSpectrum Analyzer141 T1 Hewlett PackardRF Section8555A1 Hewlett PackardRF Section8553B1 Hewlett PackardIF Section8552A1 TektronixSpectrum Analyzer7L131 Electro-MetricsSpectrum AnalyzerESA-10002 Hewlett PackardFrequency Counter5245L1 Hewlett PackardFrequency Converter5253B1 Hewlett PackardPre-Amplifier8447E2 Hewlett PackardSignal Generator8656B2 Hewlett PackardSignal Generator606B1 Boonton ElectronicsSignal Generator102B1 Boonton ElectronicsPower Meter42B1 TektronixOscilloscope4751 Marconi InstrumentsAM/FM Modulation MeterTF23001 Compliance Design20 MHz-1000 MHz AntennasRoberts tm 1 Set Solar Electronics50 Microhenry LISN8028-50-TS-24-BNC1 Solar Electronics50 Microhenry LISN8012-50-R-24-BNC2
